Safety features of your vehicle
Passenger’s front air bag
(Continued)
WARNING
To reduce the chance of serious or
Always use seat belts and child
fatal injuries and receive the maxi-
restraints - every trip, every time,
mum safety benefit from your
everyone! Air bags inflate with con-
restraint system:
siderable force and in the blink of
•
Never place a child in any child or
an eye. Seat belts help keep occu-
booster seat in the front seat.
pants in proper position to obtain
maximum benefit from the air bag.
•
ABC - Always Buckle Children in
Even with air bags, improperly and
the back seat. It is the safest
place for children of any age to
unbelted occupants can be severe-
ride.
ly injured when the air bag inflates.
OTQ037025/H
Always follow the precautions
•
Front air bags can injure occu-
about seat belts, air bags and occu-
pants improperly positioned in
The purpose of the SRS is to provide the
pant safety contained in this manu-
the front seats.
vehicle's driver and/or the front passen-
al.
•
Move your seat as far back as
ger with additional protection than that
offered by the seat belt system alone in
(Continued)
practical from the front air bags,
case of a frontal impact of sufficient
whilst still maintaining control of
severity.
the vehicle.
•
You and your passengers should
never sit or lean unnecessarily
close to the air bags. Improperly
positioned drivers and passen-
gers can be severely injured by
inflating air bags.
•
Never lean against the door or
centre console - always sit in an
upright position.
(Continued)
3 48
Safety features of your vehicle
(Continued)
(Continued)
(Continued)
•
No objects should be placed over
•
Air bags can only be used once -
•
A child restraint system must
or near the air bag modules on
we recommend that the system
never be placed in the front seat.
the steering wheel, instrument
be replaced by a HYUNDAI autho-
The infant or child could be
panel, and the front passenger's
rised repairer.
severely injured or killed by an air
panel above the glove box,
•
The SRS is designed to deploy
bag deployment in case of an
because any such object could
the front air bags only when an
accident.
cause harm if the vehicle is in a
impact is sufficiently severe and
•
Children age 12 and under must
crash severe enough to cause
when the impact angle is less
always be properly restrained in
the air bags to deploy.
than 30° from the forward longitu-
the rear seat. Never allow chil-
•
Do not tamper with or disconnect
dinal axis of the vehicle.
dren to ride in the front passen-
SRS wiring or other components
Additionally, the air bags will only
ger seat. If a child over 12 must
of the SRS system. Doing so
deploy once. Seat belts must be
be seated in the front seat, he or
could result in injury, due to acci-
worn at all times.
she must be properly belted and
dental deployment of the air bags
•
Front air bags are not intended to
the seat should be moved as far
or by rendering the SRS inopera-
deploy in side-impact, rear-
back as possible.
tive.
impact or rollover crashes. In
•
For maximum safety protection in
•
If the SRS air bag warning light
addition, front air bags will not
all types of crashes, all occu-
(
) remains illuminated whilst
deploy in frontal crashes below
pants including the driver should
the vehicle is being driven, we
the deployment threshold.
always wear their seat belts
recommend that the system be
(Continued)
whether or not an air bag is also
inspected by a HYUNDAI autho-
provided at their seating position
rised repairer.
to minimise the risk of severe
(Continued)
injury or death in the event of a
crash. Do not sit or lean unneces-
sarily close to the air bag whilst
the vehicle is in motion.
(Continued)
3 49
Safety features of your vehicle
The purpose of the air bag is to provide
(Continued)
the vehicle's driver and/or the front pas-
•
Sitting improperly or out of posi-
senger with additional protection than
tion can result in serious or fatal
that offered by the seat belt alone.
injury in a crash. All occupants
The side impact air bags are designed to
should sit upright with the seat
deploy during certain side-impact colli-
back in an upright position, cen-
sions, depending on the crash severity,
tred on the seat cushion with
angle, speed and point of impact.
their seat belt on, legs comfort-
The side air bags are not designed to
ably extended and their feet on
deploy in all side impact situations.
the floor until the vehicle is
parked and the ignition key is
ODM032043
removed.
WARNING
•
The SRS air bag system must
Do not allow the passengers to lean
deploy very rapidly to provide
their heads or bodies onto doors,
protection in a crash. If an occu-
put their arms on the doors, stretch
pant is out of position because of
their arms out of the window, or
not wearing a seat belt, the air
place objects between the doors
bag may forcefully contact the
and passengers when they are
occupant causing serious or fatal
seated on seats equipped with side
injuries.
and air bags.
OTQ036204
Side impact air bag (if equipped)
❈ The actual air bags in the vehicle may dif-
fer from the illustration.
Your vehicle is equipped with a side
impact air bag in each front seat.
3 50
Safety features of your vehicle
(Continued)
WARNING
•
Do not use any accessory seat
•
The side impact air bag is sup-
covers.
plemental to the driver's and the
•
Use of seat covers could reduce
passenger's seat belt systems
or prevent the effectiveness of
and is not a substitute for them.
the system.
Therefore your seat belts must be
worn at all times while the vehicle
•
Do not install any accessories on
is in motion. The air bags deploy
the side or near the side impact
in certain side impact conditions
air bag.
severe enough to cause signifi-
•
Do not place any objects over the
cant injury to the vehicle occu-
air bag or between the air bag
pants.
and yourself.
•
For best protection from the side
•
Do not place any objects
(an
impact air bag system and to
umbrella, bag, etc.) between the
avoid being injured by the
front door and the front seat. Such
deploying side impact air bag,
objects may become dangerous
both front seat occupants should
projectiles and cause injury if the
sit in an upright position with the
supplemental side impact air bag
seat belt properly fastened. The
inflates.
passenger's arms and hands
•
To prevent unexpected deploy-
should be placed on their laps.
ment of the side impact air bag that
(Continued)
may result in personal injury, avoid
impact to the side impact sensor
when the ignition key is on.
•
If the seat or seat cover is dam-
aged, we recommend that the
system be serviced by an author-
ized HYUNDAI dealer.
3 51
Safety features of your vehicle
Air bag system operation
(deployment/non deployment)

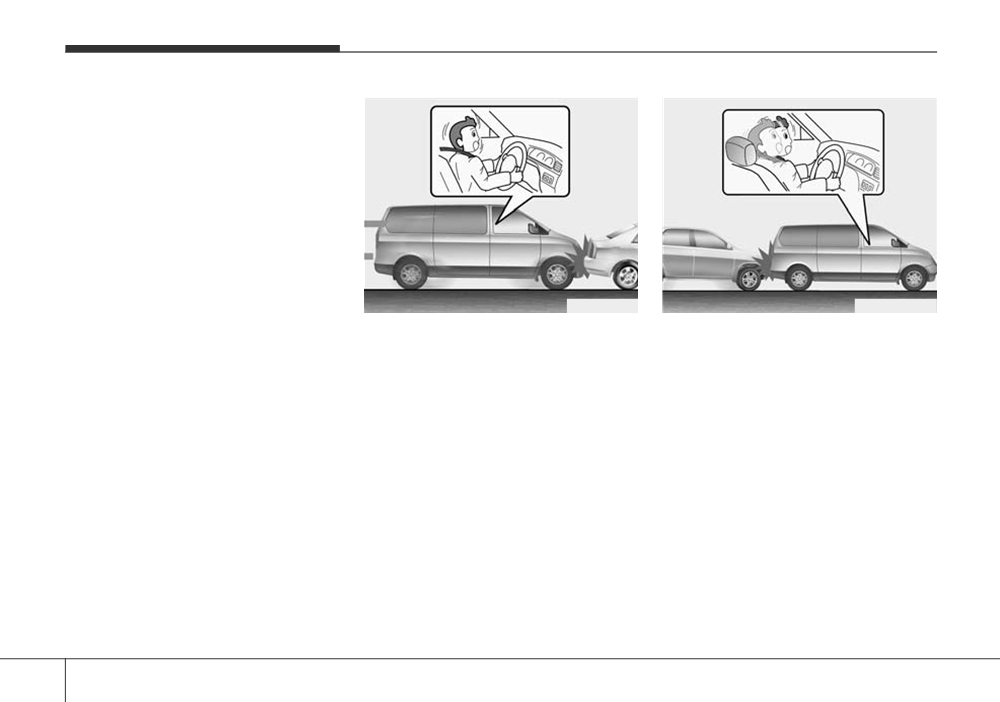

There are many types of accidents in
which the air bag would not be expect-
ed to provide additional protection.
These include rear impacts, second or
third collisions in multiple impact
accidents, as well as low speed
impacts.
OTQ036026/OTQ037027/OTQ037028/OTQ036202

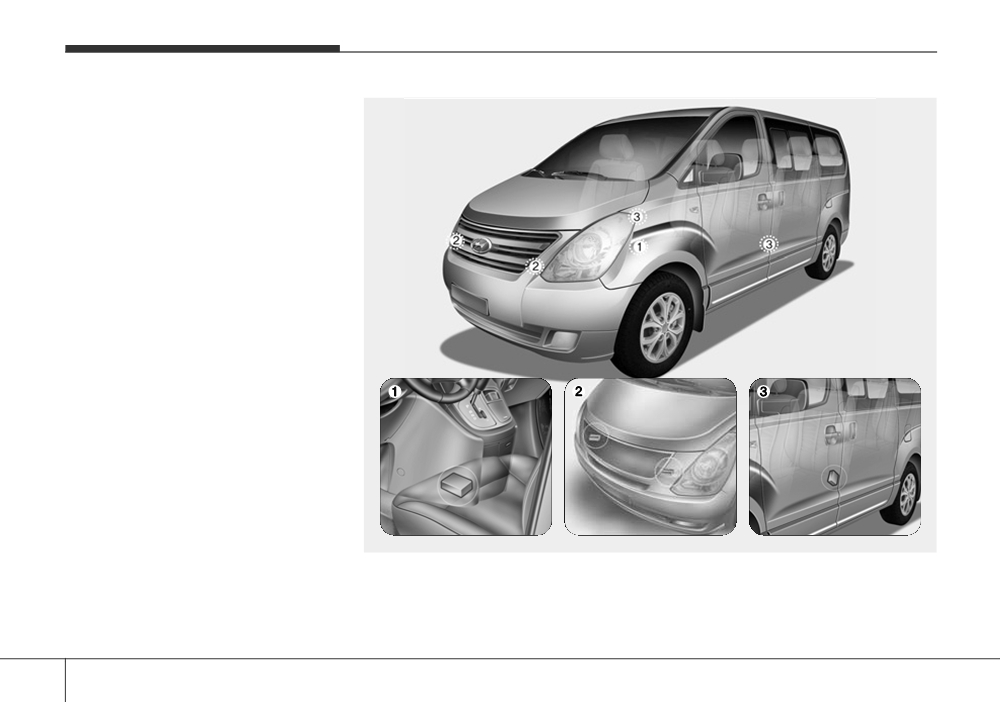

Air bag collision sensors
(1) SRS control module
(2) Front impact sensor
(3) Side impact sensors
3 52
Safety features of your vehicle
(Continued)
WARNING
•
Problems may arise if the sensor
•
Do not hit or allow any objects to
installation angles are changed
impact the locations where air
due to the deformation of the
bags or sensors are installed.
front bumper, body. We recom-
This may cause unexpected air
mend that the system be serviced
bag deployment, which could
by a HYUNDAI authorised repair-
result in serious personal injury
er.
or death.
•
Your vehicle has been designed
•
If the installation location or
to absorb impact and deploy the
angle of the sensors is altered in
air bag(s) in certain collisions.
any way, the air bags may deploy
Installing bumper guards or
1TQA2084/H
when they should not or they may
replacing a bumper with non-gen-
not deploy when they should,
Air bag inflation conditions
uine parts may adversely affect
causing severe injury or death.
Front air bags
your vehicle’s collision and air
Therefore, do not try to perform
bag deployment performance.
Front air bags are designed to inflate in a
maintenance on or around the air
frontal collision depending on the intensi-
bag sensors. We recommend that
ty, speed or angles of impact of the front
the system be serviced by a
collision.
HYUNDAI authorised repairer.
(Continued)
3 53
Safety features of your vehicle
Although the front air bags (driver’s and
front passenger’s air bags) are designed
to inflate only in frontal collisions, they
also may inflate in other types of colli-
sions if the front impact sensors detect a
sufficient impact.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
1TQA2086/H
OTQ036087/H
Air bag non-inflation conditions
•
Frontal air bags are not designed to
• In certain low-speed collisions the air
inflate in rear collisions, because occu-
bags may not deploy. The air bags are
pants are moved backward by the
designed not to deploy in such cases
force of the impact. In this case, inflat-
because they may not provide benefits
ed air bags would not be able to pro-
beyond the protection of the seat belts
vide any additional benefit.
in such collisions.
3 54
Safety features of your vehicle
1TQA2088/H
1TQA2089/H
OTQ052215/H

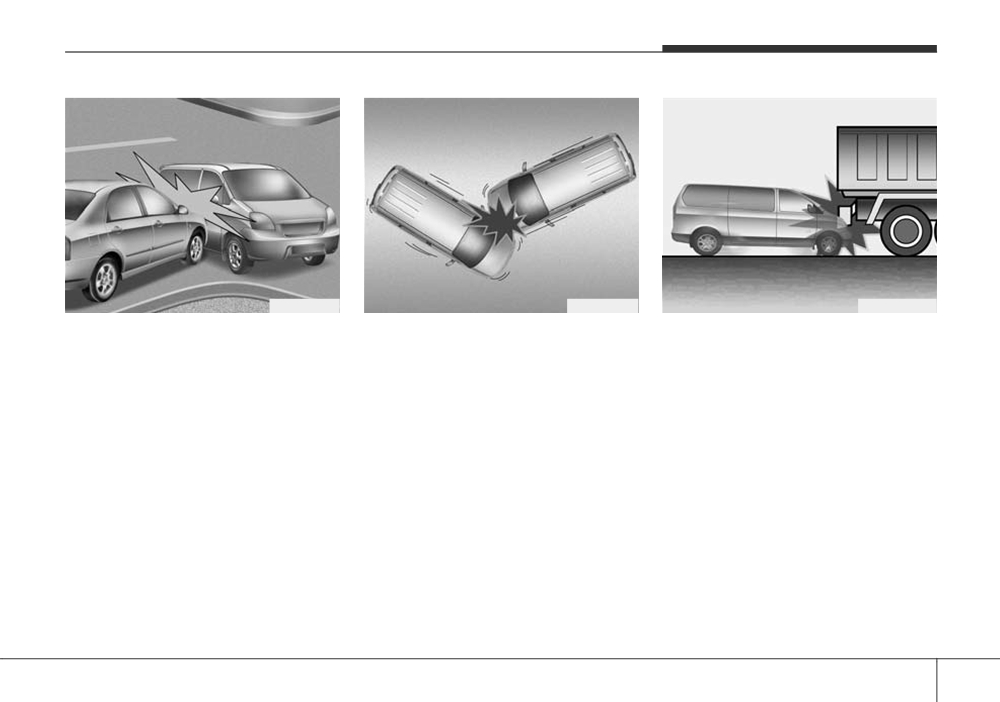

• Front air bags may not inflate in side
• In an angled collision, the force of
• Just before impact, drivers often brake
impact collisions, because occupants
impact may direct the occupants in a
heavily. Such heavy braking lowers the
move to the direction of the collision,
direction where the air bags would not
front portion of the vehicle causing it to
and thus in side impacts, frontal air bag
be able to provide any additional bene-
“ride” under a vehicle with a higher
deployment would not provide addi-
fit, and thus the sensors may not
ground clearance. Air bags may not
tional occupant protection.
deploy any air bags.
inflate in this "under-ride" situation
because deceleration forces that are
detected by sensors may be signifi-
cantly reduced by such “under-ride”
collisions.
3 55
Safety features of your vehicle
SRS Care
The SRS is virtually maintenance-free
and so there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate or if it
continuously remains on, we recommend
that the system be inspected by a
HYUNDAI authorised repairer.
1TQA2091
1TQA2092/H

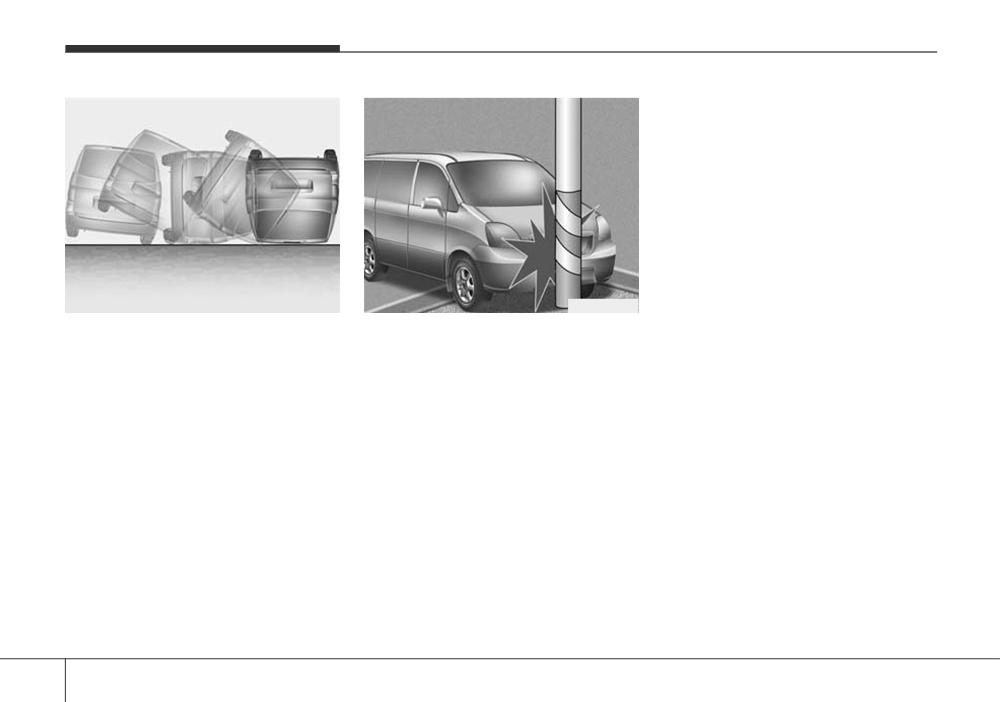

• Air bags may not inflate in rollover acci-
• Air bags may not inflate if the vehicle
dents because air bag deployment
collides with objects such as utility
would not provide protection to the
poles or trees, where the point of
occupants.
impact is concentrated to one area and
the full force of the impact is not deliv-
ered to the sensors.
3 56
Safety features of your vehicle
Additional safety precautions
(Continued)
WARNING
•
Never let passengers ride in the
•
Do not tamper with or disconnect
•
Modification to SRS components
cargo area or on top of a folded-
SRS wiring, or other components
or wiring, including the addition
down back seat. All occupants should
of the SRS system. Doing so
of any kind of badges to the pad
sit upright, fully back in their seats with
could result in injury, due to acci-
covers or modifications to the
their seat belts on and their feet on the
dental inflation of the air bags or
body structure, can adversely
floor.
by rendering the SRS inopera-
affect SRS performance and lead
•
Passengers should not move out of
tive.
to possible injury.
or change seats whilst the vehicle is
•
If components of the air bag sys-
•
For cleaning the air bag pad cov-
moving. A passenger who is not wear-
tem must be discarded, or if the
ers, use only a soft, dry cloth or
ing a seat belt during a crash or emer-
one which has been moistened
vehicle must be scrapped, certain
gency stop can be thrown against the
with plain water. Solvents or
safety precautions must be
inside of the vehicle, against other
cleaners could adversely affect
observed. A HYUNDAI authorised
occupants, or out of the vehicle.
the air bag covers and proper
repairer knows these precautions
•
Each seat belt is designed to
deployment of the system.
and can give you the necessary
restrain one occupant. If more than
•
No objects should be placed over
information. Failure to follow
one person uses the same seat belt,
or near the air bag modules on
these precautions and proce-
they could be seriously injured or killed
the steering wheel, instrument
dures could increase the risk of
in a collision.
panel, and the front passenger's
personal injury.
•
Do not use any accessories on seat
panel above the glove box,
•
If your car was flooded and has
belts. Devices claiming to improve
because any such object could
soaked carpeting or water on the
cause harm if the vehicle is in a
flooring, you shouldn't try to start
occupant comfort or reposition the seat
belt can reduce the protection provided
crash severe enough to cause
the engine; we recommend that
the air bags to inflate.
by the seat belt and increase the
you contact a HYUNDAI autho-
chance of serious injury in a crash.
•
If the air bags inflate, we recom-
rised repairer.
mend that the system be
•
Passengers should not place hard
replaced by a HYUNDAI autho-
or sharp objects between them-
rised repairer.
selves and the air bags. Carrying
hard or sharp objects on your lap or in
(Continued)
your mouth can result in injuries if an
air bag inflates.
3 57
Safety features of your vehicle
•
Keep occupants away from the air
Adding equipment to or modify-
bag covers. All occupants should sit
WARNING
ing your air bag-equipped vehicle
upright, fully back in their seats with
•
Sitting improperly or out of posi-
If you modify your vehicle by changing
their seat belts on and their feet on the
tion can cause occupants to be
your vehicle's frame, bumper system,
floor. If occupants are too close to the
shifted too close to a deploying
front end or side sheet metal or ride
air bag covers, they could be injured if
air bag, strike the interior struc-
height, this may affect the operation of
the air bags inflate.
ture or be thrown from the vehicle
your vehicle's air bag system.
•
Do not attach or place objects on or
resulting in serious injury or
near the air bag covers. Any object
death.
attached to or placed on the front air
•
Always sit upright with the seat-
bag covers could interfere with the
back in an upright position, cen-
proper operation of the air bags.
tred on the seat cushion with
•
Do not modify the front seats.
your seat belt on, legs comfort-
Modification of the front seats could
ably extended and your feet on
interfere with the operation of the sup-
the floor.
plemental restraint system sensing
components.
•
Do not place items under the front
seats. Placing items under the front
seats could interfere with the operation
of the supplemental restraint system
sensing components and wiring har-
nesses.
•
Never hold an infant or child on your
lap. The infant or child could be seri-
ously injured or killed in the event of a
crash. All infants and children should
be properly restrained in appropriate
child safety seats or seat belts in the
rear seat.
3 58
Safety features of your vehicle
*
* : if equipped
OTQ037029
Air bag warning label
Air bag warning labels are attached to
alert driver and passengers
(including
children) of the potential risks from the air
bag system.
Note that these government warnings
focus on the risk to children, we also
wants you to be aware of the risks which
adults are exposed to. Those have been
described in previous pages.
3 59
Keys / 4-2
Remote keyless entry
/ 4-4
Theft-alarm system / 4-7
Door locks / 4-9
Tailgate / 4-14
Windows / 4-17
Bonnet / 4-22
Fuel filler lid
/ 4-24
Sunroof / 4-27
Features of your vehicle
4
Steering wheel / 4-32
Mirrors / 4-35
Instrument cluster / 4-39
Rear parking assist system / 4-60
Hazard warning flasher / 4-63
Rearview camera / 4-63
Lighting / 4-64
Wipers and washers / 4-69
Interior light / 4-72
Defroster / 4-74
Manual climate control system / 4-75
Automatic climate control system / 4-88
Windscreen defrosting and defogging / 4-100
Storage compartment / 4-104
Interior features / 4-107
Audio system / 4-131
Features of your vehicle
KEYS
Record your key number
Key operations
Used to start the engine, lock and unlock
WARNING
The key code number is
stamped or printed on
the doors.
We recommend that you use parts
the bar code tag
for replacement from a HYUNDAI
attached to the key set.
authorised repairer.
WARNING - Ignition key
Should you lose your
If an aftermarket key is used, the
keys, we recommend that you contact a
Leaving children unattended in a
ignition switch may not return to
vehicle with the ignition key is dan-
HYUNDAI authorised repairer.
ON after START. If this happens,
gerous even if the key is not in the
Remove the key code tag and store it in
the starter will continue to operate
ignition switch is ACC or ON posi-
a safe place. Also, record the code num-
causing damage to the starter
ber and keep it in a safe and handy
tion. Children copy adults and they
motor and possible fire due to
place, but not in the vehicle.
could place the key in the ignition
excessive current in the wiring.
switch.
The ignition key would enable chil-
dren to operate power windows or
other controls, or even make the
vehicle move, which could result in
serious bodily injury or even death.
Never leave the keys in your vehicle
with unsupervised children, when
the engine is running.
4 2
Features of your vehicle
Immobiliser system
✽ NOTICE
WARNING
Your vehicle may be equipped with an
If you need additional keys or lose your
electronic engine immobiliser system to
In order to prevent theft of your
keys, we recommend that you consult a
reduce the risk of unauthorised vehicle
vehicle, do not leave spare keys
HYUNDAI authorised repairer.
use.
anywhere in your vehicle. Your
Your immobiliser system is comprised of
immobiliser password is a cus-
CAUTION
a small transponder in the ignition key
tomer unique password and should
be kept confidential. Do not leave
The transponder in your ignition
and electronic devices inside the vehicle.
key is an important part of the
this number anywhere in your vehi-
With the immobiliser system, whenever
cle.
immobiliser system. It is designed
you insert your ignition key into the igni-
to give years of trouble-free service,
tion switch and turn it to ON, it checks
however you should avoid expo-
and determines and verifies if the ignition
✽ NOTICE
sure to moisture, static electricity
key is valid or not.
The immobiliser system detects the
and rough handling. Immobiliser
If the key is determined to be valid, the
presence of a key in the ignition switch.
system malfunction could occur.
engine will start.
To ensure the system performs correct-
If the key is determined to be invalid, the
ly, the keys should be separated after
engine will not start.
delivery of the vehicle so that only one
CAUTION
key is near the ignition switch when
Do not change, alter or adjust the
To deactivate the immobiliser sys-
using the vehicle. The engine may not
immobiliser system because it
tem:
start or may stop shortly after starting if
could cause the immobiliser sys-
Insert the ignition key into the key cylin-
more than one key is near the ignition
tem to malfunction.We recommend
switch.
der and turn it to the ON position.
that the system be serviced by a
HYUNDAI authorised repairer.
To activate the immobiliser system:
CAUTION
Malfunctions caused by improper
Turn the ignition key to the OFF position.
Do not put metal accessories near
alterations, adjustments or modifi-
The immobiliser system activates auto-
the ignition switch.
cations to the immobiliser system
matically. Without a valid ignition key for
The engine may not start for the
are not covered by your vehicle
your vehicle, the engine will not start.
metal accessories may interrupt the
manufacturer warranty.
transponder signal from normally
transmitting.
4 3
Features of your vehicle
REMOTE KEYLESS ENTRY (IF EQUIPPED)
■ Type A
Unlock
■ Type B
All doors (and tailgate) are unlocked if
the lock/unlock button
(1) is pressed
when both front doors are locked.
The hazard warning lights will blink twice
again to indicate that all doors (and tail-
gate) are unlocked.
After depressing this button, the doors
(and tailgate) will be locked automatical-
ly unless you open any door within 30
seconds.
OTQ047002
OTQ045220
Remote keyless entry system
•
To unfold the key, press the release
operations
button then the key will unfold auto-
matically.
Lock
•
To fold the key, fold the key manually
All doors (and tailgate) are locked if the
whilst pressing the release button.
lock/unlock button (1) is pressed when a
front door is unlocked.
If all doors (and tailgate) are closed, the
CAUTION
hazard warning lights blink once to indi-
Do not fold the key without press-
cate that all doors
(and tailgate) are
ing the release button. This may
locked.
damage the key.
However, if any door (or tailgate) remains
open, the hazard warning lights will not
operate. If all doors
(and tailgate) are
closed after the lock button is pressed,
the hazard warning lights blink.
4 4
Features of your vehicle
Transmitter precautions
(Continued)
• If the transmitter is in close proximity
CAUTION
✽ NOTICE
to your cell phone or smart phone, the
Changes or modifications not
The transmitter will not work if any of
signal from the transmitter could be
expressly approved by the party
following occur:
blocked by normal operation of your
responsible for compliance could
•
The ignition key is in ignition switch.
cell phone or smart phone. This is
void the user’s authority to operate
•
You exceed the operating distance
especially important when the phone
the equipment. If the keyless entry
limit (about 30 feet [10 m]).
is active such as making call, receiving
system is inoperative due to
•
The battery in the transmitter is
calls, text messaging, and/or sending/
changes or modifications not
weak.
receiving emails. Avoid placing the
expressly approved by the party
•
Other vehicles or objects may be
transmitter and your cell phone or
responsible for compliance, it will
blocking the signal.
smart phone in the same pants or
not be covered by your manufactur-
•
The weather is extremely cold.
jacket pocket and maintain adequate
er’s vehicle warranty.
•
The transmitter is close to a radio
distance between the two devices.
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
CAUTION
CAUTION
When the transmitter does not work
Keep the transmitter away from
Keep the transmitter away from
correctly, open and close the door with
electromagnetic materials that
water or any liquid. If the keyless
the ignition key. If you have a problem
blocks electromagnetic waves to
entry system is inoperative due to
with the transmitter, we recommend
the key surface.
exposure to water or liquids, it will
that you contact a HYUNDAI autho-
not be covered by your manufactur-
rised repairer.
er vehicle warranty.
(Continued)
4 5
