Features of your vehicle
Flex steering wheel
■ Type A
If the steering wheel mode button is
(if equipped)
not pressed for about 4 seconds, the
LCD display will change to the previ-
ous screen.
ODM042040
■ Type B
ODM042039
The flex steering wheel controls
steering effort as driver's preference
or road condition.

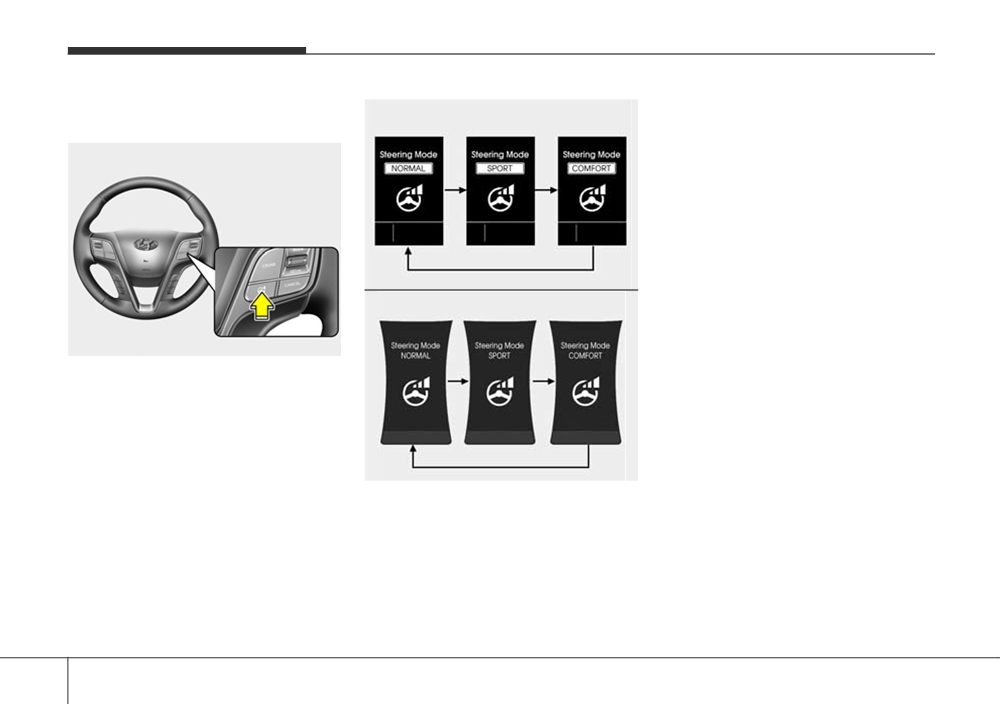

You can select the desired steering
mode by pressing the steering mode
button.
ODM042044
When the steering mode button is
pressed, the selected steering mode
will appear on the LCD display.
If the steering mode button is pressed
within 4 seconds, the steering mode
will change as above pictures.
4 52
Features of your vehicle

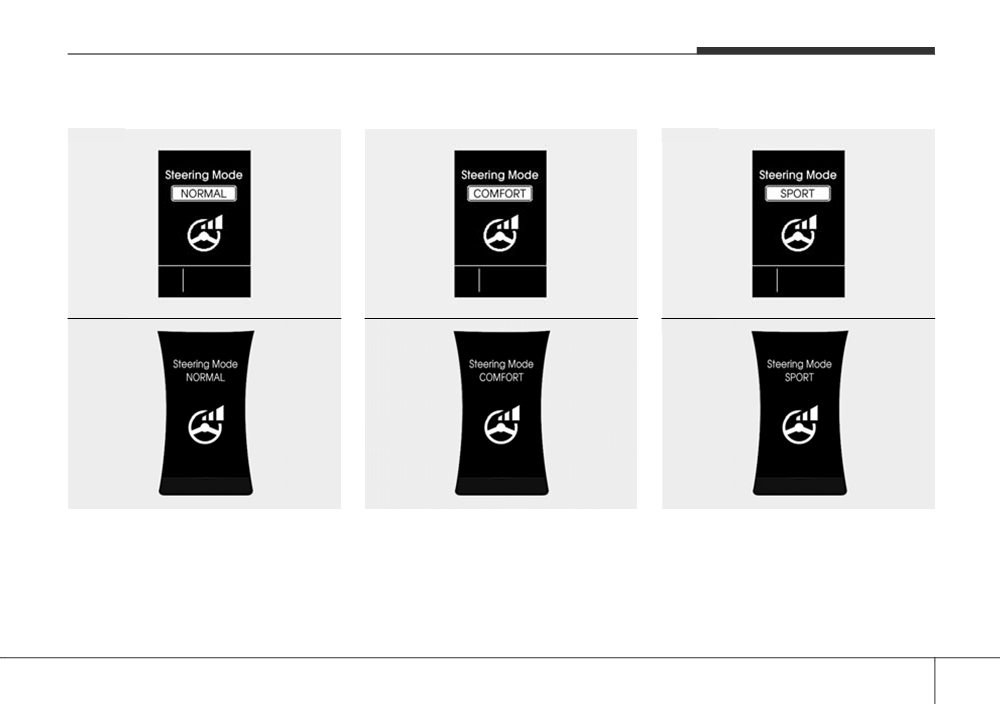

Normal mode
Comfort mode
Sport mode
■ Type A
■ Type A
■ Type A
ODM042041
ODM042042
ODM042043
■ Type B
■ Type B
■ Type B
ODM042045
ODM042046
ODM042047
The normal mode offers medium
The steering effort comes lighter in
The steering effort becomes heavier.
steering effort.
comfort mode.
4 53
Features of your vehicle
CAUTION
•
For your safety, if you press
the steering mode button
while operating the steering
wheel, the LCD display will
change, but the steering effort
will not change immediately.
After operating the steering
wheel, the steering effort will
change automatically to the
selected mode.
•
Be careful when changing the
steering mode while driving.
• When the electronic power
steering is not working prop-
erly, the flex steering wheel
will not work.
4 54
Features of your vehicle
MIRRORS
Inside rearview mirror
Day/night rearview mirror
WARNING
(if equipped)
Adjust the rearview mirror so that the
center view through the rear window
Do not adjust the rearview mir-
ror while the vehicle is moving.
is seen. Make this adjustment before
you start driving.
This could result in loss of con-
trol, and an accident which
could cause death, serious
WARNING - Rear visibility
injury or property damage.
Night
Do not place objects in the rear
seat or cargo area which would
interfere with your vision out
WARNING
the rear window.
Do not modify the inside mirror
and do not install a wide mirror.
Day
It could result in injury, during
ODM042048
an accident or deployment of
Make this adjustment before you
the air bag.
start driving and while the day/night
lever is in the day position.

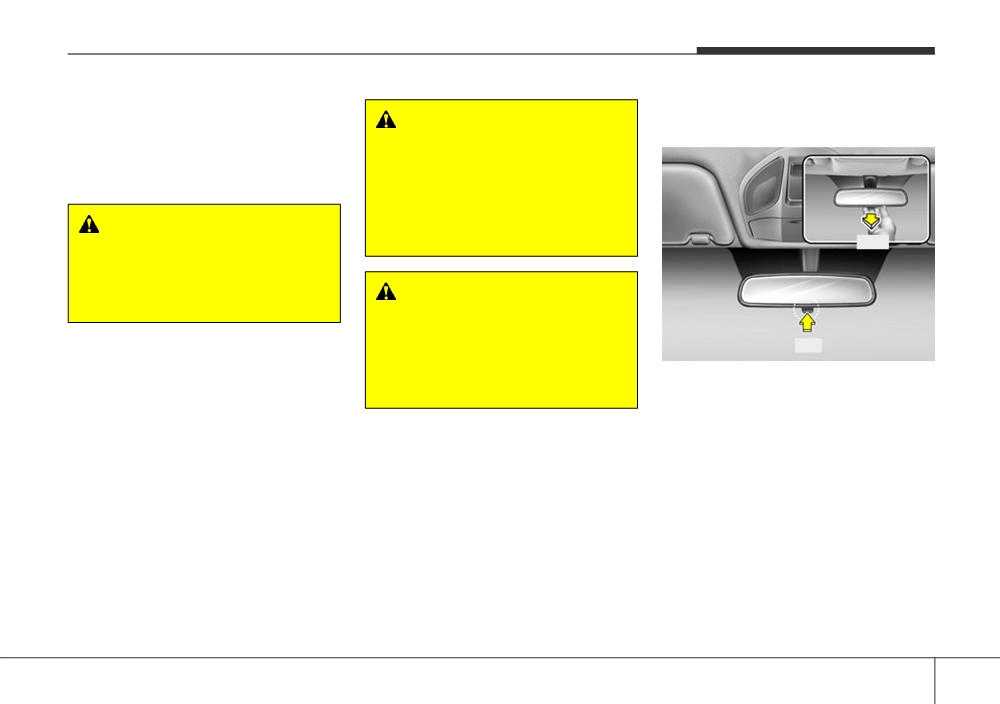

Pull the day/night lever toward you to
reduce glare from the headlights of
vehicles behind you during night
driving.
Remember that you lose some
rearview clarity in the night position.
4 55
Features of your vehicle
Electric chromic mirror (ECM)
■ Type A
Electric chromic mirror (ECM)
(if equipped)
with compass
The electric rearview mirror automati-
cally controls the glare from the head-
lights of the car behind you in night-
time or low light driving conditions. The
sensor mounted in the mirror senses
Indicator
the light level around the vehicle, and
automatically controls the headlight
OMD040032
glare from vehicles behind you.
■ Type B
When the engine is running, the glare
is automatically controlled by the sen-
Rearview display
sor mounted in the rearview mirror.
Whenever the shift lever is shifted
ODMECO2003
into R (Reverse), the mirror will auto-
Indicator
Sensor

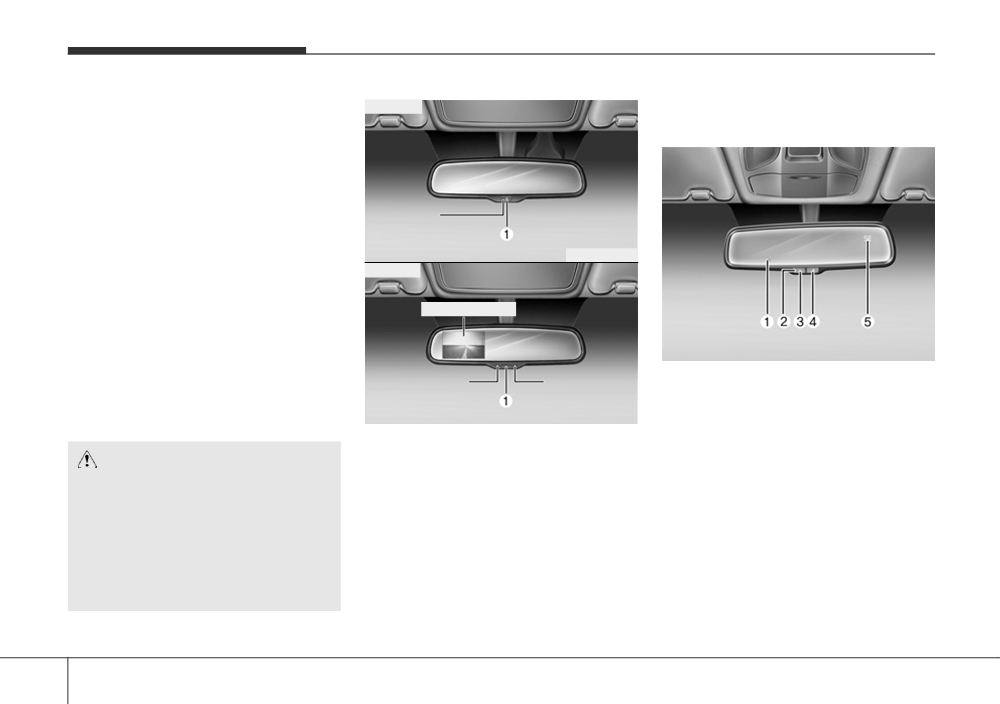

1. Rear light sensor
matically go to the brightest setting in
order to improve the drivers view
2. Status indicator LED
OMD042122L
behind the vehicle.
3. ECM ON/OFF button
To operate the electric rearview mirror:
4. Compass button
CAUTION
• Press the ON/OFF button (1) to
5. Display window
turn the automatic dimming func-
When cleaning the mirror, use a
tion on. The mirror indicator light
paper towel or similar material
Automatic dimming rear view mirror
will illuminate.
dampened with glass cleaner.
controls automatically the glare of
Do not spray glass cleaner
Press the ON/OFF button to turn the
headlights of the vehicle behind you
directly on the mirror as that
automatic dimming function off. The
when it turned on by pressing the
may cause the liquid cleaner to
mirror indicator light will turn off.
ECM ON/OFF button. It is turned off
enter the mirror housing.
• The mirror defaults to the ON posi-
by pressing he ECM ON/OFF button
tion whenever the ignition switch is
once more.
turned on.
4 56
Features of your vehicle
1. To operate Compass feature
2. Calibration procedure

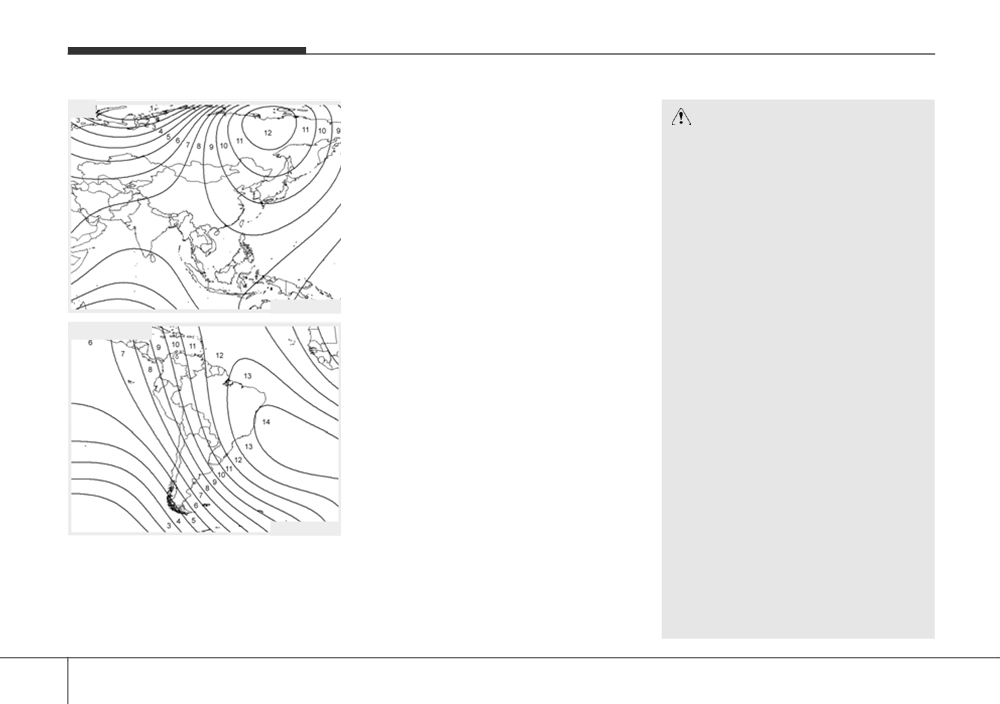

3. Setting the compass zone
Press and release the compass but-
Press and hold the button for more
1. Find your current location and
ton, then the vehicle's directional
than 6 but less than 9 seconds. When
variance zone number on the zone
heading will be displayed. Pressing
the compass memory is cleared a "C"
map.
and releasing the button again will
will appear in the display.

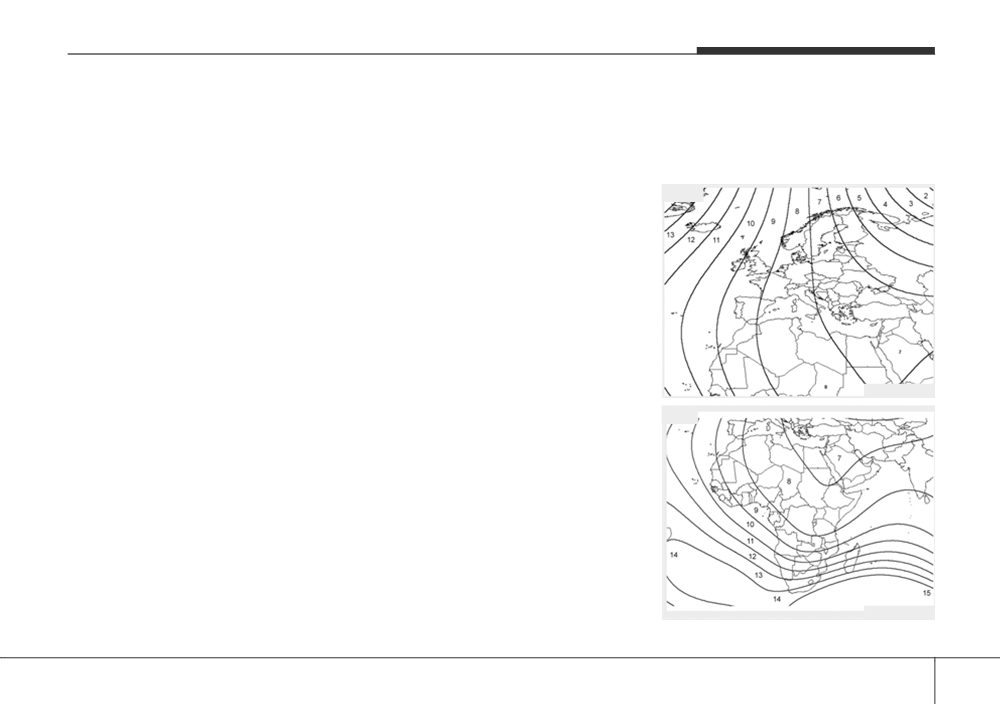

Europe
turn off the display.
- Driving the vehicle in a circle at less
Heading display
than 8km/h 2 times or until the com-
- E : East
pass heading appears.
- Driving in a circle in right-handed
- W : West
direction and opposite direction are
- S : South
possible, and if the calibration is
- N : North
completed, the compass heading
ex) NE : North East
will appear.
- Keep driving in a circle until a com-
pass heading appears.
B520C01JM
Africa
B520C05JM
4 57
Features of your vehicle
Asia
3. Press the button until the new zone
number appears in the display.
CAUTION
After you stop pressing the button
1.Do not install the ski rack,
in, the display will show a compass
antenna, etc. which are
direction within a few seconds.
attached to the vehicle by
means of a magnet. They affect
the operation of the compass.
2.If the compass deviates from
the correct indication soon
after repeated adjustment, we
recommend that you have the
B520C03JM
compass checked at an
authorized HYUNDAI dealer.
South America
3.The compass may not indicate
the correct compass point in
tunnels or while driving up or
down a steep hill.
(The compass returns to the
correct compass point when
the vehicle moves to an area
where the geomagnetism is
stabilized.)
4.When cleaning the mirror, use
B520C04JM
a paper towel or similar materi-
2. Press and hold the button for more
al dampened with glass clean-
than 3 but less than 6 seconds.
er. Do not spray glass cleaner
The current zone number will
directly on the mirror as that
appear in the display.
may cause the liquid cleaner to
enter the mirror housing.
4 58
Features of your vehicle
Outside rearview mirror
WARNING - Rearview
CAUTION
Be sure to adjust mirror angles
mirrors
Do not scrape ice off the mirror
before driving.
•
The outside rearview mirror is
face; this may damage the sur-
Your vehicle is equipped with both
convex. Objects seen in the
face of the glass. If ice should
left-hand and right-hand outside
mirror are closer than they
restrict movement of the mirror,
rearview mirrors. The mirrors can be
appear.
do not force the mirror for
adjusted remotely with the remote
adjustment. To remove ice, use
switch. The mirror heads can be fold-
•
Use your interior rearview
a deicer spray, or a sponge or
ed back to prevent damage during an
mirror or direct observation to
soft cloth with very warm water.
automatic car wash or when passing
determine the actual distance
in a narrow street.
of following vehicles when
changing lanes.
CAUTION
If the mirror is jammed with ice,
do not adjust the mirror by force.
Use an approved spray de-icer
(not radiator antifreeze) to
release the frozen mechanism or
move the vehicle to a warm
place and allow the ice to melt.
4 59
Features of your vehicle
Remote control
WARNING
CAUTION
Do not adjust or fold the outside
•
The mirrors stop moving when
rearview mirrors while the vehi-
they reach the maximum
cle is moving.This could result in
adjusting angles, but the
loss of control, and an accident
motor continues to operate
which could cause death, seri-
while the switch is pressed.
ous injury or property damage.
Do not press the switch longer
than necessary, the motor
may be damaged.
•
Do not attempt to adjust the
outside rearview mirror by
hand. Doing so may damage

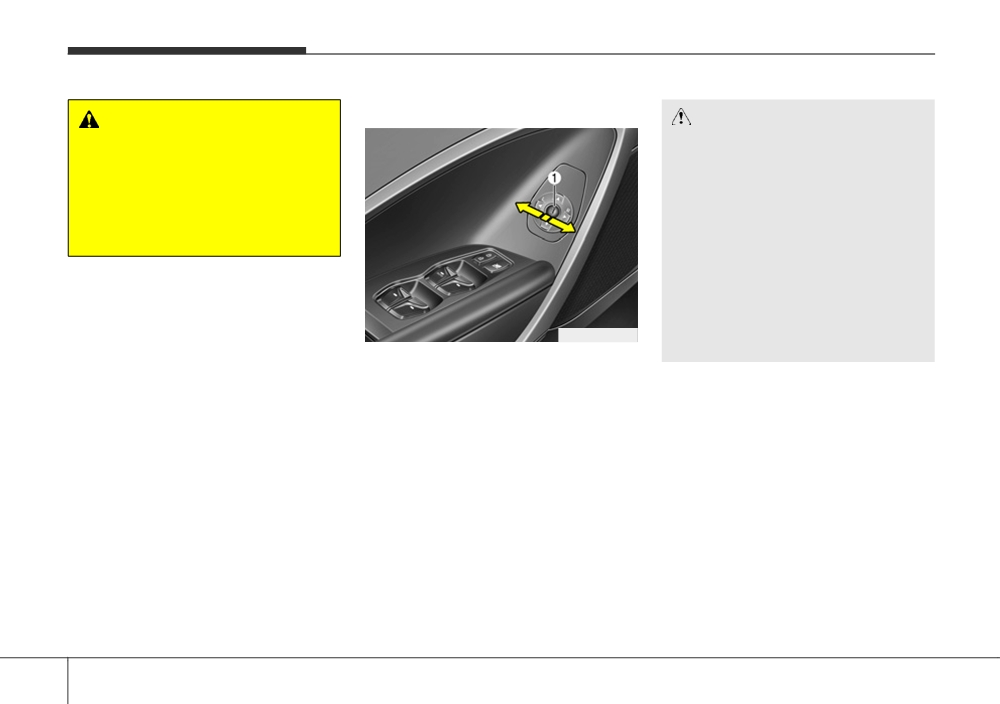

OANNCO2076
the parts.
Electric type
The electric remote control mirror
switch allows you to adjust the posi-
tion of the left and right outside
rearview mirrors. To adjust the posi-
tion of either mirror, move the lever
(1) to R (Right) or L (Left) to select
the right side mirror or the left side
mirror, then press a corresponding
point on the mirror adjustment con-
trol to position the selected mirror up,
down, left or right.
After adjustment, put the lever into
neutral
(center) position to prevent
inadvertent adjustment.
4 60
Features of your vehicle
Reverse parking aid function
Left or Right : When the outside
Folding the outside rearview mirror
(if equipped)
rearview mirror con-
trol switch is in the L
(Left) or R
(Right)
position, both outside
rearview mirrors will
move downward.
Neutral : When the outside rearview
mirror control switch is in
the neutral
(center) posi-
tion, the outside rearview
mirrors will not operate.
ONCEMC3214
✽ NOTICE
ODM042035
Manual type
The outside rearview mirrors will

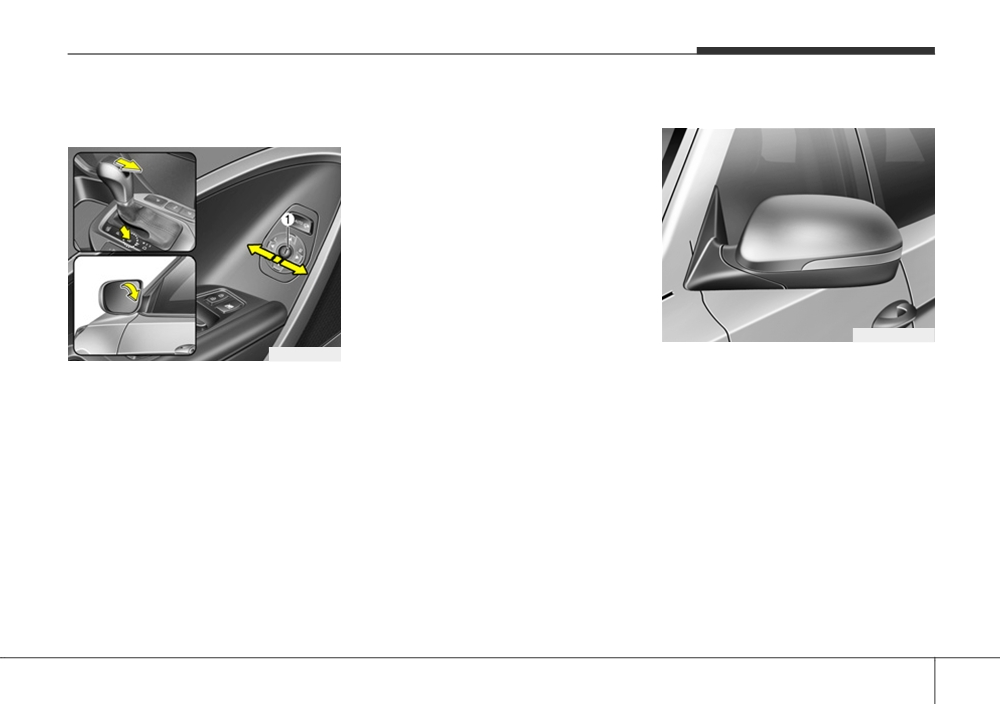

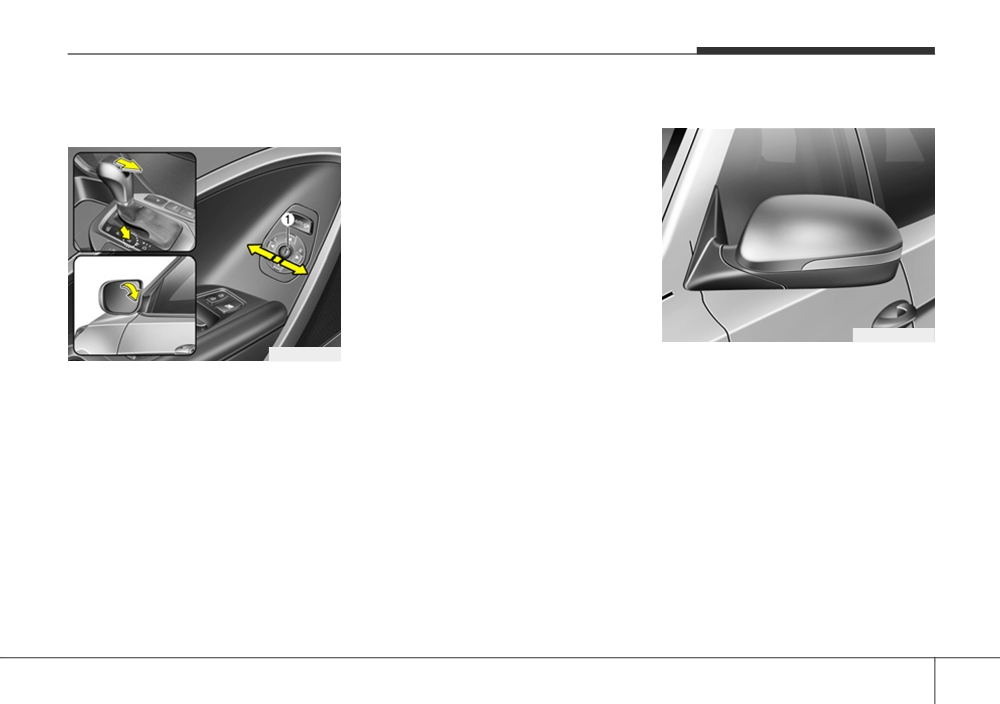

When you shift the shift lever to the R
To fold outside rearview mirror, grasp
automatically revert to their original
(Reverse) position, the outside
the housing of mirror and then fold it
positions under the following condi-
rearview mirror(s) will move down-
toward the rear of the vehicle.
tions:
ward to aid reverse parking.
• When the ignition switch or engine
According to the position of the out-
start/stop button is set to the ACC
side rearview mirror control switch
or OFF position.
(1), the outside rearview mirror(s) will
• When the shift lever is moved to
operate as follows:
any position except the R
(Reverse) position.
4 61
Features of your vehicle

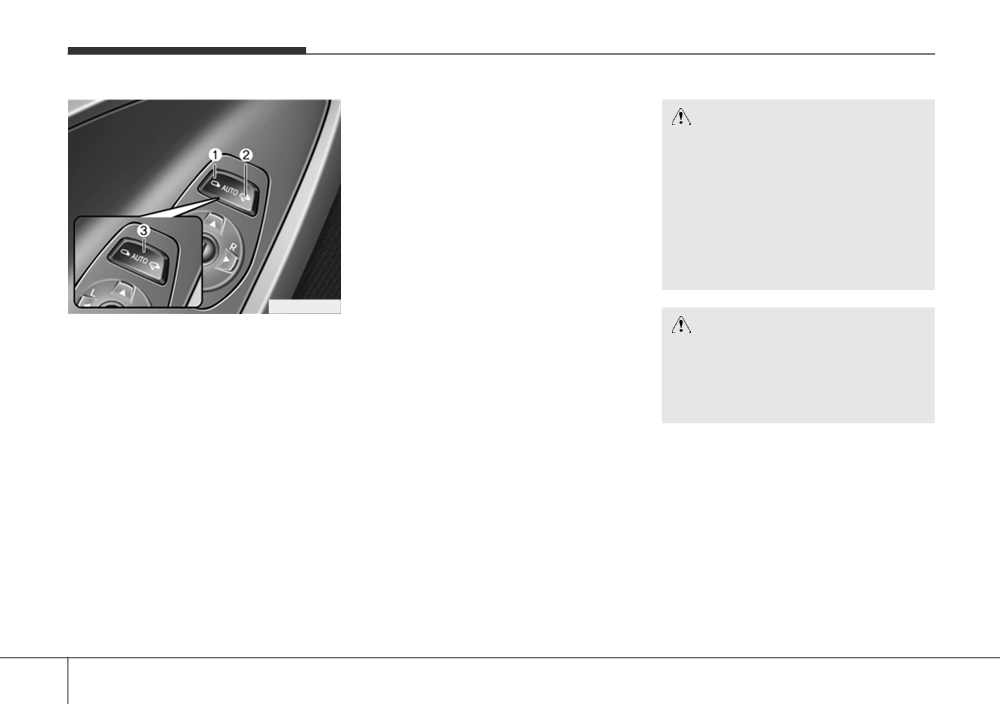

Center (AUTO, 3) :
CAUTION
The mirror will fold or unfold automat-
ically as follows:
The electric type outside
rearview mirror operates even
•
Without smart key system
though the ignition switch is in
- The mirror will fold or unfold when
the OFF position. However, to
the door is locked or unlocked by
prevent unnecessary battery
the transmitter.
discharge, do not adjust the
•
With smart key system
mirrors longer than necessary
while the engine is not running.
- The mirror will fold or unfold when
the door is locked or unlocked by
ODM042053
the smart key.
Electric type
- The mirror will fold or unfold when
CAUTION
the door is locked or unlocked by
The outside rearview mirror can be
In case it is an electric type out-
folded or unfolded by pressing the
the button on the outside door
side rearview mirror, don’t fold it
handle.
switch as below.
by hand. It could cause motor
Left (1) : The mirror will unfold.
- The mirror will unfold when you
failure.
approach the vehicle (all doors
Right (2) : The mirror will fold.
closed and locked) with a smart
key in possession. (if equipped)
4 62
Features of your vehicle

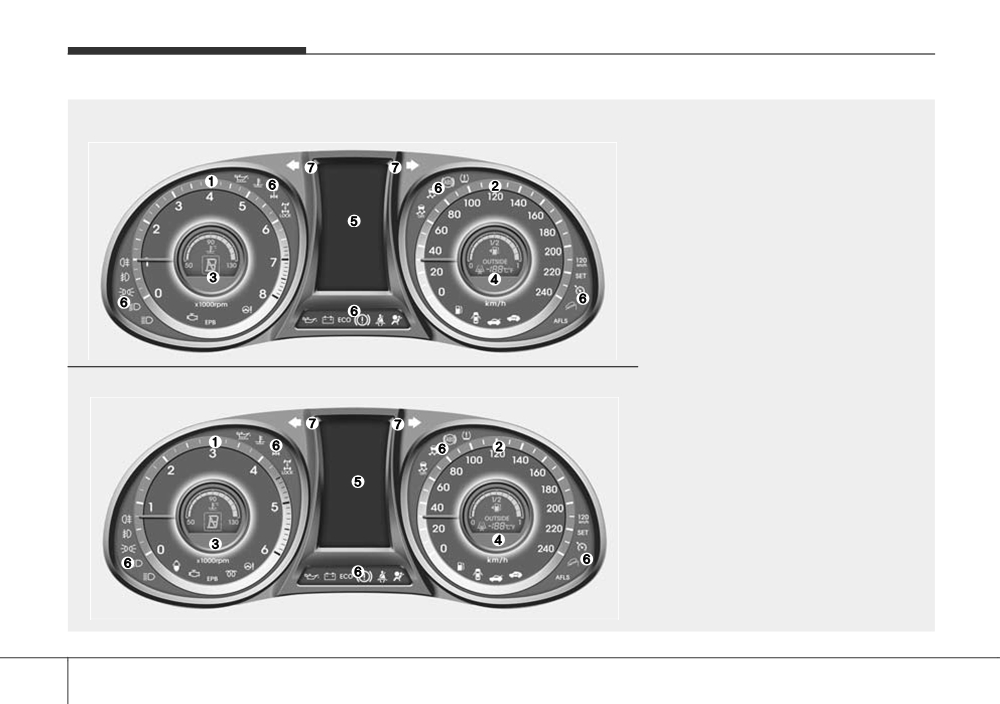

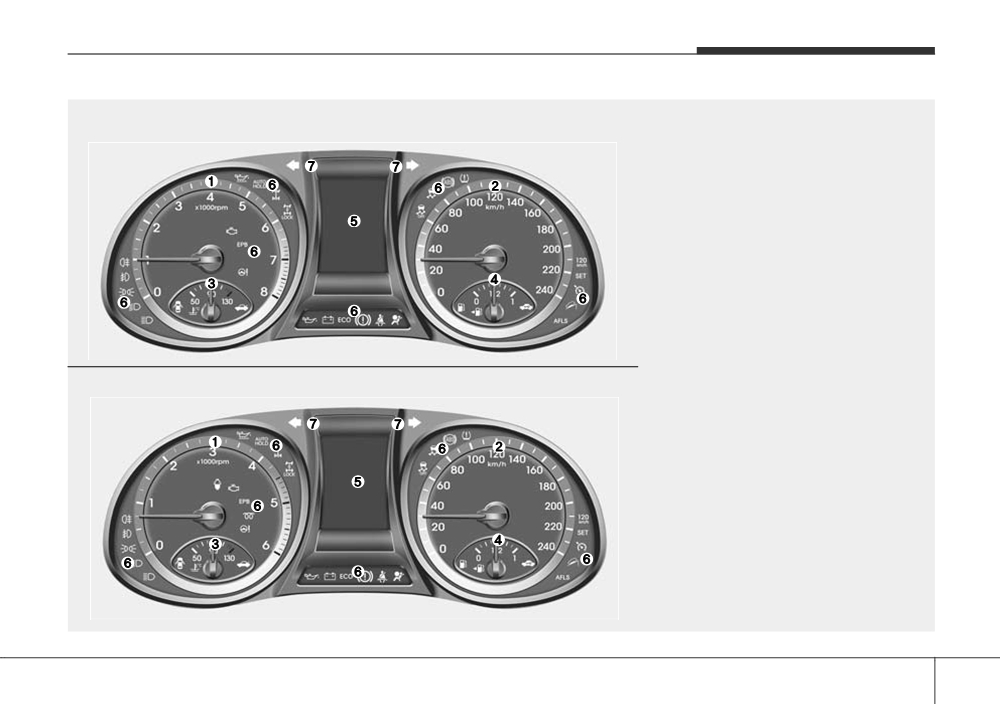

INSTRUMENT CLUSTER
■ Type A
- Gasoline engine
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. LCD display
6. Warning and indicator lights (if equipped)
- Diesel engine
7. Turn signal indicator lights
❈ The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to the "Gauges" in
this chapter.
ODMEMM2346/ODMEMM2054
4 63
Features of your vehicle
■ Type B
- Gasoline engine
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. LCD display
6. Warning and indicator lights (if equipped)
- Diesel engine
7. Turn signal indicator lights
❈ The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to the "Gauges" in
this chapter.
ODMEMM2347/ODMEMM2055
4 64
Features of your vehicle
Instrument Cluster Control
■ Type A
■ Type B
LCD Display Control
Adjusting Instrument Cluster
Illumination (if equipped)
ODMEDI2001/ODMEDI2029
• The brightness has 20 levels : 1
ODM042224
(MIN) ~ 20 (MAX)

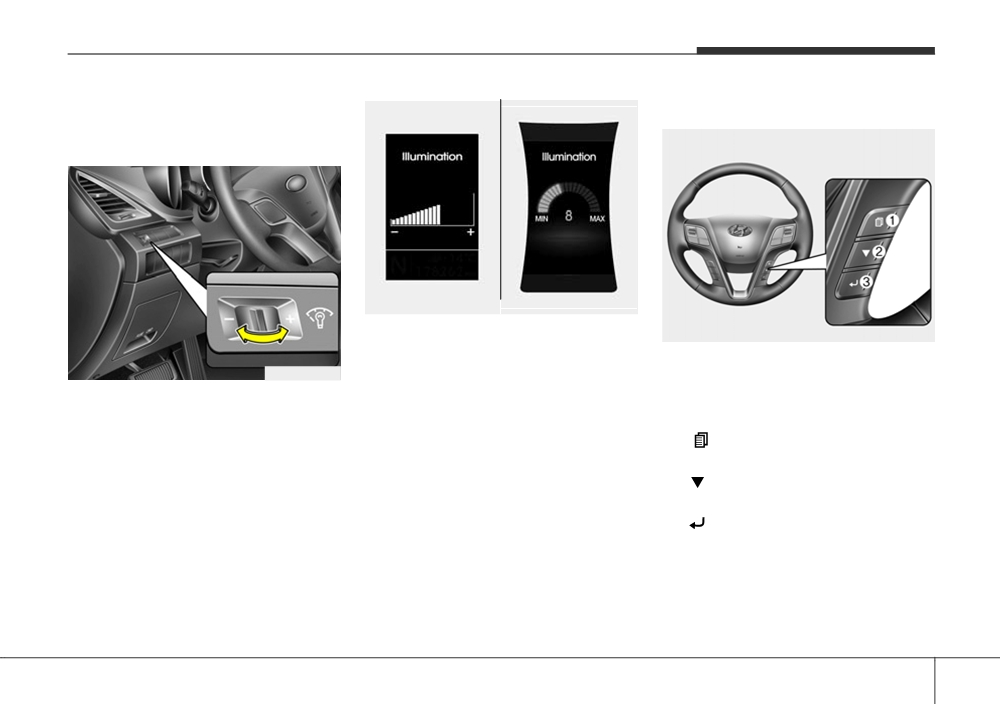

The LCD display modes can be
ODM042056
• If you hold the illumination control
changed by using the control buttons
knob on the right end (+) or left end
on the steering wheel.
The brightness of the instrument
(-), the brightness will be changed
panel illumination is changed by
continuously.
moving the illumination control knob
(1)
: MODE button for changing
• If the brightness reaches to the
right or left when the ignition switch
modes
maximum or minimum level, an
or Engine Start/Stop button is ON, or
alarm will sound.
(2)
: MOVE button for changing
the tale lights are turned on.
items
(3)
: SELECT/RESET button for
setting or resetting the
selected item
❈ For the LCD modes, refer to “LCD
Display” in this chapter.
4 65
Features of your vehicle
Gauges
Speedometer
■ Type A (km/h)
■ Type B (km/h)

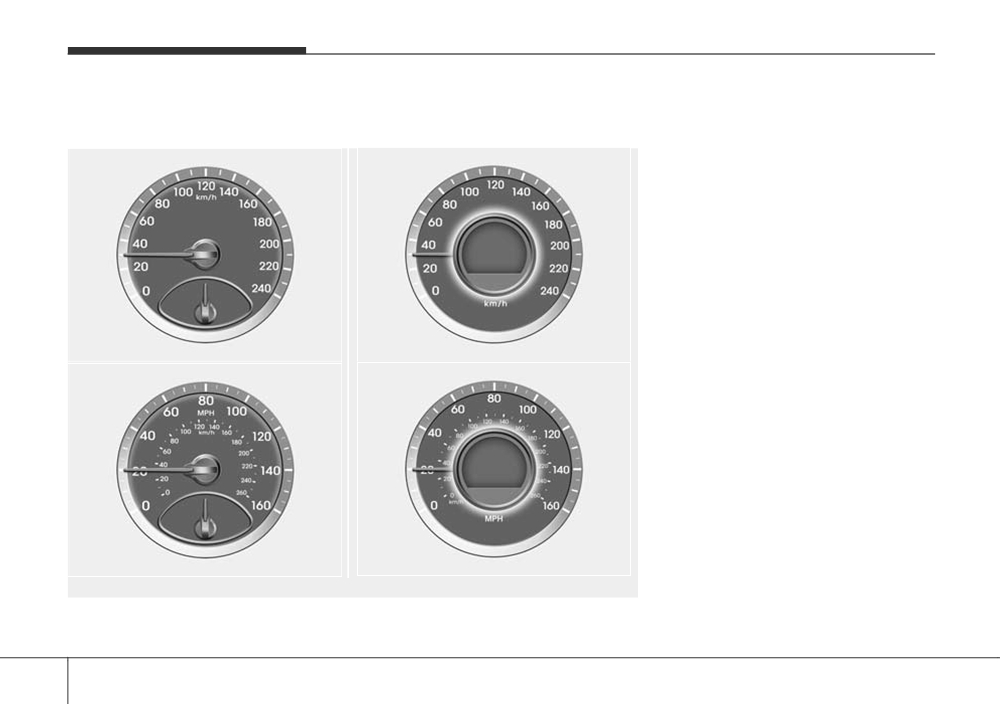

The speedometer indicates the
speed of the vehicle and is calibrated
in miles per hour (mph) and/or kilo-
meters per hour (km/h).
■ Type A (MPH)
■ Type B (MPH)
ODM042057/ODMNMM2057/ODM042058/ODMNMM2058
4 66
Features of your vehicle
Tachometer
■ Type A (Gasoline)
■ Type B (Gasoline)

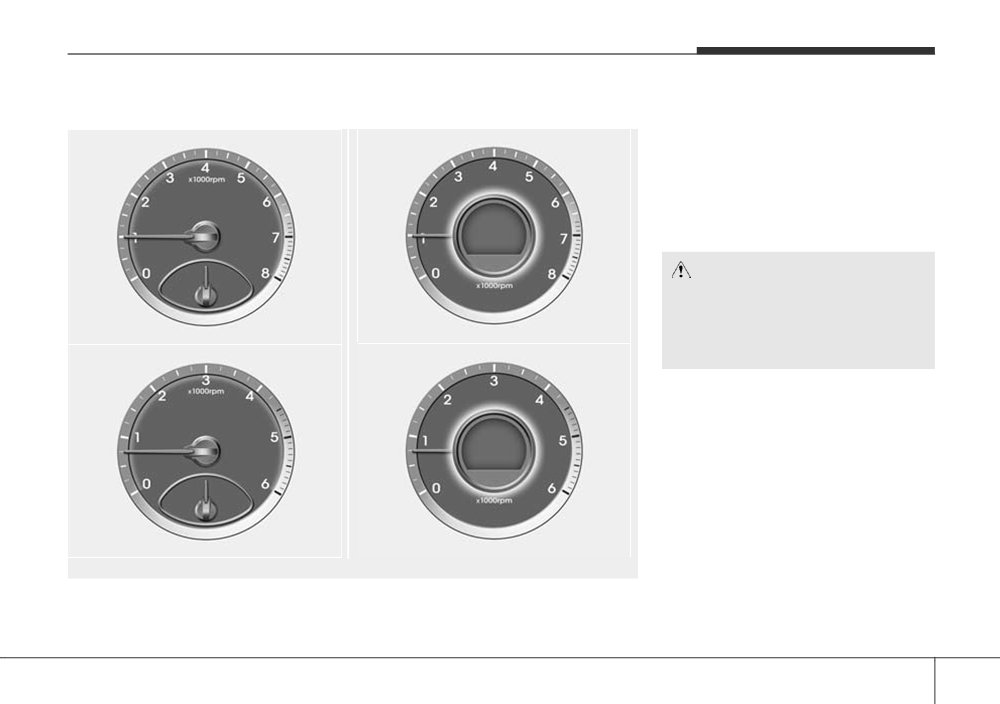

The tachometer indicates the
approximate number of engine revo-
lutions per minute (rpm).
Use the tachometer to select the cor-
rect shift points and to prevent lug-
ging and/or over-revving the engine.
CAUTION
Do not operate the engine with-
in the tachometer's RED ZONE.
This may cause severe engine
■ Type A (Diesel)
■ Type B (Diesel)
damage.
ODMNMM2059/ODM042059/ODMNMM2221/ODM042221
4 67
Features of your vehicle
Engine Coolant Temperature
Fuel Gauge
Gauge
■ Type A
■ Type A
CAUTION
If the gauge pointer moves
beyond the normal range area
toward the “130 or H” position, it
indicates overheating that may
damage the engine.
Do not continue driving with an
overheated engine. If your vehi-
ODMEMM2223/ODMNMM2223
ODMEMM2222/ODMNMM2222
cle overheats, refer to “If the
■ Type B
Engine Overheats” in chapter 6.
■ Type B
WARNING
Never remove the radiator cap
when the engine is hot. The
engine coolant is under pres-
sure and could severe burns.
Wait until the engine is cool
ODMEMM2351/ODMNMM2351
before adding coolant to the
ODMEMM2352/ODMNMM2352

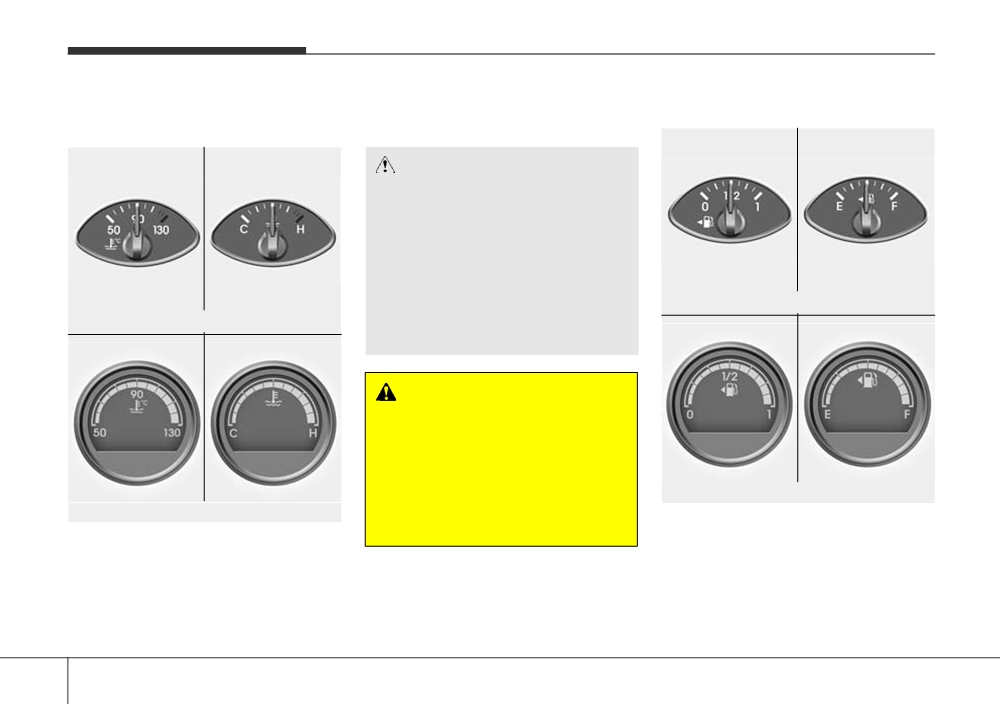

This gauge indicates the approxi-
reservoir.
This gauge indicates the tempera-
mate amount of fuel remaining in the
ture of the engine coolant when the
fuel tank.
ignition switch or Engine Start/Stop
button is ON.
4 68
