Hyundai Grand Santa Fe (2016 year). Instruction - part 10

Features of your vehicle

✽ NOTICE

Odometer

WARNING - Fuel Gauge

•

The fuel tank capacity is given in

■ Type A

chapter 8.

Running out of fuel can expose

•

The fuel gauge is supplemented by

vehicle occupants to danger.

a low fuel warning light, which

You must stop and obtain addi-

will illuminate when the fuel tank

tional fuel as soon as possible

is nearly empty.

after the warning light comes

•

On inclines or curves, the fuel

on or when the gauge indicator

gauge pointer may fluctuate or the

comes close to the “0 or E

low fuel warning light may come

(Empty)” level.

on earlier than usual due to the

movement of fuel in the tank.

ODMEDI2901/ODMEDI2902

■ Type B

CAUTION

Avoid driving with a extremely

low fuel level. Running out of

fuel could cause the engine to

misfire damaging the catalytic

converter.

ODMEDI2903/ODMEDI2904

The odometer indicates the total dis-

tance that the vehicle has been driv-

en and should be used to determine

when periodic maintenance should

be performed.

- Odometer range : 0 ~ 999999 kilo-

meters or miles.

4 69

Features of your vehicle

Outside Temperature Gauge

Icy Road Warning Light

✽ NOTICE

(if equipped)

■ Type A

■ Type B

If the icy road warning light appears

■ Type A

■ Type B

while driving, you should drive

more attentively and safely refrain-

ing from over-speeding, rapid accel-

eration, sudden braking or sharp

turning, etc.

ODMEDI2905/OVF041089

This gauge indicates the current out-

ODMEDI2906/OVF041090

side air temperatures by 1°C (1°F).

This warning light is to warn the driv-

- Temperature range : -40°C ~ 60°C

er the road may be icy.

(-40°F ~ 140°F)

When the following conditions occur,

The outside temperature on the dis-

the warning light (including Outside

play may not change immediately

Temperature Gauge) blinks 10 times

like a general thermometer to pre-

and then illuminates, and also warn-

vent the driver from being inattentive.

ing chime sounds 3 times.

- The temperature on the Outside

The temperature unit (from °C to °F

or from °F to °C) can be changed by

Temperature Gauge is below

approximately 4°C (39.2°F)

using the “User Settings” mode of the

LCD display.

- The ignition switch or Engine

Start/Stop button is ON

❈ For more details, refer to “LCD

Display” in this chapter.

4 70

Features of your vehicle

Transaxle Shift Indicator

Automatic Transaxle Shift

Automatic Transaxle Shift

Indicator

Indicator (if equipped, For Europe)

■ Type A

■ Type B

■ Type A

■ Type B

For example

: Indicates that shifting up to the

3rd gear is desired

(currently

the shift lever is in the 2nd or 1st

gear).

: Indicates that shifting down to

the 3rd gear is desired (current-

ly the shift lever is in the 4th, 5th,

or 6th gear).

When the system is not working prop-

ODMEDI2907/OVF041049

ODMEDI3908/OVF041048

erly, the indicator is not displayed.

This indicator displays which auto-

In the Sports Mode, this indicator

matic transaxle shift lever is selected.

informs which gear is desired while

driving to save fuel.

• Park : P

• Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6

• Reverse : R

• Shifting down :

▼1, ▼2, ▼3, ▼4, ▼5

• Neutral : N

• Drive : D

• Sports Mode : 1, 2, 3, 4, 5, 6

4 71

Features of your vehicle

LCD DISPLAY

LCD Modes

Symbol

Modes

Explanation

Type A

Type B

This mode displays driving information like the tripmeter,

Trip Computer

fuel economy, and so on.

For more details, refer to “Trip Computer” in this chapter.

This mode informs of the tire pressure information (if equipped),

Service

or

or

service interval (mileage or days) and warning messages

related to TPMS, washer fluid.

On this mode, you can change settings of the doors, lamps,

User Settings

and so on.

This mode displays the state of the Lane Departure Warning

LDWS

System (LDWS).

or

-

(if equipped)

For more details, refer to “Lane Departure Warning System

(LDWS)” in chapter 5.

A/V

-

This mode displays the state of the A/V system.

(if equipped)

Turn By Turn

-

This mode displays the state of the navigation.

(if equipped)

❈ For controlling the LCD modes, refer to "LCD Display Control" in this chapter.

4 72

Features of your vehicle

Service Mode

Service Interval

■ Type A

■ Type B

■ Type A

■ Type B

To reset the service interval to the

mileage and days you inputted before:

- Activate the reset mode by pressing

the SELECT/RESET button

for

more than 5 seconds, then press the

SELECT/RESET button

again

for more than 1 second (Europe).

- Press the SELECT/RESET button

for more than 1 second (Except

Europe).

ODMEDI2066/ODMEDI2070

ODMEDI2067/ODMEDI2071

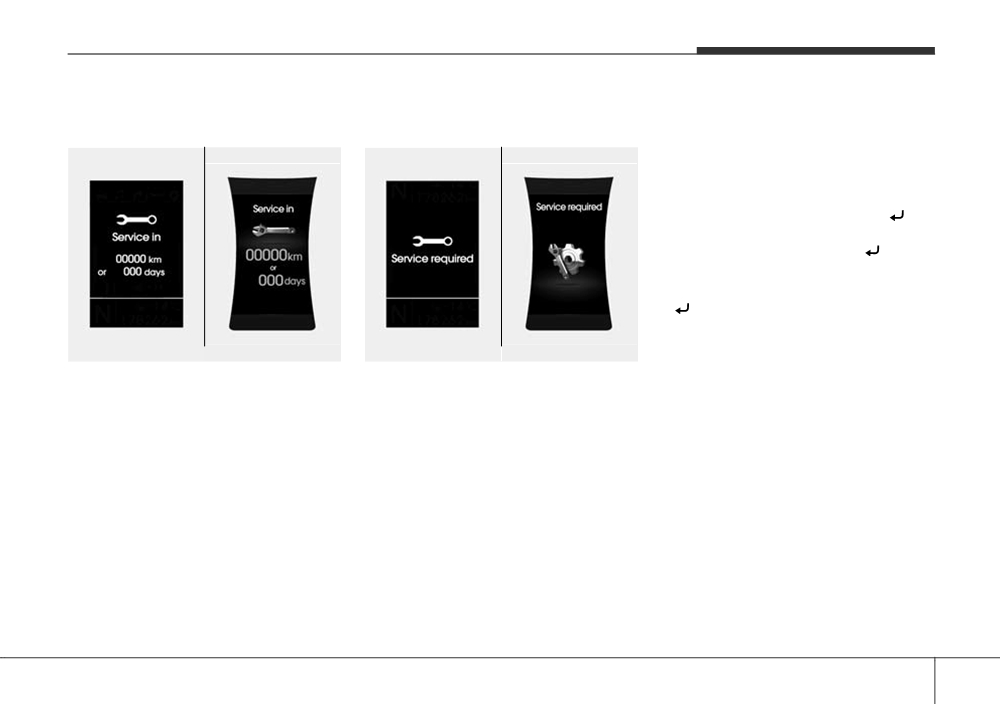

Service in

Service required

It calculates and displays when you

If you do not have your vehicle serv-

need a scheduled maintenance

iced according to the already inputted

service (mileage or days).

service interval,

“Service required”

If the remaining mileage or time

message is displayed for several sec-

onds each time you set the ignition

reaches 1,500 km (900 mi.) or 30

days, "Service in" message is dis-

switch or Engine Start/Stop Button to

the ON position. (The mileage and

played for several seconds each time

you set the ignition switch or Engine

time changes to "---")

Start/Stop Button to the ON position.

4 73

Features of your vehicle

■ Type A

■ Type B

User Settings Mode

Door

Description

Auto Door Lock (if equipped)

■ Type A

■ Type B

•

Off:

The auto door lock operation will

be deactivated.

•

Speed:

All doors will be automatically

locked when the vehicle speed

exceeds 15km/h (9.3mph).

•

Shift Lever:

ODMEDI2068/ODMEDI2072

All doors will be automatically

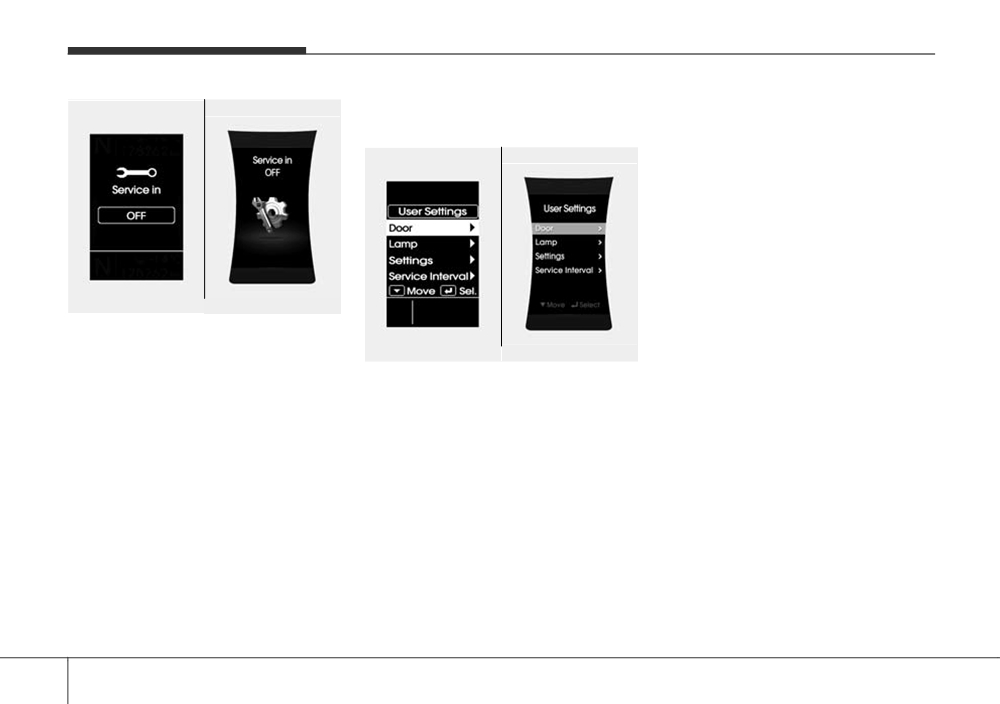

Service in OFF

locked if the automatic transaxle

If the service interval is not set,

ODMEDI2025/ODMEDI2054

shift lever is shifted from the P

“Service in OFF” message is dis-

(Park) position to the R (Reverse),

On this mode, you can change set-

played on the LCD display.

N (Neutral), or D (Drive) position.

ting of the doors, lamps, and so on.

✽ NOTICE

If any of the following conditions

occurs, the mileage and days may be

incorrect.

- The battery cable is disconnected.

- The fuse switch is turned off.

- The battery is discharged.

4 74

Features of your vehicle

Service Interval (Except Europe)

A/V Mode (if equipped)

Turn By Turn Mode (if equipped)

■ Type A

■ Type B

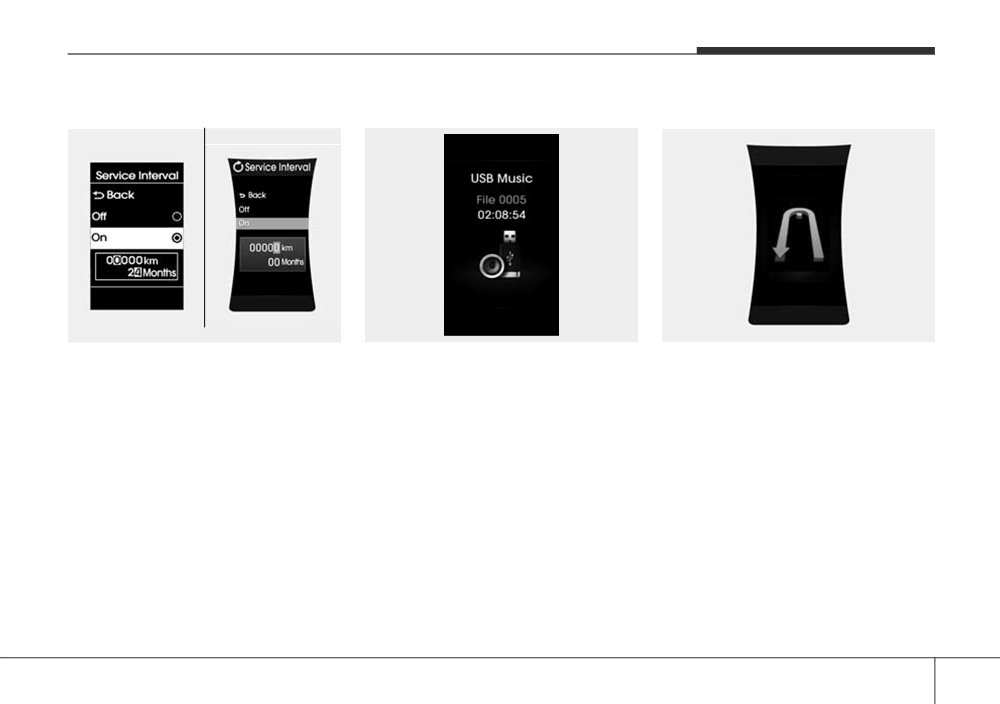

ODMEDI2065/ODMEDI2069

ODMEDI2909

ODMEDI2910

On this mode, you can activate the

This mode displays the state of the

This mode displays the state of the

service interval function with mileage

A/V system.

navigation.

(km or mi.) and period (months).

✽ NOTICE

If it is not available to set service

interval on your vehicle, we recom-

mend that you consult an authorized

HYUNDAI dealer.

4 77

Features of your vehicle

Warning Messages

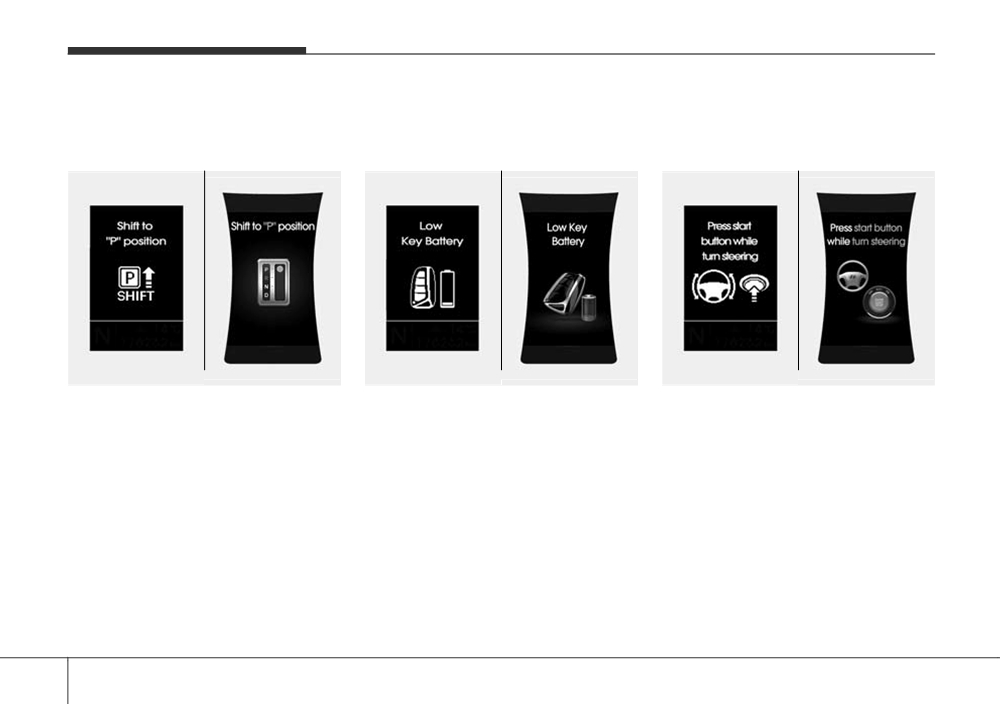

Shift to "P" position

Low Key Battery

Press start button while turn

(for smart key system)

(for smart key system)

steering (for smart key system)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODMEDI2002/ODMEDI2030

ODMEDI2003/ODMEDI2031

ODMEDI2004/ODMEDI2032

• This warning message illuminates

• This warning message illuminates

• This warning message illuminates

if you try to turn off the engine with-

if the battery of the smart key is

if the steering wheel does not

out the shift lever in P (Park) posi-

discharged when the Engine

unlock normally when the Engine

tion.

Start/Stop Button changes to the

Start/Stop Button is pressed.

OFF position.

• At this time, the Engine Start/Stop

• It means that you should press the

Button turns to the ACC position (If

Engine Start/Stop Button while

you press the Engine Start/Stop

turning the steering wheel right

Button once more, it will turn to the

and left.

ON position).

4 78

Features of your vehicle

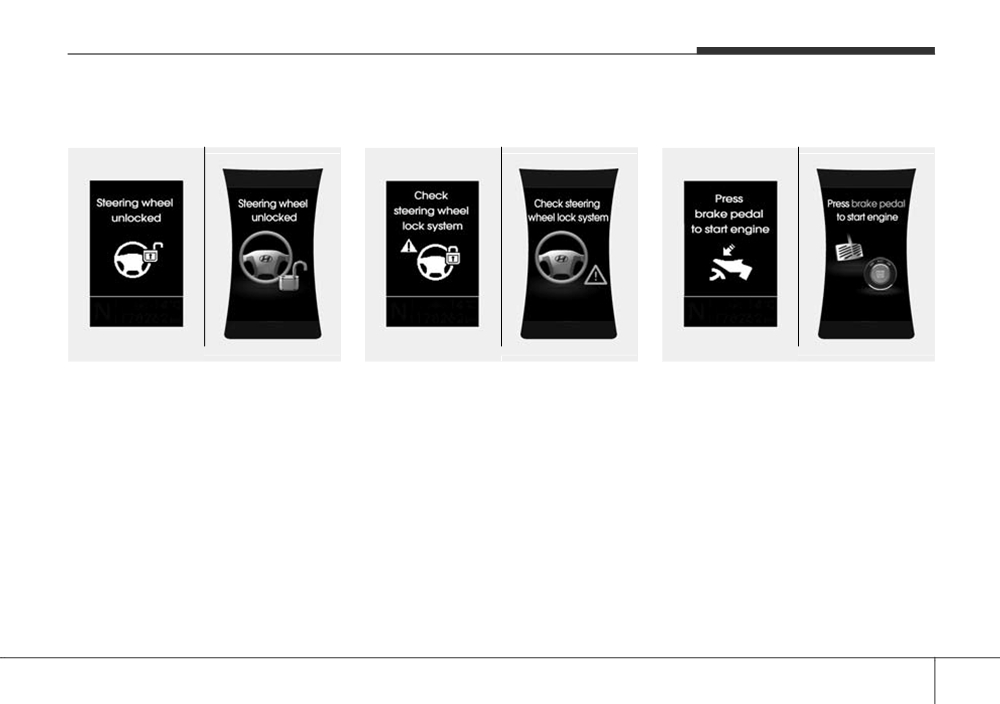

Steering wheel unlocked

Check steering wheel lock

Press brake pedal to start engine

(for smart key system)

system (for smart key system)

(for smart key system)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODMEDI2005/ODMEDI2033

ODMEDI2006/ODMEDI2034

ODMEDI2007/ODMEDI2035

• This warning message illuminates

• This warning message illuminates

• This warning message illuminates

if the steering wheel does not lock

if the steering wheel does not lock

if the Engine Start/Stop Button

when the Engine Start/Stop Button

normally when the Engine

changes to the ACC position twice

changes to the OFF position.

Start/Stop Button changes to the

by pressing the button repeatedly

OFF position.

without depressing the brake pedal.

• It means that you should depress

the brake pedal to start the engine.

4 79

Features of your vehicle

Key not in vehicle

Key not detected

Press start button again

(for smart key system)

(for smart key system)

(for smart key system)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODMEDI2009/ODMEDI2037

ODMEDI2010/ODMEDI2038

ODMEDI2011/ODMEDI2039

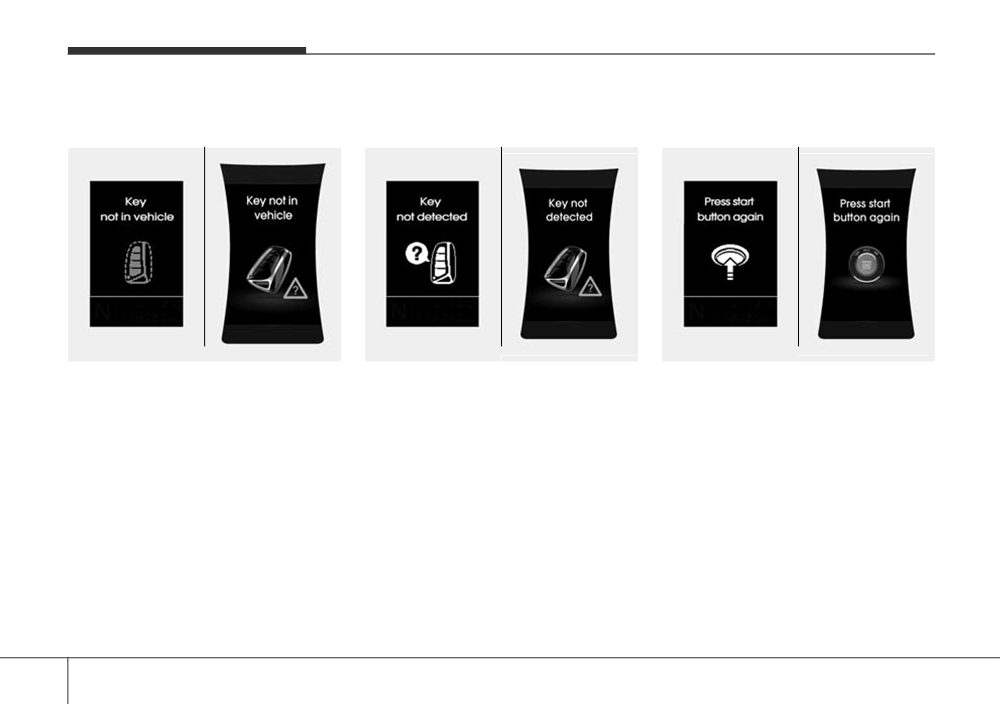

• This warning message illuminates

• This warning message illuminates

• This warning message illuminates

if the smart key is not in the vehicle

if the smart key is not detected

if you can not operate the Engine

when you press the Engine

when you press the Engine

Start/Stop Button when there is a

Start/Stop Button.

Start/Stop Button.

problem with the Engine Start/Stop

Button system.

• It means that you always have the

smart key with you.

• It means that you could start the

engine by pressing the Engine

Start/ Stop Button once more.

• If the warning illuminates each

time you press the Engine

Start/Stop Button, we recommend

that you have the vehicle inspected

by an authorized HYUNDAI dealer.

4 80

Features of your vehicle

Press start button with smart key

Check fuse "BRAKE SWITCH"

Shift to "P" or "N" to start engine

(for smart key system)

(for smart key system and auto-

(for smart key system and auto-

matic transaxle)

matic transaxle)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODMEDI2012/ODMEDI2040

ODMEDI2013/ODMEDI2041

ODMEDI2014/ODMEDI2042

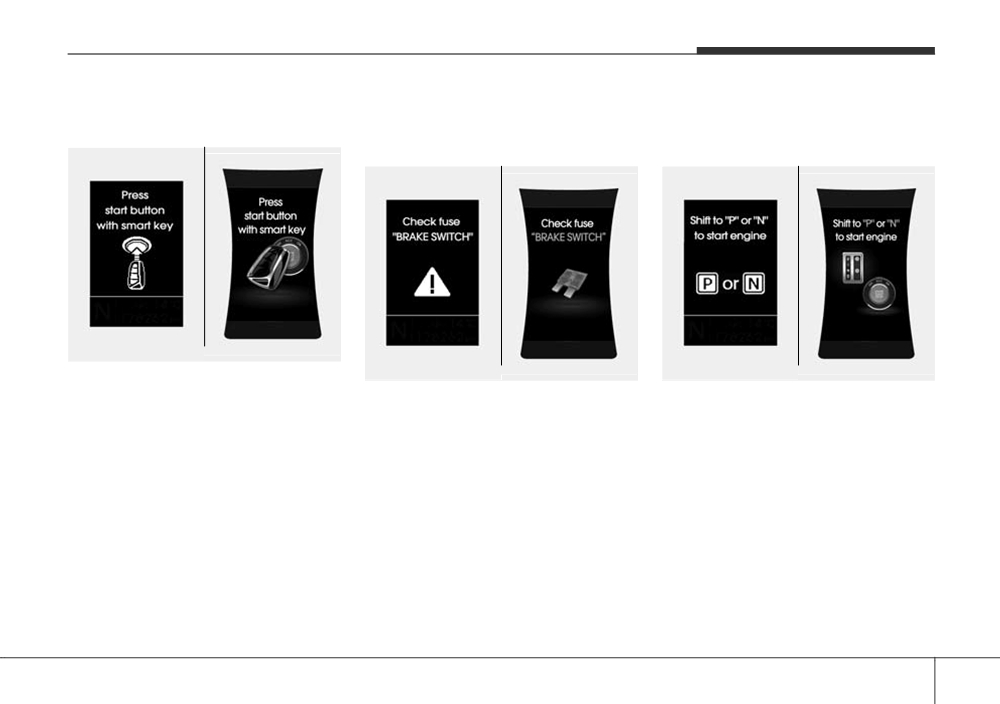

• This warning message illuminates

if you press the Engine Start/Stop

• This warning message illuminates

• This warning message illuminates

Button while the warning message

if the brake switch fuse is discon-

if you try to start the engine with

“Key not detected” is illuminating.

nected.

the shift lever not in the P (Park) or

• At this time, the immobilizer indica-

• It means that you should replace

N (Neutral) position.

tor light blinks.

the fuse with a new one. If that is

not possible, you can start the

✽ NOTICE

engine by pressing the Engine

You can start the engine with the

Start/Stop Button for 10 seconds in

shift lever in the N (Neutral) position.

the ACC position.

But, for your safety, we recommend

that you start the engine with the

shift lever in the P (Park) position.

4 81

Features of your vehicle

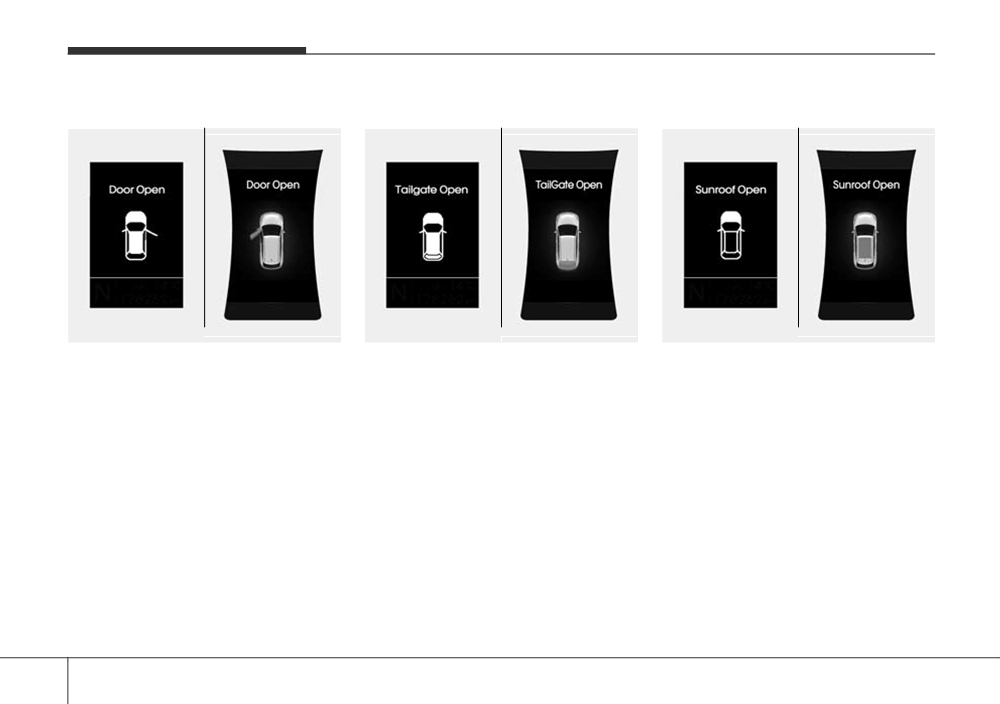

Door Open

Tailgate Open

Sunroof Open (if equipped)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODMEDI2017/ODMEDI2045

ODMEDI2018/ODMEDI2046

ODMEDI2019/ODMEDI2047

• It means that any door is open.

• It means that the tailgate is open.

• It means that the sunroof is open.

4 82

Features of your vehicle

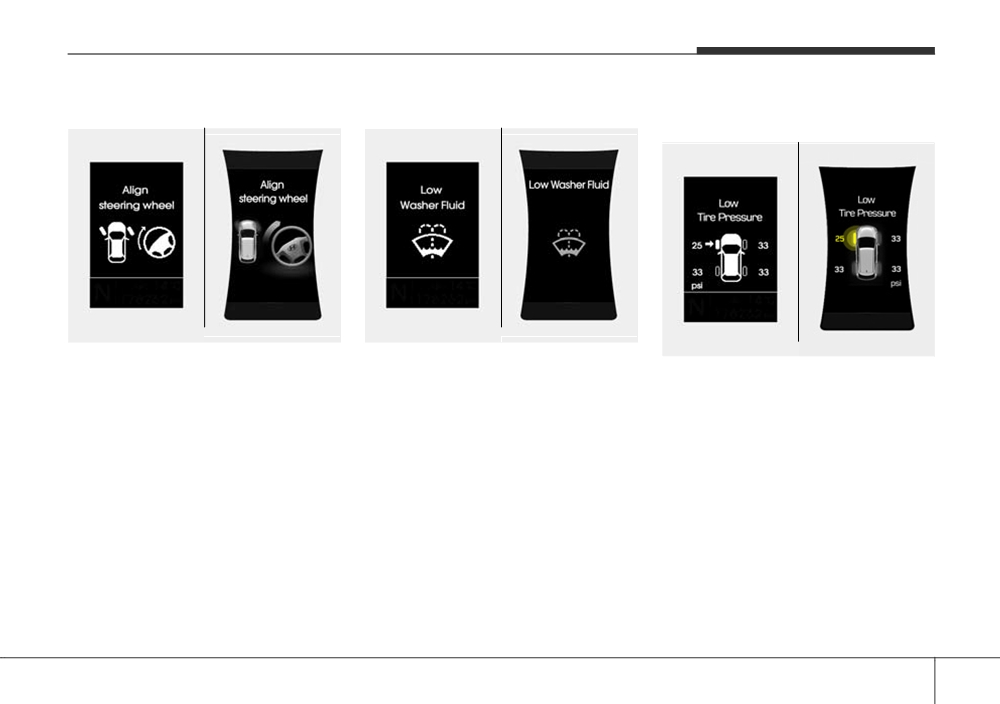

Align steering wheel (if equipped)

Low Washer Fluid (if equipped)

Low Tire Pressure

(if equipped)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODMEDI2020/ODMEDI2049

ODMEDI2021/ODMEDI2050

ODM064023L/ODM064020L

• This warning message illuminates

• This warning message illuminates

if you start the engine when the

on the service reminder mode if

• This warning message illuminates

steering wheel is turned to more

the washer fluid level in the reser-

if the tire pressure is low with the

than 90 degrees to the left or right.

voir is nearly empty.

Engine/Start button in ON position.

• It means that you should turn the

• It means that you should refill the

steering wheel and make the angle

washer fluid.

For more details, refer to "Tire

of the steering wheel be less than

Pressure Monitoring System (TPMS)"

30 degrees.

in chapter 6.

4 83

Features of your vehicle

TRIP COMPUTER

Turn on "FUSE SWITCH"

Overview

(if equipped)

Description

Trip Modes

■ Type A

■ Type B

The trip computer is a microcomput-

TRIP A

er-controlled driver information sys-

tem that displays information related

• Tripmeter [A]

to driving.

• Average Vehicle Speed [A]

• Elapsed Time [A]

✽ NOTICE

Some driving information stored in

the trip computer

(for example

TRIP B

Average Vehicle Speed) resets if the

battery is disconnected.

• Tripmeter [B]

ODMEDI2022/ODMEDI2051

• Average Vehicle Speed [B]

•

This warning message illuminates

• Elapsed Time [B]

if the fuse switch under the steer-

ing wheel is OFF.

•

It means that you should turn the

FUEL ECONOMY

fuse switch on.

• Distance To Empty

For more details, refer to “Fuses” in

• Average Fuel Economy

chapter 7.

• Instant Fuel Economy

4 84

Features of your vehicle

Trip A/B

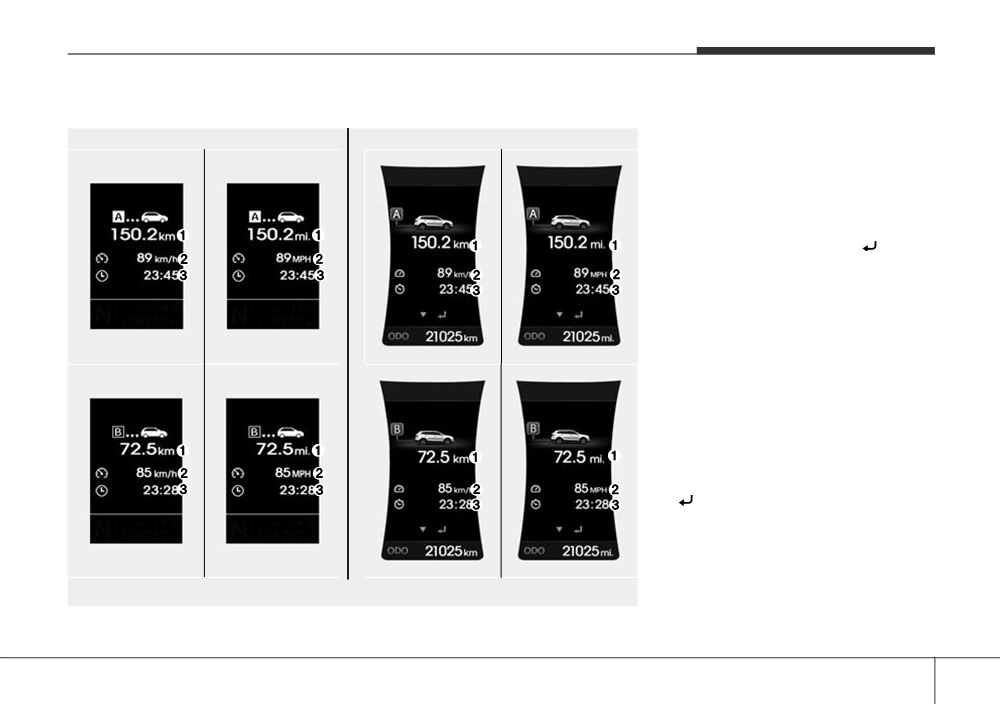

Tripmeter (1)

• The tripmeter is the total driving

■ Type A

■ Type B

distance since the last tripmeter

- Trip A (km, km/h)

- Trip A (mi., MPH)

- Trip A (km, km/h)

- Trip A (mi., MPH)

reset.

- Distance range: 0.0 ~ 9999.9 km

or mi.

• To reset the tripmeter, press the

SELECT/RESET button on the

steering wheel for more than

1

second when the tripmeter is dis-

played.

Average Vehicle Speed (2)

- Trip B (km, km/h)

- Trip B (mi., MPH)

- Trip B (km, km/h)

- Trip B (mi., MPH)

• The average vehicle speed is cal-

culated by the total driving dis-

tance and driving time since the

last average vehicle speed reset.

- Speed range: 0 ~ 999 km/h or MPH

• To reset the average vehicle speed,

press the SELECT/RESET button

on the steering wheel for more

than 1 second when the average

vehicle speed is displayed.

ODMEDI2027/ODMEDI2028

ONCEDI3057/ONCEDI3059

ODMEDI2062/ODMEDI2063

ONCEDI3058/ONCEDI3060

4 85

Content   ..  8  9  10  11   ..
