Warning message

If one of followings occurs, warning

messages will be displayed in the

information mode for several seconds.

- Low washer fluid (if equipped)

- Blind Spot Detection (BSD) mal-

function (if equipped)

- Lane Keeping Assist System

(LKAS) malfunction (if equipped)

- Tire Pressure Monitoring System

OTL045298L/OTL045299L

(TPMS, if equipped)

Service in OFF

- Service reminder and etc.

When the service interval is not set,

"Service in OFF" message is dis-

played on the LCD display.

Information

If any of the following conditions

occurs, the mileage and days may be

incorrect.

- The battery cable is disconnected.

- The fuse switch is turned off.

- The battery is discharged.

3-73

Convenient features of your vehicle

User settings mode

In this mode, you can change setting of the instrument cluster, doors, lamps, and so on.

Driving Assist (if equipped)

Items

Explanation

• Lane Departure Warning : To activate the lane departure warning function.

Lane Keeping Assist System

• Standard LKA : To activate the standard LKA mode of LKAS function.

(if equipped)

• Active LKA : To activate the active LKA mode of LKAS function

For more details, refer to LKAS (Lane Keeping Assist System)" in chapter 5.

Autonomous Emergency

To activate or deactivate the AEB system.

Braking (if equipped)

For more details, refer to "Autonomous Emergency Braking (AEB)" in chapter 5.

Choose the sensitivity of the forward collosion warning.

Forward Collosion Warning

- Late / Normal / Early

(if equipped)

For more details, refer to "Autonomous Emergency Braking (AEB)" in chapter 5.

Rear Cross Traffic Alert

If this item is checked, the rear cross traffic alert function will be activated.

(if equipped)

For more details, refer to "Blind Spot Detection System" in chapter 5.

Speed Limit Information

If this item is checked, the speed limit information function will be activated.

Function (if equipped)

For more details, refer to "Speed Limit Information Function" in chapter 5.

3-74

Door

Items

Explanation

• Disable : The automatic door lock operation will be deactivated.

• Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 15km/h

Automatic

(9.3mph).

Lock

• Enable on Shift: All doors will be automatically locked if the automatic transaxle shift lever is shifted

from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.

• Disable : The automatic door unlock operation will be canceled.

• On key out : All doors will be automatically unlocked when the ignition key is removed from the

Automatic

ignition switch or the Engine Start/Stop button is set to the OFF position.

Unlock

• Driver Door Unlock: All doors will be automatically unlocked if the driver's door is unlocked.

• On Shift to P: All doors will be automatically unlocked if the automatic transaxle shift lever is shifted

to the P (Park) position.

If this item is checked, the horn feedback operation will be activated.

Horn Feedback

After locking the door by pressing the lock button on the remote key, if you press the lock button

again within 4 seconds, the warning sound will operate once to indicate that all doors are locked.

Power tailgate

If this item is checked, the power tailgate function will be activated.

(if equipped)

For more details, refer to "Tailgate" in this chapter.

If this item is checked, the smart tailgate function will be activated.

Smart Tailgate

If the power tailgate function is not activated, you cannot activate this function.

(if equipped)

For more details, refer to "Tailgate" in this chapter.

3-75

Convenient features of your vehicle

Light

Items

Explanation

• Off: The one touch turn signal function will be deactivated.

• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is

One Touch Turn Signal

moved slightly.

For more details, refer to "Light" in this chapter.

Head Lamp Delay

• If this item is checked, the head lamp delay function will be activated.

Welcome light

• If this item is checked, the welcome light function will be activated.

(if equipped)

Sound

Items

Explanation

Park Assist System Vol.

• Adjust the Park Assist System volume. (Level 1~3)

(if equipped)

For more details, refer to "Parking Assist System" in this chapter.

Blind Spot Detection Sound

• If this item is checked, the blind spot detection sound will be activated.

(if equipped)

For more details, refer to "Blind Spot Detection System" in chapter 5.

Welcome sound

• If this item is checked, the welcome sound function will be activated.

(if equipped)

3-76

Service interval

Items

Explanation

• Off : The service interval function will be deactivated.

Service Interval

• On :You can set the service interval (mileage and days).

(Except Europe)

For more details, refer to "Information mode" in this chapter.

Other features

Items

Explanation

• Off : The average fuel economy will not reset automatically whenever refueling.

• After Ignition : The average fuel economy will reset automatically whenever it has passed 4 hours

Fuel Economy Auto Reset

after turning off the engine.

• After Refueling : The average fuel economy will reset automatically when refueling.

For more details, refer to “Trip Computer” in this chapter.

Steering position

If this item is checked, the steering position will be displayed.

• Off : The Auto Rear Wiper function will be deactivated.

Auto Rear Wiper

• ON : If you move the shift lever from D to R when the front wiper operates, the rear wiper will operate

automatically. Then, if you move the shift lever from R to D, the rear wiper will stop.

Fuel Economy Unit

Choose the fuel economy unit. (Km/L, L/100)

Temperature Unit

Choose the temperature unit. (°C,°F)

Tire Pressure Unit

Choose the tire pressure unit. (psi, kPa, bar)

(if equipped)

Gear Position Pop-up

If this item is checked, the gear position will be displayed when you move the shift lever.

Language

Choose the language.

3-77

Convenient features of your vehicle

Warning messages

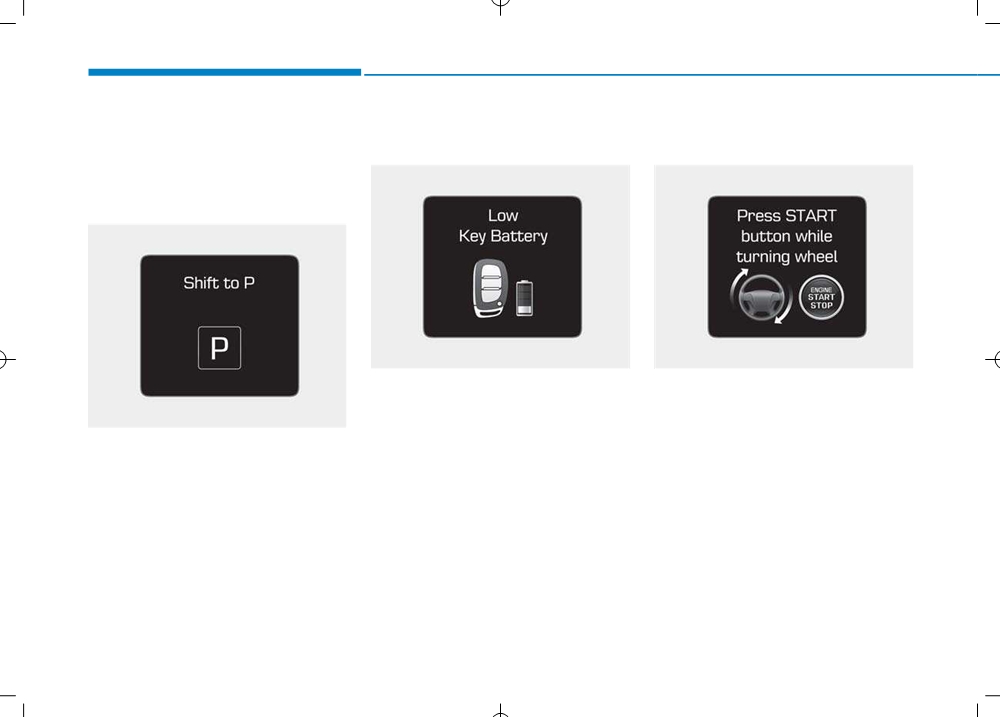

Low Key Battery

Press start button while turning

(for smart key system)

wheel (for smart key system)

Shift to "P" position

(for smart key system and auto-

matic transaxle/dual clutch

transmission)

OTL045141L

OTL045300L

This warning message illuminates if

the battery of the smart key is dis-

the steering wheel does not unlock

OTL045144L

charged while changing the Engine

normally when the Engine Start/Stop

Start/Stop button while changing to

button is pressed.

This warning message illuminates if

the OFF position.

You should press you should press the

you try to turn off the engine without

Engine Start/Stop button while turning

the shift lever in P (Park) position.

the steering wheel right and left.

At this time, the Engine Start/Stop

button turns to the ACC position (If

you press the Engine Start/Stop but-

ton once more, it will turn to the ON

position).

3-78

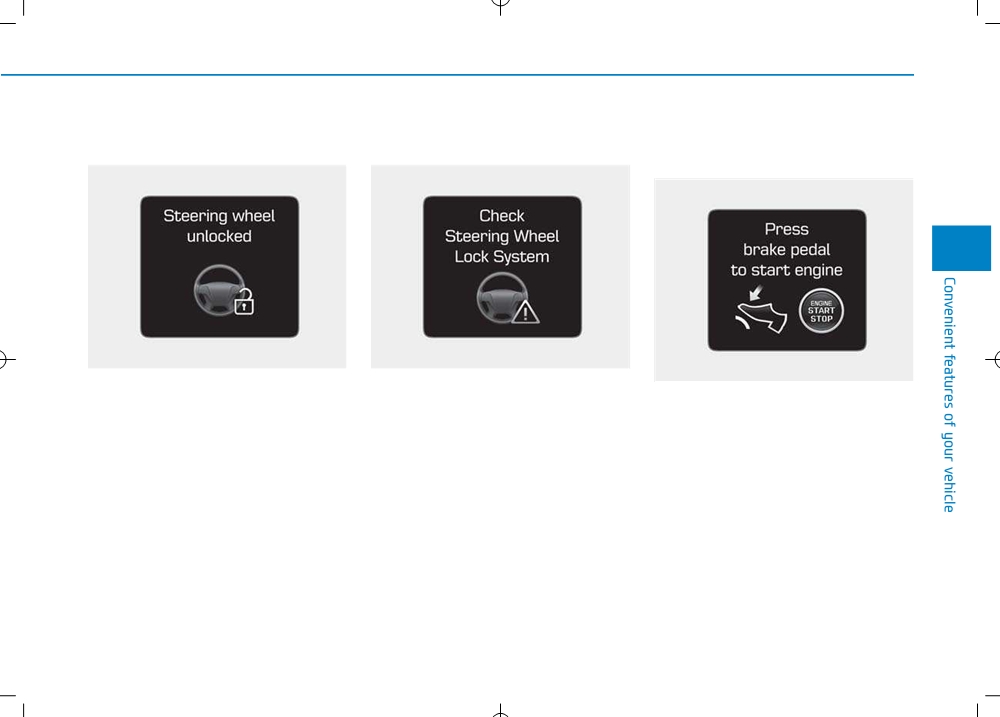

Steering wheel unlocked

Check steering wheel lock

Press brake pedal to start engine

(for smart key system)

system (for smart key system)

(for smart key system and auto-

matic transaxle)

OTL045301L

OTL045302L

OTL045142L

This warning message illuminates if

the steering wheel does not lock

the steering wheel does not lock nor-

This warning message illuminates if

while the Engine Start/Stop button

mally while the Engine Start/Stop but-

the Engine Start/Stop button changes

changes to the OFF position.

ton changes to the OFF position.

to the ACC position twice by pressing

the button repeatedly without depress-

ing the brake pedal.

You can start the vehicle by depressing

the brake pedal.

3-79

Convenient features of your vehicle

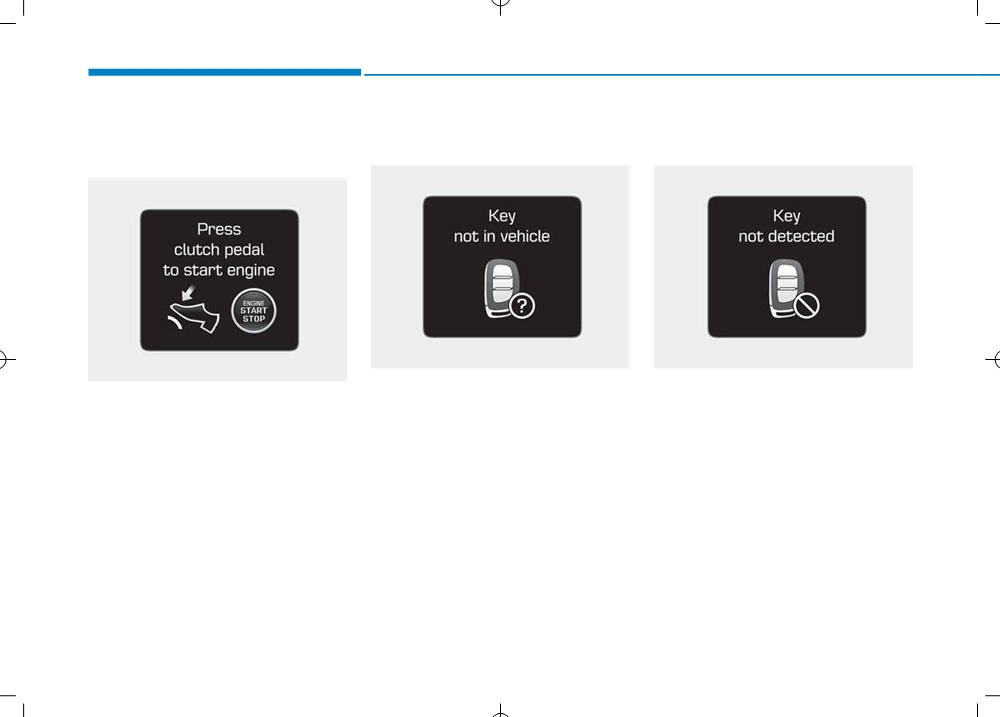

Press clutch pedal to start

Key not in vehicle

Key not detected

engine (for smart key system

(for smart key system)

and manual transaxle)

OTL045138L

OTL045139L

OTL045143L

This warning message illuminates if

the smart key is not in the vehicle

the smart key is not detected when you

the Engine Start/Stop button is in the

when you press the Engine Start/Stop

press the Engine Start/Stop button.

ACC position twice by pressing the

button.

button repeatedly without depressing

It means that you always have the

the clutch pedal.

smart key with you.

Depress the clutch pedal to start the

engine.

3-80

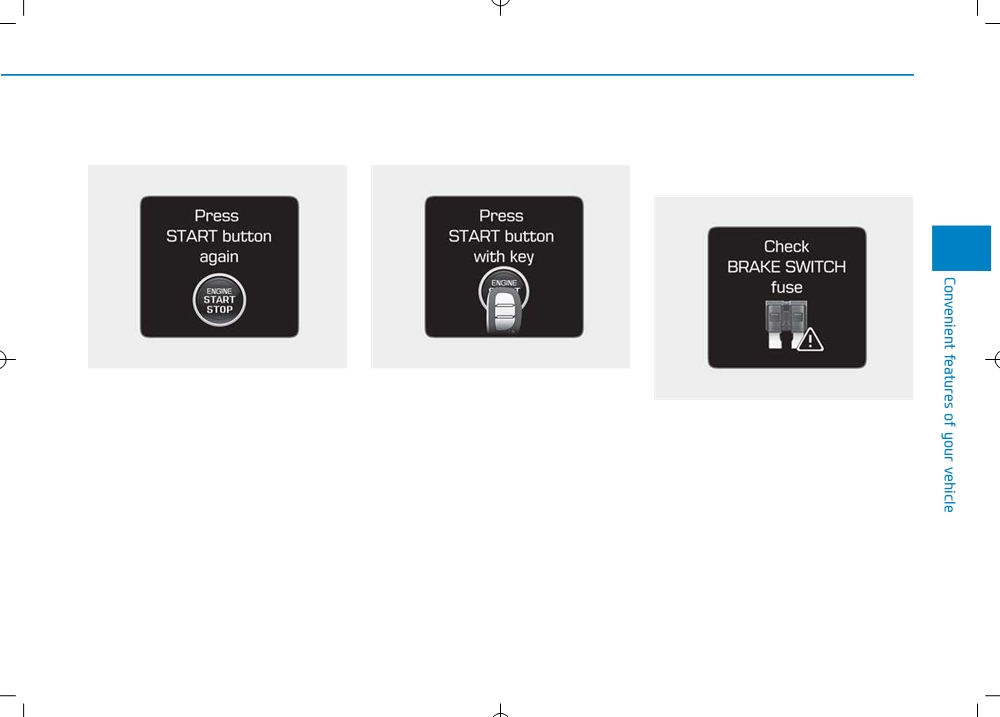

Press start button again

Press “START” button with key

Check "BRAKE SWITCH" fuse

(for smart key system)

(for smart key system and auto-

matic transaxle/dual clutch trans-

mission)

OTL045145L

OTL045140L

This warning message illuminates if

OTL045147L

you can not operate the Engine

you press the Engine Start/Stop but-

Start/Stop button when there is a

ton while the warning message “Key

This warning message illuminates if

problem with the Engine Start/Stop

not detected” is displayed.

the brake switch fuse is disconnected.

button system.

At this time, the immobilizer indicator

You need to replace the fuse with a

You could start the engine by press-

light blinks.

new one. If that is not possible, you

ing the Engine Start/Stop button

can start the engine by pressing the

once more.

Engine Start/Stop button for 10 sec-

onds in the ACC position.

If the warning illuminates each time

you press the Engine Start/Stop but-

ton, we recommend that you have the

vehicle inspected by an authorized

HYUNDAI dealer.

3-81

Convenient features of your vehicle

Shift to "P" or "N" to start engine

Door, Hood, Tailgate Open

Sunroof Open (if equipped)

(for smart key system and auto-

matic transaxle/dual clutch trans-

mission)

OTL045148

OTL045149

This warning illuminates, when any

This warning illuminates if you turn

door, hood, or trunk is open.

off the engine when the sunroof is

OTL045146L

open.

This warning message illuminates if

CAUTION

you try to start the engine with the

shift lever not in the P (Park) or N

Before driving the vehicle, you

(Neutral) position.

should confirm that the door/

hood/tailgate is fully closed.

Information

Also, check there is no door/

hood/tailgate open warning

You can start the engine with the shift

light or message displayed on

lever in the N (Neutral) position. But,

the instrument cluster.

for your safety, we recommend that

you start the engine with the shift

lever in the P (Park) position.

3-82

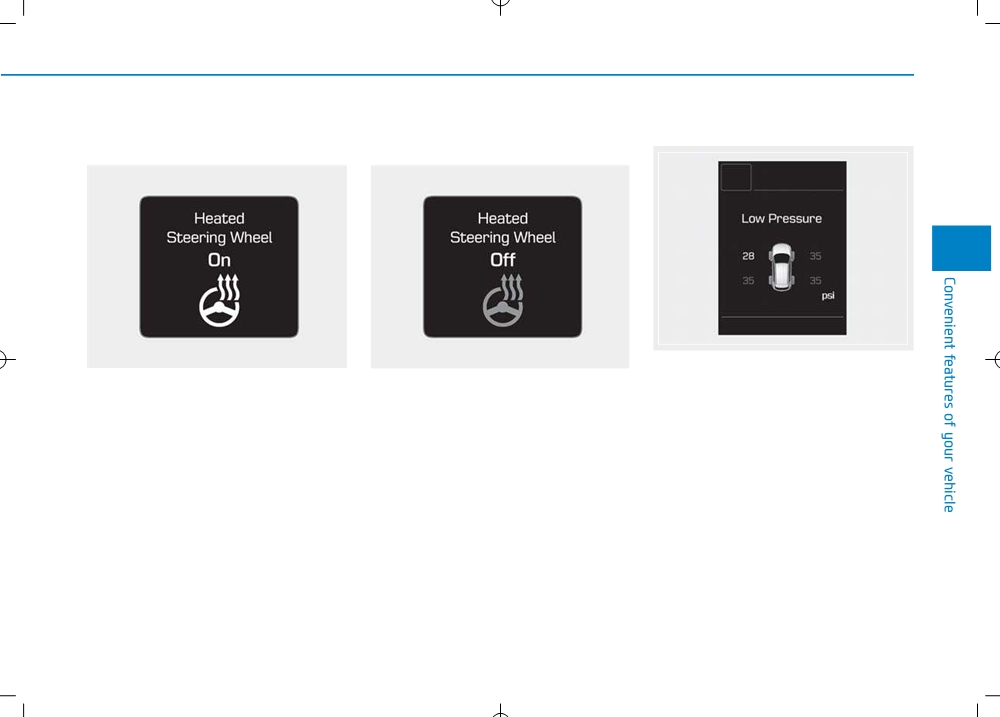

Heated Steering Wheel On

Heated Steering Wheel Off

Low Tire Pressure (if equipped)

(if equipped)

OTL045504L

OTL045166L

OTL045167L

This warning message illuminates if

the tire pressure is low with the igni-

you turn on the heated steering wheel.

you turn off the heated steering wheel.

tions switch in ON position.

For more details, refer to “Heated

For more details, refer to "Tire

Steering Wheel” in this chapter.

Pressure Monitoring System (TPMS)"

in chapter 6.

3-83

Convenient features of your vehicle

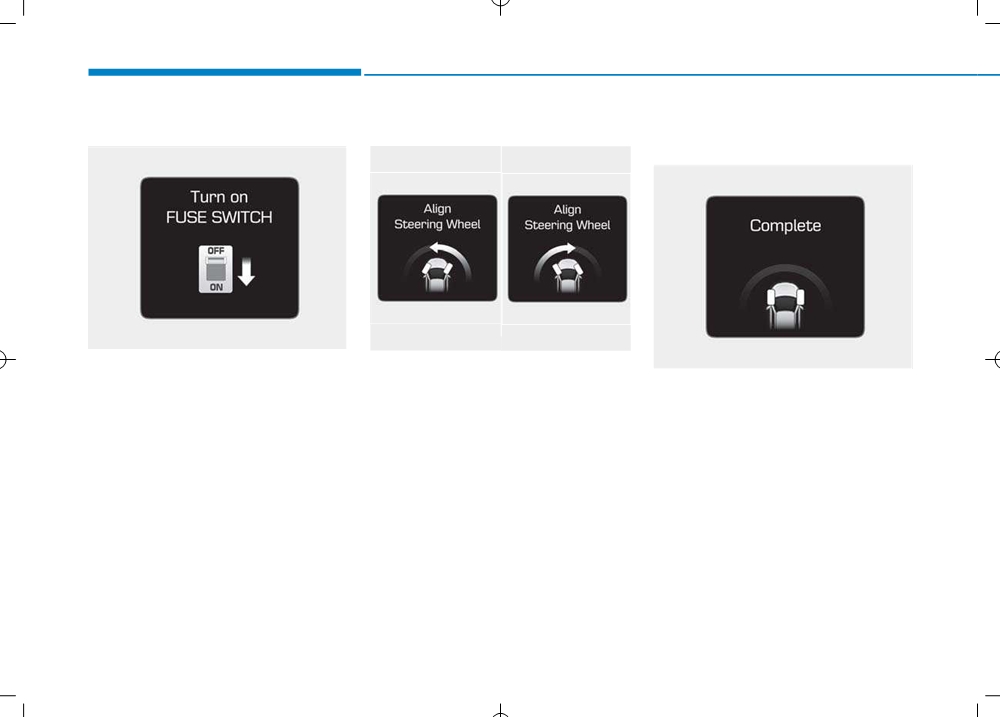

Turn on "FUSE SWITCH"

Align steering wheel (if equipped)

Steering wheel aligning is com-

pleted (if equipped)

OTL045155L

OTL045156L/OTL045157L

OTL045158L

This warning message illuminates if

the fuse switch located on the fuse

you start the engine when the steer-

If the steering wheel aligning is com-

box under the steering wheel is OFF.

ing wheel is turned to more than 90

pleted after

“Align steering wheel”

degrees to the left or right.

warning message is displayed, this

You should turn the fuse switch on.

You should align the steering wheel

message is displayed for 2 seconds.

and narrow the steering wheel angle

For more details, refer to “Fuses”

to be less than 30 degrees.

in chapter 7.

3-84

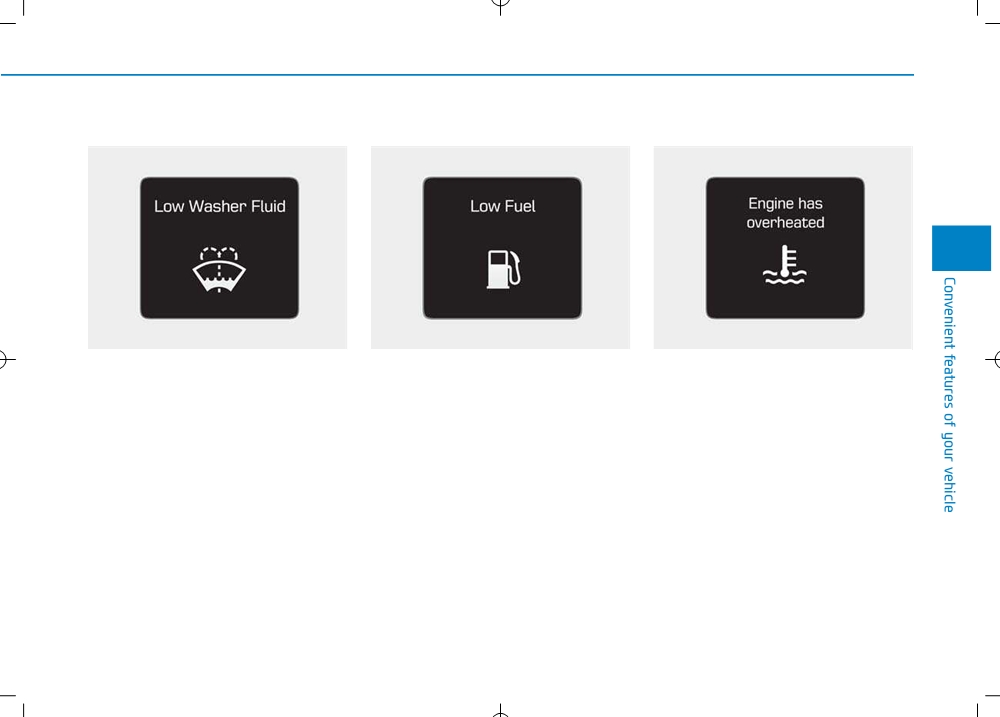

Low Washer Fluid (if equipped)

Low Fuel

Engine has overheated

OTL045159L

OTL045160L

OTL045161L

This warning message illuminates in

This warning message illuminates if

This warning message illuminates

the service reminder mode if the

the fuel tank is nearly empty.

when the engine coolant tempera-

washer fluid level in the reservoir is

- When the low fuel level warning

ture is above

120°C (248°F). This

nearly empty.

means that the engine is overheated

light is illuminates.

Refill the washer fluid.

and may be damaged.

- When the trip computer displays “---

km(or mile)” as distance to empty.

If your vehicle is overheated, refer

Add fuel as soon as possible.

to “Overheating” in chapter 6.

3-85

Convenient features of your vehicle

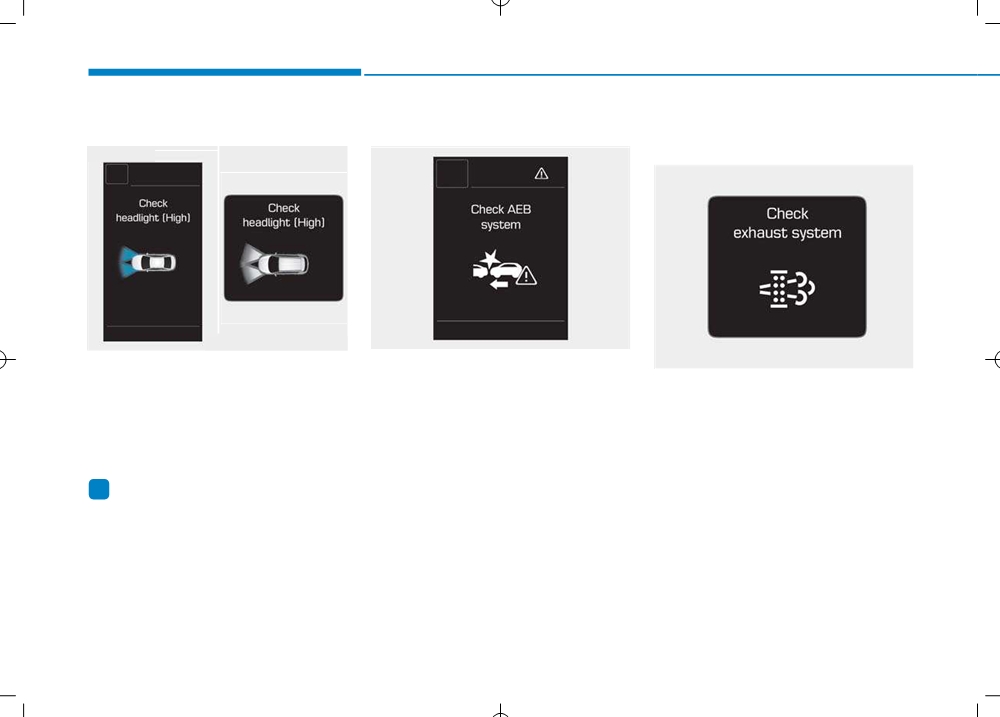

Check headlight (if equipped)

Check AEB system (if equipped)

Diesel Particulate Filter (DPF)

warning (for Diesel engine)

■ Type A

■ Type B

OTL045304L/OTL045164L

OTL045168L

OTL045165L

This warning message illuminates if

there is a malfunction

(burned-out

there is a malfunction with the

This warning message illuminates if

bulb except LED lamp or circuit mal-

Autonomous Emergency Braking (AEB)

the DPF system has a malfunction.

function) with the headlamp. In this

system. We recommend that the vehi-

At this time, DPF warning light also

case, have your vehicle inspected by

cle be inspected by an authorized

blinks.

an authorized HYUNDAI dealer.

HYUNDAI dealer.

In this case, we recommend that you

have the DPF system checked by an

For more details, refer to "Autonomous

Information

authorized HYUNDAI dealer.

Emergency Braking (AEB) system" in

Make sure to replace the burned out

chapter 5.

For more details, refer to “Warning

bulb with a new one of the same

Lights” in this chapter.

wattage rating.

If not, this warning message will not

be displayed.

3-86

TRIP COMPUTER

The trip computer is a microcomput-

Trip modes

Trip A/B

er-controlled driver information sys-

To change the trip mode, rotate the

■ Type A

■ Type B

tem that displays information related

“▲, ▼” switch on the steering wheel.

to driving.

FUEL ECONOMY

Information

• Distance To Empty

Some driving information stored in the

• Average Fuel Economy

trip computer (for example Average

• Instant Fuel Economy

Vehicle Speed) resets if the battery is

disconnected.

TRIP A

OTLE045145/OTLE045146

• Tripmeter [A]

■ Type A

■ Type B

• Average Vehicle Speed [A]

• Elapsed Time [A]

TRIP B

• Tripmeter [B]

• Average Vehicle Speed [B]

• Elapsed Time [B]

OTL045294L/OTL045295L

Digital Speedometer

3-87

Convenient features of your vehicle

Tripmeter (1)

Average Vehicle Speed (2)

Elapsed Time (3)

•

The tripmeter is the total driving

• The average vehicle speed is cal-

• The elapsed time is the total driv-

distance since the last tripmeter

culated by the total driving dis-

ing time since the last elapsed time

reset.

tance and driving time since the

reset.

last average vehicle speed reset.

- Distance range: 0.0 ~ 9999.9 km

- Time range (hh:mm): 00:00 ~ 99:59

or mi.

- Speed range: 0~240 km/h or

• To reset the elapsed time, press the

0~160 MPH

•

To reset the tripmeter, press the

[OK] button on the steering wheel

• To reset the average vehicle speed,

for more than 1 second when the

press the [OK] button on the steer-

elapsed time is displayed.

tripmeter is displayed.

ing wheel for more than 1 second

when the average vehicle speed is

Information

displayed.

Even if the vehicle is not in motion, the

elapsed time keeps calculating while

Information

the engine is running.

• The average vehicle speed is not dis-

played if the driving distance is less

than 300 meters (0.19 miles) or the

driving time is less than 10 seconds

since the ignition switch or the Engine

Start/Stop button is turned to ON.

• Even if the vehicle is not in motion,

the average vehicle speed keeps cal-

culating while the engine is running.

3-88

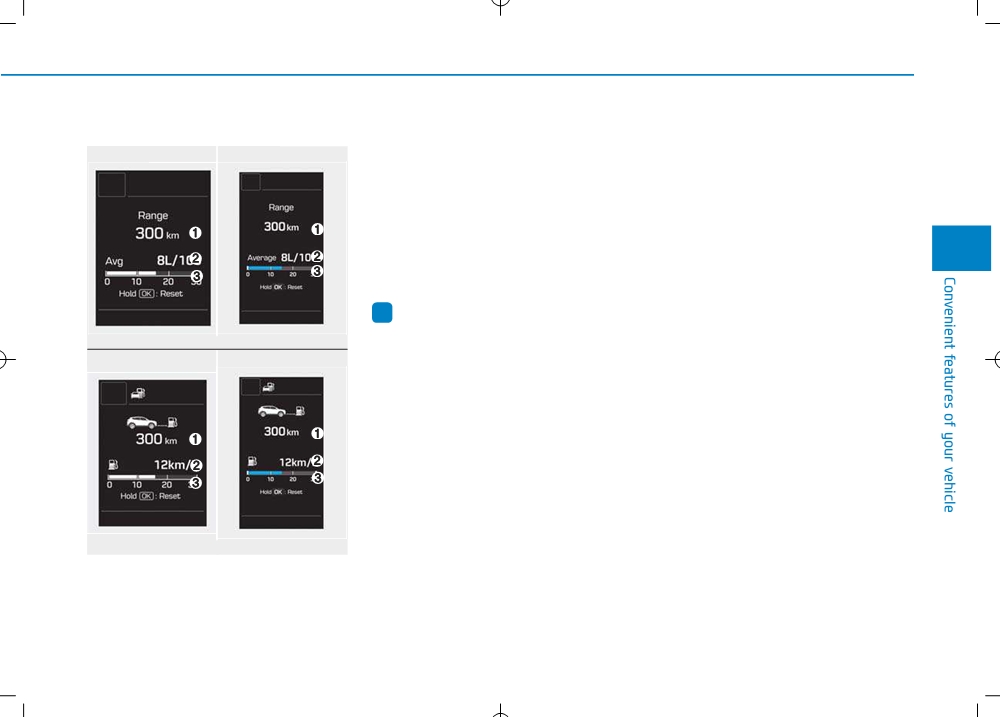

Fuel economy

Distance To Empty (1)

Average Fuel Economy (2)

• The distance to empty is the esti-

• The average fuel economy is calcu-

■ Type A

■ Type B

mated distance the vehicle can be

lated by the total driving distance

driven with the remaining fuel.

and fuel consumption since the last

average fuel economy reset.

- Distance range: 1 ~ 9999 km or

1 ~ 9999 mi.

- Fuel economy range: 0.0 ~ 99.9

L/100km, km/L or MPG

• If the estimated distance is below

1 km (1 mi.), the trip computer will

• The average fuel economy can be

display “---” as distance to empty.

reset both manually and automati-

cally.

Information

Manual reset

OTLE045262/OTLE045263

•

If the vehicle is not on level ground

■ Type A

■ Type B

or the battery power has been inter-

To clear the average fuel economy

rupted, the distance to empty func-

manually, press the [OK] button on

tion may not operate correctly.

the steering wheel for more than 1

second when the average fuel econo-

•

The distance to empty may differ

my is displayed.

from the actual driving distance as

it is an estimate of the available

driving distance.

•

The trip computer may not register

additional fuel if less than 6 liters

(1.6 gallons) of fuel are added to the

vehicle.

OTL045171L/OTL045172L

•

The fuel economy and distance to

empty may vary significantly based

on driving conditions, driving habits,

and condition of the vehicle.

3-89

Hyundai Tucson (2017 year). Instruction - part 10
