Hyundai Tucson (2017 year). Instruction - part 9
Convenient features of your vehicle
Smart tailgate (if equipped)
How to use the Smart Tailgate
WARNING
The tailgate can be opened with no-
touch activation satisfying all the
•
For emergencies, be fully
conditions below.
aware of the location of the
emergency tailgate safety
• After
15 seconds when all doors
release lever in the vehicle
are closed and locked
and how to open the tailgate if
• Positioned in the detecting area for
you are accidentally locked in
more than 3 seconds.
the luggage compartment.
•
No one should be allowed to
i
Information
occupy the luggage compart-
• The Smart Tailgate does not operate
ment of the vehicle at any time.
when:
The luggage compartment is a
OTL045043
very dangerous location in the
- The smart key is detected within
On the vehicle equipped with a smart
event of a crash.
15 seconds after the doors are
key, the tailgate can be opened with
closed and locked, and is continu-
•
Use the release lever for
no-touch activation using the Smart
ously detected.
emergencies only. Use with
tailgate system.
extreme caution, especially
- The smart key is detected within 15
while the vehicle is in motion.
seconds after the doors are closed
and locked, and 1.5 m (60 in.) from
the front door handles. (for vehicles
equipped with Welcome Light)
- A door is not locked or closed.
- The smart key is in the vehicle.
3-56
1. Setting
To activate the Smart Tailgate, go to
User Settings Mode and select
Smart Tailgate on the LCD display.
❈ For more details, refer to "LCD
Display" in this chapter.
3
OTL045044
OTL045045
2. Detect and Alert
3. Automatic opening
If you are positioned in the detecting
The hazard warning lights will blink
area (50 ~100 cm (20 ~ 40 in.) behind
and chime will sound 2 times and
the vehicle) carrying a smart key, the
then the tailgate will slowly open.
hazard warning lights will blink and
chime will sound for about 3 seconds
to alert you the smart key has been
detected and the tailgate will open.
i
Information
Do not approach the detecting area if
you do not want the tailgate to open. If
you have unintentionally entered the
detecting area and the hazard warning
lights and chime starts to operate,
leave the detecting area with the smart
key. The tailgate will stay closed.
3-57
Convenient features of your vehicle
How to deactivate the Smart
i
Information
WARNING
Tailgate function using the
•
If you press the door unlock button
smart key
•
Make certain that you close
(2), the Smart Tailgate function will
the tailgate before driving
be deactivated temporarily. But, if
your vehicle.
you do not open any door for 30 sec-
onds, the Smart Tailgate function
•
Make sure there are no people
or objects around the tailgate
will be activated again.
before opening or closing the
•
If you press the tailgate open button
tailgate.
(3) for more than 1 second, the tail-
gate opens.
•
Make sure objects in the rear
cargo area do not come out
•
If you press the door lock button (1)
when opening the tailgate on
or tailgate open button (3) when the
the slope way. It may cause
Smart Tailgate function is not in the
serious injury.
Detect and Alert stage, the Smart
•
Make sure to deactivate the
OLMB043003
Tailgate function will not be deacti-
Smart tailgate function when
vated.
1. Door lock
washing your vehicle.
•
In case you have deactivated the
2. Door unlock
Otherwise, the tailgate may
Smart Tailgate function by pressing
3. Tailgate open
the smart key button and opened a
open inadvertently.
door, the Smart Tailgate function
•
The key should be kept out of
can be activated again by closing
If you press any button of the smart
reach of children. Children
key during the Detect and Alert
and locking all doors.
may inadvertently open the
stage, the Smart Tailgate function
Smart Tailgate while playing
will be deactivated.
around the rear area of the
vehicle.
Make sure to be aware of how to
deactivate the Smart Tailgate func-
tion for emergency situations.
3-58
Detecting area
i
Information
•
The Smart Tailgate function will not
work if any of the following occurs:
- The smart key is close to a radio
transmitter such as a radio station
or an airport which can interfere
with normal operation of the trans-
3
mitter.
- The smart key is near a mobile two
way radio system or a cellular
phone.
- Another vehicle's smart key is being
OTL045046
operated close to your vehicle.
•
The Smart Tailgate operates with a
•
The detecting range may decrease or
welcome alert if the smart key is
increase when :
detected within 50 ~ 100 cm (20 ~
40 in.) from the tailgate.
- One side of the tire is raised to replace
a tire or to inspect the vehicle.
•
The alert stops at once if the smart
key is positioned outside the detect-
- The vehicle is slantingly parked on
ing area during the Detect and Alert
a slope or unpaved road, etc.
stage.
3-59
Convenient features of your vehicle

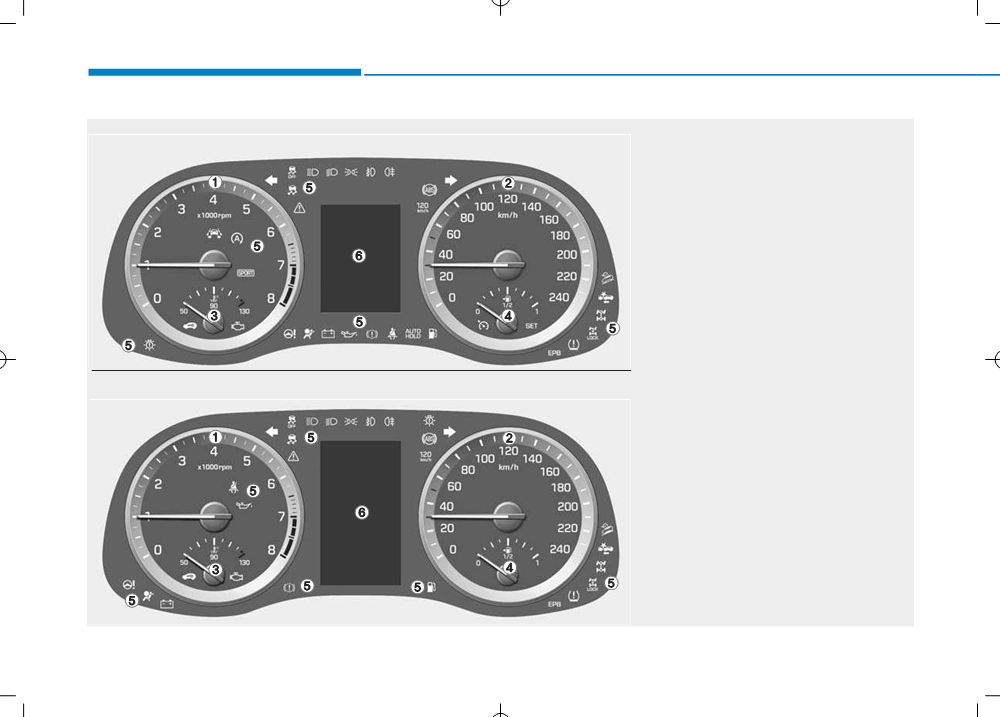

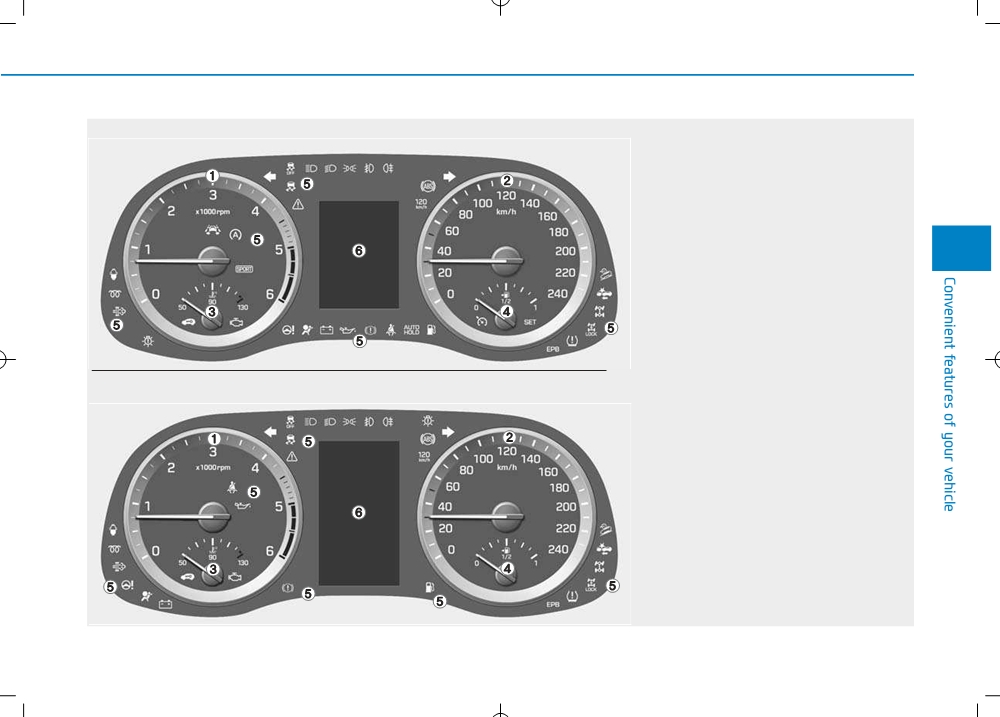

INSTRUMENT CLUSTER
■ Type A
• Gasoline engine
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
■ Type B
6. LCD display (including Trip computer)
• Gasoline engine
The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to the "Gauges" in
this chapter.
OTLE047340/OTLE047101
3-60
■ Type A
• Diesel engine
3
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
■ Type B
6. LCD display (including Trip computer)
• Diesel engine
The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to the "Gauges" in
this chapter.
OTLE047341/OTLE047101L
3-61
Convenient features of your vehicle
Instrument cluster control
■ Type A
■ Type B
WARNING
Instrument panel illumination
Never adjust the instrument clus-
ter while driving.This could result
in loss of control and lead to an
accident that may cause death,
serious injury, or property dam-
age.
OTL045150L/OTL045151L
• The brightness of the instrument
panel illumination is displayed.
OTL045070
• If the brightness reaches to the
When the vehicle's parking lights or
maximum or minimum level, an
headlights are on, press the illumina-
alarm will sound.
tion control button to adjust the
brightness of the instrument panel
illumination.
When pressing the illumination con-
trol button, the interior switch illumi-
nation intensity is also adjusted.
3-62
Gauges
Tachometer
Engine Coolant Temperature
gauge
Speedometer
■ Gasoline engine
■ Diesel engine
■ km/h
■ MPH, km/h
■ Except Europe
■ For Europe
3
OTLE045107/OTLE045104
OTLE045102/OTLE045103
OTLE045105
The tachometer indicates the
The speedometer indicates the
approximate number of engine revo-
This gauge indicates the tempera-
speed of the vehicle and is calibrated
lutions per minute (rpm).
ture of the engine coolant when the
in kilometers per hour (km/h) and/or
Use the tachometer to select the cor-
ignition switch is in the ON position.
miles per hour (MPH).
rect shift points and to prevent lug-
ging and/or over-revving the engine.
NOTICE
If the gauge pointer moves
NOTICE
beyond the normal range area
Do not operate the engine within
toward the "130 or H" position, it
the tachometer's RED ZONE. This
indicates overheating that may
may cause severe engine damage.
damage the engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to "If the Engine
Overheats" in chapter 6.
3-63
Convenient features of your vehicle
WARNING
Fuel Gauge
WARNING
■ Except Europe
■ For Europe
Never remove the radiator cap
Running out of fuel can expose
when the engine is hot. The
vehicle occupants to danger.
engine coolant is under pressure
and could severe burns. Wait
You must stop and obtain addi-
until the engine is cool before
tional fuel as soon as possible
adding coolant to the reservoir.
after the warning light comes
on or when the gauge indicator
comes close to the "0 or E
(Empty)" level.
NOTICE
OTLE045106
Avoid driving with a extremely low
This gauge indicates the approxi-
fuel level. Running out of fuel
mate amount of fuel remaining in the
could cause the engine to misfire
fuel tank.
damaging the catalytic converter.
i
Information
• The fuel tank capacity is given in
chapter 8.
• The fuel gauge is supplemented by a
low fuel warning light, which will
illuminate when the fuel tank is
nearly empty.
• On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier
than usual due to the movement of
fuel in the tank.
3-64
Outside Temperature Gauge
- User Settings mode in the Cluster :
Icy Road Warning Light
You can change the temperature
(if equipped)
■ Type A
■ Type B
unit in the
“Other Features
-
■ Type A
■ Type B
Temperature unit” .
- Automatic climate control system :
While pressing the OFF button,
press the AUTO button for 3 sec-
onds or more.
3
The temperature unit of the instrument
cluster and climate control system will
change at once.
OTL045130/OTL045131
OTLE045132/OTLE045133
This gauge indicates the current out-
side air temperatures either in
This warning light is to warn the driver
Celsius (°C) or Fahrenheit.
the road may be icy.
- Temperature range : -40°C ~ 60°C
When the temperature on the out-
(-104°F ~ 140°F)
side temperature gauge is approxi-
The outside temperature on the dis-
mately below
4°C (40°F), the Icy
play may not immediately change
Road Warning Light and Outside
like a general thermometer not to
Temperature Gauge blinks 10 times,
distract the driver.
and then illuminates. Also, the warn-
ing chime sounds 3 times.
The temperature unit (from °C to °F
or from °F to °C) can be changed by:
3-65
Convenient features of your vehicle
Transaxle Shift Indicator
Dual Clutch Transmission Shift
i
Information
Indicator (if equipped)
Automatic Transaxle Shift
If the icy road warning light appears
Indicator (if equipped)
■ Type A
■ Type B
while driving, you should drive more
attentively and safely refraining from
■ Type A
■ Type B
over-speeding, rapid acceleration, sud-
den braking or sharp turning, etc.
OTLE045136/OTLE045137
OTL045132/OTL045133
This indicator displays which shift
lever is selected.
This indicator displays which automat-
• Park : P
ic transaxle shift lever is selected.
• Park : P
• Reverse : R
• Reverse : R
• Neutral : N
• Drive : D
• Neutral : N
• Drive : D
• Sports Mode : D1, D2, D3, D4, D5,
D6, D7
• Sports Mode : 1, 2, 3, 4, 5, 6
3-66
Automatic Transaxle Shift Indicator
For example
Manual Transaxle Shift Indicator
/ Dual Clutch Transmission Shift
(if equipped)
: Indicates that shifting up to the
Indicator (for Europe, if equipped)
3rd gear is desired (currently
■ Type A
■ Type B
■ Type A
■ Type B
the shift lever is in the 2nd or
1st gear).
: Indicates that shifting down to
the 3rd gear is desired (current-
ly the shift lever is in the 4th,
3
5th, or 6th gear).
When the system is not working
properly, the indicator is not dis-
played.
OTLE045134/OTLE045135
OTLE045134/OTLE045135
This indicator informs which gear is
desired while driving to save fuel.
In the Sports Mode, this indicator
informs which gear is desired while
• Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6
driving to save fuel.
• Shifting down :
▼1, ▼2, ▼3, ▼4, ▼5
• Automatic transaxle shift indicator
For example
- Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6
: Indicates that shifting up to the
- Shifting down :
3rd gear is desired (currently
▼1, ▼2, ▼3, ▼4, ▼5
the shift lever is in the 2nd or
• Dual clutch transmission shift indi-
1st gear).
cator
: Indicates that shifting down to
- Shifting up : ▲2, ▲3, ▲4, ▲5,
the 3rd gear is desired (current-
▲
6 ▲7
ly the shift lever is in the 4th,
- Shifting down :
5th, or 6th gear).
▼1, ▼2, ▼3, ▼4,
▼5, ▼6
When the system is not working prop-
erly, the indicator is not displayed.
3-67
Convenient features of your vehicle
■ Type A
■ Type B
Odometer
■ Type A
■ Type B
OTL045134/OTL045135
Shift Indicator Pop-up (if equipped)
OTL045136/OTL045137
The pop-up that indicates the current
The odometer indicates the total dis-
gear position is displayed in the clus-
tance that the vehicle has been driv-
ter for about 2 seconds when shifting
en and should be used to determine
into other positions (P/R/N/D).
when periodic maintenance should
be performed.
3-68
LCD DISPLAY
LCD display control
LCD modes
Modes
Symbol
Explanation
■ Type A
This mode displays driving information like
the tripmeter, fuel economy, etc.
Trip Computer
For more details, refer to "Trip Computer"
in this chapter.
3
■ Type B
Turn By Turn
This mode displays the state of the navi-
(TBT)
gation.
(if equipped)
This mode displays the state of the Lane
OTLE045112
LKAS
Keeping Assist System(LKAS).
The LCD display modes can be
(if equipped)
For more details, refer to Lane Keeping
changed by using the control buttons.
Assist System (LKAS) in chapter 5.
A/V
This mode displays the state of the A/V
(1)
: MODE button for changing
(If equipped)
system.
modes
(2) ▲, ▼ : MOVE switch for chang-
This mode displays the service interval
ing items
(mileage or days) and warning messages
Information
or
or
(3) OK : SELECT/RESET button for
related to the Blind Spot Detection system,
setting or resetting the
etc.
selected item
In this mode, you can change settings of
User Settings
the doors, lamps, etc.
3-69
Convenient features of your vehicle

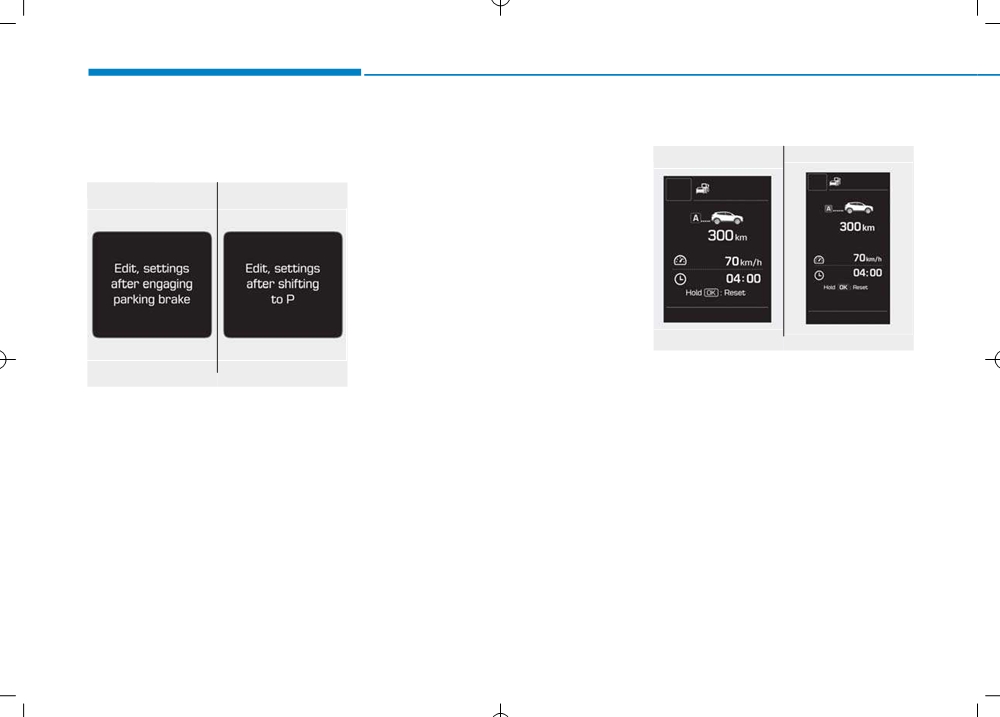

Edit settings after engaging
Quick guide (Help, if equipped)
Trip computer mode
parking brake / Edit settings
This mode provides quick guides for
■ Type A
■ Type B
after shifting to P
the systems in the User Settings
mode.
■ Type A
■ Type B
Select an item, press and hold the
OK button.
For more details about each sys-
tem, refer to this Owner’s Manual.
OTL045294L/OTL045295L
This mode displays driving informa-
OTL045292L/OTL045293L
tion like the tripmeter, fuel economy,
This warning message illuminates if
etc.
you try to select an item from the
User Settings mode while driving.
For more details, refer to “Trip
- Automatic transaxle / dual clutch
Computer” in this chapter.
transmission
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and mov-
ing the shift lever to P (Park).
- Manual transaxle
For your safety, change the User
Settings after engaging the parking
brake.
3-70

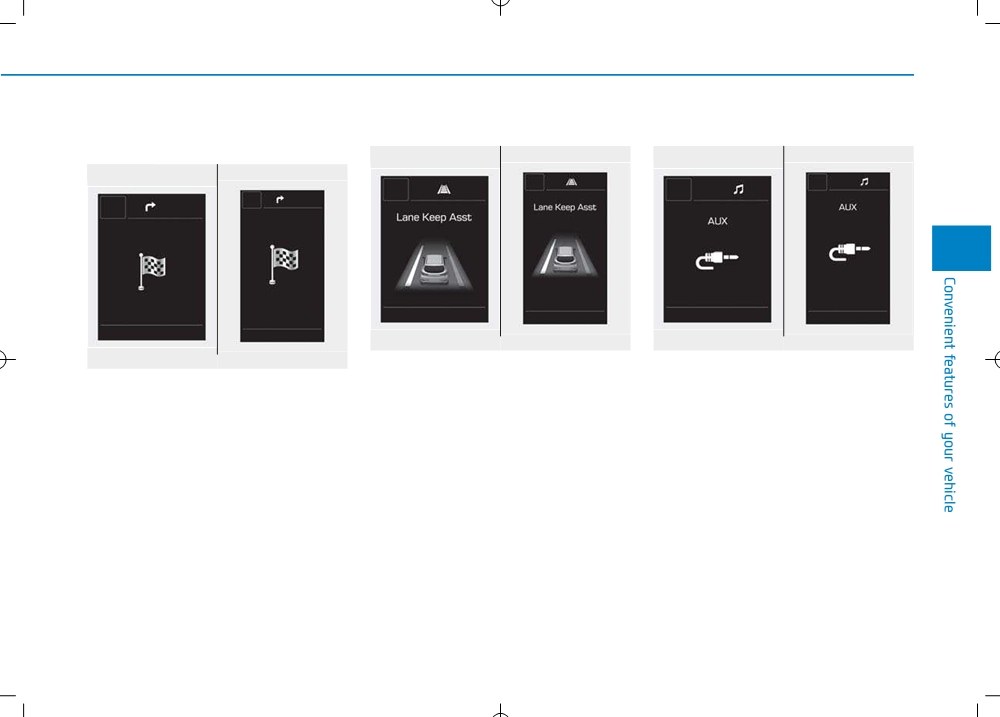

Turn By Turn (TBT) mode
LKAS Mode (if equipped)
A/V mode (if equipped)
(if equipped)
■ Type A
■ Type B
■ Type A
■ Type B
■ Type A
■ Type B
3
OTL045175L/OTL045176L
OTL045177/OTL045178
OTL045173/OTL045174
This mode displays the state of the
This mode displays the state of the
Lane Keeping Assist System (LKAS).
A/V system.
This mode displays the state of the
navigation.
For more details, refer to “Lane
Keeping Assist System(LKAS)” in
chapter 5.
3-71
Convenient features of your vehicle

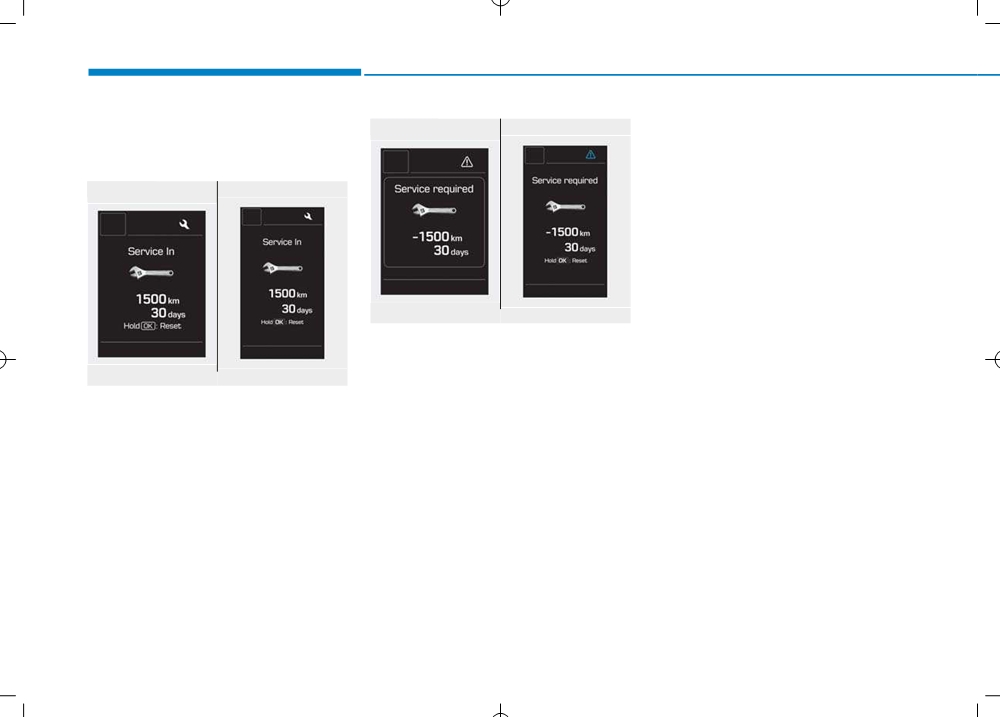

Information mode
■ Type A
■ Type B
To reset the service interval in
mileages or days that you initially
This mode displays the service inter-
set:
val (mileage and days).
-
Activate the reset mode by press-
■ Type A
■ Type B
ing the OK button for more than 5
second, then press the OK button
again for more than 1 second (for
Europe).
-
Press the OK button for more than
1 second (except Europe).
OTL045296L/OTL045297L
Service required
When you fail to have your vehicle
serviced according to the already
OTL045181L/OTL045182L
inputted service interval, "Service
Service interval
required" message is displayed for
Service in
several seconds each time you turn
ON the ignition switch.
It calculates and displays the mainte-
nance schedule (mileage or days),
as set in the system.
When the set mileages or days
passed, "Service in" message is dis-
played for several seconds each time
ignition switch is turned ON.
3-72
