Windshield Washers

If equipped with the Headlamp

NOTICE

Washer, washer fluid will be sprayed

on the headlamp at the same time you

•

To prevent possible damage to

operate the windshield washer when:

the washer pump, do not oper-

ate the washer when the fluid

1. Engine Start/Stop button is in the

reservoir is empty.

ON position.

•

To prevent possible damage to

2. The light switch is in the headlamp

the wipers or windshield, do not

position.

3

operate the wipers when the

windshield is dry.

WARNING

•

To prevent damage to the wiper

arms and other components, do

When the outside temperature is

not attempt to move the wipers

OLF044095N

below freezing, ALWAYS warm the

manually.

windshield using the defroster to

In the OFF position, pull the lever

prevent the washer fluid from

•

To prevent possible damage to

gently toward you to spray washer

the wipers and washer system,

freezing on the windshield and

fluid on the windshield and to run the

obscuring your vision which

use anti-freezing washer fluids

wipers

1-3 cycles. The spray and

in the winter season or cold

could result in an accident and

wiper operation will continue until you

serious injury or death.

weather.

release the lever. If the washer does

not work, you may need to add wash-

er fluid to the washer fluid reservoir.

3-129

Convenient features of your vehicle

DRIVER ASSIST SYSTEM

Rear view camera

This is a supplemental system that

WARNING

provides a view of the area behind

the vehicle through the A/V display

•

Never rely solely on the Rear

while the vehicle is in the R (Reverse)

position.

View Camera when backing-up.

•

ALWAYS look around your

vehicle to make sure there are

WARNING

no objects or obstacles before

moving the vehicle in any

The Rear View Camera is not a

direction to prevent a collision.

safety device. It only serves to

assist the driver in identifying

•

Always pay close attention

OLF044282N

objects directly behind the mid-

when the vehicle is driven

dle of the vehicle. The camera

close to objects, particularly

does NOT cover the complete

pedestrians, and especially

area behind the vehicle.

children.

NOTICE

Always keep the camera lens

clean. The camera may not work

normally if the lens is covered

with dirt or snow.

OLFH044281K

The Rear View Camera will activate

when the engine is running and the

shift lever is in the R (Reverse) posi-

tion.

3-130

Rear parking assist system

Operation of the Rear Parking

WARNING

(if equipped)

Assist System

Operating condition

•

ALWAYS look around your vehi-

cle to make sure there are not

•

This system will activate when

any objects or obstacles before

backing up with the ignition switch

moving the vehicle in any direc-

in the ON position. However, if the

tion to prevent a collision.

vehicle speed exceeds

3 mph

(5km/h), the system may not detect

3

•

Always pay close attention

objects.

when the vehicle is driven close

to objects, particularly pedestri-

•

If the vehicle speed exceeds 6 mph

ans, and especially children.

(10 km/h), the system will not warn

you even though objects are

Sensor

•

Be aware that some objects

detected.

may not be visible on the

OLFH044062L

•

When more than two objects are

screen or be detected by the

sensors, due to the objects

sensed at the same time, the clos-

The Rear Parking Assist System

distance, size or material, all of

est one will be recognized first.

assists the driver during reverse move-

ment of the vehicle by chiming if any

which can limit the effective-

object is sensed within approximately

ness of the sensor.

50 in (120 cm) behind the vehicle.

This system is a supplemental sys-

tem that senses objects within the

range and location of the sensors, it

cannot detect objects in other areas

where sensors are not installed.

3-131

Convenient features of your vehicle

Types of warning sound and indicator

NOTICE

To turn off the Rear Parking

Assist System

Types of warning sound

Indicator

•

The indicator may differ from the

illustration as objects or sensors

■ Hybrid

When an object is 24 to 47 in

status. If the indicator blinks,

(60 to 120 cm) from the rear

have your vehicle checked by an

bumper, the warning sound

authorized HYUNDAI dealer.

beeps intermittently.

•

If the audible warning does not

sound or if the buzzer sounds

When an object is 12 to 24 in

intermittently when shifting into

(30 to 60 cm) from the rear

R (Reverse) position, this may

bumper, the warning sound

indicate a malfunction with the

beeps more frequently.

Parking Assist System. If this

OLF044479N

occurs, have your vehicle

When an object is within 12 in

■ Plug-in hybrid

checked by an authorized

(30 cm) from the rear bumper,

HYUNDAI dealer as soon as pos-

the warning sound beeps

sible.

continuously.

OLFP045479N

Push the button to turn off the Rear

Parking Assist System. The indicator

light on the button will turn on.

3-132

Convenient features of your vehicle

Rear parking assist system

• Do not spray the sensors or its sur-

precautions

rounding area directly with a high

pressure washer. Doing so may

•

The rear parking assist system

cause the sensors to fail to operate

may not operate consistently in

normally.

some circumstances depending on

the speed of the vehicle and the

shapes of the objects detected.

WARNING

•

The rear parking assist system may

Your new vehicle warranty does

malfunction if the vehicle bumper

height or sensor installation has

not cover any accidents or dam-

age to the vehicle or injuries to

been modified or damaged. Any

non-factory installed equipment or

its occupants related to a Rear

Parking Assist System. Always

accessories may also interfere with

the sensor performance.

drive safely and cautiously.

•

The sensor may not recognize

objects less than 15 in. (40 cm)

from the sensor, or it may sense an

incorrect distance. Use caution.

•

When the sensor is blocked with

snow, dirt, debris, or ice, the rear

parking assist system may be inop-

erative until the snow or ice melts,

or the debris is removed. Use a

soft cloth to wipe debris away from

the sensor.

•

Do not push, scratch or strike the

sensor with any hard objects that

could damage the surface of the

sensor. Sensor damage could occur.

3-134

DEFROSTER

NOTICE

Rear Window Defroster

i

Information

To prevent damage to the conduc-

• If there is heavy accumulation of

tors bonded to the inside surface

snow on the rear window, brush it off

of the rear window, never use

before operating the rear defroster.

sharp instruments or window

• The rear window defroster automat-

cleaners containing abrasives to

ically turns off after approximately

clean the window.

20 minutes or when engine Start/Stop

3

button is in the OFF position.

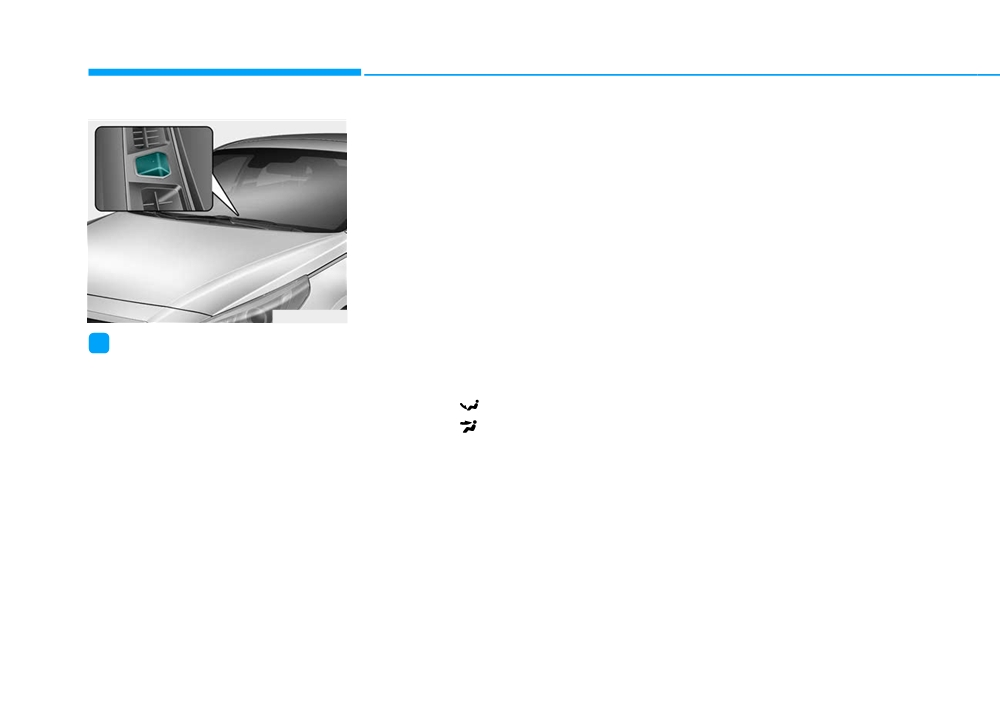

If you want to defrost and defog

the front windshield, refer to the

Outside rearview mirror defroster

"Windshield Defrosting and

Defogging" section in this chapter.

If your vehicle is equipped with the

OLFP045580N

outside rearview mirror defrosters,

they will operate at the same time you

The defroster heats the window to

turn on the rear window defroster.

remove frost, fog and thin ice from

the interior and exterior of the rear

window, while engine is running.

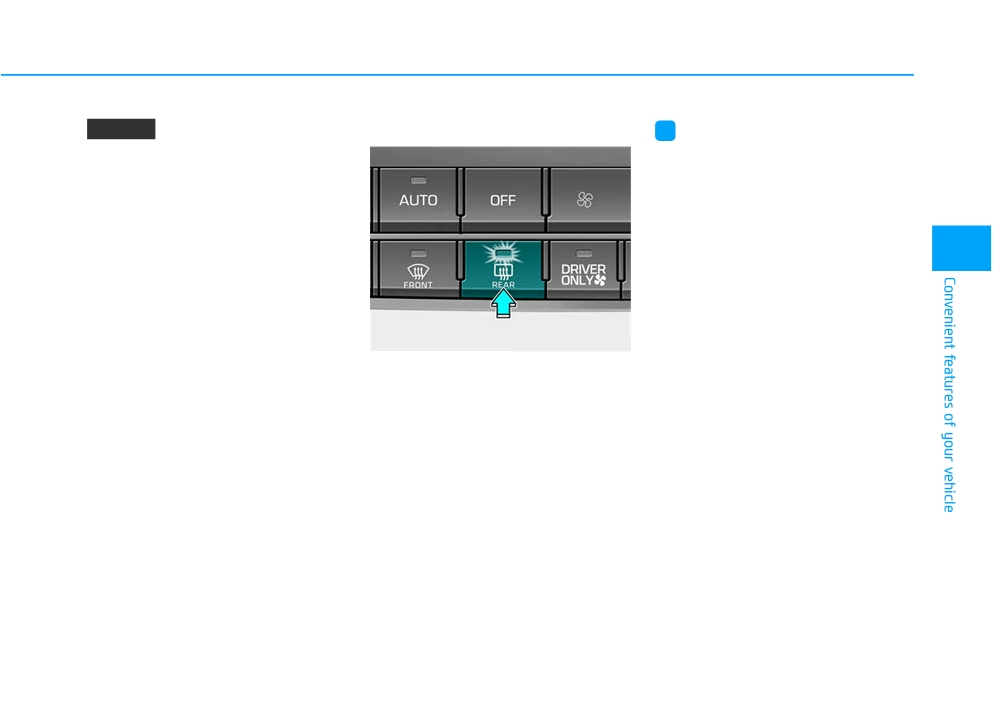

• To activate the rear window

defroster, press the rear window

defroster button located in the center

facia switch panel. The indicator on

the rear window defroster button illu-

minates when the defroster is ON.

• To turn off the defroster, press the

rear window defroster button again.

3-135

Convenient features of your vehicle

AUTOMATIC CLIMATE CONTROL SYSTEM

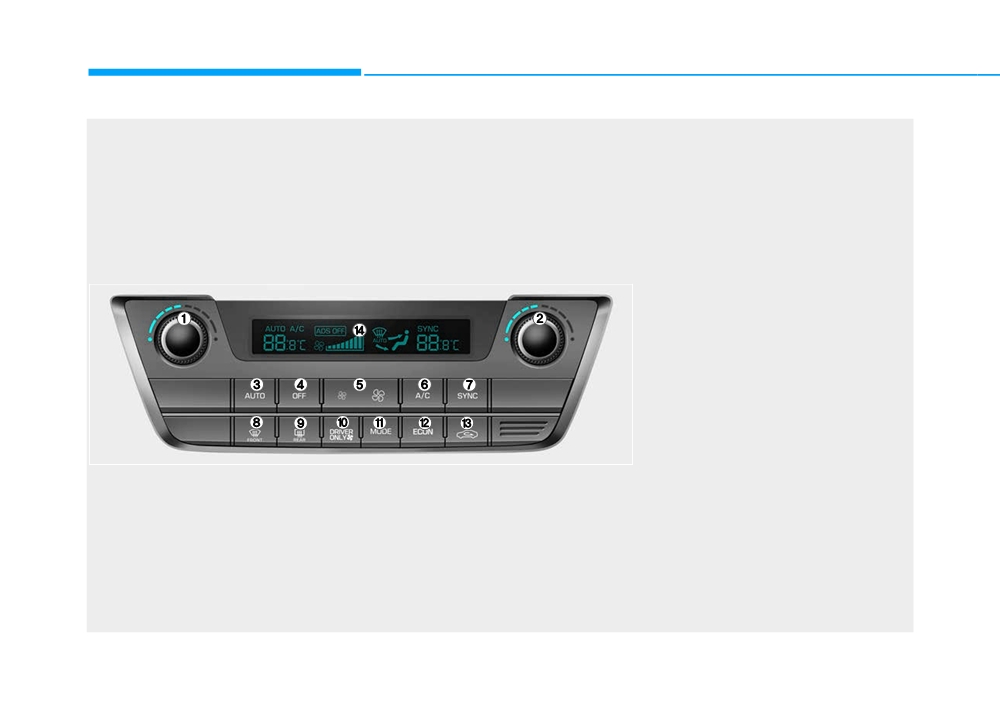

1. Driver’s temperature control knob

2. Passenger’s temperature control knob

3. AUTO (automatic control) button

4. OFF button

5. Fan speed control button

6. Air conditioning button

7. SYNC button

8. Front windshield defrost button

9. Rear window defrost button

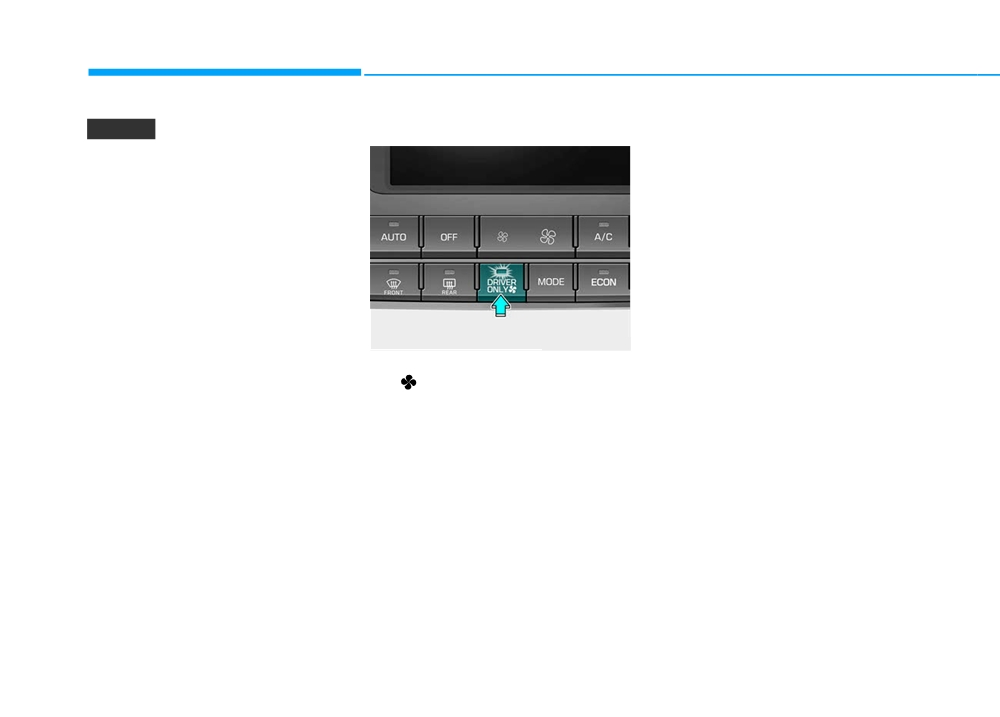

10. DRIVER ONLY button

11. Mode selection button

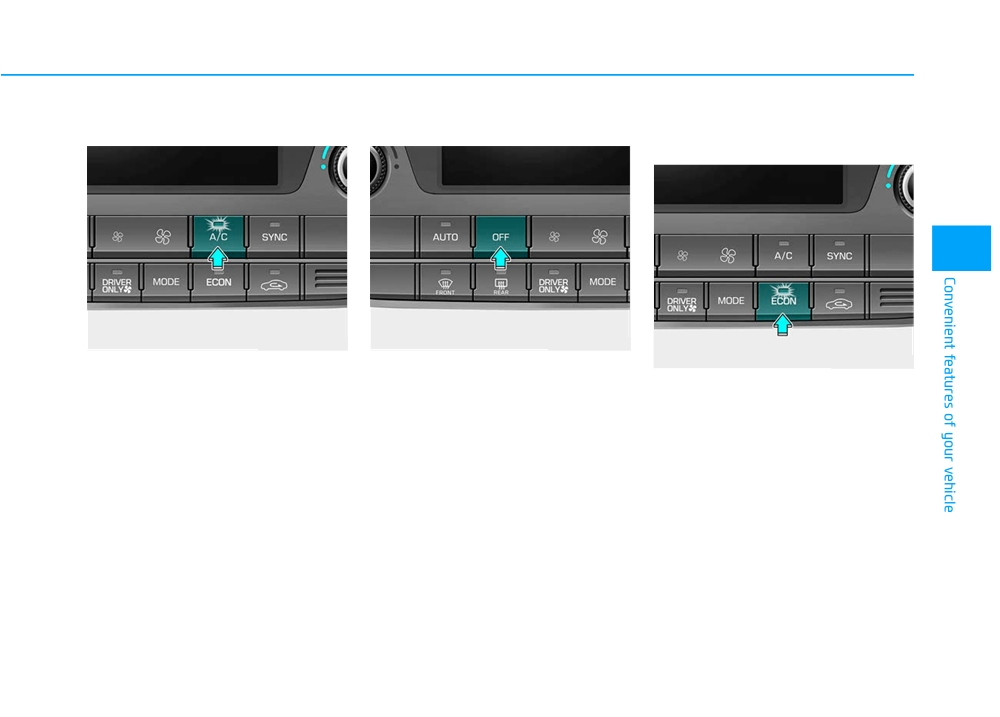

12. ECON (Economy air conditioning)

button

13. Air intake control button

14. Climate control information screen

OLFH044531K

3-136

Automatic heating and air con-

i

Information

ditioning

•

To turn the automatic operation off,

select any button of the following:

- Mode selection button

- Front windshield defrost button

(Press the button one more time to

deselect the front windshield

3

defroster function. The 'AUTO'

sign will illuminate on the infor-

mation display once again.)

OLF044217

- Fan speed control button

2. Turn the temperature control knob

The selected function will be con-

to set the desired temperature.

OLFH044541K

trolled manually while other func-

tions operate automatically without

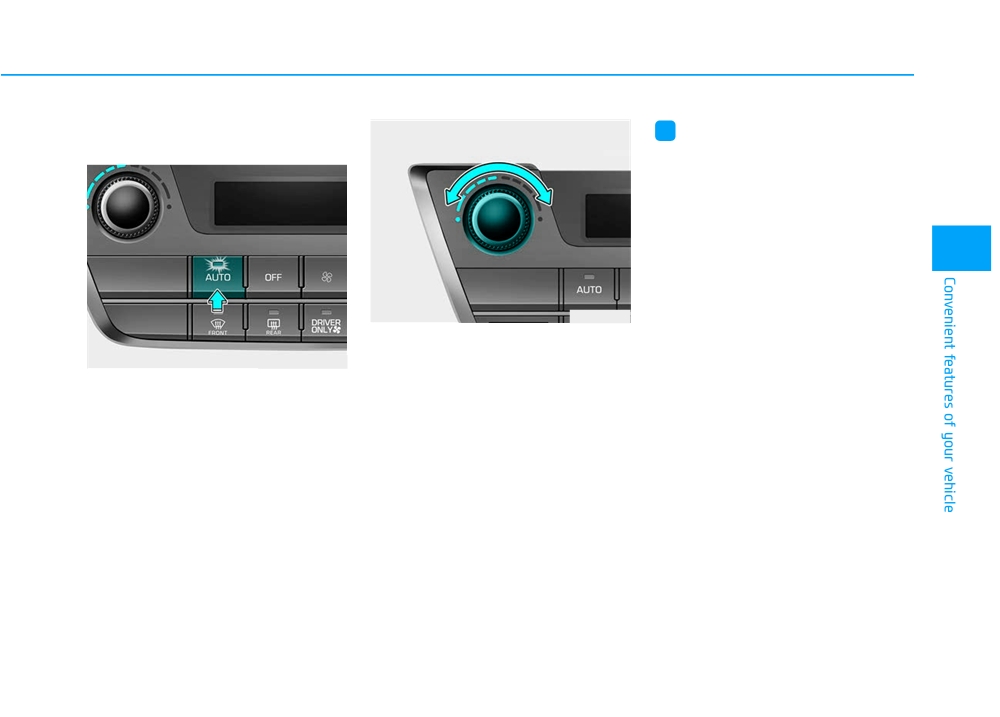

1. Press the AUTO button.

‘AUTO’ sign.

The modes, fan speeds, air intake

•

For your convenience, use the

and air-conditioning will be controlled

AUTO button and set the tempera-

automatically according to the tem-

ture to 73°F (23°C).

perature setting.

3-137

Convenient features of your vehicle

Manual heating and air condi-

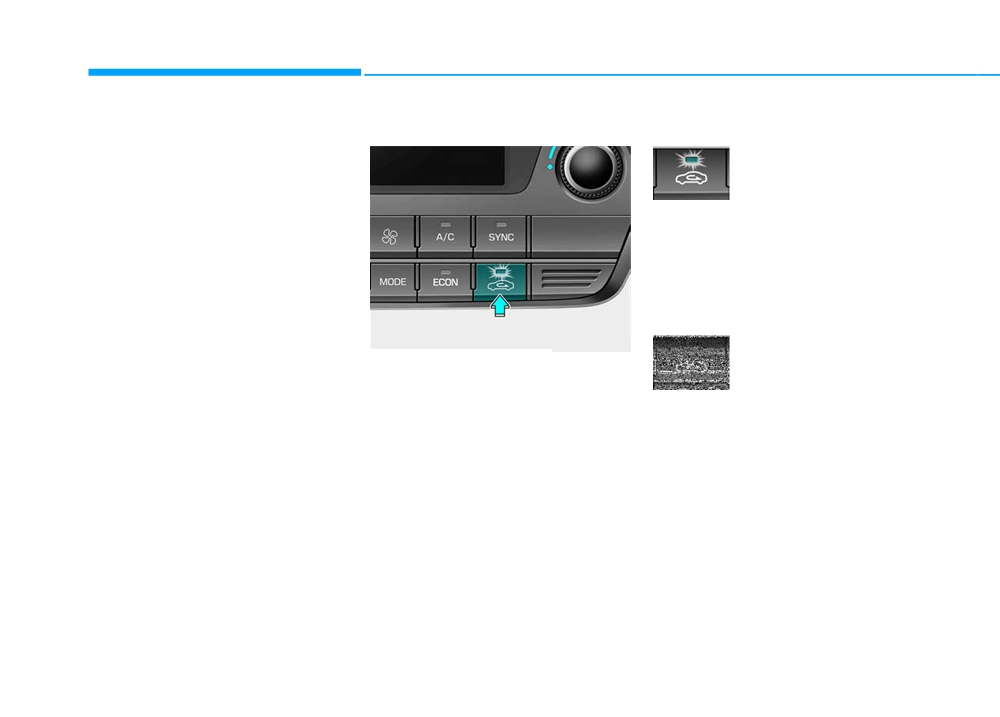

4.Set the air intake control to the out-

tioning

side (fresh) air position.

5.Set the fan speed control to the

The heating and cooling system can be

controlled manually by pushing buttons

desired speed.

other than the AUTO button. In this

6.If air conditioning is desired, turn

case, the system works sequentially

the air conditioning system on.

according to the order of buttons select-

Press the AUTO button in order to

ed. When pressing any button except

convert to full automatic control of

the AUTO button while using automatic

the system.

operation, the functions not selected

will be controlled automatically.

OLFH044504K

1.Start hybrid system.

i

Information

2.Set the mode to the desired position.

A solar compensation sensor is located

For improving the effectiveness of

inside the vehicle on the center of the

heating and cooling;

dash near the front windshield. In

- Heating:

order to ensure optimum control of

- Cooling:

the heating and cooling system, never

3.Set the temperature control to the

block the sensor or place anything

desired position.

near the sensor while the climate con-

trol system is operating.

3-138

Mode selection

3

OLFH044540K

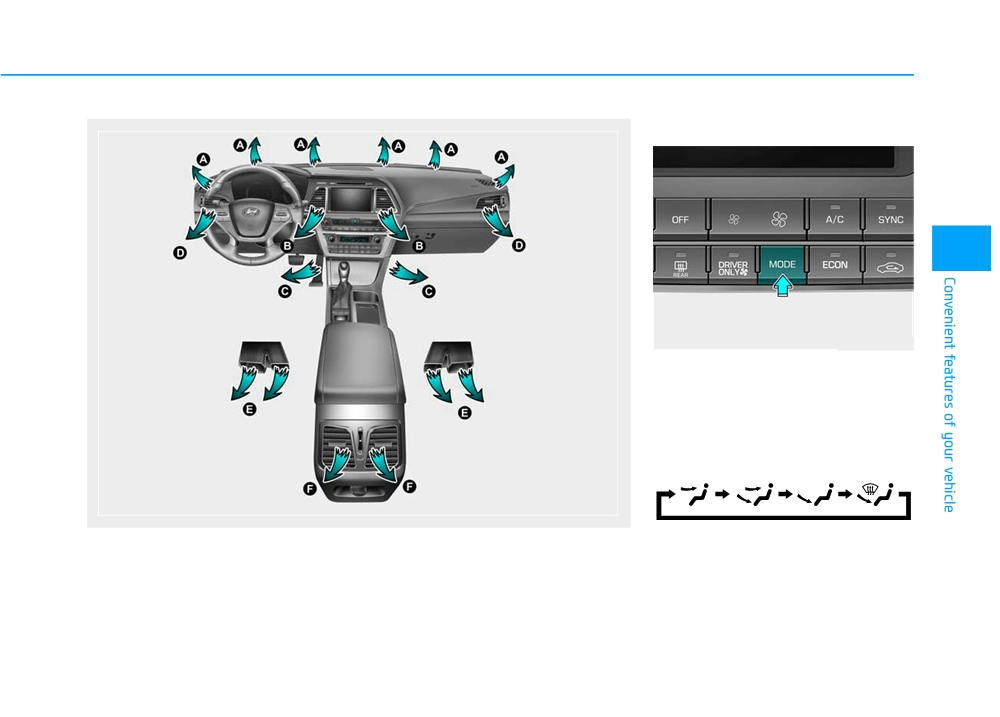

The mode selection button controls

the direction of the air flow through

the ventilation system.

The air flow outlet port is converted

as follows:

OLF044207

3-139

Convenient features of your vehicle

■ Front

Face-Level (B, D, F)

Air flow is directed toward the upper

body and face. Additionally, each

outlet can be controlled to direct the

air discharged from the outlet.

Bi-Level (B, C, D, E, F)

OLF044209

■ Rear (if equipped)

OLFH044539K

Air flow is directed towards the face

Defrost-Level (A)

and the floor.

Most of the air flow is directed to the

windshield with a small amount of air

Floor & Defrost (A, C, D, E)

directed to the side window defrosters.

Most of the air flow is directed to the

floor and the windshield with a small

OLF044222

amount directed to the side window

Instrument panel vents

defrosters.

The outlet vents can be opened or

closed separately using the thumb-

Floor-Level (A, C, D, E)

wheel. To close the vent, rotate it left

(Rear : down) to the maximum posi-

Most of the air flow is directed to the

tion. To open the vent, rotate it right

floor, with a small amount of the air

(Rear : up) to the desired position.

being directed to the windshield and

Also, you can adjust the direction of

side window defrosters.

air delivery from these vents using

the vent control lever as shown.

3-140

Temperature control

Adjusting the driver and passenger

side temperature individually

■ Driver’s side

■ Passenger’s side

•

Press the “SYNC” button again to

adjust the driver and passenger

side temperature individually. The

illumination of button turns off.

•

Operate the driver side tempera-

ture control knob to adjust the driv-

3

er side temperature.

•

Operate the passenger side tem-

perature control knob to adjust the

OLFH044538K

passenger side temperature.

Adjusting the driver and passenger

OLF044223

side temperature equally

Turn the knob to the right to increase

• Press the “SYNC” button to adjust

the temperature. Turn the knob to the

the driver and passenger side tem-

left to decrease the temperature.

perature equally.

The passenger side temperature

will be set to the same temperature

as the driver side temperature.

• Turn the driver side temperature

control knob. The driver and pas-

senger side temperature will be

adjusted equally.

3-141

Convenient features of your vehicle

Temperature conversion

Air intake control

Recirculated air position

If the battery has been discharged or

With the recirculated air

disconnected, the temperature mode

position selected, air

display will reset to Centigrade.

from the passenger

You can switch the temperature mode

compartment will be

between Centigrade to Fahrenheit as

drawn through the heat-

follows;

ing system and heated

- Automatic climate control system

or cooled according to

the function selected.

While pressing the OFF button,

press the AUTO button for 3 seconds

or more. The display will change from

Outside (fresh) air position

Centigrade to Fahrenheit, or from

Fahrenheit to Centigrade.

OLFH044532K

With the outside (fresh) air

position selected, air

-

“User setting mode” in the cluster :

This is used to select the outside

enters the vehicle from

You can change the temperature

(fresh) air position or recirculated air

outside and is heated or

unit in the

“Other features

-

position.

cooled according to the

Temperature unit”

To change the air intake control posi-

function selected.

tion, push the control button.

3-142

Fan speed control

i

Information

WARNING

Prolonged operation of the heater in

the recirculated air position (without

•

Continued climate control

air conditioning selected) may cause

system operation in the recir-

fogging of the windshield and side win-

culated air position may allow

dows and the air within the passenger

humidity to increase inside

compartment may become stale.

the vehicle which may fog the

3

glass and obscure visibility.

In addition, prolonged use of the air

conditioning with the recirculated air

•

Do not sleep in a vehicle with

position selected will result in exces-

the air conditioning or heating

sively dry air in the passenger com-

system on. It may cause seri-

partment.

ous harm or death due to a

drop in the oxygen level

OLFH044536K

and/or body temperature.

The fan speed can be set to the

•

Continued climate control sys-

desired speed by pushing the fan

tem operation in the recirculat-

speed control button.

ed air position can cause

The higher the fan speed is, the

drowsiness or sleepiness, and

more air is delivered.

loss of vehicle control. Set the

Pressing the OFF button turns off the

air intake control to the outside

fan.

(fresh) air position as much as

possible while driving.

3-143

Convenient features of your vehicle

NOTICE

Driver Only

DRIVER ONLY button will be turned

off under the following conditions:

Operating the fan speed when the

1) Defrost on

Engine Start/Stop button is in the

ON position could cause the bat-

2) SYNC on

tery to discharge. Operate the fan

3) Adjusted front passenger seat

speed when hybrid system is run-

temperature

ning.

4) DRIVER ONLY button pushed

again

OLFH044535K

If you press the DRIVER ONLY but-

ton(

) and the indicator light illumi-

nates, cold air mostly blows in the

direction of the driver’s seat.

However, some of the cold air may

still come out of other vents to keep

indoor air pleasant.

If you use the button with no passen-

ger in the front passenger seat, ener-

gy consumption will be reduced.

3-144

Air conditioning

OFF mode

Economy air conditioning

button (ECON)

3

OLFH044534K

OLFH044533K

OLFH044537K

Push the A/C button to turn the air

Push the OFF button of the front to

conditioning system on

(indicator

turn off the air climate control system.

If you push the ECON button while

light will illuminate).

However, you can still operate the

the air conditioning system is work-

mode and air intake buttons as long

ing, the air conditioning system will

Push the button again to turn the air

conditioning system off.

as the Engine Start/Stop button is in

work less and may improve fuel effi-

the ON position.

ciency.

If you want maximum air conditioning

turn the ECON system off by push-

ing the ECON button.

3-145

Content   ..  11  12  13  14   ..
