LCD Display
LCD display control
LCD modes
Modes
Symbol
Explanation
This mode displays driving information like the tripme-
Trip
ter, fuel economy, etc.
Computer
For more information, refer to "Trip Computer" in this
3
chapter.
Turn By Turn
(TBT)
This mode displays the state of the navigation.
(if equipped)
This mode displays the state of the Smart Cruise Control
OLFH044553L
SCC/LDWS
(SCC) and Lane Departure Warning System (LDWS).
(If equipped)
For more information, refer to "Smart Cruise Control (SCC)"
The LCD display modes can be
and Lane Departure Warning System (LDWS) in chapter 5.
changed by pressing the control
switches on the steering wheel.
A/V
This mode displays the state of the A/V system.
(1)
: Changing LCD modes or
(If equipped)
returning to previous position
This mode displays information such as tire pressure,
(2) ▲, ▼ : Changing items
or
engine coolant temperature, service intervals,
(3) OK : Selecting or resetting
Information
warning messages related to the Blind Spot Detection
or
system, etc.
In this mode, you can change settings of the doors,
User Settings
lamps, etc.
3-95
Convenient features of your vehicle
Cannot edit settings while driving
Quick guide (if equipped)
Trip computer mode
OLF044168L
OLF046563L
OLFH045558N
This warning message appears if you
This mode provides quick guides for
The trip computer mode displays
try to adjust the User Settings while
the systems in the User Settings
information related to vehicle driving
driving.
mode.
parameters including range, fuel
economy, trip meter information and
For your safety, change the User
Select an item, press and hold the
Settings mode after parking the vehi-
[OK] button.
vehicle speed.
cle, applying the parking brake and
moving the shift lever to the P (Park)
For more information about each
For more information, refer to
position.
system, refer to this Owner’s
"Trip Computer" in this chapter.
Manual.
3-96
Turn By Turn (TBT) mode
Engine coolant temperature
NOTICE
When the gauge indicator gets out
of the normal range, toward the
“H” position, it indicates overheat-
ing of the engine. It may damage
the engine.
Do not continue driving with the
3
overheated engine. For further
information, refer to “If the Engine
Overheats” in the chapter 6.
OLFH045173
OLFH045206N/Q
CAUTION
This mode displays the state of the
This mode displays the temperature
Never remove the radiator cap or
navigation.
of the engine coolant when the
reservoir cap when the engine is
engine is running.
hot. The engine coolant is under
pressure and could severely
burn. Wait until the engine is cool
before adding coolant to the
reservoir.
3-97
Convenient features of your vehicle

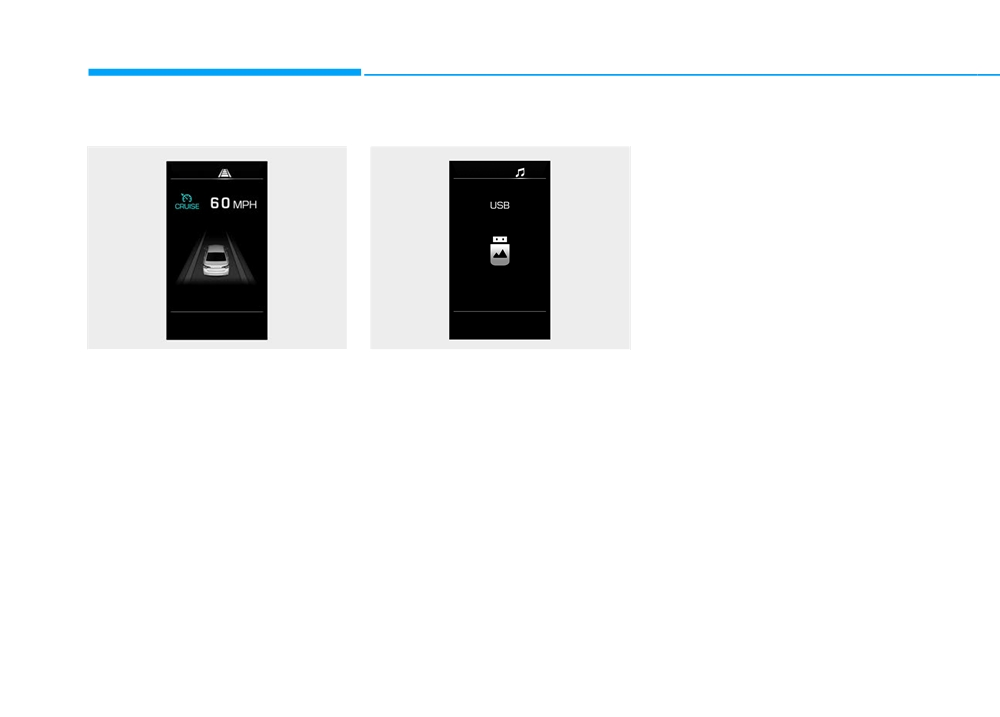

SCC/LDWS Mode (if equipped)
A/V mode (if equipped)
Information mode
This mode displays the service inter-
val (mileage and days).
For the setting of the service inter-
val, refer to "User Settings Mode"
of the LCD display.
Warning Message
If one of followings occurs, warning
messages will be displayed in the infor-
mation mode for about 10 seconds.
OLFH045174N
OLFH045176N
- Malfunction of the Forward Collision
This mode displays the state of the
This mode displays the state of the
Warning (FCW) System
Smart Cruise Control (SCC) and Lane
A/V system.
- Malfunction of the Smart Cruise
Departure Warning System (LDWS).
Control (SCC)
- Malfunction of the Lane Departure
For more information, refer to
Warning System (LDWS)
"Smart Cruise Control (SCC)" and
"Lane Departure Warning System
- Malfunction of the Blind Spot
(LDWS)" in chapter 5.
Detection (BSD)
- Low washer fluid
3-98

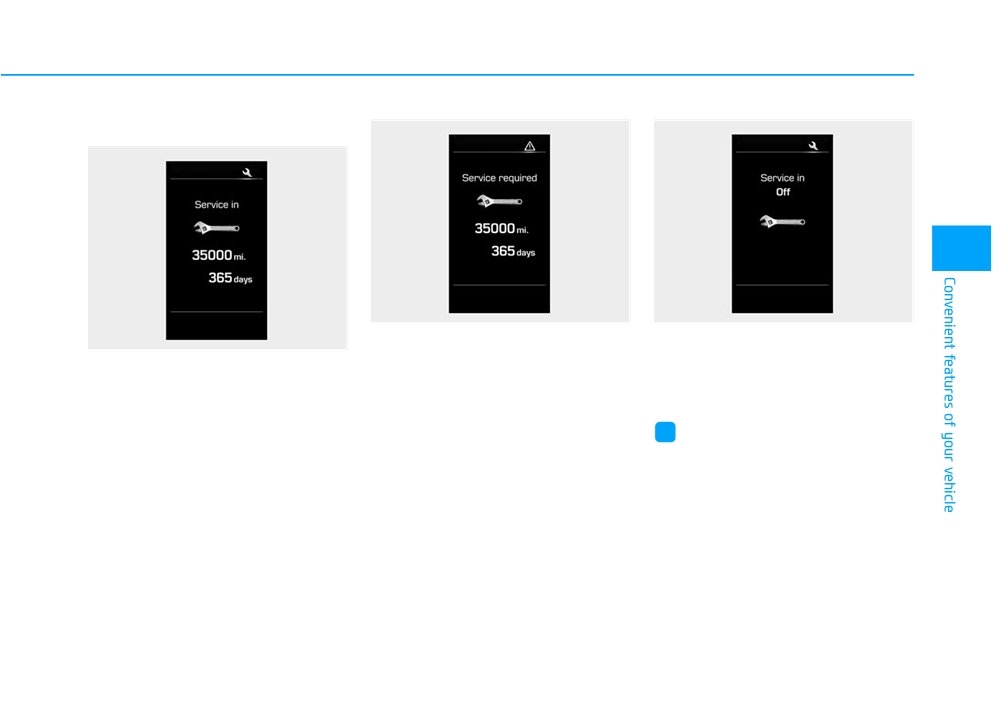

Service Interval
3
OLFH045454N
OLFH045456N
Service required
Service in OFF
OLFH045180N
If you exceed the specified service
If the service interval is not set,
Service in
interval, a message indicating,
"Service in OFF" message is dis-
If the remaining mileage or time
"Service required" will be displayed
played.
reaches 900 miles (1,500 km) or 30
each time you turn ON the vehicle.
days, "Service in" message is dis-
To reset the service interval, press
i
Information
played for several seconds each time
the [OK] button for more than 1 sec-
you turn on the vehicle.
If any of the following conditions
ond.
occur, the mileage and number of days
For the setting of the service inter-
to service may be incorrect.
val, refer to "User Settings Mode"
- The battery cable is disconnected.
of the LCD display.
- The fuse switch is turned off.
- The battery is discharged.
3-99
Convenient features of your vehicle
User settings mode
In this mode, you can change setting of the instrument cluster, doors, lamps, and so on.
Driving Assist (if equipped)
Items
Explanation
SCC
To adjust the sensitivity (Slow/Normal/Fast) of the Smart Cruise Control system.
(Smart Cruise Control)
For more information, refer to “Smart Cruise Control (SCC)” in chapters.
RCTA
To activate or deactivate the RCTA system.
(Rear Cross Traffic Alert)
For more information, refer to "Rear Cross Traffic Alert (RCTA)" in chapter 5.
FCW
To activate or deactivate the Forward Collision Warning System.
(Forward Collision Warning)
For more information, refer to “Forward Collision Warning (FCW) System” in chapter 5.
To activate or deactivate the Coasting Guide system and sound.
Coasting Guide
For more information, refer to “Coasting Guide” in this chapter.
3-100
Door
Items
Explanation
• Disable : The auto door lock function is deactivated.
• Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 9.3mph
Automatically Lock
(15 km/h).
• Enable on Shift: All doors will be automatically locked when the automatic transmission shift lever
3
is shifted from P (Park) to the R (Reverse), N (Neutral), or D (Drive).
• Disable : The auto door unlock function is deactivated.
• Vehicle Off: All doors will be automatically unlocked when the Engine Start/Stop button is placed
to the OFF position.
Automatically Unlock
• Driver Door Unlock: All doors will be automatically unlocked when the driver's door is unlocked.
• On Shift to P: All doors will be automatically unlocked when the automatic transmission shift lever
is shifted to P (Park).
• Off : The two press unlock function will be deactivated. Therefore, all doors will unlock if the door
is unlocked.
Two Press Unlock
• On : The driver’s door will unlock if the door is unlocked. When the door is unlocked again within
4 seconds, all doors will unlock.
• Off : The Smart Trunk function will be deactivated.
Smart Trunk
• On : The Smart Trunk function will be activated
For more information, refer to "Smart Trunk" in this chapter.
3-101
Convenient features of your vehicle
Lights
Items
Explanation
• Off : The one touch turn signal function is deactivated.
• 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is
One Touch Turn Signal
slightly operated.
For more information, refer to “Light” in this chapter.
• On : The headlamp delay function is activated.
Headlamp Delay
• Off : The headlamp delay function is deactivated.
For more information, refer to “Light” in this chapter.
• On : The welcome light function is activated.
Welcome Light
• Off : The welcome light function is deactivated.
For more information, refer to “Welcome System” in this chapter.
Sound
Items
Explanation
BSD (Blind Spot Detection)
• Off : The BSD sound function is deactivated.
Sound
• On : The BSD sound function is activated.
3-102
Seat / Steering
Items
Explanation
• None: The seat easy access function is deactivated.
• Normal/Extended:
- When you turn off the engine, the driver’s seat will automatically move rearward short (Normal)
Seat Easy Access
or long (Extended) for you to enter or exit the vehicle more comfortably.
3
- If you change the Engine Start/Stop button from OFF position to the ACC, ON, or START posi-
tion, the driver’s seat will return to the original position.
For more information, refer to “Driver Position Memory System” in this chapter.
Service interval
Items
Explanation
• Off : The service interval function is deactivated.
Service Interval
• On :You can set the service interval (mileage and months).
3-103
Convenient features of your vehicle
Other features
Items
Explanation
• Off : The average fuel economy will not reset automatically whenever refueling.
• After Ignition : The average fuel economy will reset automatically when driving.
Fuel Economy Auto Reset
• After Refueling : The average fuel economy will reset automatically when refueling.
For more information, refer to “Trip Computer” in this chapter.
Fuel Economy Unit
Choose the fuel economy unit. (US gallon, UK gallon)
Temperature Unit
Choose the temperature unit. (°C,°F)
Tire Pressure Unit
Choose the tire pressure unit. (psi, kPa, bar)
To activate or deactivate the shift gear pop-up function.
Gear Position Pop-up
For more information, refer to “Warning and indicator lights” in this chapter.
Language
Choose the language.
3-104
Trip computer

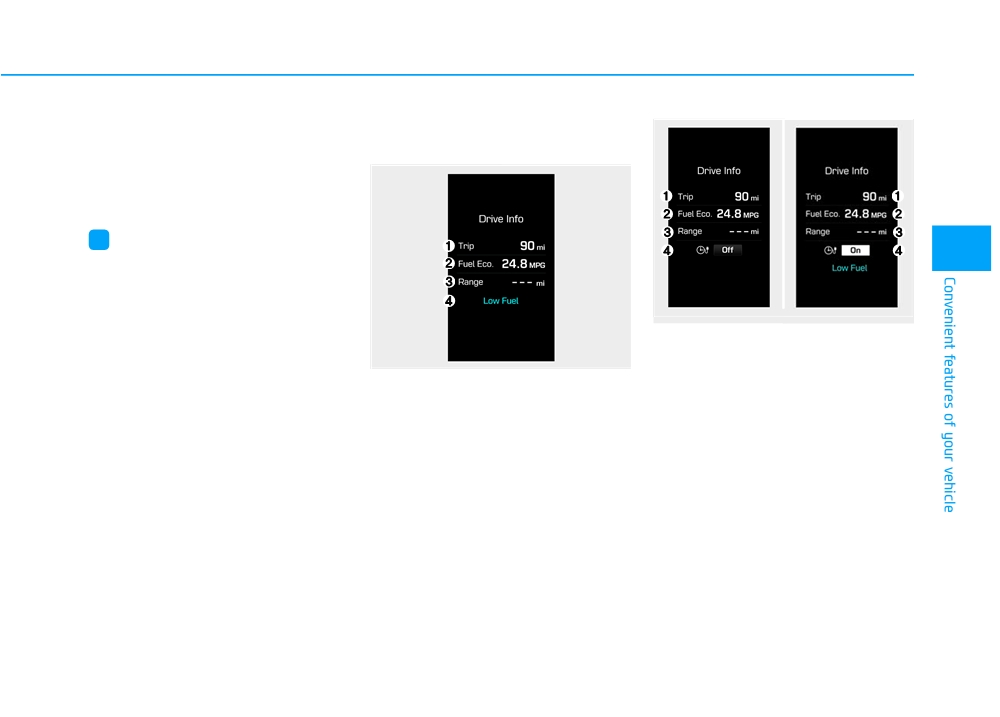

One time driving information
mode
The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
i
Information
3
Some driving information stored in
the trip computer (i.e. average vehicle
speed) is reset when the battery is dis-
connected
OLFP045190N/OLFP045560N
Plug-in hybrid
At the end of each driving cycle, the
OLF044419N
Driving Info message is displayed.
Hybrid
This display shows the trip distance

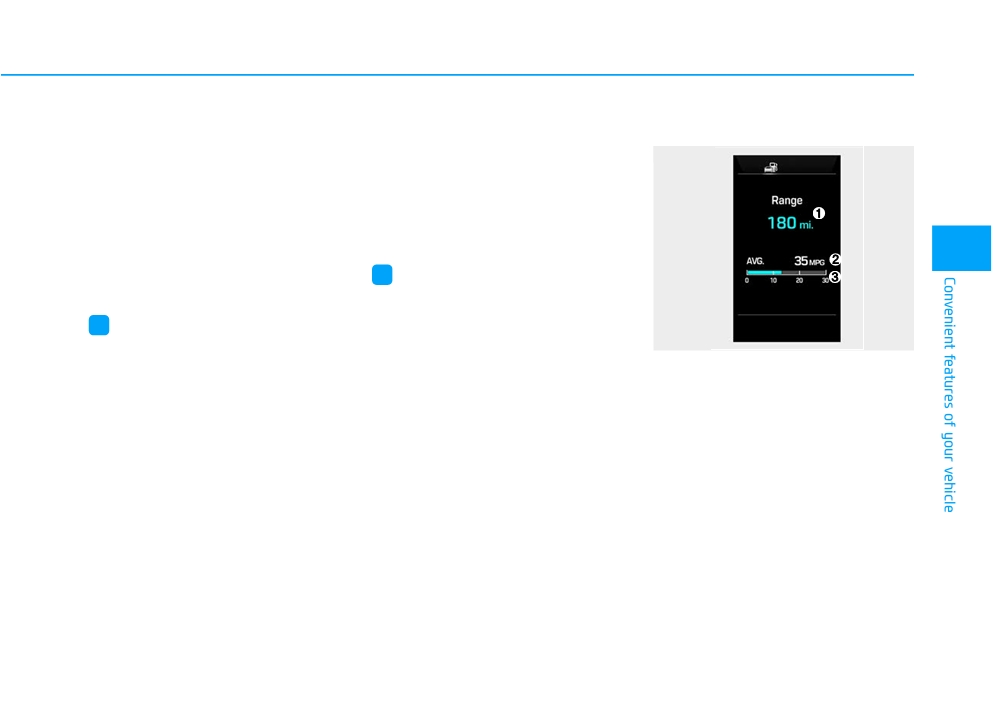

At the end of each driving cycle, the
(1), the average speed
(2), the
Driving Info message is displayed.
remaining vehicle range (3), and the
This display shows the trip distance
charging status (4).
(1), the average fuel economy (2), and
This information is displayed for a
the remaining vehicle range (3).
few seconds when you turn off the
This information is displayed for a few
vehicle, and then goes off automati-
seconds when you turn off the vehicle,
cally. The information is calculated
and then goes off automatically. The
for each driving cycle.
information is calculated for each driving
If the estimated remaining vehicle
cycle.
range is below 1 mile (1.6 km), the
If the estimated remaining vehicle range
range will display as "- - -" and a
is below 1 mile (1.6 km), the range will
"Low Fuel" warning message will be
display as "- - -" and a "Low Fuel" warn-
displayed.
ing message will be displayed.
3-105
Convenient features of your vehicle
Trip modes
Trip A/B
i
Information
If “Sunroof Open” warning message is
FUEL ECONOMY
displayed in the cluster, the Driving

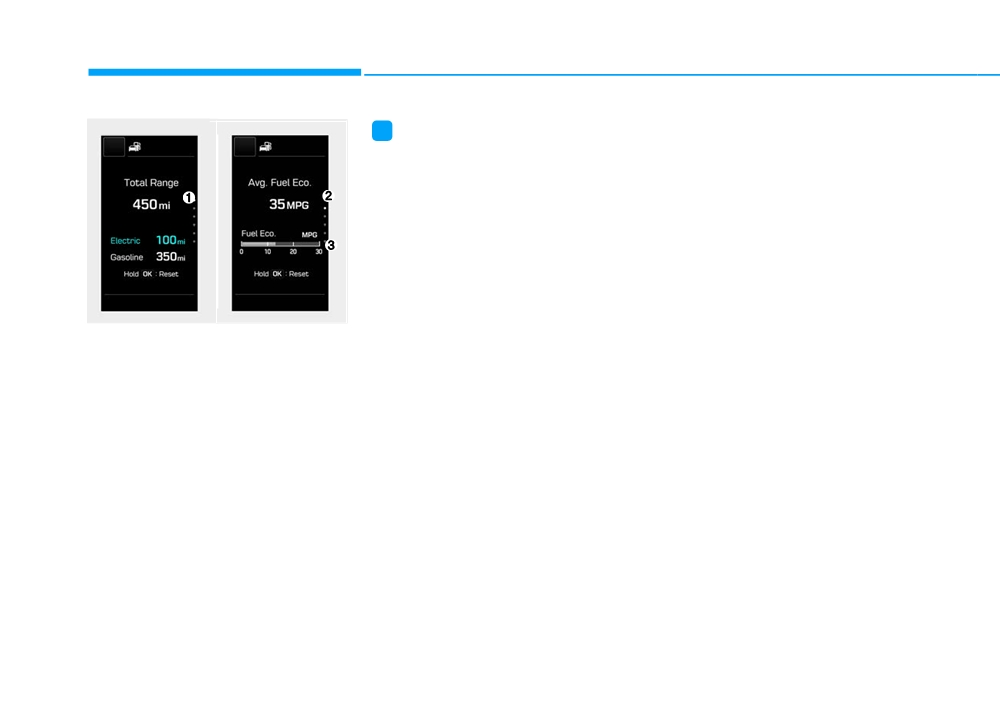

• Range (hybrid)/
Information message may not be dis-
Total Range (plug-in hybrid)
played.
• Average Fuel Economy
• Instant Fuel Economy
TRIP A/B
• Tripmeter [A/B]
OLFH045558N
• Average Vehicle Speed [A/B]
Tripmeter (1)
• Timer [A/B]
• The tripmeter is the total driving
distance since the last tripmeter
reset.
• To reset the tripmeter, press the

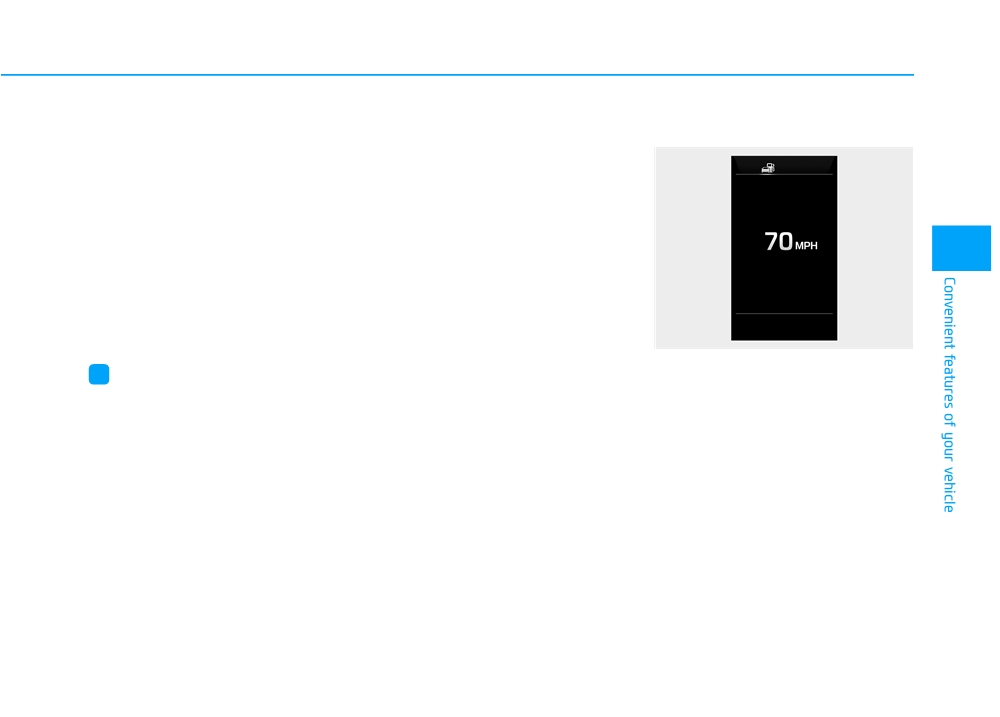

Digital Speedometer
[OK] button on the steering wheel
for more than 1 second when the
tripmeter is displayed.

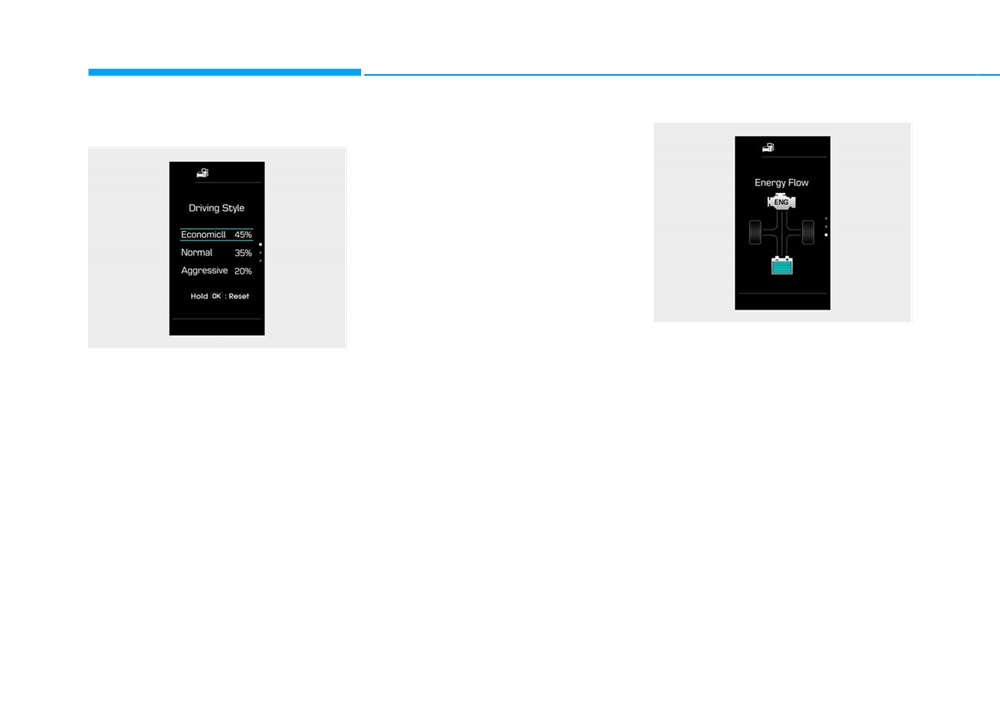

Driving style

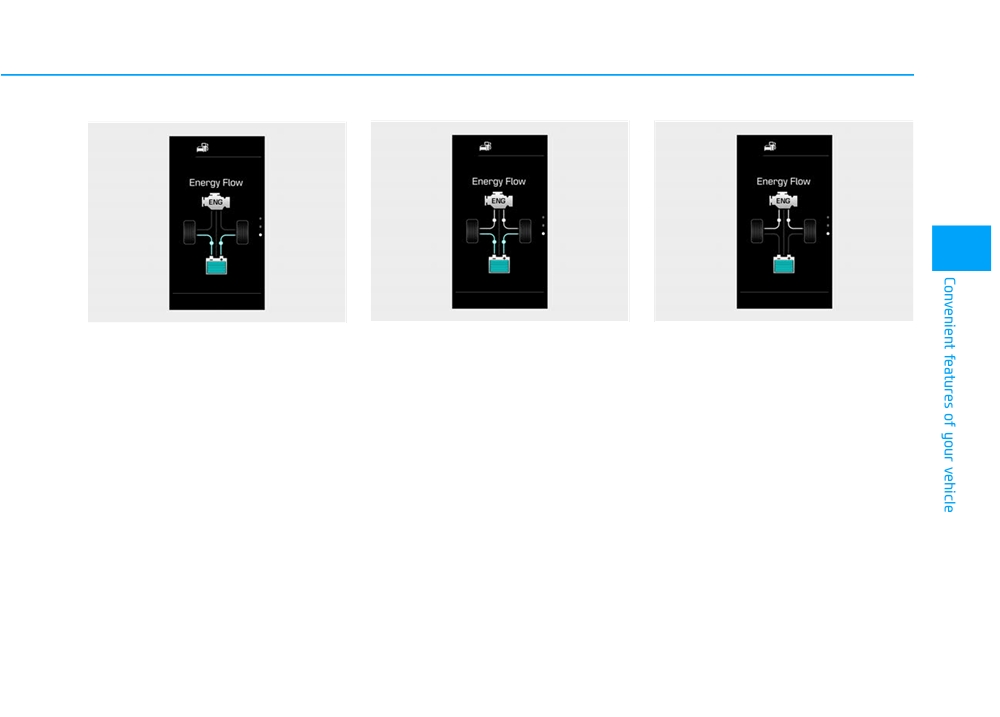

Energy flow
To change the trip mode, toggle
"▲, ▼" switch on the steering wheel.
3-106
Average Vehicle Speed (2)
Timer (3)
Fuel economy
• The average vehicle speed is cal-
• The timer is the total driving time
■ Hybrid
culated by the total driving dis-
since the last timer reset.
tance and driving time since the
• To reset the timer, press the [OK]
last average vehicle speed reset.
button on the steering wheel for
• To reset the average vehicle speed,
more than 1 second when the timer
press the [OK] button on the steer-
is displayed.
ing wheel for more than 1 second
3
when the average vehicle speed is
i Information
displayed.
The timer will continue to be counted
while the engine is still running (for
i Information
example, when the vehicle is in traffic
OLFH045437N
• The average vehicle speed is not dis-
or stopped at a stop light.)
played, when the vehicle drives
Range/Total Range (1)
shorter than 0.19 miles (300 meters)
• Range (hybrid)
or less than 10 seconds after turning
The range is the estimated distance
ON the Engine Start/Stop button.
the vehicle can be driven with the
• The average vehicle speed will con-
remaining fuel in the fuel tank.
tinue to be calculated and will start
If the estimated distance is below
to decrease if the vehicle is stopped
1 mi. (1 km), the trip computer will
while the engine is still running (for
display “---” as the range.
example, when the vehicle is in traf-
fic or stopped at a stop light.)
3-107
Convenient features of your vehicle
■ Plug-in hybrid
Average Fuel Economy (2)
i
Information
• The average fuel economy is calcu-
•
When the vehicle is not on level
lated by the total driving distance
ground, or when the battery power
and fuel consumption since the last
is interrupted, the range may not be
average fuel economy reset.
correctly calculated.
• The average fuel economy can be
•
The range may differ from the actu-
reset both manually and automati-
al distance, as it is estimated with
cally.
the calculated driving distance.
•
The trip computer may not recog-
Manual reset
nize the addition of fuel of 1.6 gal-
To manually reset the average fuel
OLFP045186N/OLFP045559N
lons or less.
economy, press and hold the OK but-
• Total Range (plug-in hybrid)
•
The fuel economy and range may
ton on the steering wheel for more
significantly vary in accordance
The range is the estimated distance
than 1 second, when the average fuel
with driving conditions, driving
the vehicle can be driven with the
economy is displayed.
habits, and vehicle conditions.
remaining fuel in the fuel tank and
high-voltage (hybrid) battery.
For more information about the
If the estimated distance is below
OK button, refer to "LCD Display
1 mi. (1 km), the trip computer will
Control" in this chapter.
display “---” as the range.
3-108
Automatic reset
Instant Fuel Economy (3)
Digital Speedometer
To automatically reset the average fuel
This mode displays the instanta-
economy after refueling, select the
neous fuel economy while driving
“After Refueling” feature in the User
when the vehicle speed is greater
Settings Mode on the LCD display
than 6.2 mph (10 km/h).
(Refer to "LCD Display" in this
chapter).
If the
“After Refueling” feature is
3
selected, the average fuel economy
will be cleared to zero (---), when driv-
ing speed exceeds 1 mph (1km/h),
after refueling more than 1.6 gallons
(6 liters).
OLFH045440N
This message shows the speed of
i
Information
the vehicle (km/h, MPH).
The vehicle must be driven for a min-
imum of 0.19 mile (0.3 km) since the
last ignition key cycle before the aver-
age fuel economy is recalculated.
Automatic reset at every fueling event
is the default condition for MPG reset,
it comes that way from the factory. In
settings you can disable/enable it.
3-109
Convenient features of your vehicle
Driving style
Hybrid system energy flow
The hybrid system informs the drivers
its energy flow in various operating
modes. The energy flow can have up
to 11 different modes during driving.
OLFH044214N
OLFH044212N
Vehicle Stop
The vehicle is stopped.
• The Driving Style will display when
you are in ECO mode as selected
(No energy flow)
by the DRIVE MODE button.
When the SPORT or NORMAL
mode is selected for your driving,
each driving category will be dis-
played with “--”.
• To reset the driving style, press the
[OK] button on the steering wheel
for more than 1 second when the
driving style is displayed.
3-110
3
OLFH044216N
OLFH044218N
OLFH044220N
EV Propulsion
Power Assist
Engine Only Propulsion
Only the motor power is used to drive
Both the motor and the engine power
Only the engine power is used to
the vehicle.
are used to drive the vehicle.
drive the vehicle.
(Battery ➞ Wheel)
(Battery & Energy ➞ Wheel)
(Engine ➞ Wheel)
3-111
