Hyundai Sonata Plug-in Hybrid (2017 year). Instruction - part 12

Convenient features of your vehicle

OLFH044222N

OLFH044216N

OLFH044220N

Engine Generation

Regeneration

Engine Brake

When the vehicle is stopped, the

The high-voltage battery is charged

The engine braking is used to decel-

high-voltage battery is charged up by

up by the regenerative brake system.

erate the vehicle.

the engine.

(Wheel ➞ Battery)

(Wheel ➞ Engine)

(Engine ➞ Battery)

3-112

3

OLFH044224N

OLFH044226N

OLFH044226N

Power Reserve

Engine Generation/Motor Drive

Engine Generation/Regeneration

The engine is simultaneously used to

The engine charges up the high-volt-

The engine and regenerative brake

drive the vehicle and to charge up

age battery. The motor power is used

system charges up the high-voltage

the high-voltage battery.

to drive the vehicle.

battery.

(Engine ➞ Wheel & Battery)

(Engine ➞ Battery ➞ Wheel)

(Engine & Wheel ➞ Battery)

3-113

Convenient features of your vehicle

OLFH044218N

Engine Brake/Regeneration

The engine braking is simultaneously

used to decelerate the vehicle and to

charge up the high-voltage battery.

(Wheel ➞ Engine & Battery)

3-114

LIGHT

Exterior Lights

■ Type B

Lighting control

To operate the lights, turn the knob at

the end of the control lever to one of

the following positions:

■ Type A

3

OLF044084A

OLF044085N

(1) OFF position

AUTO light position (if equipped)

(2) DRL position

The parking lamp and headlamp will

be turned ON or OFF automatically

(3) Parking lamp position

depending on the amount of light

(4) Headlamp position

outside the vehicle.

OLF044084N

(1) DRL OFF position

Even with the AUTO light feature in

(2) AUTO light position

operation, it is recommended to

(3) Parking lamp position

manually turn ON the lamps when

driving at night or in a fog, or when

(4) Headlamp position

you enter dark areas, such as tun-

nels and parking facilities.

3-115

Convenient features of your vehicle

NOTICE

• Do not cover or spill anything on

the sensor (1) located in front of

the instrument panel.

• Do not clean the sensor using a

window cleaner the cleanser may

leave a light film which could

interfere with sensor operation.

• If your vehicle has window tint

or other types of metallic coat-

ing on the front windshield, the

OLF044086N

OLF044087N

AUTO light system may not work

Parking lamp position (

)

Headlamp position (

)

properly.

The parking lamp, license plate lamp

The headlamp, parking lamp, license

and instrument panel lamp are turned

plate lamp and instrument panel lamp

ON.

are turned ON.

i

Information

Engine Start/Stop button is in the ON

position to turn on the headlamp.

3-116

High beam operation

Smart High Beam

(if equipped)

3

OLF044088N

To flash the high beam headlamp,

OLF044089N

pull the lever towards you, then

OLF044090N

To turn on the high beam headlamp,

release the lever. The high beams

push the lever away from you. The

The Smart High Beam is a system

will remain ON as long as you hold

lever will return to its original position.

that automatically adjusts the head-

the lever towards you.

The high beam indicator will light

lamp range (switches between high

when the headlamp high beams are

beam and low beam) according to

switched on.

the brightness of other vehicles and

road conditions.

To turn off the high beam headlamp,

pull the lever towards you. The low

beams will turn on.

WARNING

Do not use high beam when there

are other vehicles approaching

you. Using high beam could

obstruct the other driver’s vision.

3-117

Convenient features of your vehicle

Operating condition

The high beam switches to low beam

Warning light and message

in the below conditions.

1. Place the light switch in the AUTO

■ Warning message

■ Master warning

position.

-

When the Smart High Beam is off.

2. Turn on the high beam by pushing

-

When the light switch is not in the

the lever away from you.

AUTO position.

The smart high beam (

) indica-

-

When the headlamp is detected

tor will illuminate.

from the on-coming vehicle.

3. The Smart High Beam will turn on

-

When the tail lamp is detected

when vehicle speed is above 28

from the front vehicle.

mph (45km/h).

-

When the surrounding is bright

• If the lever is pushed away when

enough high beams are not need-

the Smart High Beam is operating,

ed.

OLF054445N/OLFH054456

the Smart High Beam will turn off

-

When streetlights or other lights

and the high beam will be on con-

When the Smart High Beam Assist

are detected.

tinuously. The smart high beam

System is not working properly, the

-

When vehicle speed is below 18

(

) indicator will turn off.

warning message will come on for a

mph (35km/h).

few second. After the message dis-

• If the lever is pulled towards you

appears, the master warning light will

when the Smart High Beam is

illuminate. Take your vehicle to an

operating, the Smart High Beam

authorized HYUNDAI dealer and

will turn off.

have the system checked.

4. If the light switch is placed to the

headlamp position, the Smart

High Beam will turn off and the low

beam will be on continuously.

3-118

CAUTION

(Continued)

(Continued)

•

When there is a similar shape

•

When the road conditions are

The system may not operate nor-

lamp with the front vehicle’s

bad such as being wet or cov-

mally in the below conditions.

lamps.

ered with snow.

•

When the light from the on-

•

When it is hard to see because

•

When the front vehicle’s head-

coming or front vehicle is not

of fog, heavy rain or snow.

lamps are off but the fog lamps

detected because of lamp dam-

on.

•

When the headlamp is not

3

age, hidden from sight, etc.

repaired or replaced at an

•

When a vehicle suddenly

•

When the lamp of the on-com-

authorized dealer.

appears from a curve.

ing or front vehicle is covered

•

When headlamp aiming is not

•

When the vehicle is tilted from

with dust, snow or water.

properly adjusted.

a flat tire or being towed.

•

When the light from the on-

•

When driving on a narrow

•

When the LDWS

(Lane

coming or front vehicle is not

curved road or rough road.

Departure Warning System)

detected because of exhaust

•

When driving downhill or uphill.

warning light illuminates.

(if

fume, smoke, fog, snow, etc.

equipped)

•

When only part of the vehicle

•

When the front window is cov-

in front is visible on a cross-

ered with foreign matters such

road or curved road.

as ice, dust, fog, or is damaged.

•

When there is a traffic light,

(Continued)

reflecting sign, flashing sign

or mirror.

(Continued)

3-119

Convenient features of your vehicle

Turn signals and lane change

One touch turn signal function

WARNING

signals

To activate an One Touch Turn Signal

function, move the turn signal lever

•

Do not place any accessories,

slightly and then release it. The turn

stickers or tint the windshield.

signal indicators will blink 3, 5, or 7

•

Have the windshield glass

times, depending on the User

replaced from an authorized

Settings on the LCD display.

dealer.

You can activate or deactivate the

•

Do not remove or impact relat-

One Touch Turn Signal function or

ed parts of the Smart High

choose the number of blinking (3, 5,

Beam system.

or 7) from the User Settings Mode

•

Be careful that water doesn’t

(Light) on the LCD display.

get into the Smart High Beam

unit.

For more information, refer to the

OLF044091N

•

Do not place objects on the

"LCD Display" section in this

To signal a turn, push down on the

dashboard that reflects light

chapter.

lever for a left turn or up for a right

such as mirrors, white paper,

turn in position (A). To signal a lane

etc. The system may malfunc-

change, move the turn signal lever

tion if sunlight is reflected.

slightly and hold it in position (B). The

•

At times, the Smart High

lever will return to the OFF position

Beam system may not work

when released or when the turn is

properly, always check the

completed.

road conditions for your safe-

If an indicator stays on and does not

ty. When the system does not

flash or if it flashes abnormally, one of

operate normally, manually

the turn signal bulbs may be burned

change between the high

out and will require replacement.

beam and low beam.

3-120

Battery saver function

Headlamp delay function

NOTICE

The purpose of this feature is to pre-

(if equipped)

If the driver gets out of the vehicle

vent the battery from being dis-

If engine Start/Stop button is in the

through other doors (except dri-

charged. The system automatically

ACC or OFF position with the head-

ver’s door), the battery saver func-

turns off the parking lamp when the

lamps ON, the headlamps (and/or

tion does not operate and the

driver turns the engine off and opens

parking lamps) remain on for about 5

headlamp delay function does not

the driver-side door.

minutes. However, if the driver’s door

turn off automatically. Therefore, It

With this feature, the parking lamps

is opened and closed, the headlamps

3

causes the battery to be dis-

will turn off automatically if the driver

are turned off after

15 seconds.

charged. In this case, make sure

parks on the side of road at night.

However, with the engine off if the dri-

to turn off the lamp before getting

ver’s door is opened and closed, the

If necessary, to keep the lamps on

out of the vehicle.

headlamps

(and/or parking lamps)

when the engine is turned off, perform

are turned off after 15 seconds.

the following:

The headlamps

(and/or parking

1) Open the driver-side door.

lamps) can be turned off by pressing

2) Turn the parking lamps OFF and

the lock button on the smart key

ON again using the light switch on

twice or turning the light switch to the

the steering column.

OFF or AUTO position. However, if

you turn the light switch to the AUTO

position when it is dark outside, the

headlamps will not be turned off.

You can activate or deactivate the

Headlamp Delay function from the

User Settings Mode (Light) on the

LCD display.

For more information, refer to the

"LCD Display" section in this

chapter.

3-121

Welcome System (if equipped)

Headlamp and Parking lamp

Interior lamp

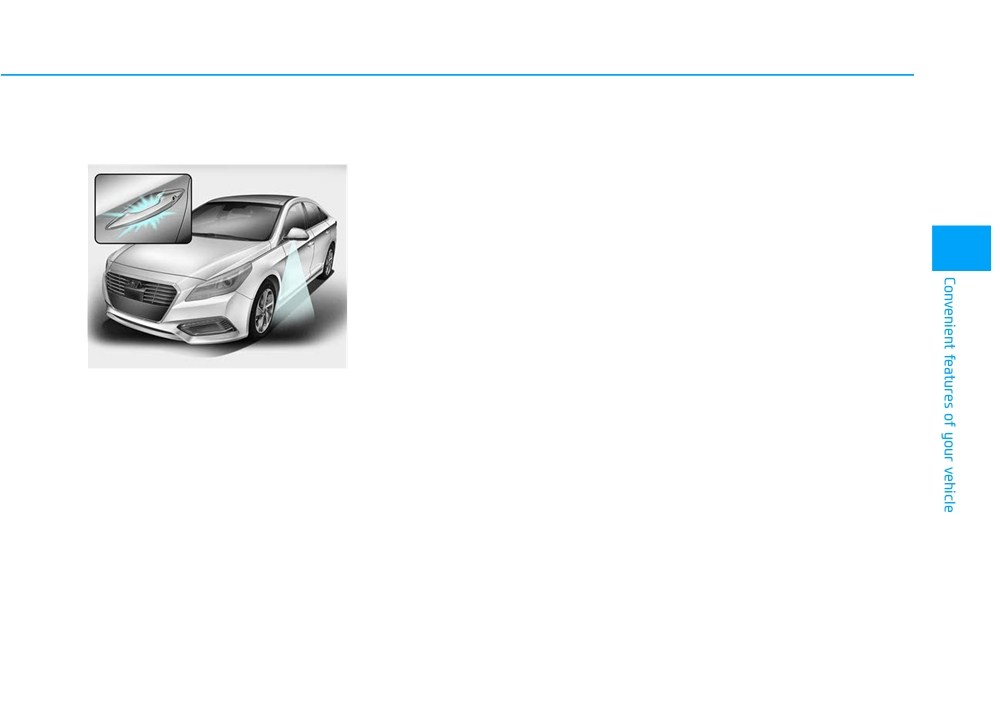

Welcome light

When the headlamp (lamp switch in

When the interior lamp switch is in

the headlamp or AUTO position) is on

the DOOR position and all doors (and

and all doors (and trunk) are locked

trunk) are closed and locked, the

and closed, the parking lamp and

room lamp will come on for 30 sec-

headlamp will come on for 15 seconds

onds if any of the below is performed.

if/or any of the below is performed.

• When the door unlock button is

• When the door unlock button is

pressed on the smart key.

3

pressed on smart key.

• When the button of the outside

At this time, if you press the door lock

door handle is pressed.

or unlock button on the smart key the

At this time, if you press the door lock

parking lamp and headlamp will turn

or unlock button on the smart key the

off immediately.

room lamp will turn off immediately.

OLFH044083N

You can activate or deactivate the

Welcome Light from the User Settings

Door handle lamp (if equipped)

Mode (Light) on the LCD display.

When all the doors (and trunk) are

closed and locked, the door handle

For more information, refer to the

lamp will come on for about 15 sec-

"LCD Display" section in this

onds if any of the below is performed.

chapter.

• When the door unlock button is

pressed on the smart key.

• When the button of the outside

door handle is pressed.

• When the vehicle is approached

with the smart key in possession.

3-123

Convenient features of your vehicle

Interior Lights

Interior lamp AUTO cut

Front lamps

The interior lamps will automatically

■ Type A

WARNING

go off approximately 20 minutes after

the engine is turned off and the

Do not use the interior lights

doors closed. If a door is opened, the

when driving in the dark.The inte-

lamp will go off 40 minutes after the

rior lights may obscure your view

engine is turned off. If the doors are

and cause an accident.

locked by the smart key and the vehi-

cle enters the armed stage of the

theft alarm system, the lamps will go

NOTICE

off five seconds later.

OLF044096N/Q

Do not use the interior lights for

■ Type B

extended periods when the engine

is turned off or the battery will dis-

charge.

OLF044097

(1) Front Map Lamp

(2) Front Door Lamp

(3) Front Room Lamp

3-124

Front Map Lamp:

Front Door Lamp

:

Front Room Lamp:

Press either of these lens (1) to turn

The front or rear room lamps come

• Type A

the map lamp on or off. This light pro-

on when the front or rear doors are

: Press this switch to turn the

duces a spot beam for convenient

opened if the engine is running or

front and rear room lamps on.

use as a map lamp at night or as a

not. When doors are unlocked by the

: Press this switch to turn the

personal lamp for the driver and the

smart key, the front and rear lamps

front and rear room lamps off.

front passenger.

come on for approximately 15 sec-

onds as long as any door is not

3

opened. The front and rear room

• Type B

lamps go out gradually after approxi-

: Press this switch to turn the

mately

15 seconds if the door is

front and rear room lamps on

closed. However, if engine Start/Stop

and off.

button is in the ON position, or all

doors are locked, the front and rear

lamps will turn off immediately.

If a door is opened with the ignition

switch in the ACC position or the

LOCK/OFF position, the front and

rear lamps stay on for about 20 min-

utes. However, if a door is opened

with engine Start/Stop button is in

the ON position the lamps stays on

continuously.

3-125

Convenient features of your vehicle

Rear lamps

Trunk room lamp

Door courtesy lamp

■ Type A

OLF044098

■ Type B

OLFH044355K

OLF044256

The trunk room lamp comes on

The door courtesy lamp comes ON

when the trunk is opened.

when the door is opened to assist

entering or exiting the vehicle. It also

NOTICE

serves as a warning to passing vehi-

cles that the vehicle door is open.

The trunk lamp comes on as long

When engine Start/Stop button is in

as the trunk lid is open. To prevent

the ACC or OFF position, the door

unnecessary charging system

courtesy lamp turns off after 20 min-

drain, close the trunk lid securely

OLF044099

utes.

after using the trunk.

Rear Room Lamp

:

Press this switch to turn the room

lamp on and off.

3-126

Glove box lamp

Vanity mirror lamp

3

OLF044257

OLF044258

The glove box lamp comes on when

Opening the lid of the vanity mirror will

the glove box is opened.

automatically turn on the mirror light.

If the glove box is not closed, the

lamp will turn off after 20 minutes.

NOTICE

To prevent unnecessary charging

NOTICE

system drain, close the vanity mir-

ror cover after using the mirror.

To prevent possible battery dis-

charge, securely close the glove

box after use.

3-127

Convenient features of your vehicle

WIPERS AND WASHERS

Windshield Wipers

i

Information

Operates as follows when engine

If there is heavy accumulation of snow

Start/Stop button is in the ON position.

or ice on the windshield, defrost the

MIST : For a single wiping cycle,

windshield for about 10 minutes, or

push the lever upward and

until the snow and/or ice is removed

release. The wipers will oper-

before using the windshield wipers to

ate continuously if the lever is

ensure proper operation.

held in this position.

If you do not remove the snow and/or

OFF : Wiper is not in operation.

ice before using the wiper and washer,

INT : Wiper operates intermittently at

it may damage the wiper and washer

OLF044278

the same wiping intervals. To

system.

vary the speed setting, move

A : Wiper speed control

the speed control lever.

· MIST - Single wipe

LO : The wiper operates continuously

· OFF - Off

at a low speed.

· INT - Intermittent wipe

HI : The wiper operates continuously

· LO - Low wiper speed

at a higher speed.

· HI - High wiper speed

B : Intermittent control wipe time

adjustment

C : Wash with brief wipes

3-128

Content   ..  10  11  12  13   ..
