1FEATURES OF YOUR HYUNDAI
116
H265C01GK-GAT
Compact Disc Player Operation (H265) (If installed)
1. CD DECK
2. CD INDICATOR
4
1
3. CD Disc EJECT Button
11
4. CD Selection Button
5. Fast Backward
3
6. Fast Forward
2
7. Automatic Previous Track Selection Button
8. Automatic Next Track Selection Button
9. Section Repeat Button
10
10. Information Display Screen (LCD)
11. SCAN Button
9
7
5
6
8
GK_265_NA
FEATURES OF YOUR HYUNDAI
1
117
H265D01GK-GAT
4. CD Selection Button
7. Automatic Previous Track Selection
1. CD Deck
Button
Press this button while the disk is inside the CD
Make sure the printed side of the disk faces
DECK to listen to the CD. If the radio was on
upward when you insert the disk. If you insert
Press [
] button to go to the beginning of the
previously then it will be turned off and CD player
the disk when the ignition switch of the automo-
song you are listening to while playing the CD.
will be activated. If you press [CD] button when
bile is set to ACC (1st notch) or ON (2nd notch),
Press the button again to go to the beginning of
the disk is ejected and hanging in the opening the
the CD DECK will automatically play CD even if
the song before the song you were listening to.
system will automatically insert the disk and
the power was off.
When you press this button while listening to the
play the CD.
This CD DECK can play both 12cm and 8cm
first track of the CD then the system will move
audio disks. If you insert video CD, then the
to the beginning of the last track of the CD.
screen will display the status of the CD but it will
5. Fast Backward (REW)
not play the video file and therefore there will be
8. Automatic Next Track Selection But-
Press and hold [REW] button while playing CD
no sound.
then the player will play the disk backwards 5
ton
times the regular speed for first 5 seconds and
2. CD Indicator
Press [
] button to go to the beginning of the
15 times faster after that. The sound will be
song next to the song you are listening to while
reduced by 12dB while you are holding the
This indicator light will be on if the CD is inside
playing the CD. When you press this button
button.
the CD DECK if the ignition switch of the auto-
while listening to the last track of the CD then the
mobile is set to ACC (1st notch) or ON (2nd
system will move to the beginning of the first
notch) regardless of whether the audio system
6. Fast Forward (FF)
track of the CD.
is on or off. This light will go off when the CD is
ejected.
Press and hold [FF] button while playing CD
9. Section Repeat Button (RPT)
then the player will play the disk forward 5 times
the regular speed for first 5 seconds and 15
3. CD Eject Button
Press [RPT] button to repeat the song you are
times faster after that. The sound will be re-
listening to. Press this button again to cancel
Press [
] button to eject the disk while playing
duced by 12dB while you are holding the button.
repetition.
the disk. This will eject the CD whether or not the
ignition switch is on or off.
10. Information Display Screen (LCD)
Various status of the CD will be displayed on the
screen while listening to the CD such as "CD"
while playing the CD, the track title and number
and RPT.
1FEATURES OF YOUR HYUNDAI
118
11. SCAN Button
If you press this button, the player will play 10
seconds of each track. Press it again to cancel
scanning.
!
CAUTION:
o
Do not insert warped or poor quality
discs into the CD player as damage to the
unit may occur.
o
Do not insert anything like coins into the
player slot as damage to the unit may
occur.
o
Do not place beverages close to the
audio system. The playback mechanism
may be damaged if you spill them.
o
Do not strike or allow anything to impact
the audio system, damage to the system
mechanisms could occur.
o
Off-road or rough surface driving may
cause the compact disc to skip. Do not
use the compact disc when driving in
such conditions as damage to the com-
pact disc face could occur.
o
Do not attempt to grab or pull the com-
pact disc out while the disc is being
pulled into the audio unit by the self-
loading mechanism. Damage to the
audio unit and compact disc could oc-
cur.
FEATURES OF YOUR HYUNDAI
1
119
H465A01GK-GAT
Stereo Radio Operation (H465) (If Installed)
8
1. 2. Power Button and Volume Control
3. Radio Band Selection Button
4. SCAN Button
5. Automatic Channel Selection Button
6. Manual Channel Selection Control
(TUNE Control)
3
4
7. Preset Button
8. Information Display Screen (LCD)
9
9. AUDIO Select Button
1, 2
6
5
7
GK_465_NA
1FEATURES OF YOUR HYUNDAI
120
H465B01GK-GAT
4. SCAN Button
8. Information Display Screen (LCD)
1. Power Button (POWER ON)
A variety of information will be displayed on the
Press this button to automatically select chan-
Press this button when the ignition switch of the
screen including the radio bands (FM1/FM2/
nels starting from the current channel and play
automobile is set to ACC (1st notch) or ON (2nd
AM) while listening to the radio, frequency of
each channel for 5 seconds. Press again to
notch) to turn on the power and the audio
each channel, the number of preset channel
keep listening to the channel currently selected.
system. Press once again when the audio
and "ST" for FM stereo broadcasting.
system is on to turn off the power.
5. Automatic Channel Selection Button
9. AUDIO Select Button
(SEEK)
2. Volume Control (VOLUME)
Press this button to control tone. Each time you
Turn the volume control clockwise to increase
Press the [SEEK
] button to automatically
press the button, the mode will switch from
volume and counterclockwise to reduce. The
increase frequency and press the
[TRACK
BASS➟MIDDLE➟TREBLE➟FADER➟BALANCE
volume level will be displayed on the screen
] button to automatically decrease frequency to
and the mode will be displayed on the screen.
when you adjust the volume.
select and play the next available channel. If the
received channel is memorized in the preset
BASS
Turn the TUNE Controller
3. Radio Band Selection Button (FM/AM)
buttons then the screen will display the memo-
clockwise to increase bass
rized channel.
tone and counterclockwise
o Press this button to listen to either FM or AM.
to decrease.
o The radio will be set to each of the following
6. Manual Channel Selection Control
modes each time you press the button.
(TUNE)
MIDDLE
Turn the TUNE Controller
FM1 ➟ FM2 ➟ AM
clockwise to increase
Turn the TUNE control clockwise to increase
NOTE:
middle tone and counter-
frequency and counterclockwise to reduce fre-
Push this button when the power is off to
clockwise to decrease.
quency by 1 step for each click.
turn on the power automatically.
TREBLE
Turn the TUNE Controller
7. Preset Button (1~6)
clockwise to increase
Press this button to listen to the channels
treble tone and counter-
memorized to each button. If you want to memo-
clockwise to decrease.
rize the current channel to the preset button,
press the button for more than 1.5 seconds then
the channel will be memorized to the button with
a beep.
FEATURES OF YOUR HYUNDAI
1
121
BALANCE
Turn the TUNE Controller
clockwise to increase right
speaker volume and coun-
terclockwise to increase left
speaker volume.
FADER
Turn the TUNE Controller
clockwise to increase rear
speaker volume and coun-
terclockwise to increase
front speaker volume.
!
CAUTION:
o Do not place beverages close to the
audio system. The audio system mecha-
nism may be damaged if you spill them.
o Do not strike or allow anything to impact
the audio system, damage to the system
mechanisms could occur.
1FEATURES OF YOUR HYUNDAI
122
H465C01GK-GAT
Compact Disc Player Operation (H465) (If installed)
1. CD Deck
6
1
2. CD Load Button
3. CD Eject Button
4. Information Display Screen (LCD)
5. CD Changer Selection Button
3
2
6. Disc Selection Button
13
7. Fast Backward
8. Fast Forward
9. Automatic Previous Track Selection Button
10. Automatic Next Track Selection Button
12
11. Repeat Button
12. SCAN Button
5
13. EQ Button
14. MARK Button
4
15. RDM Button
16. File Search Knob
17. Scroll Button
16
18. Directory Search Button
10
18
9
7
8
11
15
14
17
GK_465_NA
FEATURES OF YOUR HYUNDAI
1
123
H465D01GK-GAT
5. CD Changer Selection Button
7. Fast Backward (REW)
1.CD Deck
If the power was turned off when the CD is inside
Press and hold [REW] button while playing CD
The deck will open only when you press [LOAD]
the CD changer or if you press "CD" button
then the player will play the disk backwards 5
button. Make sure the printed side of the disk
when radio was on, the system will play CD. If
times the regular speed for first 5 seconds and
faces upward when you insert the disk. The CD
you press [CD] button when there is no CD in
15 times faster after that. The sound will be
changer can only play 12cm disks. If you insert
the changer then the system will display "NO
reduced by 12dB while you are holding the
video CD or DATA CD, then the screen will
DISK" for 2 seconds and return to the previous
button.
display "ERROR DISC," eject the disk and
mode.
return to the previous mode.
8. Fast Forward (FF)
NOTE:
2. CD Load Button
If you press this button when the power is
Press and hold [FF] button while playing CD
off and CD is inside the deck, the power will
then the player will play the disk forward 5 times
When you press [LOAD] button, the empty lots
be automatically turned on.
the regular speed for first 5 seconds and 15
of the CD Changer will be opened in the order
times faster after that. The sound will be re-
of 1, 2, 3, 4, 5 and 6. When you insert CD, you
duced by 12dB while you are holding the button.
6. Disc Selection Button
can listen to the corresponding CD. In this case,
the last CD you inserted will be played. If you do
If you press [DISC
] button while using CD
9. Automatic Previous Track Selection
not take any actions after pressing (LOAD) then
Changer, the next disc will be played (If you
Button
the (LOAD) will be cancelled.
press the button when you are listening to CD
1, the CD 2 will be played).
Press [TRACK
] button to go to the beginning
3. CD Eject Button
If you wish to listen to the previous CD, then
of the song you are listening to while playing the
press [DISC
] button then the previous disc
CD. Press the button again to go to the beginning
When you press [
] button, the currently
will be played (If you press the button when you
of the song before the song you were listening
played CD will be ejected. If you press the button
are listening to CD 2, the CD 1 will be played).
to.
for more than 2 seconds, you will be able to eject
If the CD Changer is not fully loaded, this will
all CDs. If currently played CD is in the 3rd slot,
move to the next available deck. When the
10. Automatic Next Track Selection
the ejection order will be 3, 4, 5, 6, 1 and 2.
player moves from deck to deck, the screen will
Button
display the selected deck number.
4. Information Display Screen (LCD)
Press [SEEK
] button to go to the beginning
This shows the location of disk inside the CD
of the song next to the song you are listening to
Changer and the corresponding CD deck num-
while playing the CD.
ber will flicker when you load or eject the CD.
1FEATURES OF YOUR HYUNDAI
124
11. Section Repeat Button (RPT)
NOTE:
When you use CD-R or CD-RW, the CD may
Press [RPT] button to repeat the song you are
!
not be played due to the manufacturing
CAUTION:
listening to. Press this button again to cancel
method of CD makers and the recording
o
Do not insert warped or poor quality
repetition.
method of the user. In this case, change CD
discs into the CD player as damage to the
unless the continuous use of such CDs
unit may occur.
12. SCAN Button
may cause damage to the system.
o
Do not insert anything like coins into the
player slot as damage to the unit may
If you press this button, the player will play 10
16. FILE Search Knob
occur.
seconds of each track. Press it again to cancel
o
Do not place beverages close to the
scanning.
Turn this knob to the left and right while listening
audio system. The playback mechanism
to CD to change track number. If you press the
may be damaged if you spill them.
13. EQ Button
button within 5 seconds then the selected track
o
Do not strike or allow anything to impact
will be played. If you do not press the button
the audio system, damage to the system
Each time you press this button the sound
within 5 seconds then it will display the currently
mechanisms could occur.
equalizer setting will switch from
played track.
o
Off-road or rough surface driving may
POP➟JAZZ➟ROCK➟CLASSIC➟OFF (Not
cause the compact disc to skip. Do not
displayed).
17. SCROLL Button
use the compact disc when driving in
such conditions as damage to the com-
14. BOOKMARK Button
If the title of MP3 or WMA file is too long, press
pact disc face could occur.
this button to scroll the entire song title on the
This button lets you select the songs you want
o
Do not attempt to grab or pull the com-
LCD screen.
to listen to in the CD. Move to the track and press
pact disc out while the disc is being
(MARK) for more than 1 second then the screen
pulled into the audio unit by the self-
18. Directory Search Button
loading mechanism. Damage to the
will display " M " and select the track. Press the
button less than 1 second to play the songs you
audio unit and compact disc could oc-
In case the MP3/WMA CD contains more than
selected and the system will display " M "
cur.
2 folders, press this button up and down to
o
Avoid using recorded compact discs in
search each directory. You can move to the
your audio unit. Original compact discs
15. RDM (Random) Button
directory and turn the search knob to search
are recommended.
Press [RDM] button to play the songs in random
through the tracks. If you do not press the knob
order.
within 5 seconds after you select a track then
the system will automatically return to the cur-
rent track.
FEATURES OF YOUR HYUNDAI
1
CARE OF DISCS
CARE OF CASSETTE TAPES
125
B850A02F-AAT
B860A01A-AAT
Storage
Proper Handling
When not in use, place your discs in their
individual case and store them in a cool place
away from the sun, heat, and dust.
Do not grip or pull out the disc with your hand
while the disc is being pulled into the unit by the
self loading mechanism.
Keep Your Discs Clean
B860A01L
B850A01L
Proper care of your cassette tapes will extend
Handle your disc as shown. Do not drop the
the tape life and increase your listening enjoy-
disc. Hold the disc so you will not leave finger-
ment. Always protect your tapes and cassette
prints on the surface. If the surface is scratched,
cases from direct sunlight, severely cold and
it may cause the pickup to skip signal tracks. Do
dusty conditions. When not in use, cassettes
not affix tape, paper, or gummed labels on the
should always be stored in the original protec-
disc. Do not write on the disc.
tive cassette case. When the vehicle is very hot
or cold, allow the interior temperature to become
B850A02L
more comfortable before listening to your cas-
Damaged Disc
settes.
Fingerprints, dust, or soil on the surface of a disc
Do not attempt to play damaged, warped or
could cause the pickup to skip signal tracks.
cracked discs. These could severely damage
Wipe the surface clean with a clean soft cloth.
the playback mechanism.
If the surface is heavily soiled, dampen a clean
soft cloth in a solution of mild neutral detergent
to wipe it clean.
1FEATURES OF YOUR HYUNDAI
126
o Never leave a cassette inserted in the player
o Store cassettes in a cool, dry place with the
o The playback head, capstan and pinch roll-
when not being played. This could damage
open side facing down to prevent dust from
ers will develop a coating of tape residue that
the tape player unit and the cassette tape.
setting in the cassette body.
can result in deterioration of sound quality,
o We strongly recommend against the use of
o Avoid repeated fast reverse usage to replay
such as a wavering sound. They should be
tapes longer than C-60 (60 minutes total).
one given tune or tape section. This can
cleaned monthly using a commercially avail-
Tapes such as C-120 or C-180 are very thin
cause poor tape winding to occur, and even-
able head cleaning tape or special solution
and do not perform as well in the automotive
tually cause excessive internal drag and
available from audio specialty shops. Follow
environment.
poor audio quality in the cassette. If this
the supplier's directions carefully and never
occurs, it can sometimes be corrected by
oil any part of the tape player unit.
fast winding the tape from end to end several
o Always be sure that the tape is tightly wound
times. If this does not correct the problem, do
on its reel before inserting in the player.
not continue to use the tape in your vehicle.

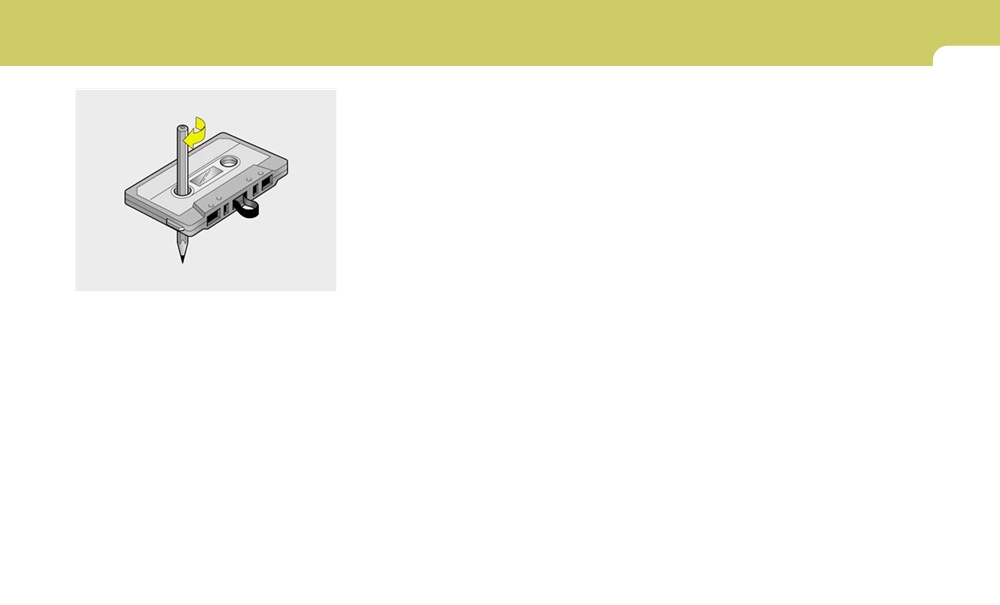

Rotate a pencil in the drive sprockets to wind
up any slack.
Head
OGK016062
o Be sure that the cassette label is not loose
or peeling off or tape ejection may be difficult.
o Never touch or soil the actual audio tape
Cotton applicator
surfaces.
B860A02L
o Keep all magnetized objects, such as elec-
tric motors, speakers or transformers away
from your cassette tapes and tape player
unit.
FEATURES OF YOUR HYUNDAI
1
127
B860A03L
NOTE:
Look at a tape before you insert it.
If the tape is loose, tighten it by turning one
of the hubs with a pencil or your finger.
If the label is peeling off, do not put it in the
drive mechanism.
Do not leave tapes sitting where they are
exposed to hot, warm, or high humidity,
such as on top of the dashboard or in the
player.
If a tape is exposed to excessively hot or
cold, let it reach a moderate temperature
before putting it in the player.
DRIVING YOUR HYUNDAI
Engine Exhaust Can Be Dangerous!
2-2
Before Starting the Engine
2-3
Key Positions
2-4
2
Starting
2-5
Operating the Manual Transaxle
2-6
Automatic Transaxle
2-8
Anti-Lock Brake System (ABS)
2-12
Electronic Stability Control (ESC)
2-13
Good Braking Practices
2-14
Driving for Economy
2-15
Winter Driving
2-16
2
Trailer or Vehicle Towing
2-19
Vehicle Load Limit
2-22
2 DRIVING YOUR HYUNDAI
2
!
WARNING: ENGINE EXHAUST CAN BE DANGEROUS!
C010A01GK-AAT
Engine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle, open the windows immediately.
o Do not inhale exhaust fumes.
Exhaust fumes contain carbon monoxide, a colorless, odorless gas that can cause unconsciousness and death by asphyxiation.
o Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If you hear a change
in the sound of the exhaust or if you drive over something that strikes the underneath side of the car, have the exhaust system checked
as soon as possible by your Hyundai dealer.
o Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Never run the engine in your garage any
longer than it takes to start the engine and back the car out.
o Avoid idling the engine for prolonged periods with people inside the car.
If it is necessary to idle the engine for a prolonged period with people inside the car, be sure to do so only in an open area with the air intake
set at "Fresh" and fan operating at one of the higher speeds so fresh air is drawn into the interior.
If you must drive with the tail gate open because you are carrying objects that make this necessary:
1. Close all windows.
2. Open side vents.
3. Set the air intake control at "Fresh", the air flow control at "Floor" or "Face" and the fan at one of the higher speeds.
To assure proper operation of the ventilation system, be sure the ventilation air intakes located just in front of the windshield are kept clear
of snow, ice, leaves or other obstructions.
!
PROPOSITION 65 WARNING:
Engine exhaust and a wide variety of automobile components and parts, including components found in the interior furnishings in a vehicle,
contain or emit chemicals known to the State of California to cause cancer and birth defects and reproductive harm. In addition, certain fluids
contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
DRIVING YOUR HYUNDAI
2
BEFORE STARTING THE ENGINE
TO START THE ENGINE
3
C020A02A-AAT
C030A01A-AAT
Combination Ignition Switch
Before you start the engine, you should always:
!
WARNING:
o If your Hyundai is equipped with a manual
1.
Look around the vehicle to be sure there are
o
All passengers must be properly belted
transaxle, place the shift lever in neutral and
no flat tires, puddles of oil, water or other
whenever the vehicle is moving. Refer to
depress the clutch pedal fully.
indications of possible trouble.
pages: 1-16 through 1-20 for more infor-
o If your Hyundai has an automatic transaxle,
2.
After entering the car, check to be sure the
mation on their proper use.
place the shift lever in "P" (park).
parking brake is engaged.
o
Always check the surrounding areas near
o To start the engine, insert the ignition key and
3.
Check that all windows, and lights are clean.
your vehicle for people, especially chil-
turn it to the "START" position. Release it as
4.
Check that the interior and exterior mirrors
dren, before putting a car into 'drive.'
soon as the engine starts. Do not hold the
are clean and in position.
o
Always wear appropriate shoes when
key in the "START" position for more than 15
5.
Check your seat, seatback and headrest to
operating your vehicle.
seconds.
be sure they are in their proper positions.
Unsuitable shoes (high heels, ski boots,
6.
Close all the doors.
etc.) may interfere with your ability to
NOTE:
7.
Fasten your seat belt and be sure that all
use the brake and accelerator pedal, and
o For safety, the engine will not start if the
other occupants have fastened theirs.
the clutch (if installed).
clutch pedal is not depressed fully
8.
Turn off all lights and accessories that are
(Manual transaxle) or the shift lever is
not needed.
not in "P" or "N" Position (Automatic
9.
When you turn the ignition switch to "ON",
transaxle).
check that all appropriate warning lights are
o The ignition key cannot be turned from
operating and that you have sufficient fuel.
"ACC" position to "LOCK" position un-
10.Check the operation of warning lights and all
less the shift lever is in the "P" (Park)
bulbs when key is in the "ON" position.
position or the negative battery terminal
is disconnected from the battery. To
remove the key, always confirm that the
shift lever is securely positioned in "P"
(Park) (For Automatic transaxle)
DRIVING YOUR HYUNDAI
2
KEY POSITIONS
4
C040A02A-AAT
C070C03A-AAT
NOTE:
Do not hold the key in the "START" position
To Remove the Ignition Key
for more than 15 seconds.
!
ACC
WARNING:
The engine should not be turned off or the
o "ON"
LOCK
ON
key removed from the ignition key cylinder
while the vehicle is in motion. The steering
When the key is in the "ON" position, the ignition
wheel is locked by removing the key.
is on and all accessories may be turned on. If
the engine is not running, the key should not be
left in the "ON" position. This will discharge the
battery and may also damage the ignition sys-
ACC
tem.
START
LOCK
ON
o "ACC"
With the key in the "ACC" position, some elec-
C070C01E-1
trical accessories (radio, etc.) may be oper-
ated.
1.
Turn the ignition key counterclockwise from
the "ACC" position to the "LOCK" position.
2.
The key can be removed in the "LOCK"
START
o "LOCK"
position.
The key can be removed or inserted in this
3.
The key can be removed in the "LOCK"
position. To protect against theft, the steering
position.
C040A01E-1
wheel locks by removing the key.
o
"START"
NOTE:
If difficulty is experienced in turning the
The engine is started in this position. It will crank
ignition key to the START position, turn the
until you release the key.
steering wheel right and left to release the
tension and then turn the key.
DRIVING YOUR HYUNDAI
2
STARTING
5
C050A01A-AAT
C050B02A-AAT
4. Turn the ignition key to the "Start" position
Normal Conditions:
and release it when the engine starts.
The Starting Procedure:
After the engine has started, allow the engine
ON
LOCK
to run for 10 to 20 seconds prior to placing
the vehicle in gear.
1. Insert key, and fasten the seat belt.
The starter should not be operated for more
2. Depress the clutch pedal fully and place the
than 15 seconds at a time. Wait 15-30 sec-
gearshift lever (manual transaxle) in neutral
onds between starting attempts to protect
or the selector lever (automatic transaxle) in
the starter from overheating.
"P" (park) position.
3. After turning the ignition key to the "ON"
position, make certain all warning lights and
START
gauges are functioning properly before start-
ing the engine.
!
WARNING:
Always fully depress the brake pedal before
C050A01E-1
and while shifting out of the "P" Park posi-
!
tion into another position to avoid inad-
WARNING:
vertent motion of the vehicle which could
!
Be sure that the clutch is fully depressed
WARNING:
injure persons in or around the car.
when starting a manual transaxle vehicle.
Never run the engine in a closed or poorly
Your manual transaxle equipped vehicle
ventilated area any longer than is needed to
will not start unless the clutch pedal is fully
move your car in or out of the area. The
depressed. On a manual transaxle equipped
carbon monoxide gas emitted is odorless
vehicle that can be started without de-
and can cause serious injury or death.
pressing the clutch, there is the potential to
cause damage to the vehicle or injury to
someone inside or outside the vehicle as a
result of the forward or backward move-
ment of the vehicle that will occur if the
clutch is not depressed when the vehicle is
started.















Content   ..  6  7  8  9   ..
