Hyundai Santa Fe XL (2019 year). Instruction - part 8

Features of your vehicle

Power liftgate (Power tailgate)

non-opening conditions

CAUTION

Operating the power liftgate

The power liftgate (power tailgate)

will not open or close automatically,

(power tailgate) more than

5

times continuously could cause

when the vehicle is moving more

than 2 mph (3 km/h).

damages to the operating

motor. In this case, the system

enters into a thermal protection

WARNING

mode. In thermal protection

The chime will sound continu-

mode, the power liftgate (power

ously if you drive over 2 mph (3

tailgate) can not operate and the

ONC047094

km/h) with the liftgate (tailgate)

chime will sound for 3 times by

opened. Stop your vehicle

any switch inputs. Leave your

• Press the power liftgate

(power

immediately at a safe place and

power liftgate

(power tailgate)

tailgate) inner switch (approximate-

check if your liftgate (tailgate) is

system for rest about 1 minute

ly 1 second).

opened.

and then operate.

The liftgate (tailgate) will close and

lock automatically.

4 31

Features of your vehicle

✽ NOTICE

Automatic reversal

However, if the resistance is weak

such as from an object that is thin or

•

The power liftgate (power tailgate)

soft, or the liftgate (tailgate) is near

can be operated when the engine is

the latched position, the automatic

not running. However the power

stop and reversal may not detect the

liftgate (power tailgate) operation

resistance.

consumes large amounts of vehicle

electric power. To prevent the bat-

If the automatic reversal feature

tery from being discharged, do not

operates continuously more than

operate it excessively.

twice during opening or closing oper-

•

To prevent the battery from being

ation, the power liftgate (power tail-

discharged, do not leave the power

gate) may stop at that position. At

liftgate

(power tailgate) in the

this time, close the liftgate (tailgate)

open position for a long time.

manually and operate the liftgate

ONC047095

•

Do not modify or repair any part

(tailgate) automatically again.

of the power liftgate (power tail-

During power opening and closing if

gate) by yourself. This must be

the power liftgate (power tailgate) is

blocked by an object or part of the

WARNING

done by an authorized HYUNDAI

dealer.

body, the power liftgate (power tail-

Never intentionally place any

•

When jacking up the vehicle to

gate) will detect the resistance.

object or part of your body in

change a tire or repair the vehicle,

• If the resistance is detected while

the path of the power liftgate

do not operate the power liftgate

opening the liftgate (tailgate), it will

(power tailgate) to make sure

(power tailgate). This could cause

stop and move in the opposite

the automatic reversal oper-

the power liftgate (power tailgate)

direction.

ates.

to operate improperly.

• If the resistance is detected while

•

In cold and wet climates, the

closing the liftgate (tailgate), it will

power liftgate (power tailgate) may

stop and move in the opposite

not work properly due to freezing

direction.

conditions.

4 32

Features of your vehicle

How to reset the power liftgate

Power liftgate (Power tailgate)

CAUTION

(power tailgate)

opening height user setting

Do not put heavy items on the

If the battery has been discharged or

power liftgate

(power tailgate)

disconnected, or if the related fuse

before you operate the power lift-

has been replaced or disconnected,

gate (power tailgate). Additional

for the power liftgate (power tailgate)

weight on liftgate (tailgate) could

to operate normally, reset the power

cause damages to the system.

liftgate (power tailgate) as follow:

1. Put the shift lever in P (Park).

2. While pressing the liftgate (tailgate)

inner switch, press the liftgate (tail-

gate) handle switch for more than 3

seconds. (the chime will sound)

3. Close the liftgate (tailgate) manu-

ONC047094

ally.

The driver may set the height of a

If the power liftgate (power tailgate)

fully opened liftgate (tailgate) by fol-

does not work properly after the

lowing the below instruction.

above procedure, have the system

1. Position the liftgate (tailgate) man-

checked by an authorized HYUNDAI

ually to the height you prefer.

dealer.

2. Press the liftgate (tailgate) inner

switch for more than 3 seconds.

✽ NOTICE

3. Close the liftgate (tailgate) manu-

If the power liftgate (power tailgate)

ally after hearing the buzzer

does not operate normally, first check

sound.

the following condition before using

the power liftgate (power tailgate).

Check if the shift lever is in:

The liftgate (tailgate) will open to the

• P (Park) for automatic transaxle

height the driver has set up.

vehicles

4 33

Features of your vehicle

Smart Liftgate (Smart Tailgate)

How to use the Smart Liftgate

WARNING - Exhaust

(if equipped)

(Smart Tailgate)

fumes

The liftgate (tailgate) can be opened

Always keep the liftgate(tail-

with no-touch activation satisfying all

gate) lid completely closed

the conditions below.

while the vehicle is in motion. If

• After

15 seconds when all doors

it is left open or ajar, poisonous

are closed and locked

exhaust gases containing car-

• Positioned in the detecting area for

bon monoxide (CO) may enter

more than 3 seconds.

the vehicle and serious illness

or death may result.

✽ NOTICE

• The Smart Liftgate

(Smart

WARNING - Rear cargo

Tailgate) does not operate when:

ONC047077

area

- The smart key is detected within

On the vehicle equipped with a smart

15 seconds after the doors are

Occupants should never ride in

key, the liftgate

(tailgate) can be

closed and locked, and is contin-

the rear cargo area where no

opened with no-touch activation

uously detected.

restraints are available. To avoid

using the Smart Liftgate

(Smart

- The smart key is detected within

injury in the event of an acci-

Tailgate) system.

15 seconds after the doors are

dent or sudden stops, occu-

closed and locked, and 60 inches

pants should always be proper-

(1.5 m) from the front door han-

ly restrained.

dles. (for vehicles equipped with

Welcome Light)

- A door is not locked or closed.

- The smart key is in the vehicle.

4 34

Features of your vehicle

1. Setting

✽ NOTICE

To activate the Smart Liftgate (Smart

Do not approach the detecting area

Tailgate), go to User Settings Mode

if you do not want the liftgate (tail-

and select Smart Liftgate

(Smart

gate) to open. If you have uninten-

Tailgate) on the LCD display.

tionally entered the detecting area

and the hazard warning lights and

chime starts to operate, leave the

❈ For more details, refer to "LCD

detecting area with the smart key.

Display" in this chapter.

The liftgate

(tailgate) will stay

closed.

ONC047078

2. Detect and Alert

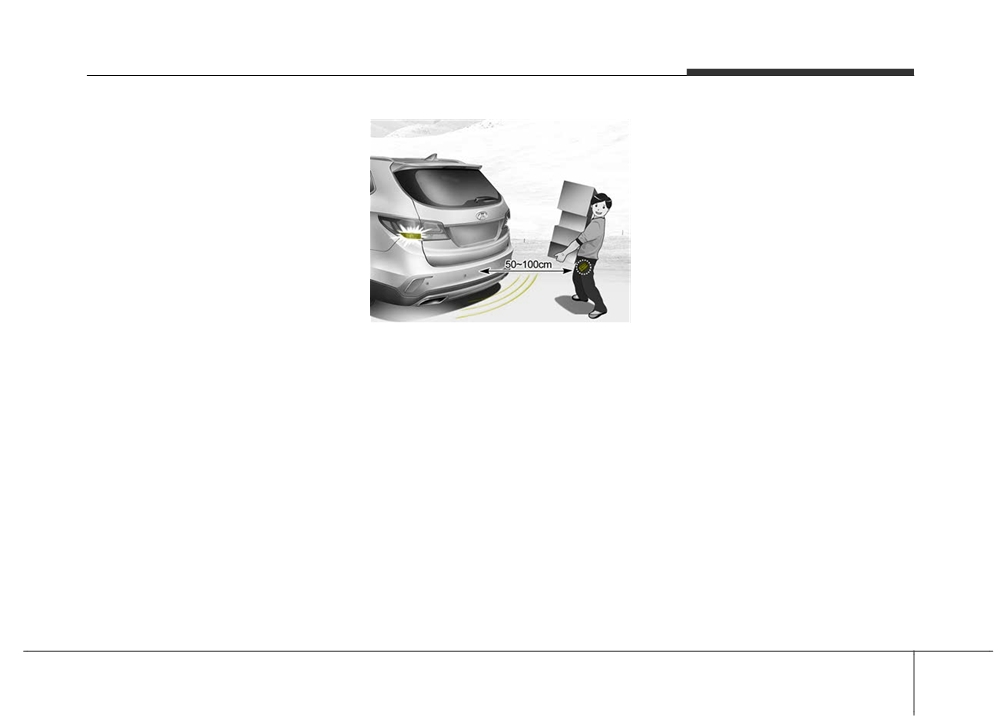

If you are positioned in the detecting

area

(50

~100 cm (20 ~ 40 in.)

behind the vehicle) carrying a smart

key, the hazard warning lights will

blink and chime will sound to alert

you the smart key has been detected

and the tailgate will open.

4 35

Features of your vehicle

How to deactivate the

WARNING

Smart Liftgate (Smart Tailgate)

•

Make certain that you close

function using the smart key

the liftgate

(tailgate) before

■ Smart key

driving your vehicle.

•

Make sure there are no people

or objects around the liftgate

(tailgate) before opening or

closing the liftgate (tailgate).

•

Make sure objects in the rear

cargo area do not come out

ONC047079

when opening the liftgate (tail-

3. Automatic opening

gate) on the slope way. It may

The hazard warning lights will blink

cause serious injury.

and chime will sound 6 times and

•

Make sure to deactivate the

OVF041004

then the liftgate (tailgate) will slowly

Smart Liftgate (Smart Tailgate)

1. Door lock

open.

function when washing your

2. Door unlock

vehicle.

3. Liftgate (Tailgate) open

Otherwise, the liftgate

(tail-

gate) may open inadvertently.

4. Panic

•

The key should be kept out of

reach of children. Children

If you press any button of the smart

may inadvertently open the

key during the Detect and Alert

Smart Liftgate (Smart Tailgate)

stage, the Smart Liftgate

(Smart

while playing around the rear

Tailgate) function will be deactivated.

area of the vehicle.

Make sure to be aware of how to

deactivate the Smart Liftgate (Smart

Tailgate) function for emergency situ-

ations.

4

36

Features of your vehicle

✽ NOTICE

Detecting area

✽ NOTICE

•

If you press the door unlock but-

•

The Smart Liftgate

(Smart

ton (2), the Smart Liftgate (Smart

Tailgate) function will not work if

Tailgate) function will be deacti-

20~40 inches

any of the following occurs:

vated temporarily. But, if you do

- The smart key is close to a radio

not open any door for 30 seconds,

transmitter such as a radio sta-

the Smart Liftgate

(Smart

tion or an airport which can

Tailgate) function will be activated

interfere with normal operation

again.

of the transmitter.

•

If you press the liftgate (tailgate)

- The smart key is near a mobile

open button (3) for more than 1

two way radio system or a cellu-

second, the liftgate

(tailgate)

lar phone.

opens.

- Another vehicle's smart key is

ODM044510K

•

If you press the door lock button

being operated close to your

(1) or liftgate (tailgate) open but-

•

The Smart Liftgate

(Smart

vehicle.

ton (3) when the Smart Liftgate

Tailgate) operates with a welcome

•

The detecting range may decrease

(Smart Tailgate) function is not in

alert if the smart key is detected

or increase when :

the Detect and Alert stage, the

within 20~40 inches (50~100 cm)

- One side of the tire is raised to

Smart Liftgate

(Smart Tailgate)

from the liftgate (tailgate).

replace a tire or to inspect the

function will not be deactivated.

•

The alert stops at once if the smart

vehicle.

•

In case you have deactivated the

key is positioned outside the

- The vehicle is slantingly parked

Smart Liftgate

(Smart Tailgate)

detecting area during the Detect

on a slope or unpaved road, etc.

function by pressing the smart key

and Alert stage.

button and opened a door, the

Smart Liftgate

(Smart Tailgate)

function can be activated again by

closing and locking all doors.

4 37

Features of your vehicle

Emergency liftgate (tailgate)

safety release

WARNING

•

For emergencies, be fully

aware of the location of the

emergency liftgate

(tailgate)

safety release lever in this

vehicle and how to open the

liftgate

(tailgate) if you are

accidentally locked in the lug-

gage compartment.

•

No one should be allowed to

occupy the luggage compart-

ment of the vehicle at any

time. The luggage compart-

ONC046096

ment is a very dangerous

Your vehicle is equipped with an

location in the event of a

emergency liftgate

(tailgate) safety

crash.

release lever located on the bottom

•

Use the release lever for

of the liftgate (tailgate). When some-

emergencies only. Use

one is inadvertently locked in the lug-

extreme caution, especially

gage compartment, the liftgate (tail-

while the vehicle is in motion.

gate) can be opened by doing as fol-

lows:

1. Remove the cover.

2. Push the release lever to the right.

3. Push up the liftgate (tailgate).

4 38

Features of your vehicle

WINDOWS

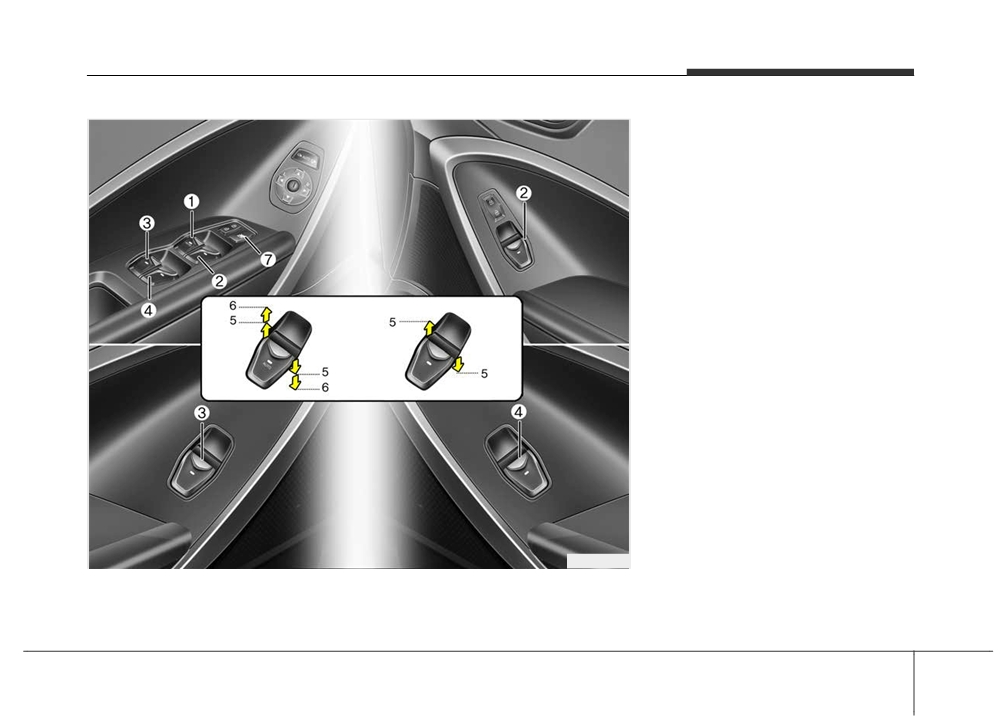

(1) Driver's door power window

switch

(2) Front passenger's door power

window switch

(3) Rear door (left) power window

switch

(4) Rear door (right) power window

switch

(5) Window opening and closing

(6) Automatic power window

up/down

(7) Power window lock switch

✽ NOTICE

In cold and wet climates, power win-

dows may not work properly due to

freezing conditions.

ONC045081

4 39

Features of your vehicle

Power windows

✽ NOTICE

Window opening and closing

The ignition switch must be in the ON

•

In cold and wet climates, power

position for power windows to operate.

windows may not work properly

due to freezing conditions.

Each door has a power window

•

While driving with the rear win-

switch that controls that door's win-

dows down or with the sunroof (if

dow. The driver has a power window

equipped) in an open (or partially

lock switch which can block the oper-

open) position, your vehicle may

ation of passenger windows. The dri-

demonstrate a wind buffeting or

ver’s door has a master power win-

pulsation noise. This noise is a

dow switch that controls all the win-

normal occurrence and can be

dows in the vehicle. The power win-

reduced or eliminated by taking

dows can be operated for approxi-

the following actions. If the noise

mately 30 seconds after the ignition

ODM042020

occurs with one or both of the

key is removed or turned to the ACC

rear windows down, partially

To open or close a window, press

or LOCK position. However, if the

lower

both front

windows

down or pull up the front portion of

front doors open, the power windows

approximately one inch. If you

the corresponding switch to the first

cannot be operated within the

30

experience the noise with the sun-

detent position (5).

second period.

roof open, slightly reduce the size

of the sunroof opening.

WARNING

To avoid serious injury or death,

do not extend your head, arms

or body outside the windows

while driving.

4 40

Features of your vehicle

Auto up/down window (front seat)

1. Turn the ignition switch to the ON

(if equipped)

position.

2. Close windows and continue

pulling up on the power window

switch for at least 1 second after

the window is completely closed.

WARNING

The automatic reverse feature

doesn't activate while resetting

power window system. Make

OUN026013

sure body parts or other objects

Automatic reverse

are safely out of the way before

ODM042021

closing the windows to avoid

If the upward movement of the win-

dow is blocked by an object or part of

injuries or vehicle damage.

Pressing down or pulling up the

the body, the window will detect the

power window switch momentarily to

resistance and will stop upward

the second detent position (6) com-

movement. The window will then

pletely lowers or lifts the window

lower approximately 11.8 in. (30 cm)

even when the switch is released. To

to allow the object to be cleared.

stop the window at the desired posi-

tion while the window is in operation,

momentarily pull or push the switch

in the direction opposite of the win-

dow’s movement.

If the power window is not operated

correctly, the automatic power win-

dow system must be reset as follows:

4 41

Features of your vehicle

If the window detects the resistance

✽ NOTICE

✽ NOTICE

while the power window switch is

The automatic reverse feature for

Do not install any accessories on the

pulled up continuously, the window

the driver's window is only active

windows. The automatic reverse fea-

will stop upward movement then

when the "auto up" feature is used

ture may not operate.

lower approximately 1 in. (2.5 cm). If

by fully pulling up the switch. The

the power window switch is pulled up

automatic reverse feature will not

continuously again within 5 seconds

WARNING

operate if the window is raised using

after the window is lowered by the

the halfway position on the power

Always check for obstructions

automatic window reverse feature,

window switch.

before raising any window to

the automatic window reverse will

avoid injuries or vehicle damage.

not operate.

If an object less than 0.16 in. (4

WARNING

mm) in diameter is caught

Make sure body parts or other

between the window glass and

objects are safely out of the way

the upper window channel, the

before closing the windows to

automatic reverse window may

avoid injuries or vehicle damage.

not detect the resistance and will

Objects less than 4 mm (0.16

not stop and reverse direction.

inch) in diameter caught

between the window glass and

the upper window channel may

not be detected by the automat-

ic reverse window and the win-

dow will not stop and reverse

direction.

4 42

Features of your vehicle

Power window lock button

CAUTION

WARNING - Windows

•

To prevent possible damage

•

NEVER leave the ignition key

to the power window system,

(or smart key) in the vehicle.

do not open or close two win-

•

NEVER leave any child unat-

dows or more at the same

tended in the vehicle. Even

time. This will also ensure the

very young children may inad-

longevity of the fuse.

vertently cause the vehicle to

•

Never try to operate the main

move, entangle themselves in

switch on the driver's door

the windows, or otherwise

and the individual door win-

injure themselves or others.

dow switch in opposing direc-

•

Always double check to make

tions at the same time. If this is

ODM042022

sure all arms, hands, head

done, the window will stop and

and other obstructions are

The driver can disable the power

cannot be opened or closed.

safely out of the way before

window switches on the rear passen-

closing a window.

ger's doors by pressing the power

•

Do not allow children to play

window lock switch to the lock posi-

tion (pressed).

with the power windows. Keep

the driver’s door power win-

When the power window lock switch

dow lock switch in the LOCK

is pressed:

position (depressed). Serious

• The driver's master control can

injury can result from uninten-

operate all the power windows.

tional window operation by

• The front passenger's control can

the child.

operate the front passenger's

•

Do not extend any head or

power window.

arms outside through the win-

• The rear passenger's control can-

dow opening while driving.

not operate the rear passenger's

power window.

4 43

Features of your vehicle

HOOD

Opening the hood

WARNING

ONC046082

2. Go to the front of the vehicle, raise

ODMNMC2034

ODM042023

the hood slightly, pull the second-

1. Pull the release lever to unlatch

When you check the engine

ary latch (1) inside of the hood up

compartment, please make sure

the hood. The hood should pop

and lift the hood (2).

open slightly.

your head is not injured by the

3. Raise the hood. It will raise com-

hood safety hook which is

pletely by itself after it has been

located inside of the hood.

WARNING

raised about halfway.

Open the hood after turning off

the engine on a flat surface,

shifting the shift lever to the P

(Park) position, and setting the

parking brake.

4 44

Features of your vehicle

FUEL FILLER LID

Opening the fuel filler lid

Closing the fuel filler lid

1. To install the cap, turn it clockwise

until it clicks one time. This indi-

cates that the cap is securely

tightened.

2. Close the fuel filler lid and push it

in lightly making sure that it is

securely closed.

ODM044026

1. Stop the engine.

ODM042025

2. Pull the fuel filler lid opener lever,

The fuel filler lid must be opened

then the fuel filler lid will pop up.

from inside the vehicle by pulling the

3. Pull the fuel filler lid (1) out to fully

fuel filler lid opener lever located on

open.

the driver’s door.

4. To remove the cap, turn the fuel

tank cap (2) counterclockwise.

✽ NOTICE

5. Refuel as needed.

If the fuel filler lid will not open

because ice has formed around it,

tap lightly or push on the lid to break

the ice and release the lid. Do not pry

on the lid. If necessary, spray around

the lid with an approved de-icer fluid

(do not use radiator anti-freeze) or

move the vehicle to a warm place

and allow the ice to melt.

4 46

Features of your vehicle

(Continued)

WARNING - Refueling

WARNING - Refueling

dangers

•

Do not get back into a vehicle

•

If pressurized fuel sprays out,

once you have begun refuel-

it can cover your clothes or

Automotive fuels are flammable

ing since you can generate

skin and thus subject you to

materials. When refueling, please

static electricity by touching,

the risk of fire and burns.

note the following guidelines

rubbing or sliding against any

Always remove the fuel cap

carefully. Failure to follow these

item or fabric (polyester, satin,

carefully and slowly. If the cap

guidelines may result in severe

nylon, etc.) capable of produc-

is venting fuel or if you hear a

personal injury, severe burns or

ing static electricity. Static

hissing sound, wait until the

death by fire or explosion.

electricity discharge can

condition stops before com-

• Read and follow all warnings

ignite fuel vapors resulting in

pletely removing the cap.

posted at the gas station facility.

rapid burning. If you must re-

•

Do not "top off" after the noz-

• Before refueling, note the

enter the vehicle, you should

zle automatically shuts off

location of the Emergency

once again eliminate poten-

when refueling.

Gasoline Shut-Off, if available,

tially dangerous static elec-

•

Always check that the fuel cap

at the gas station facility.

tricity discharge by touching a

is installed securely to pre-

• Before touching the fuel noz-

metal part of the vehicle, away

vent fuel spillage in the event

zle, you should eliminate

from the fuel filler neck, noz-

of an accident.

potentially dangerous static

zle or other gasoline source.

electricity discharge by touch-

(Continued)

ing another metal part of the

vehicle, a safe distance away

from the fuel filler neck, noz-

zle, or other gas source.

(Continued)

4 47

Content   ..  6  7  8  9   ..
