Features of your vehicle

Smart key precautions

Avoid placing the smart key and

Smart key immobilizer system

your cell phone or smart phone in

•

The smart key will not work if any

Your vehicle is equipped with an

the same pants or jacket pocket

of the following occur:

electronic engine immobilizer system

and maintain adequate distance

to reduce the risk of unauthorized

- The smart key is close to a radio

between the two devices.

vehicle use.

transmitter such as a radio sta-

•

In cold and wet climates, door lock

tion or an airport which can inter-

Your immobilizer system is com-

and door mechanisms may not

fere with normal operation of the

prised of a small transponder in the

work properly due to freezing con-

smart key.

smart key and electronic devices

ditions.

inside the vehicle.

- The smart key is near a mobile

•

If the door is locked/unlocked mul-

two way radio system or a cellular

With the immobilizer system, when-

tiple times in rapid succession with

phone.

ever you turn the engine start/stop

either the vehicle key or door lock

- Another vehicle's smart key is

button to the ON position by pressing

switch, the system may stop oper-

the button while carrying the smart

being operated close to your

ating temporarily in order to protect

vehicle.

key, it checks and determines and

the circuit and prevent damage to

verifies if the smart key is valid or

•

When the smart key does not work

system components.

not.

correctly, open and close the door

If the key is determined to be valid,

with the mechanical key and con-

CAUTION

the engine will start.

tact an authorized HYUNDAI deal-

er.

Keep the smart key away from

If the key is determined to be invalid,

water or any liquid and fire. If

the engine will not start.

•

If the smart key is in close proximi-

the inside of the smart key gets

ty to your cell phone or smart

phone, the signal from the smart

damp (due to drinks or mois-

ture), or is heated, internal cir-

key could be blocked by normal

operation of your cell phone or

cuit may malfunction.

smart phone. This is especially

important when the phone is active

such as making a call, receiving

calls, text messaging, and/or send-

ing/receiving emails.

4

14

Features of your vehicle

To deactivate the immobilizer

✽ NOTICE

system:

CAUTION

When starting the engine, do not use

The transponder in your smart

Turn the engine start/stop button to

the key with other immobilizer keys

the ON position by pressing the but-

around. Otherwise the engine may

key is an important part of the

immobilizer system. It is

ton while carrying the smart key.

not start or may stop soon after it

designed to give years of trou-

starts. Keep each key separate in

ble-free service, however you

To activate the immobilizer system:

order to avoid a starting malfunction.

should avoid exposure to mois-

Turn the engine start/stop button to

ture, static electricity and rough

the OFF position. The immobilizer

CAUTION

handling. Immobilizer system

system activates automatically.

Do not put metal accessories

malfunction could occur.

Without a valid smart key for your

near the smart key.

vehicle, the engine will not start.

The engine may not start

because the metal accessories

CAUTION

CAUTION

may interrupt the transponder

Do not change, alter or adjust

In order to prevent theft of your

signal from transmitting normal-

the immobilizer system because

ly.

vehicle, do not leave spare keys

it could cause the immobilizer

anywhere in your vehicle. Your

system to malfunction and

Immobilizer password is a cus-

should only be serviced by an

✽ NOTICE

tomer unique password and

authorized HYUNDAI dealer.

If you need additional keys or lose

should be kept confidential. Do

Malfunctions caused by improp-

your keys, contact an authorized

not leave this number anywhere

er alterations, adjustments or

HYUNDAI dealer.

in your vehicle.

modifications to the immobilizer

system are not covered by your

vehicle manufacturer warranty.

4 15

Features of your vehicle

This device complies with Part 15

Battery replacement

• The smart key is designed to give

of the FCC rules.

you years of trouble-free use, how-

ever it can malfunction if exposed

Operation is subject to the following

to moisture or static electricity. If

two conditions:

you are unsure how to use or

1. This device may not cause harm-

replace the battery, contact an

ful interference, and

authorized HYUNDAI dealer.

2. This device must accept any inter-

• Using the wrong battery can cause

ference received, including inter-

the smart key to malfunction. Be

ference that may cause undesired

sure to use the correct battery.

operation.

• To avoid damaging the smart key,

don't drop it, get it wet, or expose it

WARNING

to heat or sunlight.

OHG040009

Changes or modifications not

•

An inappropriately dis-

expressly approved by the party

A smart key battery should last for

posed battery can be harm-

responsible for compliance

several years, but if the smart key is

ful to the environment and

could void the user's authority

not working properly, try replacing

human health. Dispose the

to operate the equipment. If the

the battery with a new one. If you are

battery according to your

keyless entry system is inoper-

unsure how to use your smart key or

local law(s) or regulation.

ative due to changes or modifi-

replace the battery, contact an

cations not expressly approved

authorized HYUNDAI dealer.

CAUTION - Smart key

by the party responsible for

1. Remove the mechanical key.

compliance, it will not be cov-

damage

2. Pry open the rear cover.

ered by your manufacturer's

Do not drop, get wet or expose

3. Replace the battery with a new

vehicle warranty.

the smart key to heat or sun-

battery (CR2032). When replacing

light, or it will be damaged.

the battery, make sure the battery

position.

4. Install the battery in the reverse

order of removal.

4 16

Features of your vehicle

THEFT-ALARM SYSTEM (IF EQUIPPED)

Armed stage

• Lock the doors by pressing the lock

button on the smart key.

Using the smart key (if equipped)

After completion of the steps above,

Armed

Park the vehicle and stop the engine.

stage

the hazard warning lights and chime

Arm the system as described below.

will operate once to indicate that the

1. Turn off the engine.

system is armed.

2. Make sure that all doors, the

If any door, liftgate

(tailgate) or

engine hood and liftgate (tailgate)

Disarmed

Theft-alarm

engine hood remains open, the haz-

stage

stage

lid are closed and latched.

ard warning lights and chime won't

3. • Lock the doors by pressing the

operate and the theft-alarm will not

button of the front outside door

arm. After you close the liftgate (tail-

handle with the smart key in your

gate) and engine hood, the hazard

This system is designed to provide

possession.

warning lights blink once.

protection from unauthorized entry

After completion of the steps above,

into the vehicle. This system is oper-

the hazard warning lights and chime

ated in three stages: the first is the

will operate once to indicate that the

"Armed" stage, the second is the

system is armed.

"Theft-alarm" stage, and the third is

If any door remains open, the doors

the "Disarmed" stage. If triggered,

won't lock and the chime will sound

the system provides an audible

for 3 seconds. Close the door and try

alarm with blinking of the hazard

again to lock the doors.

warning lights.

If the liftgate (tailgate) hatch or the

engine hood remains open, the haz-

ard warning lights and the chime

won't operate, and the theft alarm

will not arm. After you close the lift-

gate (tailgate) and engine hood, the

hazard warning lights blink once.

4 17

Features of your vehicle

✽ NOTICE

• Avoid trying to start the engine

while the alarm is activated. The

vehicle starting motor is disabled

during the theft-alarm stage.

• If you lose your keys, contact your

authorized HYUNDAI dealer.

CAUTION

Do not change, alter or adjust

the theft-alarm system because

it could cause the theft-alarm

system to malfunction and

should only be serviced by an

authorized HYUNDAI dealer.

Malfunctions caused by improp-

er alterations, adjustments or

modifications to the theft-alarm

system are not covered by your

vehicle manufacturer warranty.

4 20

Features of your vehicle

DOOR LOCKS

Operating door locks from

Using the smart key (if equipped)

outside the vehicle

Using the folding key (if equipped)

OVF041004

• Doors can be locked and unlocked

ODM042006

by pressing the lock button (1) and

•

Doors can be locked and unlocked

unlock button (2) on the smart key.

OVF041003

pressing the button of the outside

Once the doors are unlocked, they

door handle with the smart key in

• Doors can be locked and unlocked

may be opened by pulling the door

your possession.

by pressing the lock button (1) and

handle. When closing the door, push

unlock button (2) on the folding key.

the door by hand. Make sure that

doors are closed securely.

Once the doors are unlocked, they

may be opened by pulling the door

For more detailed information, refer

handle. When closing the door, push

to "Smart key" in this section.

the door by hand. Make sure that

doors are closed securely.

For more detailed information, refer

to "Folding key" in this section.

4 21

Features of your vehicle

Using the mechanical key in an

✽ NOTICE

✽ NOTICE

emergency situation

•

In cold and wet climates, door

You can activate or deactivate the

■ Type A

■ Type B

locks and door mechanisms may

Tow Turn Unlock function. Refer to

not work properly due to freezing

"User Settings" in this section.

conditions.

Lock

Lock

•

If the door is locked/unlocked

WARNING

multiple times in rapid succession

•

If you don't close the door

with either the vehicle key or door

Unlock

Unlock

securely, the door may open

lock switch, the system may stop

again.

operating temporarily in order to

protect the circuit and prevent

•

Be careful that someone's

damage to system components.

body and hands are not

trapped when closing the door.

ONC045612C

If the smart key or folding key does

not operate normally, you can lock or

unlock the doors as follows:

1. Unfold the folding key or remove

the mechanical key from the smart

key.

2. Insert the key into the hole of the

outside door handle. Turn the key

toward the front of the vehicle to

unlock and toward the rear of the

vehicle to lock.

4 22

Features of your vehicle

Operating door locks from

• If the inner door handle on either

Central door lock switch

inside the vehicle

front door is pulled when the door

■ Driver’s door

lock button is in the locked position,

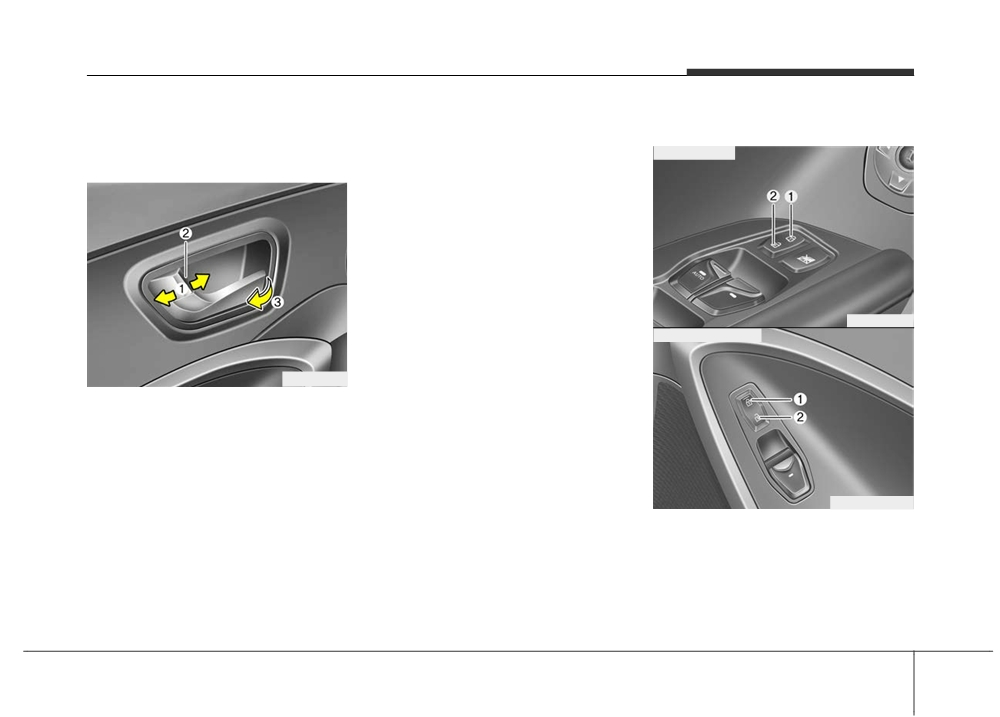

With the door lock button

the door will unlock and open.

• The front door cannot be locked if

the ignition key is in the ignition

switch and the door is open.

• The door cannot be locked if the

smart key is in the vehicle and any

door is open.

ODM042014

If a power door lock ever fails to func-

■ Passenger’s door

tion while you are in the vehicle, try

one or more of the following:

ODM042013

• Operate the door unlock feature

repeatedly

(both electronic and

•

To unlock a door, push the door

manual) while simultaneously

lock button (1) to the "Unlock" posi-

pulling on the door handle.

tion. The red mark (2) on the button

• Operate the other door locks and

will be visible.

handles, front and rear.

•

To lock a door, push the door lock

• Lower a front window and use the

button (1) to the "Lock" position. If

OANNCO43001

the door is locked properly, the red

key to unlock the door from out-

side.

Operate by depressing the central

mark (2) on the button will not be

visible.

door lock switch.

•

To open a door, pull the door han-

• When pushing down the lock switch

dle (3) outward.

(1), all vehicle doors will lock.

4 23

Features of your vehicle

• When pushing down the lock

(Continued)

release switch (2), all vehicle doors

WARNING

will unlock.

To secure your vehicle, while

Do not leave children or ani-

depressing the brake, move the

• If the key is in the ignition switch

mals unattended in your vehi-

shift lever to the P (Park) posi-

and front door is open, the doors

cle. An enclosed vehicle can

tion, engage the parking brake,

will not lock even though the cen-

become extremely hot, causing

and press the Engine Start/Stop

tral door lock switch (1) is pressed.

death or serious injury to unat-

button to the OFF position, close

tended children or animals who

• If the smart key is in the vehicle

all windows, lock all doors, and

cannot escape the vehicle.

and any door is open, the doors

always take the key with you.

Children might operate features

will not lock even though the cen-

of the vehicle that could injure

tral door lock switch (1) is pressed.

them, or they could encounter

WARNING

other harm, possibly from

WARNING

someone gaining entry to the

If you stay in the vehicle for a

vehicle.

long time while the weather is

•

The doors should always be

very hot or cold, there are risks

fully closed and locked while

of injuries or danger to life. Do

the vehicle is in motion. If the

not lock the vehicle from the

doors are unlocked, the risk of

WARNING

outside when someone is in the

being thrown from the vehicle

Always secure your vehicle

vehicle.

in a crash is increased.

Leaving your vehicle unlocked

•

Do not pull the inner door

increases the potential risk to

handle of the driver's or pas-

you or others from someone

WARNING

senger's door while the vehi-

hiding in your vehicle.

cle is moving.

Opening a door when something

(Continued)

is approaching may cause dam-

age or injury. Be careful when

opening doors and watch for

vehicles, motorcycles, bicycles

or pedestrians approaching the

vehicle in the path of the door.

4

24

Features of your vehicle

Impact sensing door unlock

Child-protector rear door lock

3. Close the rear door.

system

To open the rear door, pull the out-

side door handle (2).

All doors will be automatically

unlocked if an impact or collision is

Even though the doors are unlocked,

detected by the impact sensors while

the rear door will not open by pulling

the ignition switch is ON.

the inner door handle until the rear

door child safety lock is unlocked.

However, the doors may not be

unlocked if mechanical problems

occur with the door lock system or

WARNING - Rear door

battery.

locks

If children accidentally open the

✽ NOTICE

ONCNCO2015

rear doors while the vehicle is

You can select some auto door lock/

in motion, they could fall out of

unlock features in "User Settings"

The child safety lock is provided to

the vehicle, resulting in severe

as follows;

help prevent children from acciden-

injury or death. To prevent chil-

• Speed sensing auto door lock

tally opening the rear doors from

dren from opening the rear

• Auto door unlock when the igni-

inside the vehicle. The rear door

doors from the inside, the rear

tion key is removed from the igni-

safety locks should be used whenev-

door safety locks should be

tion switch or engine is turned off.

er children are in the vehicle.

used whenever children are in

• Auto door lock/unlock by shifting

1. Open the rear door.

the vehicle.

the shift lever out of P (Park) or

2. Insert a key (or screwdriver) into

into P (Park).

the hole (1) and turn it to the lock

For more information, refer to

(

) position. When the child safe-

"User Settings" in this section.

ty lock is in the lock position, the

rear door will not open even when

the inner door handle is pulled.

4 25

Features of your vehicle

LIFTGATE (TAILGATE)

Non-Powered liftgate (tailgate)

✽ NOTICE

Closing the liftgate (tailgate)

Opening the liftgate (tailgate)

In cold and wet climates, door lock

and door mechanisms may not work

properly due to freezing conditions.

WARNING

The liftgate

(tailgate) swings

upward. Make sure no objects

or people are near the rear of

the vehicle when opening the

liftgate (tailgate).

ONC047092L

ONC047091

To close the liftgate (tailgate), lower

CAUTION

and push down the liftgate (tailgate)

•

The liftgate

(tailgate) is locked or

Make certain that you close the

firmly. Make sure that the liftgate

unlocked when all doors are locked

liftgate (tailgate) before driving

(tailgate) is securely latched.

or unlocked with the key, transmitter,

your vehicle. Possible damage

smart key or central door lock switch.

may occur to the liftgate (tail-

•

If unlocked, the liftgate

(tailgate)

gate) lift cylinders and attached

hardware if the liftgate (tailgate)

can be opened by pressing the

handle switch and pulling the han-

is not closed prior to driving.

dle up.

•

Only the liftgate

(tailgate) is

unlocked if the liftgate

(tailgate)

unlock button on the transmitter or

smart key is pressed for about 1

second, or the liftgate

(tailgate)

handle button is pressed when the

smart key is detected.

4

26

Features of your vehicle

WARNING - Exhaust

WARNING - Rear cargo

WARNING

fumes

area

Always keep the liftgate(tail-

Occupants should never ride in

gate) lid completely closed

the rear cargo area where no

while the vehicle is in motion. If

restraints are available. To avoid

it is left open or ajar, poisonous

injury in the event of an acci-

exhaust gases containing car-

dent or sudden stops, occu-

bon monoxide (CO) may enter

pants should always be proper-

the vehicle and serious illness

ly restrained.

or death may result.

OHYK047009

Do not hold the part (gas lifter)

that supports the liftgate(tail-

gate). Be aware that the defor-

mation of the part may cause

vehicle damage and a risk of

safety accident.

4 27

Features of your vehicle

Power liftgate (Power tailgate) (if equipped)

✽ NOTICE

When the engine is not running, the

power liftgate (power tailgate) can

be operated regardless of gear posi-

tion.

However, if ignition switch is ON

position, the power liftgate (power

tailgate) can operate when the auto-

matic shift lever is in P (Park).

WARNING

ONC045605

ONC046093

Never leave children or animals

unattended in your vehicle.

Children or animals might oper-

ate the power liftgate

(power

tailgate) that could result in

injury to themselves or others,

or damage the vehicle.

ONC044081

ONC046094

(1) Power liftgate

(Power tailgate)

(2) Power liftgate

(Power tailgate)

open/close button

handle switch

(3) Power liftgate

(Power tailgate)

inner switch

4 28

Features of your vehicle

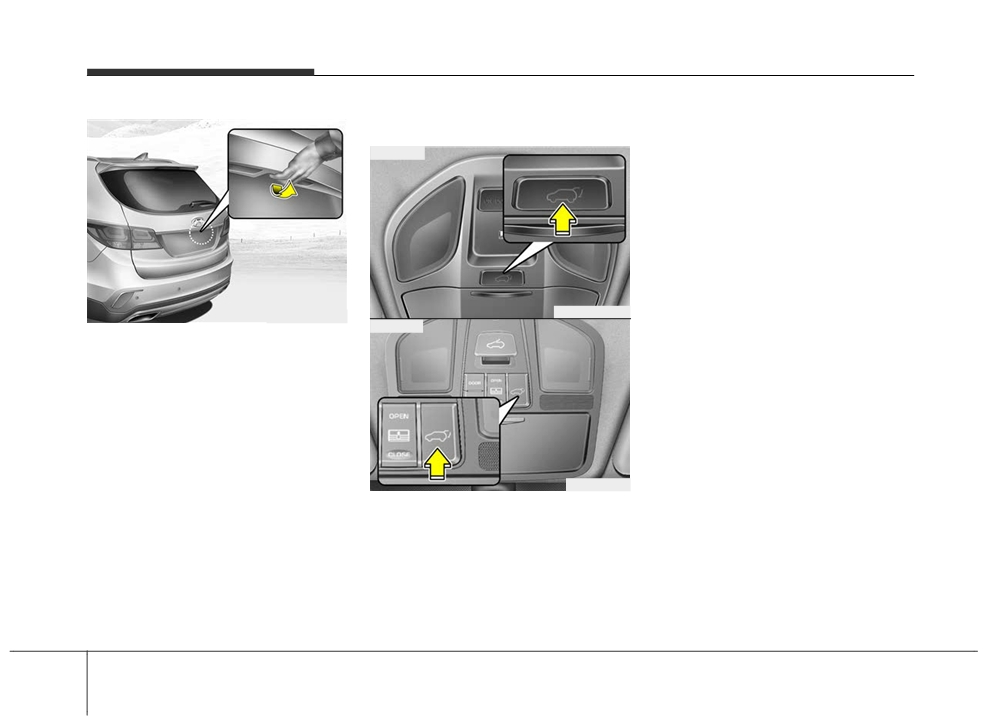

Opening the liftgate (tailgate)

■ Type A

WARNING

Make sure there are no people

or objects around the liftgate

(tailgate) before operating the

power liftgate (power tailgate).

Wait until the liftgate (tailgate) is

opened fully and stopped before

loading or unloading cargo or

passengers from the vehicle.

ONCDCO3045

■ Type B

CAUTION

ONC047116N

Do not close or open the power

The power liftgate (power tailgate)

liftgate (power tailgate) manual-

will open automatically by doing one

ly. This may cause damage to

of the following:

the power liftgate

(power tail-

• Press the liftgate (tailgate) unlock

gate). If it is necessary to close

button on the transmitter or smart

or open the power liftgate

key.

(power tailgate) manually when

the battery is discharged or dis-

ONC044081

connected, do not apply exces-

• Press the power liftgate

(power

sive force.

tailgate) open button for approxi-

mately one second.

For emergency stop while operating,

press the power liftgate (power tail-

gate) open button shortly.

4 29

Features of your vehicle

Closing the liftgate (tailgate)

For emergency stop while operating,

press the power liftgate (power tail-

■ Type A

gate) close button shortly.

ONCDCO3045

ONC046093

■ Type B

• Press the liftgate (tailgate) handle

switch carrying the smart key with

you.

ONC044081

• Press the power liftgate

(power

tailgate) close button for approxi-

mately one second when the lift-

gate (tailgate) is opened.

The liftgate (tailgate) will close and

lock automatically.

4 30

Content   ..  5  6  7  8   ..
