Features of your vehicle
4. Objects generating excessive noise
D170300AEN
✽ NOTICE
(vehicle horns, loud motorcycle
Rear parking assist system pre-
This system can only sense objects with-
engines, or truck air brakes) are within
cautions
in the range and location of the sensors;
range of the sensor.
•
The rear parking assist system may
It can not detect objects in other areas
5. Heavy rain or water spray exists.
not sound sequentially depending on
where sensors are not installed. Also,
6. Wireless transmitters or mobile phones
the speed and shapes of the objects
small or slim objects, such as poles or
are within range of the sensor.
detected.
objects located between sensors may not
7. The sensor is covered with snow.
•
The rear parking assist system may
be detected by the sensors.
Always visually check behind the vehi-
8. Trailer towing
malfunction if the vehicle bumper
cle when backing up.
height or sensor installation has been
modified or damaged. Any non-factory
Be sure to inform any drivers of the
The detecting range may decrease
vehicle that may be unfamiliar with the
installed equipment or accessories
when:
system regarding the system’s capabili-
may also interfere with the sensor per-
1. The sensor is stained with foreign mat-
ties and limitations.
formance.
ter such as snow or water. (The sens-
•
The sensor may not recognize objects
ing range will return to normal when
less than 15 in. (40 cm) from the sen-
removed.)
WARNING
sor, or it may sense an incorrect dis-
2. Outside air temperature is extremely
Pay close attention when the vehi-
tance. Use caution.
hot or cold.
cle is driven close to objects on the
•
When the sensor is frozen or stained
road, particularly pedestrians, and
with snow, dirt, or water, the sensor
The following objects may not be rec-
especially children. Be aware that
may be inoperative until the stains are
ognized by the sensor:
some objects may not be detected
removed using a soft cloth.
by the sensors, due to the object’s
1. Sharp or slim objects such as ropes,
•
Do not push, scratch or strike the sen-
distance, size or material, all of
chains or small poles.
sor. Sensor damage could occur.
which can limit the effectiveness of
2. Objects which tend to absorb the sen-
the sensor. Always perform a visu-
sor frequency such as clothes, spongy
al inspection to make sure the vehi-
material or snow.
cle is clear of all obstructions
3. Undetectable objects smaller than 40 in.
before moving the vehicle in any
(1 m) in height and narrower than 6 in.
direction.
(14 cm) in diameter.
4 52
Features of your vehicle
HAZARD WARNING FLASHER
D170400AFD
Type A
The hazard warning lights are turned on
Self-diagnosis
by pushing in the hazard switch. This
causes all turn signal lights to blink. The
If you don’t hear an audible warning
hazard warning lights will operate even
sound or if the buzzer sounds intermit-
though the key is not in the ignition
tently when shifting the gear to the R
switch.
(Reverse) position, this may indicate a
malfunction in the rear parking assist sys-
To turn the hazard warning lights off,
tem. If this occurs, have your vehicle
push the switch a second time.
checked by an authorized HYUNDAI
dealer as soon as possible.
OFD067001
Type B
WARNING
Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-
pants related to the rear parking
assist system. Always drive safely
and cautiously.
OFD069002N
D180000AUN
The hazard warning flasher should be
used whenever you find it necessary to
stop the car in a hazardous location.
When you must make such an emer-
gency stop, always pull off the road as far
as possible.
4 53
Features of your vehicle
LIGHTING
D190100AUN
Headlight escort function
Headlight welcome function
Battery saver function
(if equipped)
(if equipped)
•
The purpose of this feature is to pre-
If you turn the ignition switch to the ACC
If you press the door unlock button on the
vent the battery from being dis-
or LOCK position with the headlights ON,
transmitter when the light switch is in the
charged. The system automatically
the headlights remain on for about 20
headlight or AUTO (in the dark outside)
turns off the parking lights when the
minutes. However, if the driver's door is
position and all doors (and tailgate) are
driver removes the ignition key and
opened and closed, the headlights are
closed, the headlight will come on for
opens the driver- side door.
turned off after 30 seconds.
about 15 seconds. At this time, if you
•
With this feature, the parking lights will
The headlights can be turned off by
press the door lock or unlock button
be turned off automatically if the driver
pressing the lock button on the transmit-
(once or twice) on the transmitter, the
parks on the side of road at night.
ter twice or turning the light switch to the
headlights will turn off immediately.
If necessary, to keep the lights on
OFF position.
when the ignition key is removed, per-
For deactivation or activation of this fea-
form the following :
ture, contact an authorized HYUNDAI
1) Open the driver-side door.
dealer.
2) Turn the parking lights OFF and ON
again using the light switch on the
CAUTION
steering column.
If the driver gets out of the vehicle
through other doors (except driver's
door), the battery saver function
does not operate and the headlight
escort function does not turn off
automatically. Therefore, it causes
the battery to be discharged. In this
case, make sure to turn off the lamp
before getting out of the vehicle.
4 54
Features of your vehicle
Type A
Type A
Type A
OFD049051N
OFD049052N
OFD049053N
Type B
Type B
Type B
OFD040051N
OFD049052
OFD049053
D190400AUN
D190401AUN
D190402AUN
Lighting control
Parking light position (
)
Headlight position (
or
)
The light switch has a Headlight and a
When the light switch is in the parking
When the light switch is in the headlight
light position (1st position), the tail, posi-
position
(2nd position) the head, tail,
Parking light position.
tion, license and instrument panel lights
position, license and instrument panel
To operate the lights, turn the knob at the
are ON.
lights are ON.
end of the control lever to one of the fol-
lowing positions:
✽ NOTICE
(1) OFF position
The ignition switch must be in the ON
(2) Parking light position
position to turn on the headlights.
(3) Headlight position
(4) Auto light position (if equipped)
4 55
Features of your vehicle
Type A
Type A
CAUTION
• Never place anything over the
sensor (1) located on the instru-
ment panel, this will ensure better
auto-light system control.
• Don’t clean the sensor using a
window cleaner, the cleaner may
leave a light film which could
OFD049054N
interfere with sensor operation.
OFD049055N
Type B
• If your vehicle has window tint or
Type B
other types of metallic coating on
the front windshield, the Auto
light system may not work prop-
erly.
OFD040054N
OFD049055
D190403AUN
D190500AUN
Auto light position (if equipped)
High beam operation
When the light switch is in the AUTO light
To turn on the high beam headlights,
position, the taillights and headlights will
push the lever away from you. Pull it back
be turned ON or OFF automatically
for low beams.
depending on the amount of light outside
The high beam indicator will light when
the vehicle.
the headlight high beams are switched
on.
To prevent the battery from being dis-
charged, do not leave the lights on for a
prolonged time while the engine is not
running.
4 56
Features of your vehicle
Type A
Type A
WARNING
Do not use high beam when there
are other vehicles. Using high
beam could obstruct the other dri-
ver's vision.
OFD049056N
OFD049057N
Type B
Type B
OFD049056
OFD049057
Flashing headlights
D190600AUN
To flash the headlights, pull the lever
Turn signals and lane change sig-
towards you. It will return to the normal
nals
(low beam) position when released. The
The ignition switch must be on for the
headlight switch does not need to be on
turn signals to function. To turn on the
to use this flashing feature.
turn signals, move the lever up or down
(A). Green arrow indicators on the instru-
ment panel indicate which turn signal is
operating. They will self-cancel after a
turn is completed. If the indicator contin-
ues to flash after a turn, manually return
the lever to the OFF position.
4 57
Features of your vehicle
To signal a lane change, move the turn
Type A
signal lever slightly and hold it in position
CAUTION
(B). The lever will return to the OFF posi-
When in operation, the fog lights
tion when released.
consume large amounts of vehicle
If an indicator stays on and does not
electrical power. Only use the fog
flash or if it flashes abnormally, one of the
lights when visibility is poor.
turn signal bulbs may be burned out and
will require replacement.
One-touch triple turn signal
OFD040058N
Type B
(if equipped)
To activate an one-touch triple turn signal
move the turn signal lever slightly and
then release it. The lane change signals
will blink 3 times.
✽ NOTICE
If an indicator flash is abnormally quick
or slow, bulb may be burned out or have
OFD040058
a poor electrical connection in the cir-
D190700AFD-EU
cuit.
Front fog light (if equipped)
Fog lights are used to provide improved
visibility and avoid accidents when visibil-
ity is poor due to fog, rain or snow etc.
The fog lights will turn on when the fog
light switch (1) is turned to on position (2)
after the headlights are turned on.
To turn off the fog lights, turn the switch
to off position.
4 58
Features of your vehicle
WIPERS AND WASHERS
Type A
Type A
INT
: Wiper operates intermittently at
A
B
the same wiping intervals. Use
this mode in a light rain or mist. To
vary the speed setting, turn the
speed control knob(1).
LO
: Normal wiper speed
1
HI
: Fast wiper speed
C
✽ NOTICE
OFD049900N
OFD049900N
If there is heavy accumulation of snow
Type B
Type B
or ice on the windshield, defrost the
windshield for about
10 minutes, or
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.
1
OFD049900
OFD049900-1
A : Wiper speed control
D200100AFD-EU
· MIST - Single wipe
Windshield wipers
· OFF - Off
Operates as follows when the ignition
· INT - Intermittent wipe
switch is turned ON.
· LO - Low wiper speed
MIST : For a single wiping cycle, push the
· HI - High wiper speed
lever upward and release it with
the lever in the OFF position. The
B : Intermittent wipe time adjustment
wipers will operate continuously if
C : Wash with brief wipes
the lever is pushed upward and
held.
OFF : Wiper is not in operation.
4 59
Features of your vehicle
Type A
If the ignition switch is turned ON when
the wiper switch is set in AUTO mode, or
CAUTION
the wiper switch is set in AUTO mode
When washing the vehicle, set the
when the ignition switch is ON, or the
wiper switch in the OFF position to
speed control knob is turned upward
stop the auto wiper operation.
when the wiper switch is in AUTO mode,
The wiper may operate and be dam-
1
the wiper will operate once to perform a
aged if the switch is set in the AUTO
self-check of the system. Set the wiper to
mode while washing the vehicle.
OFF position when the wiper is not in use.
Do not remove the sensor cover
OFD047062N
located on the upper end of the pas-
Type B
senger side windshield glass.
CAUTION
Damage to system parts could
When the ignition switch is ON and
occur and may not be covered by
the windshield wiper switch is
placed in the AUTO mode, use cau-
your vehicle warranty.
tion in the following situations to
When starting the vehicle in winter,
avoid any injury to the hands or
set the wiper switch in the OFF
1
other parts of the body:
position. Otherwise, wipers may
operate and ice may damage the
• Do not touch the upper end of the
windshield wiper blades. Always
windshield glass facing the rain
OFD049062
remove all snow and ice and defrost
sensor.
D200101AEN
the windshield properly prior to
• Do not wipe the upper end of the
Auto control (if equipped)
operating the windshield wipers.
windshield glass with a damp or
The rain sensor located on the upper end
wet cloth.
of the windshield glass senses the
• Do not put pressure on the wind-
amount of rainfall and controls the wiping
shield glass.
cycle for the proper interval. The more it
rains, the faster the wiper operates. When
the rain stops, the wiper stops. To vary the
speed setting, turn the speed control
knob (1).
4 60
Features of your vehicle
Type A
The reservoir filler neck is located in the
Type A
front of the engine compartment on the
passenger side.
CAUTION
To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
OFD049064N
OFD049901N
Type B
Type B
WARNING
Do not use the washer in freezing
temperatures without first warming
the windshield with the defrosters;
1
the washer solution could freeze on
contact with the windshield and
obscure your vision.
OFD049064
OFD049901
D200200AUN
CAUTION
D200300AFD-EU
• To prevent possible damage to
Rear window wiper and washer
Windshield washers
the wipers or windshield, do not
switch (if equipped)
In the OFF position, pull the lever gently
operate the wipers when the
toward you to spray washer fluid on the
The rear window wiper and washer
windshield is dry.
windshield and to run the wipers 1-3 cycles.
switch is located at the end of the wiper
• To prevent damage to the wiper
Use this function when the windshield is dirty.
and washer switch lever. Turn the switch
blades, do not use gasoline,
to desired position to operate the rear
The spray and wiper operation will con-
kerosene, paint thinner, or other
wiper and washer.
tinue until you release the lever.
solvents on or near them.
- Spraying washer fluid and wiping
If the washer does not work, check the
• To prevent damage to the wiper
washer fluid level. If the fluid level is not
ON - Normal wiper operation
arms and other components, do
sufficient, you will need to add appropriate
OFF - Wiper is not in operation
not attempt to move the wipers
non-abrasive windshield washer fluid to the
manually.
- Spraying washer fluid and wiping
washer reservoir.
4
61
Features of your vehicle
INTERIOR LIGHT
D210000AUN
• DOOR (2) :
In the DOOR position, the light comes on
CAUTION
when any door is opened regardless of
Do not use the interior lights for
the ignition switch position.
extended periods when engine is
When doors are unlocked by the trans-
not running.
mitter, the light comes on for approxi-
It may cause battery discharge.
mately 30 seconds as long as any door is
not open. The light goes out gradually
after approximately
30 seconds if the
door is closed. However, if the ignition
WARNING
switch is ON or all doors are locked, the
Do not use the interior lights when
light will turn off immediately.
driving in the dark. Accidents could
OFD049067N
If a door is opened with the ignition
happen because the view may be
D210100AFD
switch in the ACC or LOCK position, the
obscured by interior lights.
light stays on for about
20 minutes.
Map lamp (if equipped)
However, if a door is opened with the
Push in the map lamp lens (1) to turn the
ignition switch in the ON position, the
light on or off. This light produces a spot
light stays on continuously.
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the passenger.
4 62
Features of your vehicle
• DOOR (2) :
In the DOOR position, the light comes on
when any door is opened regardless of
the ignition switch position.
When doors are unlocked by the trans-
mitter, the light comes on for approxi-
mately 30 seconds as long as any door is
3
2
1
not open. The light goes out gradually
after approximately
30 seconds if the
door is closed. However, if the ignition
switch is ON or all doors are locked, the
light will turn off immediately.
OFD047068
OFD049130N
If a door is opened with the ignition
D210200AFD
switch in the ACC or LOCK position, the
D210300AFD
Dome lamp
light stays on for about
20 minutes.
Luggage room lamp
However, if a door is opened with the
• ON (1):
The luggage room lamp comes on when
ignition switch in the ON position, the
In the ON position, the light stays on at all
the tailgate is opened.
light stays on continuously.
times.
• OFF (3) :
CAUTION
In the OFF position, the light stays off at
Do not leave the lamp switch on for
all times even when a door is open.
an extended period of time when
the vehicle is not running.
4 63
Features of your vehicle
DEFROSTER
D220000AUN
CAUTION
To prevent damage to the conduc-
tors bonded to the inside surface of
the rear window, never use sharp
instruments or window cleaners
containing abrasives to clean the
window.
✽ NOTICE
OFD047069
OFD047070
If you want to defrost and defog on the
D210500AUN
D210600AUN
front windshield, refer to “Windshield
Defrosting and Defogging” in this sec-
Glove box lamp (if equipped)
Vanity mirror lamp (if equipped)
tion.
The glove box lamp comes on when the
Opening the lid of the vanity mirror will
glove box is opened.
automatically turn on the mirror light.
The parking lights or headlights must be
ON for the glove box lamp to function.
CAUTION
To prevent unnecessary charging
system drain, close the glove box
securely after using the glove box.
4 64
Features of your vehicle
Type A
To activate the rear window defroster,
press the rear window defroster button
located in the center facia switch panel.
The indicator on the rear window
defroster button illuminates when the
defroster is ON.
If there is heavy accumulation of snow on
the rear window, brush it off before oper-
ating the rear defroster.
The rear window defroster automatically
turns off after approximately 20 minutes
OFD040071
or when the ignition switch is turned off.
Type B
To turn off the defroster, press the rear
OFD047073
window defroster button again.
D220200AUN
Front windshield deicer
D220101AEN
(if equipped)
Outside rearview mirror defroster
The engine must be running to enable
(if equipped)
this feature. To activate the front wind-
If your vehicle is equipped with the out-
shield deicer, press the front windshield
side rearview mirror defrosters, they will
deicer button. The indicator on the button
operate at the same time you turn on the
illuminates when the deicer is ON. The
rear window defroster.
OFD049072N
front windshield deicer automatically
D220100AEN
turns off after 20 minutes or when the
ignition switch is turned off. To turn off the
Rear window defroster
deicer, press the front windshield deicer
The defroster heats the window to
button again.
remove frost, fog and thin ice from the
rear window, while the engine is running.
4 65
Features of your vehicle

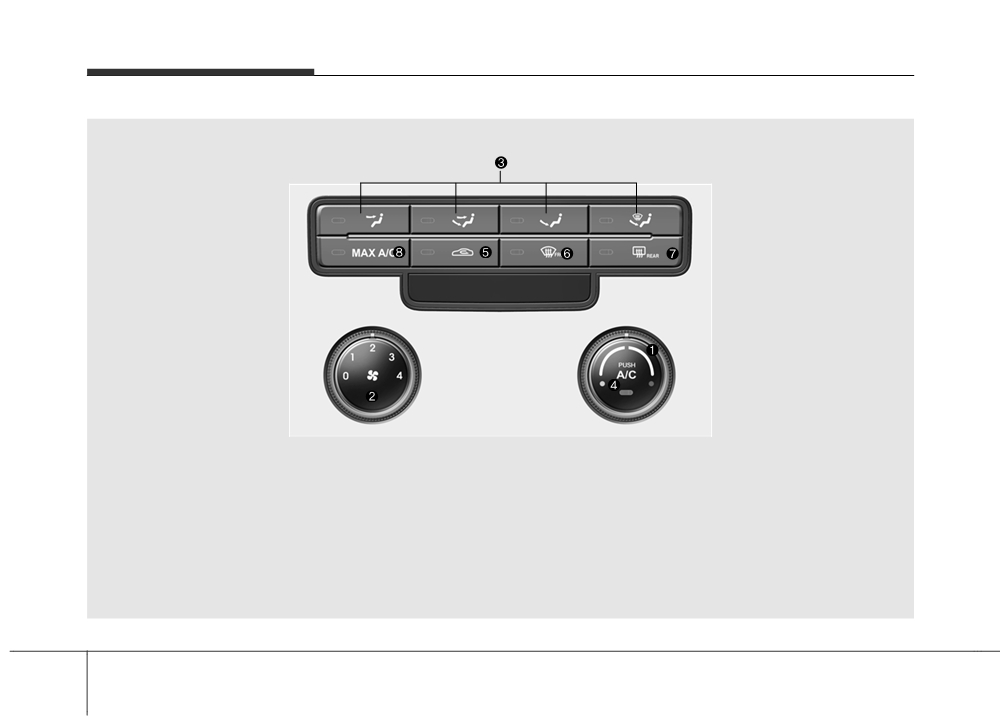

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. Temperature control knob
5. Air intake control button
2. Fan speed control knob
6. Front window defroster button
3. Mode buttons
7. Rear window defroster button
4. Air conditioning button (if equipped)
8. MAX A/C button
OFD040074C
D230000AFD
4 66
Features of your vehicle
D230100AUN
Heating and air conditioning
1. Start the engine.
2. Set the mode to the desired position.
3. Set the temperature control to the
desired position.
4. Set the air intake control to the outside
(fresh) air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system (if equipped)
on.
OFD047076
4 67
Features of your vehicle
MAX

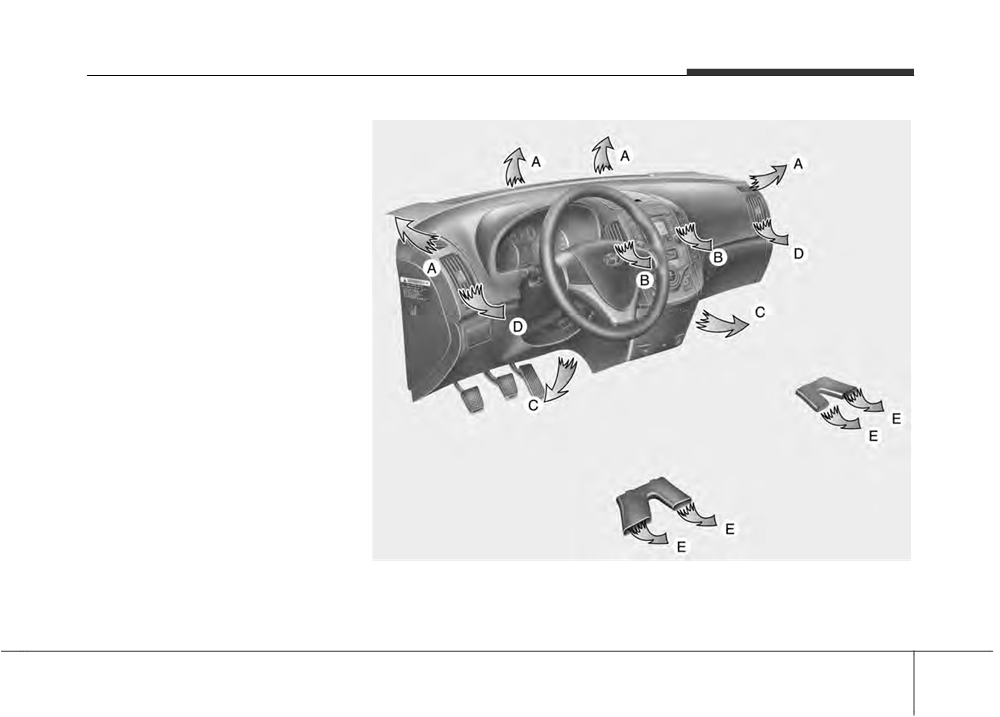

MAX A/C-Level (B, D)
Floor-Level (C, E, A, D)
A/C
Air flow is directed toward the upper body
Most of the air flow is directed to the
and face.
floor, with a small amount of the air being
directed to the windshield and side win-
In this mode, the air conditioning and the
dow defroster.
recirculated air position will be selected
automatically.
Floor/Defrost-Level (A, C, E, D)
Face-Level (B,D)
Most of the air flow is directed to the floor
OFD049077N
and the windshield with a small amount
D230101AFD-EU
Air flow is directed toward the upper body
directed to the side window defrosters.
Mode selection
and face. Additionally, each outlet can be
controlled to direct the air discharged

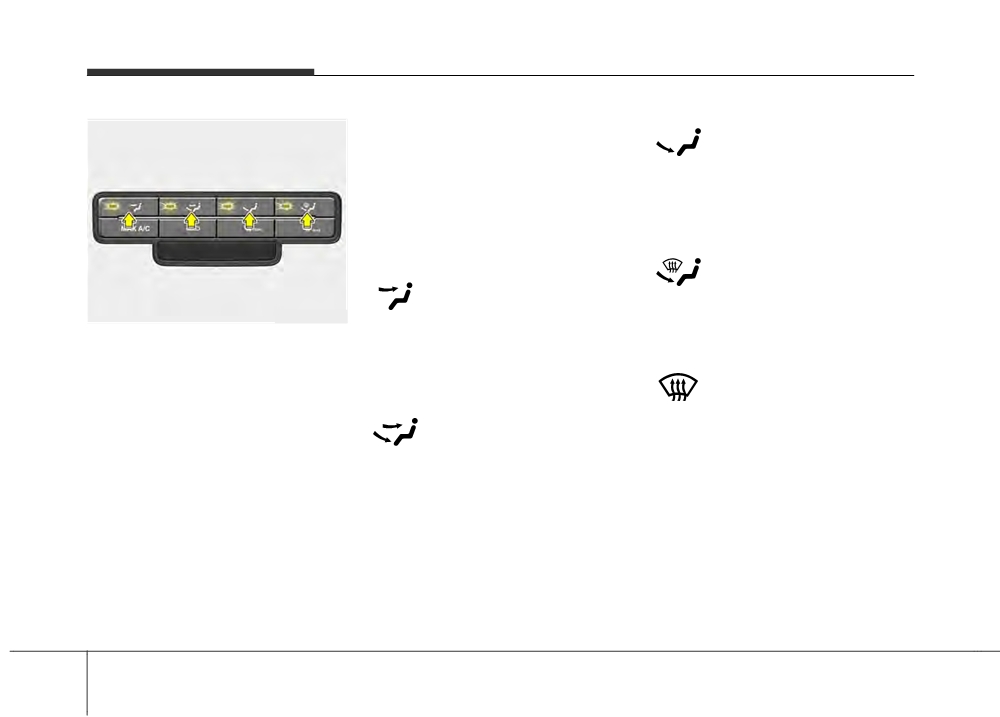

The mode buttons control the direction of
from the outlet.
the air flow through the ventilation sys-
Defrost-Level (A, D)
tem.
Air can be directed to the floor, dashboard
Most of the air flow is directed to the
Bi-Level (B, D, C, E)
outlets, or windshield. Six symbols are used
windshield with a small amount of air
to represent Face, Bi-Level, Floor, Floor-
directed to the side window defrosters.
Defrost, MAX A/C and Defrost air position.
Air flow is discharged towards the face and
floor.
4 68
