Features of your vehicle
HOOD
OFD047021
OFD047022
OFD049016N
D090100AUN
2. Go to the front of the vehicle, raise the
3. Pull the support rod from the hood.
Opening the hood
hood slightly, pull the secondary latch
4. Hold the hood open with the support
(1) inside of the hood center and lift
rod.
1. Pull the release lever to unlatch the
the hood (2).
hood. The hood should pop open
slightly.
WARNING - Hot parts
Grasp the support rod in the area
WARNING
wrapped in rubber. The rubber will
help prevent you from being burned
Open the hood after turning off the
by hot metal when the engine is
engine on a flat surface, shifting
hot.
the shift lever to the P(Park) posi-
tion for automatic transaxle and to
the 1st(First) gear or R(Reverse) for
manual transaxle, and setting the
parking brake.
4 18
Features of your vehicle
D090200AFD
Closing the hood
WARNING - Hood
WARNING
1. Before closing the hood, check the fol-
•
Before closing the hood, ensure
•
Always double check to be sure
lowing:
that all obstructions are removed
that the hood is firmly latched
from the hood opening. Closing
before driving away. If it is not
• All filler caps in engine compartment
the hood with an obstruction
latched, the hood could open
must be correctly installed.
present in the hood opening may
while the vehicle is being driven,
• Gloves, rags or any other com-
result in property damage or
causing a total loss of visibility,
bustible material must be removed
severe personal injury.
which might result in an accident.
from the engine compartment.
•
Do not leave gloves, rags or any
•
The support rod must be inserted
2. Return the support rod to its clip to
other combustible material in the
completely into the hole provided
prevent it from rattling.
engine compartment. Doing so
in the engine room whenever you
3. Lower the hood until it is about 1 ft. (30
may cause a heat-induced fire.
inspect the engine compartment.
cm) above the closed position and let
This will prevent the hood from
it drop. Make sure that it locks into
falling and possibly injuring you.
place.
•
Do not move the vehicle with the
hood in the raised position, as
vision is obstructed and the hood
could fall or be damaged.
4 19
Features of your vehicle
FUEL FILLER LID
D100200BUN
Closing the fuel filer lid
1. To install the cap, turn it clockwise until
it
“clicks” one time. This indicates that
the cap is securely tightened.
2. Close the fuel filler lid and push it in
lightly making sure that it is securely
closed.
OHD046014
OFD041260N
D100100AFD
1. Stop the engine.
Opening the fuel filer lid
2. To open the fuel filler lid, pull the fuel
The fuel-filler lid must be opened from
filler lid opener up.
inside the vehicle by pulling up on the
3. Pull the fuel filler lid
(1) out to fully
fuel-filler lid opener located on the front
open.
floor area on the driver’s seat.
4. To remove the cap (2), turn the fuel
tank cap counterclockwise.
✽ NOTICE
5. Refuel as needed.
If the fuel-filler lid will not open because
ice has formed around it, tap lightly or
push on the lid to break the ice and
release the lid. Do not pry on the lid. If
necessary, spray around the lid with an
approved de-icer fluid (do not use radi-
ator anti-freeze) or move the vehicle to a
warm place and allow the ice to melt.
4 20
Features of your vehicle
D100300AFD
(Continued)
WARNING - Refueling dan-
•
Do not get back into a vehicle
WARNING - Refueling
gers
once you have begun refueling
•
If pressurized fuel sprays out, it
Automotive fuels are flammable
since you can generate static
can cover your clothes or skin
materials. When refueling, please
electricity by touching, rubbing
and thus subject you to the risk
note the following guidelines care-
or sliding against any item or fab-
of fire and burns. Always remove
fully. Failure to follow these guide-
ric
(polyester, satin, nylon, etc.)
the fuel cap carefully and slowly.
lines may result in severe personal
injury, severe burns or death by fire
capable of producing static elec-
If the cap is venting fuel or if you
or explosion.
tricity. Static electricity discharge
hear a hissing sound, wait until
can ignite fuel vapors resulting in
the condition stops before com-
•
Read and follow all warnings
pletely removing the cap.
posted at the gas station facility.
rapid burning. If you must re-
enter the vehicle, you should
•
Do not "top off" after the nozzle
•
Before refueling, note the loca-
once again eliminate potentially
automatically shuts off when
tion of the Emergency Gasoline
dangerous static electricity dis-
refueling.
Shut-Off, if available, at the gas
charge by touching a metal part
•
Tighten the cap until it clicks one
station facility.
of the vehicle, away from the fuel
time, otherwise the Check Engine
•
Before touching the fuel nozzle,
filler neck, nozzle or other gaso-
light will illuminate.
you should eliminate potentially
line source.
•
Always check that the fuel cap is
dangerous static electricity dis-
installed securely to prevent fuel
charge by touching another metal
•
When using an approved
spillage in the event of an acci-
part of the vehicle, a safe dis-
portable fuel container be sure to
dent.
tance away from the fuel filler
place the container on the
neck, nozzle, or other gas source.
ground prior to refueling. Static
(Continued)
electricity discharge from the
container can ignite fuel vapors
causing a fire. Once refueling
has begun, contact with the vehi-
cle should be maintained until
the filling is complete.
(Continued)
4 21
Features of your vehicle
(Continued)
(Continued)
(Continued)
Use only approved portable plas-
•
If a fire breaks out during refuel-
•
Do not spill fuel on the exterior
tic fuel containers designed to
ing, leave the vicinity of the vehi-
surfaces of the vehicle. Any type
carry and store gasoline.
cle, and immediately contact the
of fuel spilled on painted surfaces
•
Do not use cellular phones while
manager of the gas station and
may damage the paint.
refueling. Electric current and/or
then contact the local fire depart-
•
After refueling, make sure the fuel
electronic interference from cel-
ment or 911. Follow any safety
cap is installed securely to pre-
lular phones can potentially
instructions they provide.
vent fuel spillage in the event of
ignite fuel vapors causing a fire.
an accident.
•
When refueling, always shut the
engine off. Sparks produced by
electrical components related to
CAUTION
the engine can ignite fuel vapors
•
Make sure to refuel your vehicle
causing a fire. Once refueling is
according to the "Fuel require-
complete, check to make sure the
ments" suggested in section 1.
filler cap and filler door are
•
If the fuel filler cap requires
securely closed, before starting
replacement, use only a genuine
the engine.
HYUNDAI cap or the equivalent
•
DO NOT use matches or a lighter
specified for your vehicle. An
and DO NOT SMOKE or leave a lit
incorrect fuel filler cap can result
cigarette in your vehicle while at
in a serious malfunction of the
a gas station especially during
fuel system or emission control
refueling. Automotive fuel is
system.
highly flammable and can, when
(Continued)
ignited, result in fire.
(Continued)
4 22
Features of your vehicle
SUNROOF (IF EQUIPPED)
✽ NOTICE
• In cold and wet climates, sunroof may
not work properly due to freezing
conditions.
• After washing the car or after there is
rain, be sure to wipe off any water
that is on the sunroof before operating
it.
1
CAUTION
3
Do not continue to press the sun-
OFD049023N
roof control button(s) after the sun-
OFD049024N
D110000AUN
roof is in the fully open, closed, or
D110100AFD
If your vehicle is equipped with this fea-
tilt position(s). Damage to the motor
Sliding the sunroof
ture, you can slide or tilt your sunroof
or system components could occur.
To open the sunroof (autoslide feature),
with the sunroof control buttons located
press the slide button (1) on the over-
on the overhead console.
head console for more than 0.5 second.
1. Slide button
✽ NOTICE
The sunroof will slide to the recommend-
2. Tilt button
The sunroof cannot slide when it is in
ed open position (about 2 in. before the
3. Close button
the tilt position nor can it be tilted while
maximum slide open position).
in an open or slide position.
To stop the sunroof sliding at any point,
The sunroof can only be opened, closed,
press any sunroof control button.
or tilted when the ignition switch is in the
WARNING
ON position.
Never adjust the sunroof or sun-
shade while driving. This could
result in loss of control and an acci-
dent that may cause death, serious
injury, or property damage.
4 23
Features of your vehicle
To open the sunroof to the maximum
slide open position, press the slide but-
ton (1) once again and hold it until the
sunroof slide all the way open.
✽ NOTICE
To reduce wind noise while driving, we
recommend you to drive at the recom-
mended postion (about 2 in. before the
2
maximum slide open positon).
3
To close the sunroof (autoslide feature),
OUN026027
OFD049025N
press the close button (3) on the over-
D110101AUN
D110200AUN
head console for more than 0.5 second.
Automatic reversal
Tilting the sunroof
The sunroof will slide all the way close. To
If an object or part of the body is detect-
To open the sunroof (autotilt feature),
stop the sunroof sliding at any point,
ed while the sunroof is closing automati-
press the tilt button (2) on the overhead
press any sunroof control button.
cally, it will reverse direction, and then
console for more than 0.5 second.
stop.
The sunroof will tilt all the way open. To
Auto reverse function does not work if a
stop the sunroof tilting at any point, press
tiny obstacle is between the sliding glass
any sunroof control button.
and the sunroof sash. You should always
To close the sunroof, press the close but-
check that all passengers and objects
ton (3) on the overhead console and hold
are away from the sunroof before closing
it until the sunroof is closed.
it.
4 24
Features of your vehicle
WARNING - Sunroof
CAUTION
•
Be careful that no heads, hands
•
Periodically remove any dirt that
and body parts are obstructing a
may accumulate on the guide rail.
closing sunroof.
•
If you try to open the sunroof when
•
Do not extend the face, neck,
the temperature is below freezing
arms or body outside the sunroof
or when the sunroof is covered
while driving.
with snow or ice, the glass or the
motor could be damaged.
•
Make sure your hands and head
are safely out of the way before
•
While using sunroof for a long
closing a sunroof.
time, a dust between sunroof and
roof panel can make a noise.
OUN026031
Open the sunroof and remove reg-
ularly the dust using clean cloth.
D110300AEN
•
The sunroof is made to slide
Sunshade
together with the sunshade. Do
The sunshade will automatically open
not leave the sunshade closed
with the glass panel when the glass
while the sunroof is open.
panel moves. Close it manually if you
want it closed.
4 25
Features of your vehicle
D110500BFD
❈ For more detailed information, contact
Resetting the sunroof
an authorized HYUNDAI dealer.
Whenever the vehicle battery is discon-
nected or discharged, or related fuse is
CAUTION
blown, you must reset your sunroof sys-
If the sunroof is not reset when the
tem as follows:
vehicle battery is disconnected or
discharged, or related fuse is
1. Turn the ignition switch to the ON
blown, the sunroof may operate
position and close the sunroof com-
improperly.
pletely.
2. Release the control button.
3. Press and hold the close button until
the sunroof tilts and slightly moves up
and down. Then, release the button.
4. Press and hold the close button until
the sunroof is operated as follows;
TILT DOWN → SLIDE OPEN →
SLIDE CLOSE
Then, release the control button.
When this is complete, the sunroof sys-
tem is reset.
4 26
Features of your vehicle
STEERING WHEEL
D130200AFD
D130300AFD
✽ NOTICE
Electric power steering
Tilt steering
The following symptoms may occur dur-
Tilt steering allows you to adjust the
Power steering uses the motor to assist
ing normal vehicle operation:
steering wheel before you drive. You can
you in steering the vehicle. If the engine
•
The EPS warning light does not illu-
also raise it to give your legs more room
is off or if the power steering system
minate.
when you exit and enter the vehicle (if
becomes inoperative, the vehicle may
•
The steering wheel becomes heavier
equipped).
still be steered, but it will require
after turning the ignition switch on.
increased steering effort.
This happens as the system performs
The motor driven power steering is con-
the EPS system diagnostics. When the
The steering wheel should be positioned
so that it is comfortable for you to drive,
trolled by power steering control unit
diagnostics is completed, the steering
wheel will return to its normal condi-
while permitting you to see the instru-
which sense the steering wheel torque,
steering wheel position and vehicle
tion.
ment panel warning lights and gauges.
speed to command the motor.
•
Click noise may be heard from the
The steering wheel becomes heavier as
EPS relay after the ignition switch is
turned to the ON or LOCK position.
WARNING
the vehicle’s speed increases and
•
Motor noise may be heard when the
•
Never adjust the angle and height
becomes lighter as the vehicle’s speed
vehicle is at a stop or at a low driving
of steering wheel while driving.
decreases for the better control of the
speed or in cold weather.
You may lose your steering con-
steering wheel.
•
If the Electric Power Steering System
trol and cause severe personal
Should you notice any change in the
does not operate normally, the warn-
injury or accidents.
effort required to steer during normal
ing light will illuminate on the instru-
•
After adjusting, push the steering
vehicle operation, have the power steer-
ment cluster. The steering wheel may
wheel both up and down to be
ing checked by an authorized HYUNDAI
become difficult to control or operate
certain it is locked in position.
dealer.
abnormally. Take your vehicle to an
authorized HYUNDAI dealer and
have the vehicle checked as soon as
possible.
•
When you operate the steering wheel
in low temperature, abnormal noise
could occur. If temperature rises, the
noise will disappear. This is a normal
condition.
4 27
Features of your vehicle
CAUTION
Do not strike the horn severely to
operate it, or hit it with your fist. Do
not press on the horn with a sharp-
pointed object.
OFD047028
OFD047029
To change the steering wheel angle, pull
D130500AUN
down the lock-release lever (1), adjust
Horn
the steering wheel to the desired angle
To sound the horn, press the horn sym-
(2) and the desired position (if equipped)
bol on your steering wheel.
(3), then pull up the lock-release lever to
Check the horn regularly to be sure it
lock the steering wheel in place. Be sure
operates properly.
to adjust the steering wheel to the
desired position before driving.
✽ NOTICE
To sound the horn, press the area indi-
cated by the horn symbol on your steer-
ing wheel (see illustration). The horn
will operate only when this area is
pressed.
4 28
Features of your vehicle
MIRRORS
D140100AUN
D140102AUN
Inside rearview mirror
Electric chromic mirror (ECM)
(if equipped)
Adjust the rearview mirror to center on
the view through the rear window. Make
The electric rearview mirror automatical-
this adjustment before you start driving.
ly controls the glare from the headlights
of the car behind you in nighttime or low
light driving conditions. The sensor
WARNING - Rear visibility
mounted in the mirror senses the light
Do not place objects in the rear
level around the vehicle, and automati-
seat or cargo area which would
cally controls the headlight glare from
interfere with your vision through
vehicles behind you.
the rear window.
When the engine is running, the glare is
OFD047030
automatically controlled by the sensor
D140101AUN
mounted in the rearview mirror.
Day/night rearview mirror
Whenever the shift lever is shifted into
WARNING
Make this adjustment before you start
reverse (R), the mirror will automatically
Do not modify the inside mirror and
driving and while the day/night lever is in
go to the brightest setting in order to
do not install a wide mirror. It could
the day position.
improve the drivers view behind the vehi-
result in injury, during an accident
cle.
or deployment of the air bag.
Pull the day/night lever toward you to
reduce glare from the headlights of vehi-
cles behind you during night driving.
CAUTION
Remember that you lose some rearview
When cleaning the mirror, use a
clarity in the night position.
paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as that may cause the liq-
uid cleaner to enter the mirror hous-
ing.
4 29
Features of your vehicle
Glare detection sensor
Indicator light
Homelink buttons
OFD047031
OHD046025N
OHD046305N
To operate the electric rearview mirror
Electric chromic mirror with homelink
HomeLink® Wireless Control System
• Press the ON/OFF button (1) to turn
system (if equipped)
Your new mirror comes with an integrat-
the automatic dimming function on.
To operate the electric rearview mirror
ed HomeLink Universal Transceiver,
The mirror indicator light will illuminate.
Press the I button (1) to turn the auto-
which allows you to program the mirror to
Press the ON/OFF button to turn the
matic- dimming function on. The mirror
activate your garage door(s), estate gate,
automatic dimming function off. The
indicator light will illuminate.
home lighting, etc. The mirror actually
mirror indicator light will turn off.
Press the O button (2) to turn the auto-
learns the codes from your various exist-
ing transmitters.
• The mirror defaults to the ON position
matic- dimming function off. The mirror
whenever the ignition switch is turned
indicator light will turn off.
on.
4 30
Features of your vehicle
Retain the original transmitter for future
Flashing
WARNING
programming procedures (i.e., new vehi-
cle purchase). It is also suggested that
•
When
programming
the
upon the sale of the vehicle, the pro-
HomeLink® Wireless Control
System, you may be operating a
grammed HomeLink buttons be erased
garage door or gate operator.
for security purposes (follow step 1 in the
Make sure that people and objects
“Programming” portion of this text).
are out of the way of the moving
door or gate to prevent potential
Programming
harm or damage.
Your vehicle may require the ignition
•
Do not use HomeLink with any
switch to be turned to the ACC position
garage door opener that lacks the
for programming and/or operation of
safety stop and reverse feature
HomeLink. It is also recommended that a
OHD046306N
as required by federal safety
new battery be replaced in the hand-held

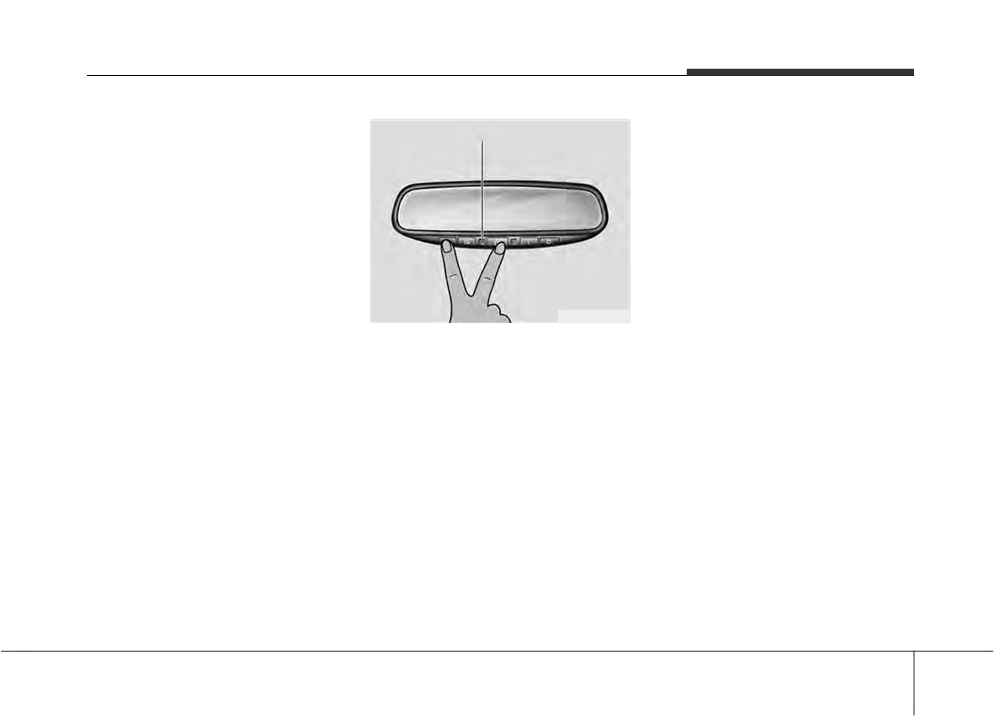

1. When programming the buttons for the
standards.
(This includes any
transmitter of the device being pro-
first time, press and hold the left and
garage door opener model manu-
grammed to HomeLink for quicker train-
center buttons
(
,
) simultane-
factured before April 1, 1982.) A
ing and accurate transmission of the
ously until the indicator light begins to
garage door opener which cannot
radio-frequency.
flash after approximately 20 seconds.
detect an object, signaling the
Follow these steps to train your
(This procedure erases the factory-set
door to stop and reverse, does
HomeLink mirror:
default codes. Do not perform this step
not meet current federal safety
to program additional hand-held trans-
standards. Using a garage door
mitters.)
opener without these features
increases risk of serious injury or
death. For more information, call
1-800-355-3515 or on the internet
4 31
Features of your vehicle
✽ NOTICE
Rolling code programming
Flashing
For non rolling code garage door open-
To train a garage door opener (or other
ers, follow steps 2 - 3.
rolling code equipped devices) with the
For rolling code garage door openers,
rolling code feature, follow these instruc-
follow steps 2 - 6.
tions after completing the “Programming”
For Canadian Programming, please fol-
portion of this text.
(A second person
low the Canadian Programming section.
may make the following training proce-
For help with determining whether your
dures quicker & easier.)
garage is non-rolling code or rolling
4. Locate the “learn” or “smart” button on
code, please refer to the garage door
the device’s motor head unit. Exact
openers owner’s manual or contact
location and color of the button may
HomeLink customer service at 1-800-
vary by product brand. If there is diffi-
Transmitter
355-3515.
OHD046307N
culty locating the “learn” or “smart” but-

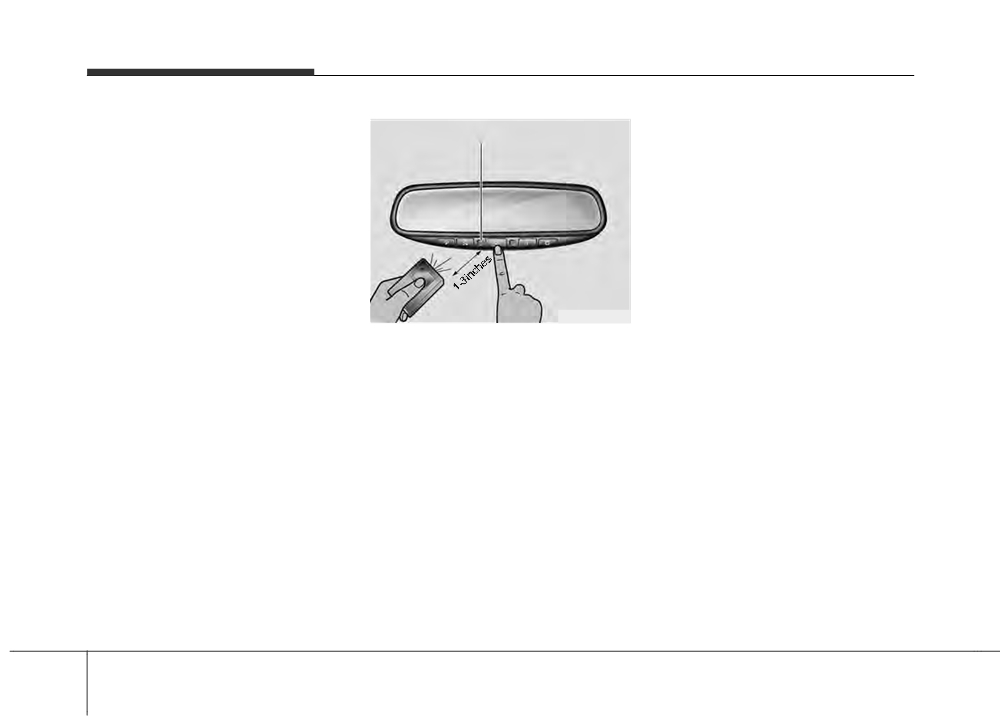

2. Press and hold the button on the
ton, reference the device’s owner’s
HomeLink system you wish to train
manual or contact HomeLink at 1-800-
and the button on the transmitter while
355-3515 or on the internet at
the transmitter is approximately 1 to 3
inches away from the mirror. Do not
5. Press and release the
“learn” or
release the buttons until step 3 has
“smart” button on the device’s motor
been completed.
head unit. You have 30 seconds to
3. The HomeLink indicator light will flash,
complete step number 6.
first slowly and then rapidly. When the
6. Return to the vehicle and firmly press
indicator light flashes rapidly, both but-
and release the programmed
tons may be released. (The rapid flash-
HomeLink button up to three times.
ing light indicates successful program-
The rolling code equipped device
ming of the new frequency signal.)
should now recognize the HomeLink
signal and activate when the
✽ NOTICE
HomeLink button is pressed. The
Some gate operators and garage door
remaining two buttons may now be
openers may require you to replace step
programmed if this has not previously
#3 with the “cycling” procedure noted in
been done. Refer
to
the
the
“Canadian Programming” section
“Programming” portion of this text.
of this document.
4
32
Features of your vehicle
Operating HomeLink
Reprogramming a single HomeLink
Flashing
To operate, simply press the pro-
button
grammed HomeLink button. Activation
To program a device to HomeLink using
will now occur for the trained product
a HomeLink button previously trained,
(garage door, security system, entry door
follow these steps:
lock, estate gate, or home or office light-
1. Press and hold the desired HomeLink
ing). For convenience, the hand-held
button. Do NOT release until step 4
transmitter of the device may also be
has been completed.
used at any time. The HomeLink
2. When the indicator light begins to flash
Wireless Controls System
(once pro-
slowly (after 20 seconds), position the
grammed) or the original hand-held
hand-held transmitter
1 to 3 inches
transmitter may be used to activate the
away from the HomeLink surface.
device (e.g. garage door, entry door lock,
OHD046306N
3. Press and hold the hand-held trans-
etc.). In the event that there are still pro-
Erasing programmed HomeLink but-
mitter button (or press and “cycle” - as
gramming difficulties, contact HomeLink
tons
described in “Canadian Programming”
at 1-800-355-3515 or on the internet at
To erase the three programmed buttons
above).
(individual buttons cannot be erased):
4. The HomeLink indicator light will flash,
• Press and hold the left and center
first slowly and then rapidly. When the
buttons simultaneously, until the indi-
indicator light begins to flash rapidly,
cator light begins to flash
(approxi-
release both buttons.
mately 20 seconds). Release both but-
The previous device has now been
tons. Do not hold for longer than 30
erased and the new device can be acti-
seconds.
vated by pushing the HomeLink button
HomeLink is now in the train (or learning)
that has just been programmed. This pro-
mode and can be programmed at any
cedure will not affect any other pro-
time.
grammed HomeLink buttons.
4 33
Features of your vehicle
Gate operator programming & canadi-
Accessories
D140200AUN
an programming
If you would like additional information on
Outside rearview mirror
During programming, your hand-held
the HomeLink Wireless Control System,
Be sure to adjust mirror angles before
transmitter may automatically stop trans-
HomeLink compatible products, or to
driving.
mitting. Continue to press and hold the
purchase other accessories such as the
Your vehicle is equipped with both left-
HomeLink button (note steps 2 through 4
HomeLink® Lighting Package, please
hand and right-hand outside rearview
in the “Programming” portion of this text)
contact HomeLink at 1-800-355-3515 or
mirrors. The mirrors can be adjusted
while you press and re-press (“cycle”)
on the internet at www.homelink.com.
remotely with the remote switch. The mir-
your handheld transmitter every two sec-
ror heads can be folded back to prevent
onds until the frequency signal has been
This device complies with Part 15 of
damage during an automatic car wash or
learned. The indicator light will flash
the FCC rules. Operation is subject to
when passing in a narrow street.
slowly and then rapidly after several sec-
the following two conditions:
onds upon successful training.
1. This device may not cause harmful
WARNING - Rearview mir-
interference, and
rors
CAUTION
2. This device must accept any interfer-
•
The right outside rearview mirror
If programming a garage door
ence received, including interference
is convex. Objects seen in the
opener or gate, it is advised to
that may cause undesired operation.
mirror are closer than they
unplug the device during the
appear.
“cycling” process to prevent possi-
WARNING
•
Use your interior rearview mirror
ble motor burn-up.
The HomeLink transmitter has
or direct observation to deter-
been tested and complies with FCC
mine the actual distance of fol-
and DOC/MDC rules. Changes or
lowing vehicles when changing
modifications
not
expressly
lanes.
approved by the party responsible
for compliance could void the
user’s authority to operate the
equipment.
IC: 4112104541A Gentex
MODEL/FCC ID: NZLSTDHL3
4 34
