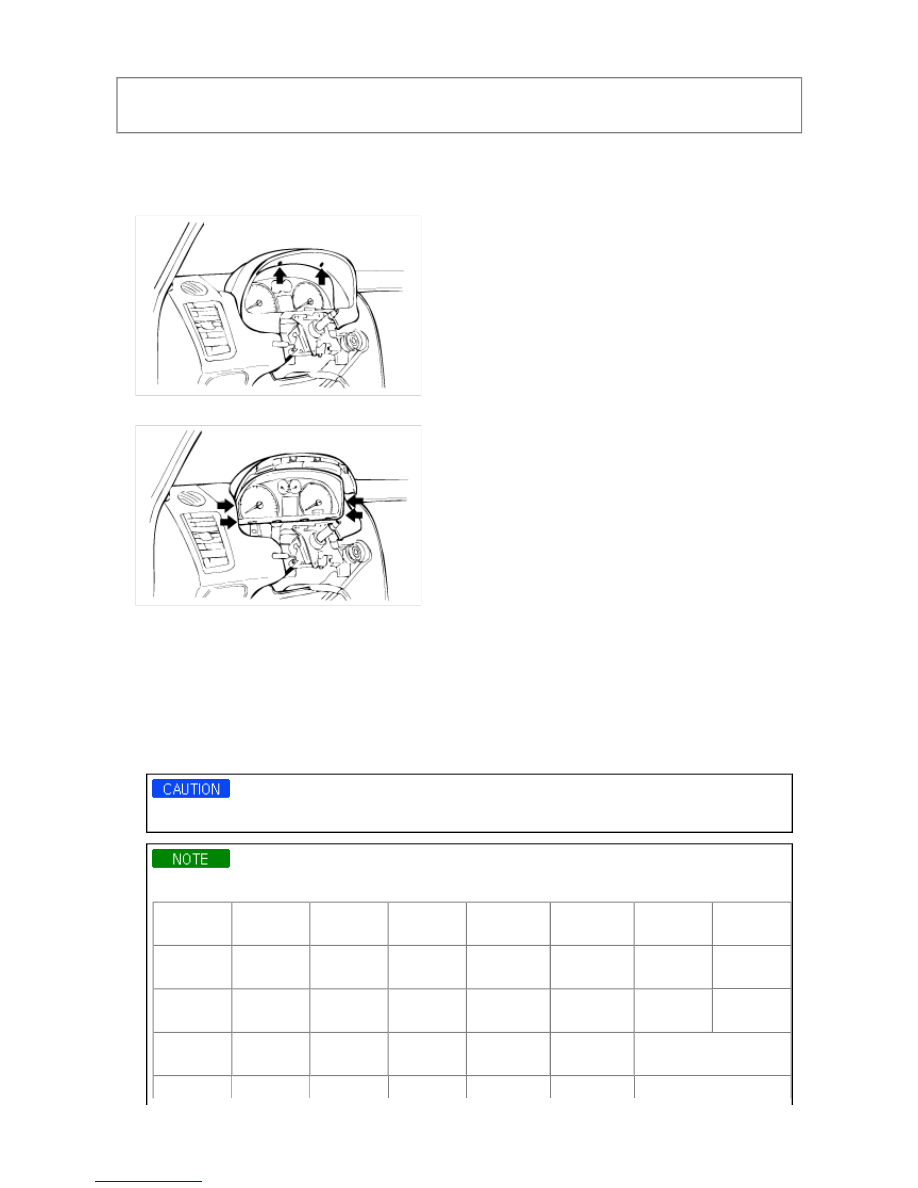

REMOVAL

1. Disconnect the negative (-) battery terminal.

2. Remove the cluster housing after removing 2 screws.

3. Remove the 4 screws holding the cluster and remove the instrument cluster.

4. Installation is the reverse of removal.

INSPECTION

SPEEDOMETER

1. Adjust the pressure of the tires to the specified level.

2. Drive the vehicle onto a speedometer tester. Use wheel chocks as appropriate.

3. Check if the speedometer indicator range is within the standard values.

Do not operate the clutch suddenly or increase/ decrease speed rapidly while testing.

Tire wear and tire over or under inflation will increase the indication error.

Velocity

(Km/h)

100

120

140

Tolerance

(Km/h)

20~24.4

40~43

60~64.4

80~85.5

100~105.5 120.5~126 140.5~146

Tolerance

(Km/h)

20~24.4

40~44.4

60~65.4

81~86.5

102~107.5 123~128.5 144~149.5

Velocity

(Km/h)

160

180

200

220

240

Area

Tolerance

(Km/h)

160.5~166 181~186.5 201~206.5 221~226.7

241~246.7

Others

Tolerance

(Km/h)

165~170.5 186~191.5 207~212.5 227.7~233.5 248.5~254.3

EEC & General

Velocity (MPH)

Tolerance (MPH)

10~14.4

20~23

40~44.4

60~65.5

80~85.5

Tolerance (MPH)

8.5~11.5

18.5~21.5

38.5~41.5

58.3~61.7

78.3~81.7

Velocity (MPH)

100

120

140

160

Area

Tolerance (MPH)

100.5~106

120.5~126

140.5~147

160.5~167

Except U.S.A

Tolerance (MPH)

98.3~101.7

118.3~121.7

138.1~141.9

158.1~161.9

U.S.A

TACHOMETER

1. Connect the scan tool to the diagnostic link connector or install a tachometer.

2. With the engine started, compare the readings of the tester with that of the tachometer. Replace the

tachometer if the tolerance is exceeded.

1. Reversing the connections of the tachometer will damage the transistor and diodes inside.

2. When removing or installing the tachometer, be careful not to drop it or subject it to severe shock.

Revolution (RPM)

1,000

2,000

3,000

4,000

5,000

6,000

7,000

8,000

Tolerance (RPM)

±100

±125

±150

±180

±210

±240

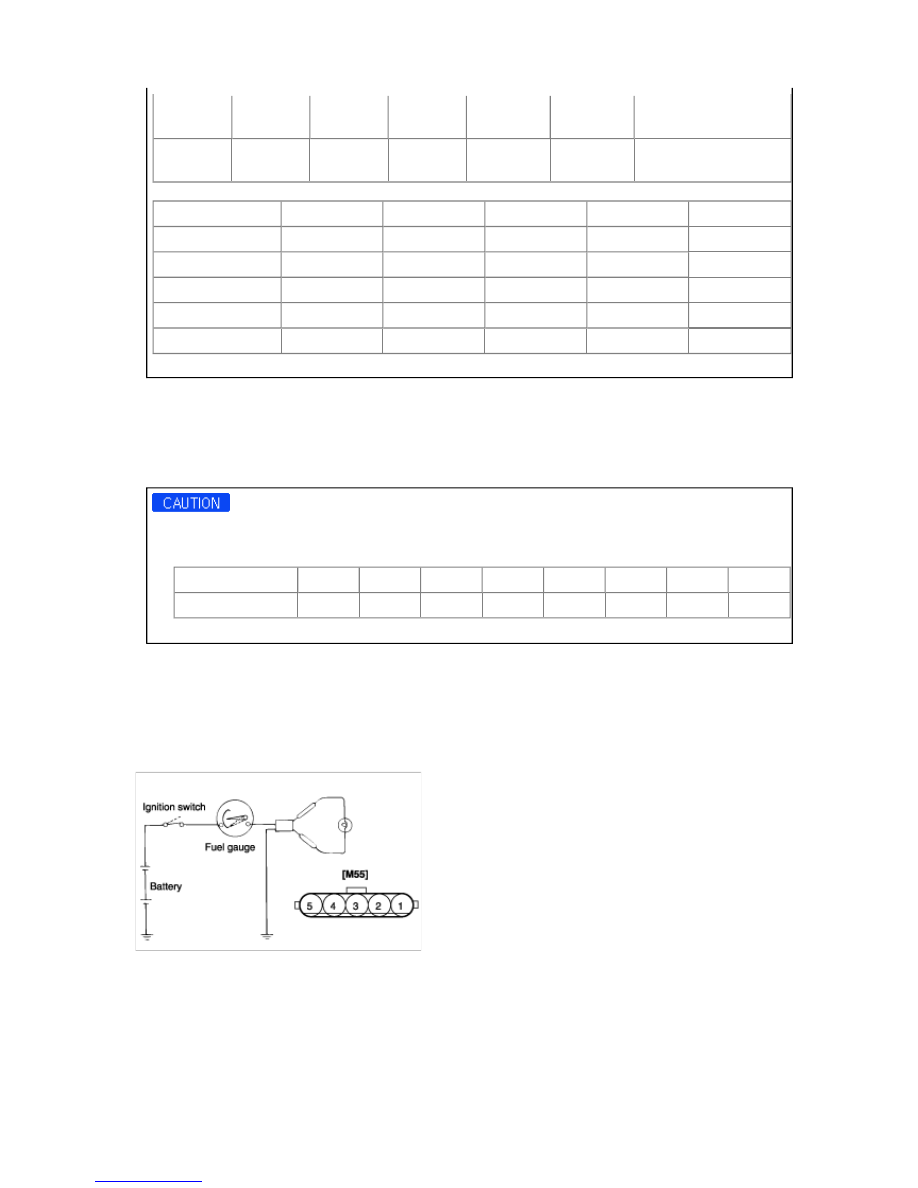

FUEL GAUGE

1. Disconnect the fuel sender connector from the fuel sender.

2. Connect a 3.4 watt, 12V test bulb to terminals 1 and 3 on the wire harness side connector.

3. Turn the ignition switch to the ON, and then check that the bulb lights up and the fuel gauge needle moves to

full.

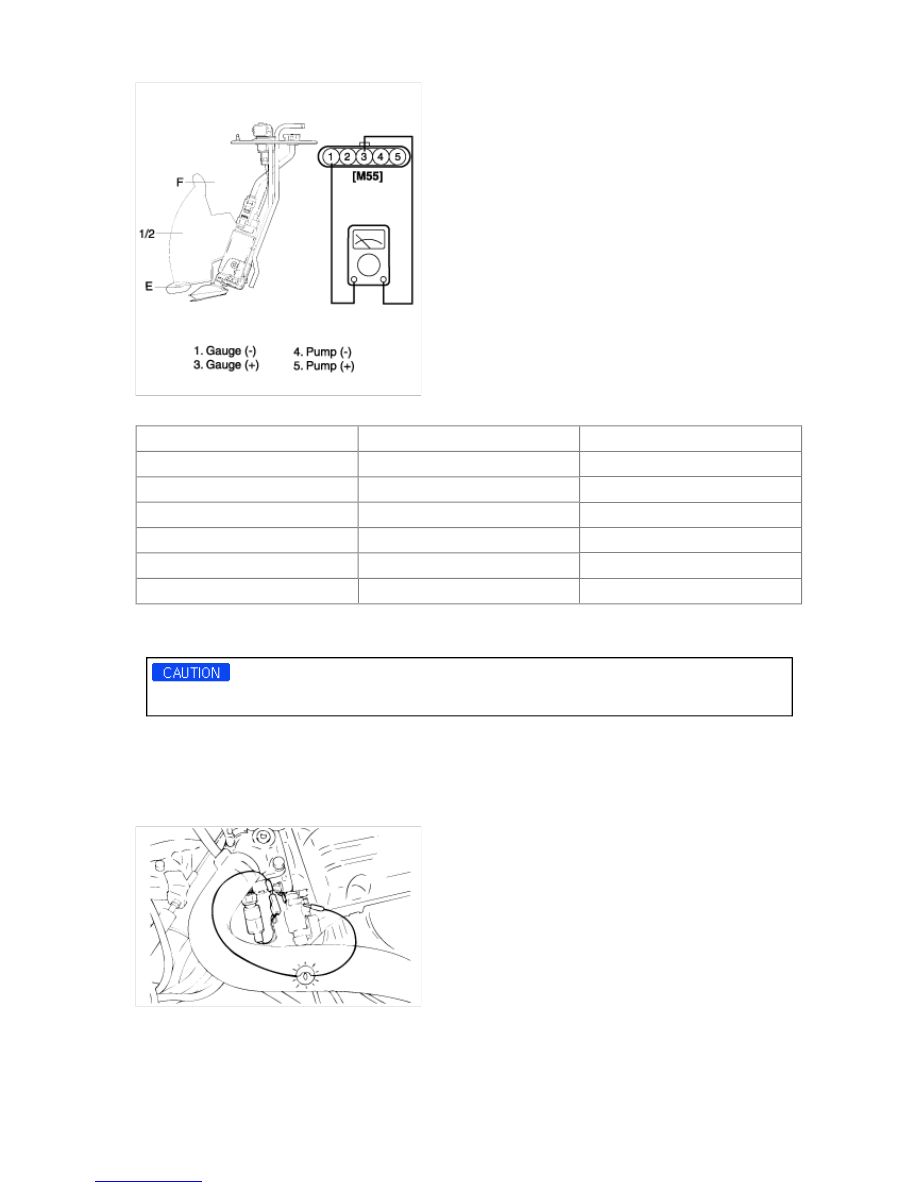

FUEL SENDER

1. Using an ohmmeter, measure the resistance between terminals 1 and 3 at each float level.

2. Also check that the resistance changes smoothly when the float is moved from "E" to "F".

Position

Gauge Angle(°)

Resistance (

Ω

)

Sender (E)

-47.5

110.0 ± 2

Gauge (E)

-45.0

97.0 ± 1

Warning lamp

-43.0

89.4 ± 1

1/2

32.5 ± 1

Gauge (F)

45.0

6.0 ± 1

Sender (F)

47.5

3.0 ±2

3. If the resistance is unsatisfied, replace the fuel sender as an assembly.

After completing this test, wipe the sender dry and reinstall it in the fuel tank.

ENGINE COOLANT TEMPERATURE GAUGE

1. Disconnect the wiring connector from the engine coolant temperature sender in the engine compartment.

2. Turn the ignition switch ON. Check that the gauge needle indicates cool. Turn the ignition switch OFF.

3. Connect a 12V, 3.4 watt test bulb between the harness side connector terminal 2 and ground.

4. Turn the ignition switch ON.

5. Verify that the test bulb flashes and that the indicator moves to HOT.

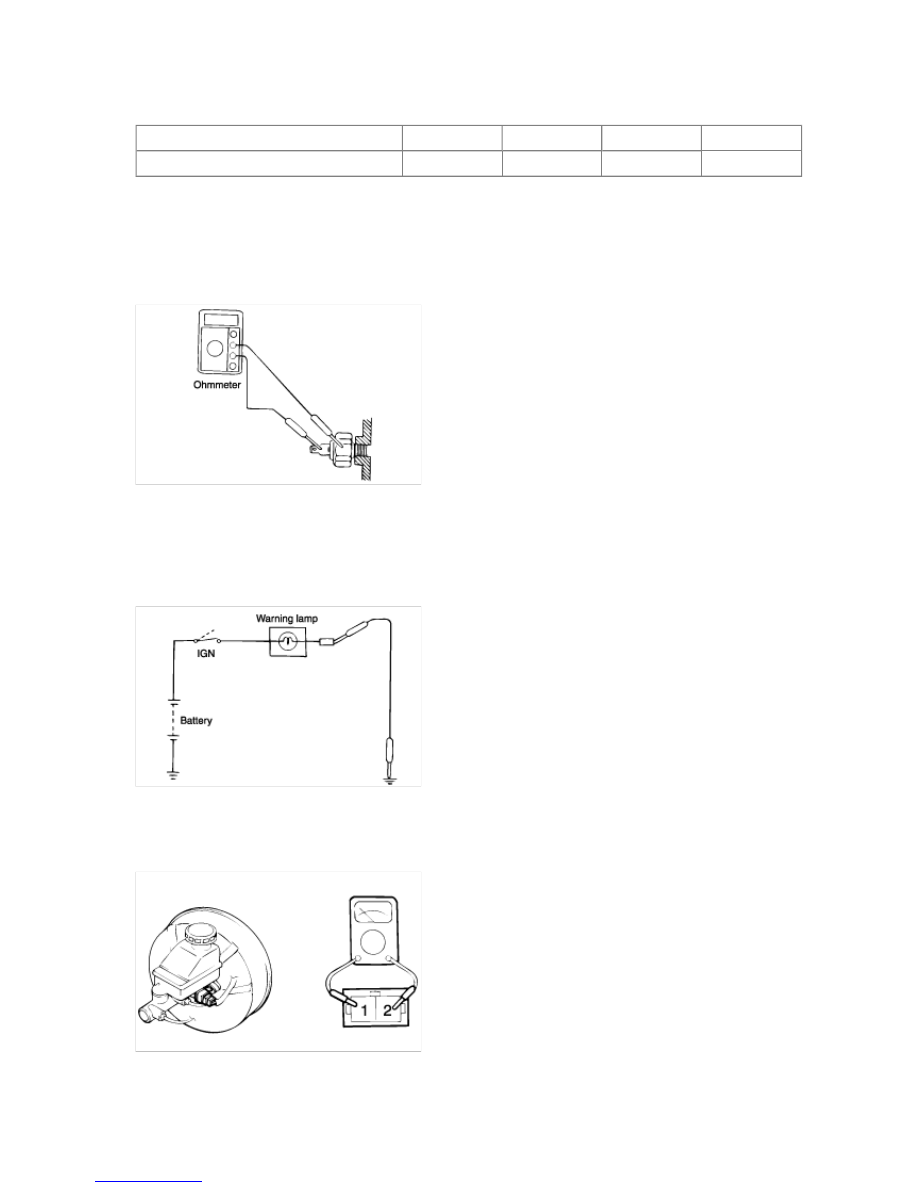

ENGINE COOLANT TEMPERATURE SENDER

1. Using an ohmmeter, measure the resistance between the terminal 2 and ground.

2. If the resistance value is not as shown in the table, replace the temperature sender.

Temperature(°C)

110

125

Resistance (

Ω

)

143.4

58.1

26.9

17.5

OIL PRESSURE SWITCH

1. Check that there is continuity between the switch's terminal and ground with the engine stopped.

2. Check that there is no continuity between the terminal and ground with the engine running.

3. If operation is not as specified, replace the switch.

OIL PRESSURE WARNING LAMP

1. Disconnect the connector from the warning switch and ground the terminal on the wire harness side

connector.

2. Turn the ignition switch ON. Check that the warning lamp lights up. If the warning lamp doesn't light, test the

bulb or inspect wire harness.

BRAKE FLUID LEVEL WARNING SWITCH

1. Remove the connector from the switch located at the brake fluid reservoir.

2. Verify that continuity exists between switch terminals 1 and 2 while pressing down the switch (float) with a rod.

BRAKE FLUID LEVEL WARNING LAMP
