Hyundai Tiburon (2003 year). Manual - part 204

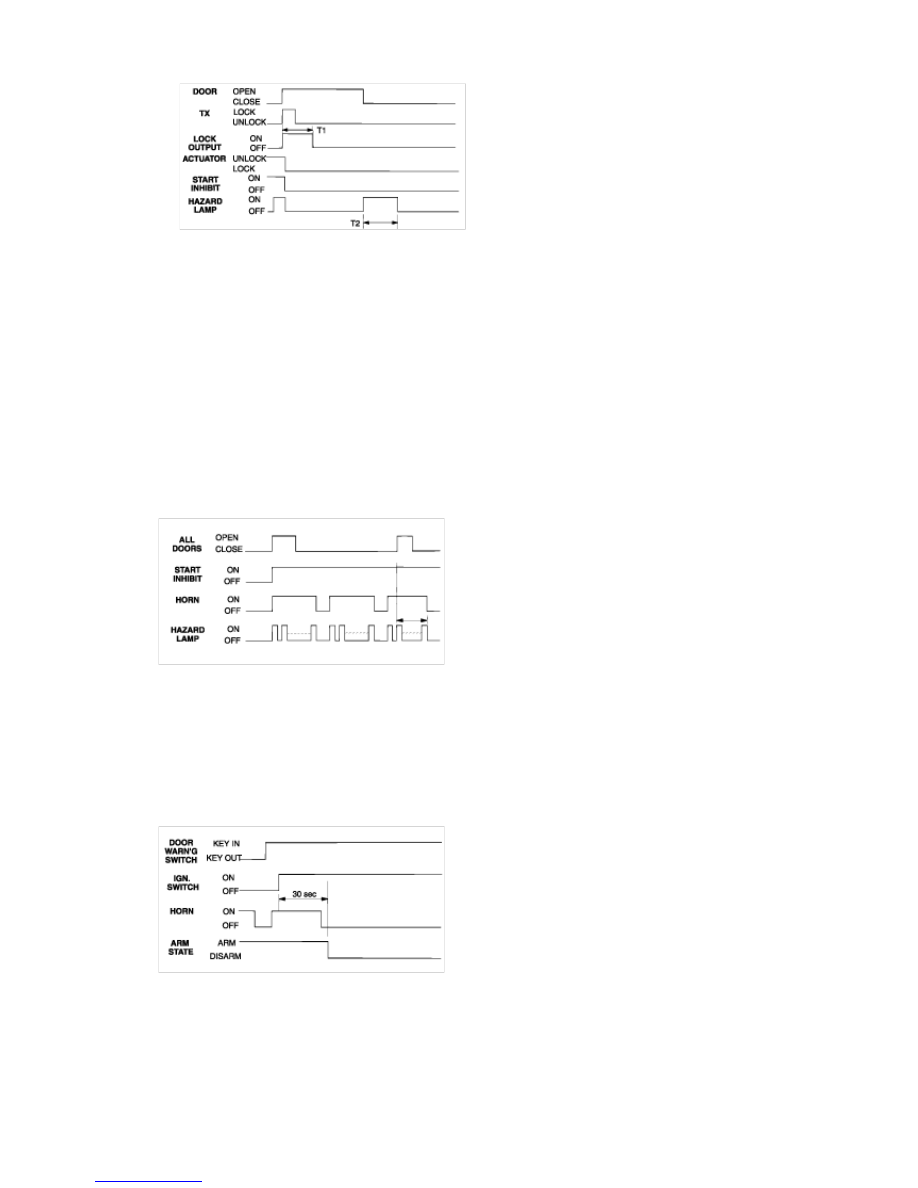

Time specification
T1 : 0.5 sec.
T2 : 1.0±0.2 sec.

(2) New alarm conditions

Second alarm condition during alarming.
When another alarm occurs during alarming, the starting is disabled, and the alarm continues to sound for
the remained time of warning signal. The alarm continues to sound after the second alarm condition is
removed.
New alarm condition occurs after alarming (with all entrances closed)
If any entrance is opened again then

New alarm condition occur after alarming (with any entrance open).
If another entrance is opened, the BCM keeps start disabled and there is no horn output.

A. The horn is ON 3 times (EC area : one time for 27sec.)

B. Start is disabled

C. Hazard lamps flash during the ON time of horn

(3) Key operation during alarm

After the alarm state or start inhibit state are entered, if door warning switch on (key in ignition) & IGN 2
ON, if IGN 2 state is changed to OFFwithin 30sec, remain in alarm state.

(4) Disarming using the key

During alarming, in case that door warning switch (key in) is ON and then IGN1 and IGN2 are both ON for
30 sec continuously, the alarm is cancelled,and the system enters the disarm state.
After alarming, in case that door warning switch (key in) is ON and then IGN1 and IGN2 are both ON for
30 sec continuously, the alarm is cancelled,and the system enters the disarm state.

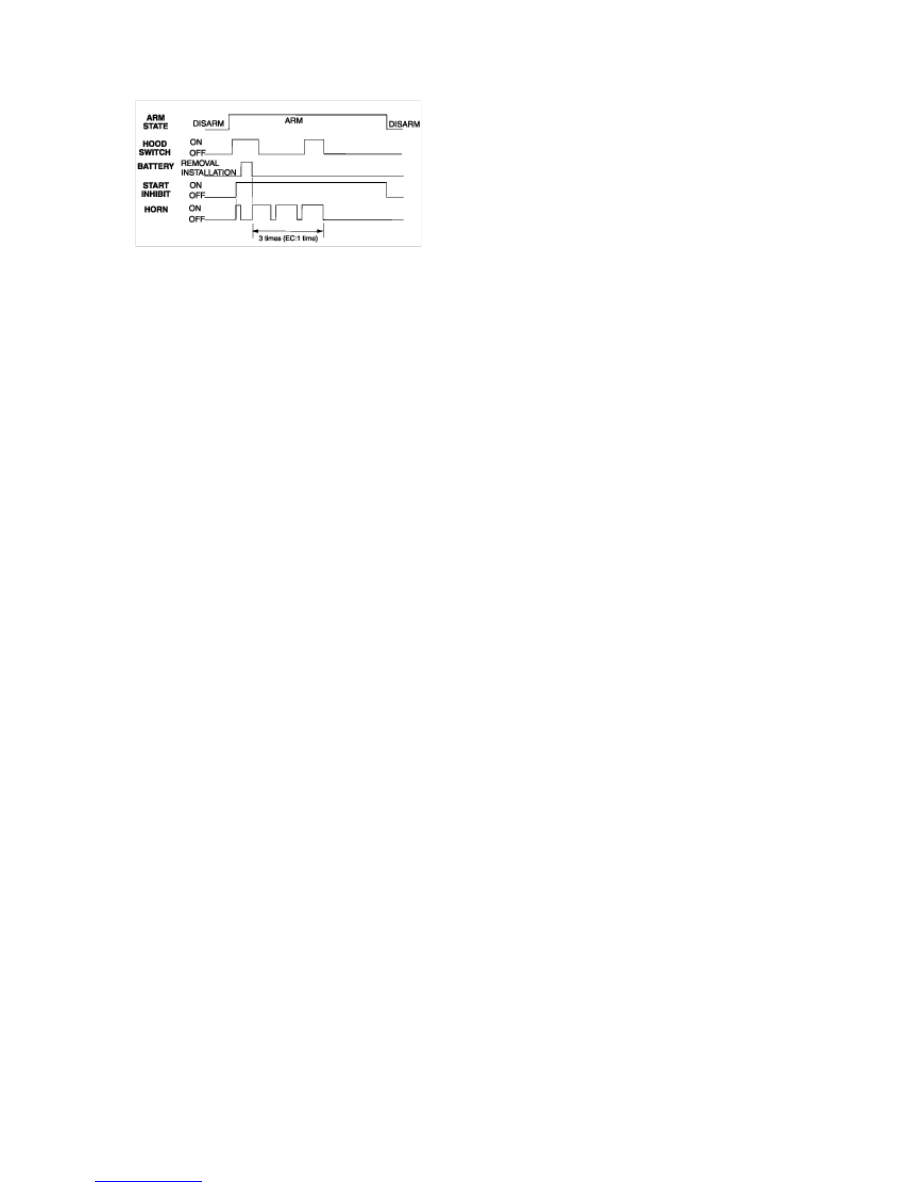

5. Alarm state in power down

If the battery is disconnected to the BCM in the following states:

Upon restoring the battery, the alarm state shall be entered and the alarm cycle shall restarted (timer reset to
0).

A. Alarm

B. After alarming

If the battery is disconnected in arm state, upon restoring the battery, arm state is resumed.

6. Automatic relocking

If either:

Then if an unlock command sent from the TX key is received by the BCM, and within 30 seconds no door,
hood or tail gate has been opened or TX lock received, then the BCM will instigate a lock doors function and
enter arm state. A single flash of the hazard lamps is given, period of cycle 2 second,duty rate 50%.
If another unlock command is sent within this time then reset timer.
If a door is already open and an unlock command is received, then the auto relocking function shall be
disabled. Even in the case where the dooris closed within 30 seconds.

A. Car is unlocked but all doors closed, or

B. Car is closed and locked by keys, or

C. Car is closed, locked and in armed state.

7. Tail gate alarm triggers

During the armed state, if the tail gate is opened by the key switch, the car remains in the armed state and
does not enter the alarm state. Whilst the tailgate is open, the hood, drivers and passenger doors are still
armed and capable of causing an alarm trigger. Once the tail gate is closed, the tailgate trigger rearms after
two seconds. If the interior tailgate release switch is pressed whilst the car is armed and the tailgate has been
closedand armed, the alarm state will be entered.
If the tailgate is unlocked and not opened within 25 seconds, the tailgate section will once again be armed and
capable of trigger.

TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > Keyless Entry And > Transmitter >
Repair procedures, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > Keyless Entry
And > Transmitter > Repair procedures

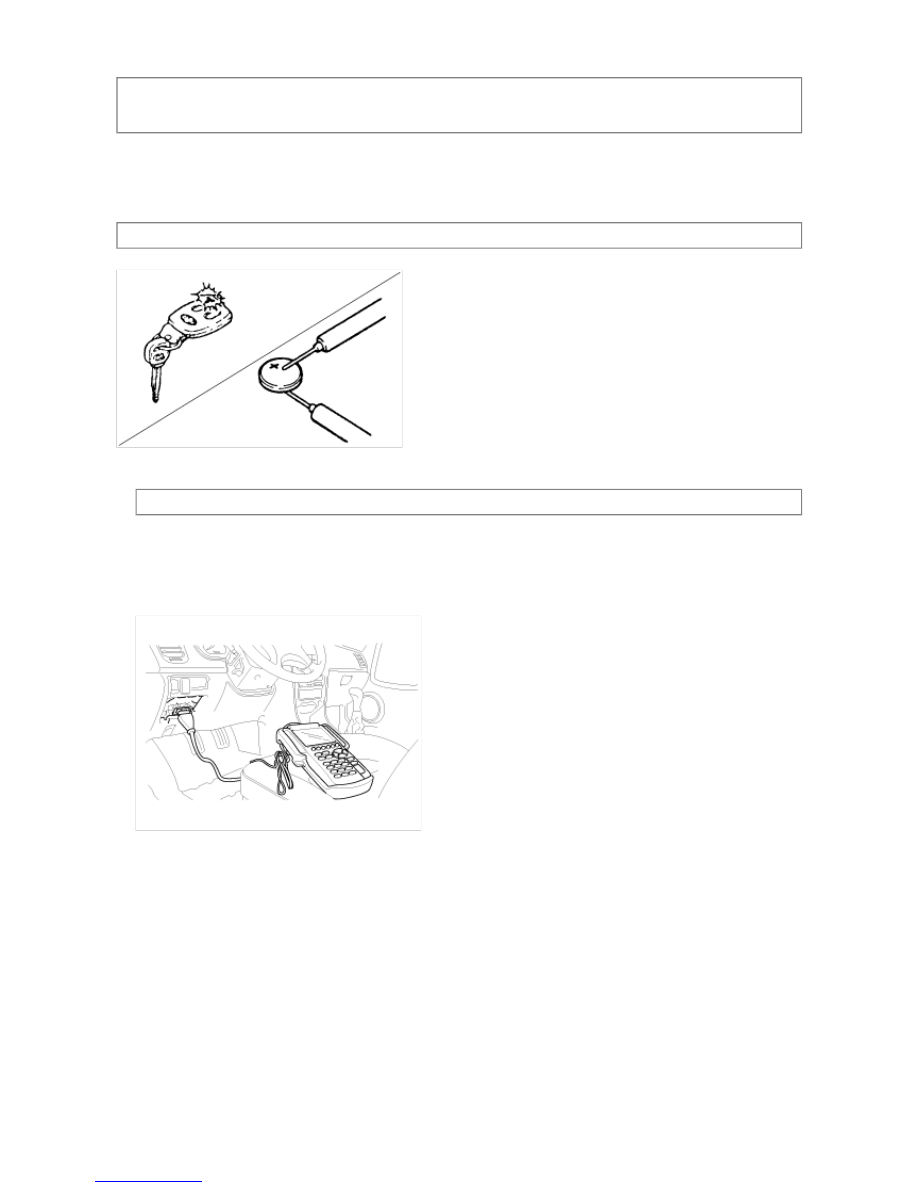

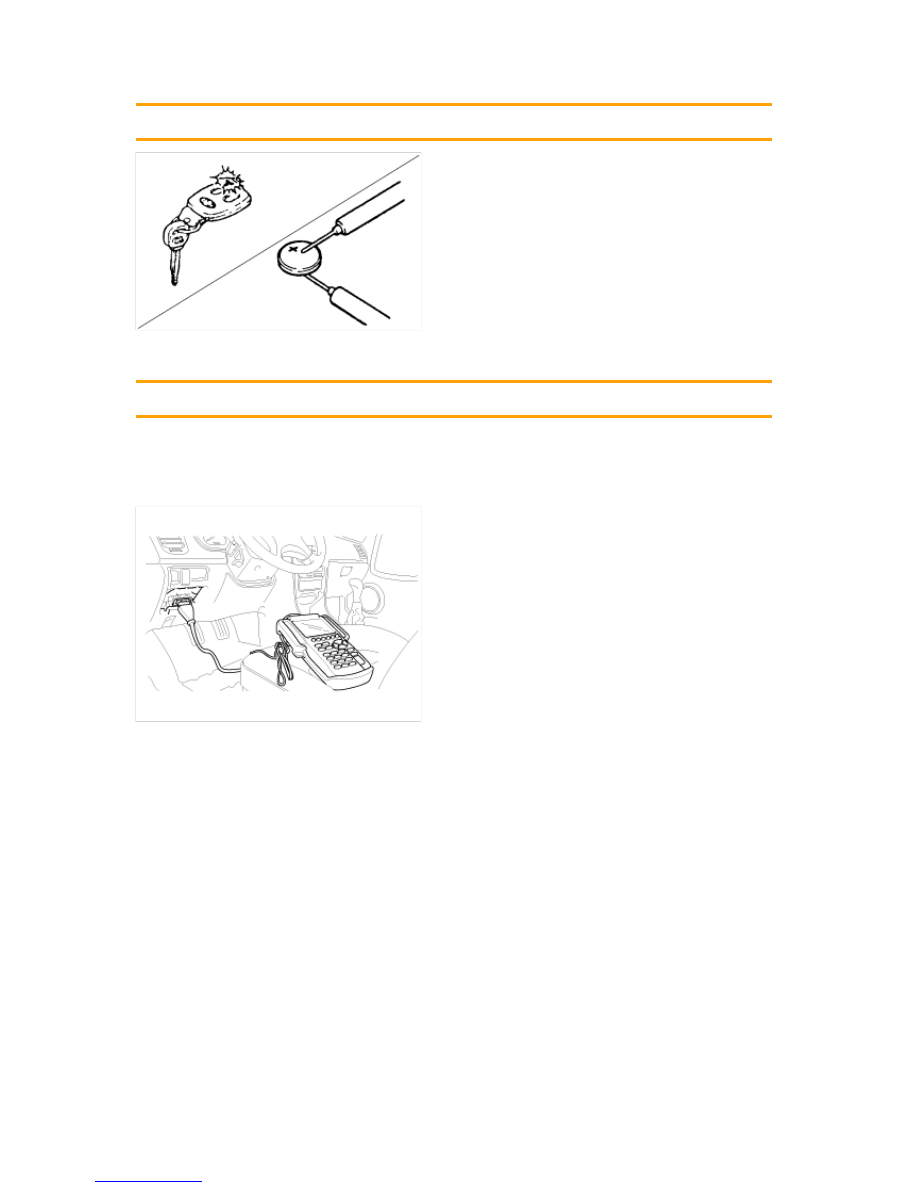

INSPECTION

1. Check that the red light flickers when the door lock button or unlock button is pressed on the transmitter.

2. Remove the battery and check voltage if the red light doesn't flicker.

Standard voltage : 3V

3. Replace the battery if voltage is below 3V and replace the remote control switch if it is inoperable after

replacing the battery.

Battery : Lithium CR2032 (3V, 220mA/h)

TRANSMITTER CODE SAVING METHOD

1. To store transmitter code, first connect the hi-scan (pro) to the Data Link Connector (DLC) in driver side crash

pad lower panel.

2. Turn the power on hi-scan (pro) with the ignition switch ON.

3. Select the vehicle model on hi-scan (pro).

4. After selecting "CODE SAVING" menu then button "ENTER" key.

5. Proceed as follow steps and then code saving is completed.

(1) Press [ENTER] key, if you are ready.

(2) Press the transmitter [LOCK] button above 1 second.

(3) If you save transmitter one more, press other transmitter [LOCK] button above 1 second.

(4) Turn the hi-scan (pro) off, and check the keyless entry system.
