CP-10

CORROSION PROTECTION

UNDER BODY ANTI-CORROSION AGENT

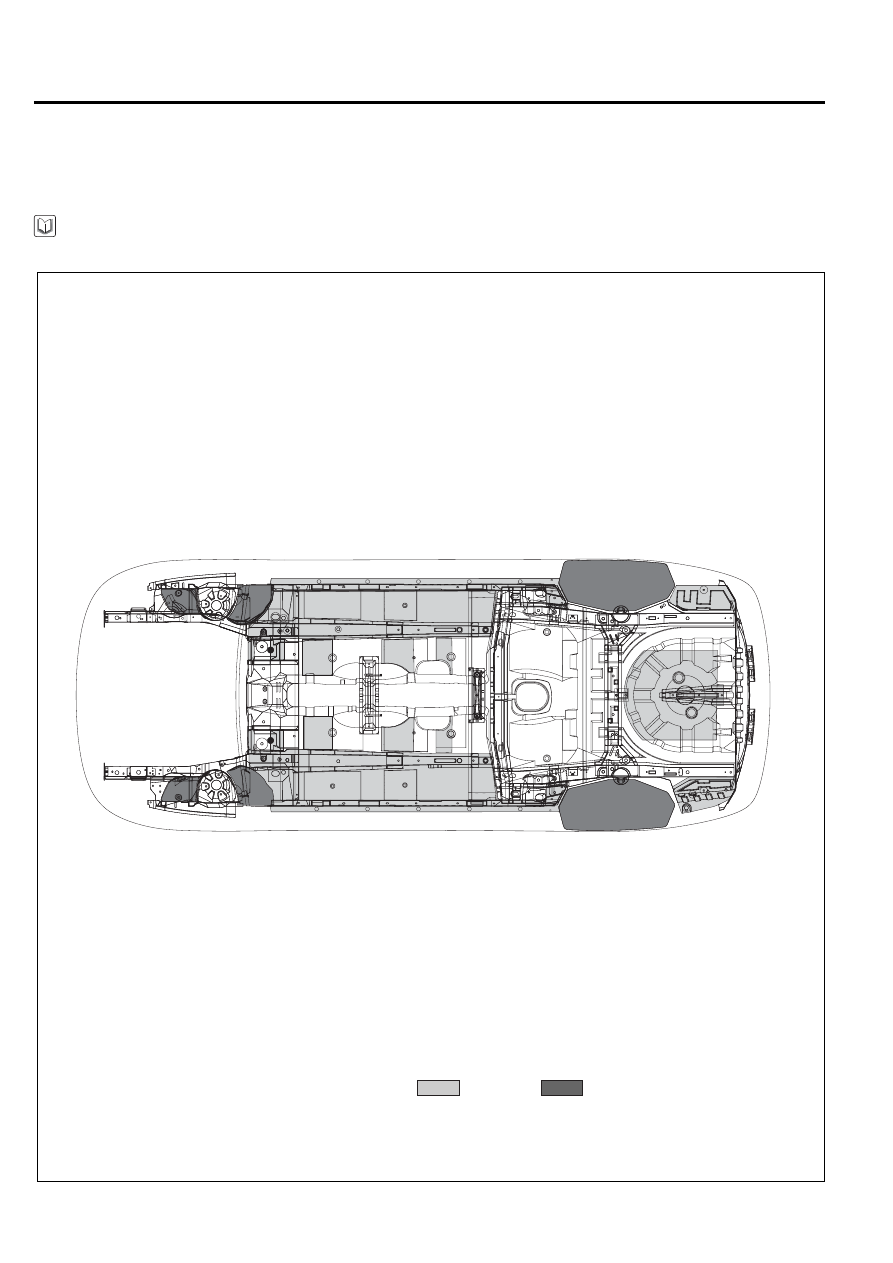

The undersides of the floor and wheel house are undercoated to provide greater corrosion resistance. Therefore, when such
panel is replaced or repaired, apply under body anti-corrosion agent to that part.

NOTE

Do not apply the under body anti-corrosion agent to come in contact with tires, muffler and exhaust pipe.

Under body coating  (Thickness             : 0.8 mm ,             :1.0 mm )

BHDCP6301

BODY
MODIFICATION
TOOLS

GI

BC

BD

BP

BS

CP

BT

PP

BT-2

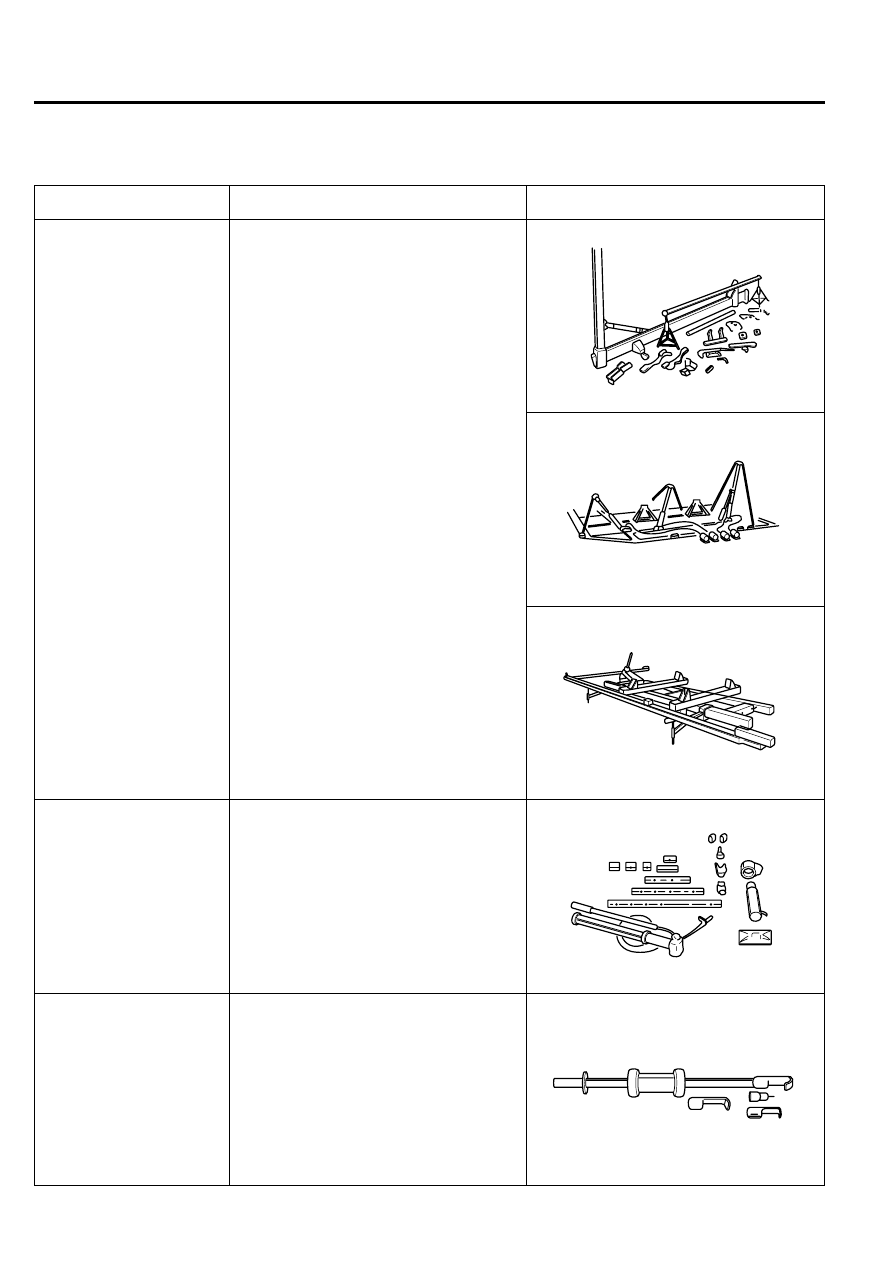

BODY MODIFICATION TOOLS

Frame straightener

Port power

Body puller

Modify twisted or bent body

Push out, stretch, pull in damaged area

Stretch damaged area

BODY MODIFICATION TOOLS

MODIFICATION  TOOLS

A3EB3501

A3EB3502

A3EB3503

A3EB3504

A3EB3505

Name

Used for

Figure

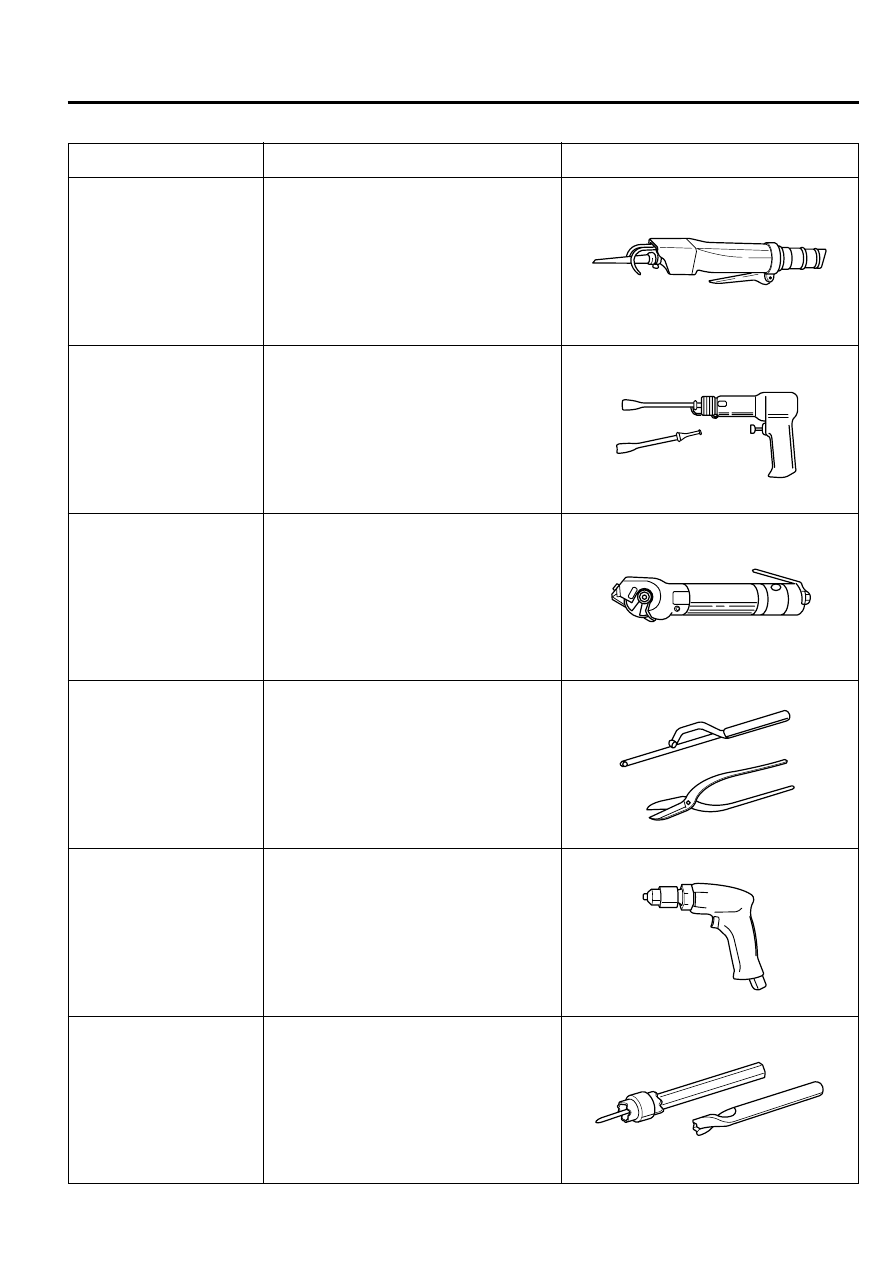

BODY MODIFICATION TOOLS

BT-3

Air saw

Air chisel

Rotary cutter

Air drill

Spot cutter

Cut a panel

Cut a panel

Cut a panel

Cut and disassemble spot welded area

CUT AND DISASSEMBLY TOOLS

Name

Used for

Figure

Hand saw and

metal scissors

Cut or bend a panel, cut and

disassemble spot welded area

Fix a spot cutter or drill to cut or

disassembly spot welding area, to

finish a hole
