Honda Civic Si Coupe (2004 year). Instruction - part 5





The Immobilizer System protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine will not
start.

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.

Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.

If you have lost your key and cannot
start your engine, contact your
dealer.

When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on for a few
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.

The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.

As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.

This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.

Immobilizer System

Inst

ru

m

e

nt
s

a

nd

Cont

ro

ls

65

Table of Contents

Table of Contents

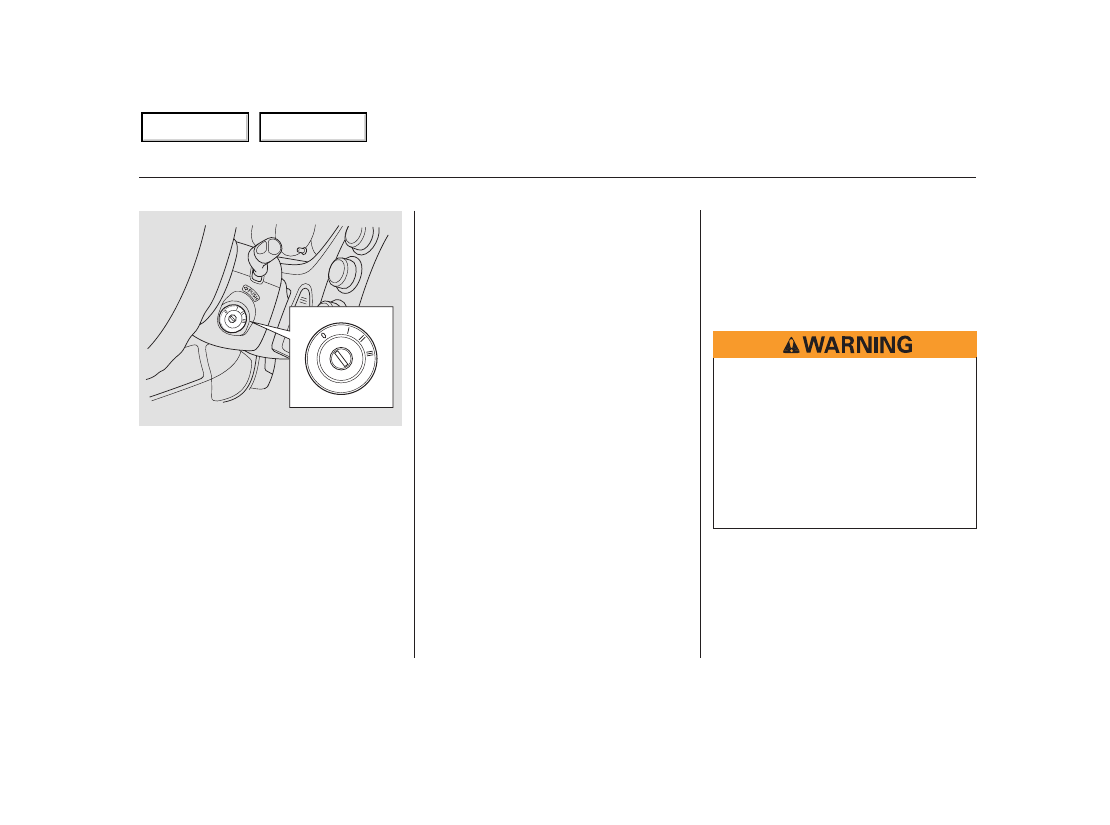

The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).

If the front wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the left or right as
you turn the key.

You can

operate the audio system and the
accessory power sockets in this
position.

Use this position

only to start the engine. The switch
returns to ON (II) when you let go of
the key.

You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn off the beeper.

You can insert or

remove the key only in this position.
To turn the key, push it in slightly.

This is the normal key

position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from ACCESSORY
(I) to ON (II).

ACCESSORY (I)

START (III)

LOCK (0)

ON (II)

Ignition Switch

66

Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control of the
vehicle.

Remove the key from the
ignition switch only when
parked.

Table of Contents

Table of Contents

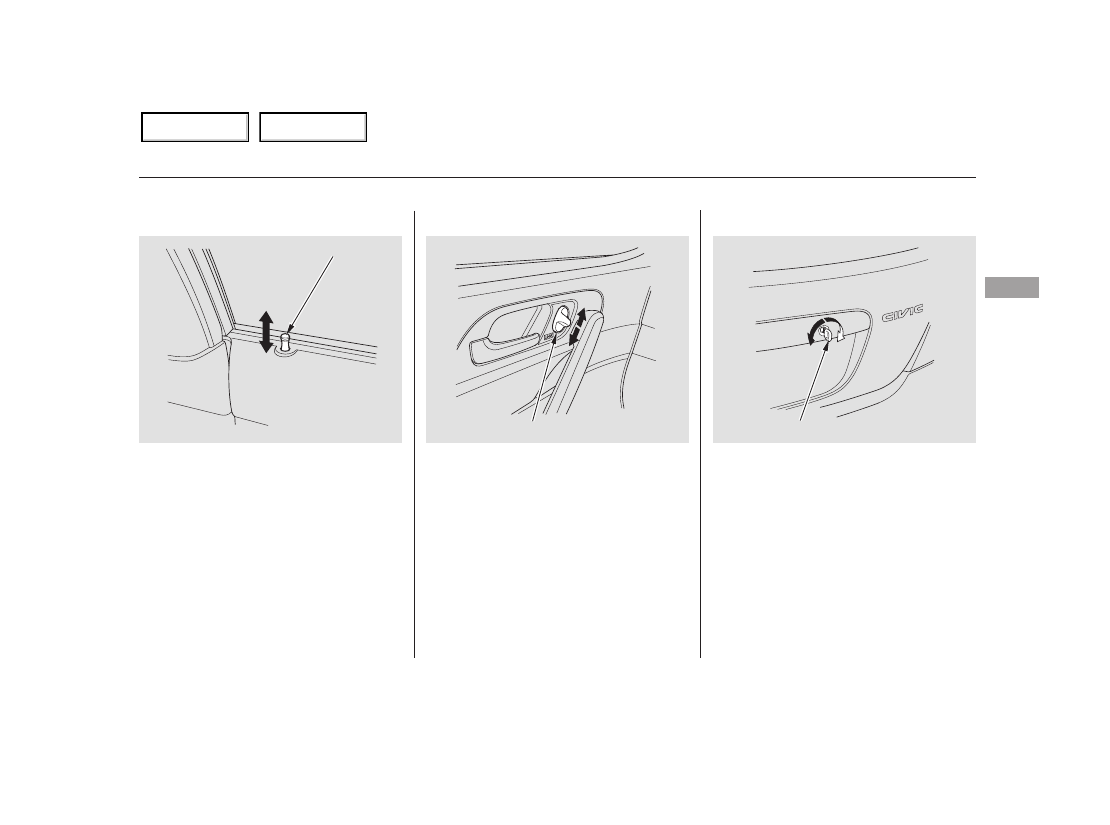

All doors lock when you push down
the lock tab on the driver’s door, or
lock the driver’s door from the
outside with the key. Only the driver’s
door unlocks when you use the key
or lock tab. To unlock the
passengers’ doors, use the master
door lock switch or the lock tab on
each door.

Use your key to lock and unlock the
hatch.

You can also lock and unlock the
hatch with the remote transmitter or
the master door lock switch.

Each door has a lock tab on the top.
When you push down the lock tab on
the driver’s door, both doors and the
hatch lock. When you push down the
lock tab on the passenger’s door,
only that door locks.

Door Locks

Hatch

Power Door Locks

Inst

ru

m

e

nt
s

a

nd

Cont

ro

ls

67

LOCK TAB

MASTER DOOR LOCK SWITCH

KEY

Lock

Unlock

Unlock

Lock

Unlock

Lock

Table of Contents

Table of Contents

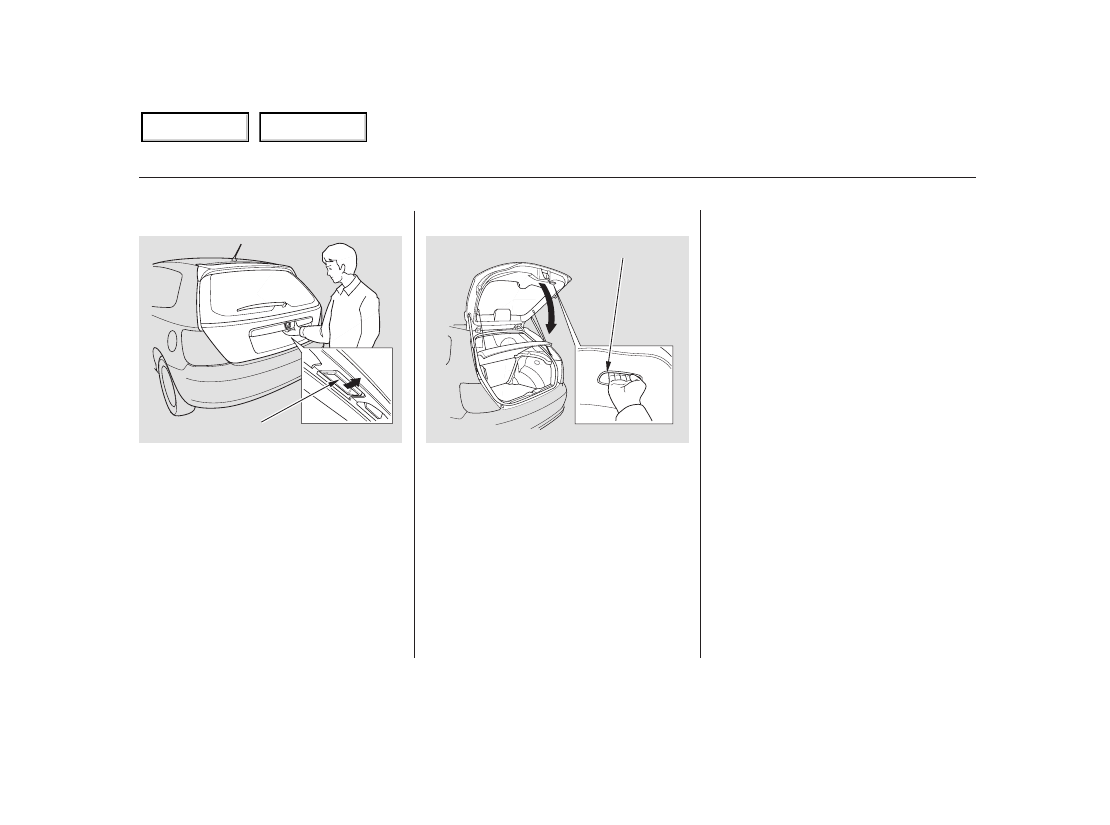

To open the hatch, pull the handle,
then lift up.

To close the hatch, use the hatch
handle to lower the hatch, then press
down on the back edge.

Keep the hatch closed at all times
while driving to avoid damaging it
and to prevent exhaust gas from
getting into the interior. See

on page

.

47

Door Locks

Carbon

Monoxide Hazard

68

HATCH HANDLE

HANDLE

Table of Contents

Table of Contents

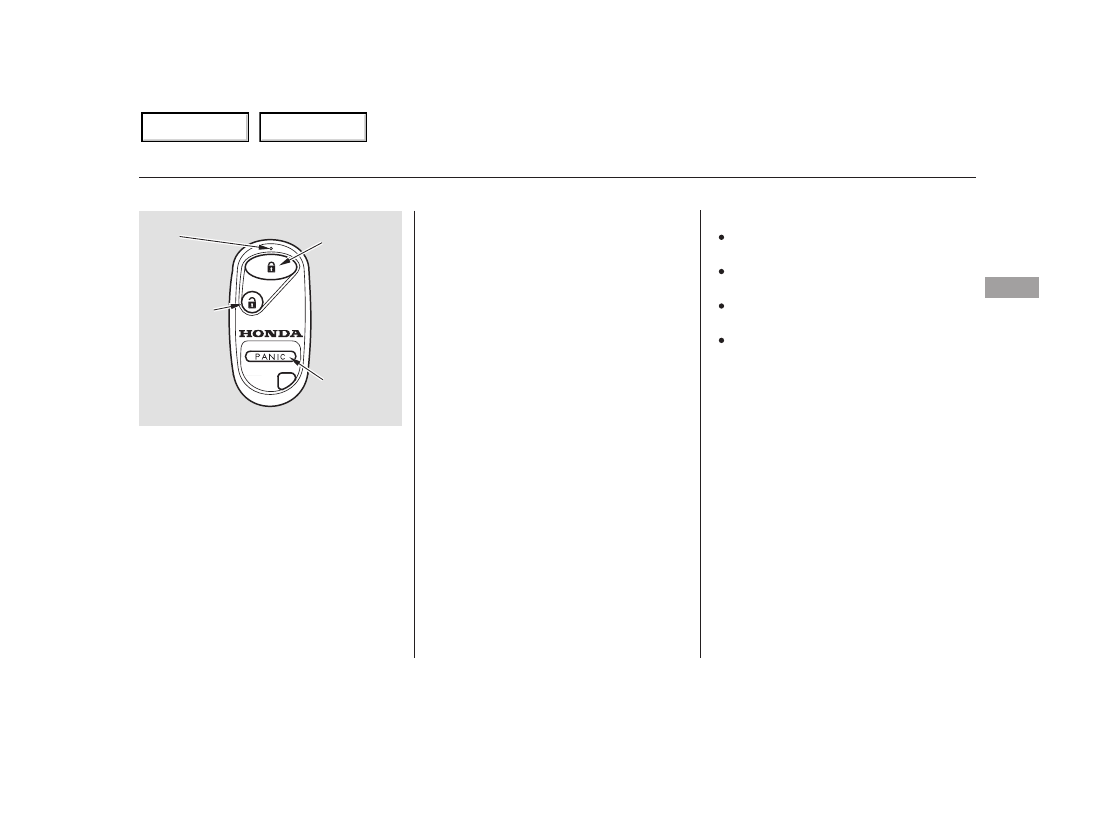

Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.

Press this button once

to unlock the driver’s door. Push it
twice to unlock the other doors and
hatch. Some exterior and interior
lights flash twice each time you
press this button. If you do not open
any doors within 30 seconds, they
will automatically relock.

Press this button for

about 1 second to attract attention;
the horn will sound and the exterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to ON (II).

Press this button once to

lock both doors and hatch. Some
exterior lights will flash. When you
push LOCK twice within 5 seconds,
you will hear a beep to verify that the
doors are locked. You cannot lock it
if any door is not fully closed or the
key is in the ignition switch.

Remote Transmitter Care

UNLOCK

PANIC

LOCK

Remote Transmitter

Inst

ru

m

e

nt
s

a

nd

Cont

ro

ls

69

UNLOCK
BUTTON

LED

LOCK
BUTTON

PANIC
BUTTON

Table of Contents

Table of Contents

Battery type: CR2025

If it takes several pushes on the
button to lock or unlock the doors
and the hatch, replace the battery as
soon as possible.

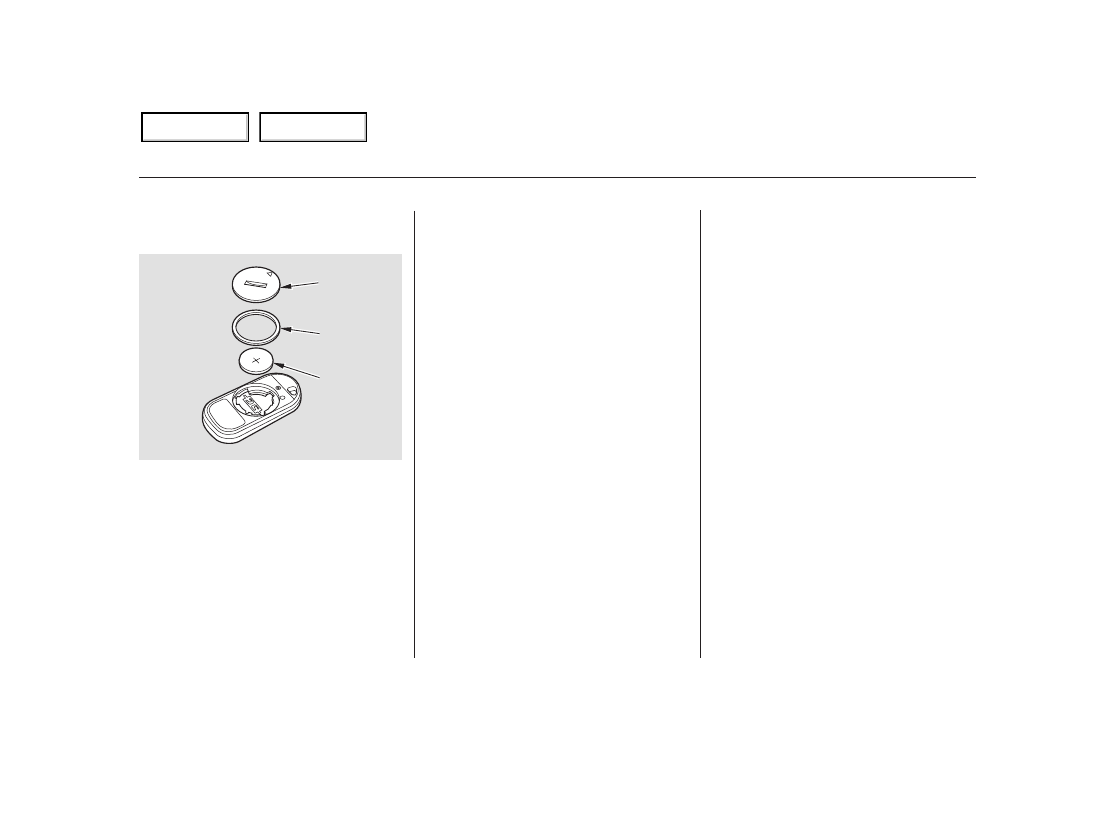

To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the

side facing

up. Align the

mark on the cover

with the

mark on the

transmitter. Set the cover in place,
and turn it clockwise.

As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.

This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.

Replacing the Transmitter
Battery

Remote Transmitter

70

ROUND
COVER

CUSHION
RING

BATTERY

Table of Contents

Table of Contents

See pages

for important safety

information and warnings about how to
properly position seats and seat-backs.

14

12

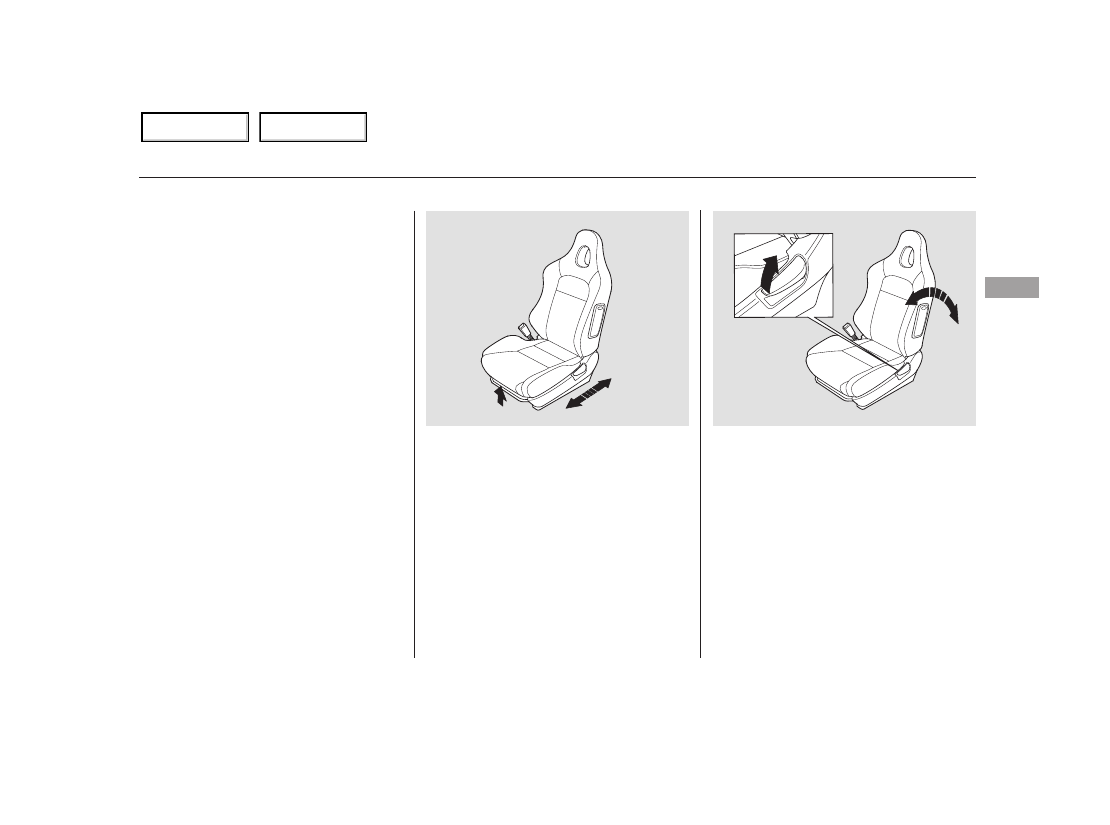

Make all seat adjustments before
you start driving.

To adjust the seat forward and
backward, pull up on the bar under
the seat cushion’s front edge. Then
try to move the seat to make sure it
is locked in position.

To change the seat-back angle of the
front seat, pull up on the lever on the
outside of the seat bottom.

Seats

Front Seat Adjustments

Inst

ru

m

e

nt
s

a

nd

Cont

ro

ls

71

Table of Contents

Table of Contents

See page

for important safety

information and a warning about how to
properly position the head restraints.

15

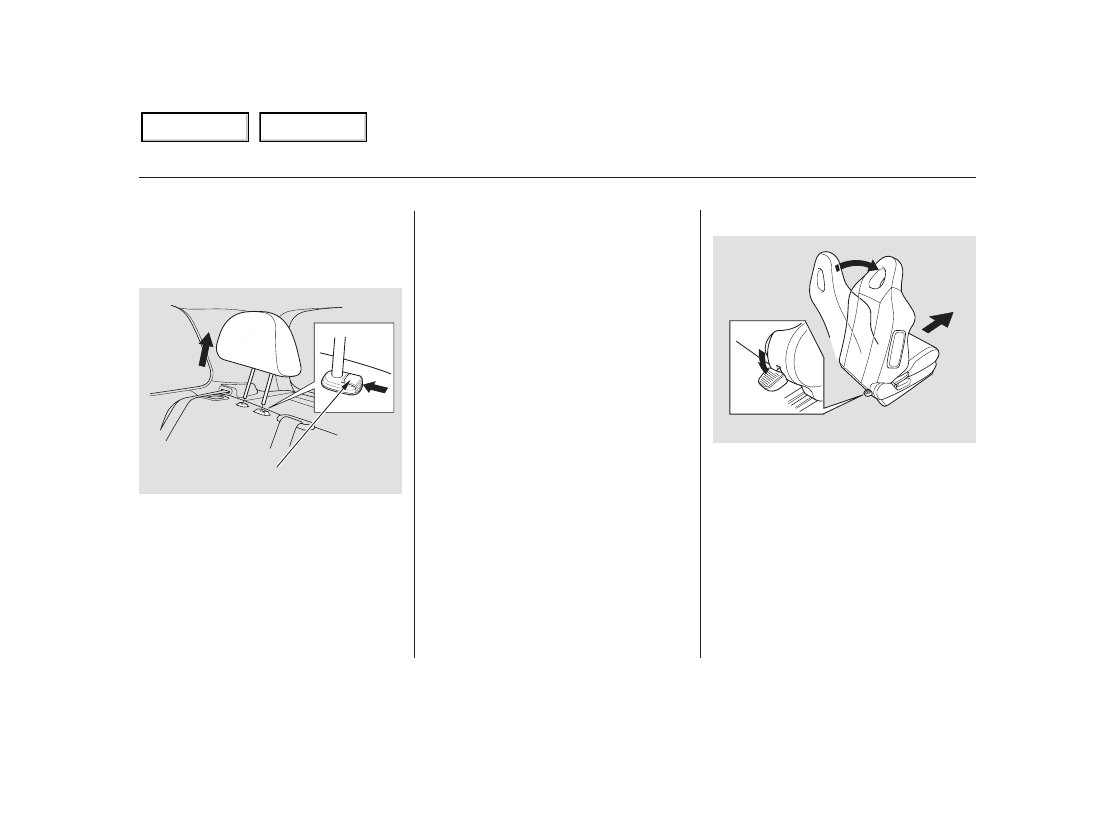

The head restraints help protect you
and your passengers from whiplash
and other injuries. They are most
effective when you adjust them so
the back of the occupant’s head rests
against the center of the restraint.

The head restraints in the rear
outboard seating positions adjust for
height. You need both hands to
adjust the restraint. To raise it, pull
upward. To lower the restraint, push
the release button sideways and
push the restraint down.

Your vehicle is equipped with head
restraints in the rear outboard
seating positions.

To get into the rear seat on the
driver’s side, pull up on the seat-back
adjustment lever.

To get into the rear seat on the
passenger’s side, push down on the
release lever at the base of the seat-
back. The seat-back will tilt forward,
and the seat will slide forward to
allow easier access to the rear seat.

Seats

Head Restraints

Rear Seat Access

72

RELEASE BUTTON

Table of Contents

Table of Contents

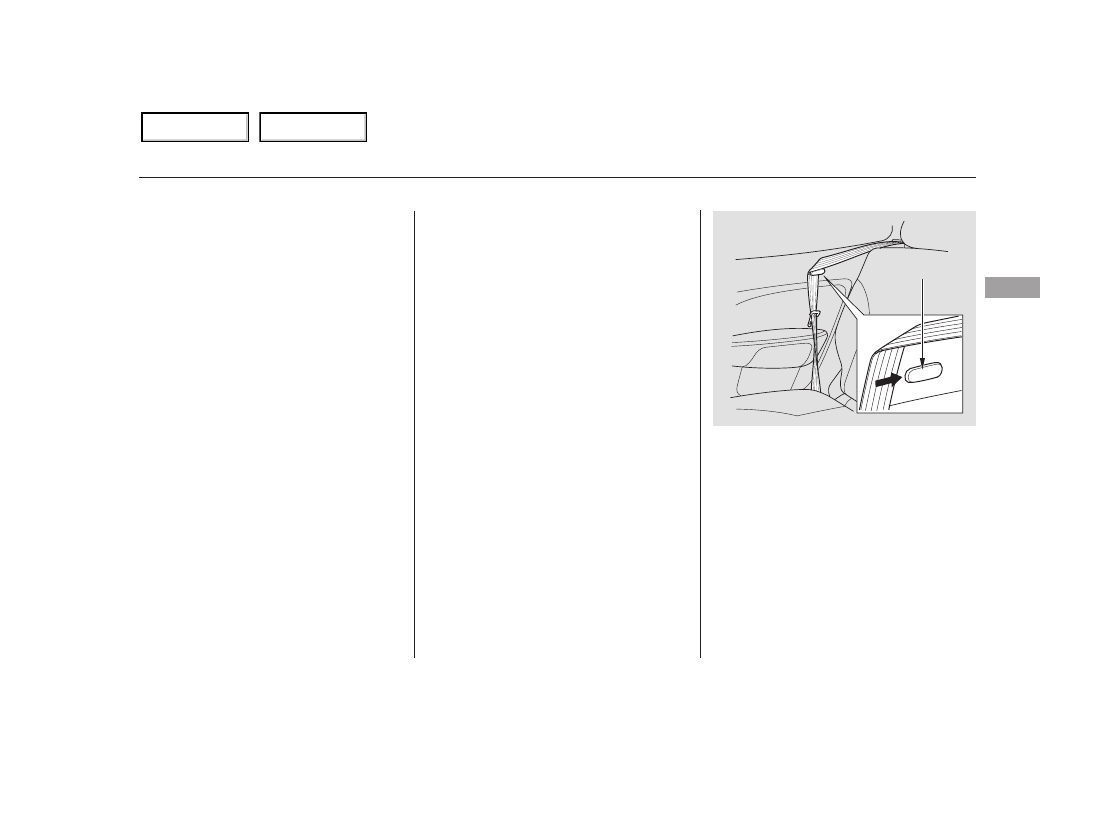

The back of the rear seat folds down
to give you more cargo space. Each
side folds down separately. With only
half the seat folded, you can still
carry a passenger in the back seat.

Before folding down the seat-back,
move the seat belt out of the way
and put the shoulder part of the
outside seat belt in the clip on each
side.

After you return the seat-back to the
upright position, push the whole seat
backwards until it latches. Make
sure the seat is fully latched before
you sit in it.

Seats

Folding Rear Seat

Inst

ru

m

e

nt
s

a

nd

Cont

ro

ls

73

CLIP

Table of Contents

Table of Contents

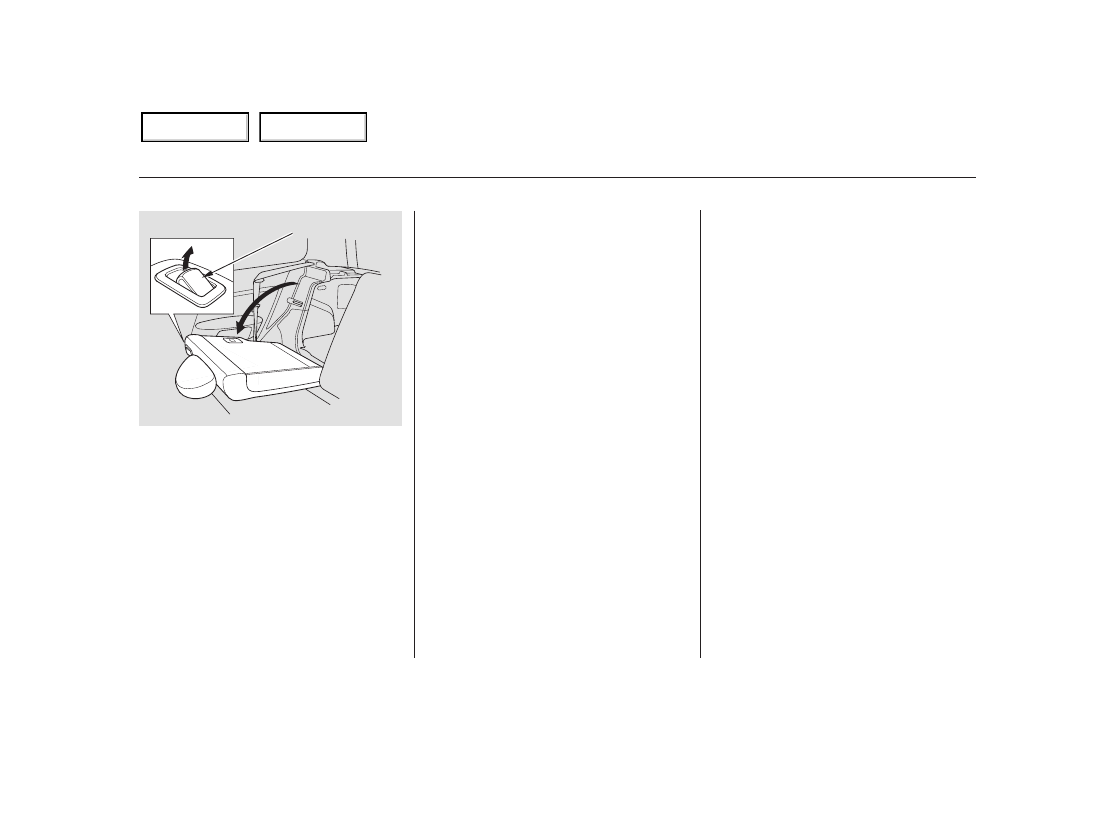

To unlatch either side of the seat-
back, pull up on the release lever,
then fold the seat-back down.

Never drive with the seat-back
folded down and the hatch open. See

on page

.

Make sure all items in the cargo area
are secured. Loose items can fly
forward and cause injury if you have
to brake hard. See
on page

.

To lock the seat-back upright, push it
firmly against its latch. Tug on the
seat-back to make sure it is latched.

Make sure the seat belts are
positioned in front of the rear seat-
back and the seat belt buckles are on
the seat cushion whenever the seat-
back is in its upright position.

47

117

Seats

Carbon Monoxide Hazard

Carrying Cargo

74

RELEASE LEVER

Table of Contents

Table of Contents

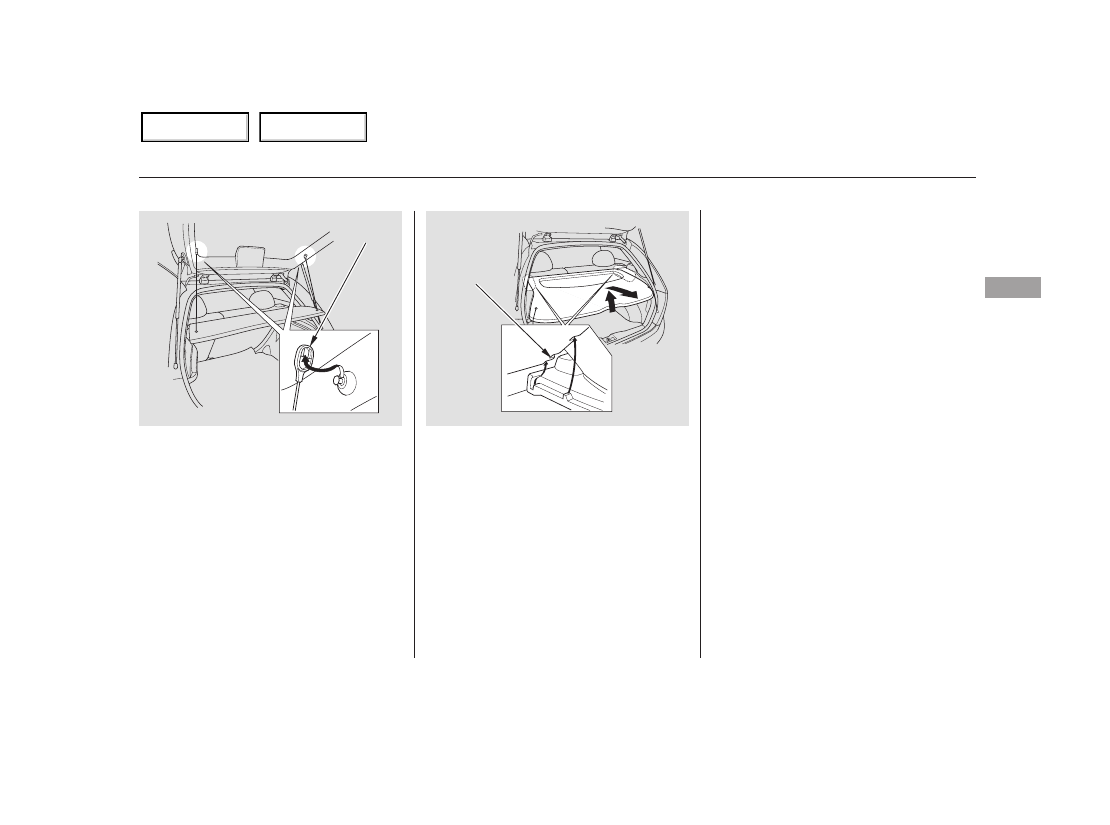

The cargo area cover may be
removed to give you more cargo
room.

To remove the cargo area cover,
disconnect the cables from the hatch
by lifting up each end, then pulling it
outward. Then push up on the
underside of the cargo cover at each
front corner to unsnap it from the
body.

To install the cargo area cover, place
it in its normal position over the
cargo area. Then push down on each
front corner to snap it in place. Lift
up the rear of the cover, then
reconnect the cables to the hatch.

Cargo Area Cover

Inst

ru

m

e

nt
s

a

nd

Cont

ro

ls

75

NOTCHES

HOOK

Table of Contents

Table of Contents

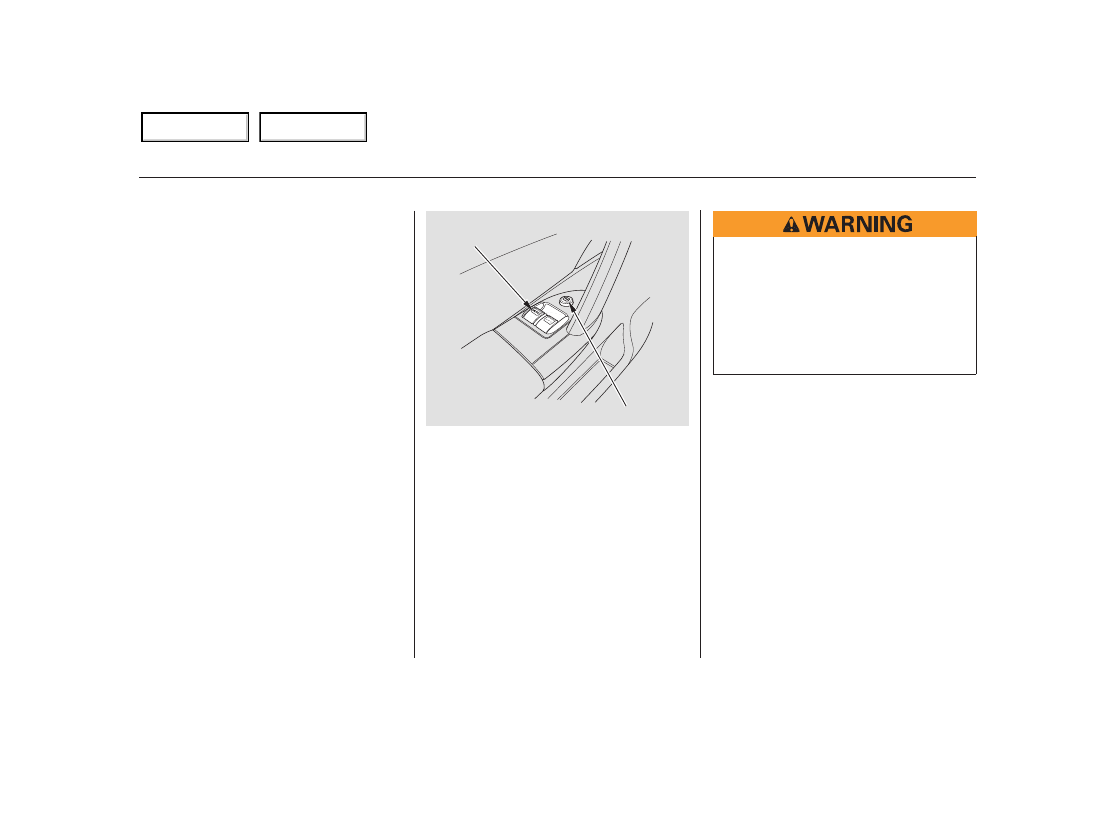

Your vehicle’s windows are electri-
cally-powered. Turn the ignition
switch to ON (II) to raise or lower
any window.

Each door has a switch that controls
its window. To open the window,
push the switch down and hold it.
Release the switch when you want
the window to stop. Close the
window by pulling back on the
switch and holding it.

The driver’s door armrest has a
master power window control panel.
To open the passenger’s window,
push down on the appropriate switch
and hold it until the window reaches
the desired position. To close the
window, pull back on the window
switch. Release the switch when the
window gets to the position you want.

Power Windows

76

DRIVER’S WINDOW
SWITCH

MAIN SWITCH

Closing a power window on
someone’s hands or fingers can
cause serious injury.

Make sure your passenger is
away from the window before
closing it.

Table of Contents

Table of Contents

If the driver’s

window senses any obstacle while it
is closing automatically, it will
reverse direction and then stop. To
close the window, remove the
obstacle, then use the window switch
again.

If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window fuse is removed, the
AUTO function will be disabled. The
power window system needs to be
reset after reconnecting the battery
or installing the fuse.

Start the engine. Push down and
hold the driver’s window switch
until the window is fully open.

If the power windows do not operate
properly after resetting, have your
vehicle checked by your dealer.

To open or close the

driver’s window, push or pull the
window switch firmly down or up to
the second detent, and release it.
The window will automatically go up
or down all the way. To stop the
window, pull or push on the window
switch briefly.

If the MAIN switch is OFF, the
passenger window cannot be raised
or lowered. Keep the MAIN switch
off when you have children in the
vehicle so they do not injure
themselves by operating the window
unintentionally.

Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
for a second or two more.

1.

2.

Power Windows

AUTO REVERSE

AUTO

Inst

ru

m

e

nt
s

a

nd

Cont

ro

ls

77

Table of Contents

Table of Contents

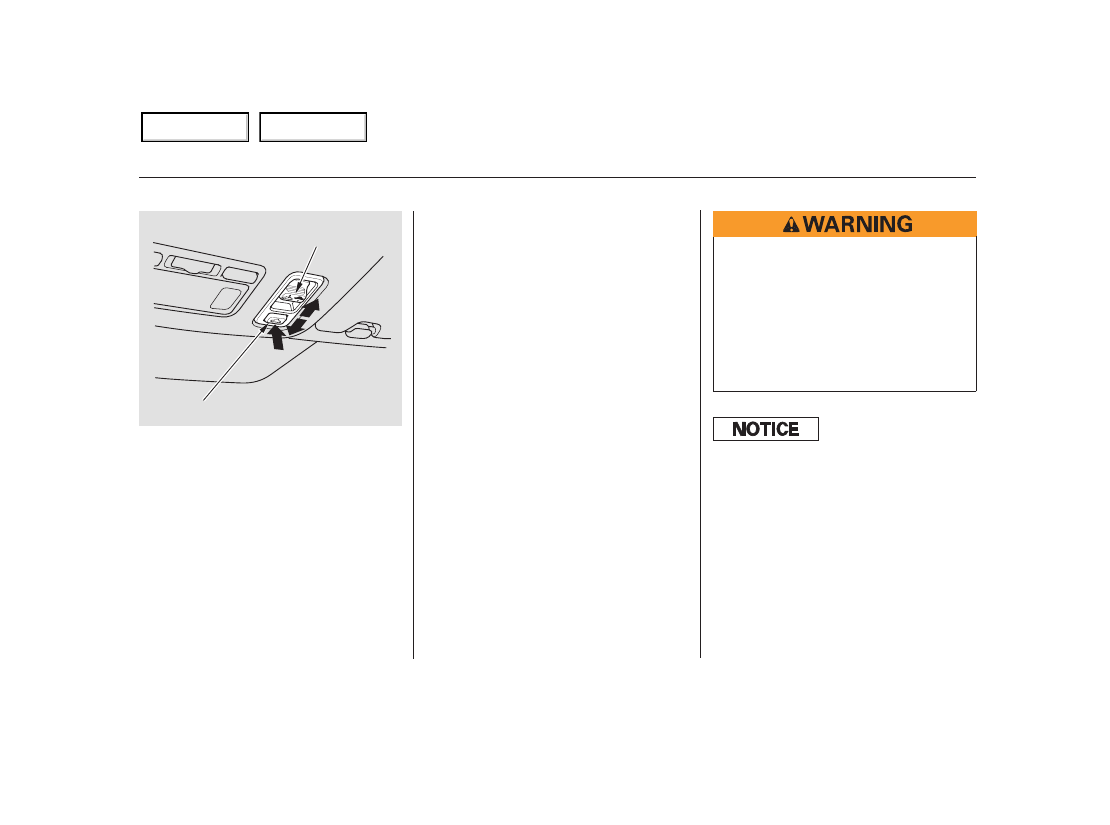

There are two switches on the
ceiling near the front ceiling light.
The ignition switch must be in the
ON (II) position to operate the
moonroof.

To open the moonroof, pull back the
moonroof switch firmly.

To tilt the moonroof up, press the
button in. To close it, push the
switch forward.

To close the moonroof fully, push
the switch forward.

The moonroof will not close
completely; it will stop about 5.1
inches (130 mm) away from being
closed. Make sure your passengers
are clear of the moonroof, then
release the switch and push it
forward again to close the moonroof
completely.

Moonroof

78

OPEN/CLOSE
SWITCH

TILT-UP BUTTON

Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.

Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.

If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.

Table of Contents

Table of Contents

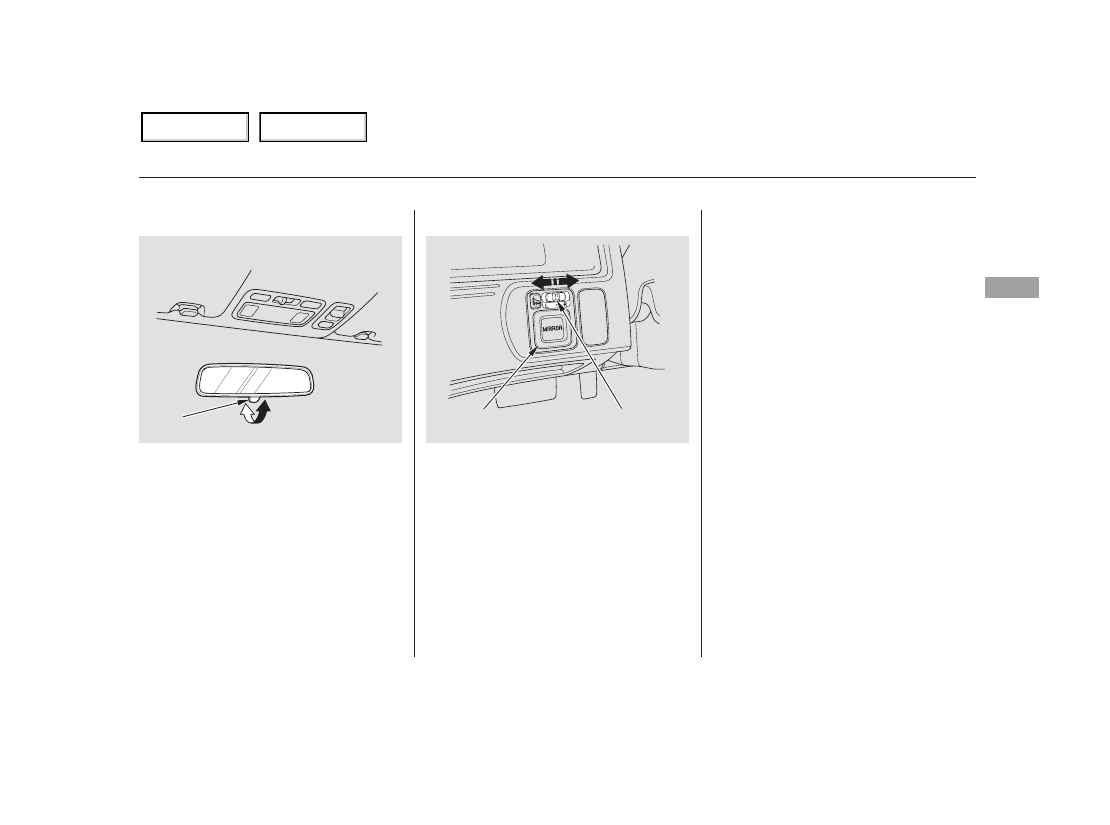

Keep the inside and outside mirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.

The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.

Move the selector switch to L
(driver’s side) or R (passenger’s
side).

Push the appropriate edge of the
adjustment switch to move the
mirror right, left, up, or down.

When you finish, move the
selector switch to the center (off)
position. This turns the
adjustment switch off to keep your
settings.

3.

1.

2.

Mirrors

Mirrors

Adjusting the Power Mirrors

Inst

ru

m

e

nt
s

a

nd

Cont

ro

ls

79

TAB

ADJUSTMENT
SWITCH

SELECTOR
SWITCH

Table of Contents

Table of Contents

Canadian model only

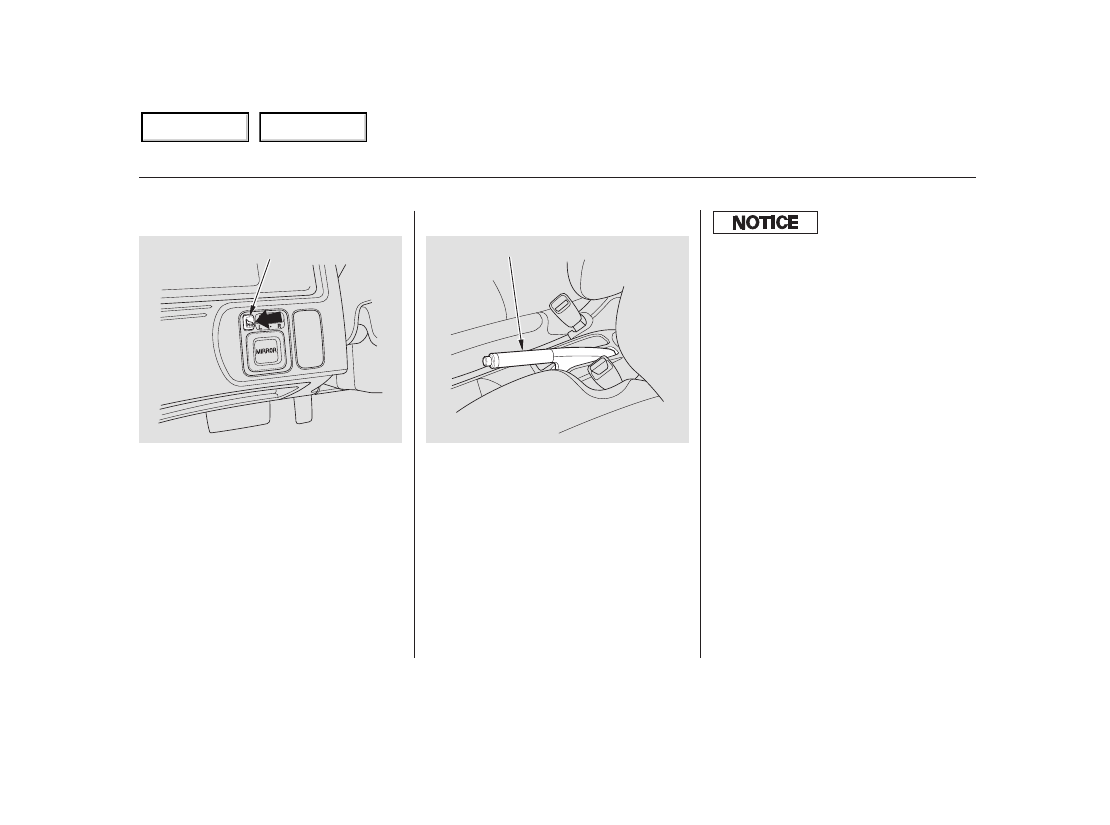

To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is fully released (see page

).

The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.

53

Mirrors, Parking Brake

Power Mirror Heaters

Parking Brake

80

HEATED MIRROR BUTTON

PARKING BRAKE LEVER

Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles.

Table of Contents

Table of Contents















Content   ..  3  4  5  6   ..
