Honda Odyssey 2004. Manual - part 585





S0X4AZBK791000RD111FAAT10

’03-04 Models

DTC D1-11, D2-11, D3-11, D4-11, D7-11,
E2-11, E4-11, F1-11 F2-11, F3-11, F4-11:

23-282

SRS

DTC Troubleshooting (cont’d)

Airbags, Side airbags, and/or Seat Belt
Tensioners Deployed.

The SRS unit must be replaced after any airbags and/or
tensioners have deployed (see page 23-384).

03/07/29 10:39:46 61S0X050_230_0282

01

02

S0X4AZBK791000R611XFAAT20

’03-04 Models

DTC 61-1x (61-10 to 61-19, 61-1A to 61-1F):

YES

NO

YES

NO

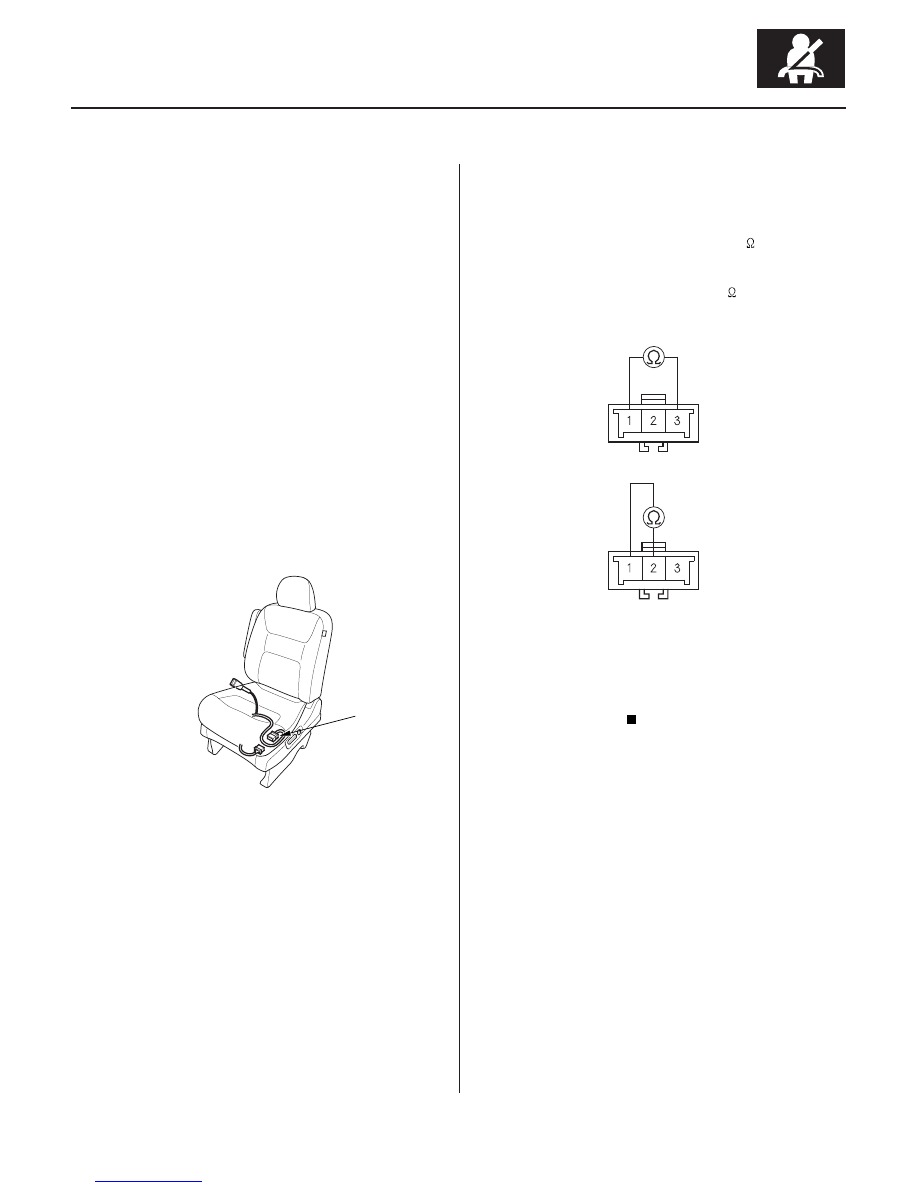

23-283

A

DRIVER’S SEAT BELT BUCKLE SWITCH
3P CONNECTOR

BLU

BLK

BLK

GRY

Open in Driver’s Seat Belt Buckle Switch

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), then buckle and

unbuckle the driver’s seat belt several times.

3. Read the DTC (see page 23-38).

Go to step 4.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

4. Turn the ignition switch OFF.

5. Disconnect the driver’s seat belt buckle switch 3P

connector (A).

6. Buckle the driver’s seat belt.

• Check resistance between the No. 1 and No. 3

terminals of the driver’s seat belt buckle switch
3P connector. There should be 0

1

.

• Check resistance between the No. 1 and No. 2

terminals of the same connector. There should
be an open circuit, or at least 1 M

.

Go to step 7.

Replace the driver’s seat belt buckle assembly,

then clear the DTC.

(cont’d)

Terminal side of male terminals

Terminal side of male terminals

Is DT C 61-1x indicated?

Ar e the r esistance r eadings as specif ied?

03/07/29 10:39:46 61S0X050_230_0283

*01

*02

05

YES

NO

YES

NO

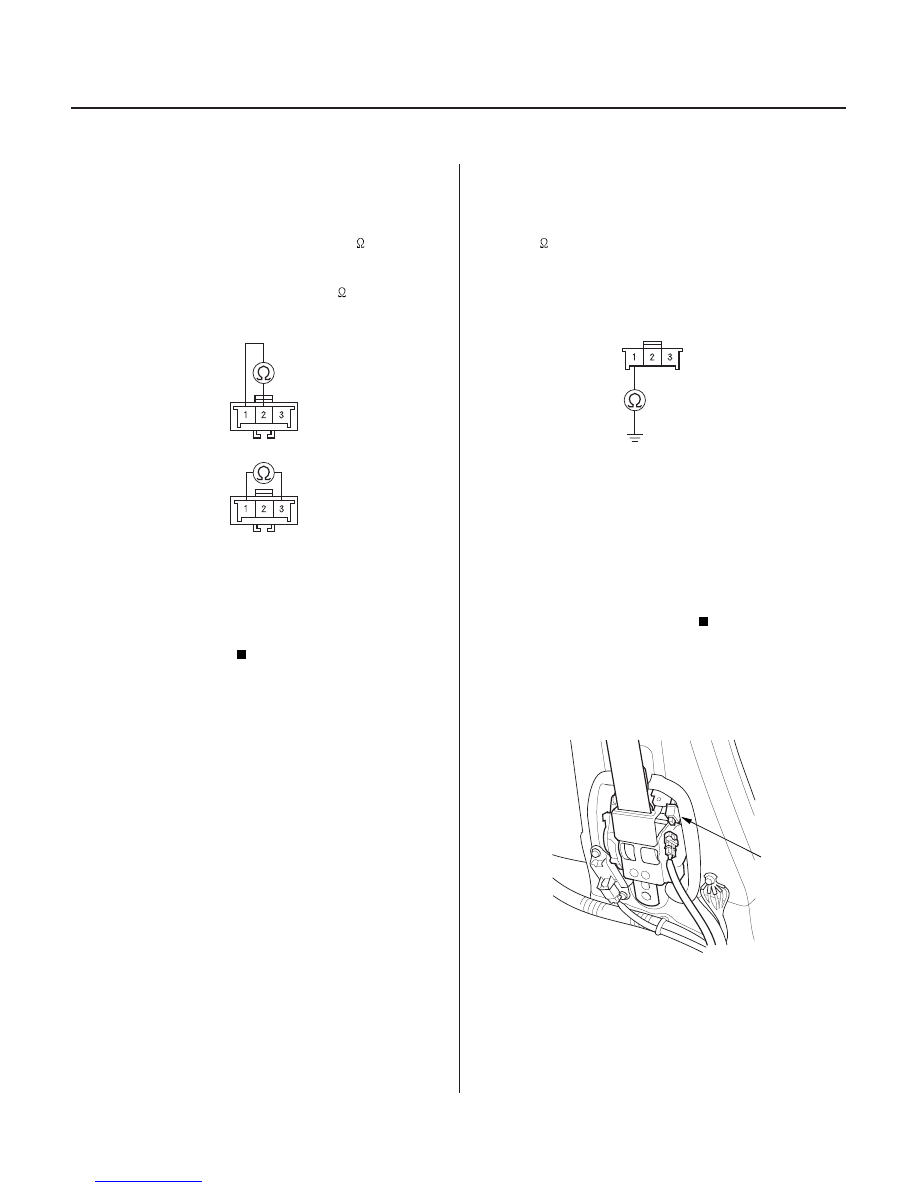

23-284

SRS

DTC Troubleshooting (cont’d)

BLK

BLU

BLK

GRY

DRIVER’S SEAT BELT BUCKLE SWITCH
3P CONNECTOR

DRIVER’S SEAT WIRE HARNESS 3P CONNECTOR
(WITH POWER SEAT)
LEFT SIDE WIRE HARNESS 3P CONNECTOR
(WITHOUT POWER SEAT)

BLK

A

7. Unbuckle the driver’s seat belt.

• Check resistance between the No. 1 and No. 2

terminals of the driver’s seat belt buckle switch
3P connector. There should be 0

1

.

• Check resistance between the No. 1 and No. 3

terminals of the same connector. There should
be an open circuit, or at least 1 M

.

Go to step 8.

Replace the driver’s seat belt buckle assembly,

then clear the DTC.

8. Check resistance between the No. 1 terminal of the

driver’s seat wire harness (with power seat) or left
side wire harness (without power seat) 3P
connector and body ground. There should be
0

1

.

Go to step 9.

Open in the driver’s seat wire harness (with

power seat), left side wire harness (without power
seat) or poor ground connection at G551. If G551 is
OK, replace the faulty harness.

9. Disconnect the battery negative cable and wait for

3 minutes.

10. Disconnect both seat belt tensioner 2P connectors

(A).

Terminal side of male terminals

Terminal side of male terminals

Wire side of female terminals

Is the r esistance as specif ied?

Is the r esistance as specif ied?

03/07/29 10:39:47 61S0X050_230_0284

06

*03

*04

YES

NO

YES

NO

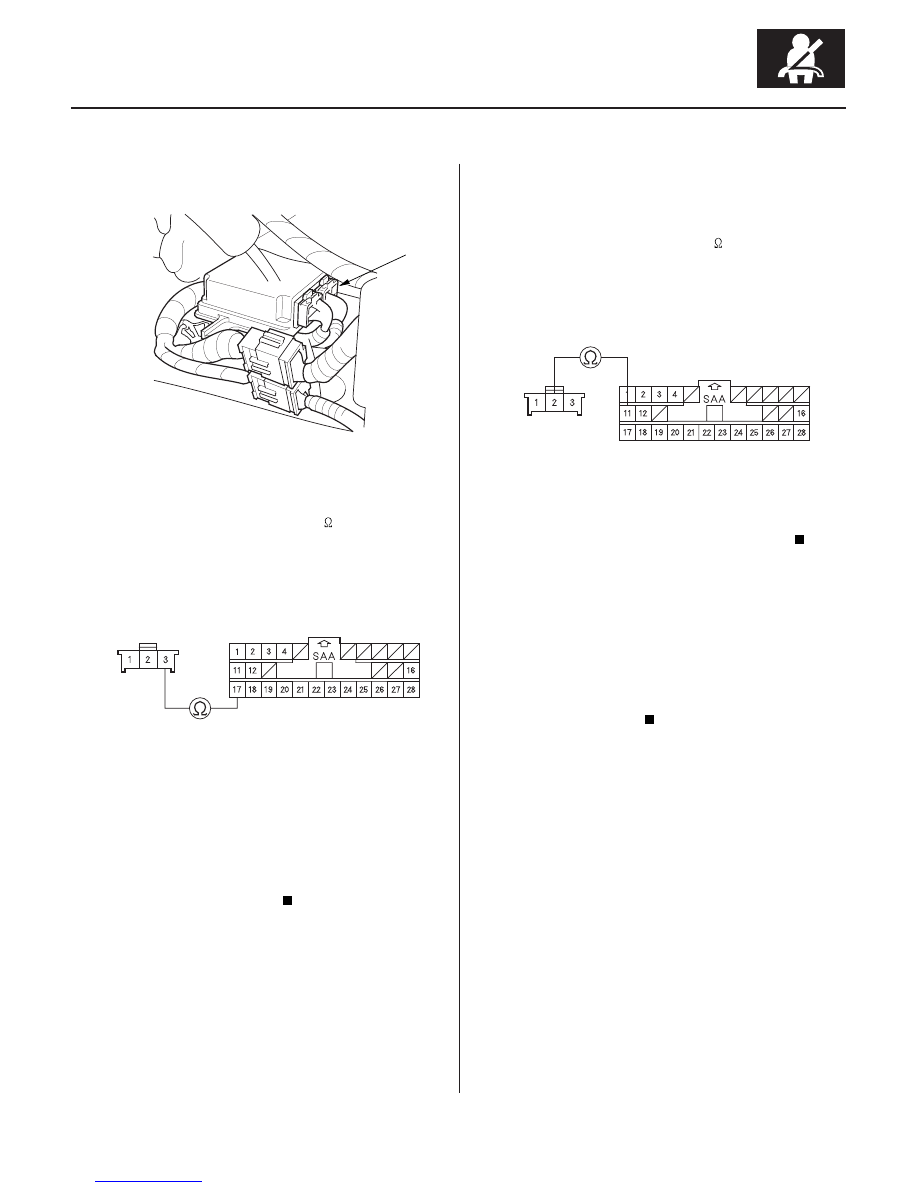

23-285

B

SRS UNIT
CONNECTOR B (28P)

DRIVER’S SEAT WIRE HARNESS
3P CONNECTOR (WITH POWER SEAT)
LEFT SIDE WIRE HARNESS
3P CONNECTOR
(WITHOUT POWER SEAT)

BLU/RED

BLU/RED

SRS UNIT
CONNECTOR B (28P)

DRIVER’S SEAT WIRE HARNESS
3P CONNECTOR (WITH POWER SEAT)
LEFT SIDE WIRE HARNESS
3P CONNECTOR
(WITHOUT POWER SEAT)

RED/BLU

RED/BLU

11. Disconnect SRS unit connector B (28P) from the

SRS unit.

12. Check resistance between the No. 17 terminal of

SRS unit connector B (28P) and the No. 3 terminal
of the driver’s seat wire harness (with power seat)
or left side wire harness (without power seat) 3P
connector. There should be 0

1

.

Go to step 13.

Open in the driver’s seat wire harness (with

power seat), left side wire harness, dashboard wire
harness A, SRS main harness or SRS floor harness;
replace the faulty harness.

13. Check resistance between the No. 11 terminal of

SRS unit connector B (28P) and the No. 2 terminal
of the driver’s seat wire harness (with power seat)
or left side wire harness (without power seat) 3P
connector. There should be 0

1

.

Replace the SRS unit (see page 23-384).

Open in the driver’s seat wire harness (with

power seat), left side wire harness, dashboard wire
harness A, SRS main harness or SRS floor harness
or multiplex control unit, or poor connection at the
left side wire harness, the driver’s under-dash fuse/
relay box, and the multiplex control unit. Check the
connection at the left side wire harness, the driver’s
under-dash fuse/relay box, and the multiplex
control unit. If the connection is OK, replace the
faulty harness or part.

Wire side of female terminals

Wire side of female terminals

Is the r esistance as specif ied?

Is the r esistance as specif ied?

03/07/29 10:39:48 61S0X050_230_0285
