DTC Troubleshooting (cont’d)

SRS UNIT CONNECTOR B (28P)

RED/WHT

PNK

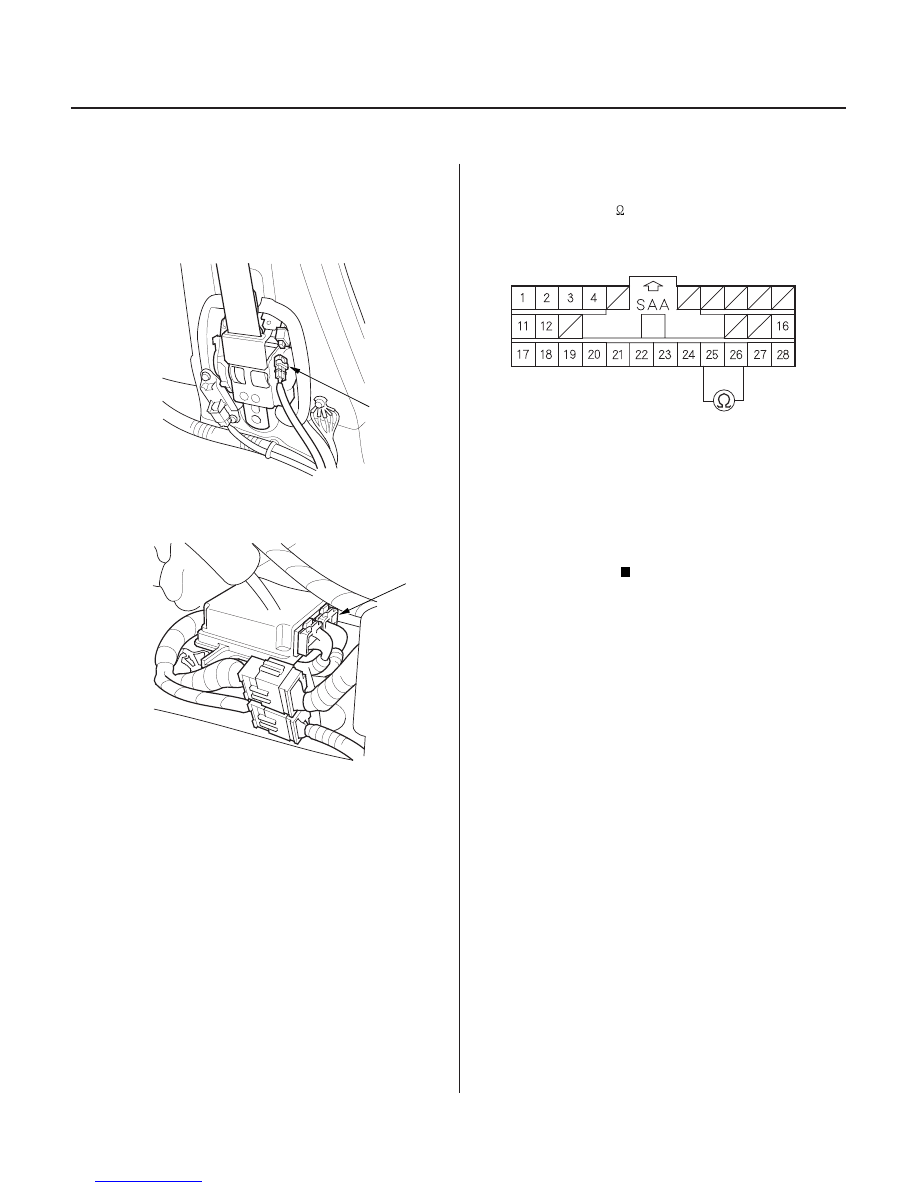

7. Connect the special tool (jumper connector) to the

right side wire harness 2P connector.

8. Disconnect the both seat belt tensioner connectors

from the side wire harness (A).

9. Disconnect SRS unit connector B (28P) from the

SRS unit.

10. Check resistance between the No. 25 and No. 26

terminals of SRS unit connector B (28P). There
should be 0

1.0

Faulty front passenger’s side impact sensor

or SRS unit; replace the front passenger’s side
impact sensor (see page 23-386). If the problem is
still present, replace the SRS unit
(see page 23-384).

Go to step 11.

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:39:44 61S0X050_230_0274

−

＊０１

０６

YES

23-275

C852

SRS FLOOR SUBHARNESS 28P CONNECTOR

PNK

RED/WHT

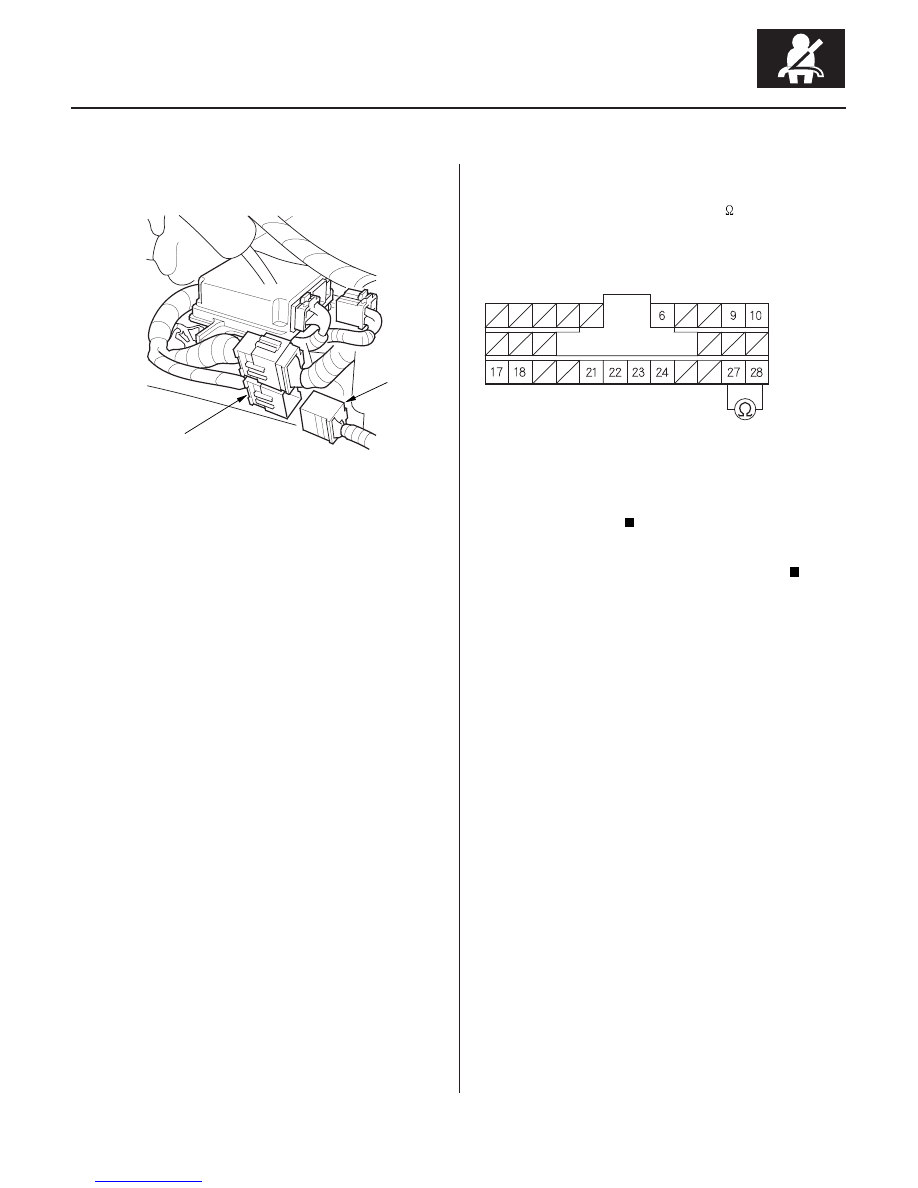

11. Disconnect the SRS floor harness 28P connector (A)

from SRS floor subharness 28P connector C852.

12. Check resistance between the No. 28 and No. 27

terminals of the SRS floor subharness 28P
connector. There should be 0

1.0

Open in the SRS floor harness; replace the

SRS floor harness.

Open in the SRS floor subharness or right

side wire harness; replace the faulty harness.

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:39:44 61S0X050_230_0275

−

Ｓ０Ｘ４ＡＳＩＫ７９１０００Ｒ４３２ＸＦＡＡＴ２０

Ｓ０Ｘ４ＡＳＩＫ７９１０００Ｒ４４２ＸＦＡＡＴ００

’03-04 Models

DTC 43-2x (43-20 to 43-29, 43-2A to 43-2F),
43-3x (43-30 to 43-39, 43-3A to 43-3F),
43-8x (43-80 to 43-89, 43-8A to 43-8F),
43-Bx (43-B0 to 43-B9, 43-BA to 43-BF):

’03-04 Models

DTC 44-2x (44-20 to 44-29, 44-2A to 44-2F),
44-3x (44-30 to 44-39, 44-3A to 44-3F),
44-8x (44-80 to 44-89, 44-8A to 44-8F),
44-Bx (44-B0 to 44-B9, 44-BA to 44-BF):

YES

23-276

SRS

DTC Troubleshooting (cont’d)

Internal Failure of the Driver’s Side Impact
Sensor

Internal Failure of the Front Passenger’s Side
Impact Sensor

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Replace the driver’s side impact sensor (see

page 23-386).

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Replace the front passenger’s side impact

sensor (see page 23-386).

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

Does the SRS indicator stay on?

03/07/29 10:39:44 61S0X050_230_0276

−

Ｓ０Ｘ４ＡＺＢＫ７９１０００Ｒ５１２ＸＦＡＡＴ００

Ｓ０Ｘ４ＡＺＢＫ７９１０００Ｒ５２８ＸＦＡＡＴ００

’03-04 Models

DTC 51-2x (51-20 to 51-29, 51-2A to 51-2F),
51-4x (51-40 to 51-49, 51-4A to 51-4F):

’03-04 Models

DTC 52-8x (52-80 to 52-89, 52-8A to 52-8F),
52-9x (52-90 to 52-99, 52-9A to 52-9F):

YES

23-277

Internal Failure of the SRS Unit

NOTE: Before troubleshooting any of these DTCs, check
the battery/system voltage. If the voltage is low, repair
the charging system or replace the battery before
troubleshooting the SRS. If the battery/system voltage
is now OK, ask the customer if the battery ever went
dead.

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Replace the SRS unit (see page 23-384).

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Replace the SRS unit (see page 23-384).

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

Does the SRS indicator stay on?

03/07/29 10:39:45 61S0X050_230_0277
