Honda Odyssey 2004. Manual - part 582





01

01

S0X4ASIK791000R431XFAAT00

’03-04 Models

DTC 43-1x (43-10 to 43-19, 43-1A to 43-1F):

Special Tools Required

YES

NO

YES

NO

23-270

SRS

DTC Troubleshooting (cont’d)

A

A

07YAZ-S3AA100

07SAZ-TB4011A

A

B

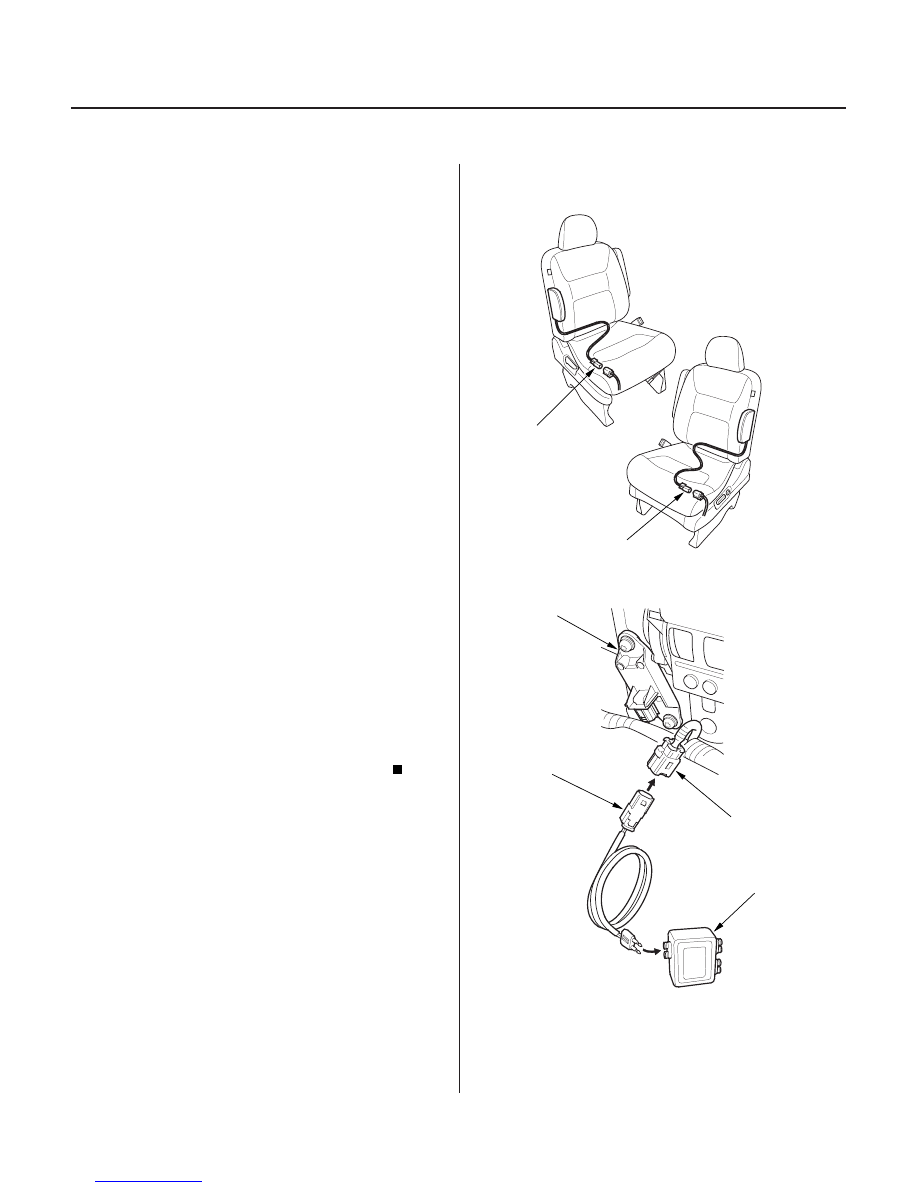

No Signal from the Driver’s Side Impact
Sensor

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead H 07YAZ-S3AA100

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Check the connection between the left side wire

harness 2P connector and the driver’s side impact
sensor.

Go to step 5.

Replace the driver’s side impact sensor

and/or the left side wire harness, as needed.

5. Disconnect the driver’s side airbag and front

passenger’s side airbag 2P connectors (A).

6. Disconnect the left side wire harness 2P connector

(A) from the driver’s side impact sensor (B).

7. Connect the special tool (jumper connector) to the

left side wire harness 2P connector.

Does the SRS indicator stay on?

Is the connection OK ?

03/07/29 10:39:41 61S0X050_230_0270

02

03

04

YES

NO

23-271

A

B

SRS UNIT CONNECTOR B (28P)

GRN/WHT

LT GRN

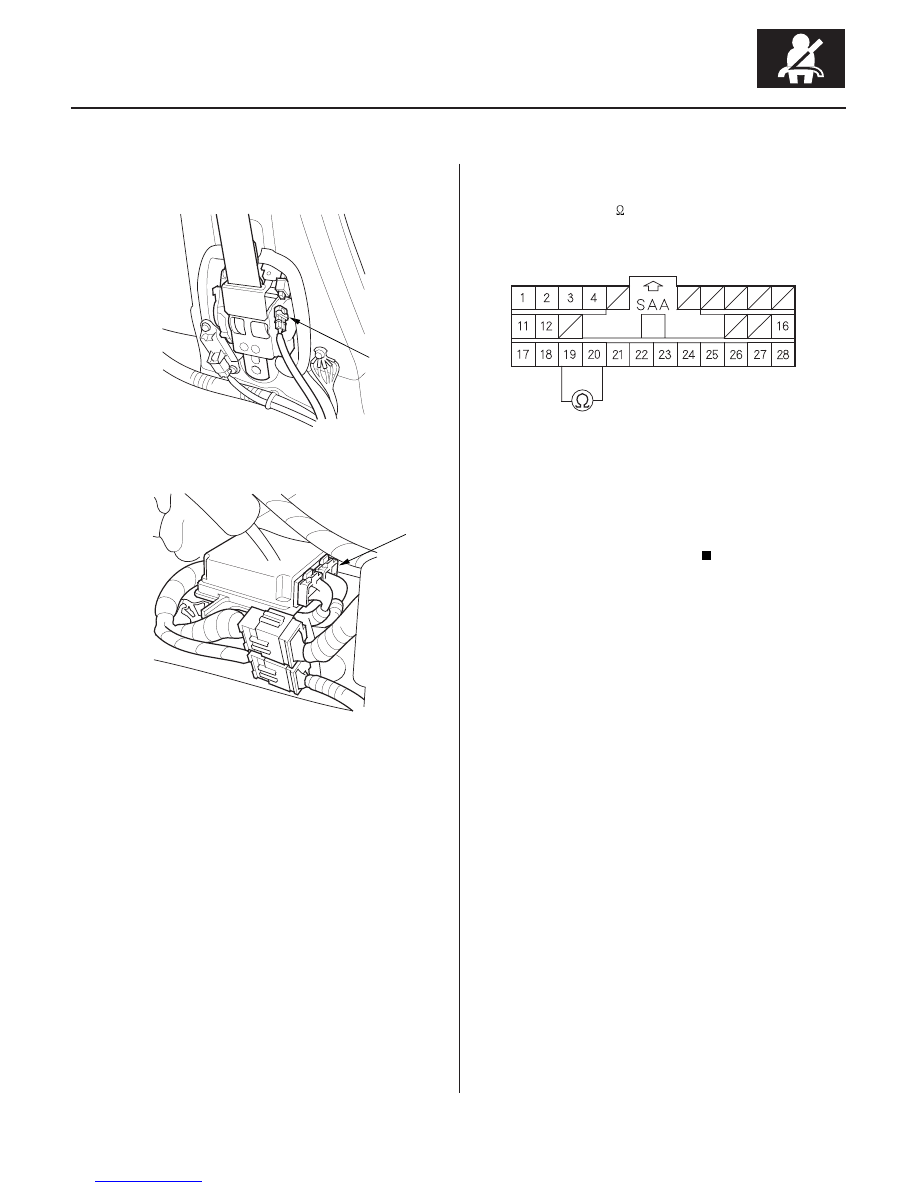

8. Disconnect the both seat belt tensioner 2P

connectors from the side wire harness (A).

9. Disconnect SRS unit connector B (28P) from the

SRS unit.

10. Check resistance between the No. 19 and No. 20

terminals of SRS unit connector B (28P). There
should be 0

1.0

.

Faulty driver’s side impact sensor or SRS

unit; replace the driver’s side impact sensor (see
page 23-386). If the problem is still present, replace
the SRS unit (see page 23-384).

Go to step 11.

(cont’d)

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:39:42 61S0X050_230_0271

*01

06

YES

NO

23-272

SRS

DTC Troubleshooting (cont’d)

C852

A

SRS FLOOR SUBHARNESS 28P CONNECTOR

LT GRN

GRN/WHT

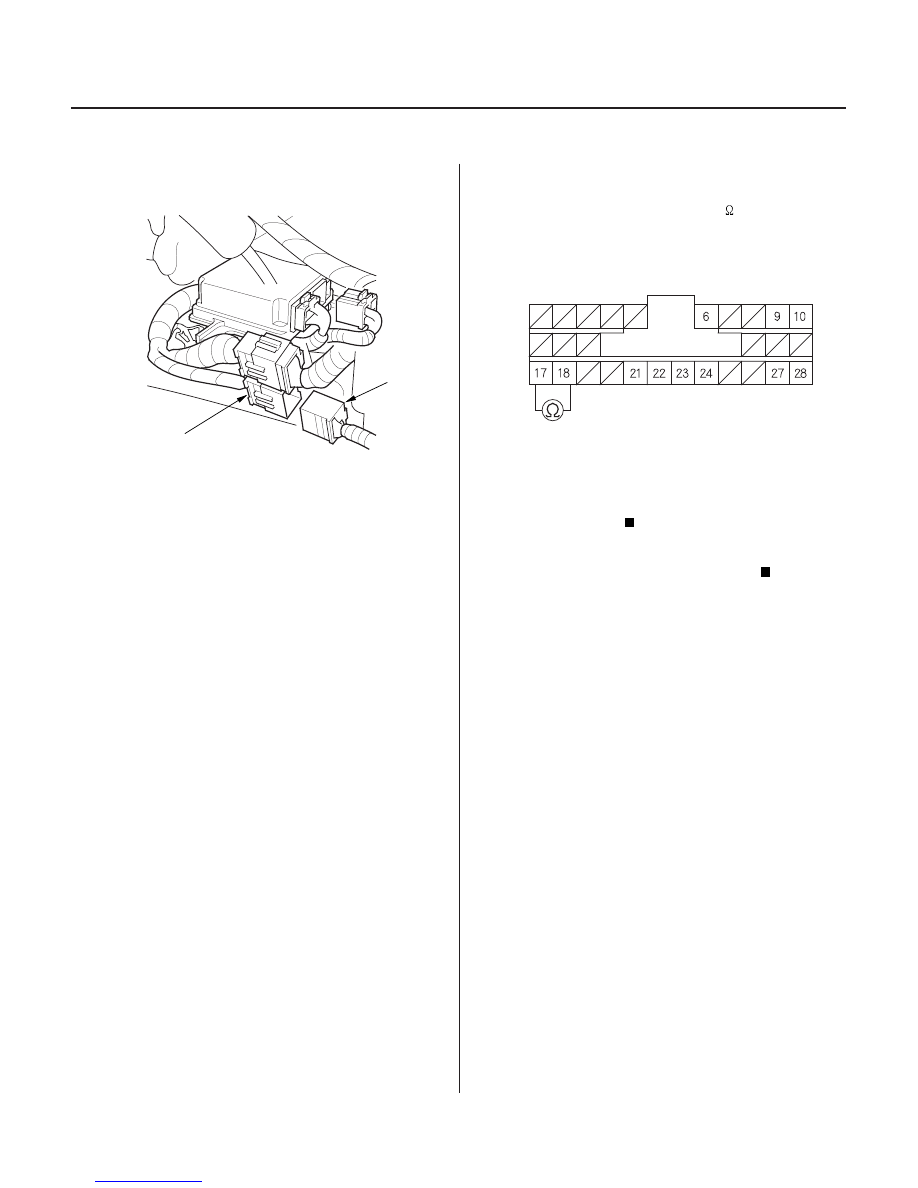

11. Disconnect the SRS floor harness 28P connector (A)

from SRS floor subharness 28P connector C852.

12. Check resistance between the No. 18 and No. 17

terminals of the SRS floor subharness 28P
connector. There should be 0

1.0

.

Open in the SRS floor harness; replace the

SRS floor harness.

Open in the SRS floor subharness or left side

wire harness; replace the faulty harness.

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:39:42 61S0X050_230_0272

01

01

S0X4ASIK791000R441XFAAT00

’03-04 Models

DTC 44-1x (44-10 to 44-19, 44-1A to 44-1F):

Special Tools Required

YES

NO

YES

NO

23-273

A

A

07YAZ-S3AA100

07SAZ-TB4011A

A

B

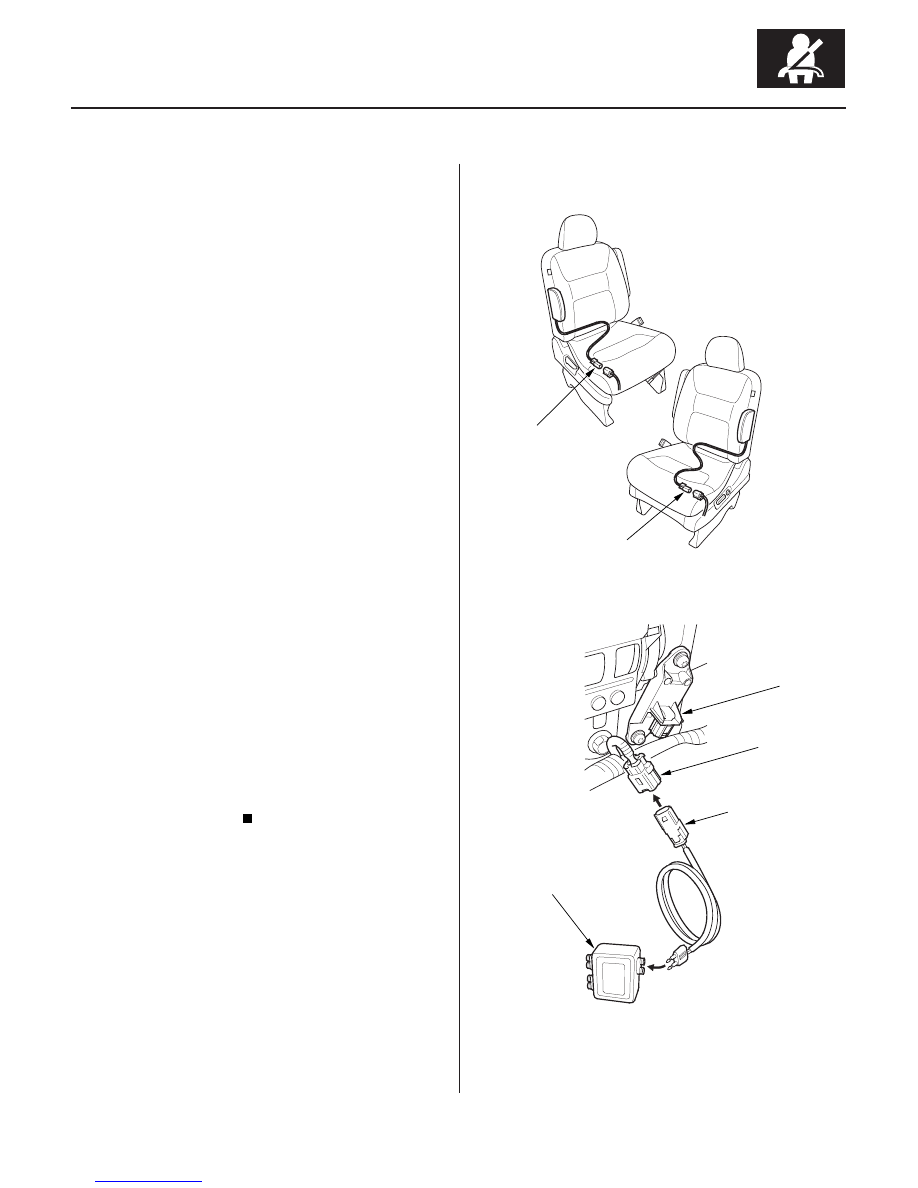

No Signal from the Front Passenger’s Side
Impact Sensor

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead H 07YAZ-S3AA100

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Check the connection between the right side wire

harness 2P connector and the front passenger’s
side impact sensor.

Go to step 5.

Poor contact between the right side wire

harness 2P connector and the front passenger’s
side impact sensor; replace the front passenger’s
side impact sensor and/or the right side wire
harness, as needed.

5. Disconnect the driver’s side airbag and front

passenger’s side airbag 2P connectors (A).

6. Disconnect the right side wire harness 2P

connector (A) from the front passenger’s side
impact sensor (B).

(cont’d)

Does the SRS indicator stay on?

Is the connection OK ?

03/07/29 10:39:43 61S0X050_230_0273
