DTC 4-3:

Special Tools Required

YES

23-134

SRS

DTC Troubleshooting (cont’d)

07TAZ-SZ5011A

07SAZ-TB4011A

C581

07TAZ-SZ5011A

07SAZ-TB4011A

Short to Another Wire or Decreased

Resistance in Front Passenger’s Seat Belt
Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the front passenger’s seat belt

tensioner 2P connector from the right side wire
harness 2P connector (A).

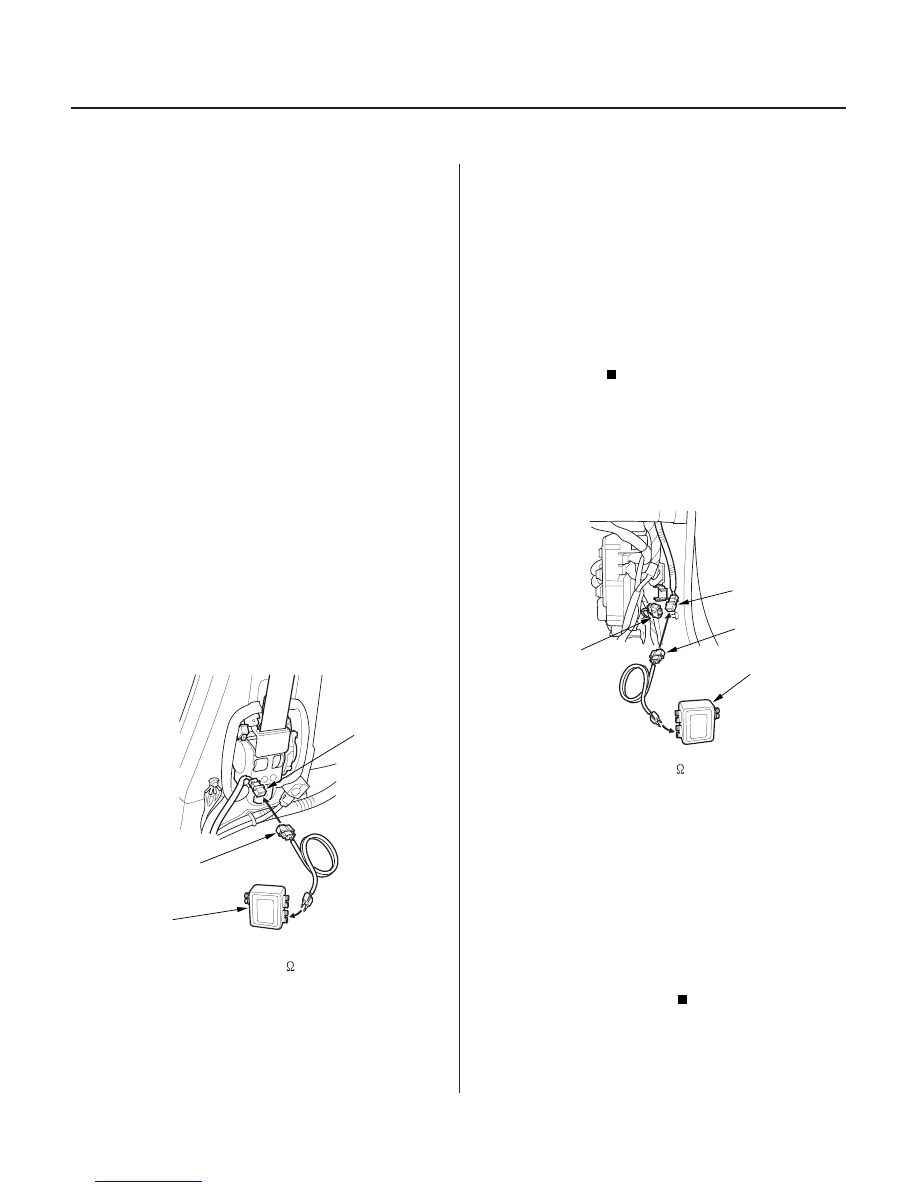

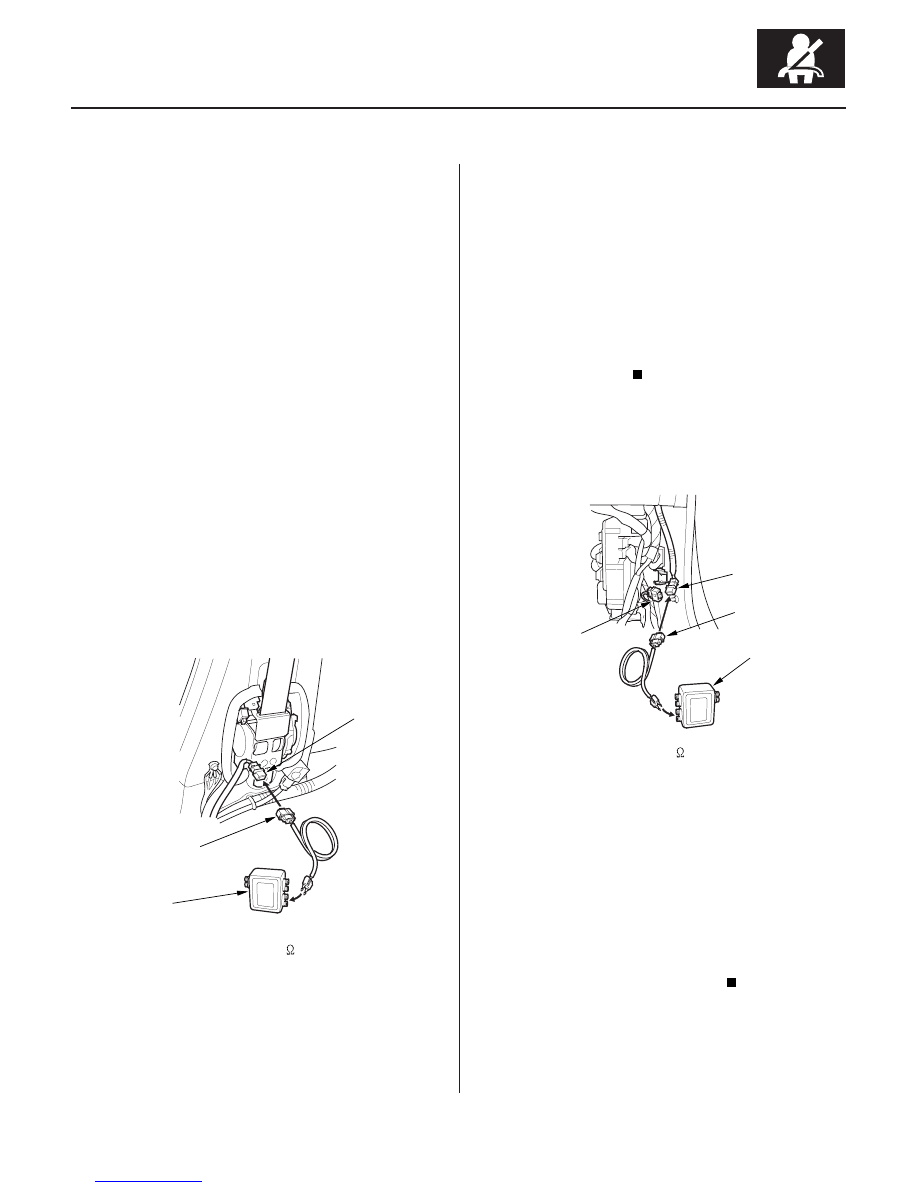

5. Connect the special tool (2

connector) to the

right side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short in the front passenger’s seat belt

tensioner; replace the front passenger’s seat belt
(see page 23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the SRS main wire harness 2P

connector C581 from the right side wire harness 2P
connector (A).

11. Connect the special tool (2

connector) to the SRS

main harness 2P connector.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short in the right side wire harness; replace

the right side wire harness.

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

Does the SRS indicator stay on?

Is DT C 4-3 indicated?

03/07/29 10:34:48 61S0X050_230_0134

−

０３

０４

０５

YES

23-135

SRS UNIT CONNECTOR A (18P)

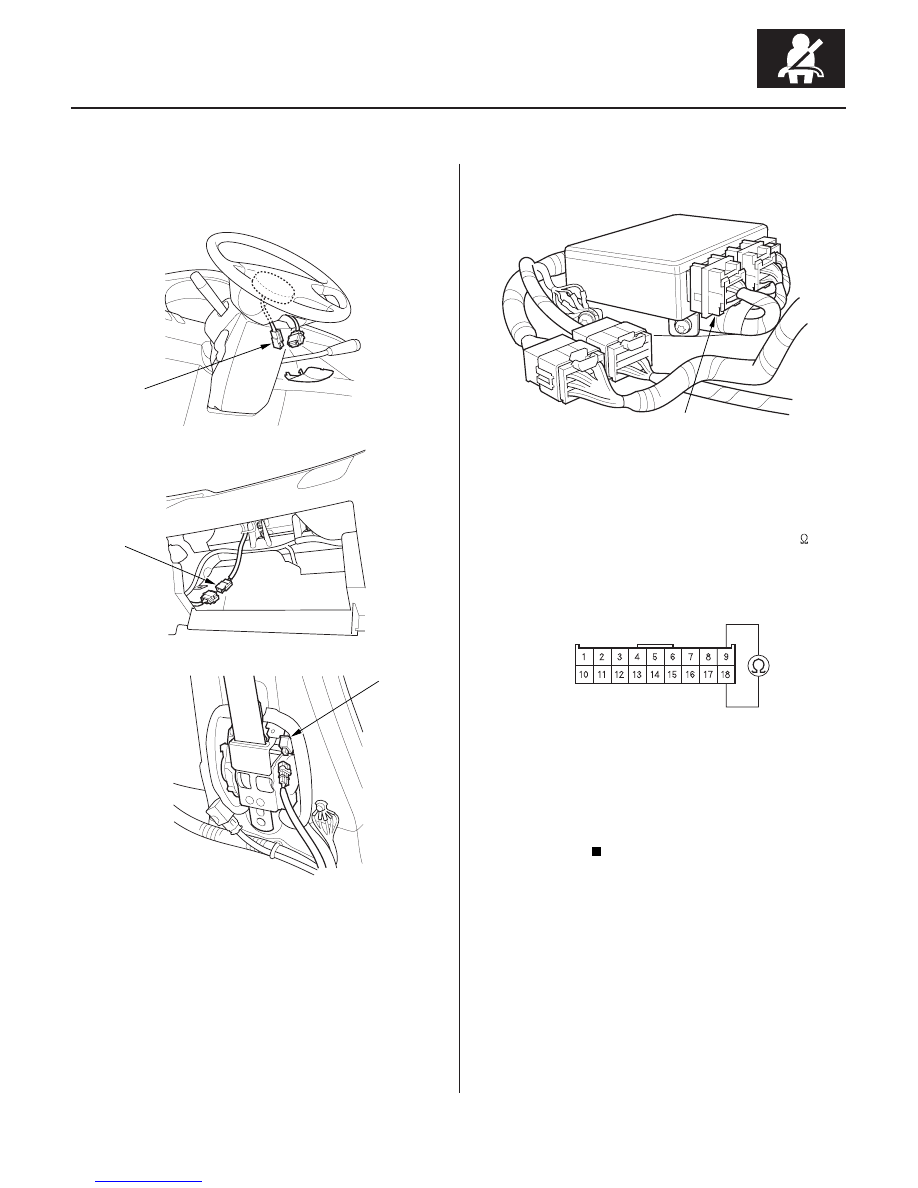

16. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and driver’s seat
belt tensioner connector (C).

17. Disconnect SRS unit connector A (18P) from the

SRS unit.

18. Disconnect the special tool from the SRS main

harness 2P connector.

19. Check resistance between the No. 9 terminal and

the No. 18 terminals of SRS unit connector A (18P).
There should be an open circuit, or at least 1 M

Faulty SRS unit; replace the SRS unit (see

page 23-382).

Go to step 20.

(cont’d)

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:34:49 61S0X050_230_0135

−

＊０２

０７

YES

23-136

SRS

DTC Troubleshooting (cont’d)

C851

SRS MAIN HARNESS 28P CONNECTOR

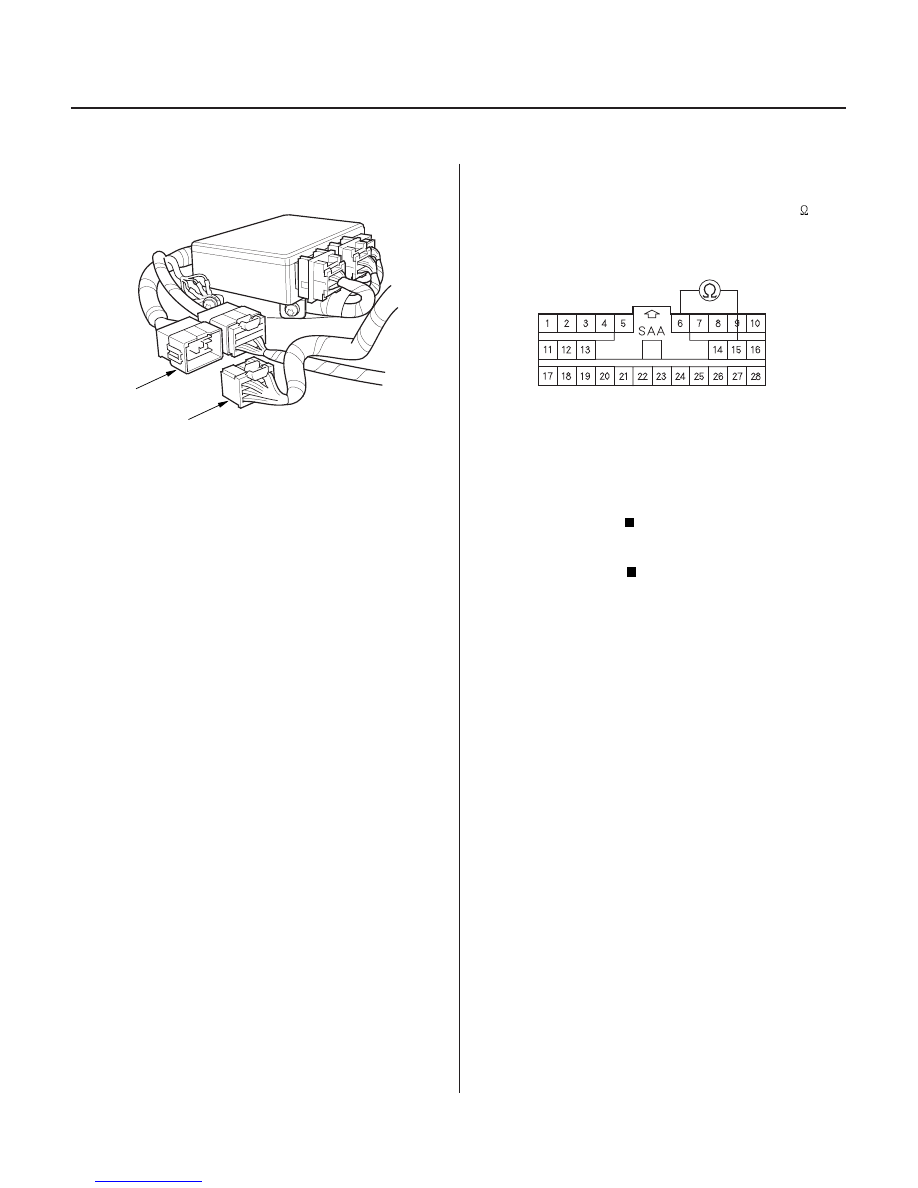

20. Disconnect the SRS main harness 28P connector

(A) from the SRS floor harness 28P connector C851.

21. Check resistance between the No. 6 and the No. 15

terminals of the SRS main harness 28P connector.
There should be an open circuit, or at least 1 M

Short in the SRS floor harness; replace the

SRS floor harness.

Short in the SRS main harness; replace the

SRS main harness.

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:34:49 61S0X050_230_0136

−

０１

０２

Ｓ０Ｘ４ＡＺ３Ｋ７９１０００８１０４４ＦＡＡＴ００

’02 Model

DTC 4-4:

Special Tools Required

YES

23-137

07TAZ-SZ5011A

07SAZ-TB4011A

07TAZ-SZ5011A

07SAZ-TB4011A

Short to Power in Front Passenger’s

Seat Belt Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the front passenger’s seat belt

tensioner 2P connector from the right side wire
harness 2P connector (A).

5. Connect the special tool (2

connector) to the

right side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short to power in the front passenger’s seat

belt tensioner; replace the front passenger’s seat
belt (see page 23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10.

11. Connect the special tool (2

connector) to the SRS

main harness 2P connector.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short to power in the right side wire harness;

replace the right side wire harness.

(cont’d)

Does the SRS indicator stay on?

Is DT C 4-4 indicated?

03/07/29 10:34:50 61S0X050_230_0137

Disconnect the SRS main harness 2P connector C581
