Honda Odyssey 2004. Manual - part 541





04

05

01

YES

NO

YES

NO

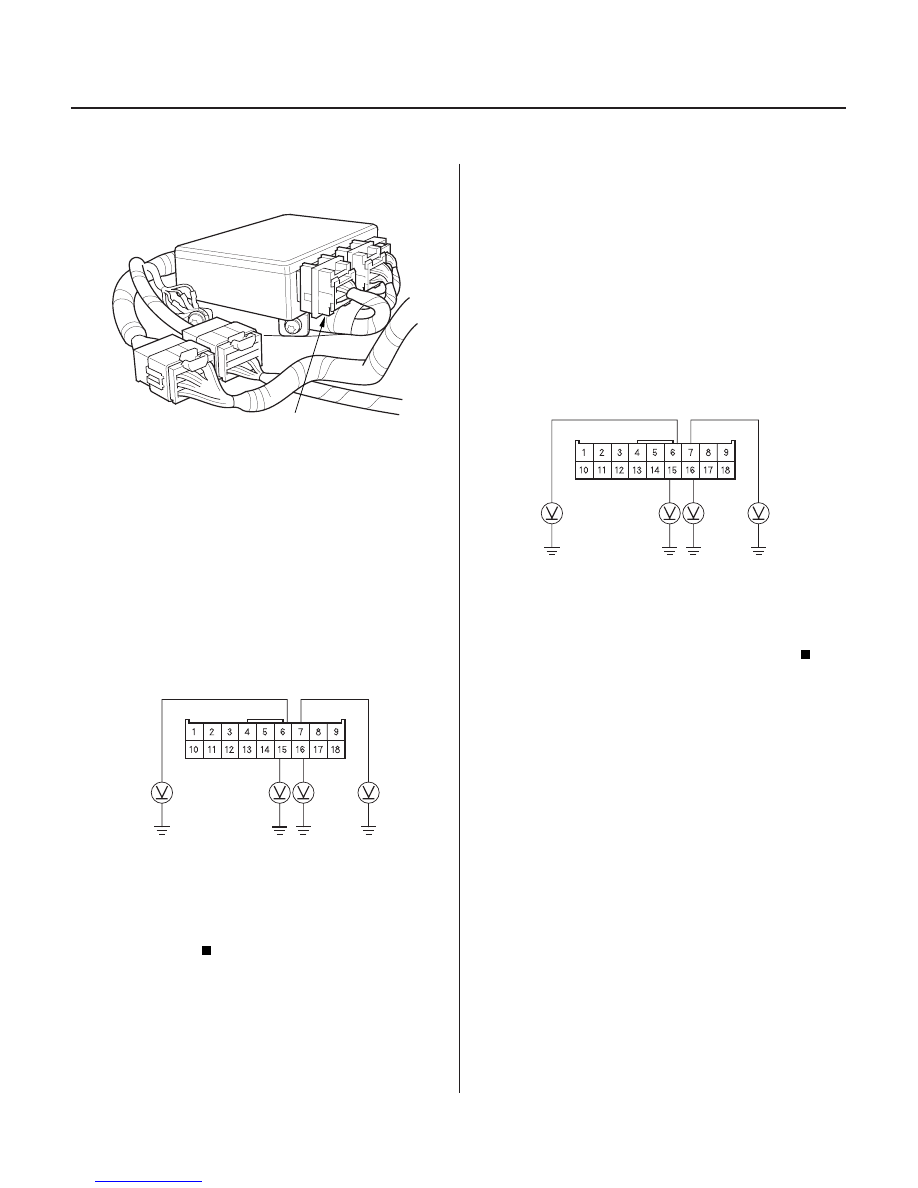

23-106

SRS

DTC Troubleshooting (cont’d)

A

SRS UNIT CONNECTOR A (18P)

SRS UNIT CONNECTOR A (18P)

12. Disconnect SRS unit connector A (18P) from the

SRS unit.

13. Disconnect the special tool from the cable reel 4P

connector.

14. Reconnect the battery negative cable.

15. Turn the ignition switch ON (II).

16. Check for voltage between the No. 7 terminal of

SRS unit connector A (18P) and body ground, the
No. 16 terminal and body ground, the No. 6
terminal and body ground, and the No. 15 terminal
and body ground. There should be 0.5 V or less.

Faulty SRS unit; replace the SRS unit (see

page 23-382).

Go to step 17.

17. Turn the ignition switch OFF.

18. Disconnect the cable reel from the SRS main

harness.

19. Turn the ignition switch ON (II).

20. Check for voltage between the No. 7 terminal of

SRS unit connector A (18P) and body ground, the
No. 16 terminal and body ground, the No. 6
terminal and body ground, and the No. 15 terminal
and body ground. There should be 0.5 V or less.

Replace the cable reel (see page 23-377).

Go to step 21.

Wire side of female terminals

Wire side of female terminals

Is the voltage as specif ied?

Is the voltage as specif ied?

03/07/29 10:34:28 61S0X050_230_0106

*01

*02

YES

NO

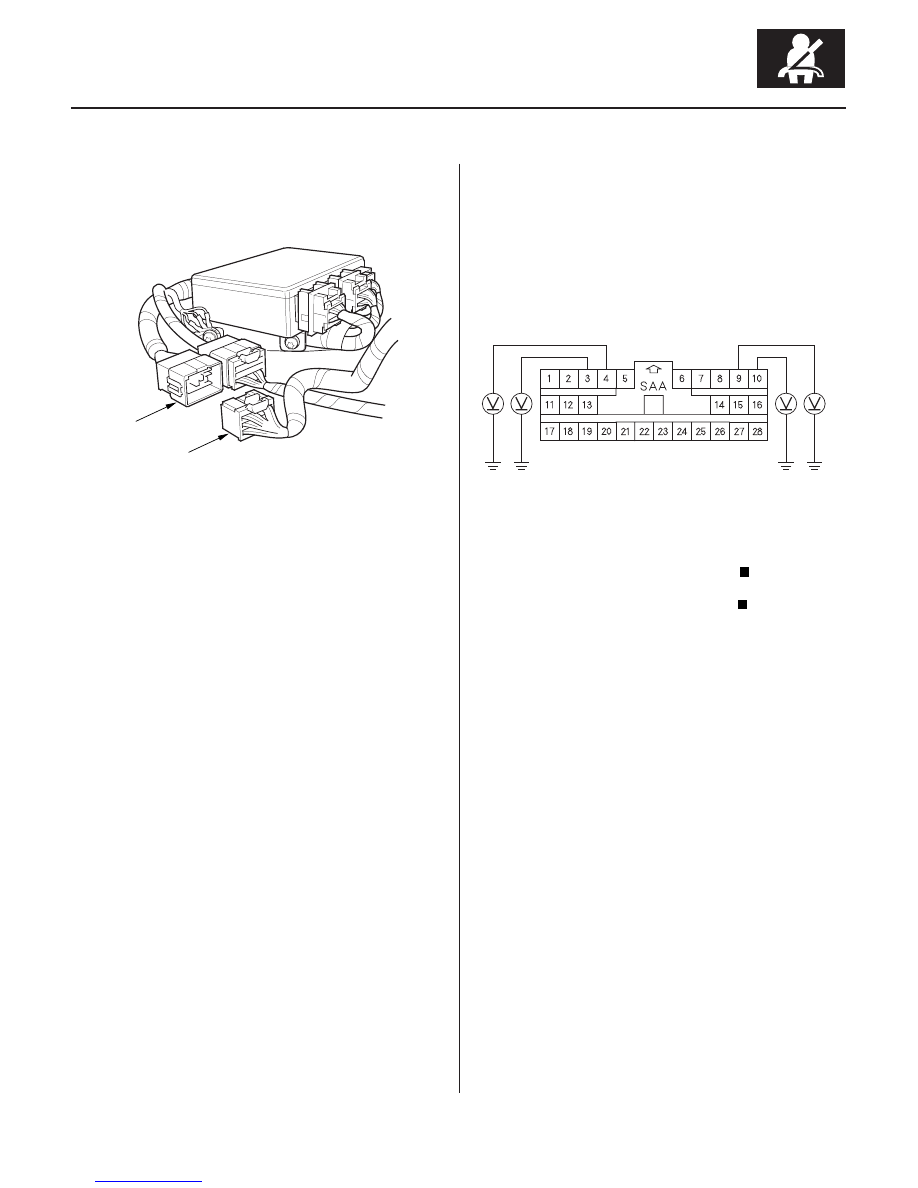

23-107

C851

A

SRS MAIN HARNESS 28P CONNECTOR

21. Turn the ignition switch OFF.

22. Disconnect the SRS main harness 28P connector

(A) from the SRS floor harness 28P connector C851.

23. Turn the ignition switch ON (II).

24. Check for voltage between the No. 9 terminal of the

SRS main harness 28P connector and body ground,
the No. 10 terminal and body ground, the No. 3
terminal and body ground, and the No. 4 terminal
and body ground. There should be 0.5 V or less.

Replace the SRS floor harness.

Replace the SRS main harness.

Wire side of female terminals

Is the voltage as specif ied?

03/07/29 10:34:29 61S0X050_230_0107

01

02

03

S0X4AZ3K79100081015FAAT00

’02 Model

DTC 1-5:

Special Tools Required

YES

NO

YES

NO

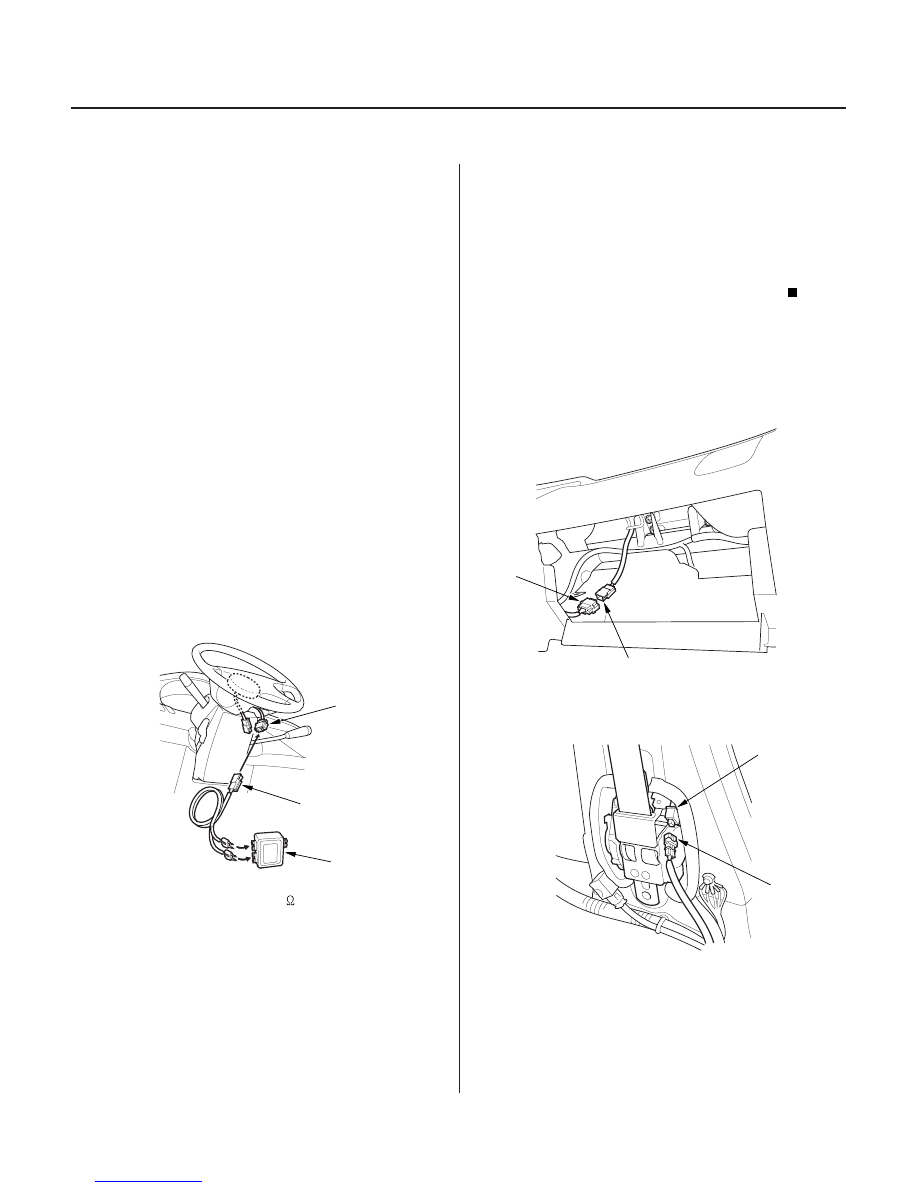

23-108

SRS

DTC Troubleshooting (cont’d)

A

07XAZ-SZ30100

07SAZ-TB4011A

B

A

A

B

Short to Ground in Driver’s Airbag

Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the driver’s airbag 4P connector from

the cable reel 4P connector (A).

5. Connect the special tool (2

connectors) to the

cable reel 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short to ground in the driver’s airbag inflator;

replace the driver’s airbag (see page 23-368).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the front passenger’s airbag 4P

connector (A) from the SRS main harness 4P
connector (B).

11. Disconnect both seat belt tensioner 2P connectors

(A) from the side wire harness 2P connectors (B).

Does the SRS indicator stay on?

Is DT C 1-5 indicated?

03/07/29 10:34:29 61S0X050_230_0108

04

01

05

YES

NO

YES

NO

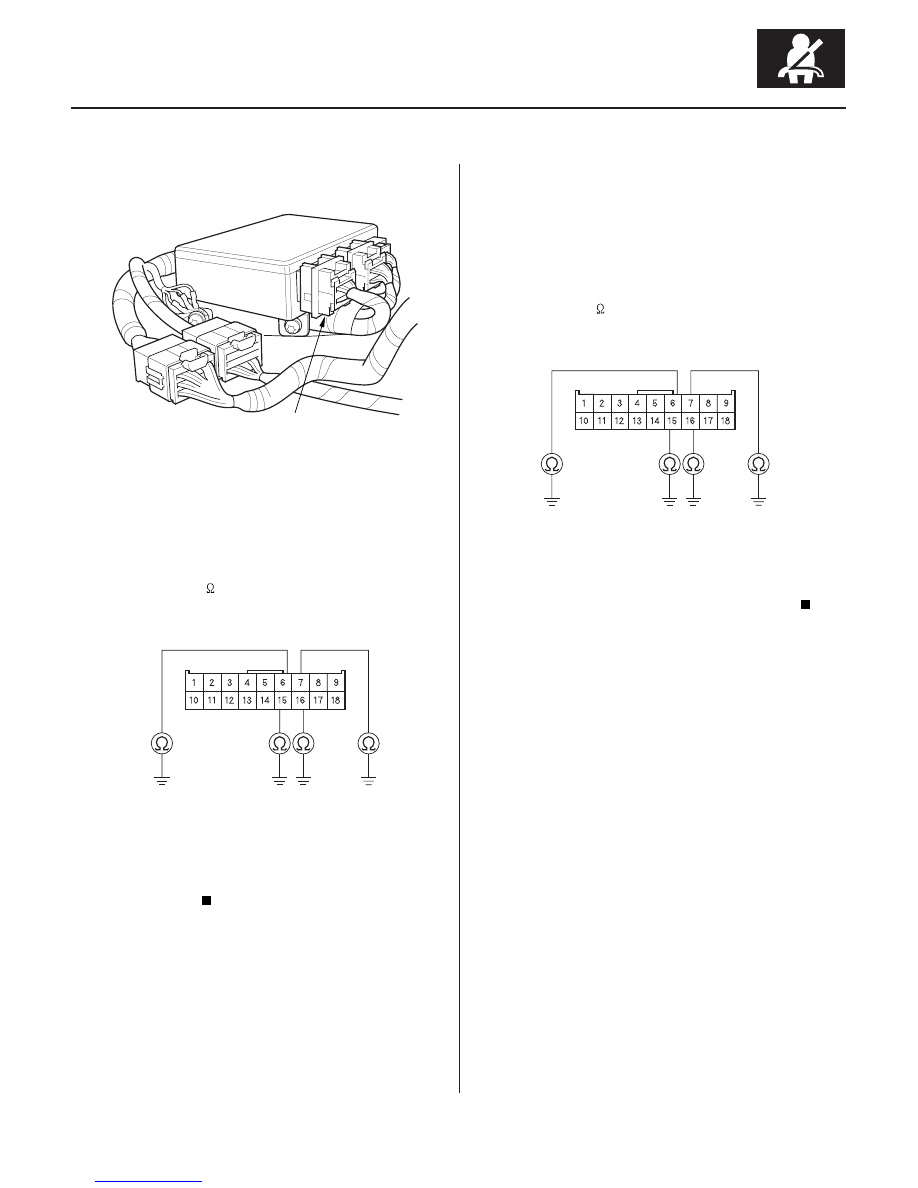

23-109

A

SRS UNIT CONNECTOR A (18P)

SRS UNIT CONNECTOR A (18P)

12. Disconnect SRS unit connector A (18P) from the

SRS unit.

13. Disconnect the special tool from the cable reel 4P

connector.

14. Check resistance between the No. 7 terminal of

SRS unit connector A (18P) and body ground, the
No. 16 terminal and body ground, the No. 6
terminal and body ground, and the No. 15 terminal
and body ground. There should be an open circuit,
or at least 1 M

.

Faulty SRS unit; replace the SRS unit (see

page 23-382).

Go to step 15.

15. Disconnect the cable reel from the SRS main

harness.

16. Check resistance between the No. 7 terminal of

SRS unit connector A (18P) and body ground, the
No. 16 terminal and body ground, the No. 6
terminal and body ground, and the No. 15 terminal
and body ground. There should be an open circuit,
or at least 1 M

.

Replace the cable reel (see page 23-377).

Go to step 17.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Is the r esistance as specif ied?

Is the r esistance as specif ied?

03/07/29 10:34:30 61S0X050_230_0109
