’02 Model

DTC 1-3:

Special Tools Required

YES

NO

YES

NO

23-102

SRS

DTC Troubleshooting (cont’d)

A

07XAZ-SZ30100

07SAZ-TB4011A

B

A

Short to Another Wire or Decreased

Resistance in Driver’s Airbag Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

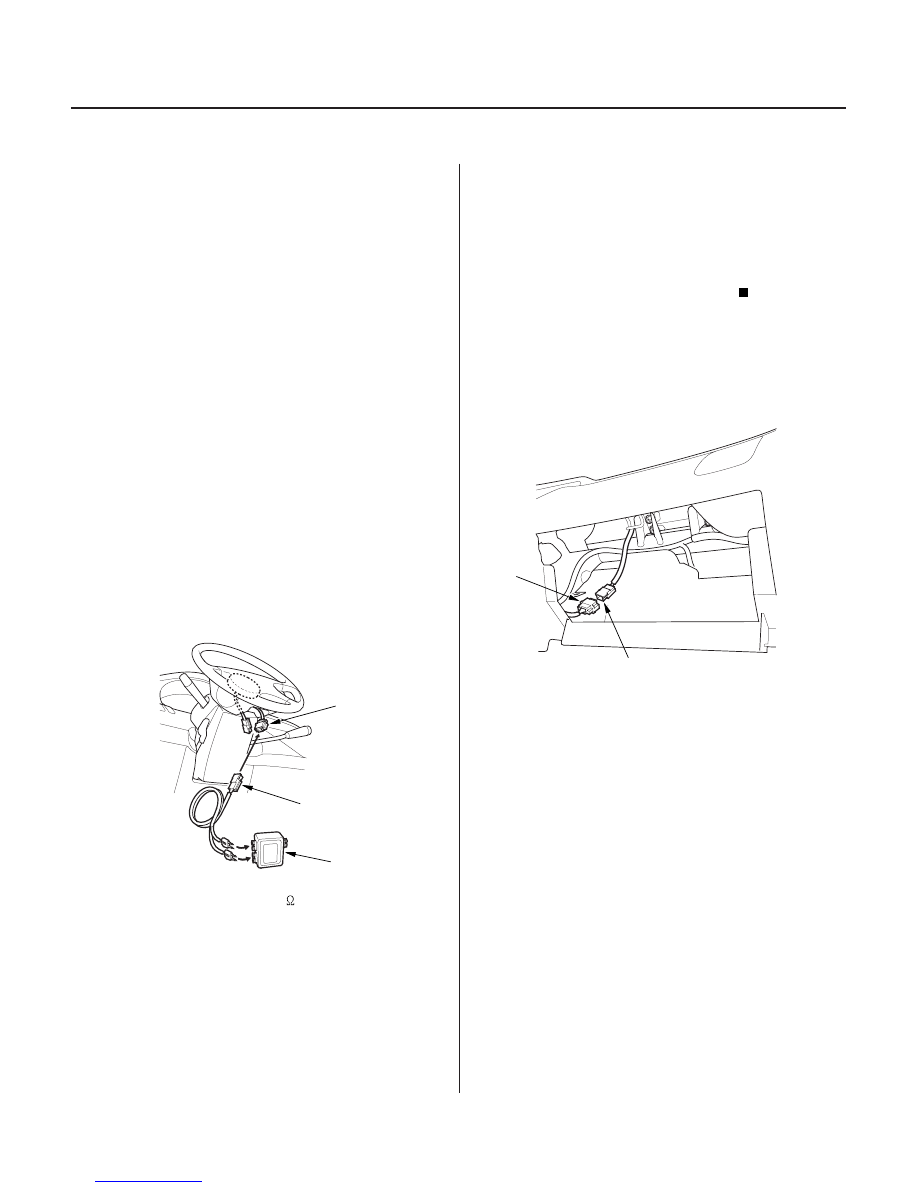

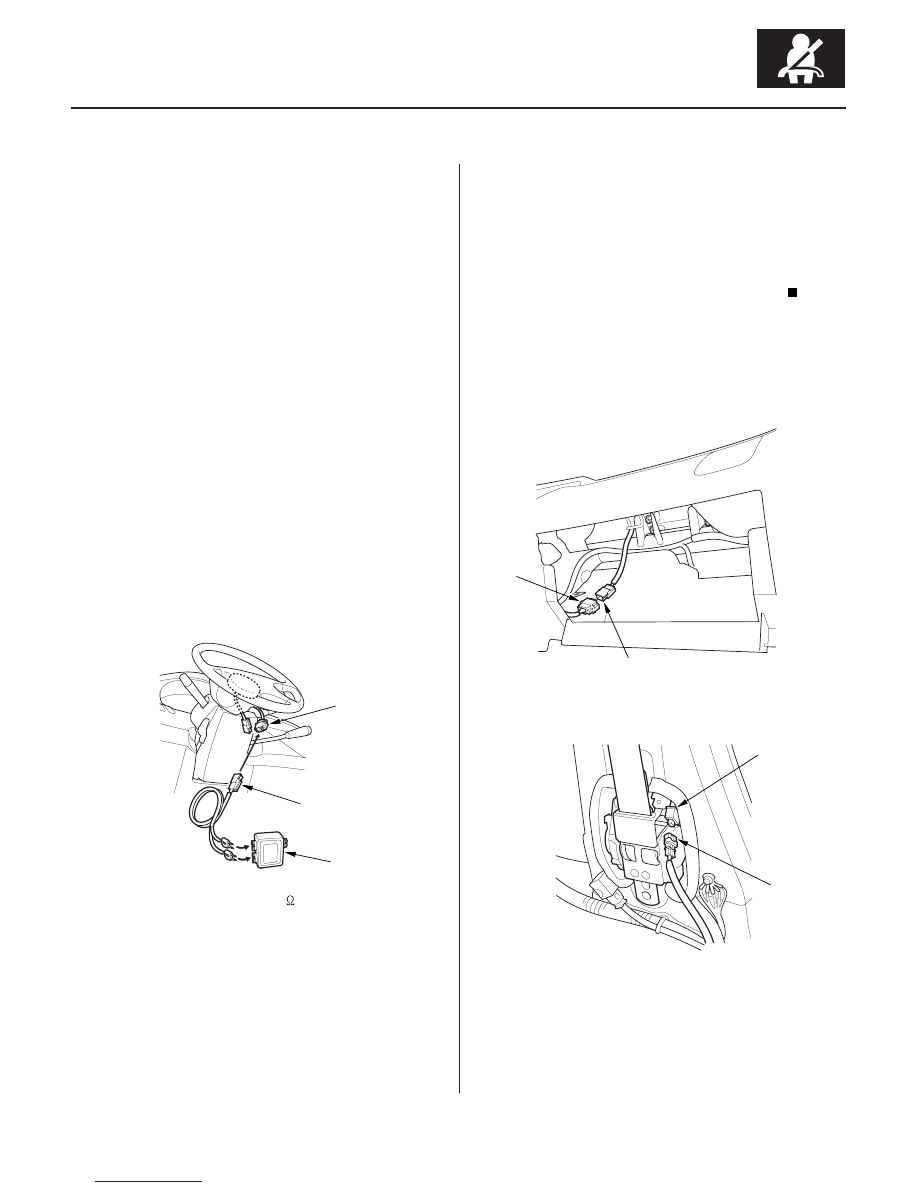

4. Disconnect the driver’s airbag 4P connector from

the cable reel 4P connector (A).

5. Connect the special tool (2

connectors) to the

cable reel 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short in the driver’s airbag inflator; replace

the driver’s airbag (see page 23-368).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the front passenger’s airbag 4P

connector (A) from the SRS main harness 4P
connector (B).

Does the SRS indicator stay on?

Is DT C 1-3 indicated?

03/07/29 10:34:25 61S0X050_230_0102

03

04

05

YES

NO

YES

NO

23-103

A

B

A

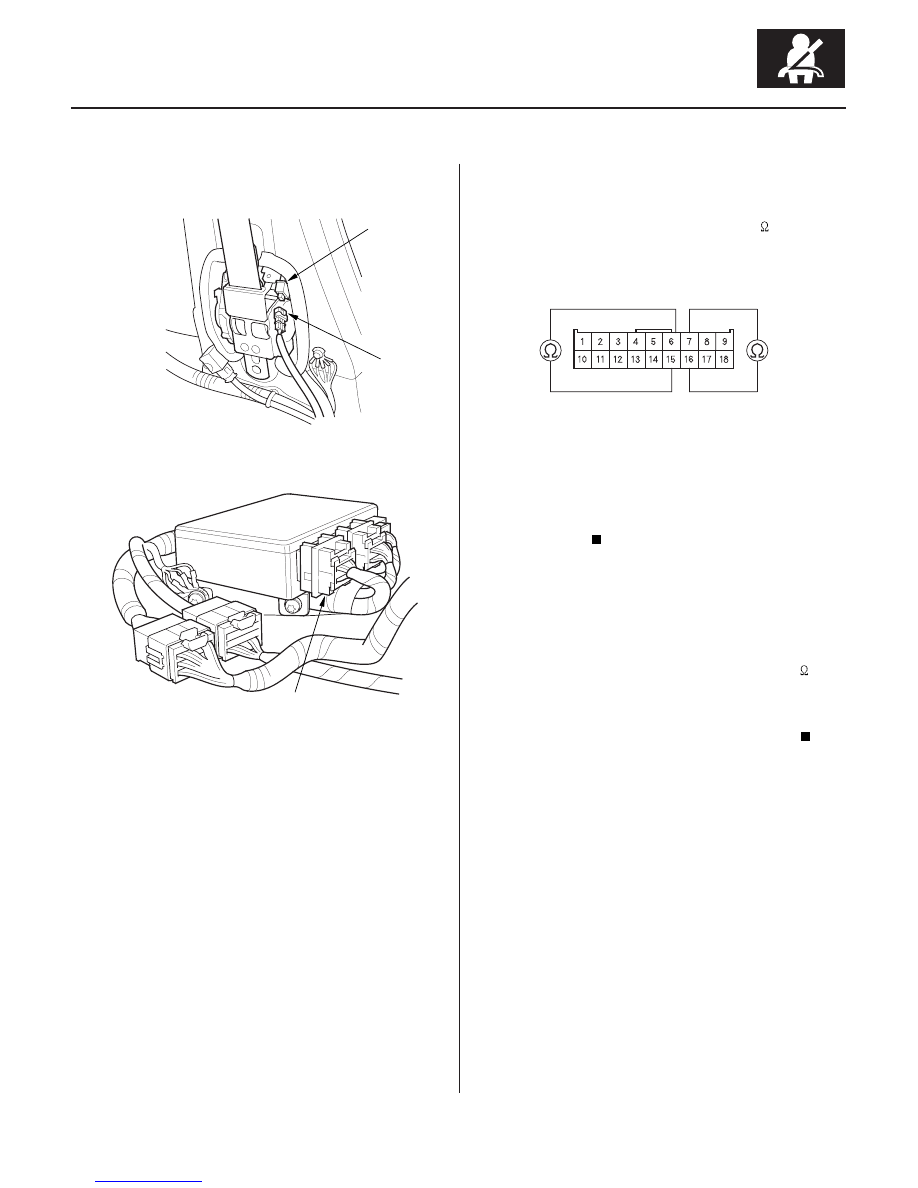

SRS UNIT CONNECTOR A (18P)

11. Disconnect both seat belt tensioner 2P connectors

(A) from the side wire harness 2P connectors (B).

12. Disconnect SRS unit connector A (18P) from the

SRS unit.

13. Disconnect the special tool from the cable reel 4P

connector.

14. Check resistance between the No. 7 and the No. 16

terminals and between the No. 6 and the No. 15
terminals of SRS unit connector A (18P). There
should be an open circuit, or at least 1 M

.

Faulty SRS unit; replace the SRS unit (see

page 23-382).

Go to step 15.

15. Disconnect the cable reel from the dashboard wire

harness. Check resistance between the No. 7 and
the No. 16 terminals and between the No. 6 and the
No. 15 terminals of SRS unit connector A (18P).
There should be an open circuit, or at least 1 M

.

Replace the cable reel (see page 23-377).

Go to step 16.

(cont’d)

Wire side of female terminals

Is the r esistance as specif ied?

Is the r esistance as specif ied?

03/07/29 10:34:26 61S0X050_230_0103

*01

07

YES

NO

23-104

SRS

DTC Troubleshooting (cont’d)

C851

A

SRS MAIN HARNESS 28P CONNECTOR

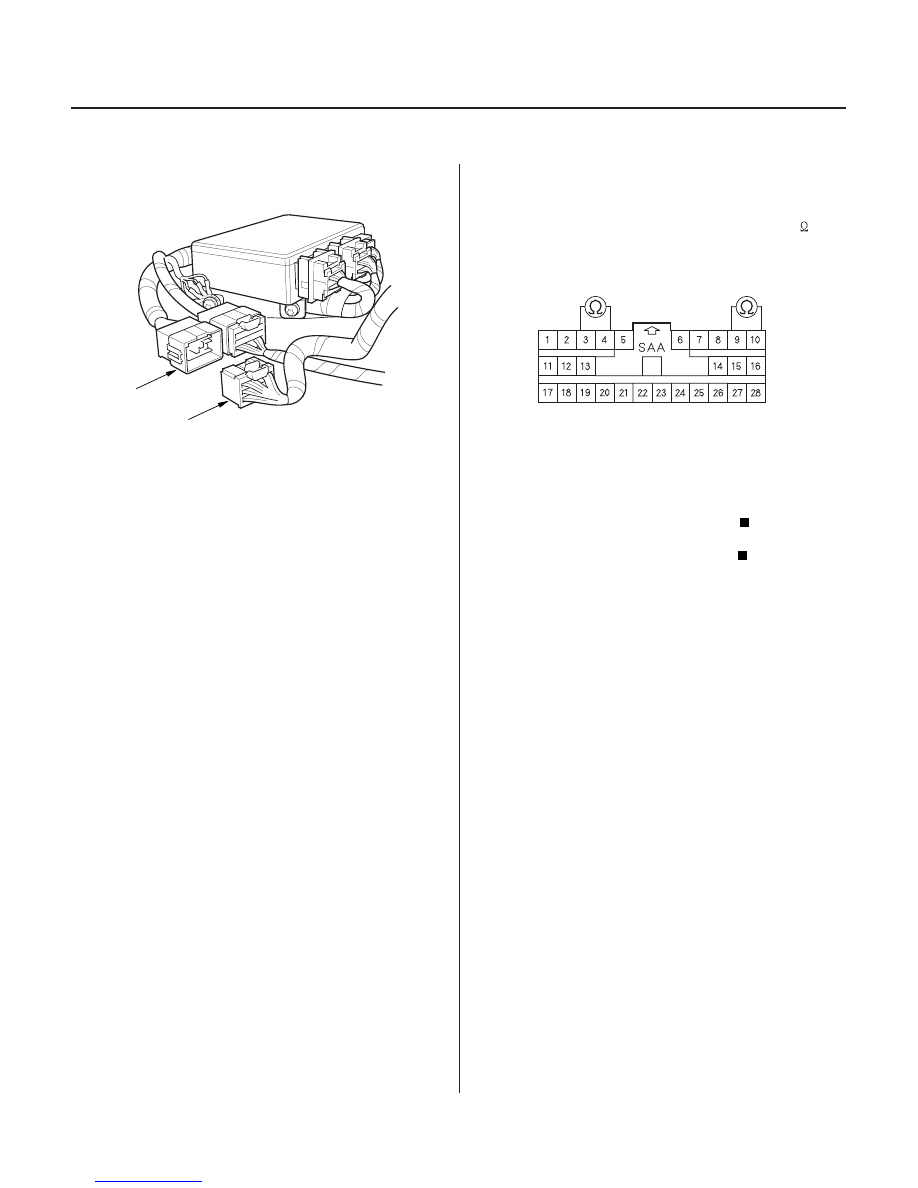

16. Disconnect the SRS main harness 28P connector

(A) from the SRS floor harness 28P connector C851.

17. Check resistance between the No. 9 and the No. 10

terminals and between the No. 3 and the No. 4
terminals of the SRS main harness 28P connector.
There should be an open circuit, or at least 1 M

.

Replace the SRS floor harness.

Replace the SRS main harness.

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:34:27 61S0X050_230_0104

01

02

03

S0X4AZ3K79100081014FAAT00

’02 Model

DTC 1-4:

Special Tools Required

YES

NO

YES

NO

23-105

A

07XAZ-SZ30100

07SAZ-TB4011A

B

A

A

B

Short to Power in Driver’s Airbag

Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the driver’s airbag 4P connector from

the cable reel 4P connector (A).

5. Connect the special tool (2

connectors) to the

cable reel 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short to power in the driver’s airbag inflator;

replace the driver’s airbag (see page 23-368).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the front passenger’s airbag 4P

connector (A) from the SRS main harness 4P
connector (B).

11. Disconnect both seat belt tensioner 2P connectors

(A) from the side wire harness 2P connectors (B).

(cont’d)

Does the SRS indicator stay on?

Is DT C 1-4 indicated?

03/07/29 10:34:27 61S0X050_230_0105
