Honda Odyssey 2004. Manual - part 521





*19

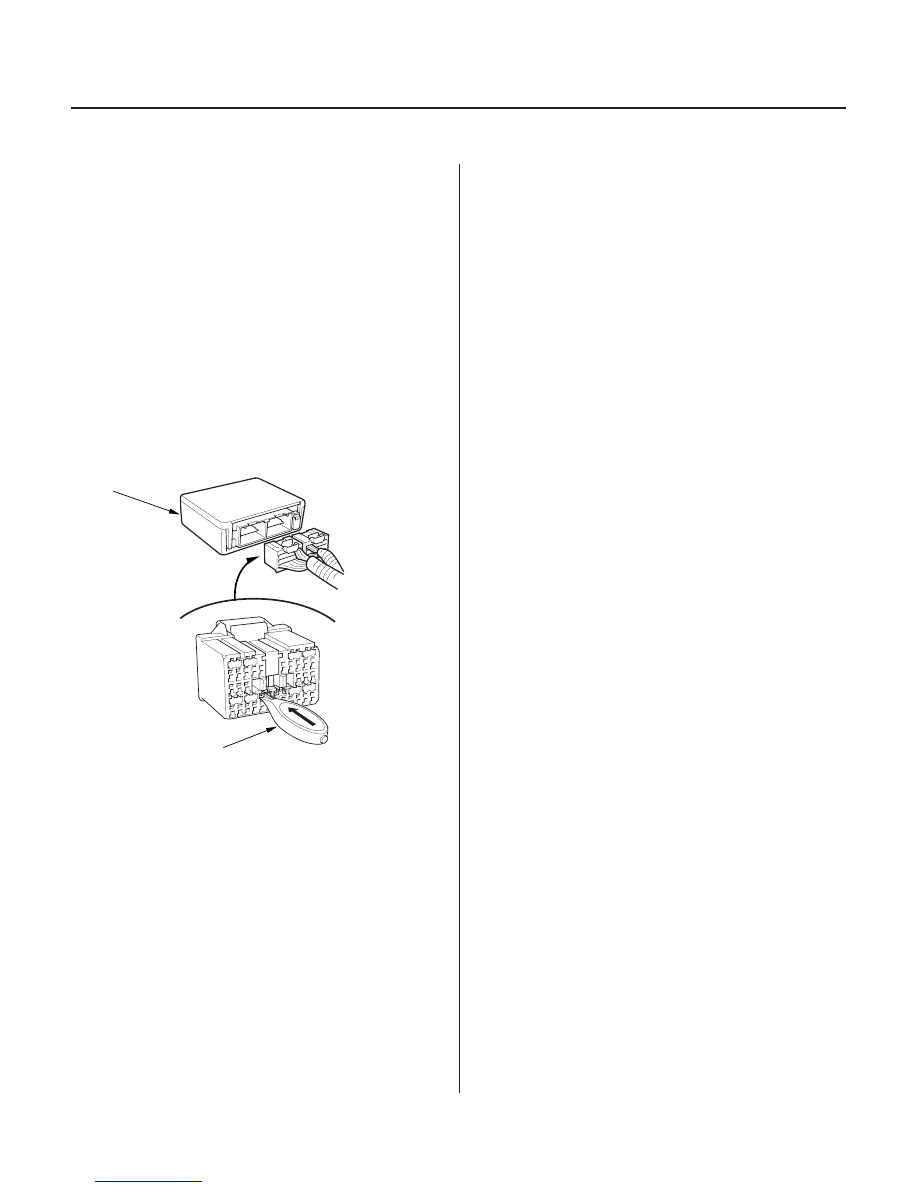

Reopening the SRS Unit connector for
diagnosis (’03-04 Models)

23-26

SRS

Precautions and Procedures (cont’d)

070AZ-SAA0100

SRS UNIT

NOTE:

• To prevent damage of the connector cavity, insert the

special tool straight into the cavity from the terminal
side.

• Do not use the special tool if it is damaged.
• Make sure to remove the special tool before

reconnection.

When the SRS unit connector is disconnected, a short
circuit is created in the connector to prevent an airbag
deployment. The circuit needs to be open sometimes
when diagnosis is performed on the system. Insert the
special tool(s) (No. 070AZ-SAA0100) in the specified
cavities when it is necessary to keep the circuit open for
diagnosis.

Terminal side of connector

03/07/29 10:31:01 61S0X050_230_0026

*15

*16

01

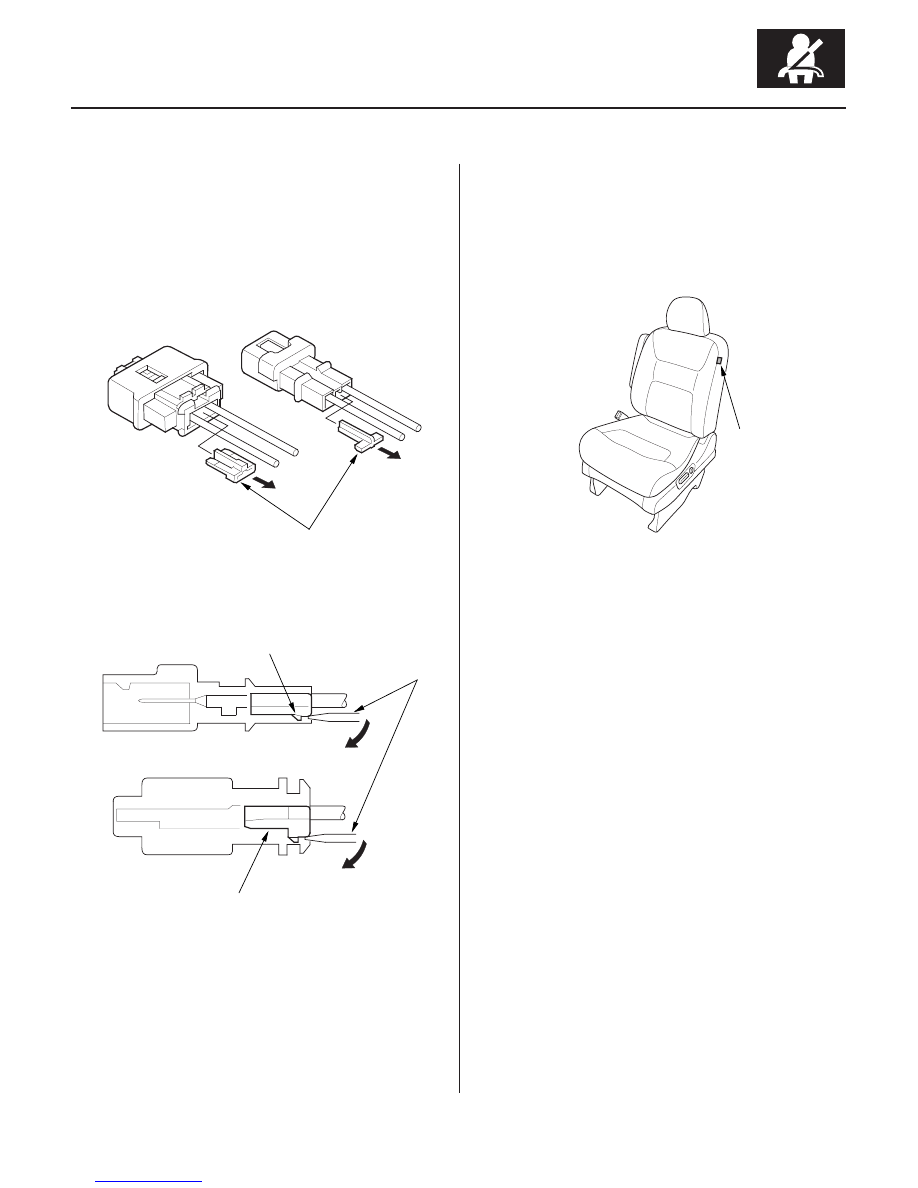

Backprobing Spring-loaded Lock Connectors

Seats with Side Airbags

23-27

A

A

B

A

Tag
SIDE AIRBAG

When checking voltage or resistance on this type of
connector the first time, you must remove the retainer
(A) to insert the tester probe from the wire side.

NOTE: It is not necessary to reinstall the removed
retainer; the terminals will stay locked in the connector
housing.

To remove the retainer (A), insert a flat-tip screwdriver
(B) between the connector body and the retainer, then
carefully pry out the retainer. Take care not to break the
connector.

Seats with side airbags have a ‘‘SIDE AIRBAG’’ label on
the seat-back. Because the component parts (seat-back
cover, cushion, etc.) of seats with and without airbags
are different, make sure you install only the correct
replacement parts.

• When cleaning, do not saturate the seat with liquid,

and do not spray steam on the seat.

• Do not repair a torn or frayed seat-back cover.

Replace the seat-back cover.

• After a collision in which the side airbag was

deployed, replace the side airbag with new parts. If
the seat-back cushion is split, it must be replaced. If
the seat-back frame is deformed, it must be replaced.

• Never put aftermarket accessories on the seat (covers,

pads, seat heaters, lights, etc.).

(cont’d)

03/07/29 10:31:02 61S0X050_230_0027

03

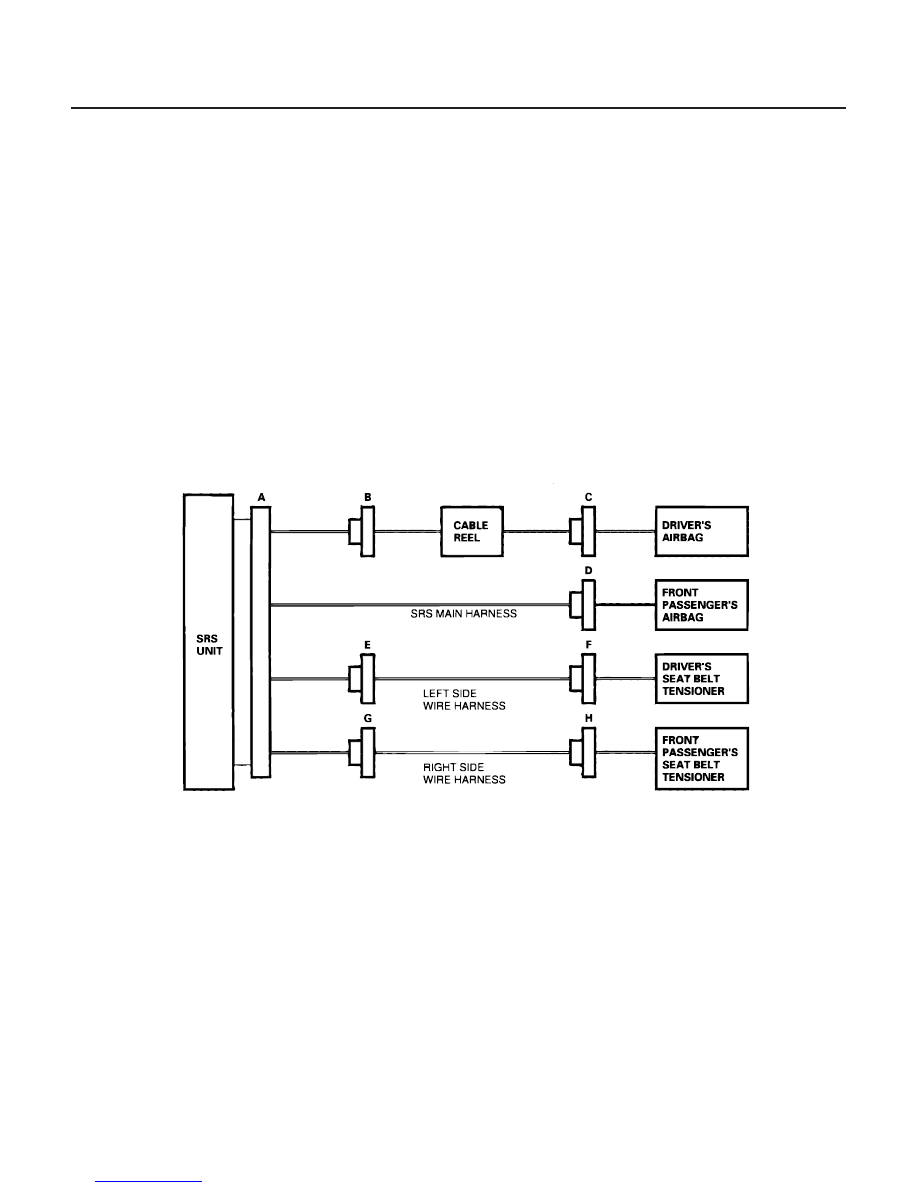

Disconnecting System Connectors (’99-01 Models)

23-28

SRS

Precautions and Procedures (cont’d)

Before removing a front airbag or other SRS related devices (the SRS unit, the cable reel and the seat belt tensioner
connector), disconnecting connectors from related devices, or removing the dashboard or the steering column,
disconnect the airbag connectors and seat belt tensioner connectors to prevent accidental deployment.

Turn the ignition switch OFF, disconnect the negative cable from the battery, and wait at least 3 minutes before
beginning the following procedures.

• Before disconnecting the SRS unit 18P connector (A) from the SRS unit, disconnect both airbag 2P connectors (C, D)

and both seat belt tensioner 2P connectors (F, H).

• Before disconnecting the cable reel 2P connector (B), disconnect the driver’s airbag 2P connector (C).

• Before disconnecting the left side wire harness 2P connector (E), disconnect the driver’s seat belt tensioner 2P

connector (F).

• Before disconnecting the right side wire harness 2P connector (G), disconnect the front passenger’s seat belt

tensioner 2P connector (H).

03/07/29 10:31:03 61S0X050_230_0028

04

05

06

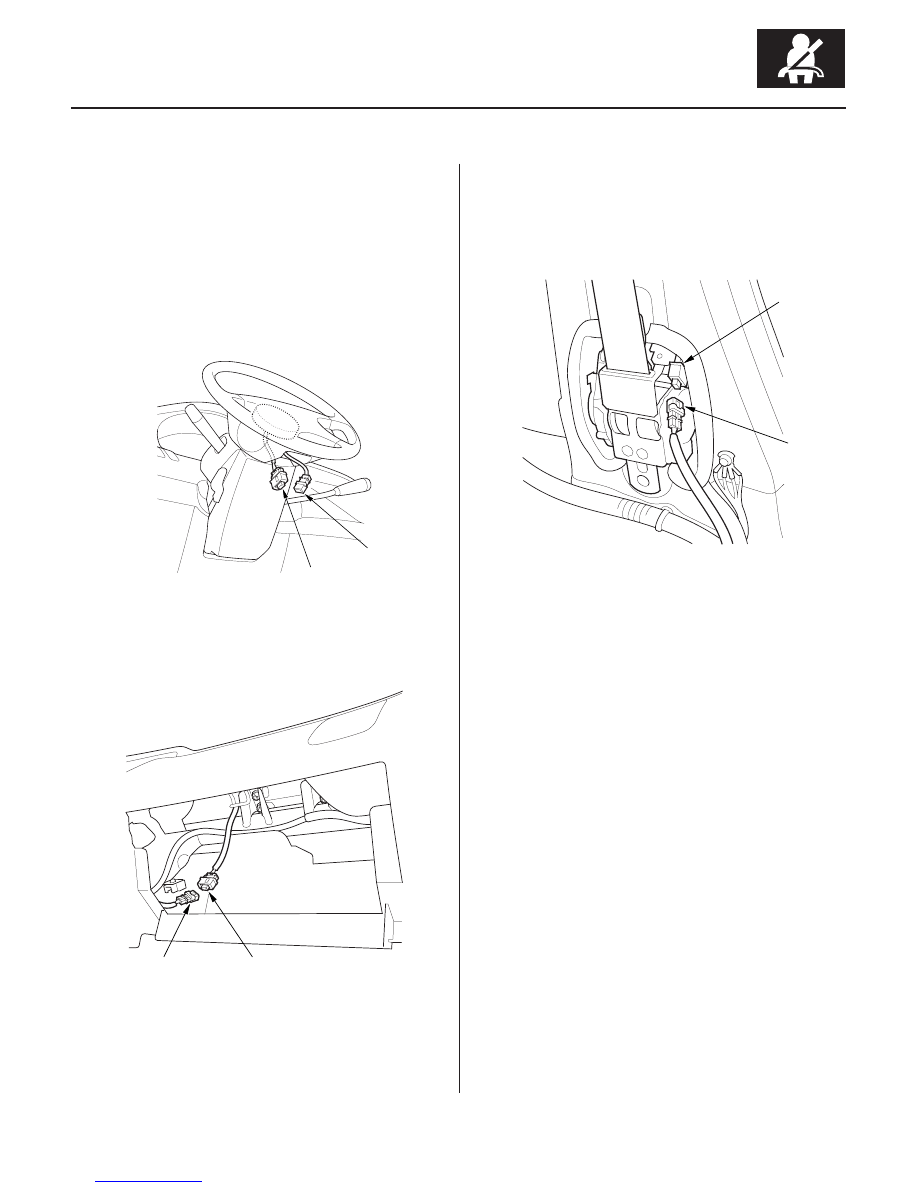

Disconnecting System Connectors
(’99-01 Models) (cont’d)

Driver’s Airbag

Front Passenger’s Airbag

Seat Belt Tensioner

23-29

A

B

B

A

A

B

1. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait at least 3 minutes.

2. Remove the access panel from the steering wheel,

then disconnect the driver’s airbag 2P connector
(A) and cable reel 2P connector (B).

3. Remove the glove box, then disconnect the front

passenger’s airbag 2P connector (A) and SRS main
harness 2P connector (B).

4. Remove the center pillar lower trim panel (see page

20-58). Disconnect the seat belt tensioner 2P
connector (A) and side wire harness 2P connector
(B).

(cont’d)

03/07/29 10:31:04 61S0X050_230_0029
