Honda Odyssey 2004. Manual - part 522





*17

Disconnecting System Connectors (’02 Model)

23-30

SRS

Precautions and Procedures (cont’d)

J

K

LEFT SIDE WIRE HARNESS

M

B

RIGHT SIDE WIRE HARNESS

I

H

Q

O

S

P

F

G

N

R

E

D

C

L

A

SRS MAIN HARNESS

DRIVER’S
AIRBAG

FRONT
PASSENGER’S
AIRBAG

DRIVER’S
SEAT BELT
TENSIONER

FRONT
PASSENGER’S
SEAT BELT
TENSIONER

LEFT
FRONT
IMPACT
SENSOR

RIGHT
FRONT
IMPACT
SENSOR

DRIVER’S
SIDE AIRBAG

FRONT
PASSENGER’S
SIDE AIRBAG

DRIVER’S
SIDE IMPACT
SENSOR

FRONT
PASSENGER’S
SIDE IMPACT
SENSOR

SRS FLOOR
HARNESS

SRS MAIN
HARNESS

SRS MAIN
HARNESS

LEFT SIDE
WIRE HARNESS

RIGHT SIDE
WIRE HARNESS

LEFT ENGINE COMPARTMENT
WIRE HARNESS

RIGHT ENGINE COMPARTMENT
WIRE HARNESS

SRS FLOOR
SUB
HARNESS

SRS FLOOR
HARNESS

LEFT SIDE
WIRE HARNESS

RIGHT SIDE
WIRE HARNESS

CABLE
REEL

SRS
UNIT

Before removing a front airbag, side airbag, or other SRS related devices (the SRS unit, the cable reel, the front impact
sensors, the side impact sensors, and the seat belt tensioner connector), disconnecting connectors from related
devices, or removing the dashboard or the steering column, disconnect the airbag connectors or the side airbag
connectors to prevent accidental deployment.
Turn the ignition switch OFF, and disconnect the negative cable from the battery, and wait at least 3 minutes before
beginning the following procedures.

• Before disconnecting the SRS unit connector (A) from the SRS unit, disconnect the driver’s airbag 4P connector (D),

the front passenger’s airbag 4P connector (E), the driver’s seat belt tensioner 2P connector (G), and the front
passenger’s seat belt tensioner 2P connector (I).

• Before disconnecting the SRS unit connector (L) from the SRS unit, disconnect both side airbag 2P connectors (O, Q).
• Before disconnecting the cable reel 4P connector (C), disconnect the driver’s airbag 4P connector (D).
• Before disconnecting the left side wire harness 2P connector (F), disconnect the driver’s seat belt tensioner 2P

connector (G).

• Before disconnecting the right side wire harness 2P connector (H), disconnect the front passenger’s seat belt

tensioner 2P connector (I).

03/07/29 10:31:04 61S0X050_230_0030

03

04

05

06

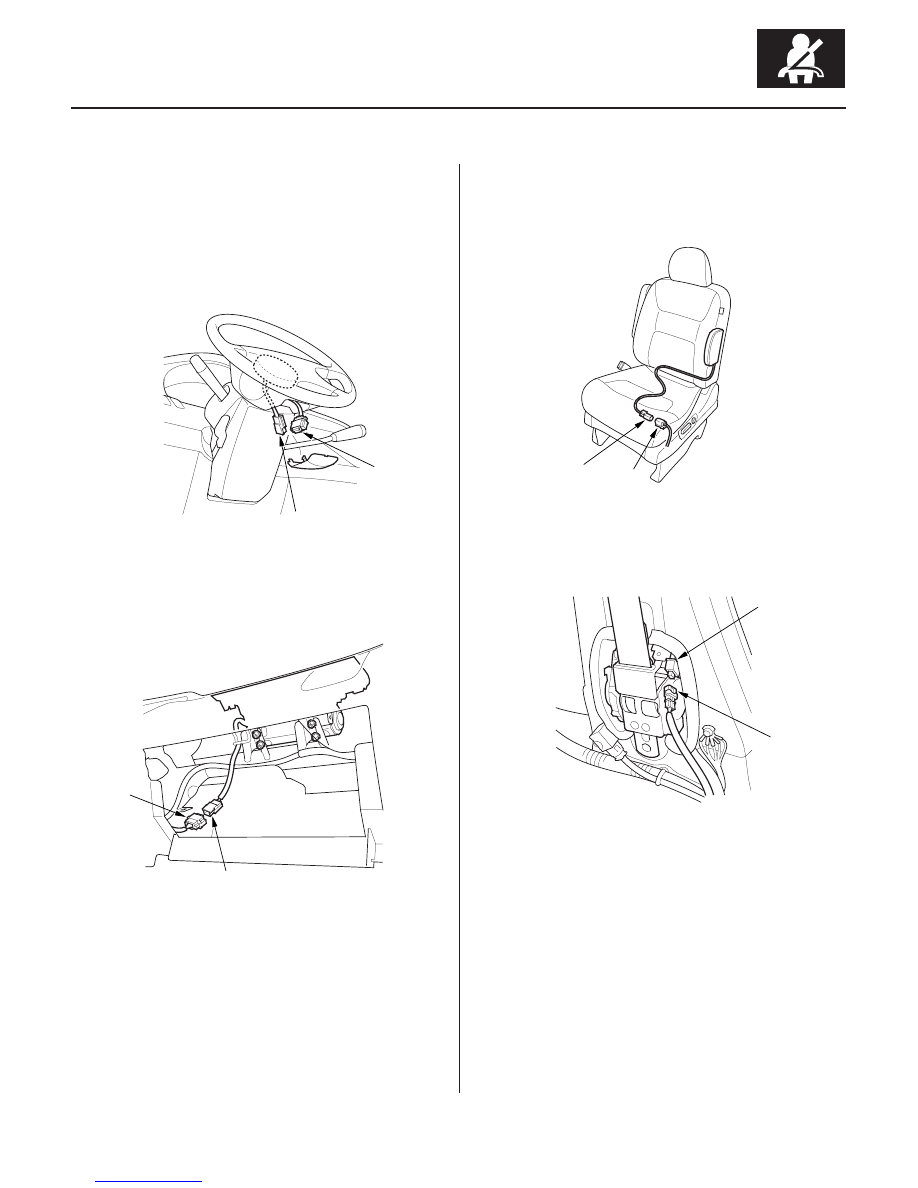

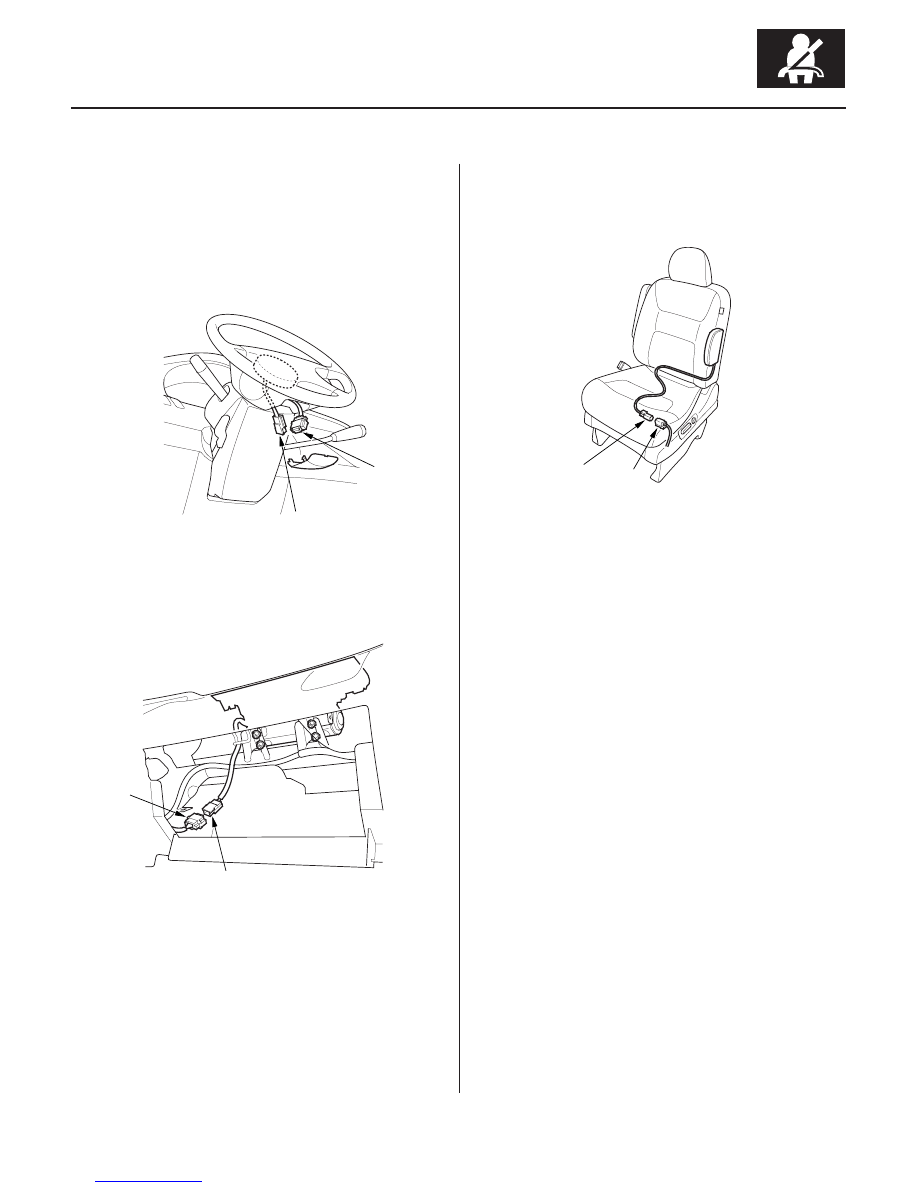

Driver’s Airbag

Front Passenger’s Airbag

Side Airbag

Seat Belt Tensioner

23-31

A

B

B

A

A

B

A

B

1. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait at least 3 minutes.

2. Remove the access panel from the steering wheel,

then disconnect the driver’s airbag 4P connector
(A) from the cable reel 4P connector (B).

3. Remove the glove box, then disconnect the front

passenger’s airbag 4P connector (A) from the SRS
main harness 4P connector (B).

4. Disconnect both side airbag 2P connectors (A) from

the side wire harness 2P connectors (B).

5. Disconnect both seat belt tensioner 2P connectors

(A) from the side wire harness 2P connectors (B).

(cont’d)

03/07/29 10:31:05 61S0X050_230_0031

*18

Disconnecting System Connectors (’03-04 Models)

23-32

SRS

Precautions and Procedures (cont’d)

C

A

LEFT SIDE WIRE HARNESS

D

B

SRS MAIN HARNESS

RIGHT SIDE WIRE HARNESS

DRIVER’S
AIRBAG

FRONT
PASSENGER’S
AIRBAG

DRIVER’S
SEAT BELT
TENSIONER

FRONT
PASSENGER’S
SEAT BELT
TENSIONER

LEFT
FRONT
IMPACT
SENSOR

RIGHT
FRONT
IMPACT
SENSOR

DRIVER’S
SIDE AIRBAG

FRONT
PASSENGER’S
SIDE AIRBAG

DRIVER’S
SIDE IMPACT
SENSOR

FRONT
PASSENGER’S
SIDE IMPACT
SENSOR

SRS FLOOR
HARNESS

SRS MAIN
HARNESS

SRS MAIN
HARNESS

RIGHT SIDE
WIRE HARNESS

LEFT ENGINE COMPARTMENT
WIRE HARNESS

RIGHT ENGINE COMPARTMENT
WIRE HARNESS

SRS FLOOR
HARNESS

SRS FLOOR
SUBHARNESS

LEFT SIDE
WIRE HARNESS

RIGHT SIDE
WIRE HARNESS

CABLE
REEL

SRS
UNIT

LEFT SIDE
WIRE HARNESS

Turn the ignition switch OFF, and disconnect the negative cable from the battery, and wait at least 3 minutes before
beginning the following procedures.

• Before disconnecting the left side wire harness 2P connector (A), disconnect the driver’s seat belt tensioner 2P

connector (B).

• Before disconnecting the right side wire harness 2P connector (C), disconnect the front passenger’s seat belt

tensioner 2P connector (D).

03/07/29 10:31:06 61S0X050_230_0032

08

09

10

Driver’s Airbag

Front Passenger’s Airbag

Side Airbag

23-33

A

B

B

A

A

B

1. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait at least 3 minutes.

2. Remove the access panel from the steering wheel,

then disconnect the driver’s airbag 4P connector
(A) from the cable reel 4P connector (B).

3. Remove the glove box, then disconnect the front

passenger’s airbag 4P connector (A) from the SRS
main harness 4P connector (B).

4. Disconnect both side airbag 2P connectors (A) from

the side wire harness 2P connectors (B).

(cont’d)

03/07/29 10:31:06 61S0X050_230_0033
