Honda Odyssey 2004. Manual - part 495





S0X4A00J16160700000FAAT00

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

22-308

Power Sliding Doors

Power Sliding Door Troubleshooting

1. Verify the customer’s complaint using ALL three of

the following methods:

• Using the driver’s switch to OPEN/CLOSE both

doors

• Using the keyless transmitter to OPEN/CLOSE

both doors

• Using the inner and outer handles to OPEN/

CLOSE both doors

Intermittent problem, inspect all

connections.

Go to step 2.

2. Check the fuses.

Go to step 3.

Find and repair the cause of the blown fuse.

3. Open and close the doors again using all three

methods, and listen for the warning beeper.

Go to step 4.

Go to step 5.

4. With the MAIN switch turned OFF, compare the

manual door opening/closing force between the
left and right doors.

Go to step 5.

Inspect the door guides, rollers, and cables on

the door that exhibited the higher opening/closing
force.

5. Check for codes.

Perform the troubleshooting (see page 22-

290).

Refer to the Symptom Troubleshooting Index

or perform the input test (see page 22-300).

Do the door s oper ate pr oper ly using all thr ee
methods?

Ar e the f uses OK ?

Did the war ning beeper sound thr ee times when all
thr ee opening methods wer e used?

Is the opening/ closing f or ce equal on both sides?

Ar e ther e any codes stor ed?

03/07/29 10:27:16 61S0X050_220_0310

01

*01

S0X4A00J16160755691FEAT01

01

S0X4A00J16160755635FEAT02

[ ]

[ ]

[ ]

22-309

22-309

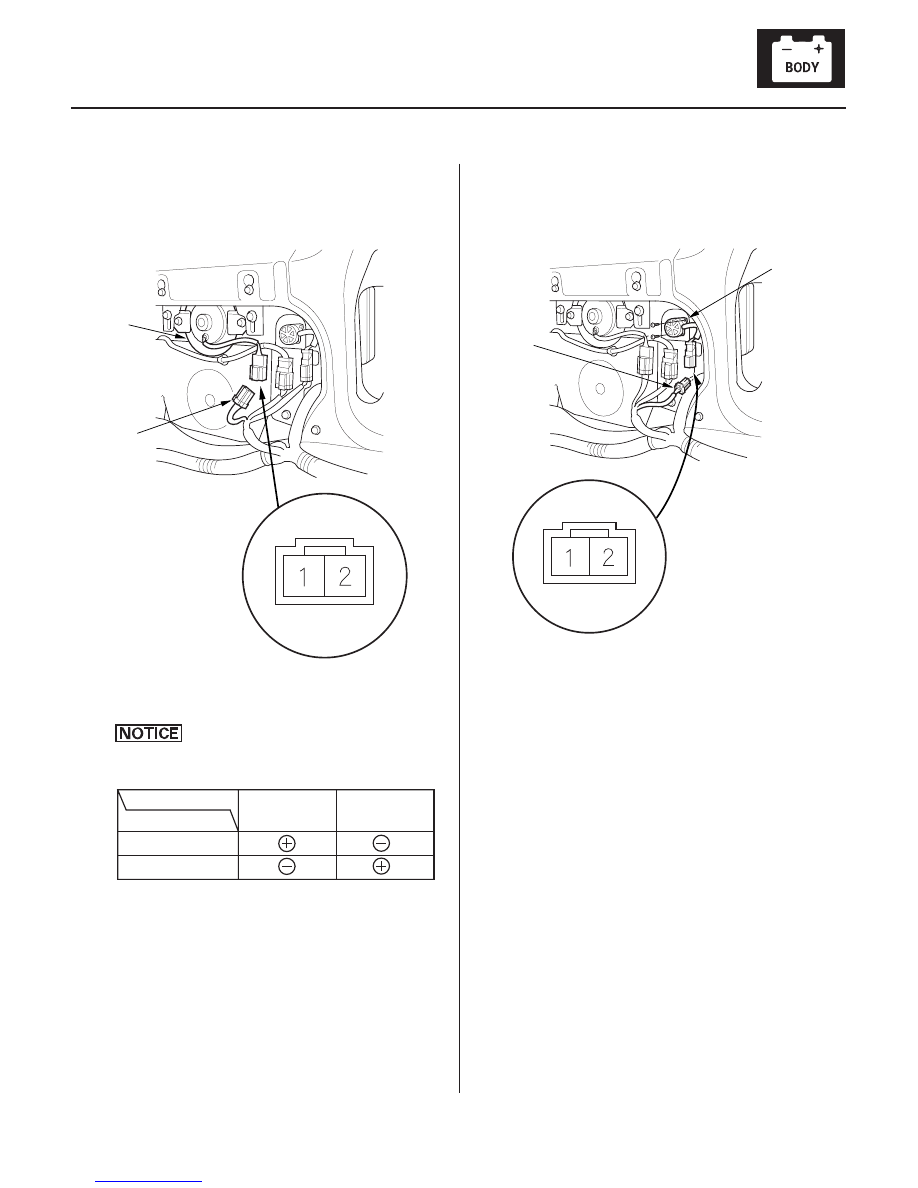

Slide Motor Test

Sliding Door Buzzer Test

B

A

Terminal

Direction

OPEN

CLOSE

1

2

2

1

: Right side

A

B

1. Remove the rear side trim panel (see page 20-60).

2. Disconnect the 2P connector (A) from the slide

motor (B).

3. Check slide motor operation by connecting battery

power and ground according to the table.

The doors move very quickly. Do not allow
the motor to slam the door open or closed.

4. If the motor does not run or fails to run smoothly,

replace it.

1. Remove the left rear side trim panel (see page 20-

60).

2. Disconnect the 2P connector (A) from the buzzer (B).

3. Test the buzzer by connecting battery power to the

No. 1 terminal and grounding to the No. 2 terminal.
The buzzer should sound.

4. If the buzzer does not sound or fails to sound,

replace it.

Terminal side of
male terminals

Terminal side of
male terminals

03/07/29 10:27:17 61S0X050_220_0311

01

02

*01

01

S0X4A00J16160755641FEAT00

22-310

Power Sliding Doors

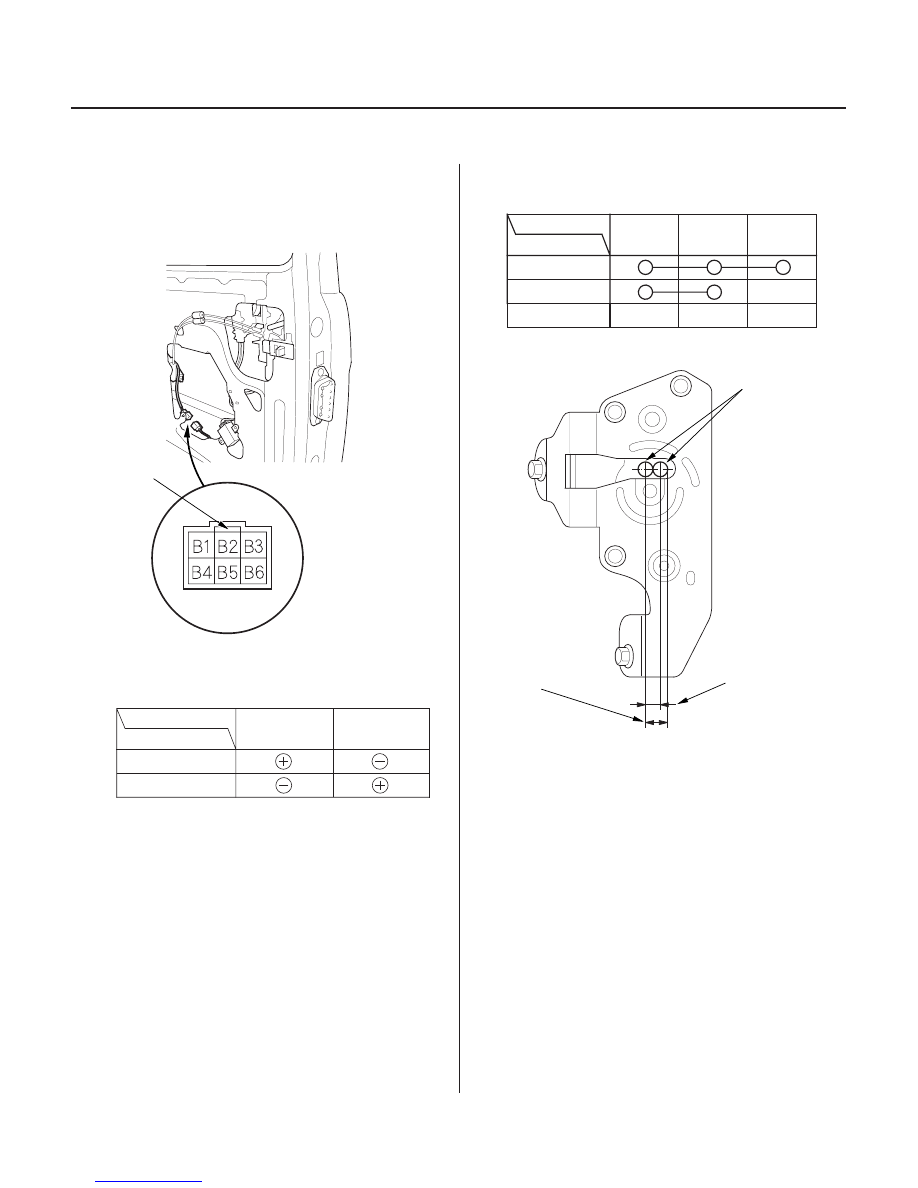

Closer Motor and Latch Position Switch Test

Not used

Terminal

Position

FULL LATCH

HALF LATCH

B4

B5

B6

OPEN

STRIKER

HALF LATCH
ON POSITION
(0.29 in (7.3 mm))

FULL LATCH
ON POSITION
(0.20 in (5 mm))

Terminal

Direction

FORWARD

REVERSE

B1

B3

1. Remove the sliding door panel (see page 20-13).

2. Disconnect the 6P connector from the motor and

switch.

3. Test the closer motor by connecting power and

ground according to the table.

4. Check for continuity between the terminals in each

switch position according to the table.

5. If the motor does not operate as specified or the

continuity is not as specified, replace the unit.

Terminal side of
male terminals

03/07/29 10:27:18 61S0X050_220_0312

01

02

03

S0X4A00J16160755681FEAT00

22-311

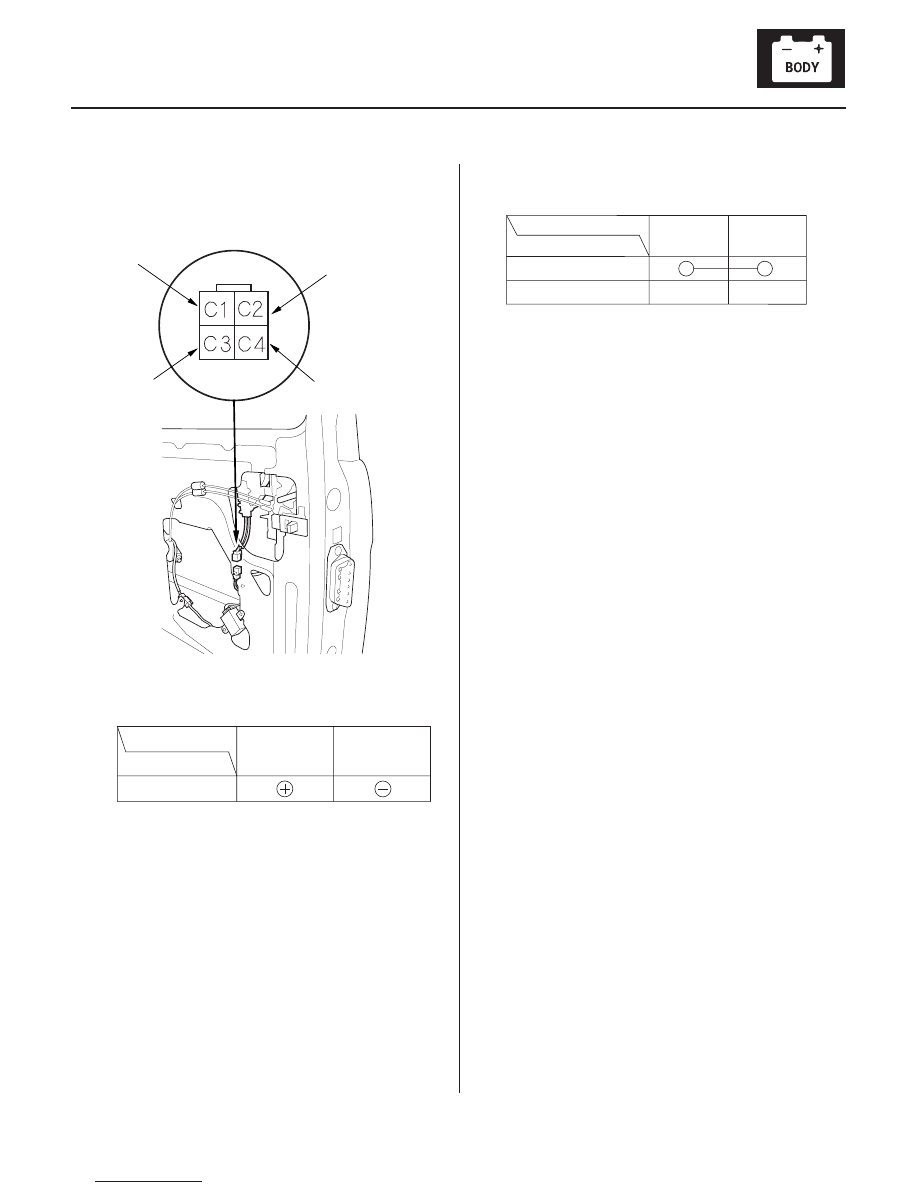

Release Motor and Remote Control Switch Test

YEL/RED

BLU

BLK

WHT/RED

Terminal

Direction

OPEN

C1

C2

Terminal

Position

HANDLE SWITCH ON

C3

C4

HANDLE SWITCH OFF

1. Remove the sliding door panel (see page 20-13).

2. Disconnect the 4P connector from the release

motor and switch.

3. Test the release motor by connecting power and

ground according to the table.

4. Check for continuity between the terminals in each

switch position according to the table.

5. If the actuator does not operate as specified or the

continuity is not as specified, replace the unit.

Wire side of
female terminals

03/07/29 10:27:18 61S0X050_220_0313
