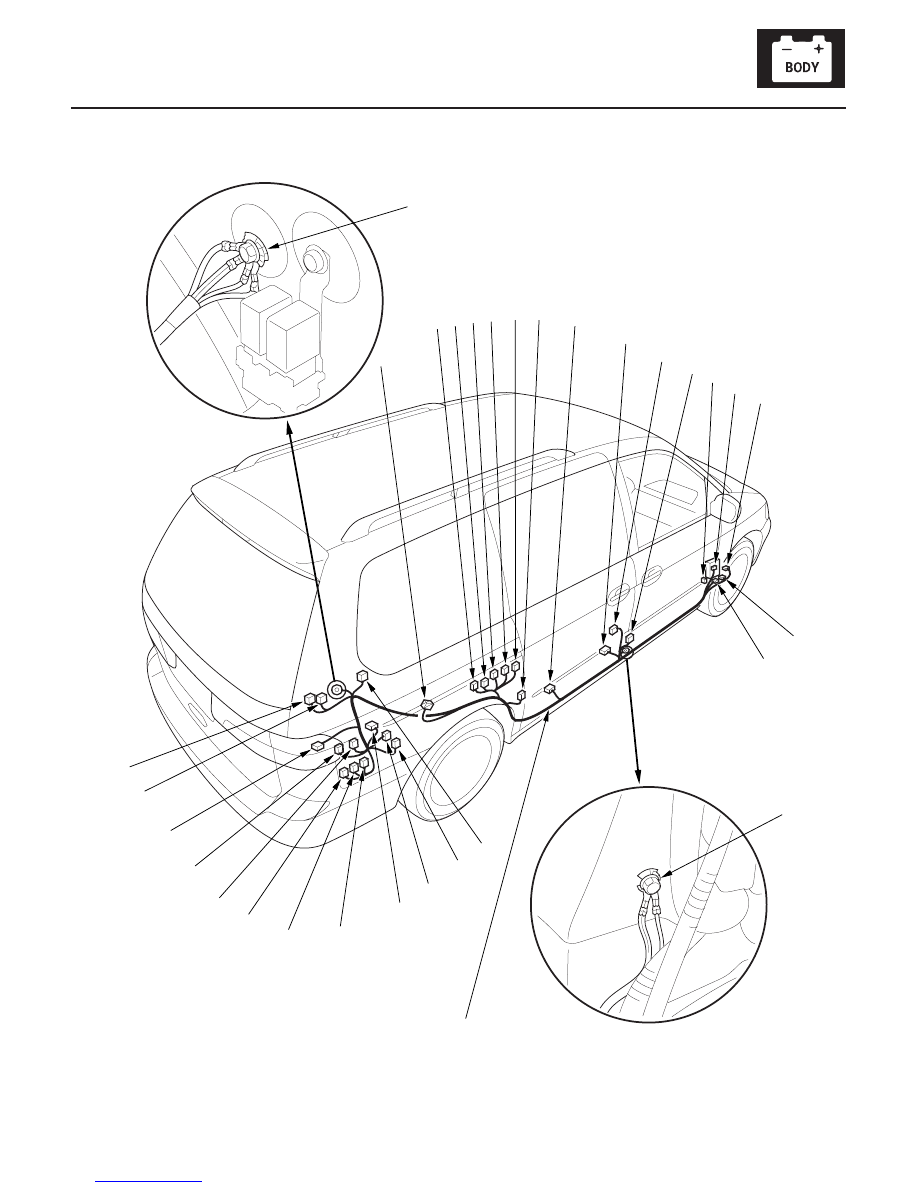

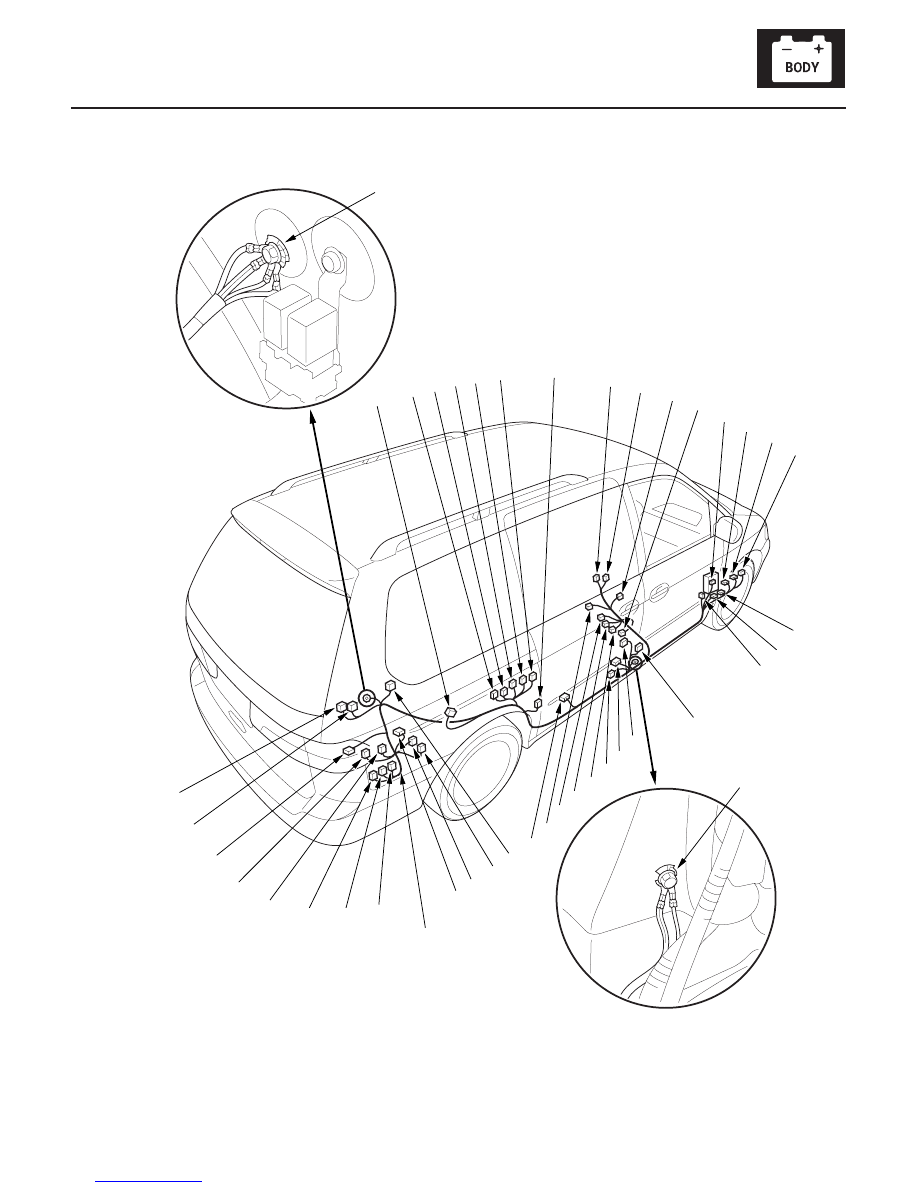

Right Side Wire Harness (’99-01 models)
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
22-52
Connectors and Harnesses
Connector to Harness Index (cont’d)
Front passenger’s door switch
12
1
Right B-pillar
Front passenger’s seat belt tensioner
10
2
Right B-pillar
Passenger’s under-dash fuse/relay box
connector A (see page 22-77)
14
20
Behind right kick panel
Rear A/C blower motor
21
2
Right quarter panel
Rear A/C blower motor high relay
27
6
Right quarter panel
Rear A/C blower motor low relay
23
4
Right quarter panel
Rear A/C blower motor main relay
26
4
Right quarter panel
Rear A/C blower motor middle relay
24
4
Right quarter panel
Rear A/C mode control motor
22
7
Right quarter panel
Rear A/C mode control motor relay
25
5
Right quarter panel
Rear A/C power transistor
20
5
Right quarter panel
Right power sliding door control unit
connector A
6
26
Right C-pillar
Right power sliding door control unit
connector B
5
5
Right C-pillar
Right power sliding door junction
switch
11
10
Right B-pillar
Right power sliding door junction
switch
11
12
Right B-pillar
Security
Right rear speaker
2
2
Right quarter panel
Right sliding door motor
3
2
Right C-pillar
Right sliding door handle switch
9
2
Right C-pillar
Right sliding door sensor
4
4
Right C-pillar
Right sliding door switch
8
1
Right C-pillar
Right taillight
28
5
Behind right taillight
Right rear window motor
19
2
Right quarter panel
Right rear window open relay
29
5
Right quarter panel
Right rear window close relay
30
5
Right quarter panel
C451
17
12
Behind right kick panel
Dashboard wire harness B
(see page 22-34)
1
C451
17
16
Behind right kick panel
Dashboard wire harness B
(see page 22-34)
2
C451
17
3
Behind right kick panel
Dashboard wire harness B
(see page 22-34)
3
C451
17
14
Behind right kick panel
Dashboard wire harness B
(see page 22-34)
’01 EX
C452
16
1
Behind right kick panel
Dashboard wire harness B
(see page 22-34)
4
C505
15
16
Behind right kick panel
Dashboard wire harness A
(see page 22-38)
4
C581
13
2
Behind right kick panel
SRS main harness (see page
22-61)
C582
7
14
Right C-pillar
Roof wire harness (see page
22-60)
C582
7
3
Right C-pillar
Roof wire harness (see page
22-60)
G581
18
Right B-pillar
Body ground via right side
wire harness
G582
1
Right quarter panel
Body ground via right side
wire harness
1: ’99-00 models with power sliding door
2: ’99-00 models with rear heater-A/C
3: ’99-01 models except
1,
2, and ’01 EX
4: ’99-01 models with power sliding door
Rear
Heater-A/C
