Ｓ０Ｘ４Ａ００Ｊ５４２８３２１９４０２ＤＢＡＴ００

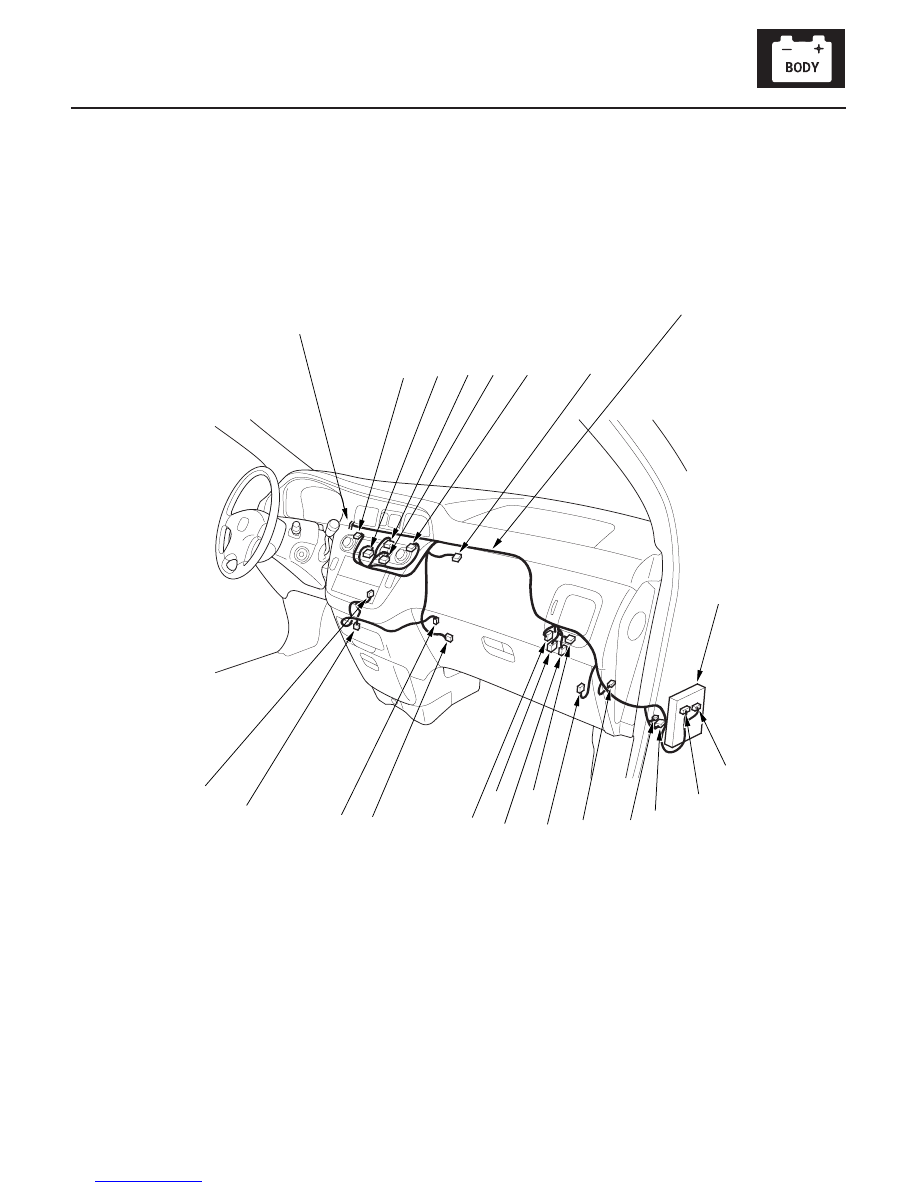

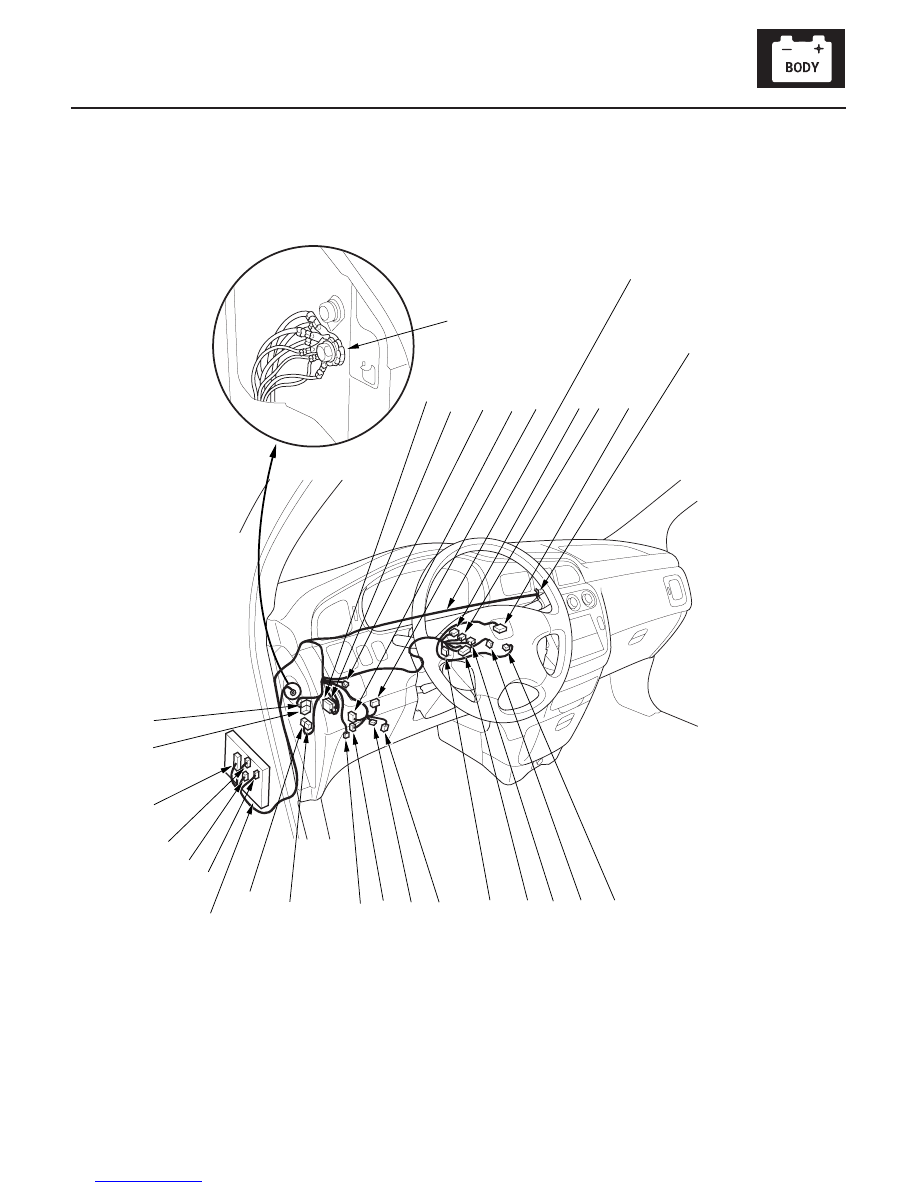

Dashboard Wire Harness B (Left branch)
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
22-32
Connectors and Harnesses
Connector to Harness Index (cont’d)
Brake pedal position switch
23
4
Under left side of dash
4
Brake pedal position switch
23
2
Under left side of dash
5
Cable reel
18
4
Under left side of dash
Combination light switch
21
14
Under left side of dash
Daytime running lights relay
2
4
Behind left kick panel
Canada
Driver’s under-dash fuse/relay box
connector O (see page 22-76)
6
20
Behind left kick panel
Driver’s under-dash fuse/relay box
connector P (see page 22-76)
5
7
Behind left kick panel
Driver’s under-dash fuse/relay box
connector Q (see page 22-76)
4
22
Behind left kick panel
Driver’s under-dash fuse/relay box
connector J (see page 22-76)
3
3
Behind left kick panel
Ignition key switch
19
7
Under left side of dash
Immobilizer receiver unit
22
4
Under left side of dash
Interiors light relay
7
4
Under left side of dash
Low beam cut relay
1
5
Under left side of dash
Canada
Multiplex control inspection connector
24
3
Under left side of dash
Parking brake switch
26
1
Under left side of dash
Park pin switch
16
3
Under left side of dash
PGM-FI main relay
14
7
Under left side of dash
Rear window wiper/washer switch
20
8
Under left side of dash
’01-04 models
Rear window wiper/washer switch
20
6
Under left side of dash
’99-00 models
Security option connector
12
3
Under left side of dash
Shift lock solenoid
15
2
Under left side of dash
Taillight relay
8
4
Under left side of dash
Auto-off
headlight
Windshield wiper/washer switch
17
8
Under left side of dash
C301
13
20
Under left side of dash
Left engine compartment wire
harness (see page 22-28)
’99-01 models
C301
13
22
Under left side of dash
Left engine compartment wire
harness: ’02 model (see page
22-28), ’03-04 models (see
page 22-30)
C302
25
2
Under left side of dash
Left engine compartment wire
harness: ’02 model (see page
22-28), ’03-04 models (see
page 22-30)
C401
10
22
Under left side of dash
Dashboard wire harness A
(see page 22-40)
1
C401
10
20
Under left side of dash
Dashboard wire harness A
(see page 22-38)
2
C401
10
14
Under left side of dash
Dashboard wire harness A:
’99-01 models (see page 22-
38), ’02-04 models (see page
22-40)
3
C402
11
24
Under left side of dash
Dashboard wire harness A:
’99-01 models (see page 22-
38), ’02-04 models (see page
22-40)
G401
9
Under left side of dash
Body ground via dashboard
wire harness B
1: ’99-00 models with navigation and power sliding door, ’01 EX, ’02-04 models with power sliding door
2: ’99-01 models with power sliding door
3: Without power sliding door
4: ’99-02 models with cruise control and ’03-04 models
5: ’99-02 models without cruise control
Rear Heater-A/C
and power
sliding door
