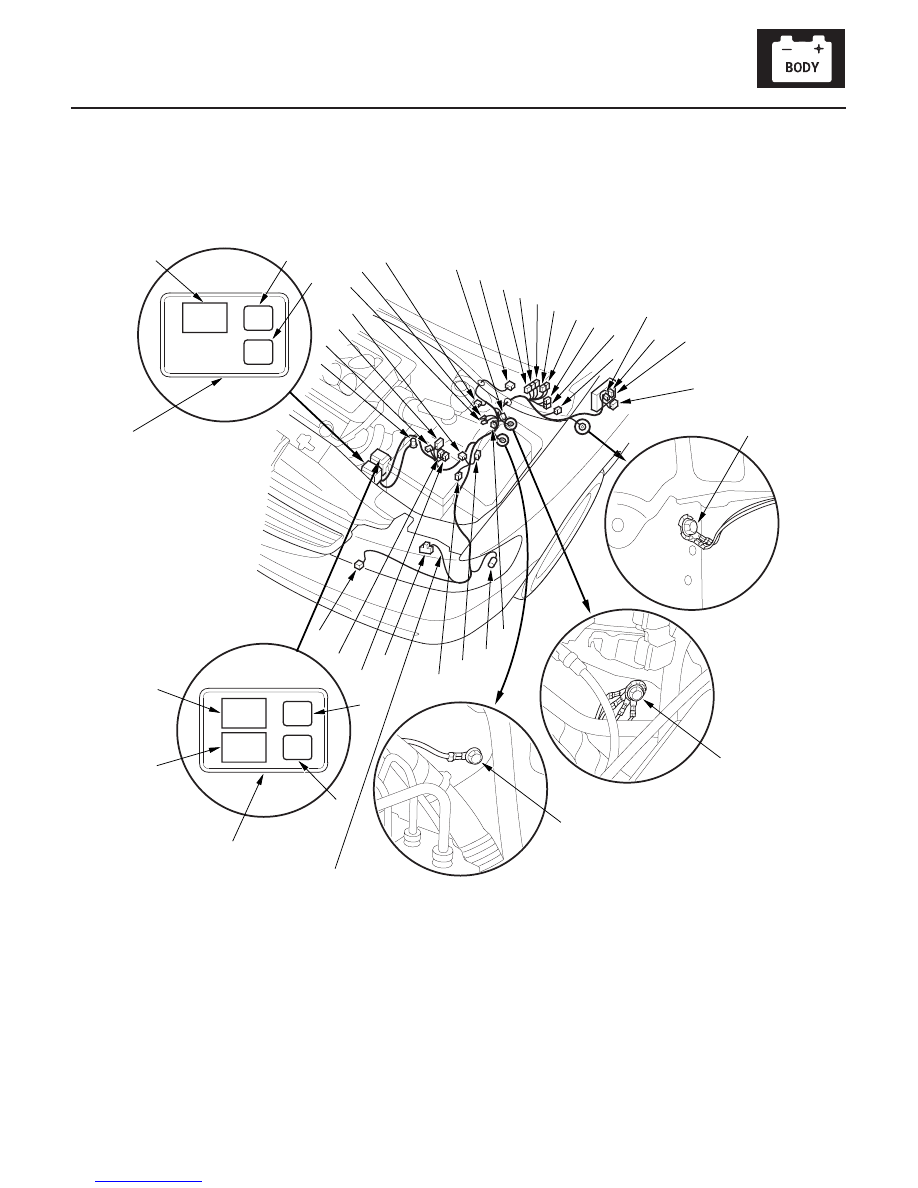

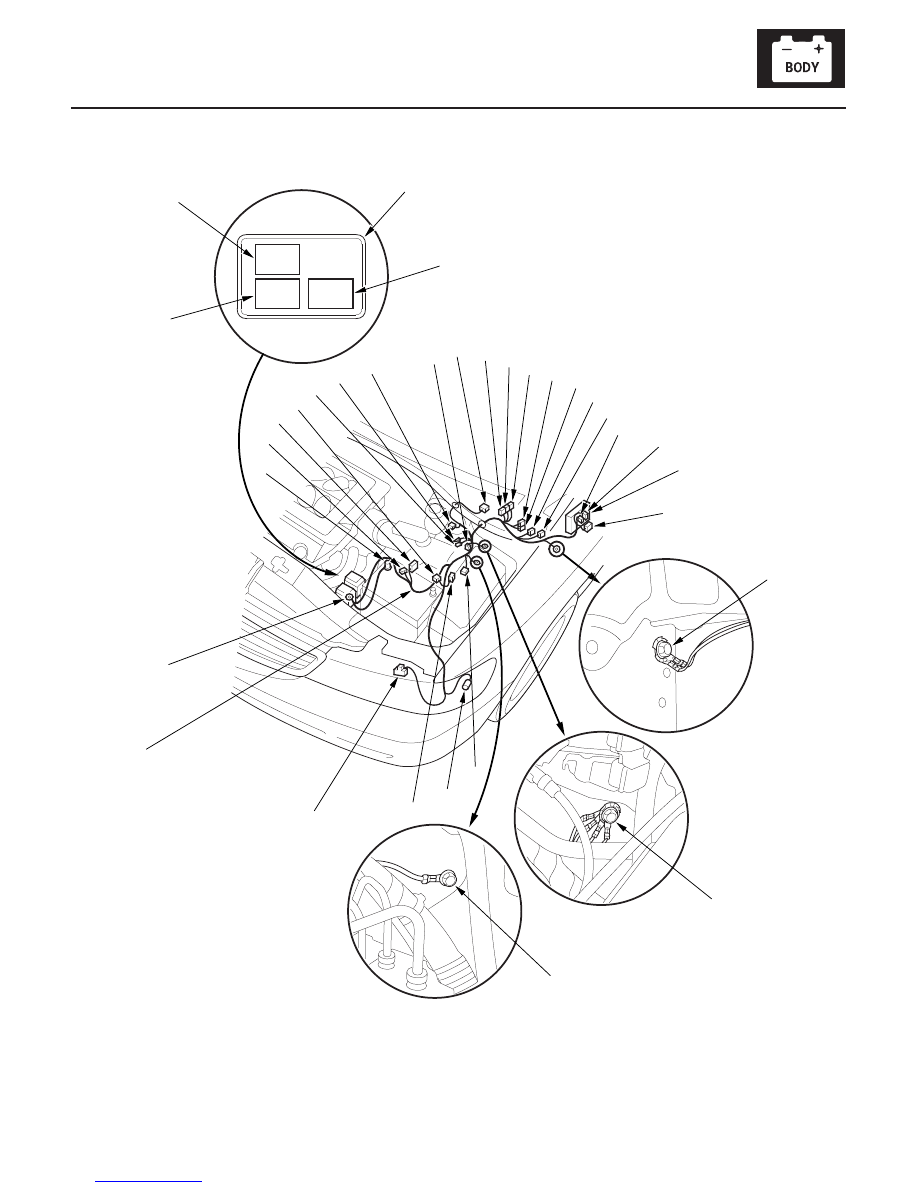

Left Engine Compartment Wire Harness (’99-02 models)
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
22-28
Connectors and Harnesses
Connector to Harness Index (cont’d)
ABS control unit A
9
22
Under left side of dash
1
ABS control unit B
10
12
Under left side of dash
1
ABS left front wheel sensor
19
2
Left side of engine compartment
ABS modulator unit
26
10
Left side of engine compartment
1
ABS pump motor
25
2
Left side of engine compartment
1
ABS/TCS control unit A
6
26
Under left side of dash
ABS/TCS control unit B
7
16
Under left side of dash
ABS/TCS control unit C
8
12
Under left side of dash
ABS/TCS modulator unit
37
24
Left side of engine compartment
Brake fluid level switch
connector (
)
1
1
Left side of engine compartment
Brake fluid level switch
connector (
)
2
1
Left side of engine compartment
Driver’s under-dash fuse/relay box
connector C (see page 22-76)
14
5
Behind left kick panel
Driver’s under-dash fuse/relay box
connector E (see page 22-76)
15
20
Behind left kick panel
EVAP canister purge valve
4
2
Left side of engine compartment
’99-01 models
Left headlight
24
3
Behind left headlight
Left side marker and turn signal
lights
20
3
Behind left headlight
Multi-fuse/relay box No. 60 fuse
(see page 22-78)
28
Left side of engine compartment
Multi-fuse/relay box No. 61 fuse
(see page 22-78)
29
Left side of engine compartment
Power sliding
door
Multi-fuse/relay box No. 62 fuse
(see page 22-78)
32
Left side of engine compartment
’02 model
Multi-fuse/relay box No. 63 fuse
(see page 22-78)
33
Left side of engine compartment
’02 model
Optional connector
21
1
Left side of engine compartment
Seat heater relay
34
4
Left side of engine compartment
’02 model
SRS left front sensor
27
2
Behind left side of front bumper
’02 model
TCS relay
31
4
Left side of engine compartment
Test tachometer connector
3
2
Left side of engine compartment
Windshield wiper intermittent
relay
30
5
Left side of engine compartment
Windshield wiper motor
5
5
Left side of engine compartment
C101
36
10
Left side of engine compartment
Engine wire harness:
’99-01 models (see page 22-18),
’02 model (see page 22-22)
C102
38
14
Left side of engine compartment
Engine wire harness:
’99-01 models (see page 22-18),
’02 model (see page 22-22)
C108
22
1
Left side of engine compartment
Engine wire harness:
’99-01 models (see page 22-18)
’99-01 models
C301
11
20
Behind left kick panel
Dashboard wire harness B (see
page 22-32)
’99-01 models
C301
11
22
Behind left kick panel
Dashboard wire harness B (see
page 22-32)
’02 model
C302
12
2
Behind left kick panel
Dashboard wire harness B (see
page 22-32)
C303
16
24
Behind left kick panel
Dashboard wire harness A:
’99-01 models (see page 22-38),
’02 model (see page 22-40)
C304
13
4
Behind left kick panel
SRS main harness (see page 22-
62)
’02 model
T103
35
Battery
G301
18
Left side of engine compartment
Body ground via left engine
compartment wire harness
G302
23
Left side of engine compartment
Body ground via left engine
compartment wire harness
G303
17
Behind left kick panel
Body ground via left engine
compartment wire harness
1: ’99-01 LX models
Rear Heater-A/C
Rear Heater-A/C
and power
sliding door
