Honda Odyssey 2004. Manual - part 397





*01

S0X4A10G10500000000DAAT00

21-64

Climate Control

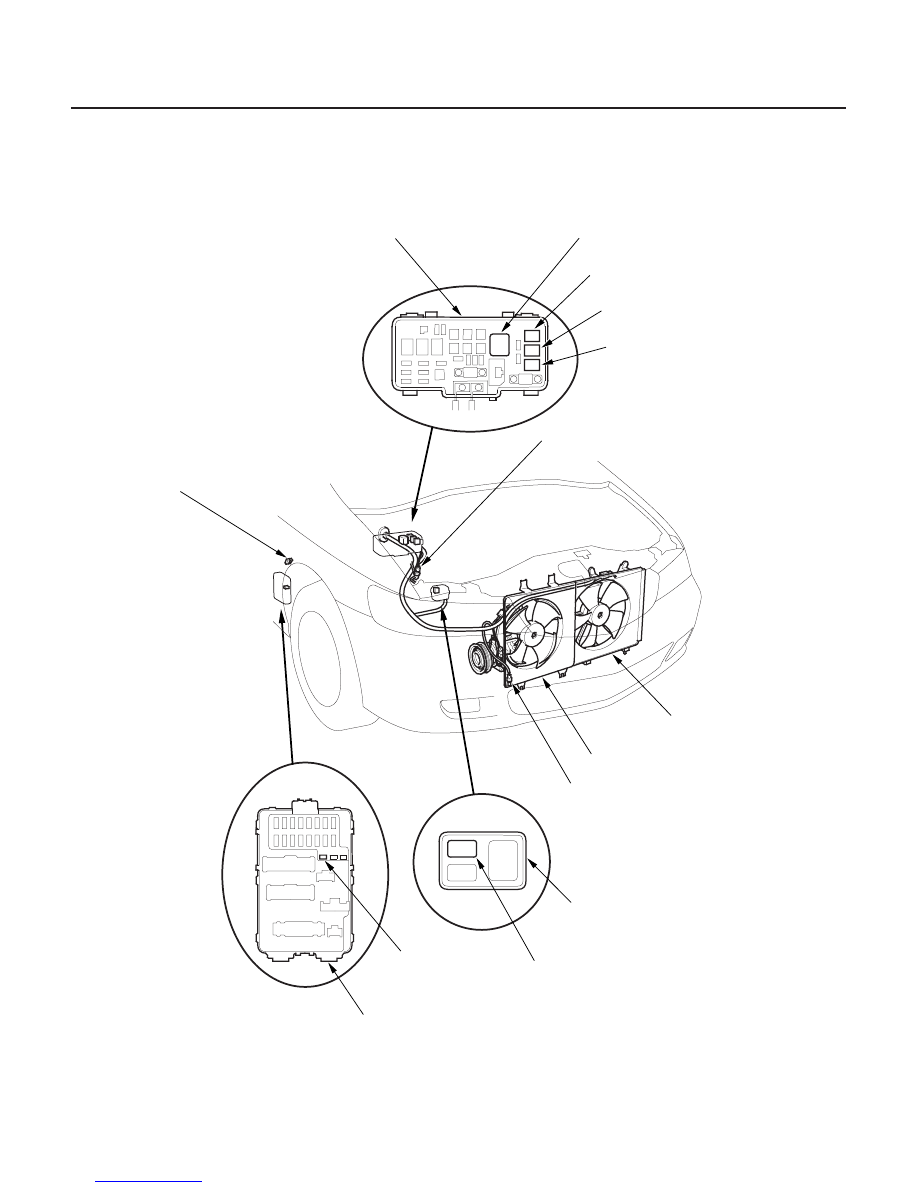

Component Location Index

A/C PRESSURE SWITCH

RADIATOR FAN

CONDENSER FAN

A/C DIODE B,
A/C DIODE C
(Located under-dash,
taped to harness)

UNDER-HOOD FUSE/RELAY BOX

BLOWER MOTOR RELAY

CONDENSER FAN RELAY

RADIATOR FAN RELAY

A/C COMPRESSOR CLUTCH RELAY

ABS RELAY BOX

FAN CONTROL RELAY

A/C DIODE A

PASSENGER’S UNDER-DASH FUSE/RELAY BOX

OUTSIDE AIR TEMPERATURE SENSOR

Test, page 22-88

Test, page 22-88

Test, page 22-88

Test, page 22-88

Test, page 22-88

Test, page 21-118
Replacement, page 21-118

03/07/29 10:11:55 61S0X050_210_0065

*02

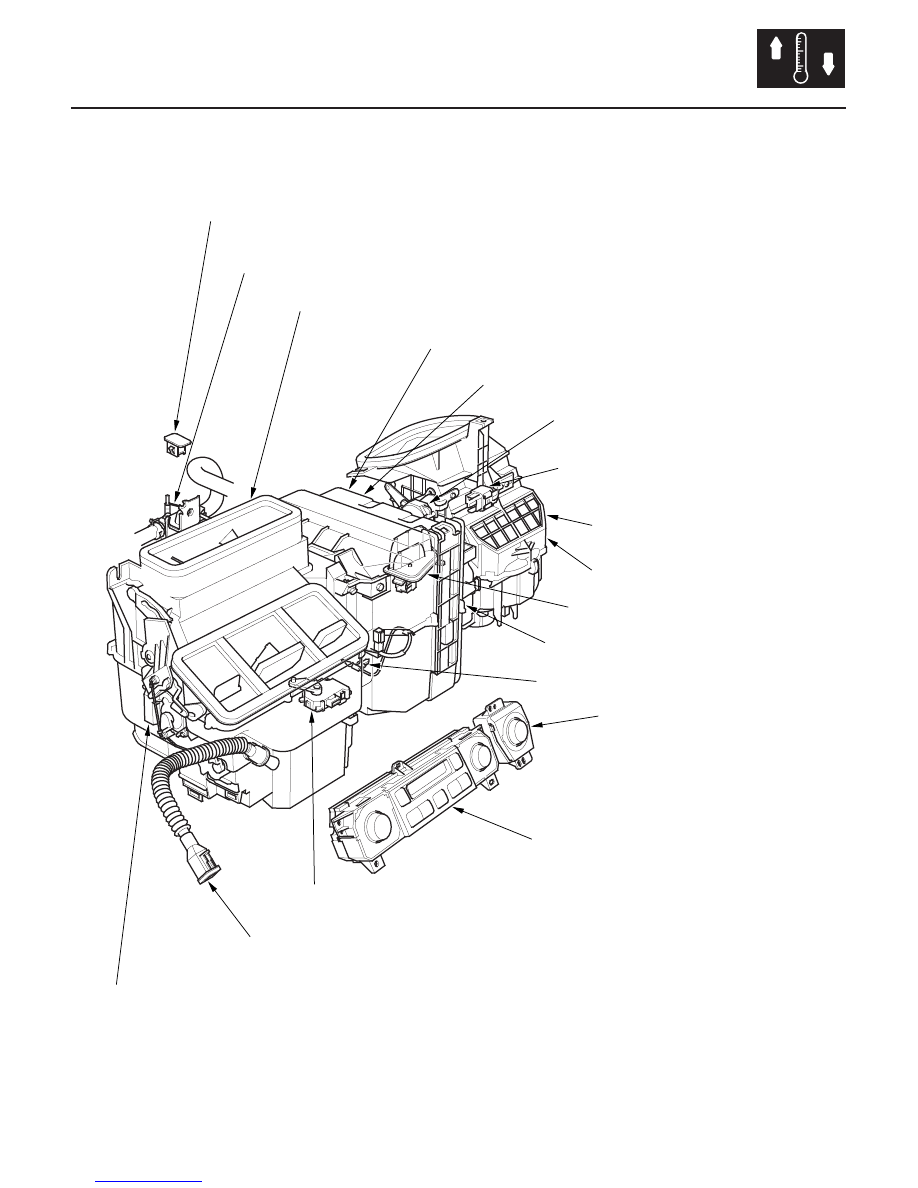

(Without Navigation System)

21-65

RECIRCULATION CONTROL MOTOR

BLOWER UNIT

BLOWER UNIT COMPONENTS

HEATER VALVE CABLE

DUST AND POLLEN FILTER

EVAPORATOR

EVAPORATOR COMPONENTS

HEATER UNIT/CORE

EVAPORATOR TEMPERATURE SENSOR

MODE CONTROL MOTOR

AIR MIX CONTROL MOTOR

POWER TRANSISTOR

REAR HEATER-A/C MAIN SWITCH

CLIMATE CONTROL UNIT

IN-CAR TEMPERATURE SENSOR

SUNLIGHT SENSOR

BLOWER MOTOR HIGH RELAY

(cont’d)

Test, page 21-39
Replacement, page 21-39

Removal and Installation,

page 21-45

Replacement, page 21-45

Adjustment, page 21-48

Replacement, page 21-44

Removal and Installation, page 21-42

Replacement, page 21-43

Replacement, page 21-46

Test, page 21-40

Test, page 21-38
Replacement, page 21-38

Test, page 21-37
Replacement, page 21-37

Test,page 21-120

Removal and Installation, page 21-120
Disassembly and Reassembly, page 21-121

Test, page 21-117
Replacement, page 21-117

Test, page 21-119
Replacement, page 21-119

Test, page 22-80

03/07/29 10:12:00 61S0X050_210_0066

*03

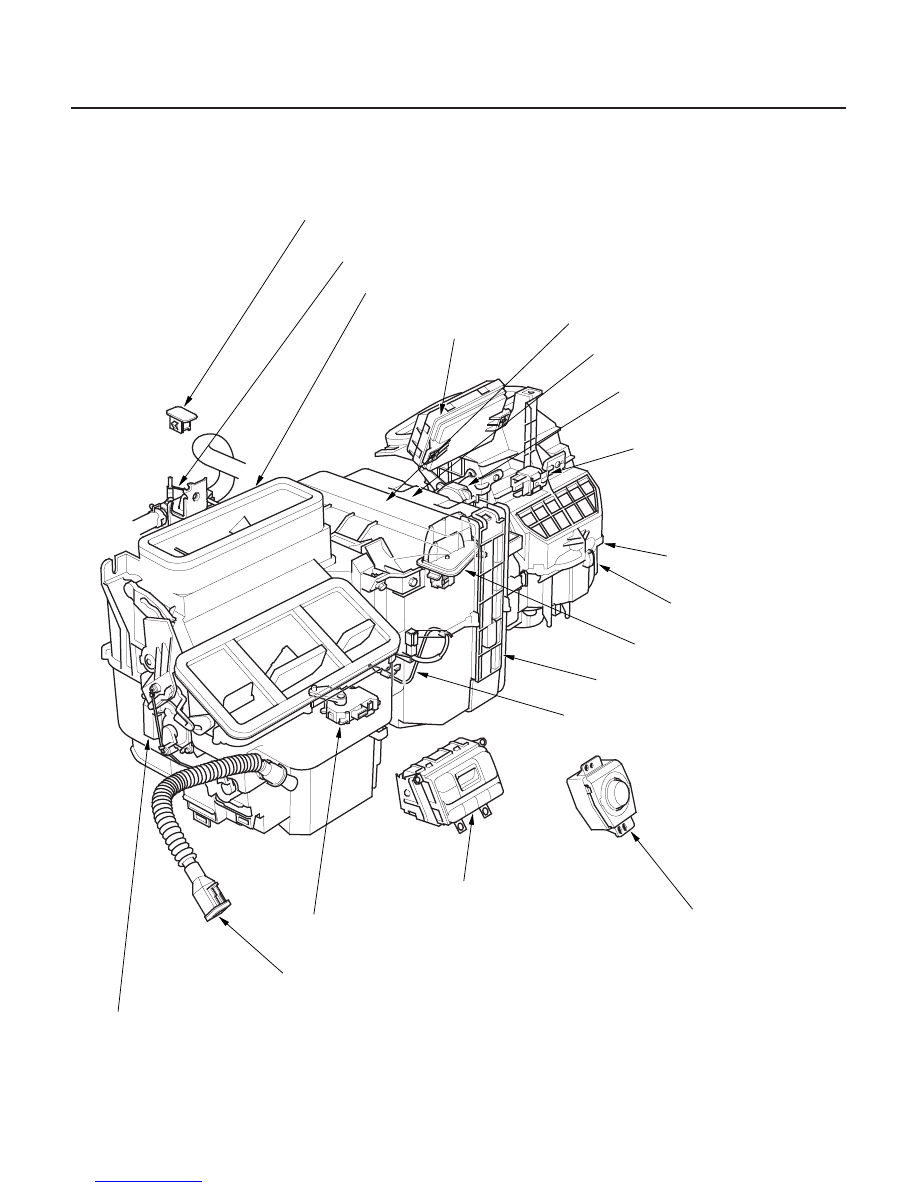

(With Navigation System)

21-66

Climate Control

Component Location Index (cont’d)

RECIRCULATION CONTROL MOTOR

BLOWER UNIT

BLOWER UNIT COMPONENTS

DUST AND POLLEN FILTER

EVAPORATOR

EVAPORATOR COMPONENTS

EVAPORATOR TEMPERATURE SENSOR

MODE CONTROL MOTOR

AIR MIX CONTROL MOTOR

IN-CAR TEMPERATURE SENSOR

CLIMATE CONTROL PANEL

REAR HEATER-A/C MAIN SWITCH

POWER TRANSISTER

BLOWER MOTOR HIGH RELAY

CLIMATE CONTROL UNIT

HEATER VALVE CABLE

HEATER UNIT/CORE

SUNLIGHT SENSOR

Test, page 21-39
Replacement, page 21-39

Removal and Installation,

page 21-45

Replacement, page 21-45

Replacement, page 21-44

Removal and Installation, page 21-42

Replacement, page 21-43

Test, page 21-40

Test, page 21-38
Replacement, page 21-38

Test, page 21-37
Replacement, page 21-37

Test, page 21-117
Replacement, page 21-117

Removal and Installation, page 21-121

Test, page 21-120

Test, page 22-80

Adjustment, page 21-48

Replacement, page 21-46

Test, page 21-119
Replacement, page 21-119

03/07/29 10:12:05 61S0X050_210_0067

*06

*07

01

S0X4A10G10500016711BBAT00

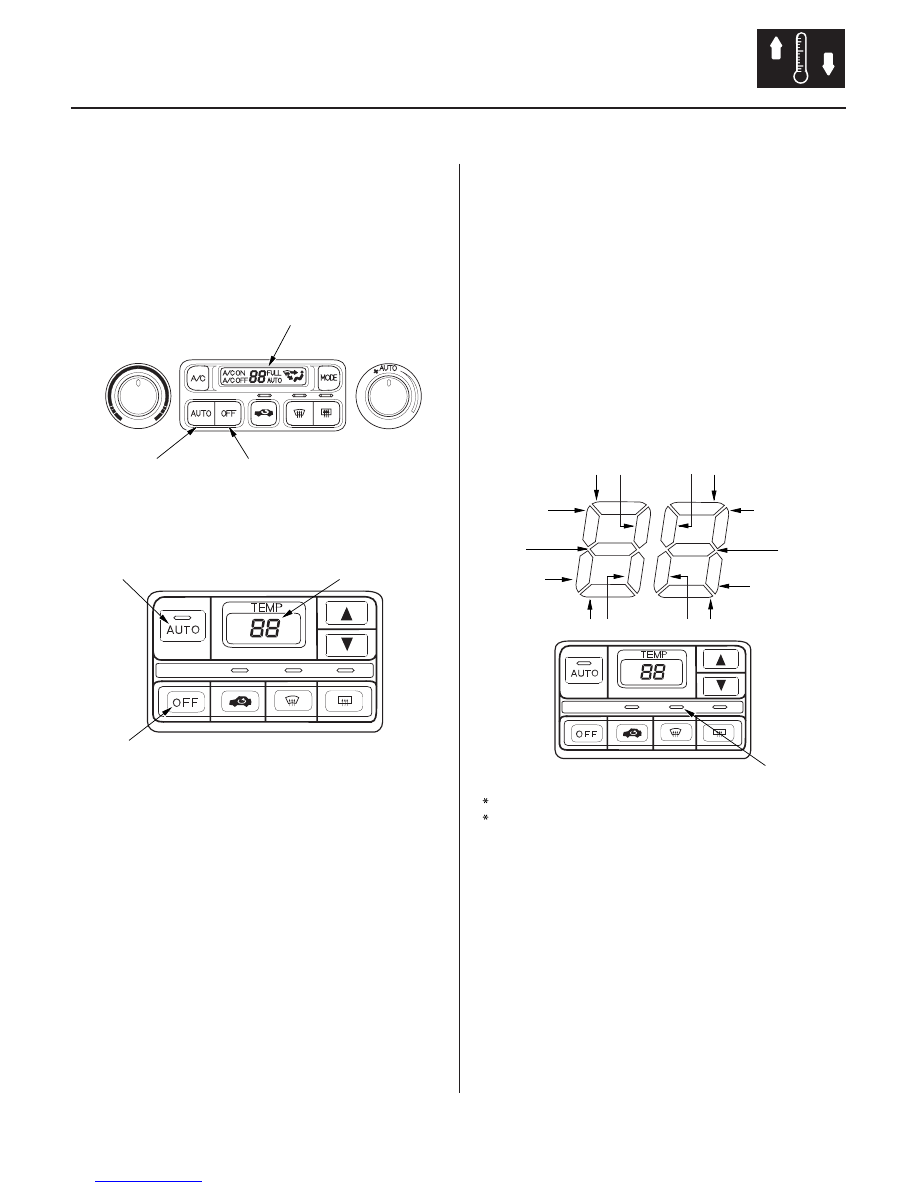

How to Retrieve a DTC

Without Navigation System

With Navigation System

Cancelling the Self-diagnosis Function

21-67

General Troubleshooting Information

TEMPERATURE INDICATOR

AUTO BUTTON

OFF BUTTON

OFF BUTTON

AUTO BUTTON

TEMPERATURE INDICATOR

C

E

B

D

F

J

N

H

I

K

G

A

L*

M*

L*

TEMPERATURE INDICATOR

2

1

1

The climate control unit has a self-diagnosis function.
To run the self-diagnosis function, do the following:

1. Turn the Ignition switch ON (II).

2. Press the AUTO button and then press the OFF

button. Continue to hold both buttons down for 1
minute.

If there is any abnormality in the system, the
temperature Indicator will light up the segment (A
through N) corresponding to the error. The temperature
indicator will then alternate every second between
displaying ‘‘88’’ (all segments lit) and the error code
segment (A through N).

NOTE: The system will only display the DTC when the
AUTO and OFF buttons are pressed. If you release the
buttons, the display will go blank. To return the display,
simply press the AUTO then the OFF buttons again.

To determine the meaning of the DTC, refer to the DTC
Troubleshooting Index. If there is no abnormality, the
segment will not light up.

1: Without Navigation System
2: With Navigation System

3. Turn the ignition switch OFF to cancel the self-

diagnosis function. After completing repair work,
run the self-diagnosis function again to make sure
that there are no other malfunctions.

(cont’d)

03/07/29 10:12:06 61S0X050_210_0068
