01

02

S0X4A00J18573430201KBAT00

20-142

Exterior Trim

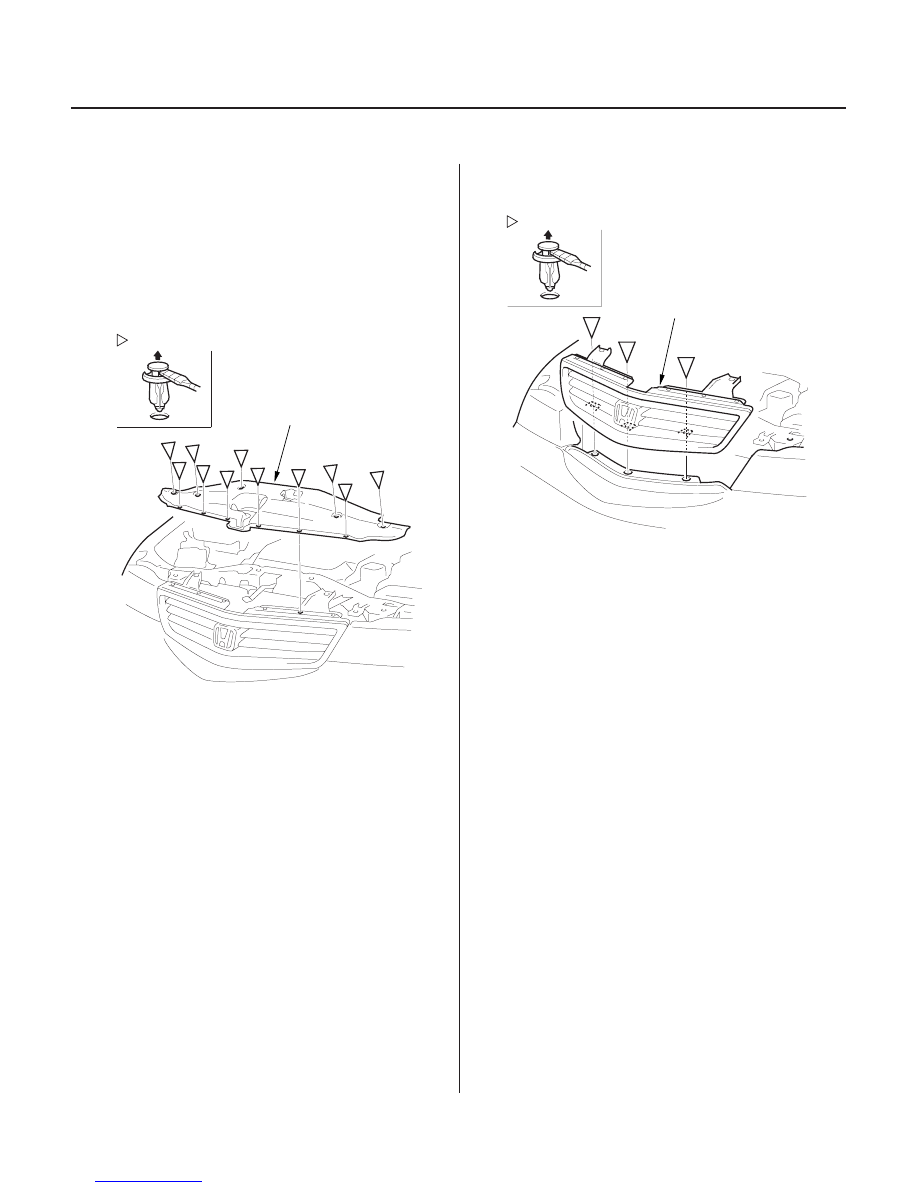

Front Grille Replacement

Fastener Locations

: Clip, 11

A

Fastener Locations

: Clip, 3

A

NOTE:

• When prying with a flat-tip screwdriver, wrap it with

protective tape to prevent damage.

• Take care not to scratch the front bulkhead cover and

front grille.

1. Detach the clips, then remove the front bulkhead

cover (A).

2. Detach the clips, then remove the front grille (A).

3. Install the front grille in the reverse order of

removal, and note these items:

• Replace any damaged clips.
• Push the clips into place securely.

03/07/29 10:03:39 61S0X050_200_0144

01

S0X4A00J18573430201MFAT00

20-143

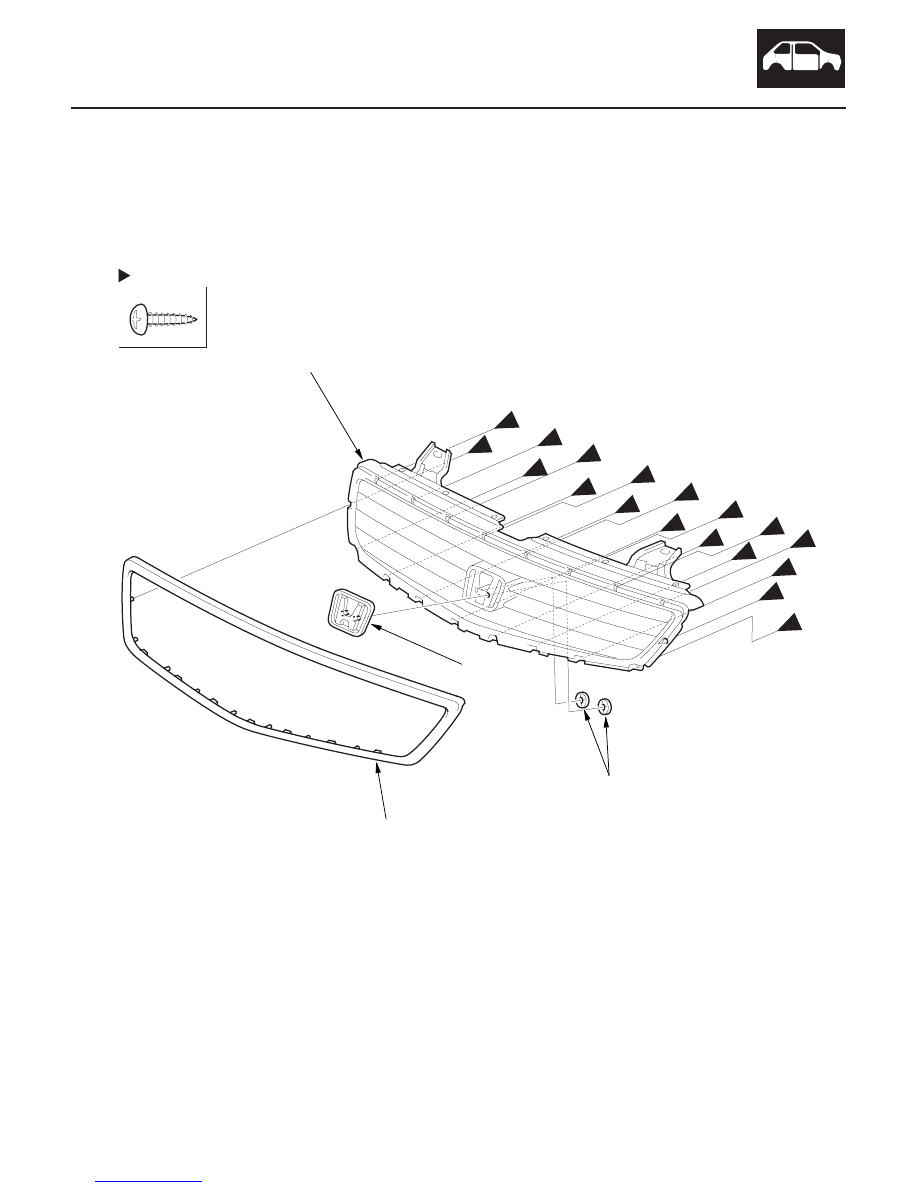

Front Grille Disassembly/Reassembly

Fastener Locations

: Screw, 18

FRONT GRILLE

EMBLEM

MOLDING

SPEED NUTS

NOTE: Take care not to scratch the front grille and molding.

Replace.

03/07/29 10:03:39 61S0X050_200_0145

*01

*02

S0X4A00J18573424101KBAT00

’02-04 models

20-144

Exterior Trim

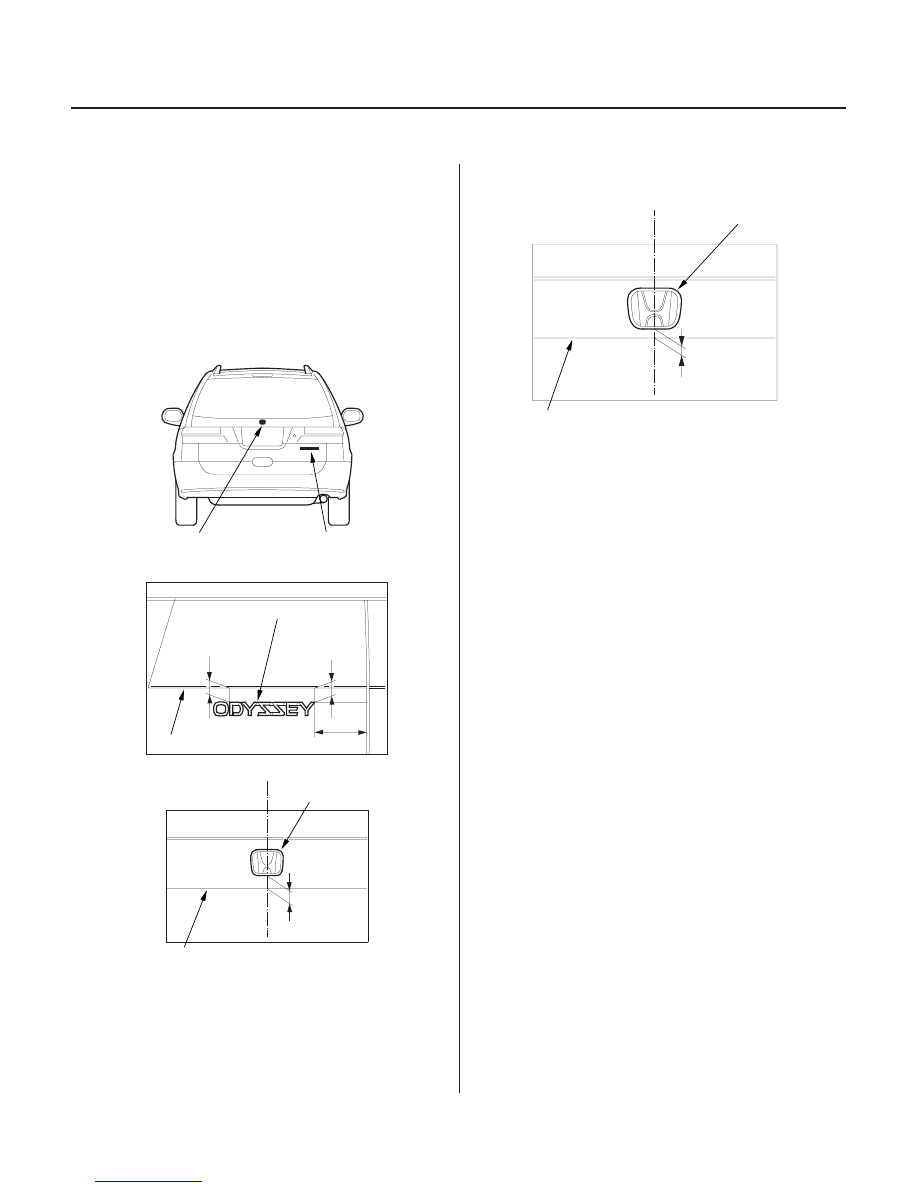

Emblem Replacement

Unit: mm (in.)

’99-01 models

’’H’’ EMBLEM

ODYSSEY EMBLEM

28
(1.1)

28
(1.1)

114

(4.5)

ODYSSEY EMBLEM

Edge of the tailgate

Center

Edge of the tailgate

26 (1.02)

’’H’’ EMBLEM

Center

’’H’’ EMBLEM

Edge of the tailgate

15 (0.59)

NOTE: When removing the emblems, take care not to
scratch the tailgate. Use dental floss to cut the adhesive
safely.

Apply the emblems where shown, and note these
items:

• Clean the tailgate surface with a sponge dampened in

alcohol.

• After cleaning, keep oil, grease and water from

getting on the surface.

03/07/29 10:03:40 61S0X050_200_0146

*01

S0X4A00J18573451651KBAT00

20-145

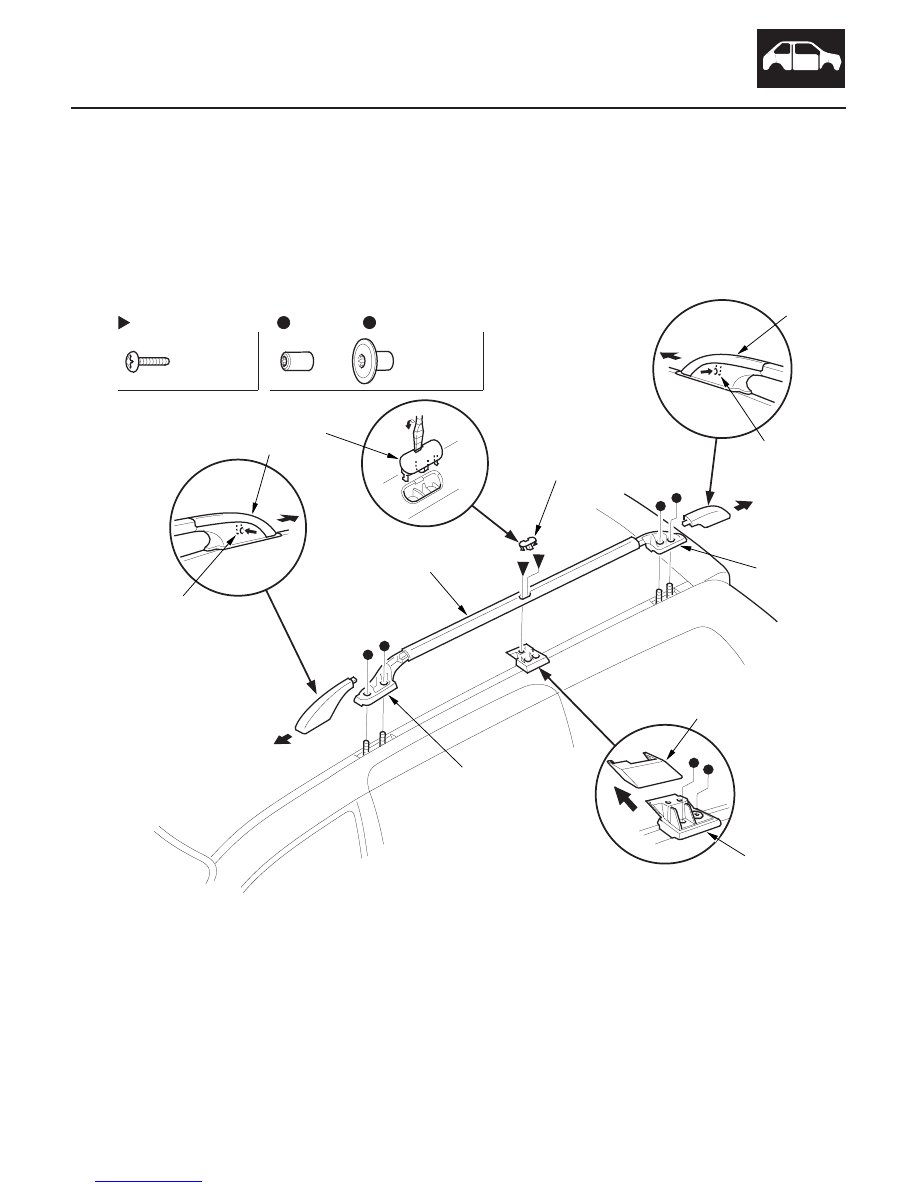

Roof Rail Replacement

Fastener Locations

: Bolt, 2

: Nut, 1

E

F

: Nut, 5

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

6 x 1.0 mm
13 N·m
(1.3 kgf·m,
9.4 lbf·ft)

B

C

D

D

A

C

F

F

G

I

F

F

H

J

K

F

E

NOTE:

• When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
• Take care not to scratch the covers, roof rail and body.

1. Remove the front cover (A) and rear cover (B) by sliding them in the direction shown while pushing the spring

plate (C) through the hole on each bracket with a flat-tip screwdriver. Remove the center cap (D), then with a Torx
T30 bit, remove the nuts (F) from the front bracket (G) and rear bracket (H).

2. Remove the roof rail (I). Do not remove the rubber pads from the brackets.

3. Remove the center cover (J). Using a Torx T30 bit, remove the nuts (E, F) and the center bracket (K). Do not

remove the rubber pad from the center bracket.

4. Install the roof rail in the reverse order of removal. Make sure the front and rear covers are snapped tightly into

place.

03/07/29 10:03:40 61S0X050_200_0147
