20-146

Exterior Trim

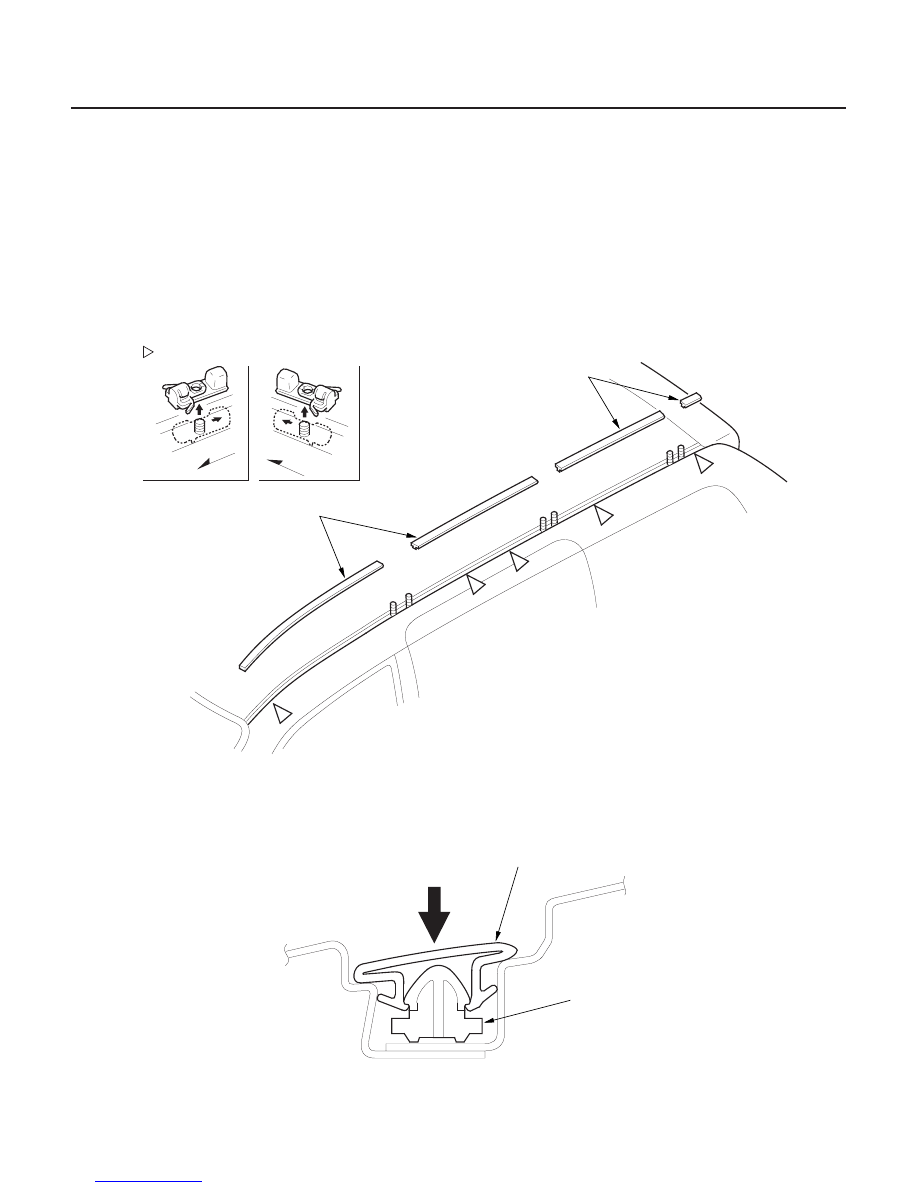

Roof Molding Replacement

Fastener Locations

: Clip, 5

Forward

Forward

A

A

A

B

NOTE:

• Take care not to scratch the body.
• The steel core in the roof molding cannot be restored to it original shape once it is bent. Replace the roof molding

when the steel core is bent.

1. Remove the roof rail and center bracket (see page 20-145).

2. Using a flat-tip screwdriver wrapped with protective tape and a shop towel on the body, detach the clips by prying

up the roof moldings (A).

3. Install the molding in the reverse order of removal, and note these items:

• Replace any damaged clips.
• Make sure the roof moldings (A) are installed on the clips (B) securely.

03/07/29 10:03:41 61S0X050_200_0148

01

S0X4A00J18573421201KBAT00

Adhesive tape:

3M 5311, or equivalent
Thickness 1.2 mm (0.047 in.) Width 5 mm (0.2 in.)

20-147

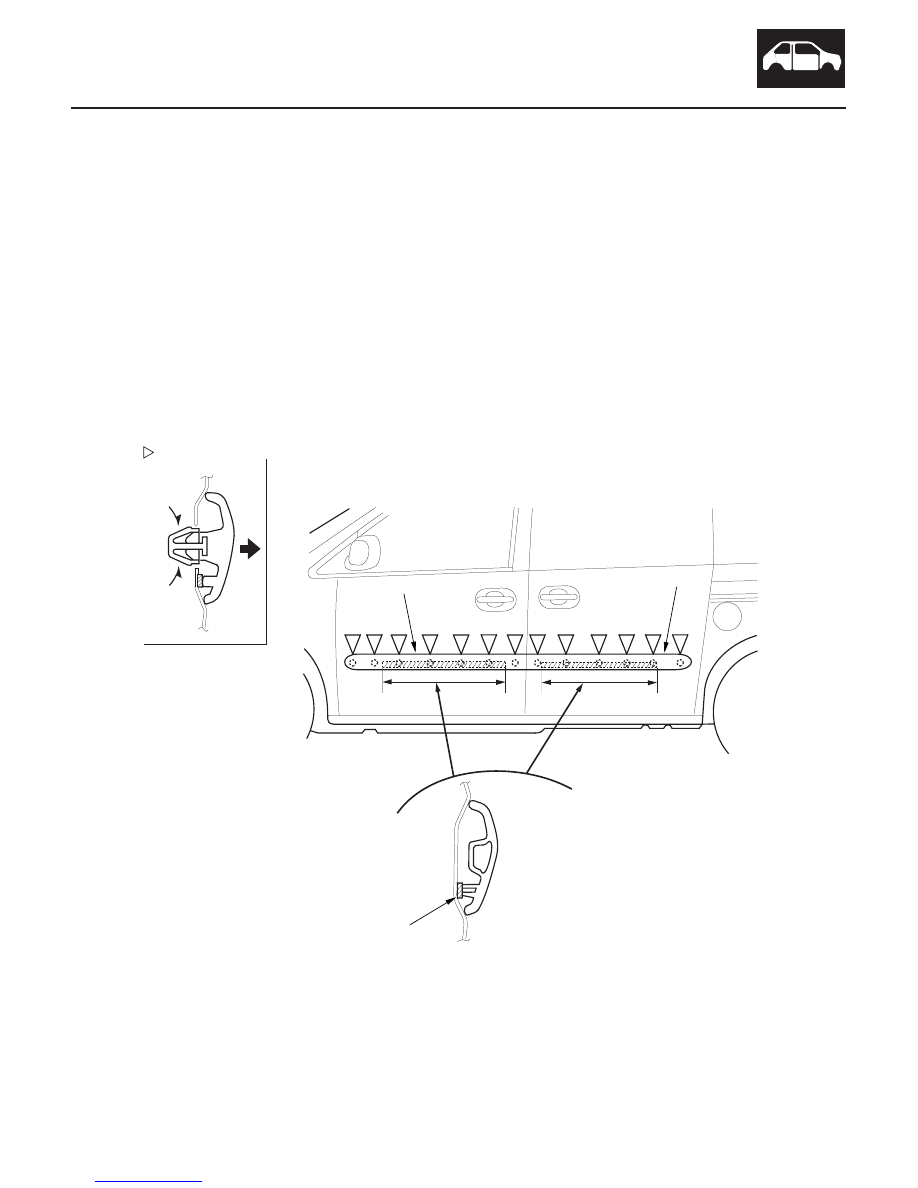

Door Molding Replacement

Fastener Locations

: Clip, 13

A

B

C

NOTE:

• Wrap the blade of your putty knife or flat-tip screwdriver with protective tape to prevent damage to the door.
• Be careful not to pry too far or you may bend the molding.
• Put on gloves to protect your hands.

1. Prepare to release the molding clips from inside the vehicle.

• To remove the front door molding, remove the front door panel and plastic cover (see page 20-7).
• To remove the sliding door molding, remove the sliding door panel and plastic cover (see page 20-13).

2. Release the clips, and gently pry the front door molding (A) or sliding door molding (B) away from the door while

removing the adhesive tape (C).

3. Install the moldings in the reverse order of removal, and note these items:

• Replace any damaged clips and adhesive tape.
• Push the clips and adhesive tape into place securely.

03/07/29 10:03:41 61S0X050_200_0149

01

S0X4A00J18573455601KBAT00

20-148

Exterior Trim

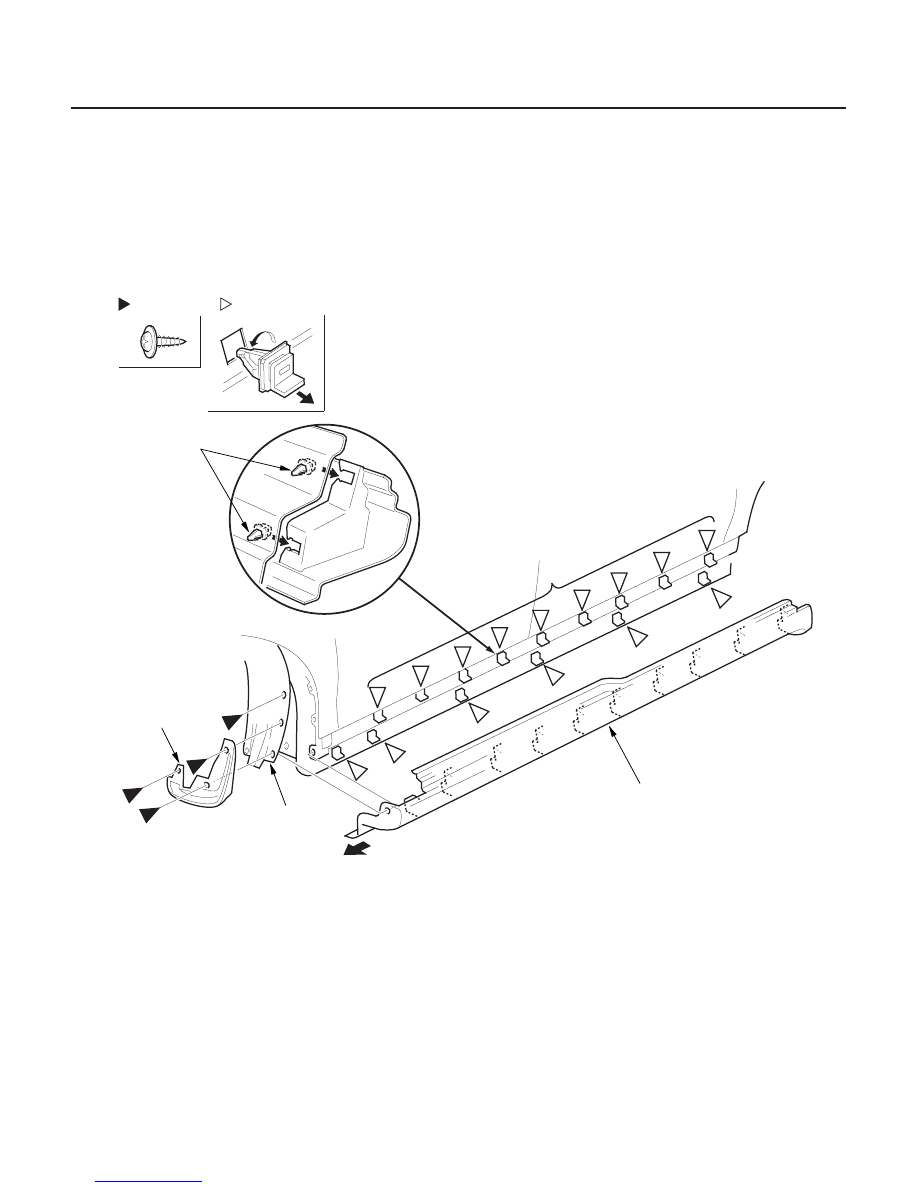

Side Sill Panel Replacement

Fastener Locations

: Screw, 4

D

: Clip, 15

D

A

B

C

D

D

D

D

D

D

D

1. Remove the side sill panel.

–1 If equipped, remove the front splash guard (A).
–2 Pull the inner fender (B) back as necessary.
–3 Slide the side sill panel (C) forward and remove it. Side clips (D) will stay in the body.
–4 Remove the side clips from the body.

2. Replace any damaged clips.

3. Install the side clips on the side sill panel.

4. Hold the panel up, and fit all the side clips into the holes in the body, then push on the panel until the clips snap

into place.

5. Reinstall the inner fender and front splash guard (if equipped).

03/07/29 10:03:41 61S0X050_200_0150

*01

S0X4A00J18526234601KBAT00

01

S0X4A00J18526226971KBAT00

Sealant: Cemedine P/N 08712-0004, or equivalent

20-149

20-149

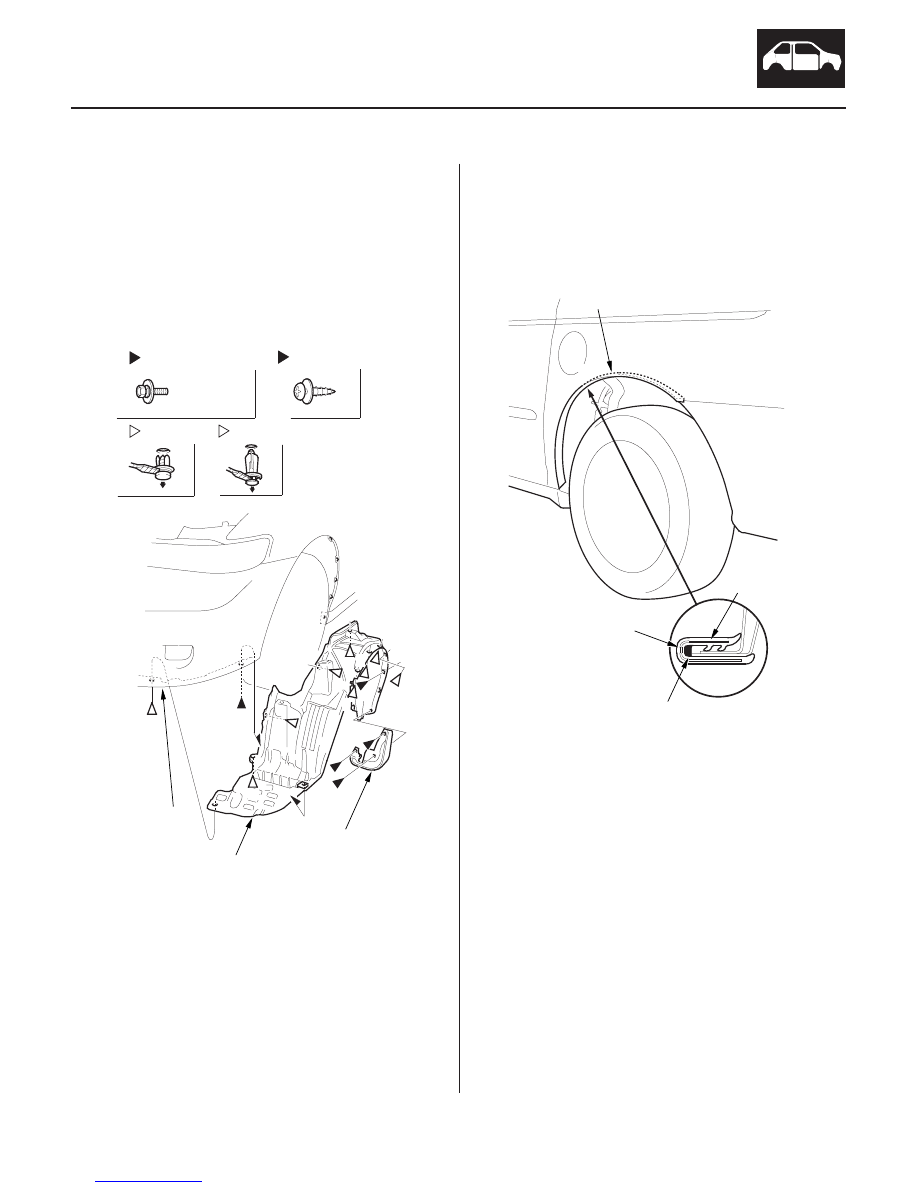

Fenderwell

Inner Fender Replacement

Fenderwell Trim Replacement

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

Fastener Locations

: Bolt, 1

A

: Screw, 4

B

: Clip, 6

C

: Clip, 3

D

INNER FENDER

FRONT SPLASH GUARD
(For some models)

B

B

B

A

D

FRONT
BUMPER

C

C

C

C

C

B

D

C

D

A

C

A

B

NOTE: Take care not to scratch the body.

1. Remove the inner fender as shown.

2. Install the inner fender in the reverse order of

removal, and note these items:

• Replace any damaged clips.
• Push the clips into place securely.

1. Remove the fenderwell trim (A) by carefully pulling

it out.

NOTE: The steel core (B) in the fenderwell trim
cannot be restored to it original shape once it is
bent. Replace the fenderwell trim when the steel
core is bent.

2. Clean the body bonding surface with a sponge

dampened in alcohol. After cleaning, keep oil,
grease and water from getting on the clean surface.

3. Apply clear sealant (C) into the channel of the

fenderwell trim from end to end.

4. Install the fenderwell trim.

5. Scrape or wipe the excess sealant off with a towel.

To remove sealant from a painted surface, wipe
with a soft shop towel dampened in alcohol.
