Honda Odyssey 2004. Manual - part 352





*01

03

04

20-50

Glass

Sliding Door Glass Replacement (cont’d)

Side portion

Lower portion

Upper portion

A

C

B

A

A

B

A

C

A

A

C

A

A

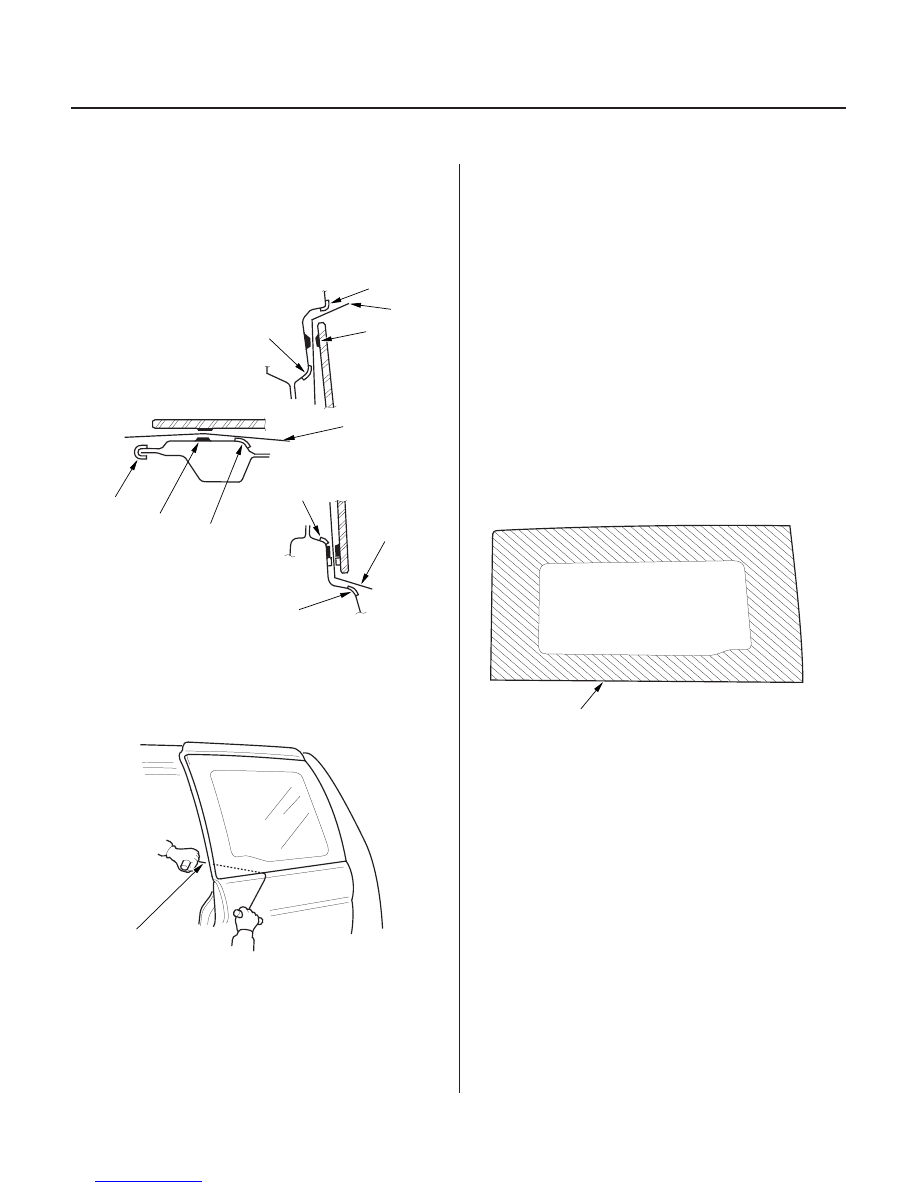

3. Apply protective tape (A) along the inside and

outside edges of the sliding door as shown. Using
an awl, make a hole through the adhesive (B) from
inside the vehicle. Push a piece of piano wire (C)
through the hole, and wrap each end around a
piece of wood.

4. With a helper on the outside, pull the piano wire (A)

back and forth in a sawing motion. Hold the piano
wire as close to the sliding door glass as possible
to prevent damage to the sliding door, and
carefully cut through the adhesive around the
entire sliding door glass.

5. Carefully remove the sliding door glass.

6. With a putty knife, scrape the old adhesive smooth

to a thickness of about 2 mm (0.08 in.) on the
bonding surface around the entire sliding door
glass opening flange:

• Do not scrape down to the painted surface of the

sliding door; damaged paint will interfere with
proper bonding.

• Remove the fasteners from the sliding door.

7. Clean the sliding door bonding surface with a

sponge dampened in alcohol. After cleaning, keep
oil, grease and water from getting on the surface.

8. If the old door glass will be reinstalled, use a putty

knife to scrape off all of the old adhesive and the
rubber dam from the glass. Clean the shaded
portion of the glass (A) with alcohol where new
adhesive will be applied. Make sure the bonding
surface is kept free of water, oil and grease.

03/07/29 10:01:34 61S0X050_200_0052

05

01

02

03

20-51

Fastener Locations

43 mm (1.69 in.)

72 mm (2.83 in.)

51.3 mm
(2.02 in.)

55 mm
(2.17 in.)

80.2 mm (3.16 in.)

34.1 mm (1.34 in.)

C

52 mm
(2.05 in.)

73.6 mm
(2.90 in.)

B

A

A

A

A

: Clip, 3

B

: Clip, 1

5 mm
(0.2 in.)

: Apply primer here.

A

C

B

26.5 mm (1.04 in.)

5 mm
(0.2 in.)

A

C

B

A

C

10.5 mm
(0.413 in.)

15 mm
(0.59 in.)

10 mm
(0.39 in.)

10 mm
(0.39 in.)

8 mm
(0.3 in.)

5 mm
(0.2 in.)

10.5 mm
(0.413 in.)

11 mm (0.43 in.)

B

A

B

A

B

12 mm
(0.47 in.)

Top

5 mm (0.2 in.)

12 mm (0.47 in.)

: Apply primer here.

10 mm
(0.39 in.)

5 mm (0.2 in.)

5 mm
(0.2 in.)

10 mm
0.39 in.)

5 mm
(0.2 in.)

E

D

B

A

C

D

A

B

C

8 mm
(0.31 in.)

D

B

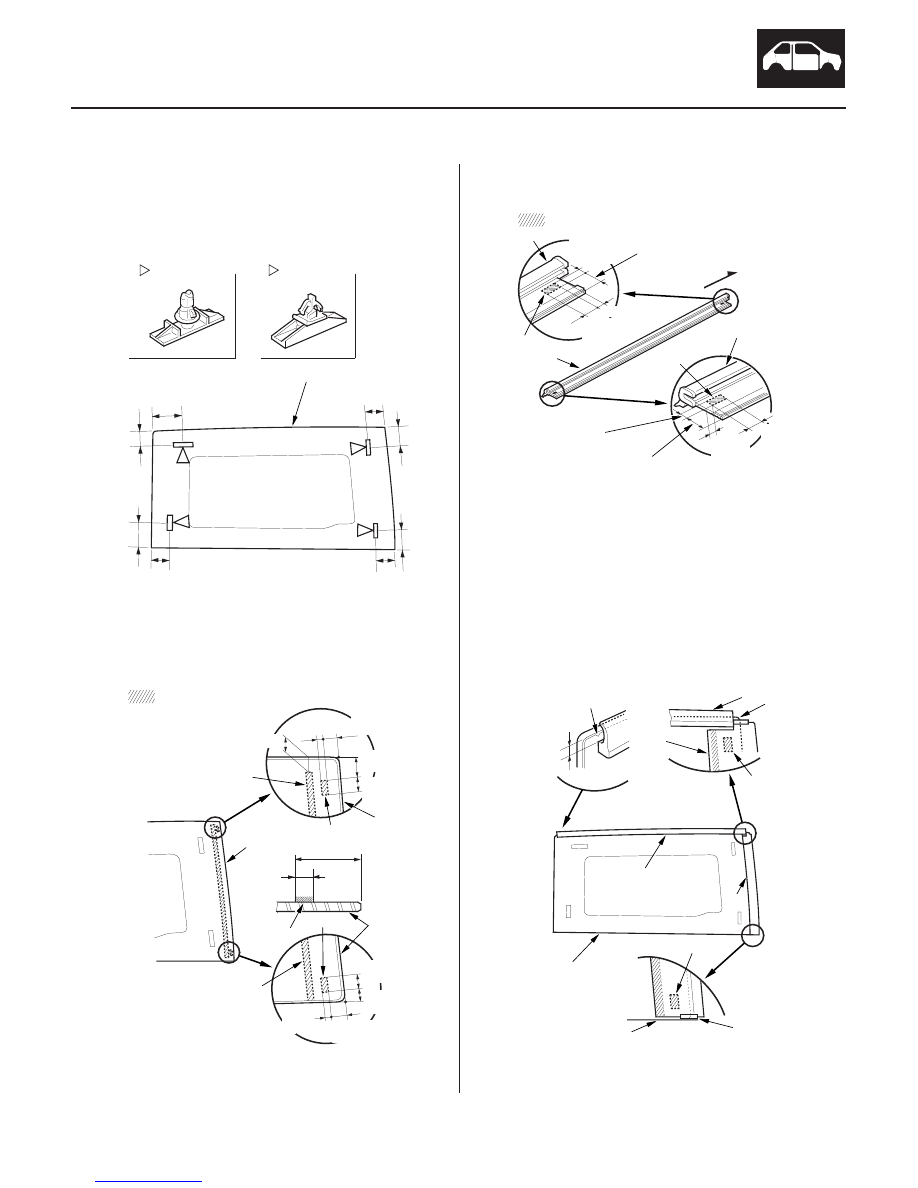

9. Attach the clip (A) and clip (B) with adhesive tape

(3M 4215, or equivalent) to the inside surface of the
glass (C) as shown. Be careful not to touch the
glass where adhesive will be applied.

10. Apply primer (3M C-100, or equivalent) to the

molding tape area (A) and glass primer to the
adhesive areas (B) on the inside surface of the
glass (C) as shown.

11. Apply primer to the areas (A) on each end of the

molding (B).

12. Apply adhesive to the primed areas (A) on the

inside surface of the glass, then attach the molding
(B) with adhesive tape (3M 4211, or equivalent),
and attach upper seal (C) with adhesive tape
(NITTO 501M, or equivalent) to the inside surface of
the glass (D) as shown:

• Be sure the glass and molding line up with the

lower edge, and the upper seal lines up the
alignment mark (E).

• Be careful not to touch the glass where adhesive

will be applied.

(cont’d)

03/07/29 10:01:35 61S0X050_200_0053

08

09

20-52

Glass

Sliding Door Glass Replacement (cont’d)

12 mm (0.47 in.)

A

B

A

B

4 mm
(0.15 in.)

A

B

10 mm (0.39 in.)

10 mm (0.39 in.)

A

A

B

10 mm
(0.39 in.)

9 mm
(0.35 in.)

10 mm
(0.39 in.)

A

A

B

: Apply glass primer here.

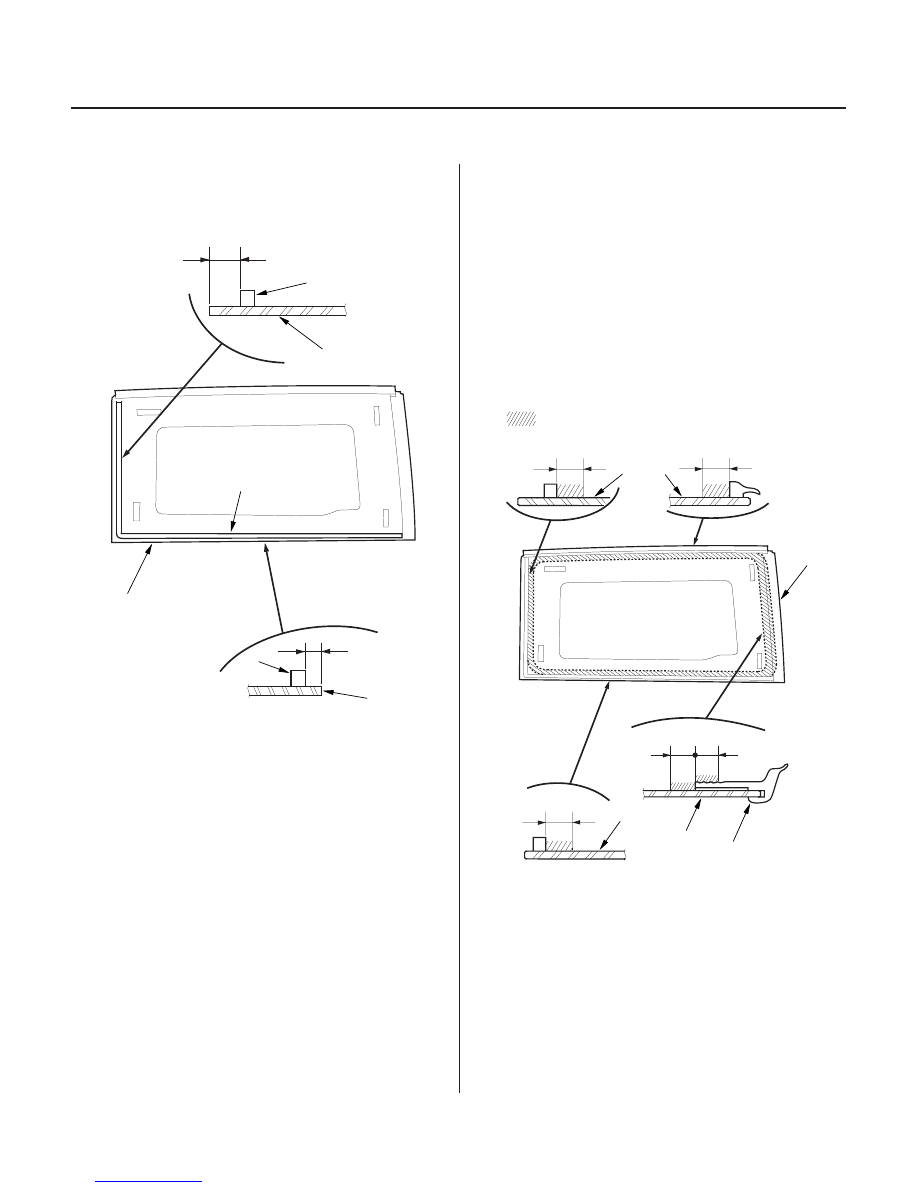

13. Attach the rubber dam (A) with adhesive tape

(NITTO 501M, or equivalent) to the inside surface of
the glass (B) as shown. Be careful not to touch the
glass where adhesive will be applied.

14. With a sponge, apply a light coat of glass primer

along the edge of the glass (A) and molding (B) as
shown, then lightly wipe it off with gauze or
cheesecloth:

• Do not apply body primer to the sliding door

glass, and do not get body and glass primer
sponges mixed up.

• Never touch the primed surfaces with your hands.

If you do, the adhesive may not bond to the
sliding door glass properly, causing a leak after
the sliding door glass is installed.

• Keep water, dust, and abrasive materials away

from the primed surface.

03/07/29 10:01:35 61S0X050_200_0054

10

*02

04

20-53

12 mm
(0.47 in.)

19 mm (0.75 in.)

20 mm (0.79 in.)

10 mm
(0.39 in.)

10 mm
(0.39 in.)

20 mm
(0.79 in.)

16 mm (0.63 in.)

20 mm (0.79 in.)

: Apply body primer here.

10 mm (0.39 in.)

7 mm (0.27 in.)

A

2 mm (0.08 in.)

13 mm
(0.51 in.)

8 mm (0.31 in.)

1 mm (0.04 in.)

A

B

A

B

1 mm (0.04 in.)

A

B

B

A

1 mm
(0.04 in.)

A

B

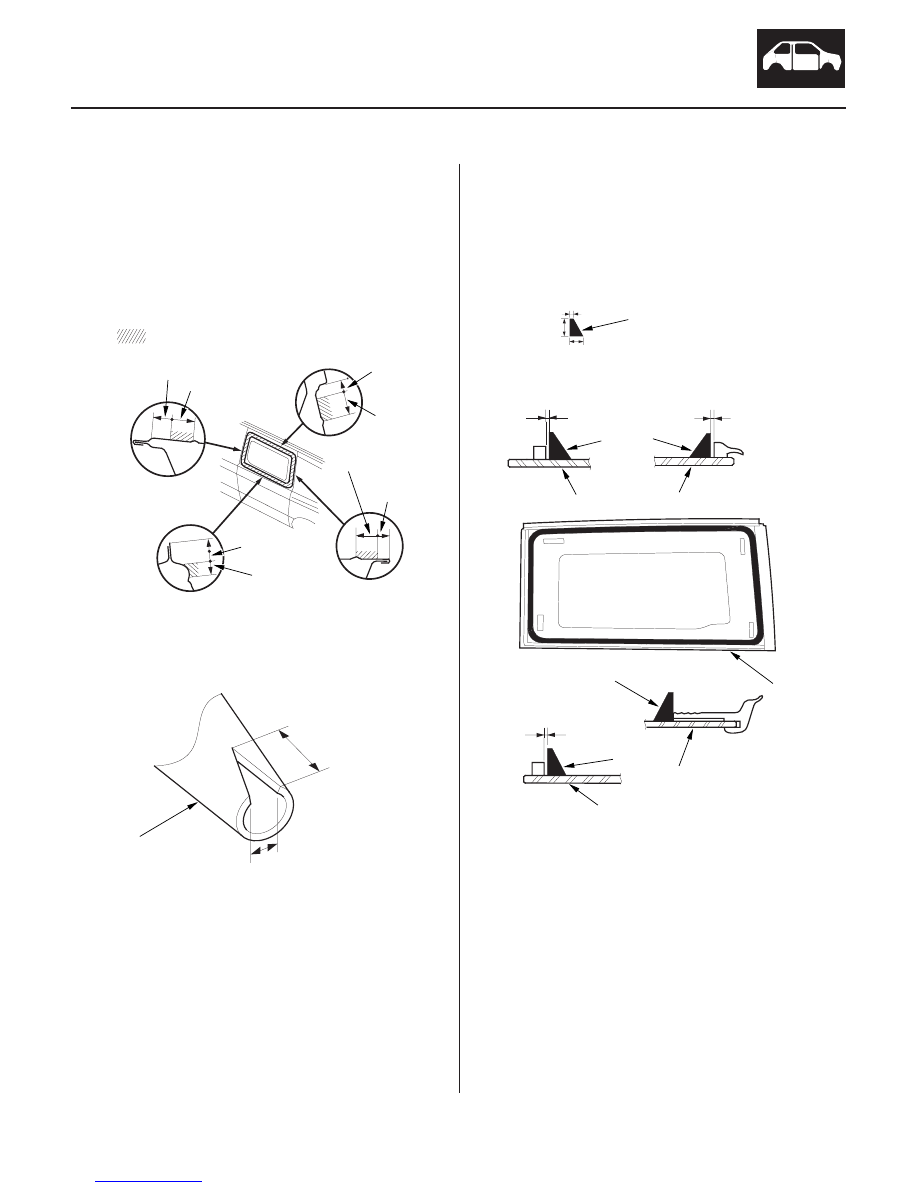

15. With a sponge, apply a light coat of body primer to

the original adhesive remaining around the sliding
door glass opening flange. Let the body primer dry
for at least 10 minutes:

• Do not apply glass primer to the body, and be

careful not to mix up glass and body primer
sponges.

• Never touch the primed surfaces with your hands.

16. Before filling a cartridge with adhesive, cut a ‘‘V’’ in

the end of the nozzle (A) as shown.

17. Pack adhesive into the cartridge without air pockets

to ensure continuous delivery. Put the cartridge in a
caulking gun, and run a bead of adhesive (A)
around the edge of the glass (B) as shown. Apply
the adhesive within 30 minutes after applying the
glass primer. Make a slightly thicker bead at each
corner.

(cont’d)

03/07/29 10:01:36 61S0X050_200_0055
