Windshield Replacement (cont’d)

C

A

B

B

20 mm (0.79 in.)

Fastener Locations

: Fastener, 2

A

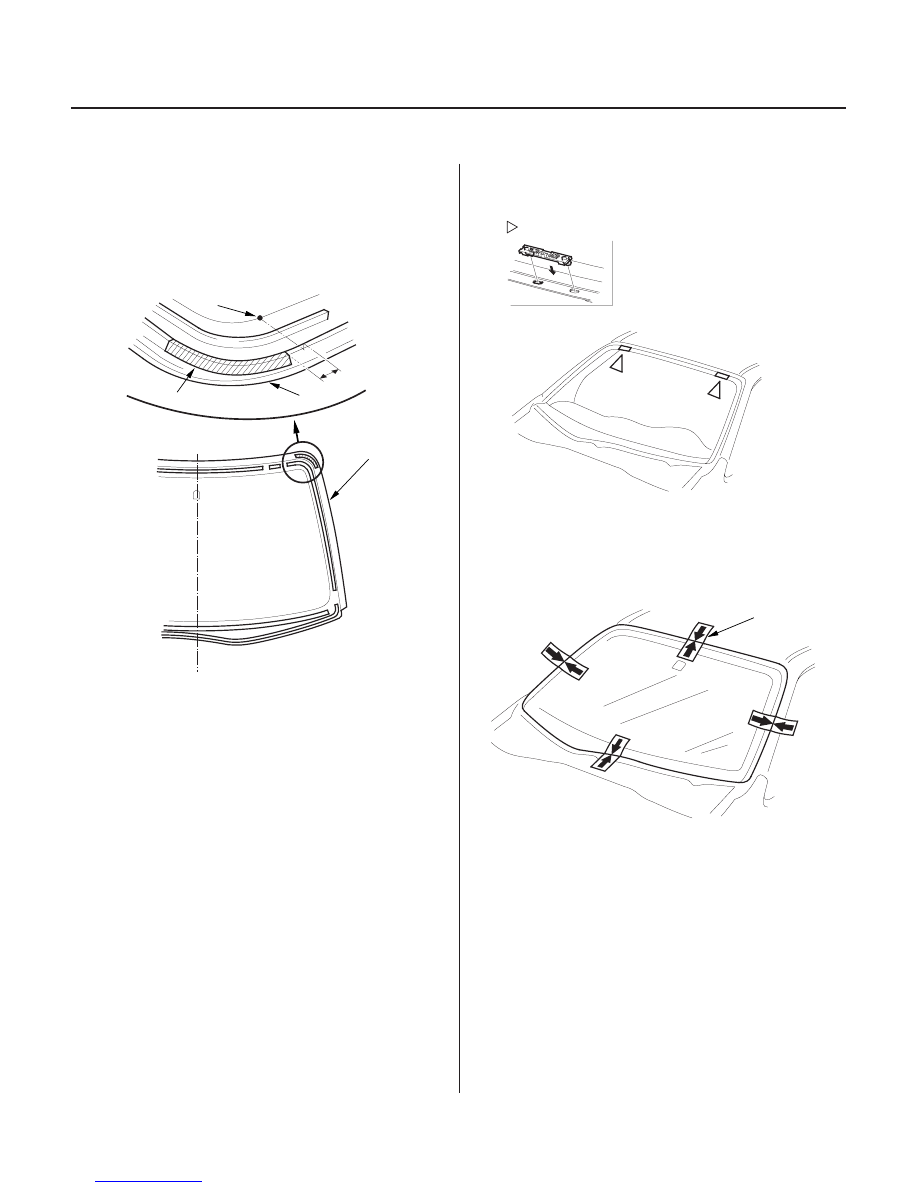

14. Attach the molding corner seal (A) to the inside

surface of the molding (B) as shown:

• Be sure the molding upper seal and molding side

seal line up with the alignment dots (C).

• Be careful not to touch the windshield where

adhesive will be applied.

15. Install the fasteners to the body.

16. Set the windshield in the opening, and center it.

Make alignment marks (A) across the windshield
and body with a grease pencil at the four points
shown. Be careful not to touch the windshield
where adhesive will be applied.

17. Remove the windshield.

03/07/29 10:00:26 61S0X050_200_0044

02

12

13

20-43

: Apply glass primer here.

A

B

C

E

D

A

B, C

E

D

Inside

Inside

20 mm
(0.79 in.)

20 mm
(0.79 in.)

20 mm
(0.79 in.)

: Apply body primer here.

10 mm (0.39 in.)

7 mm (0.27 in.)

A

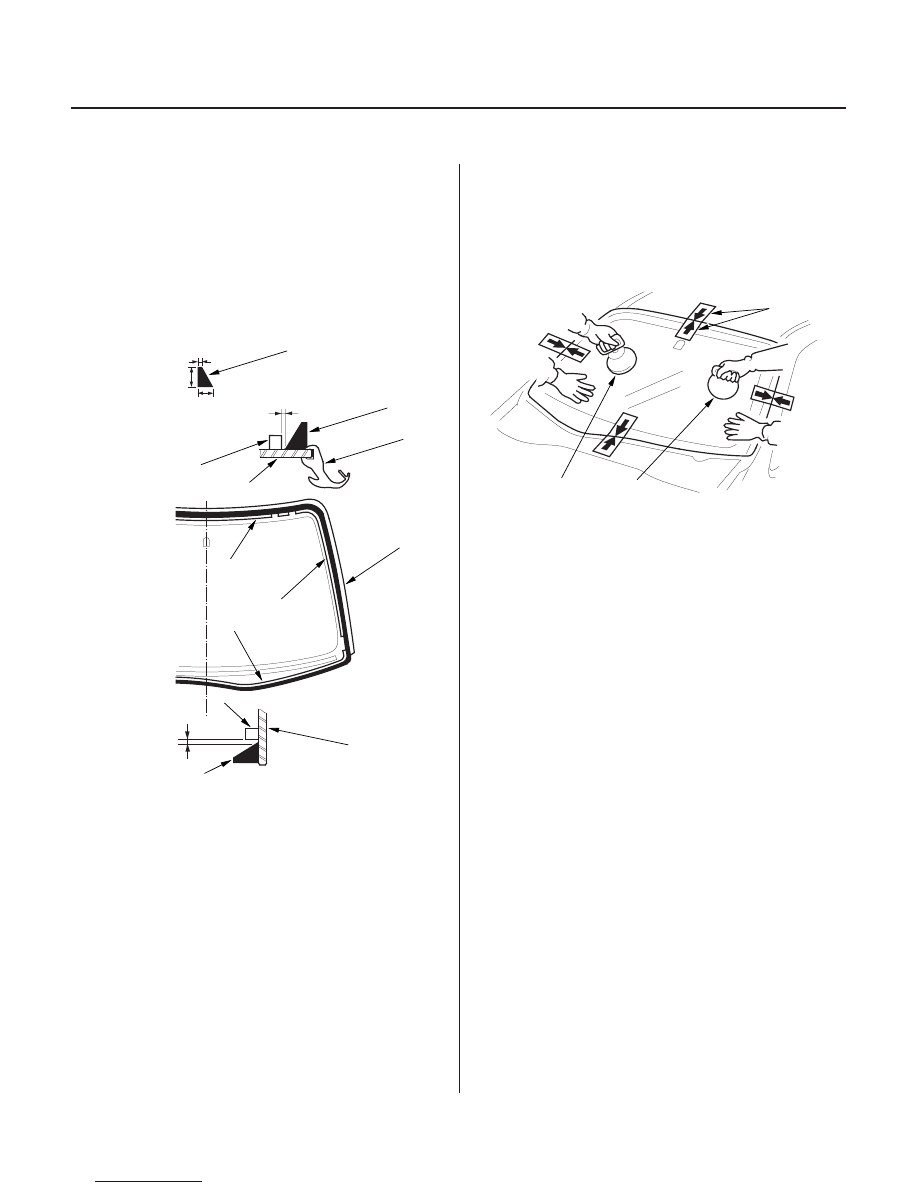

18. With a sponge, apply a light coat of glass primer

around the edge of the windshield (A) between the
upper rubber dam (B), side rubber dam (C), lower
rubber dam (D) and molding (E) as shown, then
lightly wipe it off with gauze or cheesecloth:

• Apply glass primer to the molding.
• Do not apply body primer to the windshield, and

do not get body and glass primer sponges mixed
up.

• Never touch the primed surfaces with your hands.

If you do, the adhesive may not bond to the
windshield properly, causing a leak after the
windshield is installed.

• Keep water, dust, and abrasive materials away

from the primed surface.

19. With a sponge, apply a light coat of body primer to

the original adhesive remaining around the
windshield opening flange. Let the body primer dry
for at least 10 minutes:

• Do not apply glass primer to the body, and be

careful not to mix up glass and body primer
sponges.

• Never touch the primed surfaces with your hands.
• Mask off the dashboard before priming the

flange.

20. Before filling a cartridge with adhesive, cut a ‘‘V’’ in

the end of the nozzle (A) as shown.

(cont’d)

03/07/29 10:00:27 61S0X050_200_0045

*03

15

20-44

Glass

Windshield Replacement (cont’d)

A

B

C

E

D

F

2 mm
(0.08 in.)

13 mm
(0.51 in.)

8 mm
(0.31 in.)

2 mm
(0.08 in.)

2.0 mm
(0.08 in.)

Inside

Inside

C, D

F

A

B

E

A

B

A

A

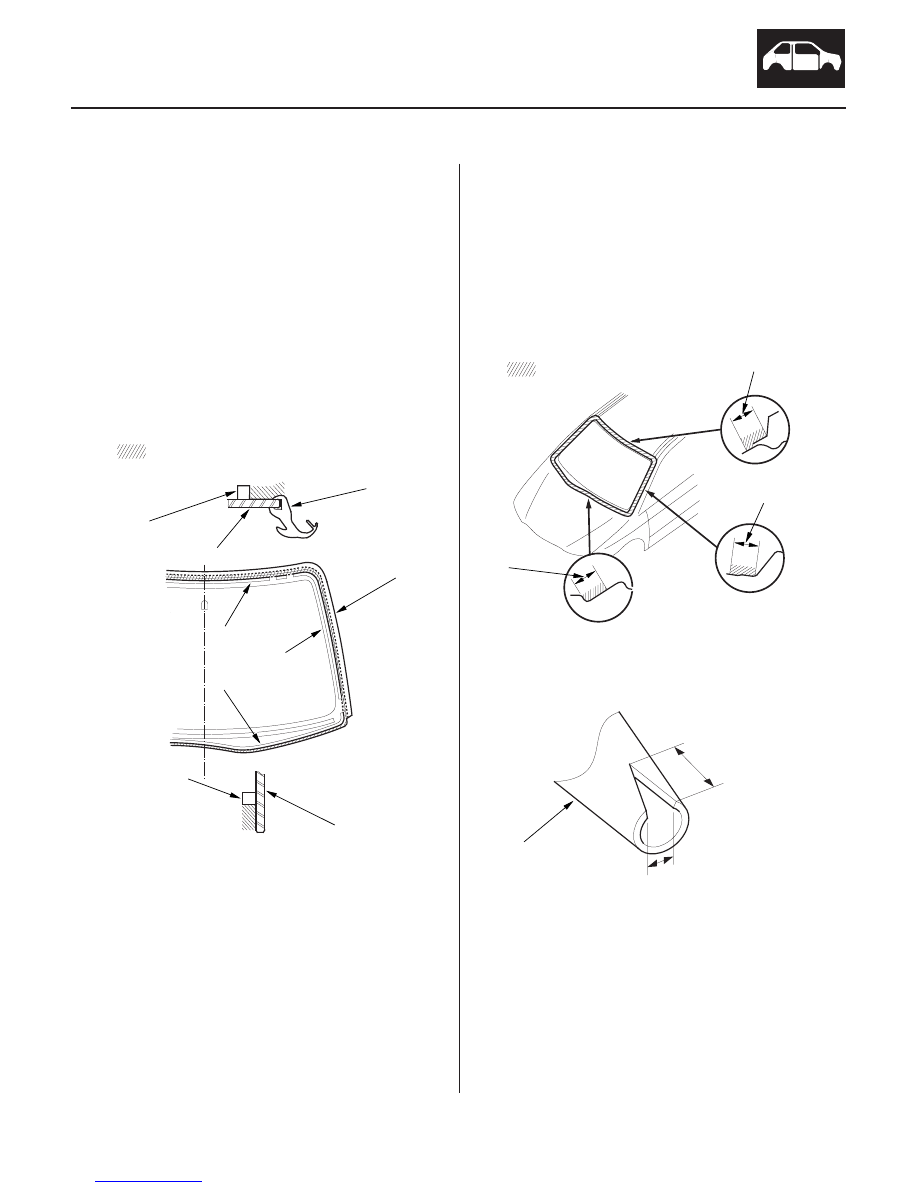

21. Pack adhesive into the cartridge without air pockets

to ensure continuous delivery. Put the cartridge in a
caulking gun, and run a bead of adhesive (A)
around the edge of the windshield (B) between the
upper rubber dam (C), side rubber dam (D), lower
rubber dam (E) and molding (F) as shown. Apply
the adhesive within 30 minutes after applying the
glass primer. Make a slightly thicker bead at each
corner.

22. Use suction cups (A) to hold the windshield over

the opening, align it with the alignment marks (B)
made in step 16, and set it down on the adhesive.
Lightly push on the windshield until its edges are
fully seated on the adhesive all the way around. Do
not open or close the doors until the adhesive is dry.

23. Scrape or wipe the excess adhesive off with a putty

knife or towel. To remove adhesive from a painted
surface or the windshield, wipe with a soft shop
towel dampened with alcohol.

24. Let the adhesive dry for at least 1 hour, then spray

water over the windshield and check for leaks.
Mark leaking areas, and let the windshield dry, then
seal with sealant:

• Let the vehicle stand for at least 4 hours after

windshield installation. If the vehicle has to be
used within the first 4 hours, it must be driven
slowly.

• Keep the windshield dry for the first hour after

installation.

25. Reinstall all remaining removed parts. Install the

rearview mirror after the adhesive has dried
thoroughly.

NOTE: Advise the customer not to do the following
things for 2 to 3 days:

• Slam the doors with all the windows rolled up.
• Twist the body excessively (such as when going

in and out of driveways at an angle or driving
over rough, uneven roads).

03/07/29 10:00:27 61S0X050_200_0046

01

*01

03

S0X4A00J54400050461KBAT00

20-45

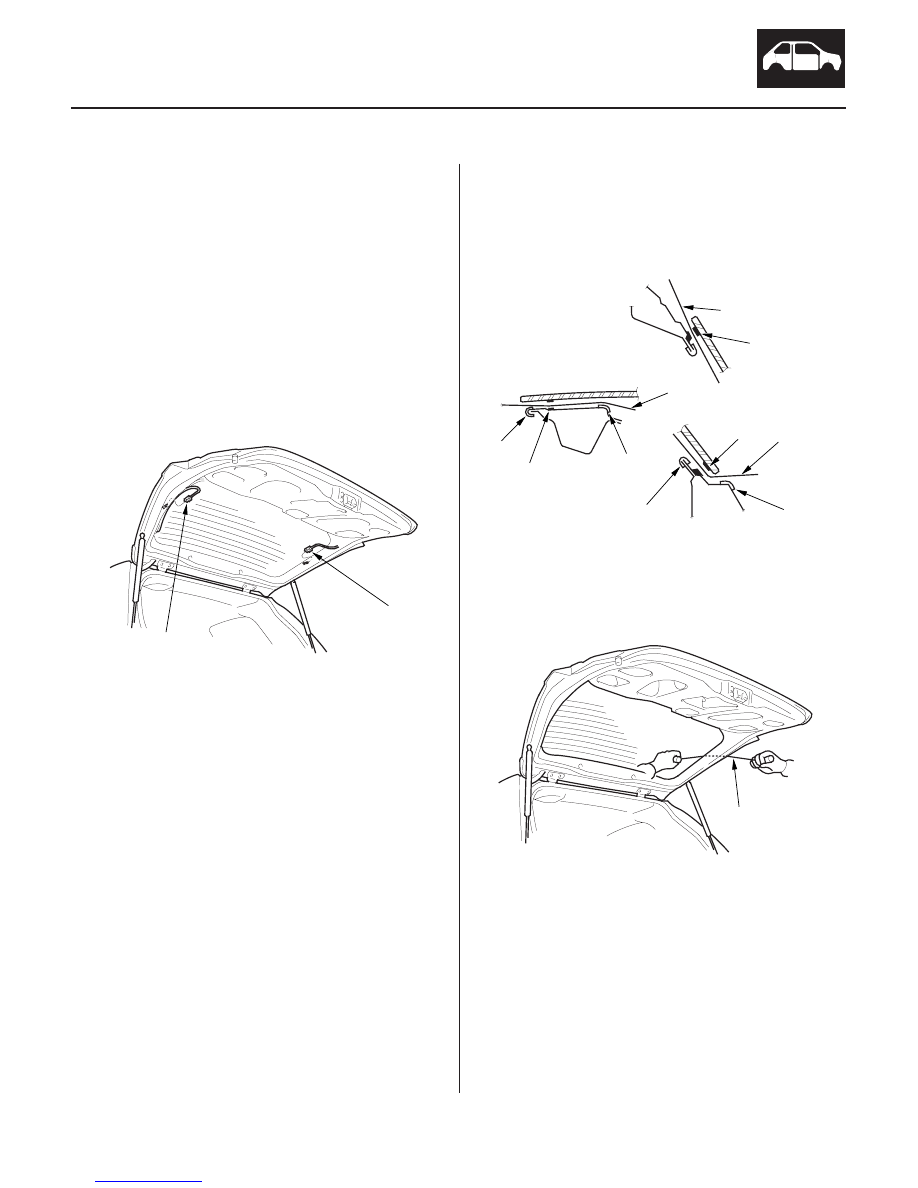

Rear Window Replacement

A

A

C

B

Upper portion

Side portion

Lower portion

A

B

A

C

A

A

B

C

A

NOTE:

• Put on gloves to protect your hands.
• Use seat covers to avoid damaging any surfaces.
• Wear eye protection while cutting the glass adhesive

with piano wire.

• Do not damage the rear window defogger grid lines

and terminals.

1. Remove these items:

• Tailgate trim panel (see page 20-61)
• Tailgate spoiler (see page 20-140)
• Rear window wiper motor (see page 22-232)

2. Disconnect the rear window defogger connectors

(A).

3. If the old rear window will be reinstalled, make

alignment marks across the glass and body with a
grease pencil.

4. Apply protective tape (A) along the inside and

outside edges of the tailgate as shown. Using an
awl, make a hole through the adhesive (B) from
inside the vehicle. Push the piano wire (C) through
the hole, and wrap each end around a piece of
wood.

5. With a helper on the outside, pull the piano wire (A)

back and forth in a sawing motion. Hold the piano
wire as close to the rear window as possible to
prevent damage to the tailgate, and carefully cut
through the adhesive around the entire rear
window.

6. Carefully remove the rear window.

(cont’d)

03/07/29 10:00:28 61S0X050_200_0047
