Honda Odyssey 2004. Manual - part 353





13

20-54

Glass

Sliding Door Glass Replacement (cont’d)

A

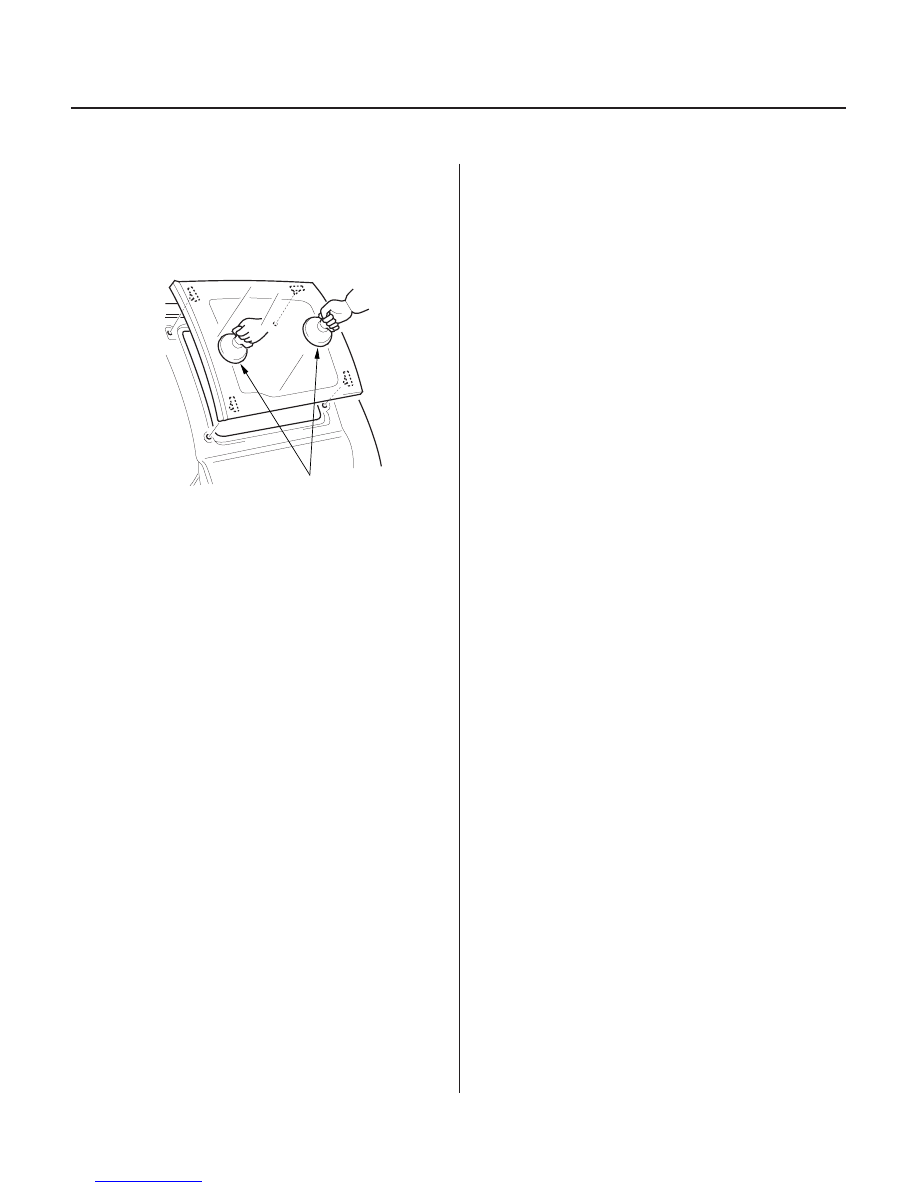

18. Use suction cups (A) to hold the sliding door glass

over the opening, align it and set it down on the
adhesive. Lightly push on the sliding door glass
until its edges are fully seated on the adhesive all
the way around. Do not open or close the doors
until the adhesive is dry.

19. Scrape or wipe the excess adhesive off with a putty

knife or towel. To remove adhesive from a painted
surface or the rear window, use a soft shop towel
dampened with alcohol.

20. Let the adhesive dry for at least 1 hour, then spray

water over the sliding door glass and check for
leaks. Mark any leaking areas, let the sliding door
glass dry, then seal with sealant. Let the vehicle
stand for at least 4 hours after sliding door glass
installation. If the vehicle has to be used within the
first 4 hours, it must be driven slowly.

21. Reinstall all remaining removed parts.

NOTE: Advise the customer not to do the following
things for 2 to 3 days:

• Slam the doors with all the windows rolled up.
• Twist the body excessively (such as when going

in and out of driveways at an angle or driving
over rough, uneven roads).

03/07/29 10:01:36 61S0X050_200_0056

01

S0X4A00J54400048101KBAT20

20-55

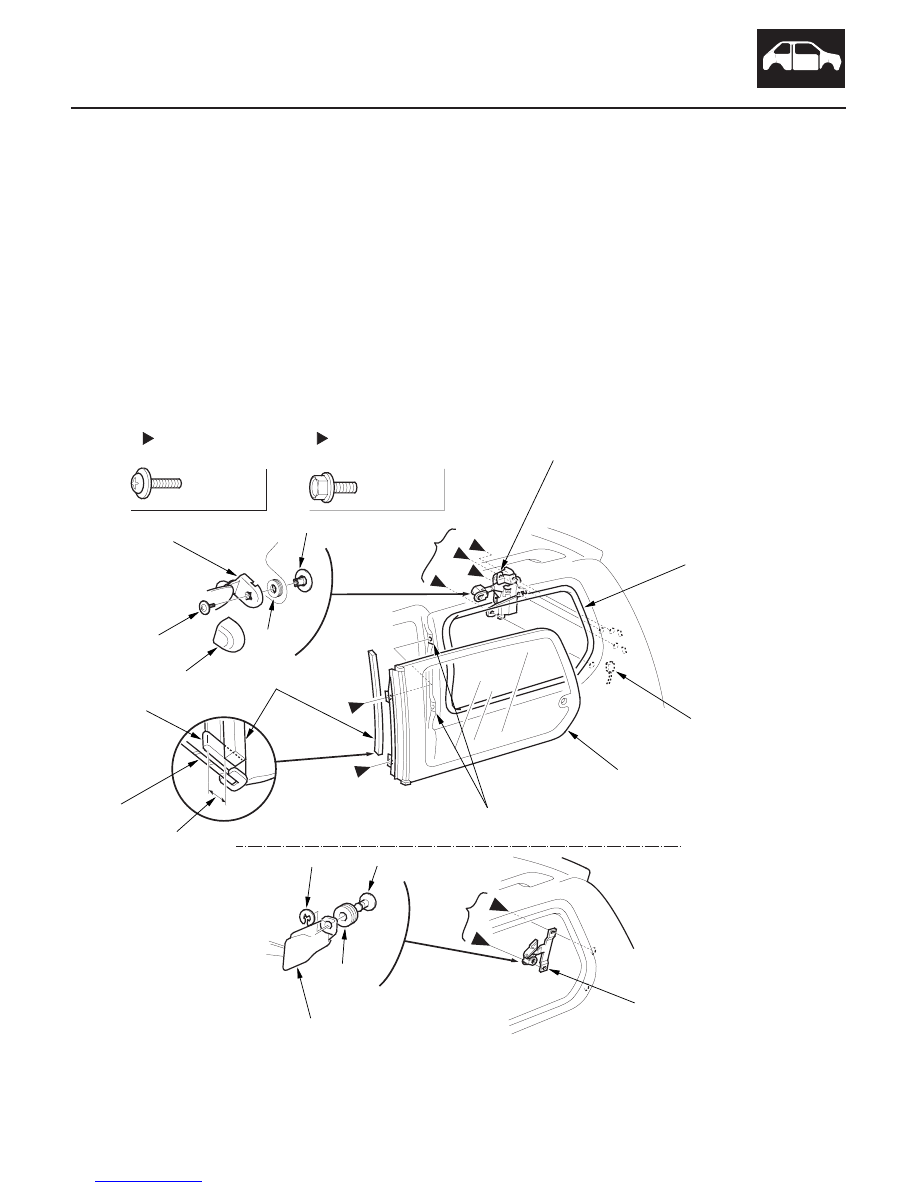

Quarter Glass and Regulator Replacement

Fastener Locations

A

: Screw, 2

5 x 0.8 mm
4 N·m
(0.4 kgf·m,
3 lbf·ft)

B

Bolt, 4 (Power)
Bolt, 2 (Manual)

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

B

QUARTER GLASS OPENER

GLASS SEAL

QUARTER GLASS
OPENER CONNECTOR

QUARTER GLASS

QUARTER GLASS HINGE BASE

A

A

QUARTER SEAL

QUARTER
GLASS

14 mm
(0.51 in.)

CAP

SCREW

SEAL

ATTACHMENT PIN

QUARTER GLASS
ATTACHMENT

LOWER END CAP

E-CLIP

LOCK PIN

SEAL

GLASS LOCK

B

QUARTER GLASS LOCK

NOTE:

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related

parts, to prevent damage.

• Put on gloves to protect your hands.

1. Remove the quarter glass and the quarter glass opener or the quarter glass lock as shown.

2. Install the quarter glass and the opener or the lock in the reverse order of the removal, and note these items:

• If necessary, replace the quarter glass seal.
• The glass and body edges should be parallel.
• Make sure the glass locks properly. If necessary adjust the quarter glass opener or quarter glass lock mount

position.

• Check for water leaks.

Remove the rear pillar trim.

Remove the rear pillar trim.

03/07/29 10:01:37 61S0X050_200_0057

01

02

03

S0X4A00J54400048071KBAT00

20-56

Glass

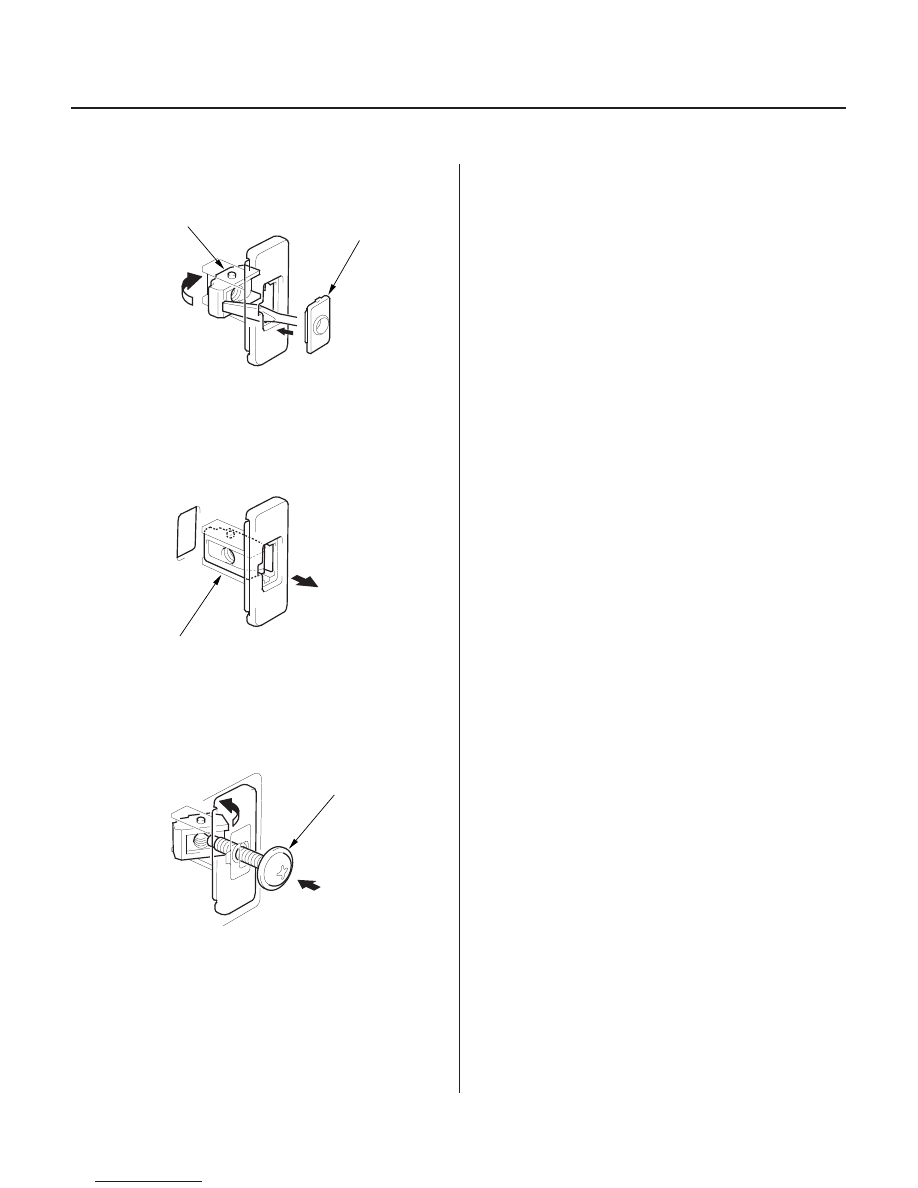

Quarter Glass Hinge Base Replacement

A

B

A

A

1. Remove the plate (A), and turn the nut (B) as shown.

2. Pull out the quarter glass hinge base (A).

3. Install the quarter glass hinge base on the body,

then set the quarter glass and install the screw (A).

03/07/29 10:01:38 61S0X050_200_0058

*01

S0X4A00J26273400000DAAT00

20-57

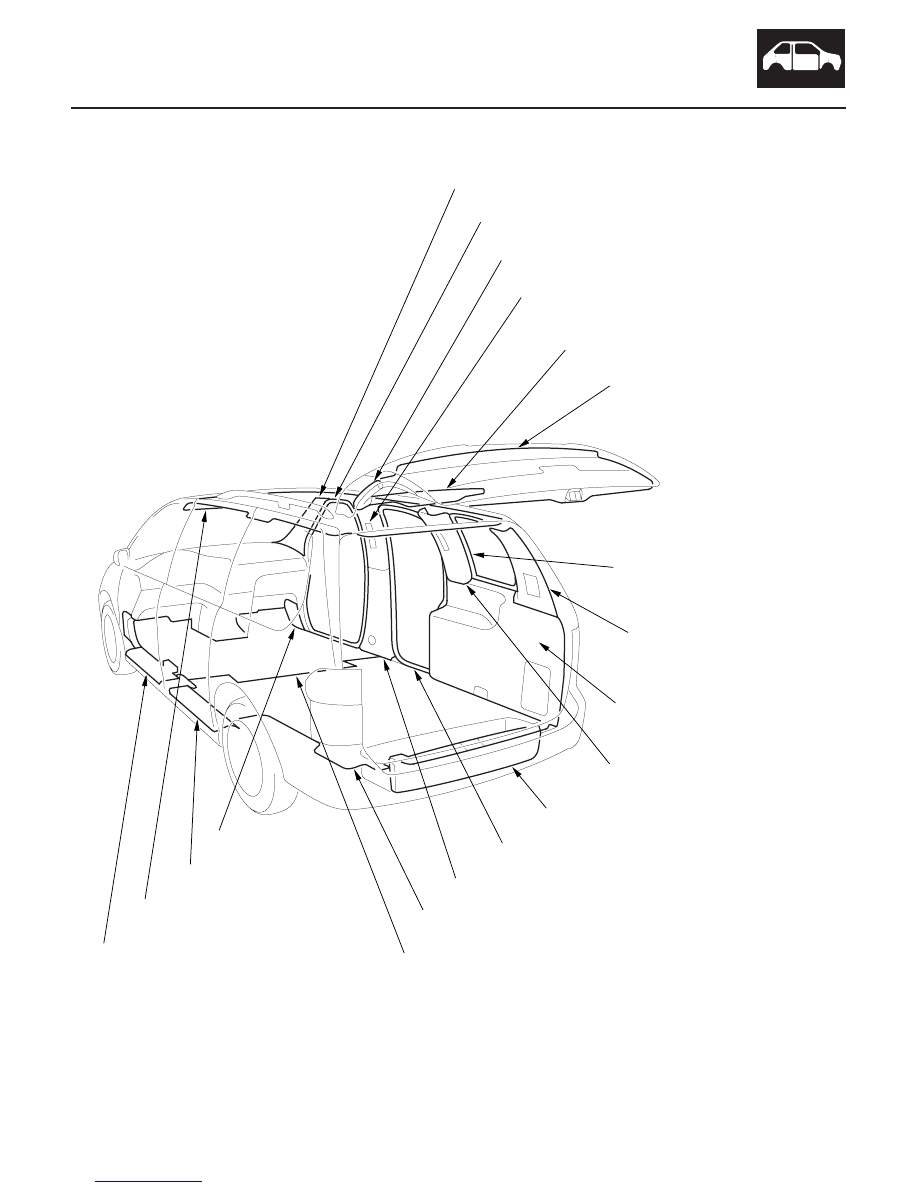

Interior Trim

Component Location Index

SLIDING DOOR OPENING TRIM

CENTER PILLAR UPPER TRIM

REAR TRIM PANEL

REAR SIDE TRIM PANEL

CENTER PILLAR LOWER TRIM PANEL

SLIDING DOOR SILL TRIM

FRONT DOOR SILL TRIM

FRONT PILLAR TRIM

FRONT DOOR OPENING TRIM

HEADLINER

REAR CARPET

TAILGATE SIDE TRIM

TAILGATE UPPER TRIM

TAILGATE TRIM PANEL

KICK PANEL

FRONT CARPET

QUARTER PILLAR TRIM

QUARTER GLASS OPENING TRIM

REAR PILLAR TRIM

page 20-58

page 20-58

page 20-60

page 20-60

page 20-58

page 20-58

page 20-58

page 20-58

page 20-58

Removal/Installation, page 20-62

Replacement, page 20-65

page 20-61

page 20-61

page 20-61

page 20-58

Replacement, page 20-65

page 20-59

page 20-59

page 20-59

03/07/29 10:01:42 61S0X050_200_0059
