Honda Odyssey 2004. Manual - part 318

１１

１２

Ｓ０Ｘ４Ａ０７Ｄ１０６０００６５３０１ＫＢＡＴ１０

Front

Rear

19-78

ABS Components

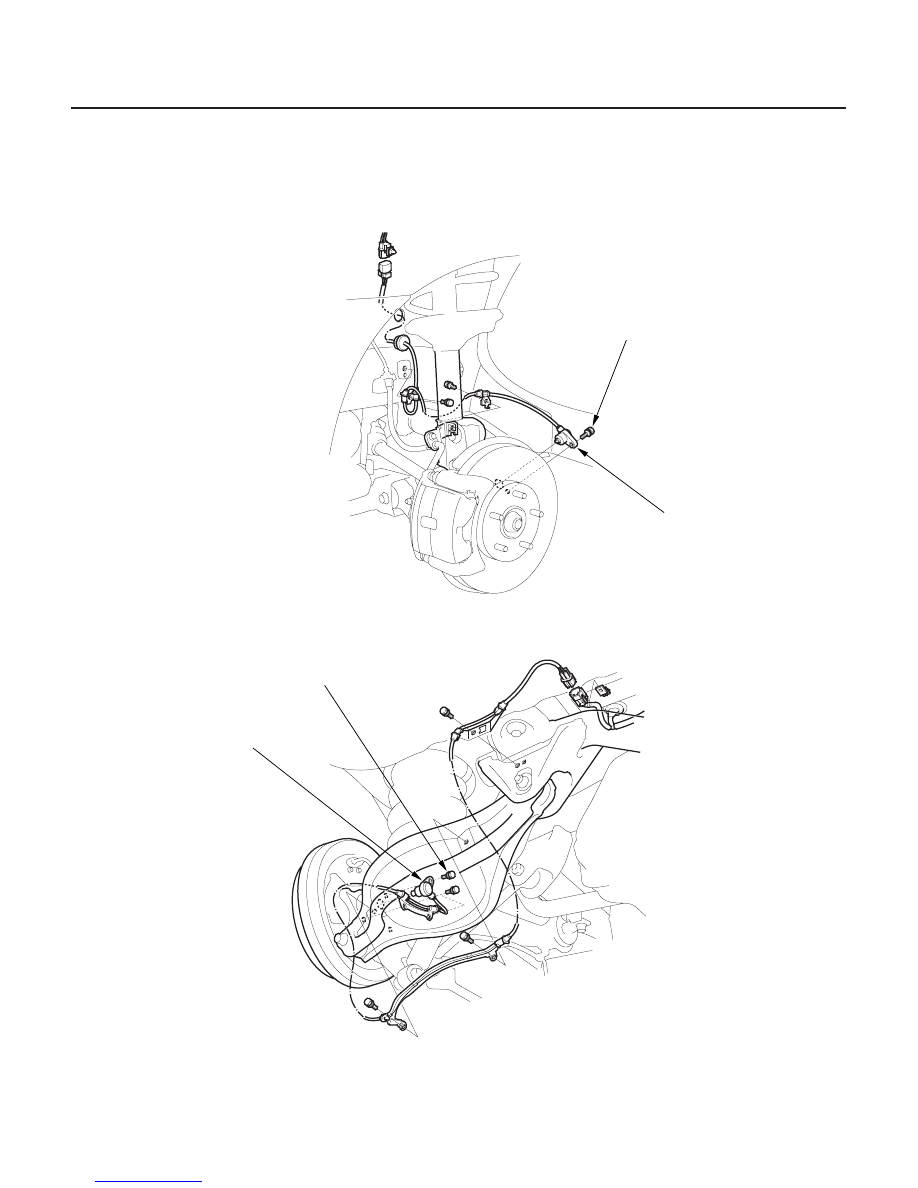

Wheel Sensor Replacement

6 mm BOLT
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

WHEEL SENSOR

6 mm BOLT
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

WHEEL SENSOR

Install the sensors carefully to avoid twisting the wires.

03/07/29 09:55:58 61S0X050_190_0078

Ｓ０Ｘ４Ａ０６０００００００Ｊ１９０３ＺＣＡＴ００

Brakes

..................

Conventional Brake Components

. 19-1

......................................

ABS (Anti-Lock Brake System) Components

(1999-00 LX model)

. 19-39

ABS/TCS (Anti-Lock Brake System/

Traction Control System) Components
(1999-00 EX model, 2001-04 All models)

........................................

......................

.......................................

..............................

.....................................................

............................................................

..................................................

.....................

......................

.....

.................

...........................................................

..........................

............................................

.......................................

........................................

......................

.......................................

..............................

.....................................................

............................................................

..................................................

.....................

......................

.....

.................

...........................................................

..........................

............................................

.......................................

Component Location Index

. 19-80

General Troubleshooting Information

. 19-81

DTC Troubleshooting Index

. 19-86

Symptom Troubleshooting Index

. 19-88

System Description

. 19-89

Circuit Diagram

. 19-106

DTC Troubleshooting

. 19-112

ABS Indicator Circuit Troubleshooting

. 19-153

TCS Indicator Circuit Troubleshooting

. 19-155

Brake System Indicator Circuit Troubleshooting

. 19-157

Modulator Unit Removal and Installation

. 19-158

TCS Switch Test

. 19-159

ABS/TCS Control Unit Replacement

. 19-160

Wheel Sensor Inspection

. 19-160

Wheel Sensor Replacement

. 19-161

03/07/29 09:55:58 61S0X050_190_0079

＊０１

Ｓ０Ｘ４Ａ０６Ｄ１０６００００００００ＤＡＡＴ００

19-80

ABS/TCS Components

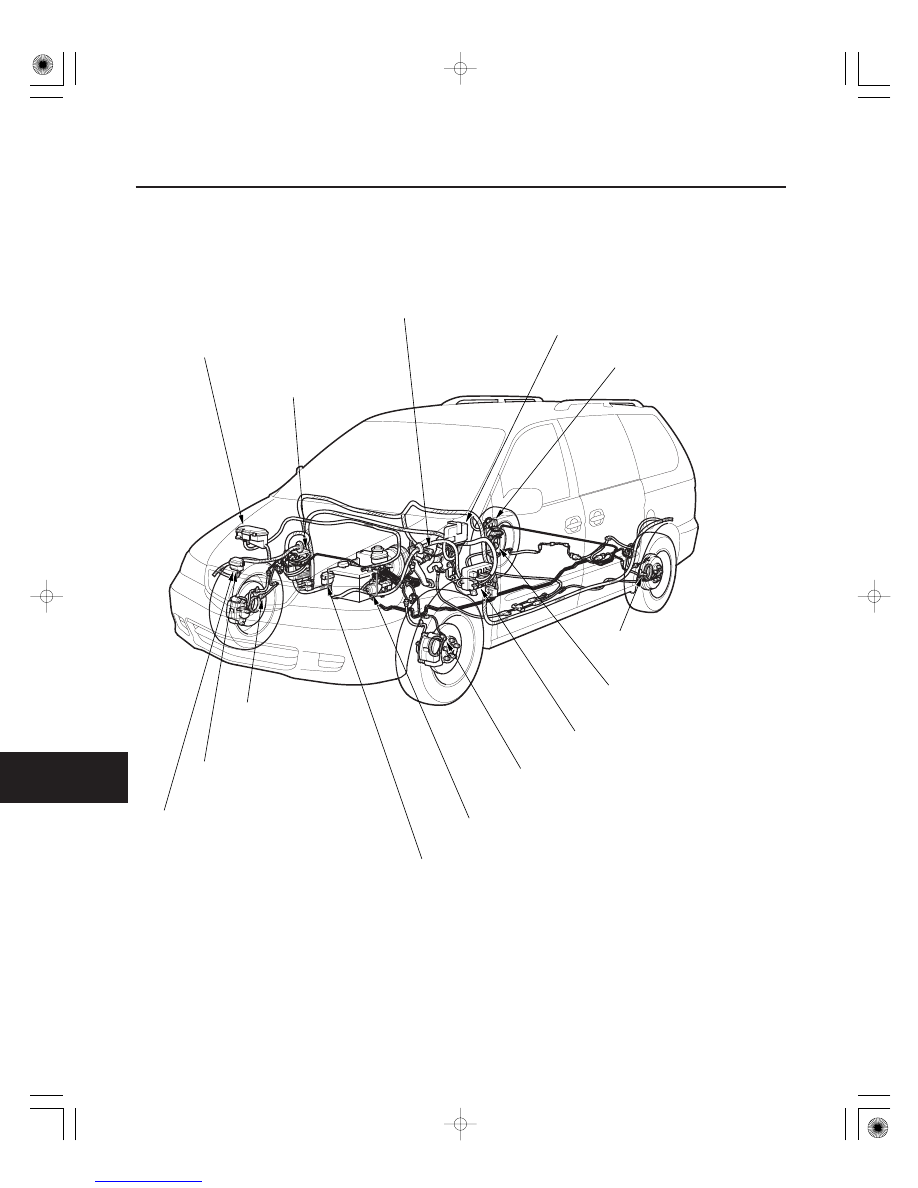

Component Location Index

PASSENGER’S UNDER-DASH
FUSE/RELAY BOX

UNDER-HOOD FUSE/RELAY BOX

MULTI-RELAY BOX
(PUMP MOTOR RELAY)

RIGHT-FRONT
WHEEL SENSOR

MODULATOR UNIT

LEFT-FRONT WHEEL SENSOR

RIGHT-REAR WHEEL SENSOR

LEFT-REAR
WHEEL SENSOR

DRIVER’S UNDER-DASH
FUSE/RELAY BOX

DATA LINK CONNECTOR (16P)

ABS/TCS CONTROL UNIT

MULTI-RELAY BOX
(ABS FAIL-SAFE RELAY)

MULTI-FUSE/RELAY BOX
(TCS RELAY)

TCS SWITCH

Inspection, page 22-88

Inspection, page 19-160
Replacement, page 19-161

Removal and Installation,

page 19-158

Inspection, page 19-160
Replacement, page 19-161

Replacement, page 19-160

Inspection, page 22-88

Test, page 19-159

03/07/29 09:56:02 61S0X050_190_0080

Ｓ０Ｘ４Ａ０６Ｄ１０６０００１２３６１ＢＢＡＴ００

ABS/TCS Indicators

Diagnostic Trouble Code (DTC)

Self-diagnosis

Kickback

Pump Motor

Brake Fluid Replacement/Air Bleeding

For ABS or TCS Indicator:

For TCS Indicator:

19-81

General Troubleshooting Information

• If the system is OK, the ABS indicator goes off once

after turning the ignition switch ON (II) without
starting the engine, and then comes on again and
goes off several seconds later after starting the
engine. This occurs because the ABS/TCS control unit
is turned on by the IG2 power source.

• The TCS or ABS indicator comes on when the ABS/

TCS control unit detects a problem in the system.
However, even though the system is operating
properly, the TCS or ABS indicator will come on,
under the following conditions:

•

– Only drive wheels rotate
– One drive wheel is stuck
– The vehicle goes into a spin
– The ABS continues to operate for a long time
– The vehicle is subjected to an electrical signal

disturbance

•

– The TCS operated when the front brake pad

temperature rises excessively

– The TCS switch is OFF
– One or more of these components are faulty:

Heated oxygen sensor, Manifold absolute pressure
sensor, Crankshaft position sensor, Engine coolant
temperature sensor, Throttle position sensor, Top
dead center sensor 1, Top dead center sensor 2,
Intake air temperature sensor, Exhaust gas
recirculation, Barometric pressure sensor, Idle air
control valve, VTEC pressure switch, Knock sensor,
Fuel supply system, Automatic transaxle, Misfire
detection system of the PGM-FI system

To determine the actual cause of the problem, question
the customer about the problem, taking the above-
listed conditions into consideration:

• When a problem is detected and the ABS or TCS

indicator comes on, there are cases when the
indicator stays on until the ignition switch is turned
OFF, and cases when the indicator goes off
automatically when the system returns to normal. For
ABS DTCs 61 and 62, the indicator goes off
automatically when the system returns to normal. For
all other codes, the indicator stays on until the
ignition switch is turned OFF.

• For ABS DTCs 12, 14, 16, 18, 21, 22, 23, 24, 51, 52 and

53, the ABS indicator goes off when the vehicle is
driven again and the system is OK after the ignition
switch is turned from OFF to ON (II). However, if the
DTC is cleared, the CPU resets and the indicator goes
off right after the engine is started if the system is OK.

• The ABS is not operational when the ABS indicator is

ON; the TCS is not operational when the TCS
indicator is ON.

• When the ABS and TCS indicators are both ON,

troubleshoot the ABS first.

• When the TCS indicator and MIL are both ON,

troubleshoot the PGM-FI system first.

• The memory can hold any number of DTCs. However,

when the same DTC is detected more than once, the
more recent DTC is written over the earlier one.
Therefore, when the same problem is detected
repeatedly it is memorized as a single DTC.

• The DTCs are indicated in ascending number order,

not in the order that they occur.

• The DTCs are memorized in the EEPROM (non-

volatile memory). Therefore, the memorized DTCs
cannot be canceled by disconnecting the battery. Do
the specified procedures to clear the DTCs.

• Self-diagnosis can be classified into two categories:

– Initial diagnosis: Done right after the engine starts

and until the ABS or TCS indicator goes off

– Regular diagnosis: Done right after the initial

diagnosis until the ignition switch is turned OFF

• When a problem is detected by self-diagnosis, the

ABS/TCS control unit shifts to fail-safe mode.

The pump motor operates when the ABS is functioning,
and the fluid in the reservoir is forced out to the master
cylinder, causing kickback at the brake pedal.

• The pump motor operates when the ABS is

functioning.

• The ABS/TCS control unit checks the pump motor

operation during initial diagnosis when the vehicle is
started. You may hear the motor operate at this time,
but it is normal.

Brake fluid replacement and air bleeding procedures
are identical to the procedures used on vehicles not
equipped with ABS/TCS. To ease bleeding, start with
the front wheels.

(cont’d)

03/07/29 09:56:02 61S0X050_190_0081
