Honda Odyssey 2004. Manual - part 316





*02

01

02

03

YES

NO

YES

NO

YES

NO

YES

NO

19-70

ABS Components

DTC Troubleshooting (cont’d)

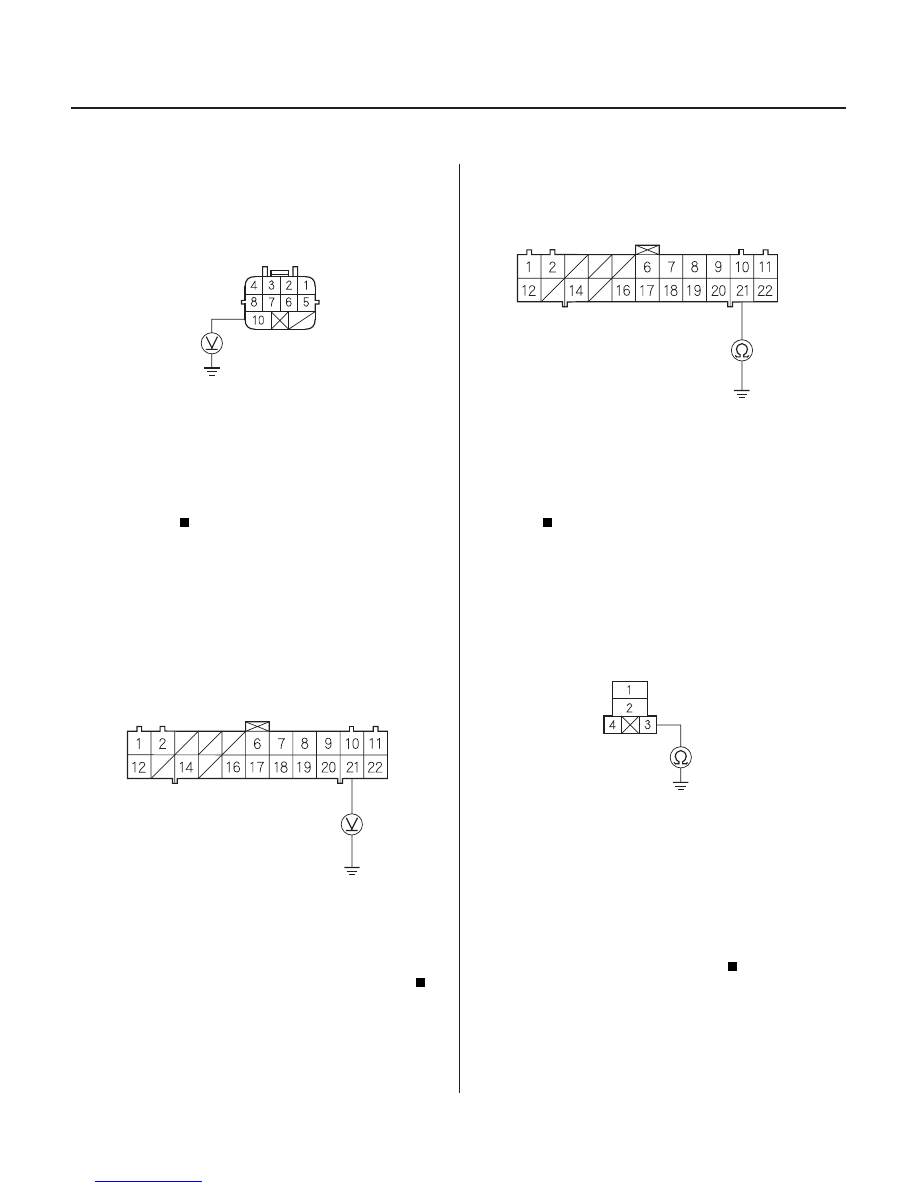

MODULATOR UNIT CONNECTOR

SOLENOID
(BRN/BLK)

ABS CONTROL UNIT CONNECTOR A (22P)

FSR (YEL/GRN)

ABS CONTROL UNIT CONNECTOR A (22P)

FSR (YEL/GRN)

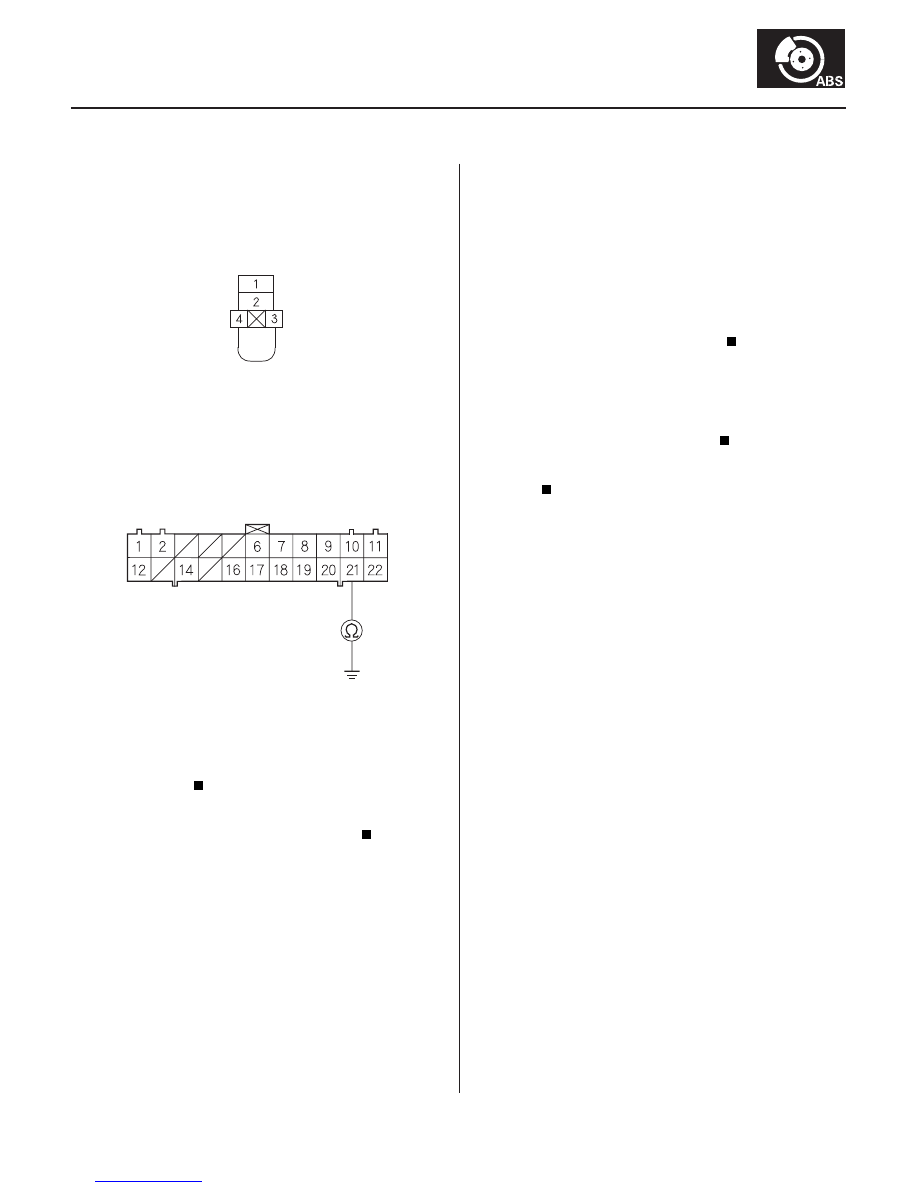

ABS FAIL-SAFE RELAY CONNECTOR

GND (BLK)

9. Measure the voltage between the modulator unit

connector terminal No. 10 and body ground.

Repair short to power in the wire between

the ABS fail-safe relay, modulator unit, and ABS
relay box.

Go to step 10.

10. Disconnect the ABS control unit connector A (22P).

11. Turn the ignition switch ON (II).

12. Measure the voltage between terminal No. 21 and

body ground.

Repair short to power in the wire between

the ABS control unit and the ABS fail-safe relay.

Go to step 13.

13. Check for continuity between the ABS control unit

connector terminal No. 21 and body ground.

Repair short to body ground in the wire

between the ABS control unit and the ABS fail-safe
relay.

Go to step 14.

14. Check for continuity between the ABS fail-safe

relay connector terminal No. 3 and body ground.

Go to step 15.

Check for an open in the wire between the

ABS fail-safe relay and body ground. If the wire is
OK, check for poor ground at G201.

Terminal side of female terminals

Wire side of female terminals

Wire side of female terminals

Terminal side of female terminals

Is ther e batter y voltage?

Is ther e batter y voltage?

Is ther e continuity?

Is ther e continuity?

03/07/29 09:55:54 61S0X050_190_0070

04

03

S0X4A07K70100081610FAAT00

YES

NO

YES

NO

YES

NO

DTC 61, 62:

19-71

19-71

ABS FAIL-SAFE RELAY CONNECTOR

GND (BLK)

JUMPER WIRE

FSR (YEL/GRN)

ABS CONTROL UNIT CONNECTOR A (22P)

FSR (YEL/GRN)

15. Connect the ABS fail-safe relay connector terminals

No. 3 and No. 4 with a jumper wire.

16. Check for continuity between the ABS control unit

connector terminal No. 21 and body ground.

If the problem recurs, replace the ABS

control unit.

Repair open in the wire between the ABS

control unit and the ABS fail-safe relay.

1. Clear the DTC (see step 1 on page 19-43).

2. Test-drive the vehicle at 6 mph (10 km/h) or more.

Go to step 3.

The system is OK at this time.

3. Verify the DTC.

Check the charging system.

Do the appropriate troubleshooting for the

code.

Battery Voltage

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Does the ABS indicator come on?

Is DT C 61 or 62 indicated?

03/07/29 09:55:54 61S0X050_190_0071

S0X4A07K70100081710FAAT00

S0X4A07K70100081810FAAT00

DTC 71:

DTC 81:

YES

NO

YES

NO

19-72

19-72

ABS Components

DTC Troubleshooting (cont’d)

Different Diameter Tire

Central Processing Unit (CPU)

Diagnosis, and ROM/RAM Diagnosis

1. Clear the DTC (see step 1 on page 19-43).

2. Test-drive the vehicle.

Make sure all four tires are the specified

size.

Intermittent failure; the vehicle is OK at this

time.

1. Clear the DTC (see step 1 on page 19-43).

2. Test-drive the vehicle.

Replace the ABS control unit.

Intermittent failure; the vehicle is OK at this

time.

Does the ABS indicator come on, and is DT C 7 1
indicated?

Does the ABS indicator come on, and is DT C 81
indicated?

03/07/29 09:55:54 61S0X050_190_0072

11

12

S0X4A07D10600012332FAAT10

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

19-73

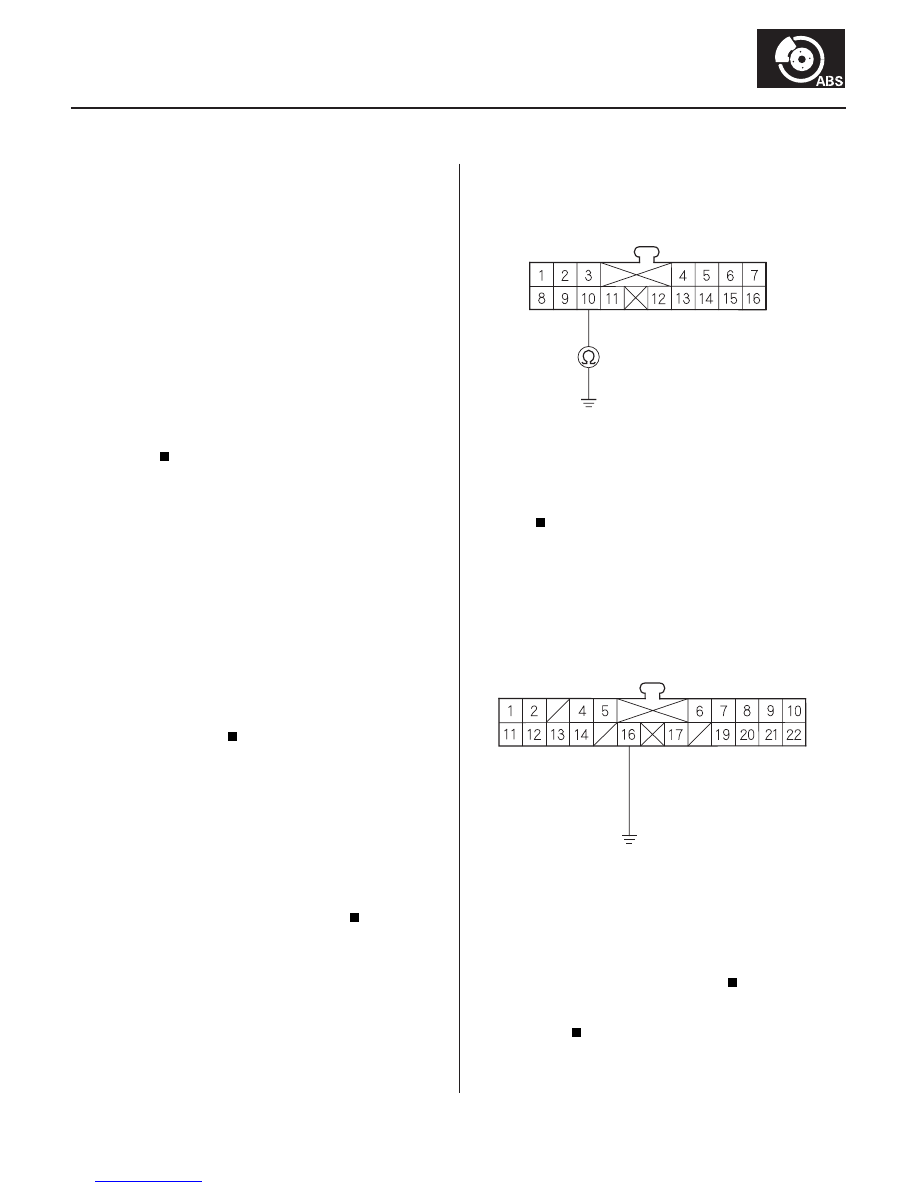

ABS Indicator Circuit Troubleshooting

GAUGE ASSEMBLY CONNECTOR C (16P)

WALP (BLU/WHT)

GAUGE ASSEMBLY CONNECTOR B (22P)

JUMPER WIRE

GND (BLK)

1. Turn the ignition switch ON (II), and watch the ABS

indicator.

If the ABS indicator comes on and goes off,

It’s OK. If the ABS indicator stays on, go to step 13.

Go to step 2.

2. Turn the ignition switch OFF then ON (II) again.

Go to step 3.

Repair open in the indicator power source

circuit.

• Blown BACKUP LIGHT (7.5A) fuse.
• Open in the wire between the BACKUP LIGHT

(7.5A) fuse and the gauge assembly.

• Open circuit inside the fuse box.

3. Turn the ignition switch OFF.

4. Disconnect the ABS control unit connector A (12P).

5. Turn the ignition switch ON (II).

Check for loose ABS control unit connectors.

If necessary, substitute a known-good ABS control
unit, and recheck.

Go to step 6.

6. Check the ABS indicator bulb in the gauge

assembly.

Go to step 7.

Replace the ABS indicator bulb.

7. Turn the ignition switch OFF.

8. Disconnect the gauge assembly connector C (16P).

9. Check for continuity between the gauge assembly

connector C (16P) terminal No. 10 and body ground.

Repair short to body ground in the wire

between the gauge assembly and the ABS control
unit.

Go to step 10.

10. Connect the gauge assembly connector C (16P).

11. Connect the gauge assembly connector B (22P)

terminal No. 16 to body ground with a jumper wire.

12. Turn the ignition switch ON (II).

Repair open in the wire between the gauge

assembly and body ground (G503).

Replace the printed circuit board in the gauge

assembly.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Does the ABS indicator come on?

Does the br ake system indicator come on?

Does the ABS indicator come on?

Is the bulb OK ?

Is ther e continuity?

Does the ABS indicator come on?

03/07/29 09:55:55 61S0X050_190_0073
