Honda Odyssey 2004. Manual - part 258

＊０２

Ｓ０Ｘ４ＡＡ１Ｅ１０４８０１３９３０１ＫＡＡＴ００

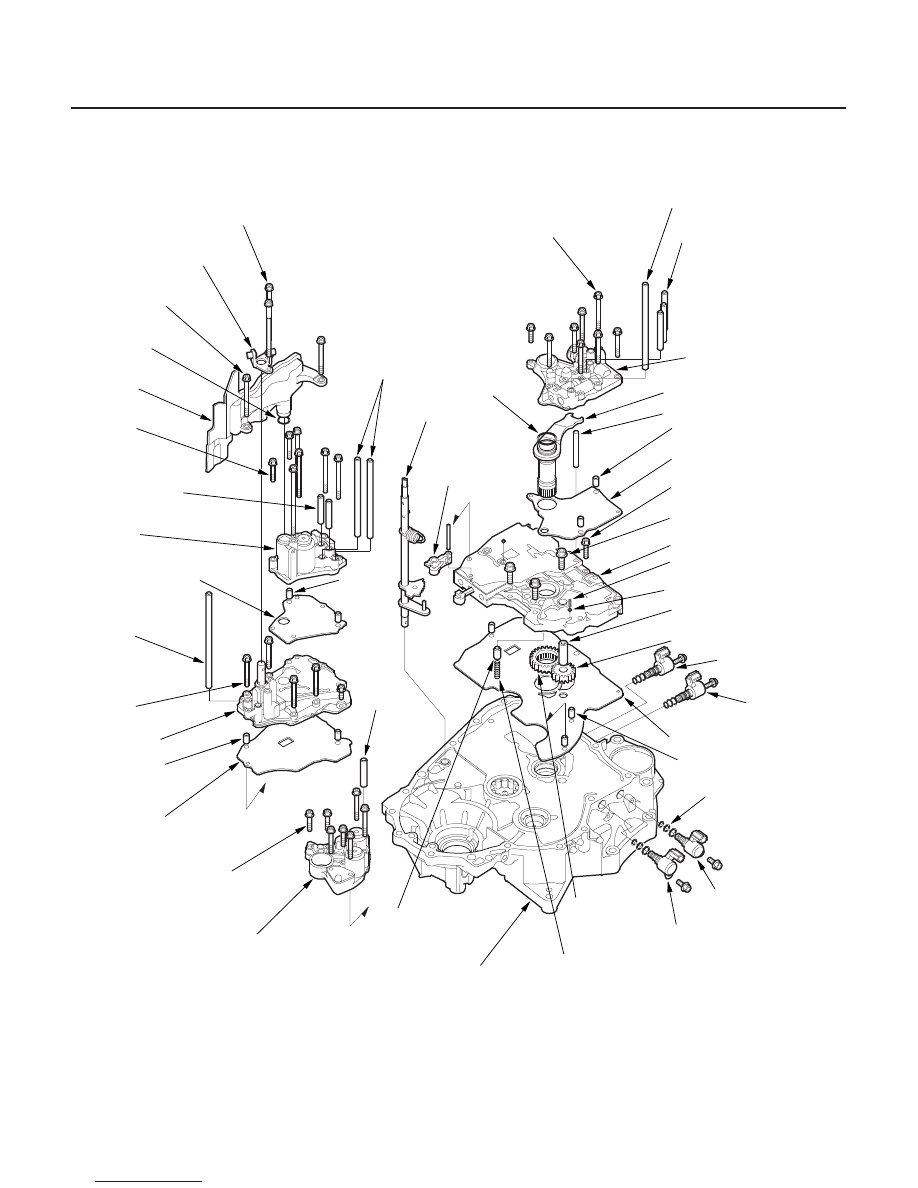

Exploded View

14-426

Valve Body

Valve Body and ATF Strainer Removal

TORQUE CONVERTER
CLUTCH SOLENOID VALVE

6 x 1.0 mm,
Eight Bolts

ATF FEED PIPE,
8 x 198 mm

ATF FEED PIPES,
8 x 85 mm, Three Pipes

STATOR SHAFT

STATOR SHAFT STOP

DOWEL PINS,
Two Pins

REGULATOR
SEPARATOR PLATE
6 x 1.0 mm,
One Bolt

8 x 1.25 mm,
Three Bolts

MAIN VALVE BODY
COOLER CHECK VALVE
SPRING

COOLER CHECK VALVE

ATF PUMP DRIVEN GEAR

MAIN SEPARATOR PLATE

TORQUE CONVERTER
CHECK VALVE

TORQUE CONVERTER
CHECK VALVE SPRING

ACCUMULATOR
BODY

6 x 1.0 mm,
Seven Bolts

SERVO SEPARATOR
PLATE

DOWEL PINS,
Two Pins

SERVO BODY

6 x 1.0 mm,
Five Bolts

6 x 1.0 mm,
Seven Bolts

O-RING

ATF
STRAINER

SERVO
DETENT BASE

ATF FEED PIPES,
8 x 180.5 mm,
Two Pipes

O-RING

DETENT
ARM

CONTROL
SHAFT

ATF
FEED
PIPE

ATF PUMP DRIVEN
GEAR SHAFT

REGULATOR
VALVE BODY

ATF PUMP
DRIVE GEAR

ATF FEED
PIPE,
8 x 220 mm

ATF FEED PIPES,
8 x 62 mm, Two Pipes

TOP ACCUMULATOR
BODY

TOP ACCUMULATOR
SEPARATOR PLATE

DOWEL
PINS,
Two Pins

SHIFT SOLENOID
VALVE C

SHIFT SOLENOID
VALVE A

DOWEL PINS,
Three Pins

O-RING

SHIFT SOLENOID
VALVE B

TORQUE CONVERTER
HOUSING

6 x 1.0 mm,
Two Bolts

Replace.

03/07/29 09:45:49 61S0X050_140_0429

＊０１

14-427

NOTE: Refer to the exploded view as needed during the
following procedure.

1. Remove the ATF feed pipes from the regulator

valve body, servo body, top accumulator body, and
accumulator body.

2. Remove the servo detent base (two bolts).

3. Remove the ATF strainer (two bolts).

4. Remove the top accumulator body (seven bolts),

then remove the accumulator body separator plate
and dowel pins (2).

5. Remove the servo body (five bolts), then remove

servo separator plate and dowel pins (2).

6. Remove the regulator valve body (eight bolts).

7. Remove the stator shaft and stator shaft stop.

8. Remove the regulator separator plate and dowel

pins (2).

9. Remove the accumulator body (seven bolts).

10. Unhook the detent spring from the detent arm, then

remove the detent arm shaft, detent arm, and
control shaft.

11. Remove the cooler check valve spring and cooler

check valve (ball).

12. Remove the main valve body (four bolts).

13. Remove the torque converter check valve and

spring.

14. Remove the ATF pump driven gear shaft, then

remove the ATF pump gears.

15. Remove the main separator plate and dowel pins

(3).

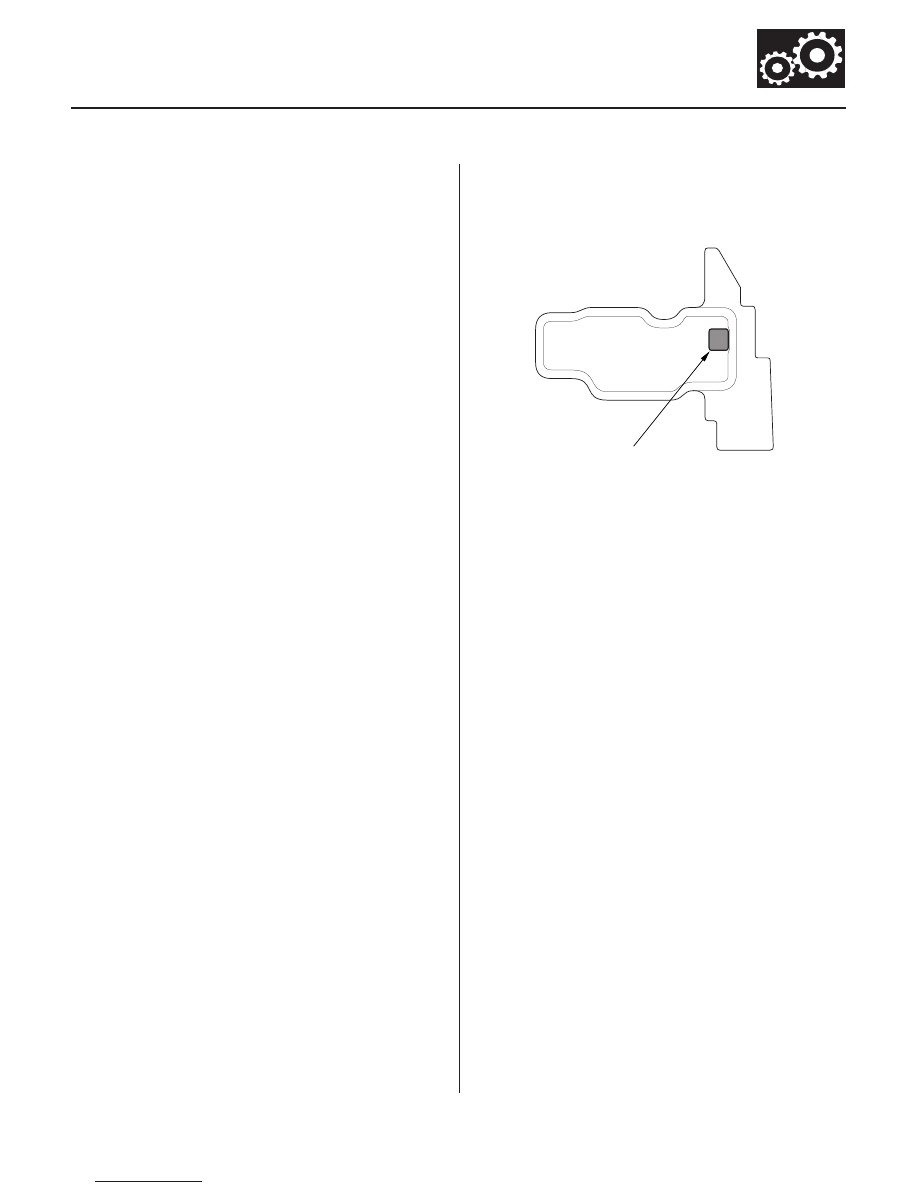

16. Clean the inlet opening (A) of the ATF strainer (B)

thoroughly with compressed air, then check that it
is in good condition and that the inlet opening is
not clogged.

17. Test the ATF strainer by pouring clean ATF through

the inlet opening, and replace it if it is clogged or
damaged.

03/07/29 09:45:49 61S0X050_140_0430

＃

＊０１

＊０２

Ｓ０Ｘ４ＡＡ１Ｅ１０４８０１３９３０１ＬＢＡＴ００

14-428

Valve Body

Valve Body Repair

NOTE: This repair is only necessary if one or more of
the valves in a valve body do not slide smoothly in their
bores. Use this procedure to free the valves.

1. Soak a sheet of

600 abrasive paper in ATF for

about 30 minutes.

2. Carefully tap the valve body so the sticking valve

drops out of its bore. It may be necessary to use a
small screwdriver to pry the valve free. Be careful
not to scratch the bore with the screwdriver.

3. Inspect the valve for any scuff marks. Use the ATF-

soaked

600 paper to polish off any burrs that are

on the valve, then wash the valve in solvent and
dry it with compressed air.

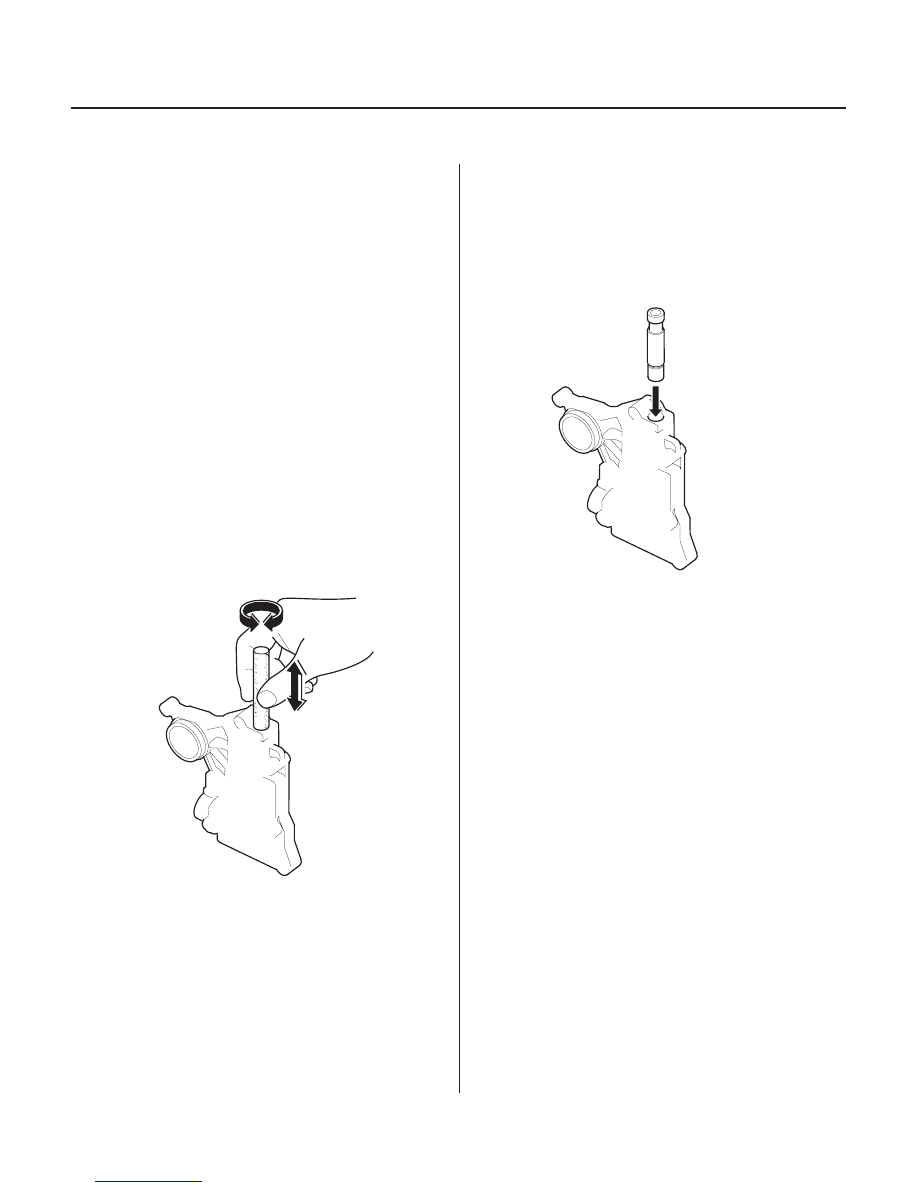

4. Roll up half a sheet of ATF-soaked

600 paper and

insert it in the valve bore of the sticking valve.
Twist the paper slightly, so that it unrolls and fits
the bore tightly, then polish the bore by twisting the
paper as you push it in and out.

NOTE: The valve body is aluminum and doesn’t
require much polishing to remove any burrs.

5. Remove the

600 paper. Thoroughly wash the

entire valve body in solvent, then dry it with
compressed air.

6. Coat the valve with ATF, then drop it into its bore. It

should drop to the bottom of the bore under its
own weight. If not, repeat steps 4 and 5, then retest.
If the valve still sticks, replace the valve body.

7. Remove the valve, and thoroughly clean it and the

valve body with solvent. Dry all parts with
compressed air, then reassemble using ATF as a
lubricant.

03/07/29 09:45:50 61S0X050_140_0431

＊０１

＊０２

Ｓ０Ｘ４ＡＡ１Ｅ１０４８０１３９３０１ＫＣＡＴ００

14-429

Valve Body Valve Installation

1. Coat all parts with ATF before assembly.

2. Install the valves and springs in the sequence

shown for the main valve body (see page 14-430),
regulator valve body (see page 14-433), servo body
(see page 14-434), and top accumulator body (see

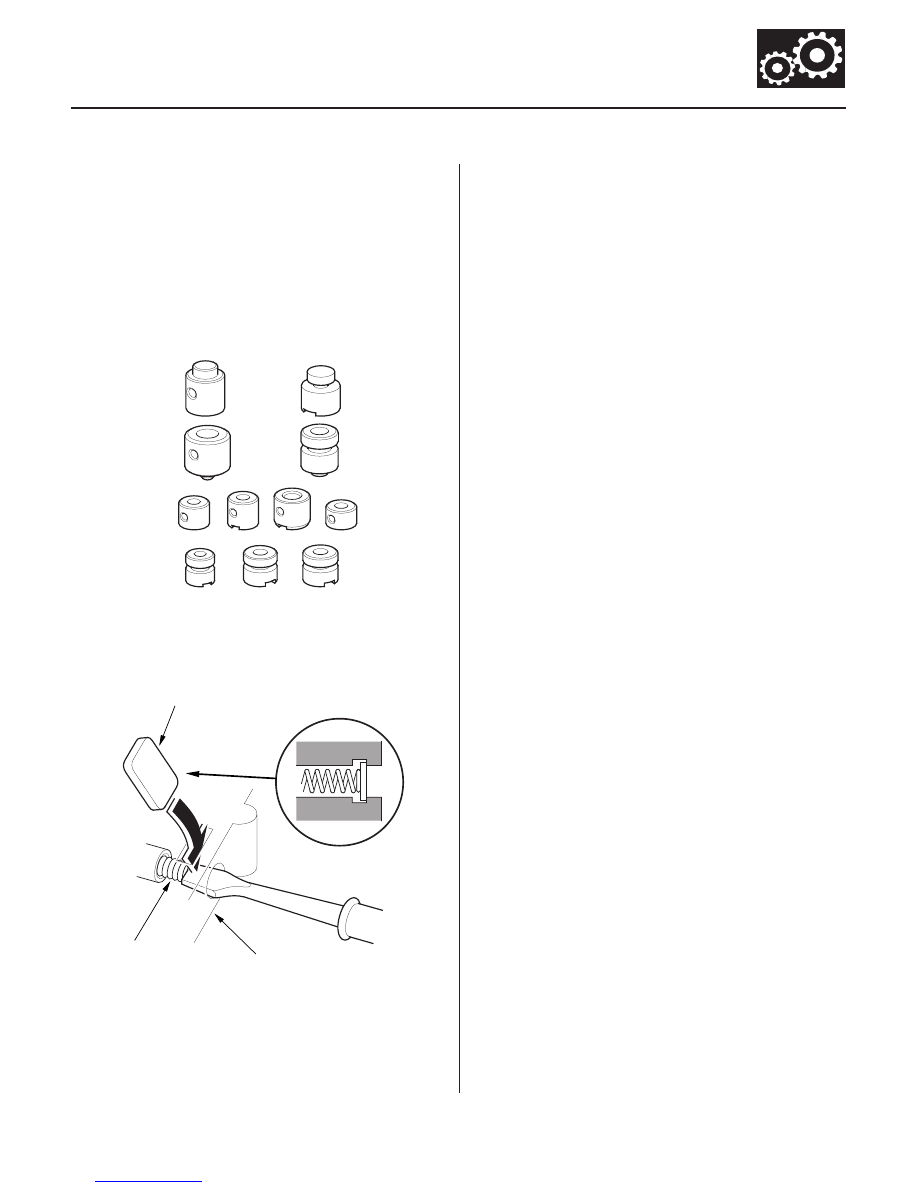

page 14-435). Refer to the following valve cap
illustrations, and install each valve cap so the end
shown facing up will be facing the outside of the
valve body.

3. Install all the springs and seats. Insert the spring (A)

in the valve, then install the valve in the valve body
(B). Push the spring in with a screwdriver, then
install the spring seat (C).

03/07/29 09:45:50 61S0X050_140_0432
