Honda Odyssey 2004. Manual - part 234





01

02

*01

S0X4AA1K77100090753FAAT00

DTC P0753:

YES

NO

YES

NO

YES

NO

14-330

Automatic Transmission

DTC Troubleshooting (cont’d)

LG2 (BRN/YEL)

SH A (BLU/YEL)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

LG2 (BRN/YEL)

SH A (BLU/YEL)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

PCM CONNECTOR B (25P)

LG1 (BRN/YEL)

LG2 (BRN/YEL)

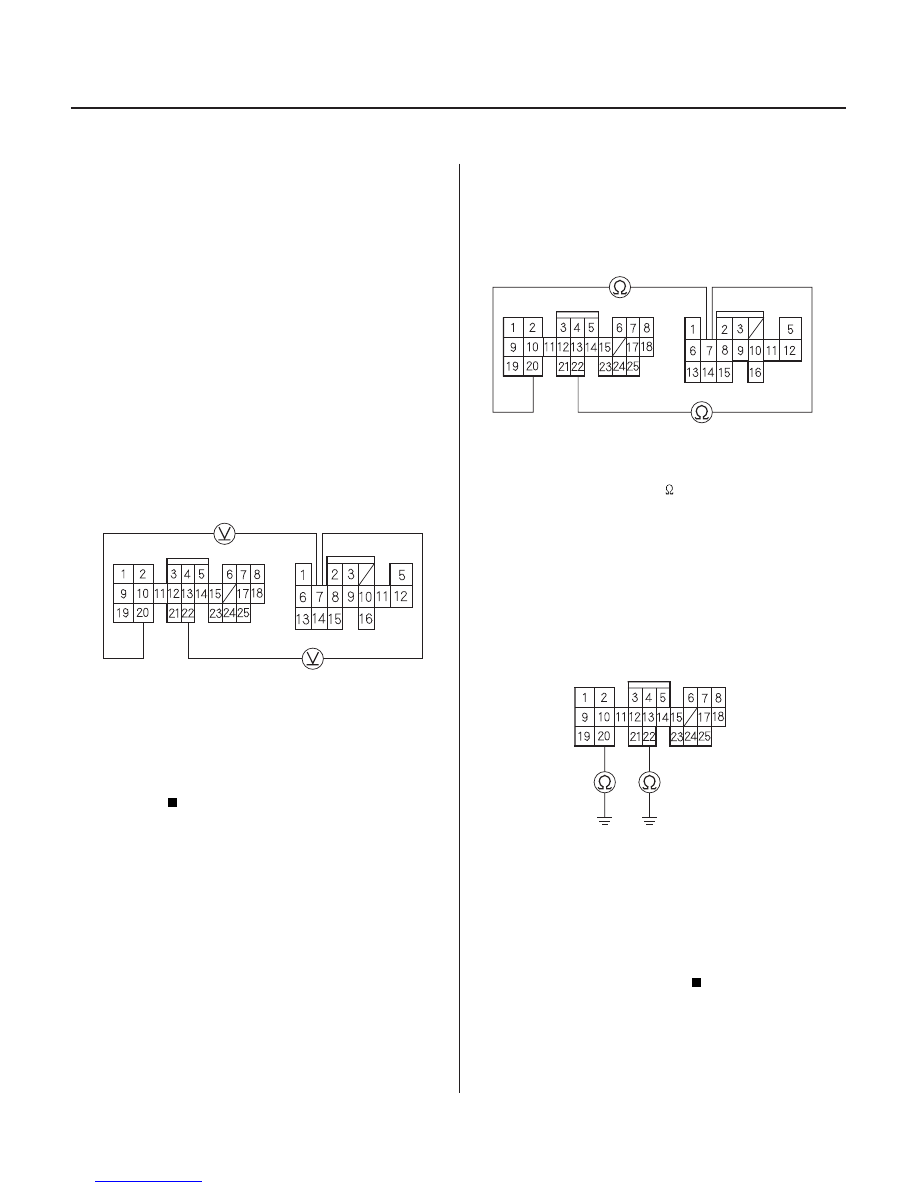

Problem in Shift Solenoid Valve

A Circuit

NOTE:

• Record all freeze data and review General

Troubleshooting Information (see page 14-247)
before you troubleshoot.

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Turn the ignition switch OFF.

2. Disconnect PCM connectors B (25P) and D (16P).

3. Turn the ignition switch ON (II).

4. Measure the voltage between PCM connector

terminals D7 and B20 or B22.

Repair short to power in the wire between

PCM connector terminal D7 and the shift solenoid
valve A.

Go to step 5.

5. Turn the ignition switch OFF.

6. Measure the resistance between PCM connector

terminals D7 and B20 or B22.

Go to step 11.

Go to step 7.

7. Check for continuity between PCM connector

terminals B20 and body ground, and between B22
and body ground.

Go to step 8.

Repair open in the wires between PCM

connector terminals B20, B22, and ground (G101),
or repair poor ground (G101).

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e voltage?

Is the r esistance 12

25

?

Is ther e continuity?

03/07/29 09:39:04 61S0X050_140_0333

03

*02

04

YES

NO

YES

NO

YES

NO

14-331

LG2 (BRN/YEL)

SH A (BLU/YEL)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

SHIFT SOLENOID VALVE A CONNECTOR

B (25P)

D (16P)

LG1 (BRN/YEL)

LG2 (BRN/YEL)

VB SOL (BLK/YEL)

PCM CONNECTORS

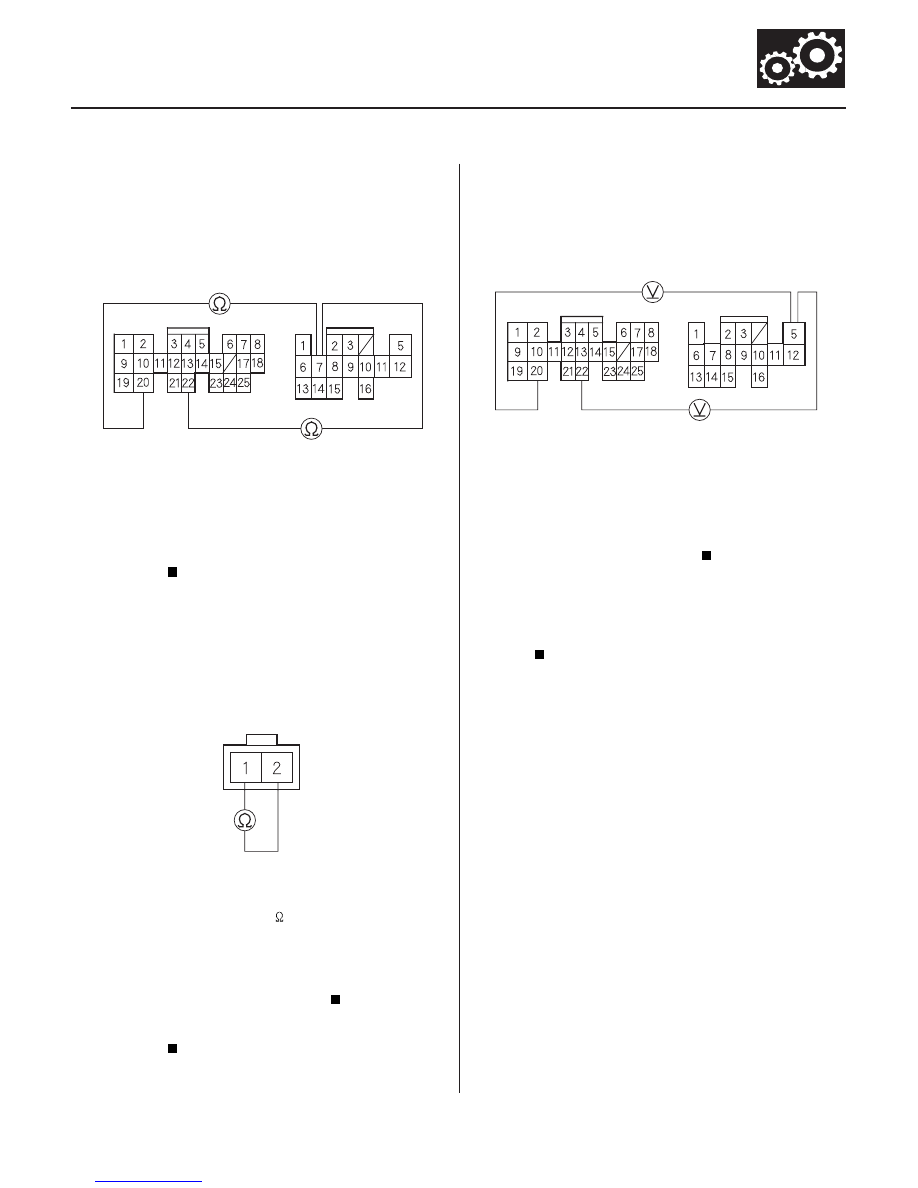

8. Disconnect the 2P connector from shift solenoid

valve A.

9. Check for continuity between PCM connector

terminals D7 and B20 or B22 .

Repair short to ground in the wire between

PCM connector terminal D7 and shift solenoid
valve A.

Go to step 10.

10. Measure shift solenoid valve A resistance at the

solenoid valve connector.

Check for an open in the wire between PCM

connector terminal D7 and shift solenoid valve A,
and between shift solenoid valve A connector
terminal No. 1 and ground (G101).

Replace the shift solenoid valve A (see page

14-359).

11. Turn the ignition switch ON (II).

12. Measure the voltage between PCM connector

terminals D5 and B20 or B22 .

Check for loose terminal fit in the PCM

connectors D5 and D7. If necessary, substitute a
known-good PCM and recheck.

Check for blown No. 6 (15A) fuse in the

driver’s under-dash fuse/relay box. If the fuse is OK,
repair open in the wire between PCM connector
terminal D5 and the driver’s under-dash fuse/relay
box.

Wire side of female terminals

Terminal side of male terminals

Wire side of female terminals

Is ther e continuity?

Is the r esistance 12

25

?

Is ther e batter y voltage?

03/07/29 09:39:05 61S0X050_140_0334

01

02

*01

S0X4AA1K77100090758FAAT00

DTC P0758:

YES

NO

YES

NO

YES

NO

14-332

Automatic Transmission

DTC Troubleshooting (cont’d)

LG2 (BRN/YEL)

SH B (GRN/WHT)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

LG2 (BRN/YEL)

SH B (GRN/WHT)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

PCM CONNECTOR B (25P)

LG1 (BRN/YEL)

LG2 (BRN/YEL)

Problem in Shift Solenoid Valve

A Circuit

NOTE:

• Record all freeze data and review General

Troubleshooting Information (see page 14-247)
before you troubleshoot.

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Turn the ignition switch OFF.

2. Disconnect PCM connectors B (25P) and D (16P).

3. Turn the ignition switch ON (II).

4. Measure the voltage between PCM connector

terminals D2 and B20 or B22.

Repair short to power in the wire between

PCM connector terminal D2 and the shift solenoid
valve B.

Go to step 5.

5. Turn the ignition switch OFF.

6. Measure the resistance between PCM connector

terminals D2 and B20 or B22.

Go to step 11.

Go to step 7.

7. Check for continuity between PCM connector

terminals B20 and body ground, and between B22
and body ground.

Go to step 8.

Repair open in the wires between PCM

connector terminals B20, B22, and ground (G101),
or repair poor ground (G101).

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e voltage?

Is the r esistance 12

25

?

Is ther e continuity?

03/07/29 09:39:06 61S0X050_140_0335

03

*02

04

YES

NO

YES

NO

YES

NO

14-333

LG2 (BRN/YEL)

SH B (GRN/WHT)

LG1 (BRN/YEL)

PCM CONNECTORS

B (25P)

D (16P)

SHIFT SOLENOID VALVE B CONNECTOR

B (25P)

D (16P)

LG1 (BRN/YEL)

LG2 (BRN/YEL)

VB SOL (BLK/YEL)

PCM CONNECTORS

8. Disconnect the 2P connector from shift solenoid

valve B.

9. Check for continuity between PCM connector

terminals D2 and B20 or B22 .

Repair short to ground in the wire between

PCM connector terminal D2 and shift solenoid
valve B.

Go to step 10.

10. Measure shift solenoid valve B resistance at the

solenoid valve connector.

Check for an open in the wire between PCM

connector terminal D2 and shift solenoid valve B,
and between shift solenoid valve B connector
terminal No. 1 and ground (G101).

Replace the shift solenoid valve B (see page

14-358).

11. Turn the ignition switch ON (II).

12. Measure the voltage between PCM connector

terminals D5 and B20 or B22.

Check for loose terminal fit in the PCM

connectors D2 and D5. If necessary, substitute a
known-good PCM and recheck.

Check for blown No. 6 (15A) fuse in the

driver’s under-dash fuse/relay box. If the fuse is OK,
repair open in the wire between PCM connector
terminal D5 and the driver’s under-dash fuse/relay
box.

Wire side of female terminals

Terminal side of male terminals

Wire side of female terminals

Is ther e continuity?

Is the r esistance 12

25

?

Is ther e batter y voltage?

03/07/29 09:39:06 61S0X050_140_0336
