Honda Odyssey 2004. Manual - part 139





*04

YES

NO

11-254

EGR System

DTC Troubleshooting (cont’d)

EGR VALVE 6P CONNECTOR

GND (BLK)

30. Disconnect the jumper wire from the EGR valve 6P

connector.

31. Check for continuity between EGR valve 6P

connector terminal No. 6 and body ground.

Substitute a known-good PCM and recheck

(see page 11-5). If the symptom/indication goes
away, replace the original PCM.

Repair open in the wire between the EGR

valve and G101.

Wire side of female terminals

Is ther e continuity?

03/07/29 09:25:47 61S0X050_110_0254

01

02

S0X4AZ6K77100091498FAAT00

DTC P1498

’99-00, ’02-04 Models:

YES

NO

YES

NO

YES

NO

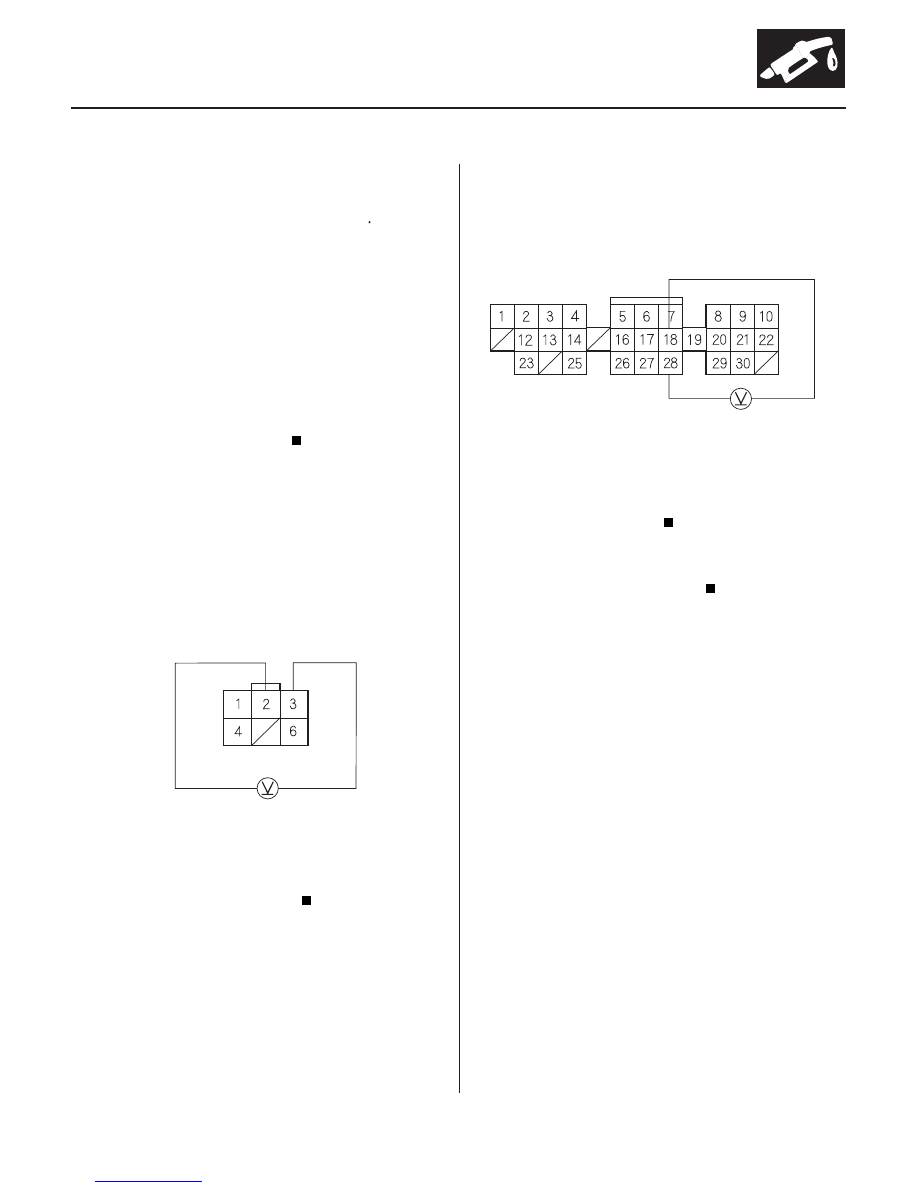

11-255

SG2
(GRN/BLK)

VCC2
(YEL/BLU)

SG2
(GRN/YEL)*

EGR VALVE 6P CONNECTOR

SG2 (GRN/BLK)

VCC2 (YEL/BLU)

PCM CONNECTORS C (31P)

SG2 (GRN/YEL)*

EGR

Valve Position Sensor Circuit High Voltage

NOTE: Information marked with an asterisk ( ) applies
to ’02-04 models.

1. Reset the PCM (see page 11-4).

2. Start the engine.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the EGR valve and the PCM.

3. Turn the ignition switch OFF.

4. Disconnect the EGR valve 6P connector.

5. Turn the ignition switch ON (II).

6. Measure voltage between EGR valve 6P connector

terminals No. 2 and No. 3.

Replace the EGR valve.

Go to step 7.

7. Measure voltage between the PCM connector

terminals C18 and C28.

Repair open in the wire between the EGR

valve and the PCM (C18).

Substitute a known-good PCM and recheck

(see page 11-5). If the symptom/indication goes
away, replace the original PCM.

Wire side of female terminals

Wire side of female terminals

Is DT C P1498 indicated?

Is ther e about 5 V ?

Is ther e about 5 V ?

03/07/29 09:25:47 61S0X050_110_0255

*01

01

S0X4AZ1K77100091498FAAT00

DTC P1498

’01 Model:

YES

NO

YES

NO

YES

NO

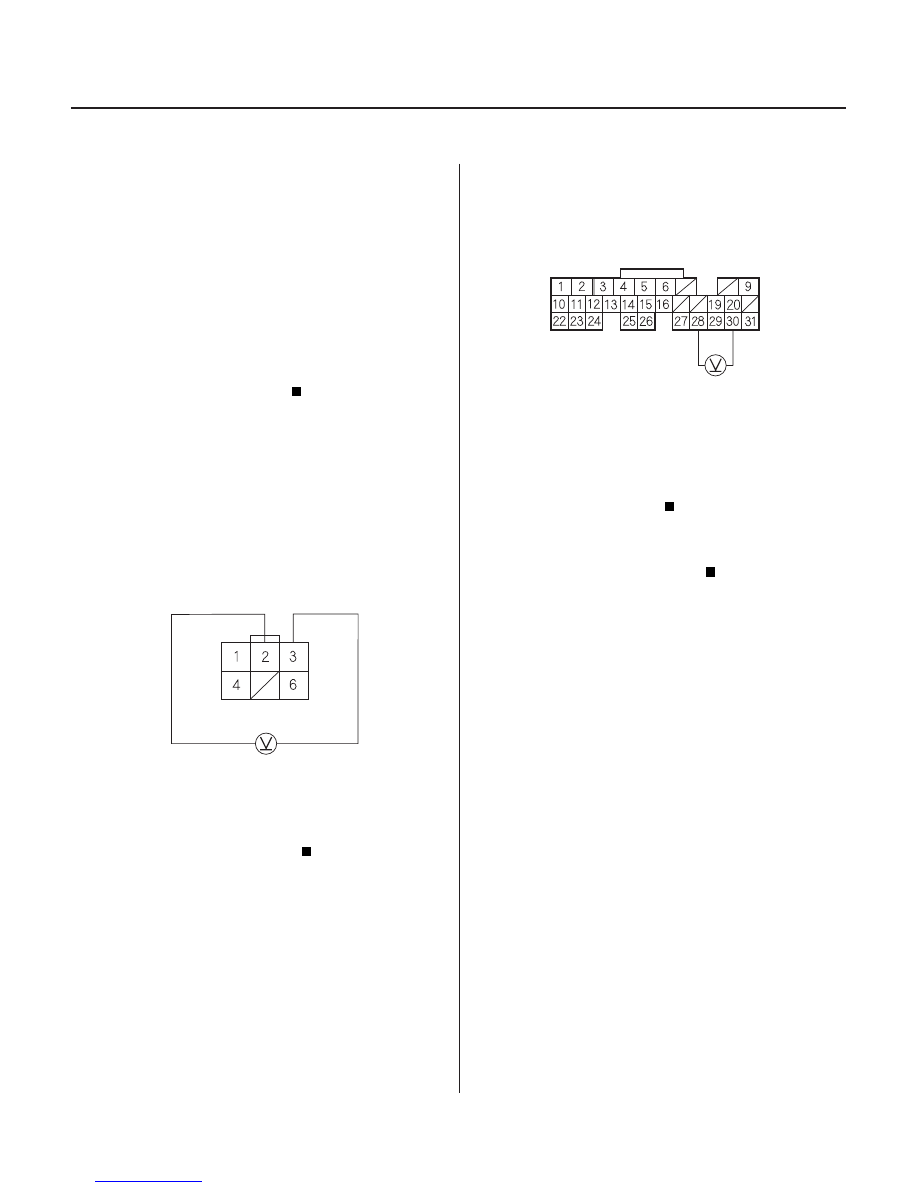

11-256

EGR System

DTC Troubleshooting (cont’d)

EGR VALVE 6P CONNECTOR

SG2
(GRN/BLK)

VCC2
(YEL/BLU)

PCM CONNECTOR A (31P)

VCC2
(YEL/BLU)

SG2
(GRN/BLK)

EGR Valve Position

Sensor Circuit High Voltage

1. Reset the PCM (see page 11-4).

2. Start the engine.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the EGR valve and the PCM.

3. Turn the ignition switch OFF.

4. Disconnect the EGR valve 6P connector.

5. Turn the ignition switch ON (II).

6. Measure voltage between EGR valve 6P connector

terminals No. 2 and No. 3.

Replace the EGR valve.

Go to step 7.

7. Measure voltage between PCM connector

terminals A28 and A30.

Repair open in the wire between the EGR

valve and the PCM (A28).

Substitute a known-good PCM and recheck

(see page 11-5). If the symptom/indication goes
away, replace the original PCM.

Wire side of female terminals

Wire side of female terminals

Is DT C P1498 indicated?

Is ther e about 5 V ?

Is ther e about 5 V ?

03/07/29 09:25:48 61S0X050_110_0256

*01

01

01

*02

02

02

S0X4A00A20360345801FGAT00

’99-00 models

’01 model

’02-04 models

’99-00 models

’01 model

’02-04 models

11-257

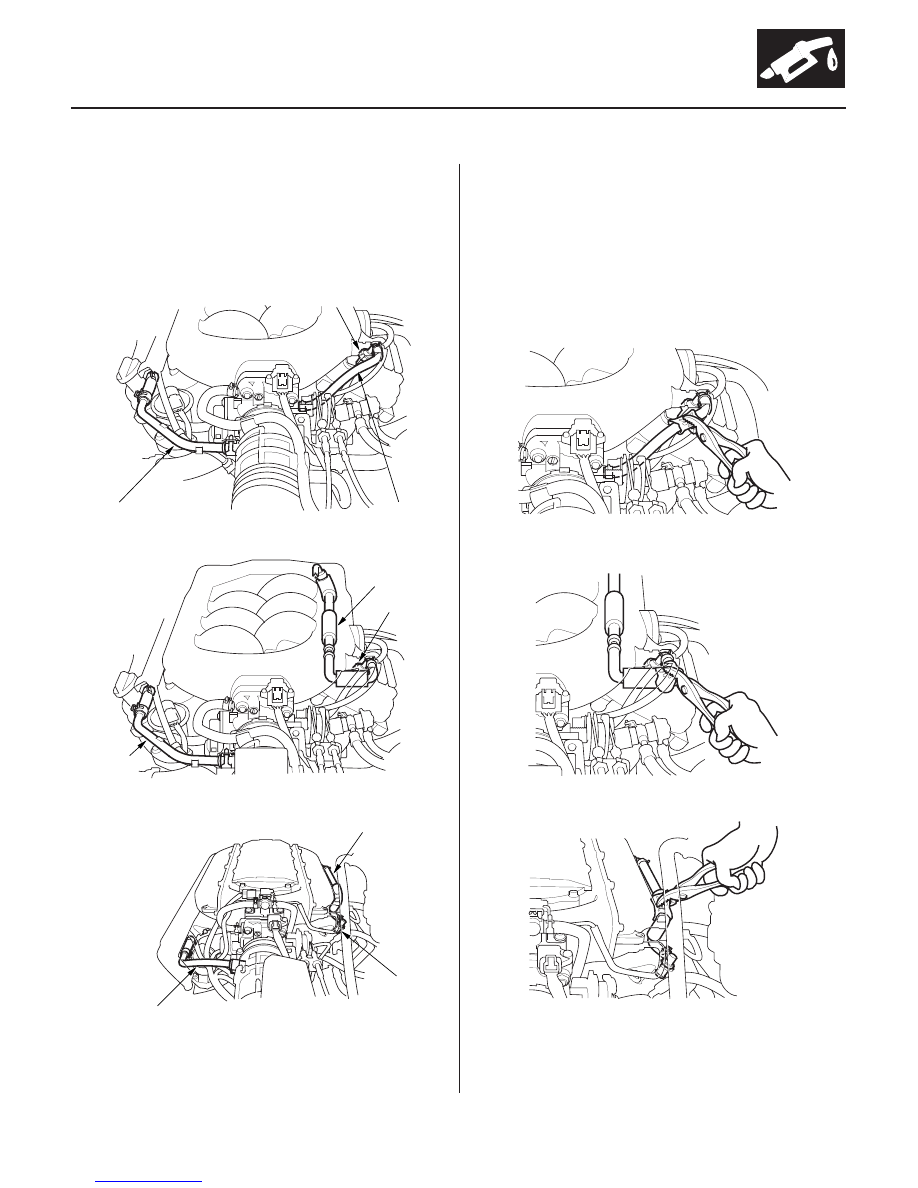

PCV System

PCV Valve Inspection and Test

B

B

A

B

B

A

A

B

B

1. Remove the intake manifold cover and the rear

ignition coil cover (see page 9-4).

2. Check the PCV valve (A), hoses (B), and

connections for leaks or restrictions.

3. At idle, make sure there is a clicking sound from the

PCV valve when the hose between the PCV valve
and intake manifold is lightly pinched (A) with your
fingers or pliers.
If there is no clicking sound, check the PCV valve
grommet for cracks or damage. If the grommet is
OK, replace the PCV valve and recheck.

03/07/29 09:25:50 61S0X050_110_0257
