Intake Valve Stem-to-Guide Clearance

Standard (New):

0.04

0.09 mm

(0.002

0.004 in.)

Service Limit:

0.16 mm (0.006 in.)

Exhaust Valve Stem-to-Guide Clearance

Standard (New):

0.11

0.16 mm

(0.004

0.006 in.)

Service Limit:

0.24 mm (0.009 in.)

Intake Valve Stem-to-Guide Clearance

Standard (New):

0.020

0.045 mm

(0.0008

0.0018 in.)

Service Limit:

0.08 mm (0.003 in.)

Exhaust Valve Stem-to-Guide Clearance

Standard (New):

0.055

0.080 mm

(0.0022

0.0031 in.)

Service Limit:

0.12 mm (0.005 in.)

6-48

Cylinder Head

Valve Stem-to-Guide Clearance Inspection

1. Remove the valves (see page 6-46).

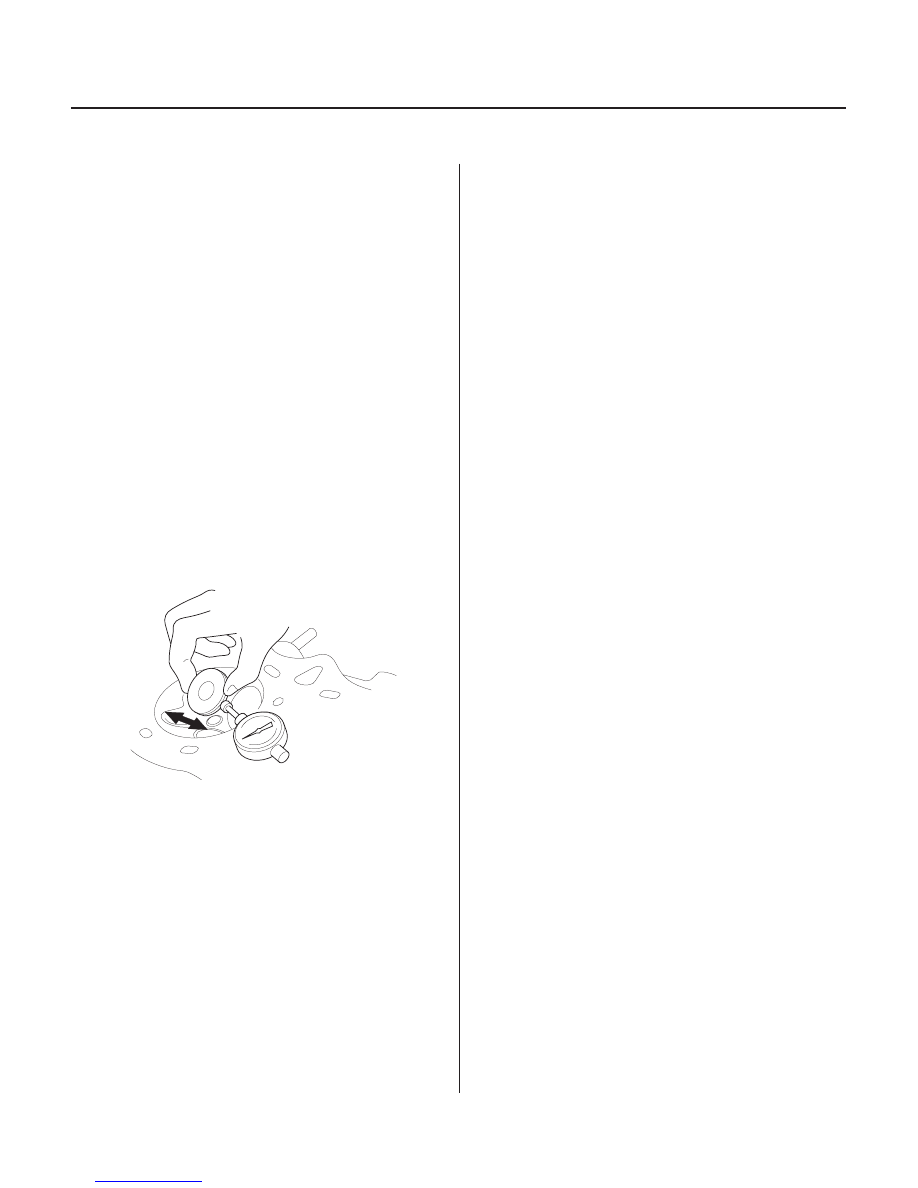

2. Slide the valve out of its guide about 10 mm

(0.39 in.), then measure the guide-to-stem
clearance with a dial indicator while rocking the
stem in the direction of normal thrust (wobble
method).

• If the measurement exceeds the service limit,

recheck it using a new valve.

• If the measurement is now within the service

limit, reassemble using a new valve.

• If the measurement with a new valve still

exceeds the service limit, go to step 3.

3. Subtract the O.D. of the valve stem, measured with

a micrometer, from the I.D. of the valve guide,
measured with an inside micrometer or ball gauge.
Take the measurements in three places along the
valve stem and three places inside the valve guide.
The difference between the largest guide
measurement and the smallest stem measurement
should not exceed the service limit.

03/07/29 09:11:51 61S0X050_060_0048

*01

*02

*03

S0X4A00A14680263001KBAT00

Special Tools Required

6-49

Valve Guide Replacement

87 mm
(3.43 in.)

57 mm
(2.24 in.)

10.8 mm
(0.42 in.)

5.3 mm
(0.21 in.)

A

• Valve guide driver, 5.5 mm 07742-0010100
• Valve guide reamer, 5.5 mm 07HAH-PJ7A100

1. Inspect valve stem-to-guide clearance (see page 6-

48).

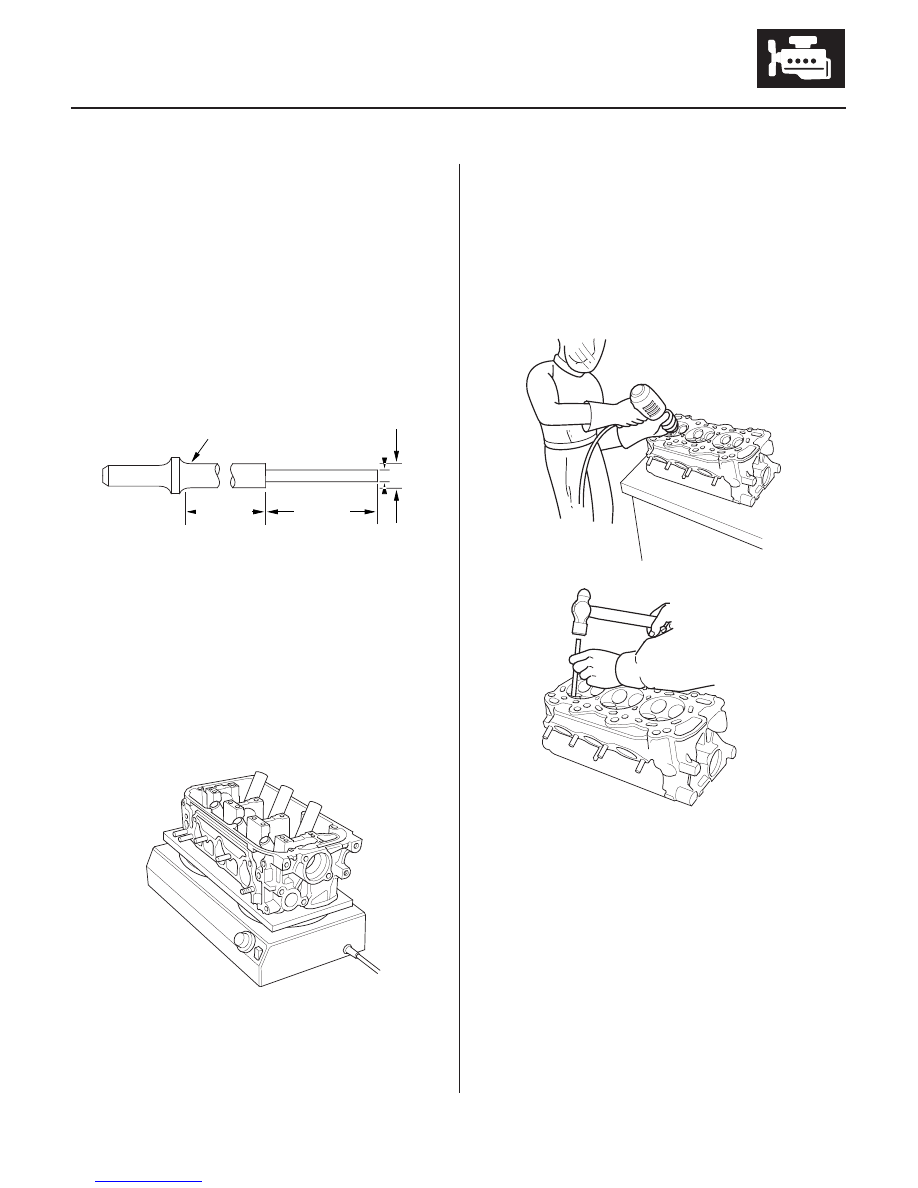

2. As illustrated, use a commercially available air-

impact valve guide driver (A) modified to fit the
diameter of the valve guides. In most cases, the
same procedure can be done using the special tool
and a conventional hammer.

3. Select the proper replacement guides and chill

them in the freezer section of a refrigerator for
about an hour.

4. Use a hot plate or oven to evenly heat the cylinder

head to 300°F (150°C). Monitor the temperature
with a cooking thermometer. Do not get the head
hotter than 300°F (150°C); excessive heat may
loosen the valve seats.

5. Working from the camshaft side, use the driver and

an air hammer to drive the guide about 2 mm
(0.1 in.) towards the combustion chamber. This will
knock off some of the carbon and make removal
easier. Hold the air hammer directly in line with the
valve guide to prevent damaging the driver. Wear
safety goggles or a face shield.

6. Turn the head over and drive the guide out toward

the camshaft side of the head.

7. If a valve guide won’t move, drill it out with a 8 mm

(5/16 in.) bit, then try again. Drill out the guides only
in extreme cases; you could damage the cylinder
head if the guide breaks.

8. Remove the new guide(s) from the freezer, one at a

time, as you need them.

(cont’d)

03/07/29 09:11:51 61S0X050_060_0049

*04

01

Valve Guide Installed Height
Intake:

21.20

22.20 mm (0.835

0.874 in.)

Exhaust:

20.63

21.63 mm (0.812

0.852 in.)

6-50

Cylinder Head

Valve Guide Replacement (cont’d)

07742-0010100

A

B

07HAH-PJ7A100

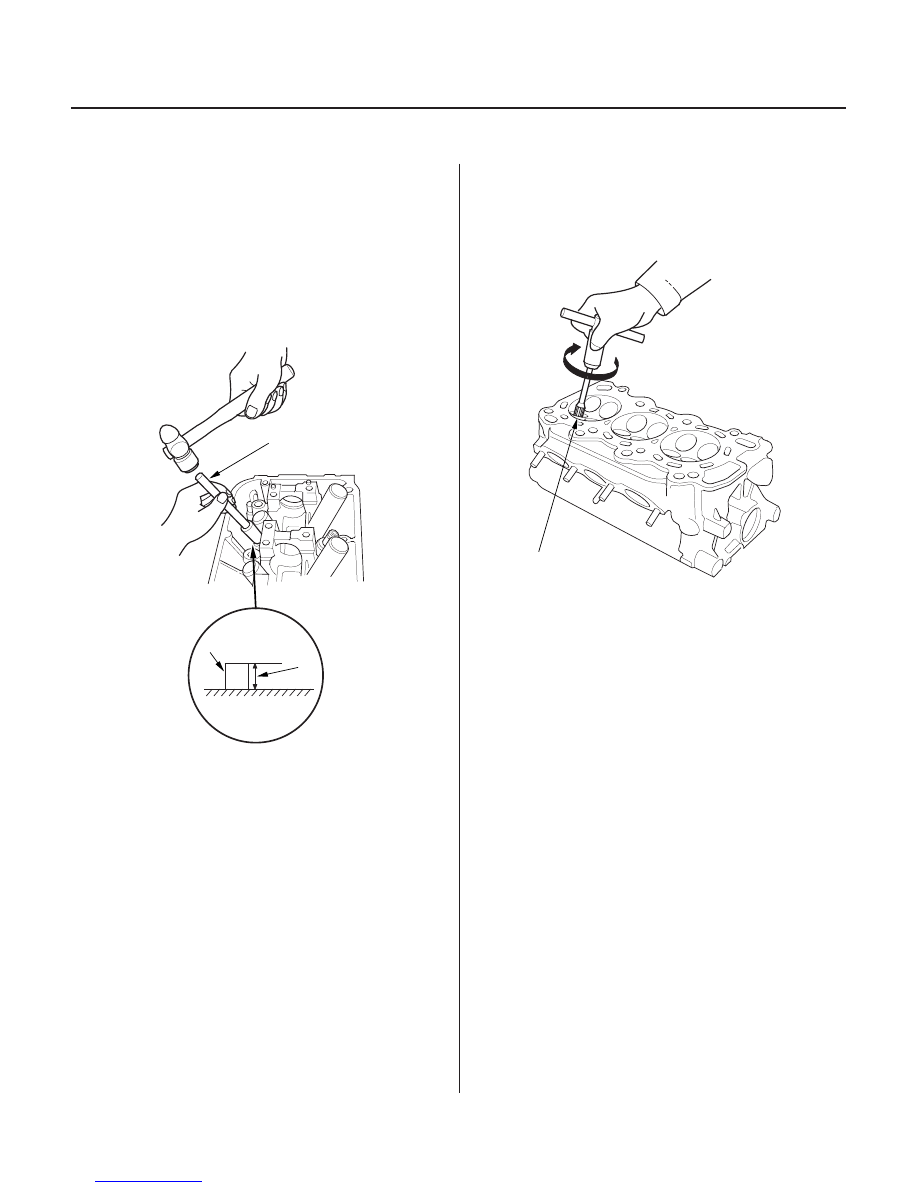

9. Apply a thin coat of clean engine oil to the outside

of the new valve guide. Install the guide from the
camshaft side of the head; use the special tool to
drive the guide into the specified installed height
(A) of the guide (B). If you have all 12 guides to do,
you may have to reheat the head.

10. Coat both the reamer and the valve guide with

cutting oil.

11. Rotate the reamer clockwise the full length of the

valve guide bore.

12. Continue to rotate the reamer clockwise while

removing it from the bore.

13. Thoroughly wash the guide with detergent and

water to remove any cutting residue.

14. Check the clearance with a valve (see page 6-48).

Verify that the valve slides in the intake and
exhaust valve guides without exerting pressure.

Turn reamer in
clockwise direction only.

03/07/29 09:11:52 61S0X050_060_0050

01

02

03

*01

S0X4A00A14680263041LBAT00

1999-2001 models:

2002-2004 models:

Valve Seat Width
Standard (New): 1.25

1.55 mm (0.049

0.061 in.)

Service Limit:

2.00 mm (0.079 in.)

6-51

Valve Seat Reconditioning

30°

45°

60°

60°

30°

45°

67.5°

B

A

1. Inspect valve stem-to-guide clearance (see page 6-

48). If the valve guides are worn, replace them (see
page 6-49) before cutting the valve seats.

2. Renew the valve seats in the cylinder head using a

valve seat cutter.

3. Carefully cut a 45° seat, removing only enough

material to ensure a smooth and concentric seat.

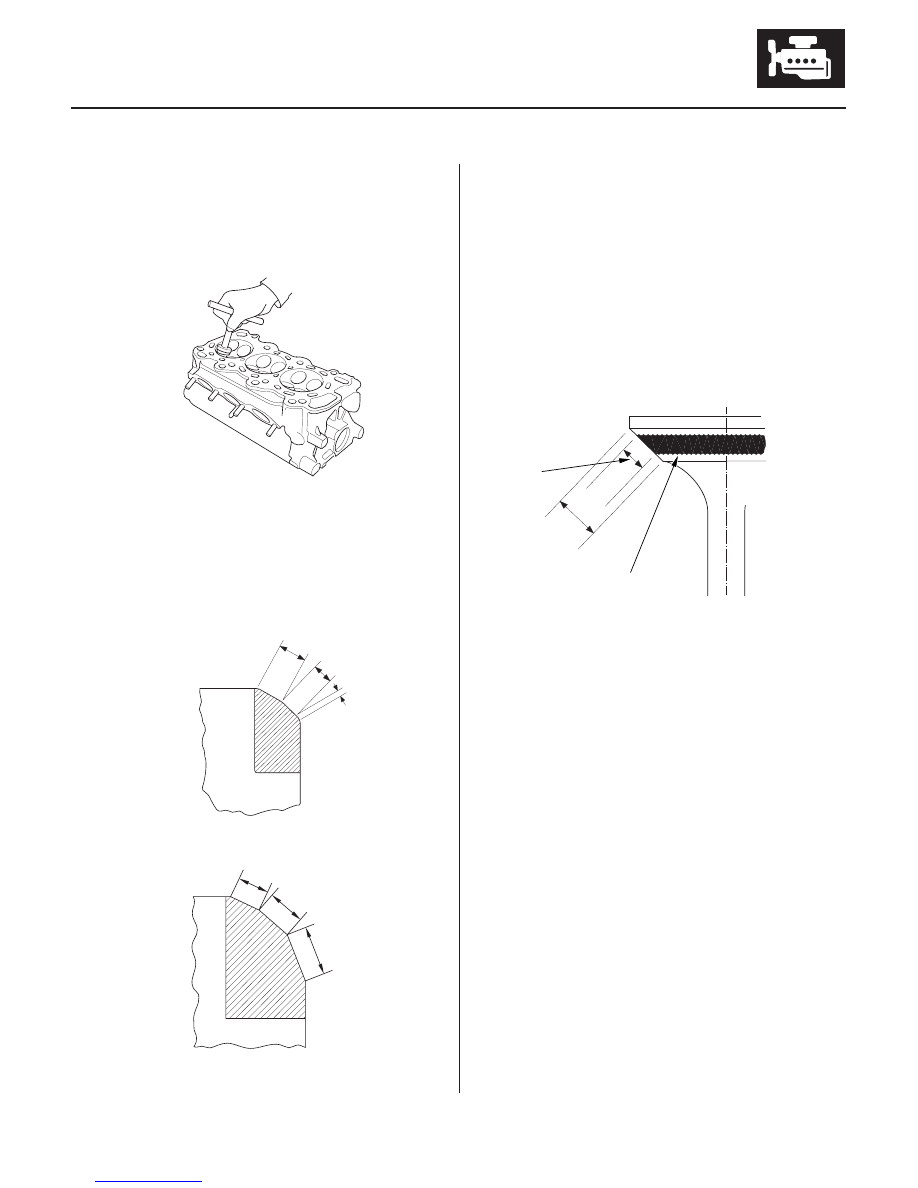

4. Bevel the upper and lower edges at the angles

shown in the illustration.
Check the width of the seat and adjust accordingly.

5. Make one more very light pass with the 45° cutter

to remove any possible burrs caused by the other
cutters.

6. After resurfacing the seat, inspect for even valve

seating. Apply Prussian Blue compound (A) to the
valve face. Insert the valve in its original location in
the head, then lift it and snap it closed against the
seat several times.

7. The actual valve seating surface (B), as shown by

the blue compound, should be centered on the seat.

• If it is too high (closer to the valve stem), you

must make a second cut with the 60° cutter (1999-
2001 models and 2002-2004 models exhaust
side) or the 67.5° cutter (2002-2004 models intake
side) to move it down, then one more cut with the
45° cutter to restore seat width.

• If it is too low (close to the valve edge), you must

make a second cut with the 30° cutter to move it
up, then make one more cut with the 45° cutter to
restore seat width.

NOTE: The final cut should always be made with
the 45° cutter.

(cont’d)

(exhaust seat)

(intake seat)

03/07/29 09:11:53 61S0X050_060_0051
