Special Tools Required

YES

4-56

Engine Mount Control System

Troubleshooting

ENGINE MOUNT CONTROL
SOLENOID VALVE 2P CONNECTOR

IG 1
(BLK/YEL)

ENGINE MOUNT CONTROL
SOLENOID VALVE 2P CONNECTOR

IG 1
(BLK/YEL)

MCS
(GRN/WHT)

Vacuum pump/gauge, 0

30 in.Hg

A973X-041-XXXXX

NOTE:

• Check the vacuum hoses and lines for damage and

proper connections before troubleshooting.

• Before performing engine mount control system

troubleshooting, check for damage to the suspension,
subframe, body, or exhaust.

Follow this procedure if the engine vibrates excessively
when idling.

1. Warm up the engine to normal operating

temperature (the cooling fan comes on two times).

Go to step 2.

Adjust the idle speed (see page 11-201).

2. Fully press the brake pedal.

3. With the transmission in gear, have an assistant

disconnect and reconnect the 2P connector at the
engine mount control solenoid valve.

Reconnect the engine mount control

solenoid valve 2P connector to the solenoid valve.
The engine mount control system is OK.

Go to step 4.

4. Shift the transmission to P or N.

5. Disconnect the engine mount control solenoid

valve 2P connector from the engine mount control
solenoid valve.

6. Measure voltage between the No. 2 terminal and

body ground.

Go to step 7.

Repair an open in the wire between the

engine mount control solenoid valve connector and
No. 6 (15A) fuse in the under-dash driver’s fuse/
relay box.

7. Measure voltage between the engine mount

control solenoid valve 2P connector No. 1 terminal
and No. 2 terminal.

Go to step 8.

Repair an open in the wire between powertain

control module (PCM) connector terminal A2
(1999-2000, 2002-2004 models) or E24 (2001 model)
and the engine mount control solenoid valve
connector. If the wire is OK, substitute a known-
good PCM and recheck (see page 11-5).

Wire side of
female terminals

Is the idle speed less than 7 30 r pm?

Is ther e a noticeable change in idle smoothness
when the engine mount contr ol solenoid valve 2P
connector is disconnected?

Is ther e batter y voltage?

03/07/29 09:08:28 61S0X050_040_0056

−

０３

０４

０１

YES

4-57

ENGINE MOUNT CONTROL
SOLENOID VALVE 2P CONNECTOR

IG 1
(BLK/YEL)

MCS
(GRN/WHT)

A973-041-XXXXX

A973X-041-XXXXX

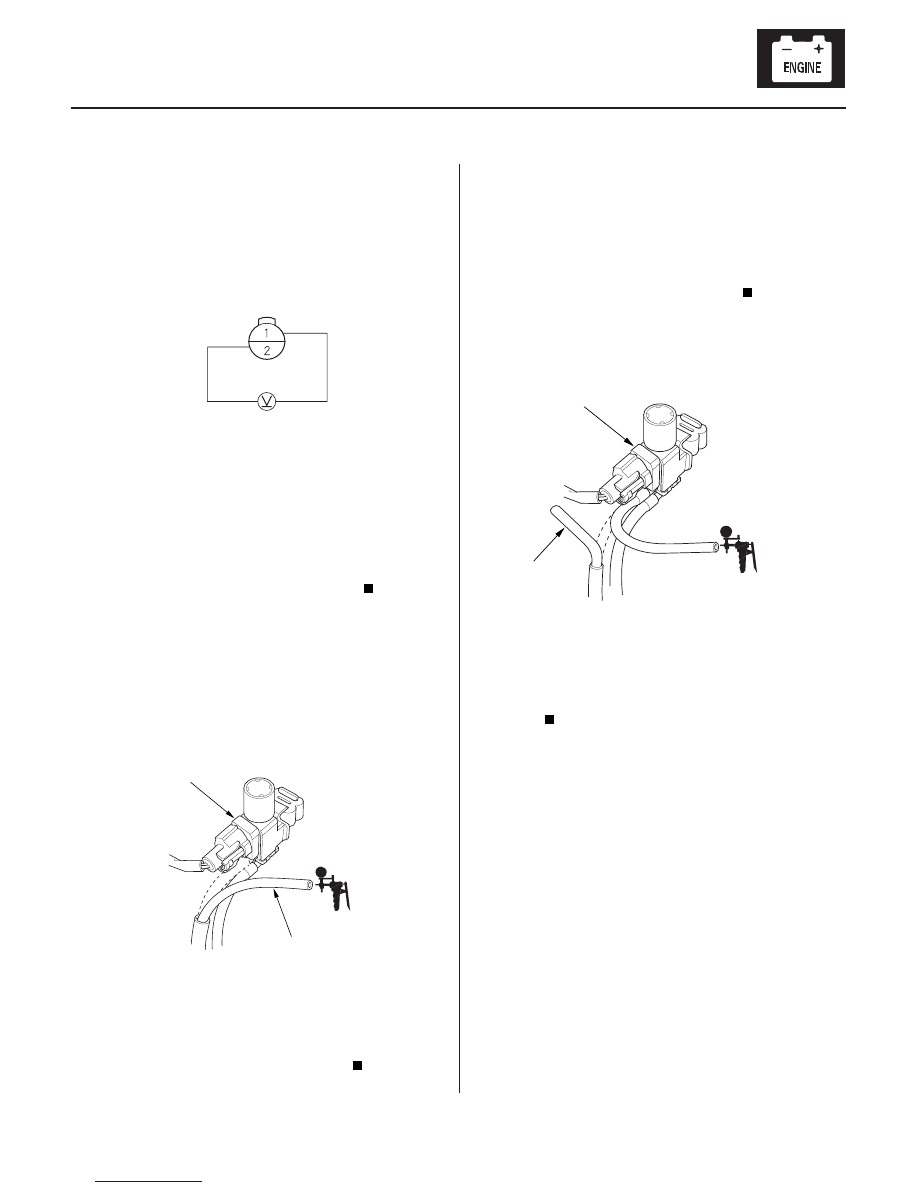

8. Raise the engine speed above 1,000 rpm.

9. Measure voltage between the engine mount

control solenoid valve 2P connector No. 1 terminal
and No. 2 terminal.

Repair a short to body ground in the wire

between PCM connector terminal A2
(1999-2000, 2002-2004 models) or E24 (2001 model)
and the engine mount control solenoid valve
connector. If the wire is OK, substitute a known-
good PCM and recheck (see page 11-5).

Go to step 10.

10. Connect the engine mount control solenoid valve

2P connector.

11. Disconnect the upper vacuum hose (A) from the

engine mount control solenoid valve (B), and
connect a vacuum pump/gauge to the hose. Apply
vacuum for 20 seconds.

Go to step 12.

Either the vacuum hose or front engine mount

has a vacuum leak. Repair as needed.

12. Release the vacuum, then apply vacuum again.

Go to step 13.

Replace the front engine mount.

13. Disconnect the upper vacuum hose (A) from the

engine mount control solenoid valve (B) and
connect a vacuum pump/gauge to a hose
connected to the engine mount control valve.

Replace the engine mount control solenoid

valve.

A hose is restricted or the intake manifold part

is plugged.

Wire side of
female terminals

Is ther e batter y voltage?

Does the engine mount hold vacuum?

Is ther e a noticeable change in idle smoothness
with and without vacuum applied ?

Is ther e manif old vacuum at idle, and a decr ease
in manif old vacuum when you r aise the engine
speed above 1,000 r pm?

03/07/29 09:08:29 61S0X050_040_0057

Ｓ０Ｘ４Ａ０００００００００Ｊ０４０１ＺＡＡＴ００

03/07/29 09:08:29 61S0X050_040_0058

Ｓ０Ｘ４Ａ０００００００００Ｊ０５０１ＺＣＡＴ００

Engine Mechanical

Engine Assembly

...................................................

Cylinder Head

. 6-1

....................................................

Engine Block

. 7-1

..........................................

Engine Lubrication

. 8-1

............

Intake Manifold and Exhaust System

. 9-1

..........................................................

.......................................................

..........................................................

.......................................................

Engine Removal

. 5-2

Engine Installation

. 5-12
