BE-85

SF

1

fuel level sensor

2

electric fuel pump

3

connected to cab wire harness

1

2

3

Chassis Wire Harness (continued)

Body Electric System

 Wire Harness Distribution

AC-1

Page

Introduction ................................................................. AC-2

Electric circuit diagram of air-conditioning system ...... AC-4

System constitutes ...................................................... AC-8

General introduction .................................................... AC-9

Troubleshooting .......................................................... AC-10

Inspection for refrigerant quantity ................................ AC-11

Compressor ................................................................. AC-12

Liquid container ........................................................... AC-14

Condenser ................................................................... AC-15

Cooling device ............................................................. AC-16

Refrigerant pipeline ..................................................... AC-20

AC

Air-conditioning System

AC-2

Air Conditioning System

 Introduction

In case the liquid refrigerant enters into the eye or touches the

skin, the following measures shall be taken:

Wash the part where is touched by the refrigerant with a

great deal of water.

Coat the skin with the clean Vaseline.

See the doctor or go to the hospital for treatment; and

Do not try to cure it yourself.

General Introduction

1.

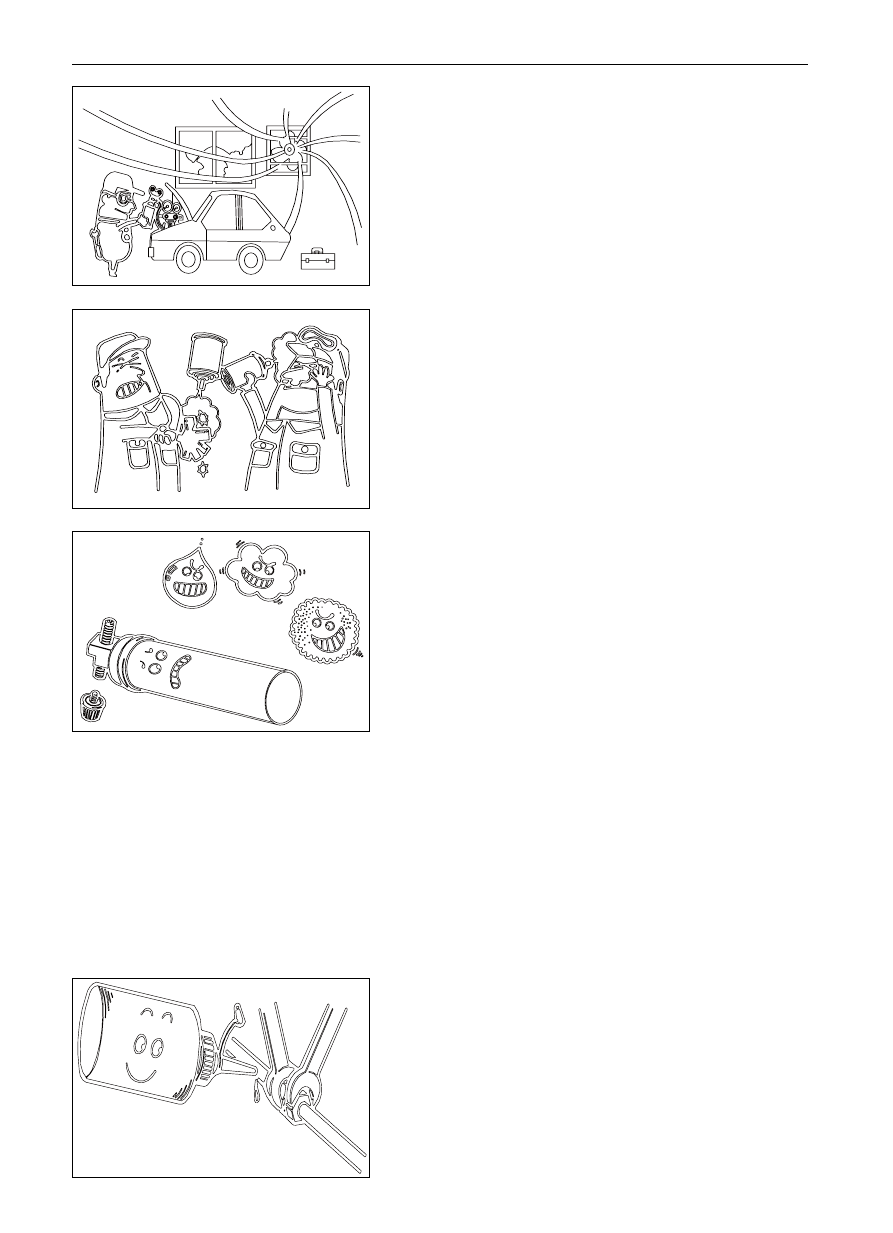

Take notice when handling refrigerant General Introduction

(a)

Do not handling with refrigerant in the closed room or

near to open fire.

(b)

Safety goggles shall be worn when handling

(c)

Be careful to avoid the liquid refrigerant from entering

into your eye or touching you skin.

water

air

dust

ÅçåÇÉåëÉê

plug

2.

Take notice when changing the parts of refrigerant pipes:

(a)

The refrigerant shall be exhausted gradually before

changing.

(b)

The dismantled parts shall be covered with plug right

away so as to prevent the water or dust from entering into

the system.

(c)

Do not store the condenser or liquid tank under the

condition that the plug has been uncovered. and

(d)

Refrigerant shall be exhausted before installing the new

condenser, because the refrigerant, if not exhausted, will

eject out in gaseous form with the lubricant oil when the

plug is moved away.

3.

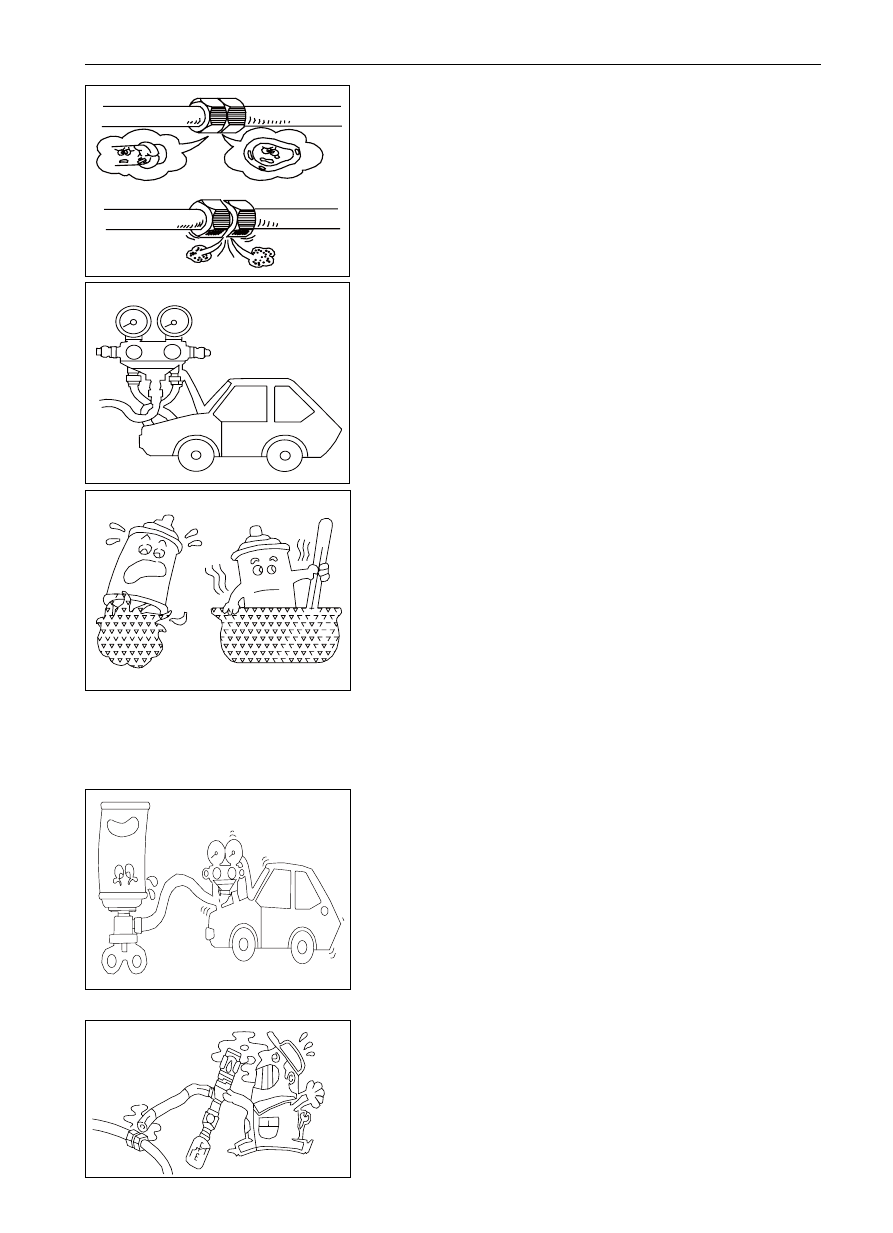

Take notice when fastening the connection parts:

(a)

Spread a little lubricant oil at the matching position of the

O-type ring to fasten the connection and avoid of gaseous

refrigerant leakage.

(b)

Fasten the nut with two spanners so as to avoid of the pipe

deformation.

AC-3

Air Conditioning System

 Introduction

(c)

Tighten the O-ring matching position or the threaded position

to the specified moment.

4.

Take notice when connecting measuring meter at branch pipes:

(a)

Connect the end of filling hose with high speed joint to the

filling valve of compressor.

(b)

Letter

D
 marked on the compressor near the auxiliary valve

represents the side of high voltage while

S
 means the side of

low voltage, which shall be looked out when connecting the hose.

(c)

Fasten the bolts by hand, and

(d)

In order to prevent the hose from loosing, lubricant oil shall not

be spread at the connection position.

Remarks: after connecting the measuring meter on branch pipes to

the refrigerant container (repairing tank), the air in the hose shall be

exhausted up.

5.

Take notice when vacuumizing:

After vacuumizing for 20 min, maintain the container at certain

pressure to ensure that all air in it is exhausted up, and another

inspection shall be made to see whether there is leakage.

6.

Take notice when handling with the refrigerant container

(repairing tank):

(a)

Do not heat it.

(b)

Store the container at the place where temperature is under 40

(c)

In case of heating the repairing tank with hot water, care shall

be paid to the valves at the top of tank, do not dip them into the

water, or the water will penetrate into the cooling system.

(d)

The empty repairing tank is forbidden to reuse.

8.

Take notice when using the high-pressure air cylinder type

inspecting device:

(a)

In case the open fire is used, it is the first to ensure before using

there is no flammable material around.

(b)

Be careful because toxic gas will be produced when the

gaseous refrigerant meets with the open fire.

7.

Take notice in the A/C operation or when adding the liquid

refrigerant:

(a)

In case the gaseous refrigerant in the cooling system is

insufficient, which can lead to the compressor burns out, and

such accidents shall be avoided.

(b)

If the valve on the side of high pressure is uncovered, the

refrigerant will flow in the reverse direction, which may lead

to the break of the repairing tank, therefore, only valves on the

side of low pressure are allowed to open or closed.

(c)

If the repair tank is laid in reverse direction, and the refrigerant

is added in liquid status, the liquid refrigerant will be

compressed, which may lead to failure of the compressor,

therefore, refrigerant shall be inflated in the gaseous status.

(d)

Be careful not over-inflate the gaseous refrigerant, otherwise,

such failures as insufficient cooling, increase of oil consuming

or over heat of engine will be followed.

under 40

incorrect

correct

measuring meter of branch pipe

loose

over-fastened

A/C operation
