Great Wall service chassis and body Manual - part 87

BE-77

SY

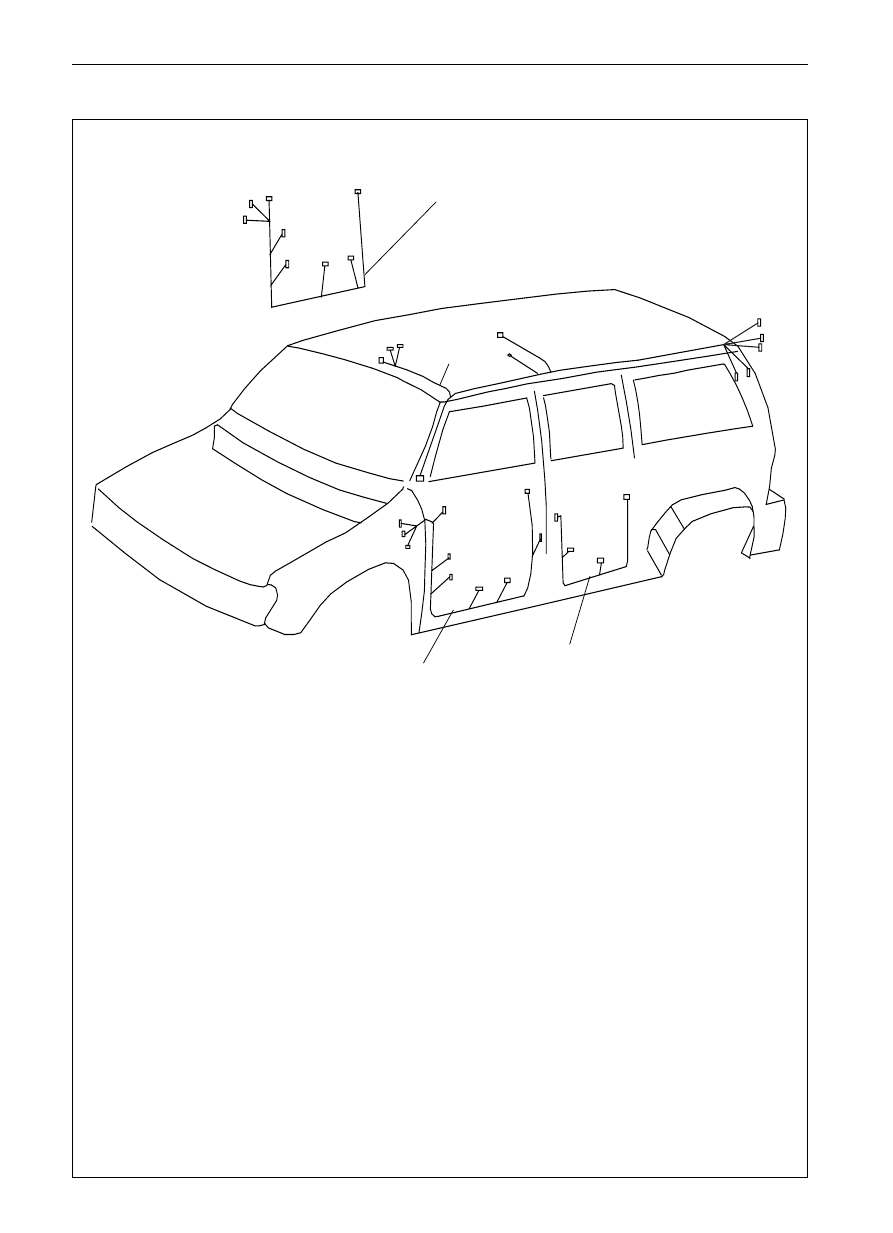

Wire harness at right rear door is distributed in the same way as that at left front rear door.

1

connected to cab wire harness

2

connected to cab wire harness

3

connected to cab wire harness

4

left external electric rear vision mirror

5

left front loudspeaker

6

left door lamp

7

electric rocker

8

left front lock-out device

9

rear vision mirror switch

10 rocker switch

11 rocker switch

12 rocker switch

13 rocker switch

14 inhibitor switch

15 connected to cab wire harness

16 electric rocker

17 left rear lock-out device

18 rocker switch

19 highly-mounted stop lamp

20 rear ceiling lamp

21 front ceiling lamp

22 lamp for reading

23 car door display

24 temperature display

25 connected to cab wire harness

26 connected to cab wire harness

27 right external electric rear vision mirror

28 right front loudspeaker

29 right door lamp

30 electric rocker

31 right front lock-out device

32 rocker switch

wire harness at left front door

wire harness at left rear door

1
2

3

4

5

6

7

8

V

NM

11

12

13

14

15

16

17

18

19

20

21

23

22

25

26

27

28

29

30

31

roof wire harness

wire harness at right front door

Wire harness at four doors and body roof (continued)

24

32

Body Electric System

 Wire Harness Distribution

BE-78

wire harness at left front door

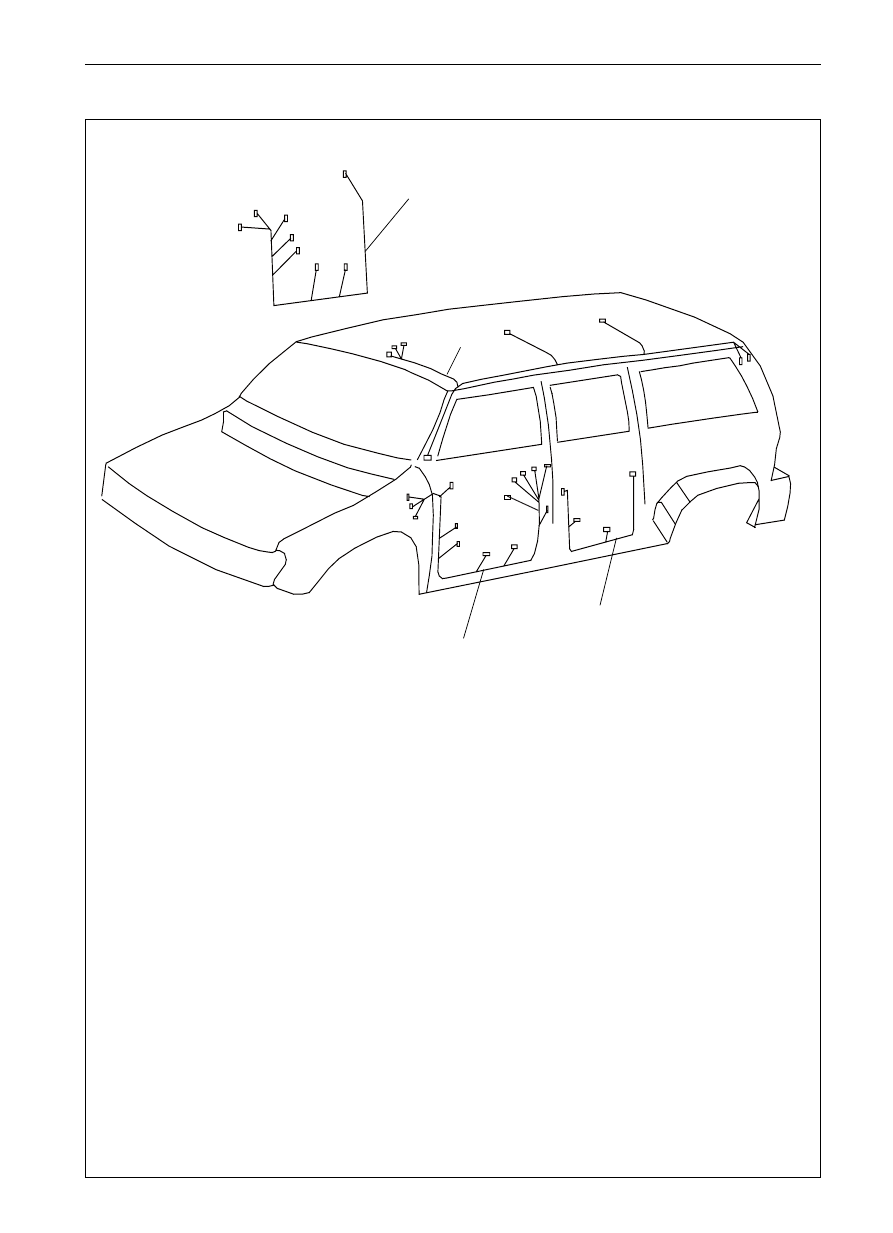

Wire harness at right rear door is distributed in the same way as that at left rear door.

1

connected to cab wire harness

2

connected to cab wire harness

3

connected to cab wire harness

4

left external electric rear vision mirror

5

left front loudspeaker

6

left door lamp

7

electric rocker

8

left front lock-out device

9

rear vision mirror switch

10 rocker switch

11 connect to cab wire harness

12 electric rocker

13 left rear lock-out device

14 rocker switch

15 highly-mounted stop lamp

16 bass speaker(top SY)

17 ceiling lamp

18 grounding wire(top SY)

19 lamp for reading

20 car door display

21 temperature display

22 connected to cab wire harness

23 connected to cab wire harness

24 right external electric rear vision mirror

25 right front loudspeaker

26 right door lamp

27 electric rocker

28 right front lock-out device

29 rocker switch

1

2

3

4

5

6

7

8

9

10

11

12 13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

wire harness at right front door

roof wire harness

wire harness at left rear door

Top style SY SJ

Wire harness at four doors and body roof (continued)

28

29

Body Electric System

 Wire Harness Distribution

BE-79

SF

1

connected to protective box I

2

connected to protective box I

3

rear vision mirror

4

front door-lamp switch

5

rocker switch

6

rocker at front door

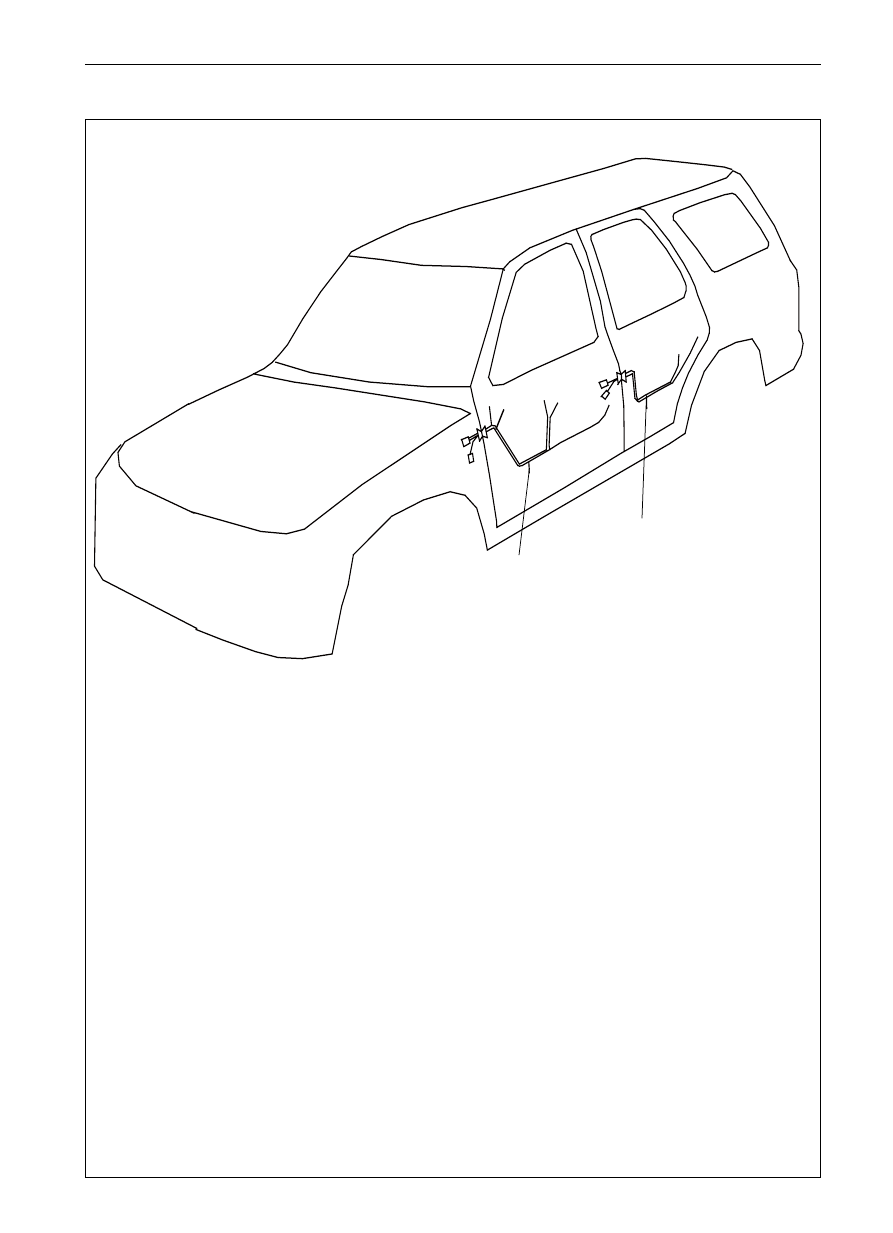

Wire harness distribution at front left door, front right door, rear left door and rear right door are same with each other.

1

2

3 4

5 6

7

8

9

10

11

wire harness at front door

wire harness at rear door

Wire harness of four doors(continued)

Body Electric System

 Wire Harness Distribution

7

lock-out device at front door

8

wire harness at central part

9

wire harness at central part

10 rocker at rear door

11 rocker switch

BE-80

Wire harness at tail door and of rear air-conditioner

SY SJ

wire harness of rear

air-conditioner

wire harness

of rear brush

1

2

3

4

5

6

7

8

V

10

11

12

13

NQ

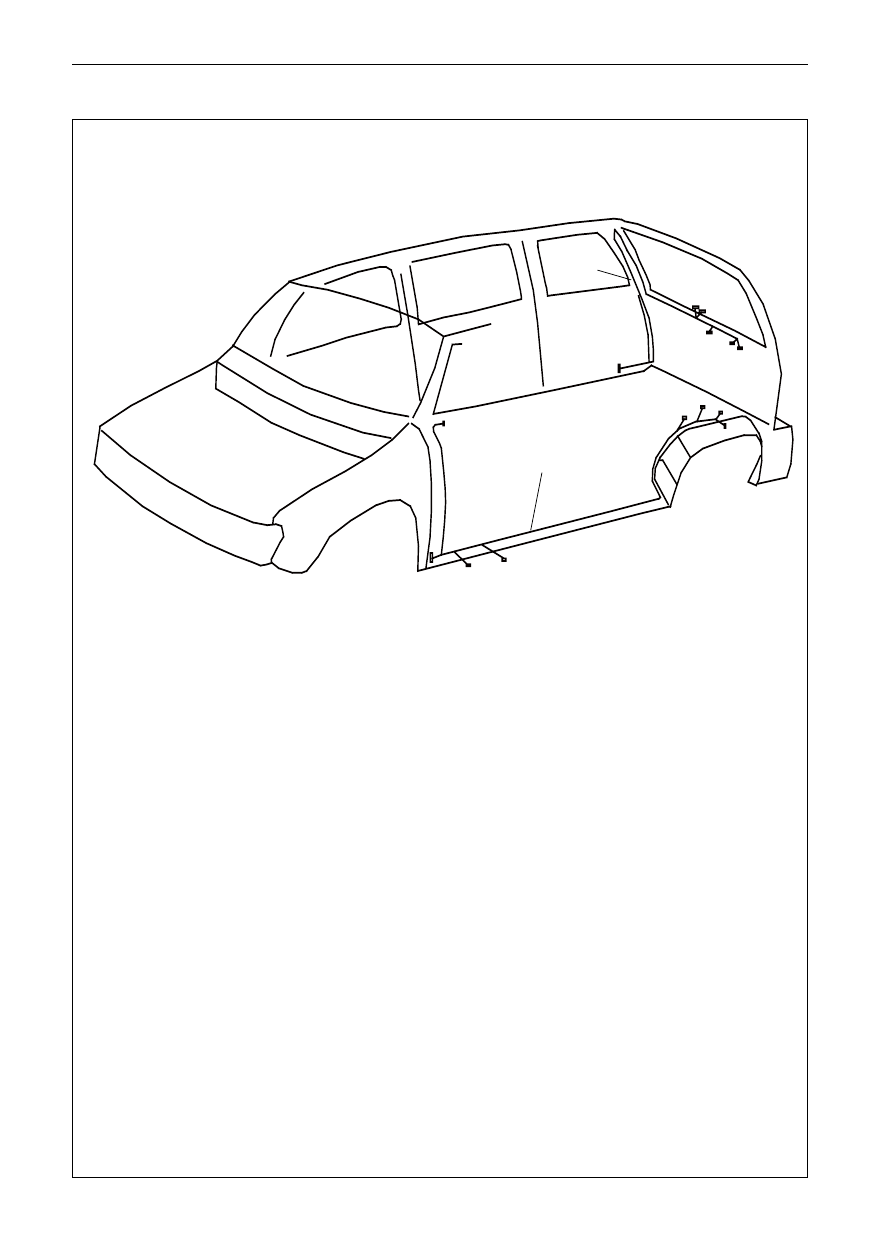

Only the vehicle with SY model has the wire harness of rear air-conditioner shown in above-mentioned wire harness.

1

rear A/C switch

2

connected to cab wire harness

3

rear air-conditioning relay

4

grounding wire

5

temperature control switch

6

electromagnetic valve

7

temperature controller

8

speed-adjusting resistance

9

license lamp

10

license lamp

11

rear brusher motor

12

defroster

13

defroster

14

connected to cab wire harness

Body Electric System

 Wire Harness Distribution
