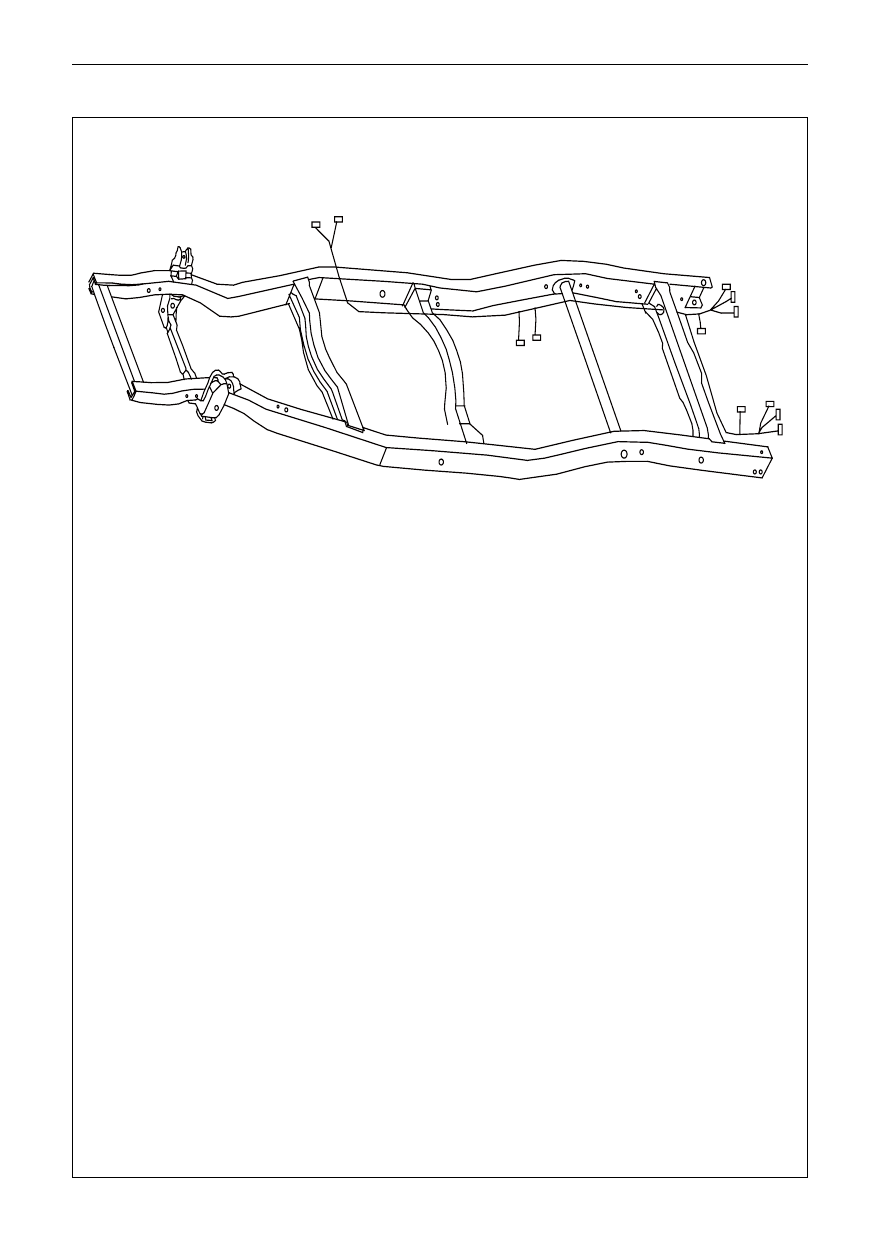

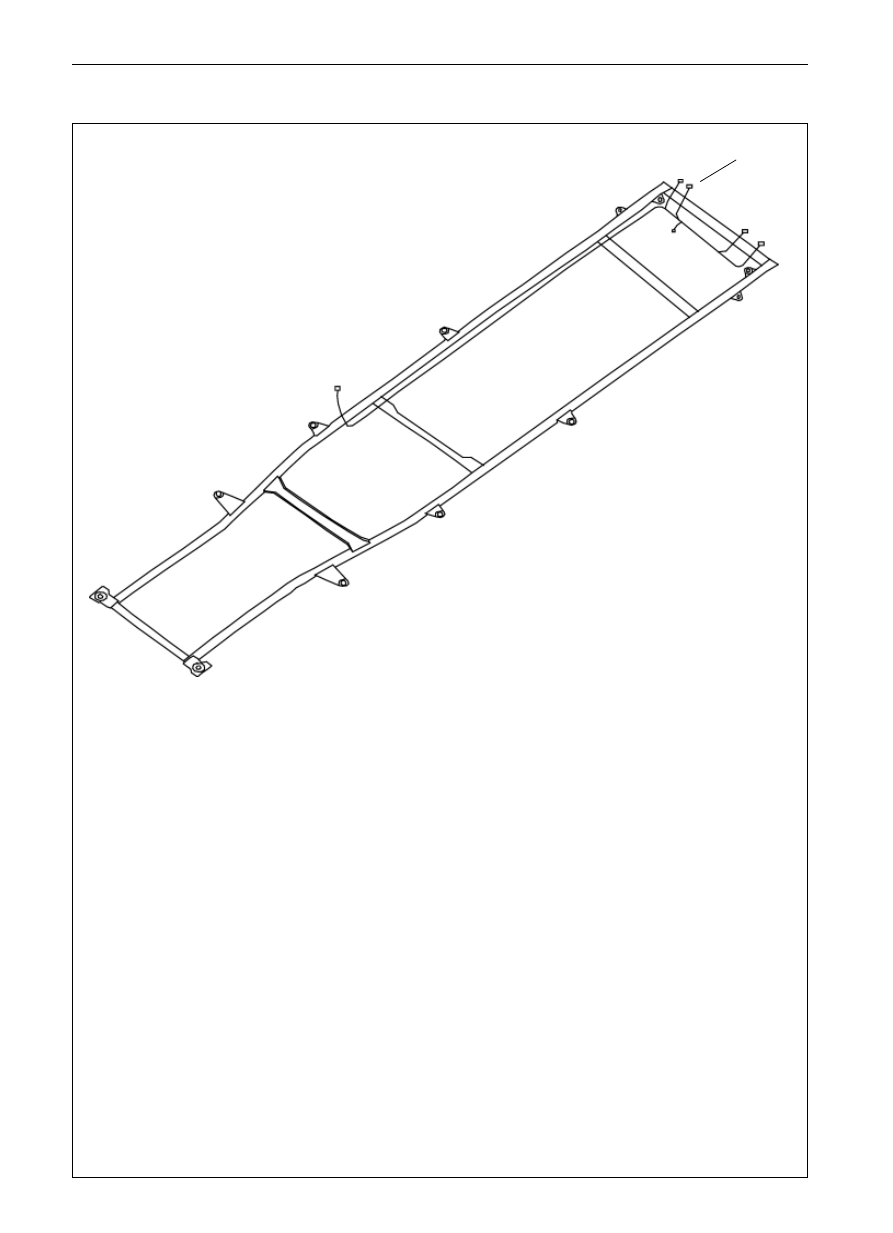

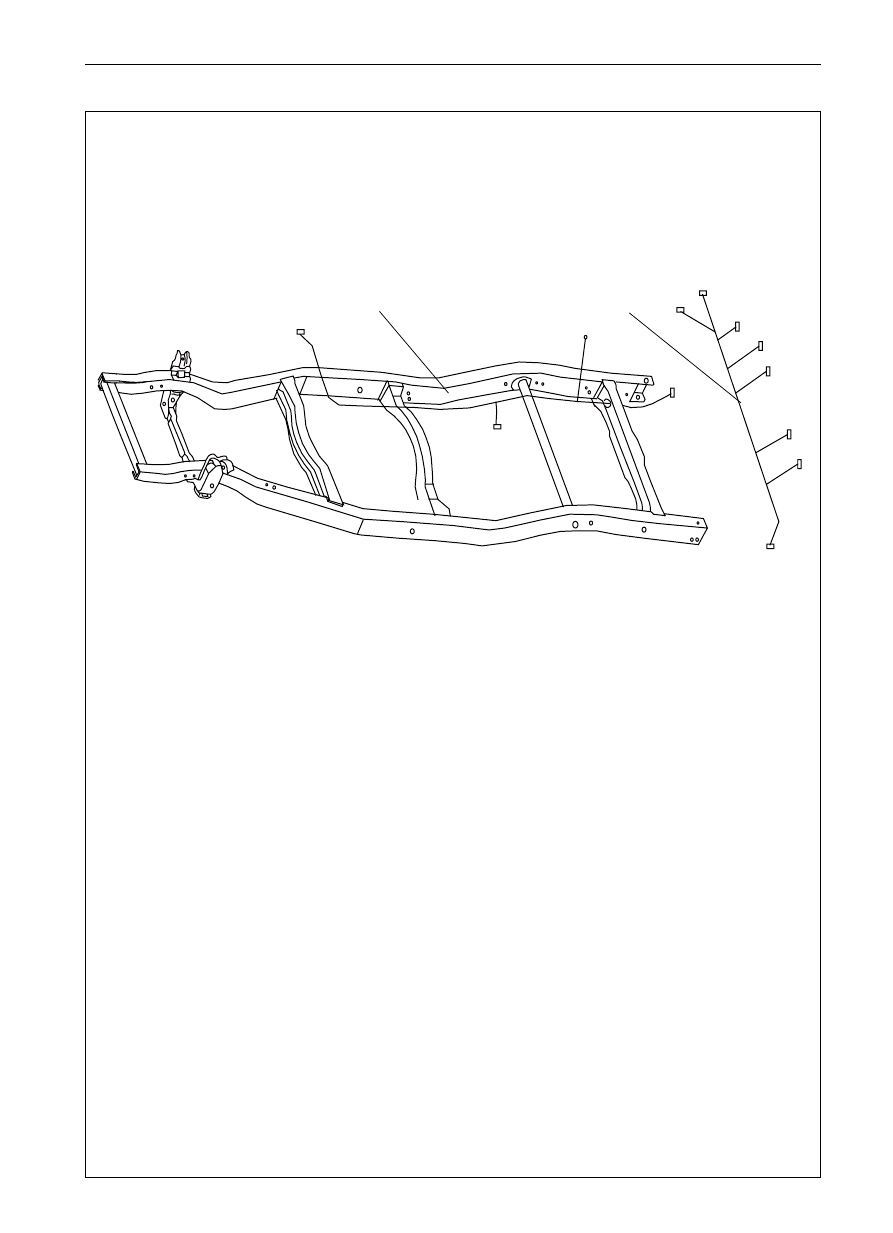

Great Wall service chassis and body Manual - part 88
BE-81
SF
1
connected to left rear wire harness
2
connected to left rear wire harness
3
lock switch at left tail door
4
electro-heating gate at tail door
5
electro-heating gate at tail door
6
left license lamp
7
electric rocker at tail door
8
right license lamp
9
lower limit switch at tail door
10 alarming switch at tail door
11 lock barrel at tail door
12 lock switch at right tail door
1
2
3
4
5
6
7
8
9
10
11
12

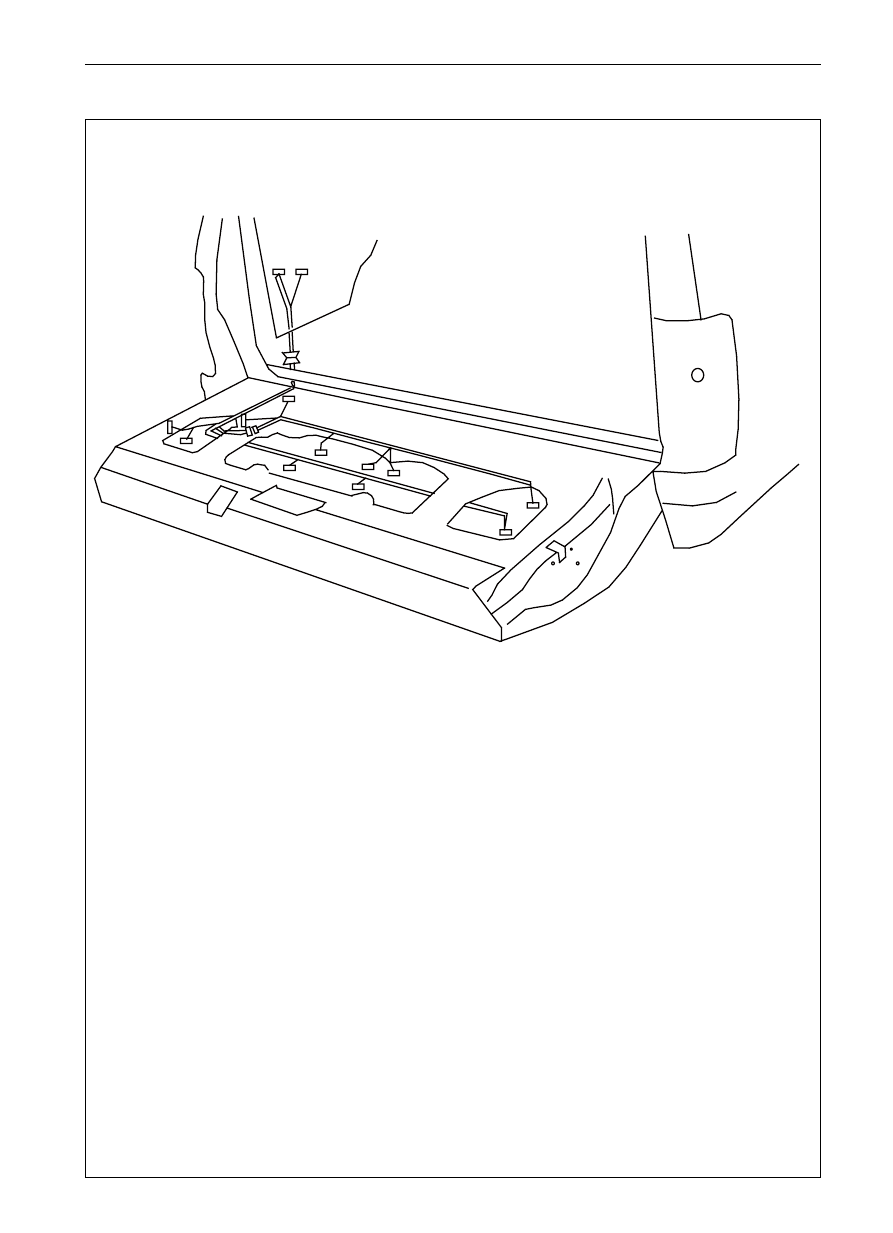

Wire harness at tail door (continued)
Body Electric System
Wire Harness Distribution
