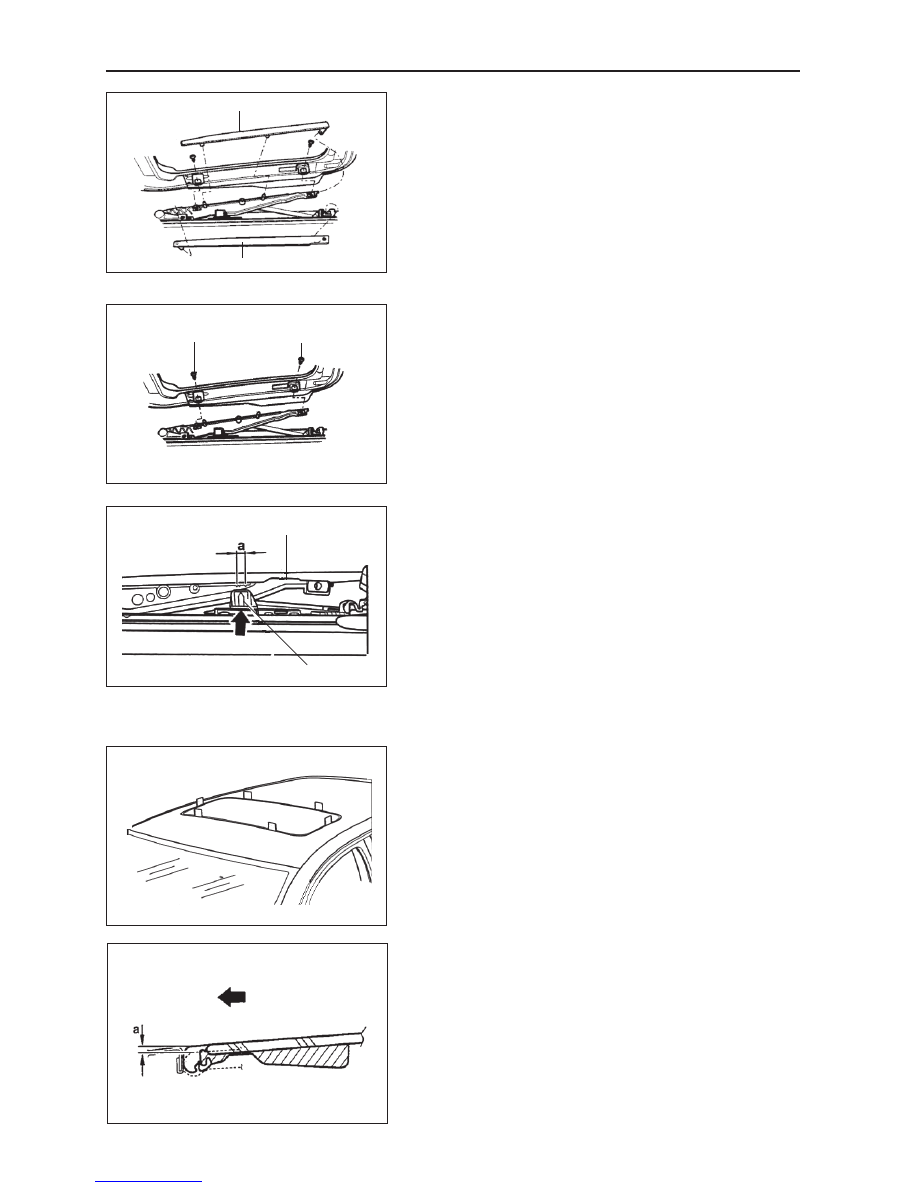

Sunroof panel removal

1.  Move sun visor to the back position.

2.  Open sunroof in the slanted position.

3.  Adjust the lower trim strip.

Loosen the front part of the lower trim strip in the direction

of car's interior to take the rear part off the hook.

4.  Adjust the upper trim strip.

Loosen the front and middle parts of the upper trim strip to

take the rear part off the hook.

5.  Remove the sunroof's left and right side mounting bolts

6.  Pull up the sunroof panel.

Caution: After removing the sunroof panel, do not turn

the sunroof switch to the "Open" position. Because the

window panel will no longer press the roof drip channel

at this time, the roof drip channel will tilt into the sun-

roof.

Sunroof panel installation

The window panel must be installed at the initial position
(window panel is closed).
1.  Window panel location

The mark (indicated by the arrow) on the top of rear guide

device, which is on the window panel's two sides, must be

level with the "a" mark on the air guide plate.

The air guide plate must be installed in the guide rail (cannot

be manually moved).

If there is no guide rail on the air guide plate, please adjust

it.

2.  Place the sunroof from the top down

3.  Adjust the clearance

Insert six sheets of paper, each of about 0.3 mm thickness,

around the window panel to make sure that clearances

around the panel is symmetrical.

4.  Tighten the mounting bolt

Tightening torque: 4.5 N·m.

Sunroof panel adjustment

1.  Adjust the front part.

a = 0-1 mm, lower than the level position of the sunroof.

The arrow refers to the driving direction (facing forward).

Lower trim strip

Upper trim strip

Mounting bolt

Mounting bolt

Guide device

Air guide plate

271

Vehicle Body

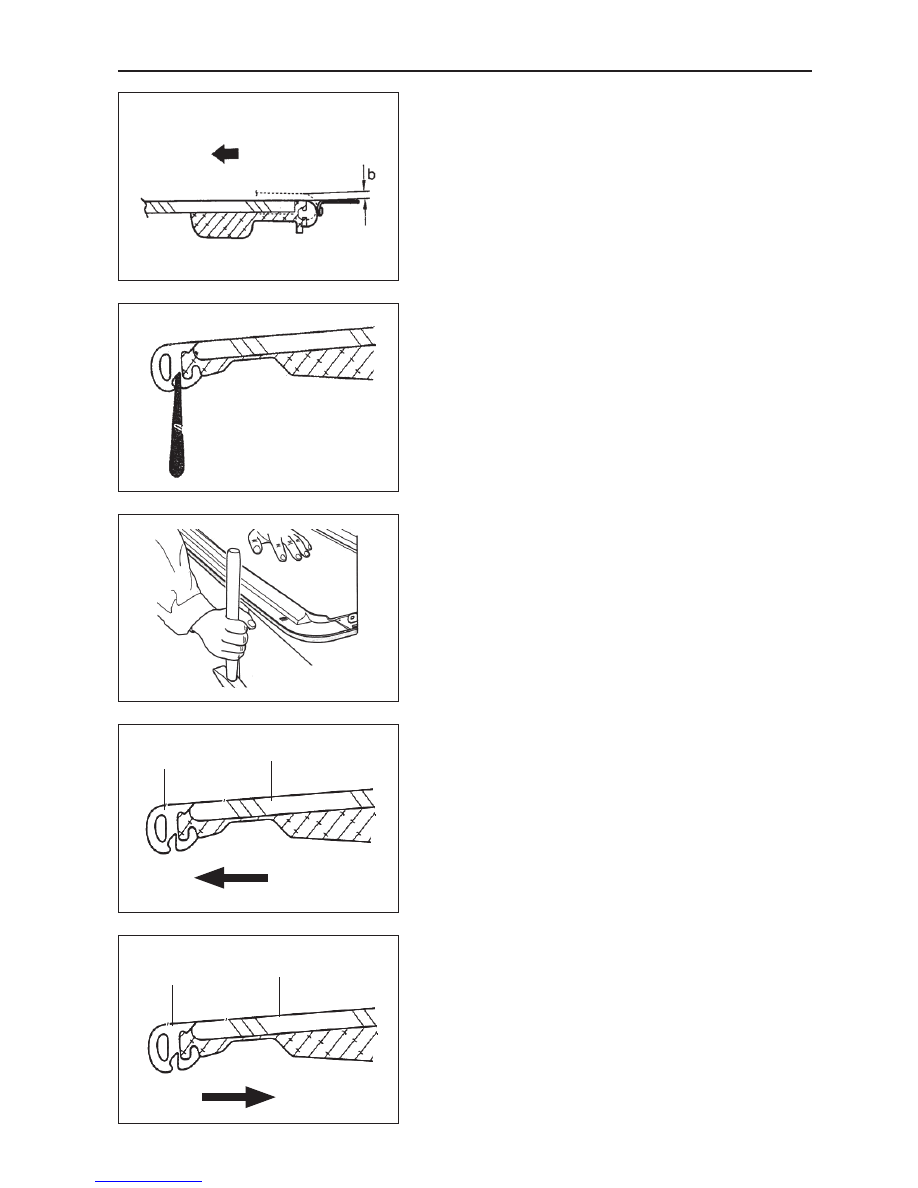

2.  Adjust the rear part.

b = 0-1 mm, higher than the level position of the sunroof.

The arrow refers to the driving direction (facing forward).

3.  Adjust the window panel weatherstrip.

Use a sheet of paper of 0.3 mm thickness to check whether

the prestress between the weatherstrip and vehicle body is

consistent.

(a)  If the prestress is insufficient, use a plastic wedged

instrument to enlarge the weatherstrip's clearance.

(b)  If the prestress is excessive, use a stick to compress the

weatherstrip's clearance.

Replace the weatherstrip

1.  Remove the window panel weatherstrip.

2.  Install the weatherstrip.

Start from the center of the rear part and install the new

weatherstrip onto the window panel from the top down.

Instructions: In order to install the weatherstrip more easily,

it is suggested to coat soap liquid around window panel first.

If the weatherstrip is installed incorrectly, it will cause the

upper part's surface be to wavy. The weatherstrip must be cut

short according to the window panel's perimeter.

Weatherstrip

Window

Weatherstrip

Window

GWFLORID Maintenance Manual

272

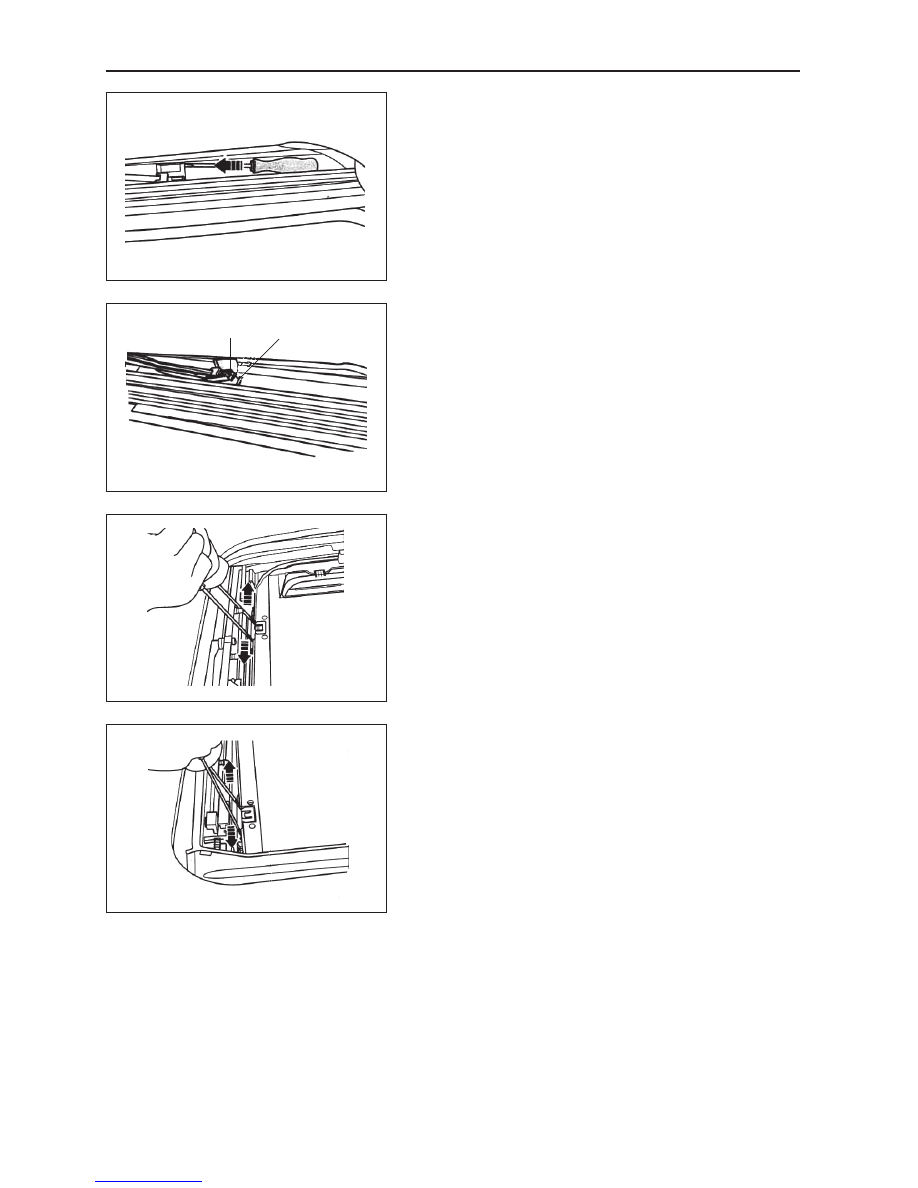

Wind deflector removal and installation

1.  Remove the wind deflector.

(a)  Completely open the sunroof.

(b)  Pry the wind guard mounting bracket on the left and

right side guide rails out with a small screwdriver
(according to direction indicated by the arrow).

(c)



Pull out the wind deflector.

2.  Install the wind deflector.

The locating seat of the wind deflector mounting bracket

should wedge into the location slot of the sunroof assembly

guide rail.

Movable sun visor removal

Precondition: The sunroof panel has been removed and the

sunroof is in the closed position.

1.  Remove the sun visor.

Move the sun visor to the front position and then push it to

one side. Pry the front slider on the two sides of sun visor

out of the guide rail with a screwdriver. Then move the sun

visor forward, push it to one side, and pry the rear slider on

the two sides of sun visor out of guide rail with a screw-

driver. Finally, pull out the sun visor.

2.  Install the sun visor.

Place the sun visor into the sunroof opening. Install the rear

slider on the two sides of sun visor into the guide rail. Move

the rear movable sun visor backward. Install the front slider

on the two sides of the sun visor into the guide rail.
Caution: Once the mounting bolts of the drive device

have been removed, they must be replaced with new

ones. Adjust the sunroof drive device's position (initial

position).

If the following circumstances happen, the initial position of

the sunroof drive device must be adjusted:

(a)  A new drive device has been installed.

(b)  The drive device was removed when it was not on the

initial position.

(c)  Open or close the sunroof with an emergency operation

wrench.

Location slot

Bracket locating seat

273

Vehicle Body

Adjust the initial position of drive device

Precondition:

(a)  Remove the drive device, but leave the electric plug-in

connected.

(b)  The sunroof is on the initial position. Sunroof panel has

been installed correctly.

Caution: The  gear  of  drive  device  cannot  contact

anything while adjusting.

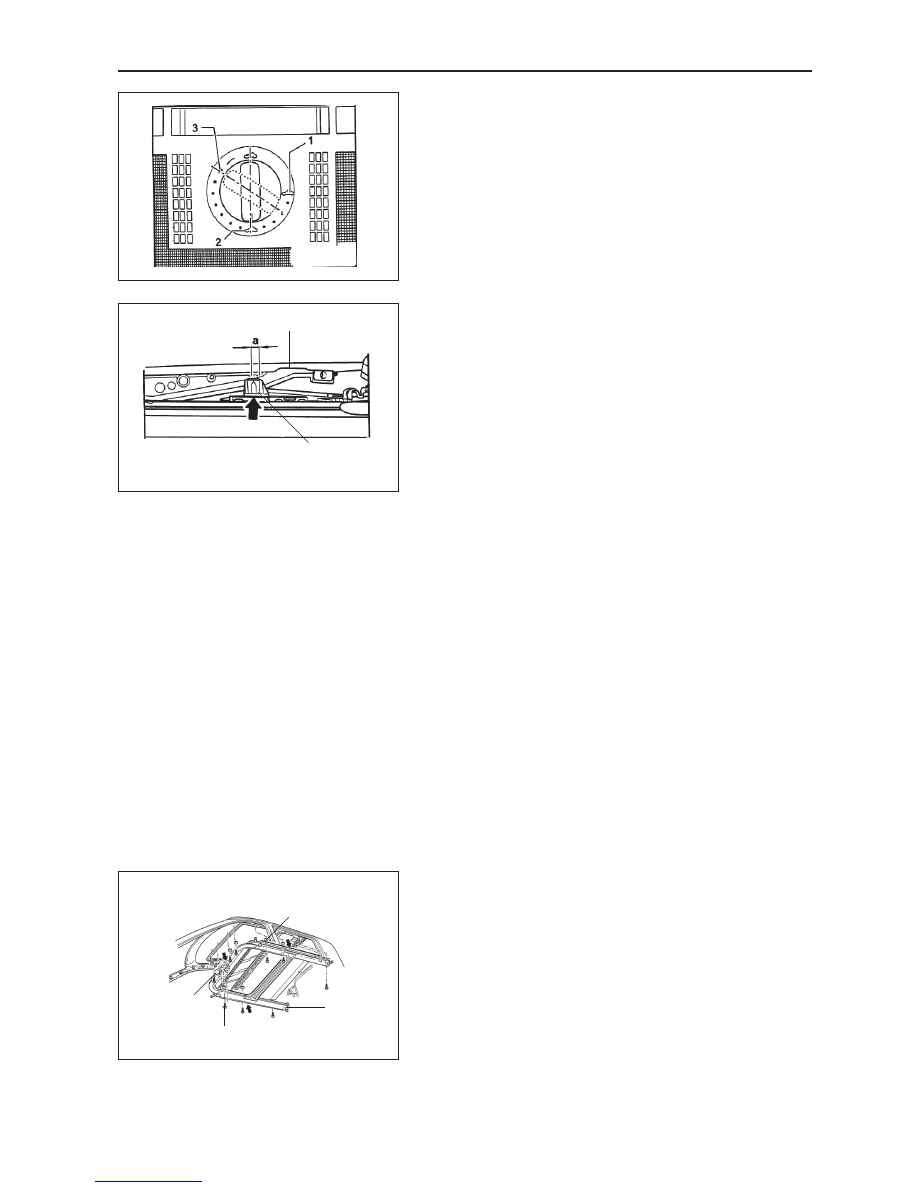

1.  Select the "Tilt Sunroof" function (position 1) with the

rotary switch.

2.  Select the "Close Sunroof" function (position 2) with the

rotary switch.

3.  Select the "Open Sunroof" function (position 3) with the

rotary switch.

4.  Select the "Close Sunroof" function (position 2) with the

rotary switch.

5.  Mark "1" is shown on the observation panel.

6.  The drive device is on the initial position.

Parallel operation condition examination

1.  The mark (indicated by the arrow) above the rear guide

device on the window panel's two sides must be level

with the "a" mark on the air guide plate.

2.  The air guide plate must be installed in the guide rail

(cannot be manually moved).

Adjust the parallel operation condition

Instructions: Only when the sunroof is on the initial position,

and the drive device and window panel are removed, can the

parallel operation conditions be adjusted.

1.  The mark (indicated by the arrow) above the rear guide

device on the window panel's two sides must be level

with the "a" mark on the air guide plate.

2.  The air guide plate must be installed in the guide rail

(cannot be manually moved).

3.  From the front, slide the top of the guide device and

position it between the two symbols.

4.  Position.

Mount the drive device at this position (initial position) and

then examine the initial position.

Sunroof assembly installation

1.  Install the sunroof assembly into the ceiling opening

with the help of an assistant.

2.  The three dowel pins ("B" position on the diagram)

must be placed in the location holes.

3.  Check the condition of the circuit connection.
4.  Install the bolts.

Tighten them successively from the left and right side to the

rear part of the sunroof drive device. Tightening torque for
all is 8 N·m.

5.  Install the outlet pipe.
6.  Insert the drive device plug.

Air guide plate

Guide device

Sunroof

assembly

Plastic gasket

Mounting bolt
