GWFLORID Maintenance Manual

238

5.  Install the rear door lock assembly.

Install the assembled assembly, tighten the lock mounting

screws (pay attention to put the outwardly open swing arm

lever clip of the lock onto the outer opened fork of the out-

side handle framework), and then insert the wire harness

plug-in into the door lock socket.

6.  Install the cable buckle.

7.  Install the inside handle.

Clamp the inside handle clip to the door inner decoration

board, and then firmly press the inside handle clip dowel pin

into the mounting hole.

8.  Install the rear door outside handle decorative cap, and

tighten the decorative cap mounting bolt.

9.  Install the inside handle screw.

When the door cylinder panel assembly is installed, tighten

the inside handle's mounting screw.

10. Install the rear door lock latch.

11. For rear door lock removal, please simply reverse the

installation steps.

Door lock fork

Inside handle dowel pin

Inside handle clip

Mounting screw

Door lock inside handle

Rear door lock latch

Q2580822

239

Vehicle Body

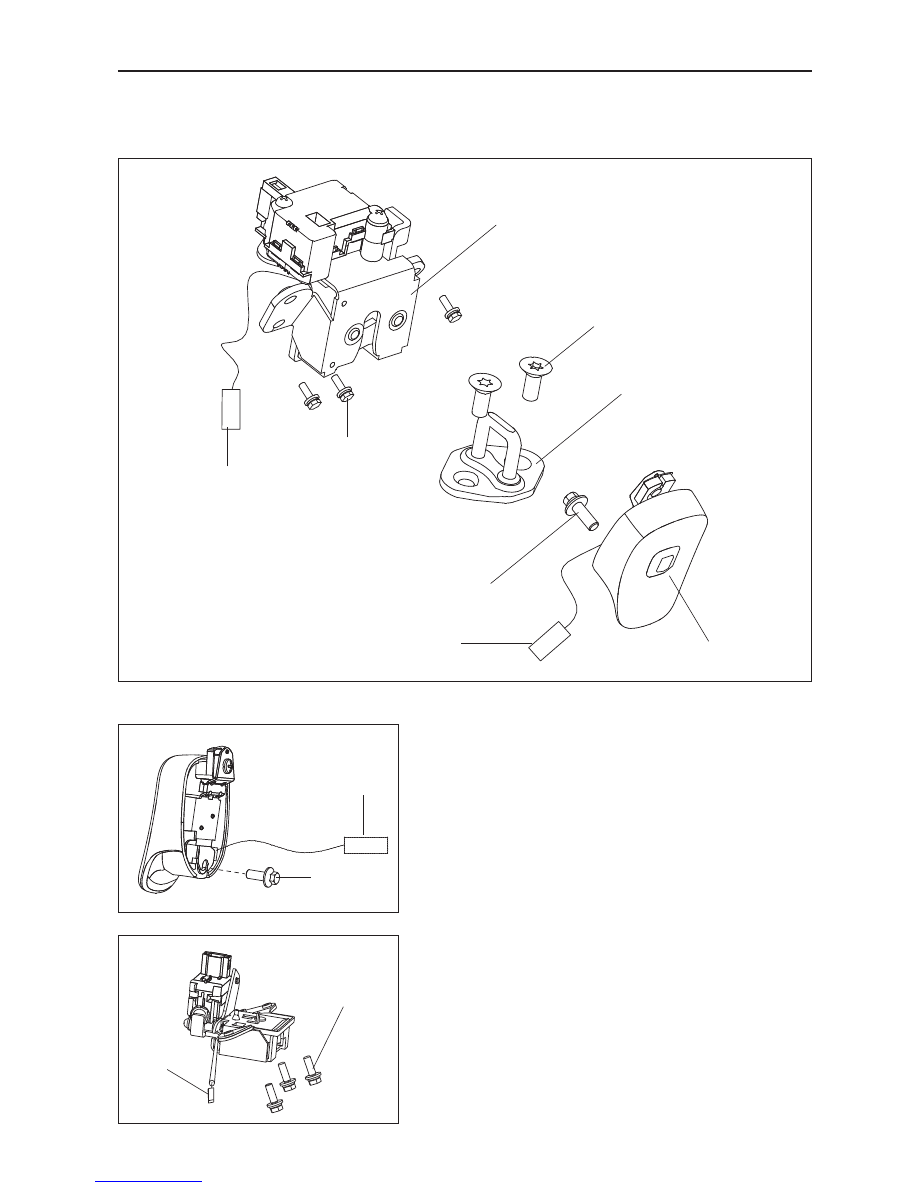

Trunk door lock installation and removal

1.  Install the trunk door outside handle.

Install the trunk door outside handle assembly, tighten the

mounting screw, and install the wire harness plug-in.

Trunk Door Lock Assembly

Components

2.  Install the trunk door main lock assembly.

Install the trunk door main lock assembly, and tighten the

mounting screw.

3.  Install the trunk lock latch.

4.  For trunk lock removal, please simply reverse the

installation steps.

Trunk door lock assembly

Q1460620 (Q402) F3

Trunk door lock latch

Q2580820 + Q141F32

Q1840616F3

Trunk door outside handle assembly

Connect the central door lock controller

Connect the door lamp indicator

Q1460620 (Q402) F3

Connect the door

lamp indicator

Connect the central door

lock controller

Q1840616F3

GWFLORID Maintenance Manual

240

Wiper arm and vent panel removal and in-
stallation

1.  Remove the bolt cover of the wiper arm.

2.  Remove the retaining bolt of the wiper arm.

3.  Wobble the wiper arm to remove it.

Wiper Arm and Vent Panel Assembly

Components

4.  Take off the rear weatherstrip of the engine hood from

the vent panel.

5.  Remove the screws from the two ends of vent panel.

6.  Remove the expansion button in the middle of the right

and left vent panels.

7.  For wiper arm and vent panel Installation, please simply

reverse the removal steps.

Right wiper arm

Left wiper arm

Wiper arm bolt cover

Wiper arm bolt

Left vent panel

Right vent panel

Engine hood rear weatherstrip

Screw

Screw

Wiper arm bolt cover

Wiper arm bolt

Wiper arm

Engine hood rear

weatherstrip

Vent panel expansion button

Screw

241

Vehicle Body

Front & Rear Window Glasses

Windshield removal

1.  Use steel wire to strip the glass sealant from the four

sides of the windshield.

2.  Remove the windshield and trim strip from the vehicle.

3.  Remove the trim strip and inner rearview mirror from

the windshield.

4.  Use a blade to remove the glass sealant on the end of

the glass.

5.  Use a polisher to remove the glass sealant on the glass

window frame, and polish clean the glass sealant.

Rear window glass removal

1.  Disconnect the battery's negative cable.

2.  Disconnect the defogger electrical connector of the

rear window.

3.  Use steel wire to strip the glass sealant off the rear

window glass.

4.  Remove the rear window glass.

5.  Use a blade to remove the glass sealant.

6.  Use a polisher to remove the glass sealant on the

glass frame.

Rear window glass installation

1.  Coat glass sealant primer on the rear door's sheet

metal seam and rear window glass.

2.  Coat the rear window glass with glass sealant, glass

sealant height is 10±2 mm.

3.  Install the rear window glass.

4.  Use adhesive tape fix the rear window glass and back

door, and fix the rear window  glass.

5.  Connect the defogger electrical connector of the rear

window.

6.  Connect battery's negative cable.

7.  Remove the tape after the glass sealant has been on

24 hours.

Windshield installation

1.  Install the trim strip and inner rearview mirror on the

windshield.

2.  Coat the windshield frame and its edge with primer.

3.  Use  a  glue  gun  to  coat  the  windshield  with  glass

sealant, glass sealant height is 10±2 mm.

4.  Use  adhesive  tape  fix  the  windshield  and  the

windshield's outside sheet metal.

5.  Remove the tape after the glass sealant has solidified

for 24 hours.

Windshield

Windshield trim strip

Inner rearview

mirror

Defogger electrical connector

Rear window glass
