Front Door Lock Assembly

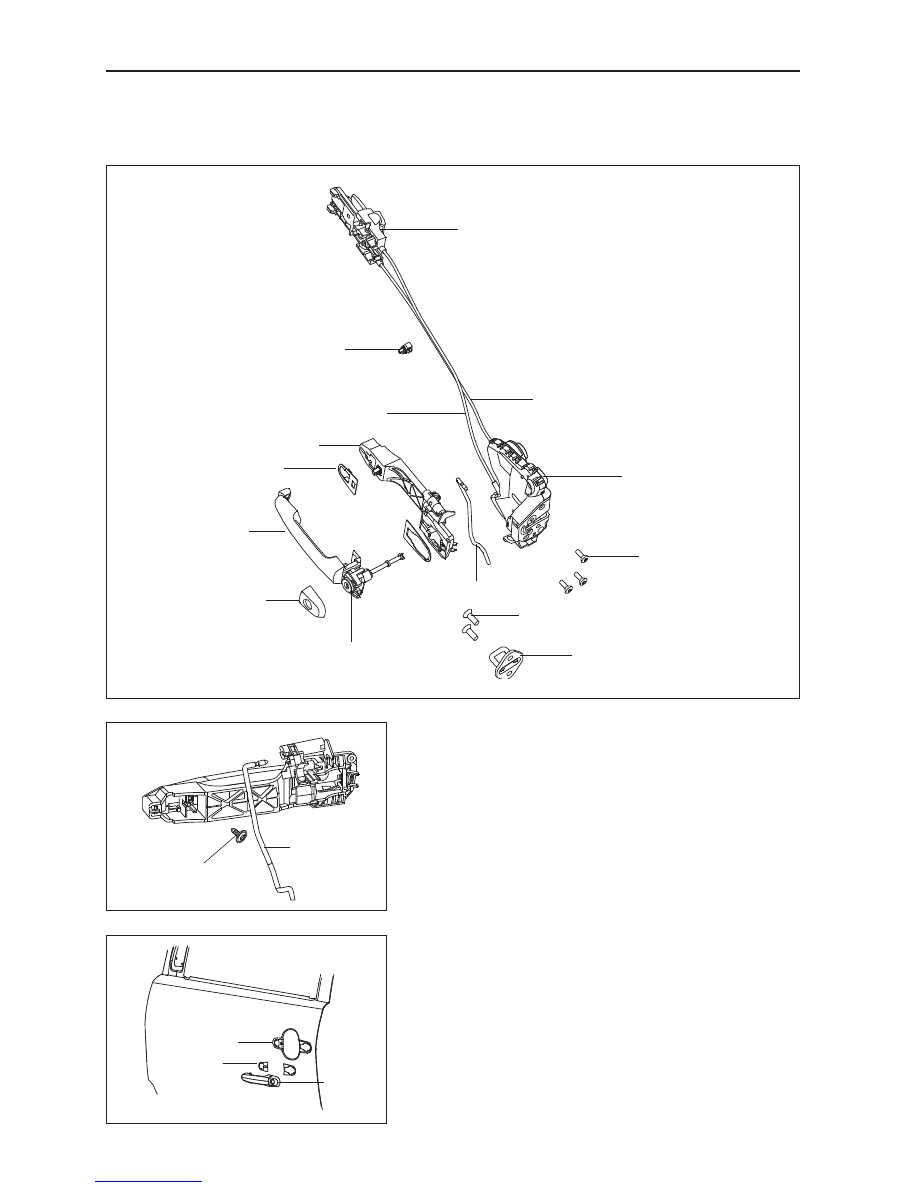

Components

Front door lock installation and removal

1.  Install the outside handle framework.

Install the door lock tie rod on the outside handle's framework,

install the outside handle framework, and tighten

the mounting screw.

2.  Install the gasket.

3.  Install the outside handle of the front door on the out-

side handle framework.

Inside handle assembly

Front door lock assembly LH

Lock mounting screw

Gasket

Front door locking cable installing buckle

Front door unlock cable

Front door lock cable

Front door lock latch

Front door lock cylinder assembly LH

Lock cylinder decorative cap

Front door outside handle

Gasket

Front door outside handle framework

Front door tie rod assembly

Q2580820 + Q141F32

Framework mounting screw

Door lock tie rod

Front

door

outside

handle

Gasket

mounting hole

235

Vehicle Body



4.  Separate installation for the front door lock assembly.

Separately install the front door lock, lock cable, unlock

cable, cable installing buckle, and side door inside handle

assembly. On the left is the schematic diagram after installa-

tion.

7.  Install the inside handle.

Clamp the inside handle clip to the door inner decoration

board, and then firmly press the inside handle clip dowel pin

into the mounting hole.

8.  Install the front door lock cylinder.

Clip the decorative cap of the driver side door onto the lock

cylinder, install the lock cylinder into the lock hole, and then

tighten the lock cylinder’s mounting screw.

5.  Install the front door lock assembly.

Install the assembled assembly, tighten the lock mounting

screws (pay attention to put the outwardly opened tie rod in

and block the lock's outwardly opened swing arm lever clip

sheath), and insert the wire harness plug-in into door lock

socket.

6.  Install the cable buckle.

Install the buckle in the door inner decoration board, and put

the cable in the buckle.

9.  Install the door lock inside handle screws.

When the door cylinder panel assembly is installed, tighten

the inside handle's mounting screw.

Door lock socket

Inside handle dowel pin

Inside handle clip

Lock cylinder

decorative cap

Lock cylinder

Mounting screw

Mounting screw

Door lock inside handle

GWFLORID Maintenance Manual

236

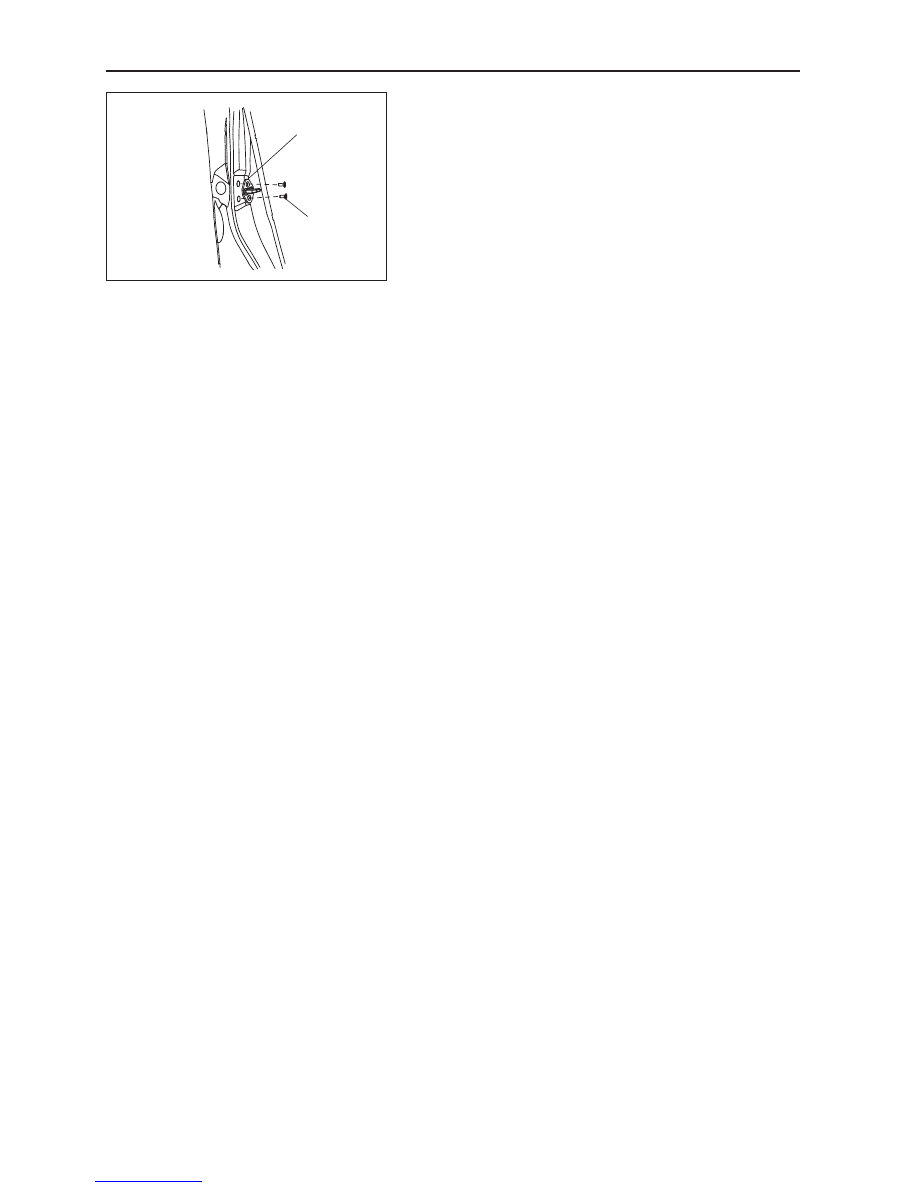

10. Install the door lock latch.

11. Front door lock removal.

For the removal, please simply reverse the installation steps.

Caution: The front door tie rod can be removed following

the outside handle framework. The front door tie rod

can be removed after the removal of the outside handle

framework.

Door lock latch

Q2580820 + Q141F32

237

Vehicle Body

Rear door lock installation and removal

1.  Install the outside handle framework, and tighten the

framework mounting screw.

Rear Door Lock Assembly

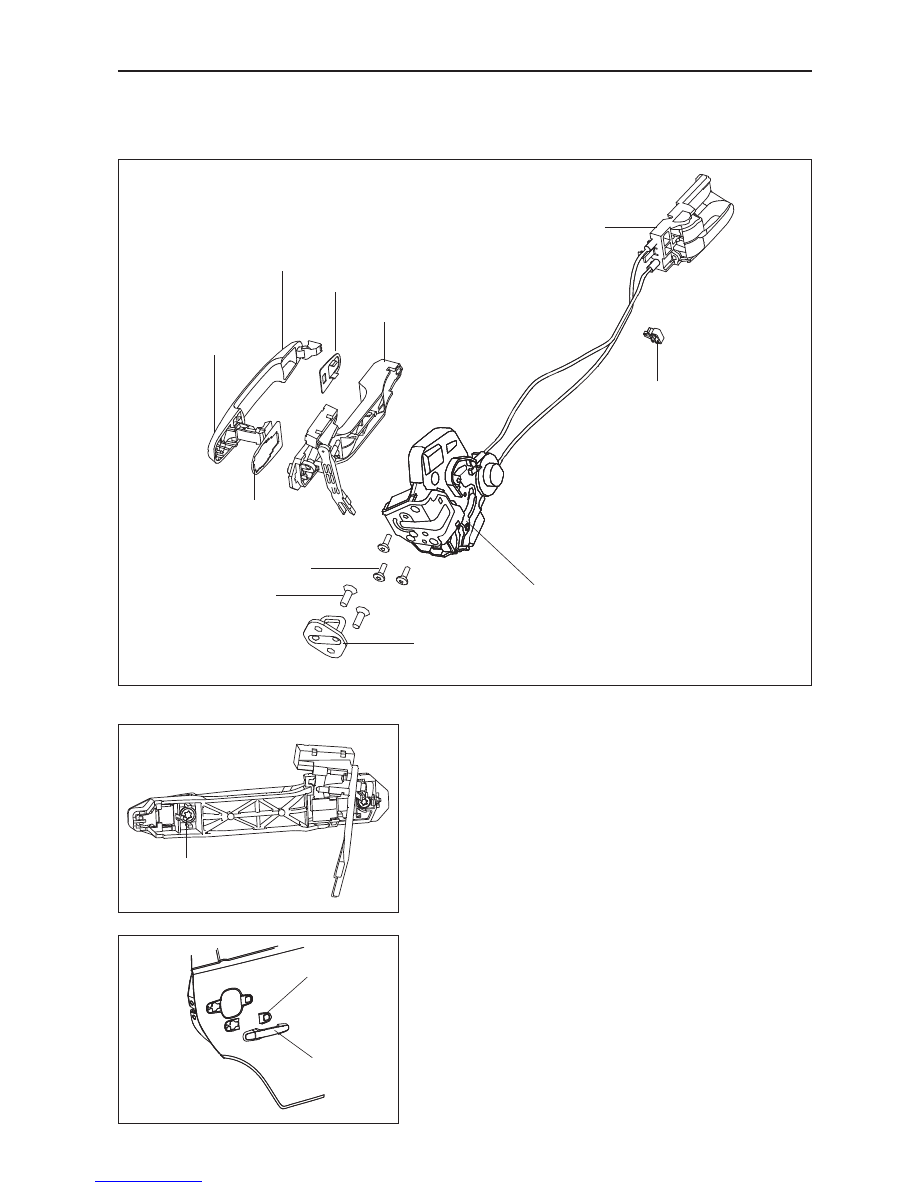

Components

2.  Install the gasket.

Put  the  gasket  onto  the  mounting  hole  (similar  to  the

installation for the front door).

3.  Install the rear door outside handle on the outside han-

dle framework.

4.  Separate installation for the rear door lock assembly.

Separately install the rear door lock, lock cable, unlock

cable, cable installing buckle, and rear door inside handle as-

sembly (similar to the installation for the front door).

Rear door outside handle

Rear door lock latch

Rear door lock cable

installing buckle

Rear door lock assembly LH

Lock mounting screw

Rear door inside handle assembly LH

Rear door handle

decorative cap

Rear door outside handle framework LH

Rear door outside handle gasket

Rear door outside

handle gasket 2

Q2580816

Framework mounting screw

Gasket

Rear door

outside handle
