Great Wall Florid. Manual - part 12





GWFLORID Maintenance Manual

46

Troubleshooting

Common problems

Possible causes

Solving methods

Difficult gear
engagement

Not applying clutch

Use correct driving methods

Insufficient clutch separation

Inspection & adjustment

Serious abrasion of the synchronizer ring Replace component
Positioning spring is too hard

Replace component

Noise is too loud or
abnormal

Oil level is too low

Fill oil to the specified level

Lubricant is of poor quality

Replace the specified oil

Untimely oil changes

Replace oil and damaged part

Improper gear axial position and clearance Inspect and adjust

Damaged bearing

Replace component

Gear has a burr or has been knocked

Repair or replace gear

Oil leakage

Too much oil is added, oil level too high. Fill the oil level to the specified position.

Bolt loose or missing

Reassemble and screw in according to regu-

lations.

Breather plug fails

Replace

Damaged seal

Replace

Synchronizer is damaged Excessive gear shifting force

Replace synchronizer

Not applying clutch

Use correct driving methods

Synchronizer's spring expan-

sion ring is damaged

Replace

Gear disengagement

Control mechanism malfunction

Inspect and adjust

Retaining spring or steel ball missing

Additional assembly

Retaining spring malfunction

Replace

Fork groove of the gear sleeve is worn out Replace
Shifting fork is worn out.

Replace

Bearing and gear are burnt Oil level is too low

Replace part and fill oil

Lubricant is of poor quality.

Replace part and lubricant

Untimely oil replacement causes

the oil to be too dirty

Replace part and lubricant

Mixed use of different oils

or use of additives

Replace part and lubricant

Difficulty shifting gears Synchronizer spring malfunction

Replace

The internal groove of the syn-

chronizer ring is worn out

Replace

The synchronizer ring is seized

into the conical surface

Replace

Deformed shifting fork or

shifting fork shaft

Replace

Shifting fork is worn out

Replace

47

Transmission

1. No. 2 gear sleeve 2. Shaft retainer 3. No. 2 Slider (3) 4. Spring expansion ring (2) 5. No. 2 gear hub 6. 3rd gear synchronizer ring

7. 3rd gear gear assembly 8. Needle bearing 9. With washer bolt 10. Clutch slave cylinder subassembly 11. Release fork protective

cover 12. Release fork spring 13. Bolt for flange face (3) 14. Release fork  15. Clutch housing 16. Release fork support nail 17. Ball

bearing 18. 2nd gear synchronizer ring 19. T oil seal 20. No. 1 gear sleeve 21. No. 1 Slider 22. 1st gear synchronizer ring 23. 1st gear

gear components 24. Needle bearing 25. Release bearing subassembly 26. Tapered roller bearing 27. Guide nozzle 28. 2nd gear gear

assembly 29. No. 1 gear hub 30. Spring expansion ring (2) 31. Bolt for flange face (6) 32. Straight pin 33. Odometer driver 34. T oil

seal 35. Tapered roller bearing 36. Adjusting shim (2) 37. Axle shaft gear (2) 38. Planetary gear (2) 39. Gasket (2) 40. Differential

case 41. Planetary gear shaft 42. Differential ring gear 43. Bolt for flange face (8) 44. Tapered roller bearing 45. Adjusting shim 46.

T oil seal 47. Shaft retainer 48. Retaining ring 49. Needle bearing 50. 3rd driven gear 51. Spacer  52. 4th driven gear 53. 5th driven

gear 54. Shaft retainers 55. Tapered roller bearing 56. Adjusting shim 57. Output shaft 58. 5th gear gear assembly 59. Shaft retainer

60. Retaining ring 61. Spring expansion ring (2) 62. Needle bearing 63. Input shaft 64. Adjusting shim 65. Ball bearing 66. 3rd gear

gear hub 67. 3rd gear Slider (3) 68. 3rd gear gear sleeve 69. 5th gear synchronizer ring 70. Steel ball 71. 5th gear thrust washer 72.

Needle bearing 73. 4th gear components 74. Retaining ring 75. 4th gear synchronizer ring 76. Transmission case

037A Transmission Structural Schematics

1

2

3

4

5

6

7

9

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

59

56

57

58

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

GWFLORID Maintenance Manual

48

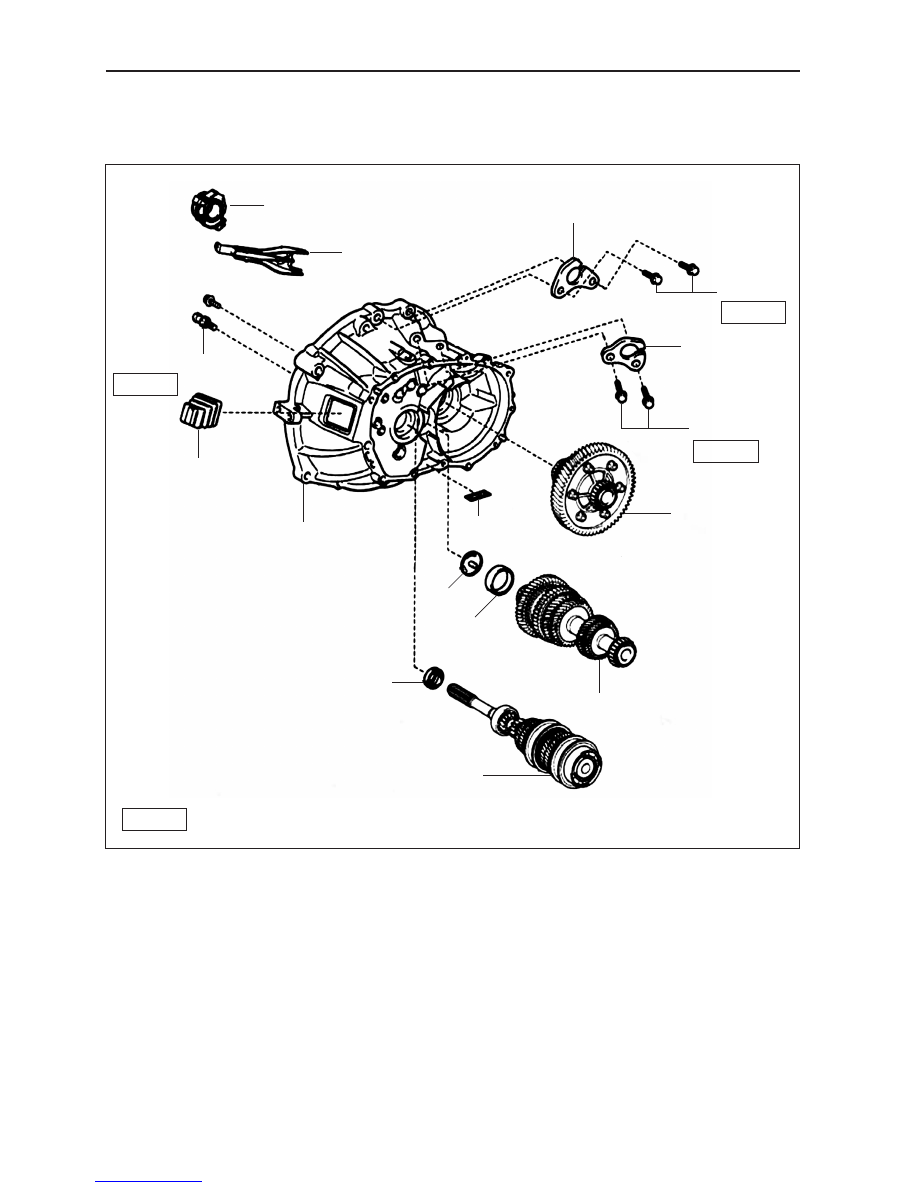

Clutch

Components

Release bearing

Release fork

Cable bracket

Bolts with washer

Bolts with

washer

Magnetic body

Differential assembly

Output shaft assembly

Input shaft assembly

T oil seal

Tapered roller

bearings

Guide nozzle

Clutch housing

Release fork dust cover

Cable bracket

×5

Release fork support nail

29.4

11.3

11.3

: Specified torque

N·m

49

Transmission

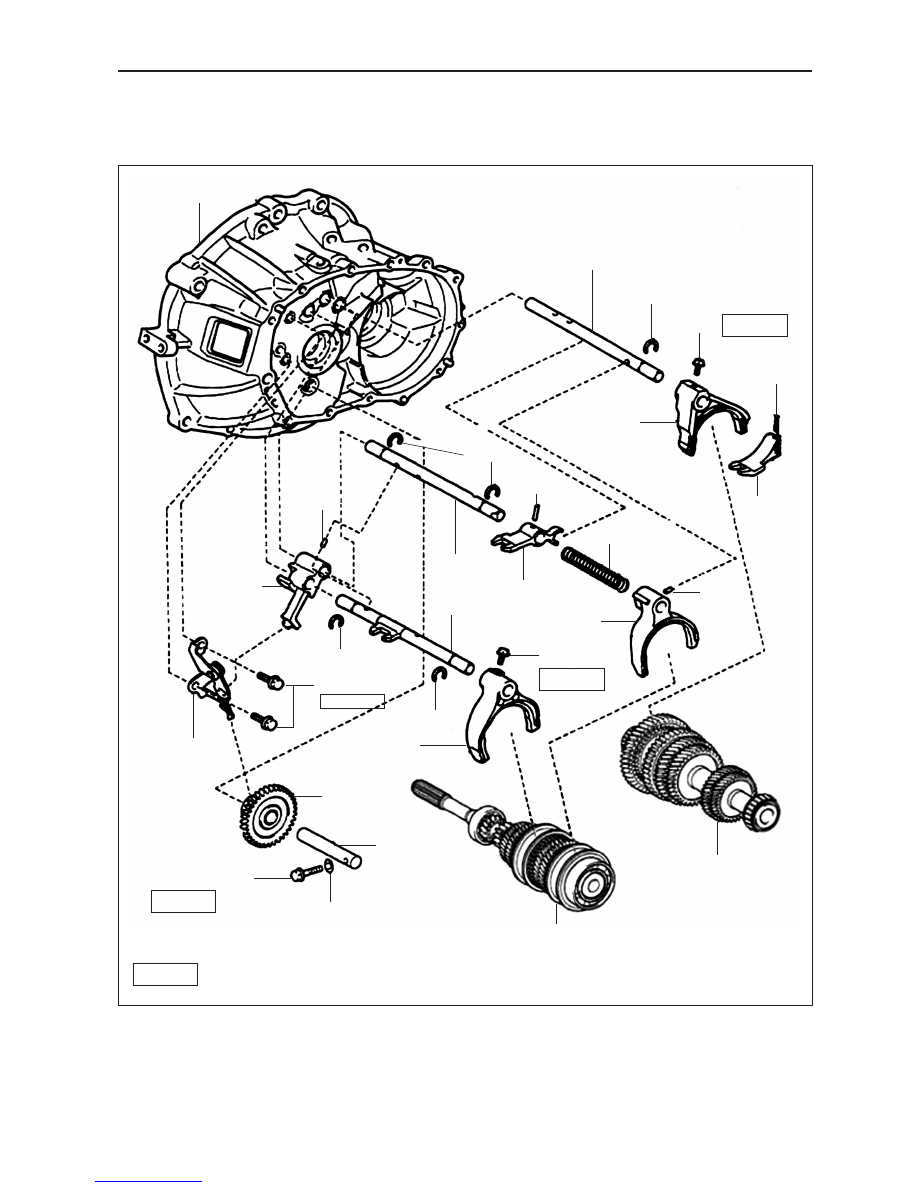

Gear Shift Fork and Fork Shaft

Components

Clutch housing

No. 1 gear shift fork shaft

Shaft retainers

Set bolt

Elastic

cylindrical pin

No. 1 gear shift fork

Elastic

cylindrical pin

No. 1

guide block

Lock pin

Pressure spring

Shaft

retainers

Lock pin

No. 3 gear shift

fork shaft

No. 2 gear shift fork shaft

No. 3 guide block

No. 3 gear shift fork

Set bolt

Output shaft assembly

Input shaft assembly

Gasket

Reverse gear

idler shaft

Reverse gear

idler assembly

No. 2 gear shift fork

Bracket bolt

Reverse gear arm

bracket assembly

Reverse gear

gear shift fork

Shaft retainers

Shaft retainers

15.7

15.7

Bolt for flange face

29.4

17.2

: Specified torque

N·m
