GWFLORID Maintenance Manual

38

Clutch Operational System

Components

Clutch Master Cylinder Removal

1.  Use a combination plier to loosen the steel band elastic

hoop, and to remove the clutch feed connecting hose.



Caution: Release the brake fluid in the reservoir before

disconnecting the hose.

Steel band elastic hoop

Clutch feed connecting hose

Reservoir

Steel band elastic hoop

Clutch feed connecting hose

Clutch discharge pipe

Clutch master cylinder

Limit adjusting bolt

Return spring

Lock nut

39

Clutch Operational System

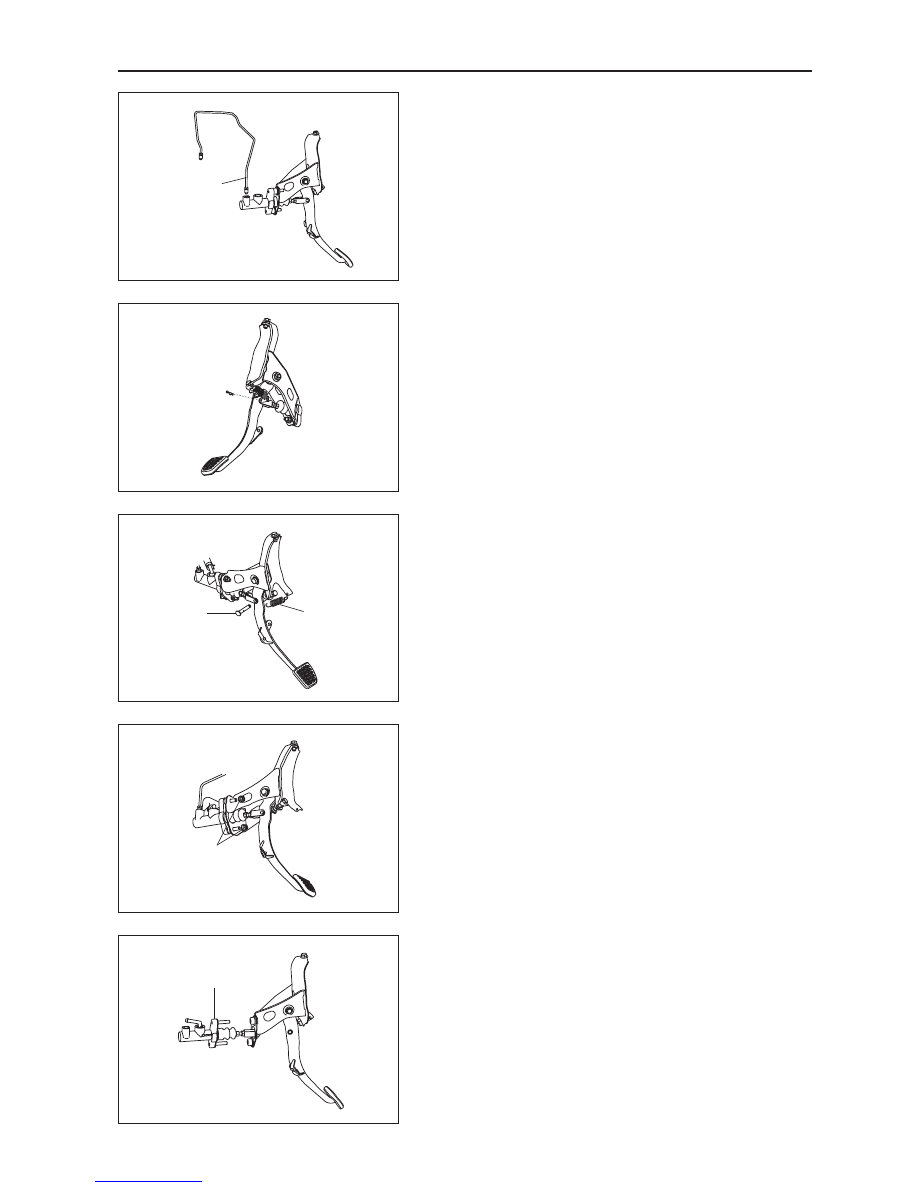

2.  Remove the driven clutch discharge pipe with a M10

open-end wrench.

3.  Remove the pedal lock pin.

4.  Remove the return spring and the connecting pin.

5.  Remove the lock nuts of the clutch pedal with a M13

sleeve and an extension bar.

6.  Remove the clutch master cylinder.

Clutch  discharge pipe

Pedal lock pin

Return spring

Connecting pin

Lock nut

Clutch master cylinder

GWFLORID Maintenance Manual

40

Clutch Master Cylinder Installation

Installation of clutch system is reverse to its removal, but

since the whole clutch system uses hydraulic assistance,

make sure to air bleed it after the installation is completed.

Detailed steps as follows:

(a)  Plug one end of the long transparent connection hose

(about 0.5 m long) into the bottom of bleed screw, and

the other end into a fixed container.

(b)  Loosen the bleed screw via the open end of the M8,

meanwhile ask the assistant to step on the clutch pedal

repeatedly until no air bubbles can be seen in the hose.

Remark:  Residual  air  in  the  clutch  system  has  been

completely exhausted.

(c)  Lastly, lock the bleed screw.

Caution: Refilling the brake fluid reservoir should be

performed while air bleeding the clutch.

Clutch Pedal Removal

1.  Remove the battery's negative cable.

2.  Remove the glove box at the left of the dashboard.

3.  Remove  the  cotter  pin  at  the  U-joint  of  the  clutch

master cylinder, and separate the center pin and the

pedal lever.

4.  Remove the clutch pedal bracket from the cowl.

5.  Remove the clutch pedal.

(a)  Move the clutch pedal to the maximum stroke position.

(b)  Take down the return spring.

(c)  Remove the bolts and nuts.

(d)  Take the pedal lever down from the pedal bracket.

Clutch Pedal Installation

1.  Install the clutch pedal.

(a)  Install the return spring.

(b)  Install the clutch pedal lever.

(c)  Install the bolts and nuts.

Tightening torque: 30 N·m

(d)  Put the pedal lever at the maximum stroke position and

connect it with the spring, in order to set the pedal to its

initial position.

2.  Install the clutch pedal onto the 2 studs of the clutch

master cylinder.

Use a M13 wrench to tighten the clutch pedal brackets with

two M8 nuts.

Tightening torque: 23±3 N·m

3.  Install the clutch master cylinder push rod with the U-

joint.

(a)  Coat the contact areas between the center pin and the

U-joint pedal connector with multi-functional grease.

(b)  In succession, join the U-joint (pedal connector) and

the clutch pedal lever with a cotter pin.

Caution: Insert the center pin into the pedal lever from

the left side of vehicle.

(c)  Install the cotter pin onto the center pin.

4.  Check and adjust the clutch pedal.

5.  Connect the negative cable of the battery.

Bleed screw

41

Clutch Operational System

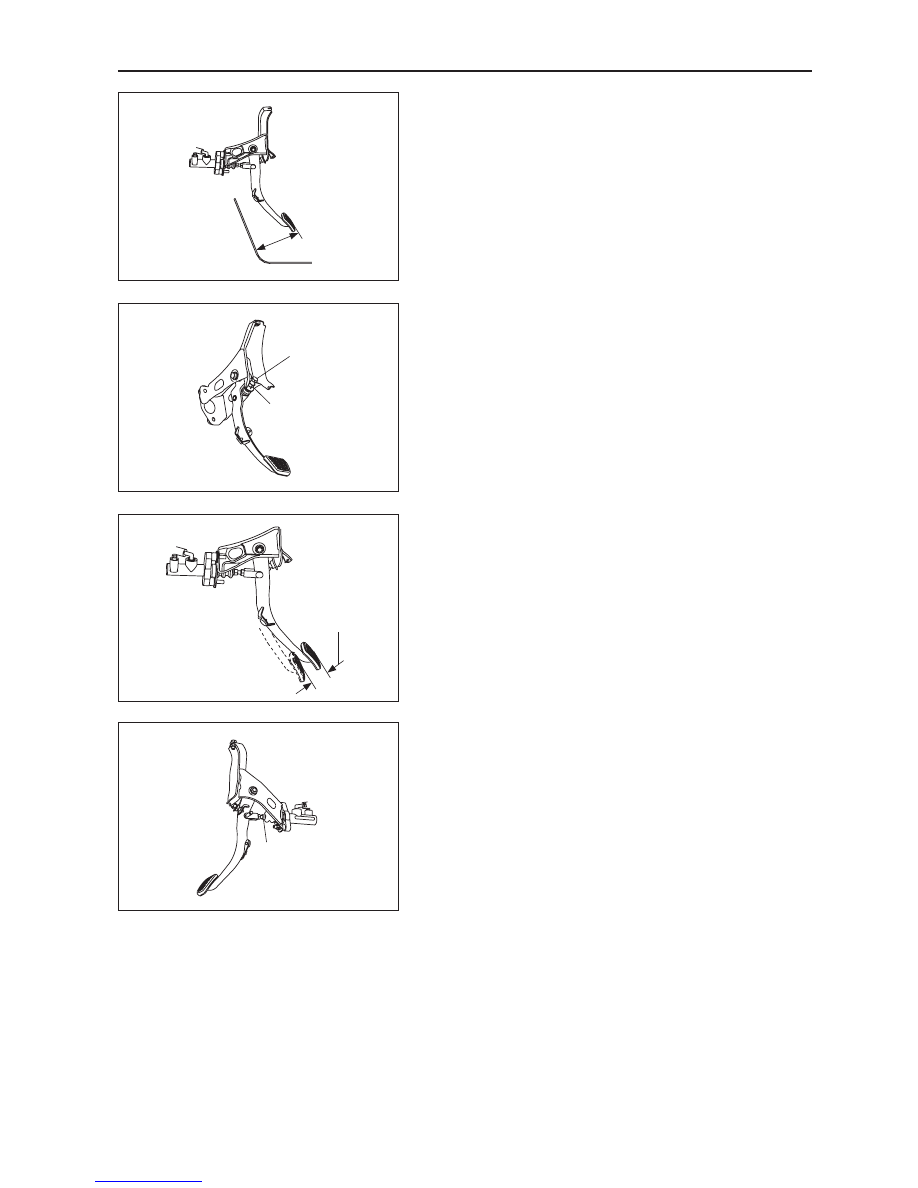

Clutch Pedal Examination and Adjustment

1.  Check if the pedal height is correct.

Height from the carpet: 100-110 mm

2.  Adjust the pedal height.

Loosen the lock nut and adjust the clutch pedal limit adjust-

ing bolt until its height is correct, and then tighten the lock

nut.

Tightening torque: 20 N·m

3.  Check if the pedal free play is correct.

Step on the pedal until one can feel the resistance.

Pedal free play: 13.7 mm

4.  Adjust the free play.

(a)  Loosen the lock nuts of the clutch master cylinder and

rotate the push rod until the pedal reaches the correct

free play.

(b)  Tighten the lock nuts.

Tightening torque: 20 N·m

(c)  Recheck the clutch pedal height.

Pedal height

Lock nut

Limit adjusting bolt

Lock nut

Free play
